Appareo 608065-000034 User manual

This document and the information
contained herein are the property of
Appareo Systems, LLC and are
confidential. They may not be disseminated
or redistributed without the written
permission of Appareo Systems, LLC
APPAREO SYSTEMS, LLC
FARGO, NORTH DAKOTA 58102
Gateway Installation Manual
DOCUMENT NUMBER
600840-000045
Document Type
Manual
Last Revised
May 16, 2023
REV
2.2
Sheet
1 of 11
600840-000045
Gateway Installation Manual
Models: 608065-000034, 608065-000040, 608065-000043, 240433

Gateway Installation Manual
600840-000045, rev. 2.2 Page 2 of 11
Record of Revisions
Revision
Number
Change Description
Effective
Date
Inserted By
1.0
Initial draft
12/4/18
Lee Hinsz
1.1
Addition of model 608065-000040
4/2/20
Lee Hinsz
1.2
Added ANATEL notification
7/27/21
AAL
1.3
Added model 608065-000043
8/19/21
GJG
2.0
General clean up, added Gateway 100, added
additional cert approvals
9/29/22
AAL
2.1
Added NCC warning statement and RATEL
approval
1/04/23
AAL
2.2
Updated System Overview table, Parts List notes
5/16/23
AAL

Gateway Installation Manual
600840-000045, rev. 2.2 Page 3 of 11
Table of Contents
1. System Overview..................................................................................................................4
2. General Information...............................................................................................................5
2.1. Special Tools Required .............................................................................................5
2.2. Hardware Components Background..........................................................................5
3. Installation.............................................................................................................................6
3.1. Parts List For Installation...........................................................................................6
3.2. Installation Instructions..............................................................................................7
4. Regulatory Information..........................................................................................................9
4.1. Federal Communications Commission Notification to User........................................9
4.2. Industry Canada Notifications to User .......................................................................9
4.3. Anatel Notification to User.......................................................................................10
4.4. South Africa Type Approval.....................................................................................10
4.5. Uzbekistan Approval................................................................................................10
4.6. Argentina Approval..................................................................................................11
4.7. NCC Warning Statement.........................................................................................11
4.8. RATEL Approval......................................................................................................11

Gateway Installation Manual
600840-000045, rev. 2.2 Page 4 of 11
1. SYSTEM OVERVIEW
Gateways are embedded computers that provide interfacing capability among a variety of wired and wireless networks. Refer to the
table below for the specifications of each gateway.
Name
Model
Cellular
Wi-Fi
GPS
433
MHz
Radio
Satcom
Module
CAN
RS232
Broad R
Reach
Gateway
100
240433
x
x
x
x
Gateway
260
608065-
000034
(Middle
Specification)
x
x
x
x
x
x
Gateway
270
608065-
000043
(Middle
Specification)
x
x
x
x
x
x
Gateway
360
608065-
000034 (High
Specification)
x
x
x
x
x
x
x
x
Gateway
370
608065-
000040 (High
Specification)
x
x
x
x
x
x
x
x

Gateway Installation Manual
600840-000045, rev. 2.2 Page 5 of 11
2. GENERAL INFORMATION
2.1. SPECIAL TOOLS REQUIRED
•SAE standard and/or metric wrenches, sockets, and screw drivers
•Torque wrench (in-lbs)
2.2. HARDWARE COMPONENTS BACKGROUND
2.2.1. Electrical Characteristics
Product Rating: DC 12.0V/ 1A
2.2.2. Weight and Balance Information
The total weight of the gateway and antennas is listed below.
Table 1 Weight and Balance Information
Component
Weight (oz)
Weight (lbs)
Gateway
70.544
4.409
4G Cell –433 MHz –WLAN Antenna
(HCEL-S2-0164A-01)
26.624
1.664
Iridium –GNSS –4G Cell Antenna
(HIRD-S2-0146A-01)
26.624
1.664
2.2.3. Equipment Dimensions
Equipment dimensions are outlined in the table below for all required components in gateway
installations. All figures given are representative of maximum equipment dimensions (where
applicable).
Table 2 Equipment Dimensions
Component
Length
(mm)
Width
(mm)
Height
(mm)
Gateway
165
159
54
4G Cell –433 MHz –WLAN Antenna
(HCEL-S2-0164A-01)
124.3
80.3
80.3
Iridium –GNSS –4G Cell Antenna
(HIRD-S2-0146A-01)
124.3
80.3
80.3

Gateway Installation Manual
600840-000045, rev. 2.2 Page 6 of 11
2.2.4. Conditions for operation
IMPORTANT NOTICE!!!!
This device can be configured to transmit on the 433 MHz frequency following the requirements
of FCC Part 15.231(a-d). This requirement is that the transmission must be used as a control
signal. It can include data transmission as well, or not, but in all cases it must be a control
signal. Failure to adhere to this requirement voids the authority to operate the equipment.
3. INSTALLATION
With equipment installed, final configuration must meet the minimum separation distance in
Table 5 and Section 3.2.
3.1. PARTS LIST FOR INSTALLATION
The following parts are required for the installation of a gateway.
Table 3 Parts List for Installation
Parts List for Installation
Item
Nomenclature
Part Number
QTY
1
Gateway*
153510-000124 (MS)
1
153510-000125 (MS)
153510-000126 (HS)
153510-000127 (HS)
153510-000159 (MS)
153510-000160 (HS)
153510-000162
2
4G Cell –433
MHz –WLAN
Antenna
252005-0000010 (HCEL-S2-0164A-00_Rev0 4G CELL-433MHz-
WLAN)
1
3
Iridium –GNSS
–4G Cell
Antenna
252005-000009 (HIRD-S2-0146A-0_RevA Iridium-GNSS-4G)
1
*Only select one gateway part number to be utilized for installation.
(MS) = Middle Specification gateways only contain cellular, WIFI, and GPS modules. Please terminate unused antennas.
(HS) = High Specification gateways contain cellular, WIFI, GPS, Satellite Communications, 433 Radio Modules.

Gateway Installation Manual
600840-000045, rev. 2.2 Page 7 of 11
3.2. INSTALLATION INSTRUCTIONS
Install the gateway and antennas using the following steps:
1. Find an installation location for the gateway that meets these specifications:
REQUIRED:
•Meets the spacing requirements in Table 4.
•Connectors point downward or sideways/horizontal (not up).
•Avoid areas of moving parts or debris. For example, don’t mount it on the bottom of a
frame that may be covered in mud or brush against crop/brush underneath.
•Avoid high temperature areas such as engine bays, near exhaust systems, or on
hydraulic manifolds.
•Supports the preferred antenna locations in Step 2 (due to antenna cable length).
RECOMMENDED:
•Connectors pointing downward.
•Do not mount directly next to other RF antennas (such as cell, radio, or Wi-Fi).
•Mount within line of sight of the operator to observe LED.
2. Find an installation location for the antennas that meet these specifications:
REQUIRED:
•Meets the spacing requirements in Table 4.
•Fins of the antennas are facing upward. The steel plate the antennas are mounted to
should be flat and be towards the bottom of the installation. Do not mount sideways
or upside down.
•Antennas have line of sight to connected devices and sky.
•Avoid mounting directly next to steel plates, tanks, or other structures. For example,
avoid mounting the antenna on the side wall of an air cart, spreader, or sprayer tank.
•Avoid mounting directly next to other RF antennas.
•Do not mount inside the cab.
•Do not run antenna cables alongside other electrical harnessing, especially high
power circuits.
RECOMMENDED:
•Mount GPS antenna as central on the machine as possible.
3. Mount the gateway enclosure to the cab with ¼” or 6-mm fasteners and a torque of 30
in-lbs.
4. Torque the antenna terminations to gateway RF SMA connectors with a torque spec of
8.5 +/- 2 in-lbs.

Gateway Installation Manual
600840-000045, rev. 2.2 Page 8 of 11

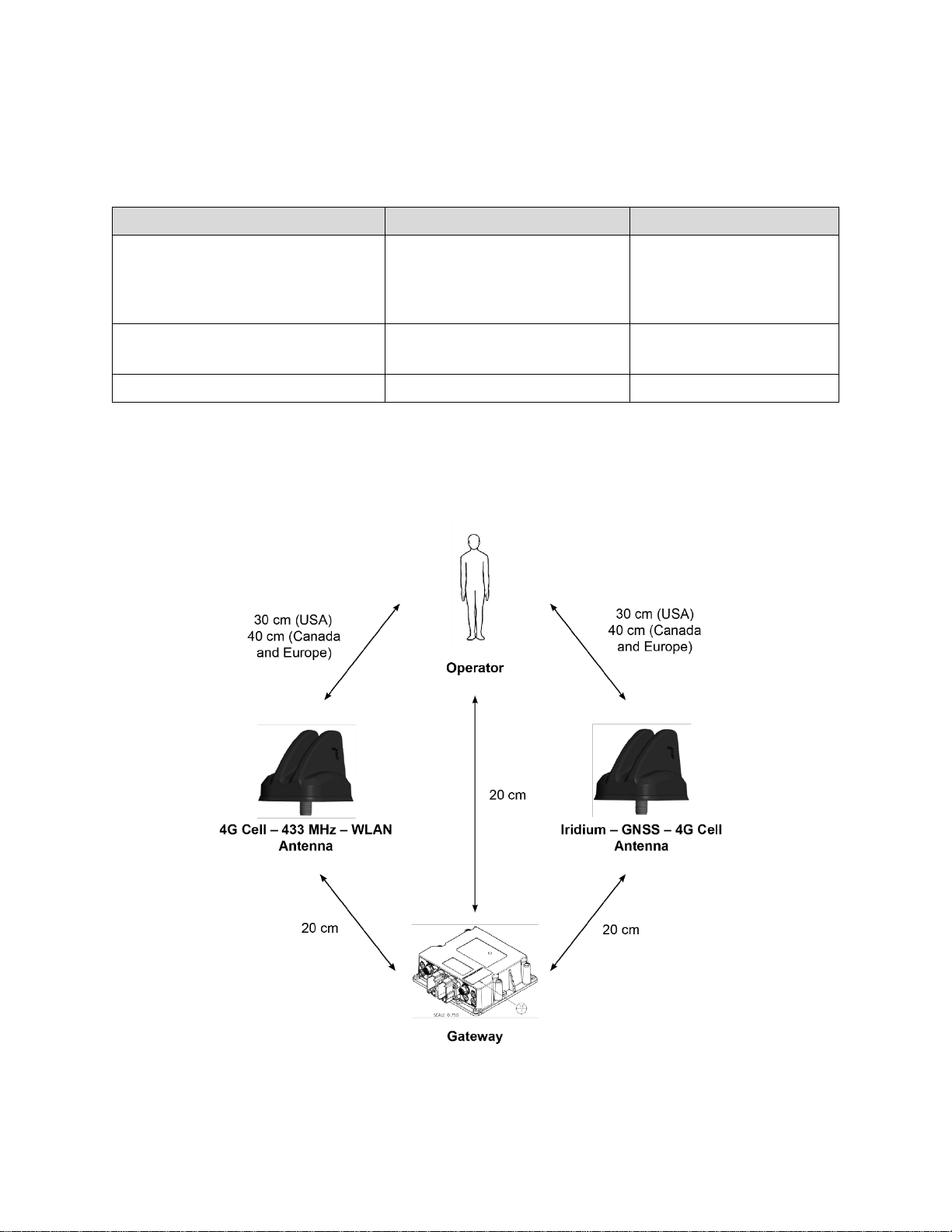

The gateway and antennas must follow the distances in the following table and illustration to
comply with FCC part 1.310 and ISED RSS-102.
Table 4 Separation Distance
Device
Distance from Operator
Distance from Gateway
4G Cell –433 MHz –WLAN
Antenna
(Recommended minimum spacing
between antennas is 7.5 cm)
30 cm (in USA)
40 cm (in Canada and Europe)
20 cm
Iridium –GNSS –4G Cell Antenna
30 cm (USA)
40 cm (in Canada and Europe)
20 cm
Gateway
20 cm
N/A
NOTE: Ensure the 4G Cell –433 MHz –WLAN antenna has a metallic ground place
of 300 x 300 mm for the mounting.
5. Torque the antenna mounting nut (M14x1) to 30 +/- 0.5 in-lbs.

Gateway Installation Manual
600840-000045, rev. 2.2 Page 9 of 11
4. REGULATORY INFORMATION
4.1. FEDERAL COMMUNICATIONS COMMISSION NOTIFICATION TO
USER
Models: 608065-000034, 608065-000040, 608065-000043, 240433
These devices comply with Part 15 of the Federal Communications Commission (FCC) Rules.
Operation is subject to the following two conditions: (1) These devices may not cause harmful
interference, and (2) these devices must accept any interference received, including
interference that may cause undesired operation.
These devices must be operated as supplied by Appareo Systems LLC. Any changes or
modifications made to these devices without the express written approval of Appareo Systems
LLC may void the user’s authority to operate these devices.
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference
at his own expense.
4.2. INDUSTRY CANADA NOTIFICATIONS TO USER
Models: 608065-000034, 608065-000040, 608065-000043, 240433
English
These devices comply with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired operation
of the device.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of
a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To
reduce potential radio interference to other users, the antenna type and its gain should be so
chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary
for successful communication.

Gateway Installation Manual
600840-000045, rev. 2.2 Page 10 of 11
French
Ces appareils sont conformes aux normes RSS sans licence d'Industrie Canada. Son
fonctionnement est soumis aux deux conditions suivantes: (1) cet appareil ne doit pas causer
d’interférences et (2) cet appareil doit accepter toute interférence, y compris les interférences
pouvant entraîner un fonctionnement non souhaité de l’appareil.
Selon les réglementations d'Industrie Canada, cet émetteur radio ne peut fonctionner qu'avec
une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie
Canada. Pour réduire le risque de brouillage radioélectrique causé aux autres utilisateurs, le
type d’antenne et son gain doivent être choisis de manière à ce que la puissance rayonnée
isotrope équivalente (e.i.r.p.) ne soit pas supérieure à celle nécessaire au succès de la
communication.
4.3. ANATEL NOTIFICATION TO USER
Este equipamento não tem direito á proteção contra interferência prejudicial e não pode causar
interferência em sistemas devidamente autorizados.
Para maiores informações, consulte o site da ANATEL www.anatel.gov.br.
4.4. SOUTH AFRICA TYPE APPROVAL
608065-000040
608065-000043
TA 2021-2553
TA 2022-0860
Approved
Approved
4.5. UZBEKISTAN APPROVAL
This device has IEC Class 3 protection.

Gateway Installation Manual
600840-000045, rev. 2.2 Page 11 of 11
4.6. ARGENTINA APPROVAL
608065-000043
608065-000040
CNC ID: C-24950
C-27047
4.7. NCC WARNING STATEMENT
減少電磁波影響，請妥適使用
電波功率密度 MPE 標準值：_0.35 mW/cm2，送測產品實測值：_0.158_mW/cm2，建議使用時設
備天線至少距離人體_20_ 公分。
取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變更頻率、加
大功率或變更原設計之特性及功能。低功率射頻器材之使用不得影響飛航安全及干擾合法通
信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。
前述合法通信，指依電信管理法規定作業之無線電通信。低功率射頻器材須忍受合法通信或
工業、科學及醫療用電波輻射性電機設備之干擾
本器材須經專業工程人員安裝及設定，始得設置使用，且不得直接販售給一般消費者
4.8. RATEL APPROVAL
