April identiti User manual

6
PH2 TYPE
3.2
INSTALLATION INSTRUCTIONS www.aprilproducts.co.uk

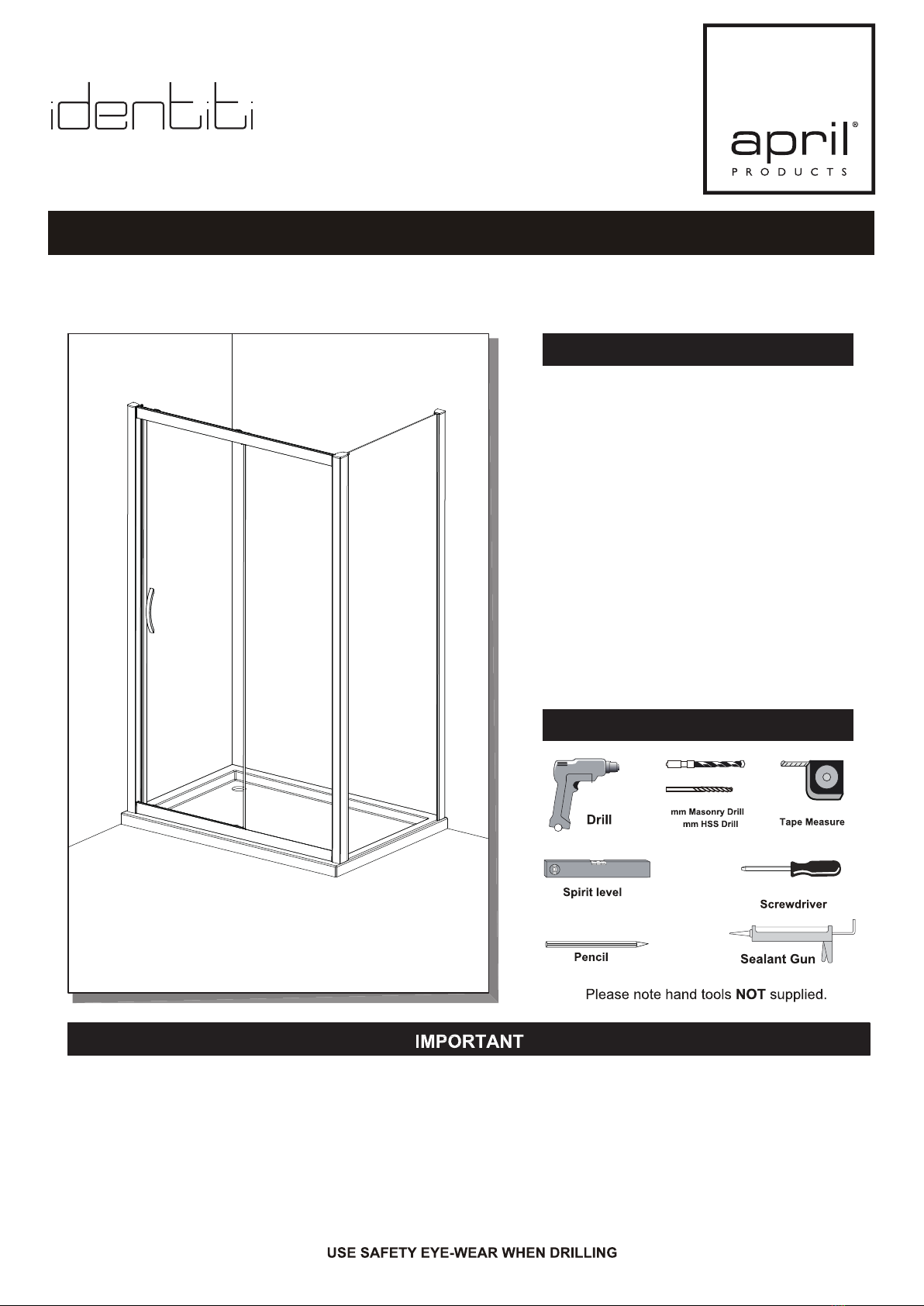

Tools Required
Lifetime Product Guarantee
ATTENTION!
Are you fitting this April enclosure to an April
shower tray?
The Lifetime Product Guarantee is only valid
when an April enclosure is fitted with an April
shower tray and are used and maintained in
accordance with the manufacturer’s instructions
(guarantee excludes seals and magnets).
When April enclosures are used with any other
shower tray the guarantee period is limited to
10 years.
Please see our website for full Terms &
Conditions.
To activate your Product Guarantee please visit
www.aprilproducts.co.uk and complete the
online form.
Note: Instruction shows fitting of a Side panel with a Sliding
door as an example only.
This Side panel can fit with the Sliding door, Hinge door,
Pivot door, Bi-fold door and Inline panel etc.
Side Panel
This product should be installed by a suitably qualified and proficient person. The fitting instructions should be
followed carefully to ensure a proper and safe installation. Failure to follow these instructions could result in future
injury.
These instructions and list of parts assume that installation is done against solid/tiled walls.
Please check this product for damage prior to starting the installation. No claims can be made after the product has
been fitted.
PLEASE NOTE :The minimum and maximum adjustment sizes noted on the product brochures are based on
perfectly plumb walls and trays.

COMPONENTS AND BOX CONTENTS
Box Contents
Note: Further part details for fixing kit available on page 2
1
3
2
1
4
SN Image Des n
1
2
3
4
Qty
1
2
1
4
Cover Strip Profile
Corner Post Top Cap(L/R)
Screws ST 4X12

2
IMPORTANT - Missing Components
Please check this product for missing components prior to installation.
For spare parts visit www.aprilproducts.co.uk
IMPORTANT - Installation site
1. Ensure the top surface of the shower tray on which the enclosure will be installed is level in every direction.
2. The tiles or other wall finishing should be effectively sealed at tray edges.
3. Tiles should extend at least to the corner of the tray and a minimum of 1.9 metres from the top of the tray.
FIXING KIT COMPONENTS, SITE CONDITIONS
Upright Profile
Top Cover Cap
× 1
Round Head
Tapping Screw
4 × 12
4 pcs
FIXING KIT
Corner Post
Top Cover Cap
× 2

3
INSTALLATION INSTRUCTIONS

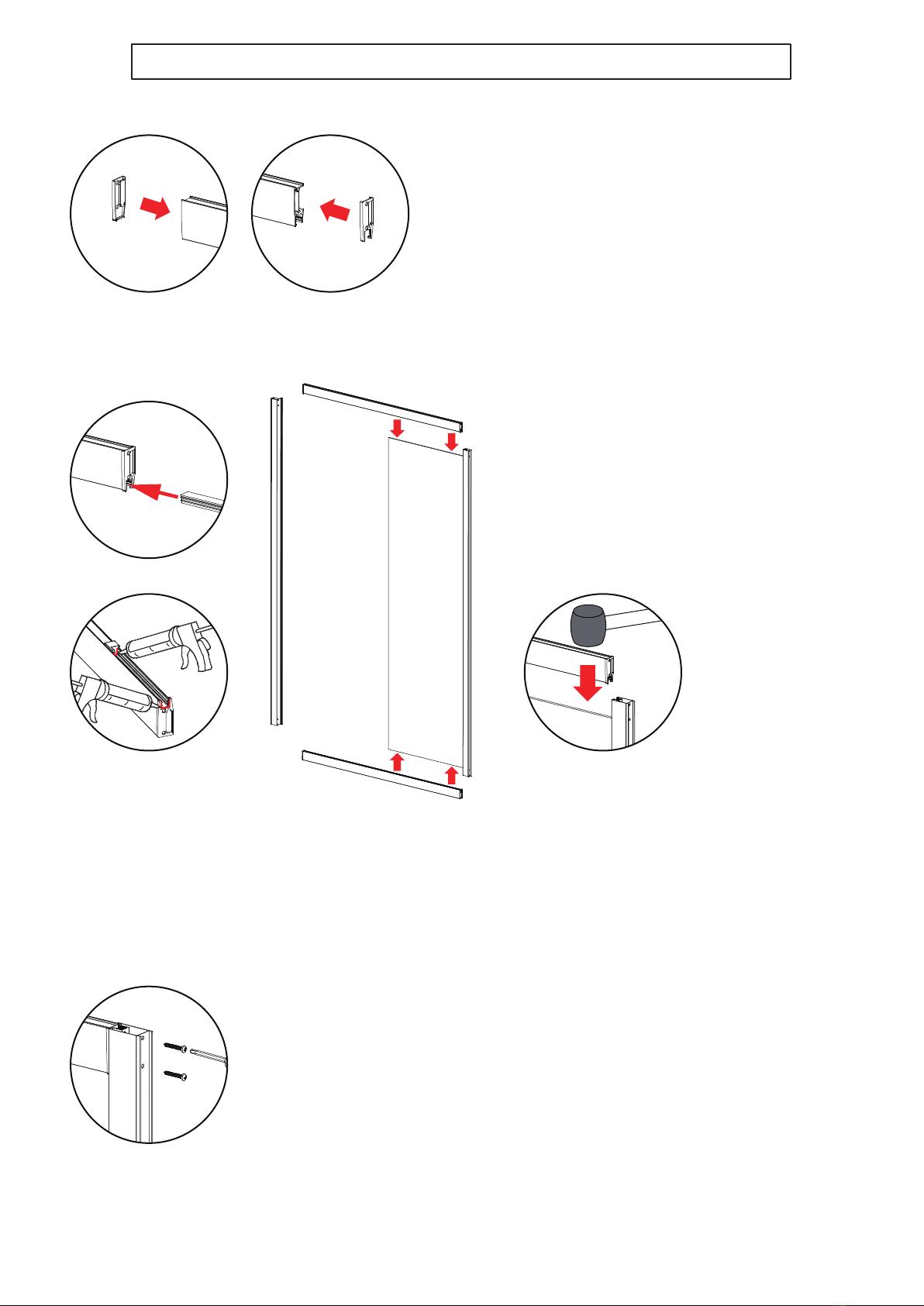

Step 1.
Put the horizontal profile end caps into the top and bottom profiles.
Step 1
Step 3
Step 2.1
Step 2.3
Step 2.4
Step 2.
2.1 Insert the gasket into the top and bottom profiles (The gasket might be pre-inserted into the profiles).
2.2 Put a little bit of silicone in the corner between the glass and the profile where the glass edge cover is fixed to the
top and bottom profiles, and the end of the top and bottom profiles as shown.
2.3 Push the top and bottom profiles into the fixed glass panel, make sure the fixed glass panel is pushed into the gasket fully.
2.4 You may find it easier to use a rubber hammer as shown.
Step 3.
Fix the frame to the fixed glass panel using the screws ST3.9×30.
Step 2.2

4

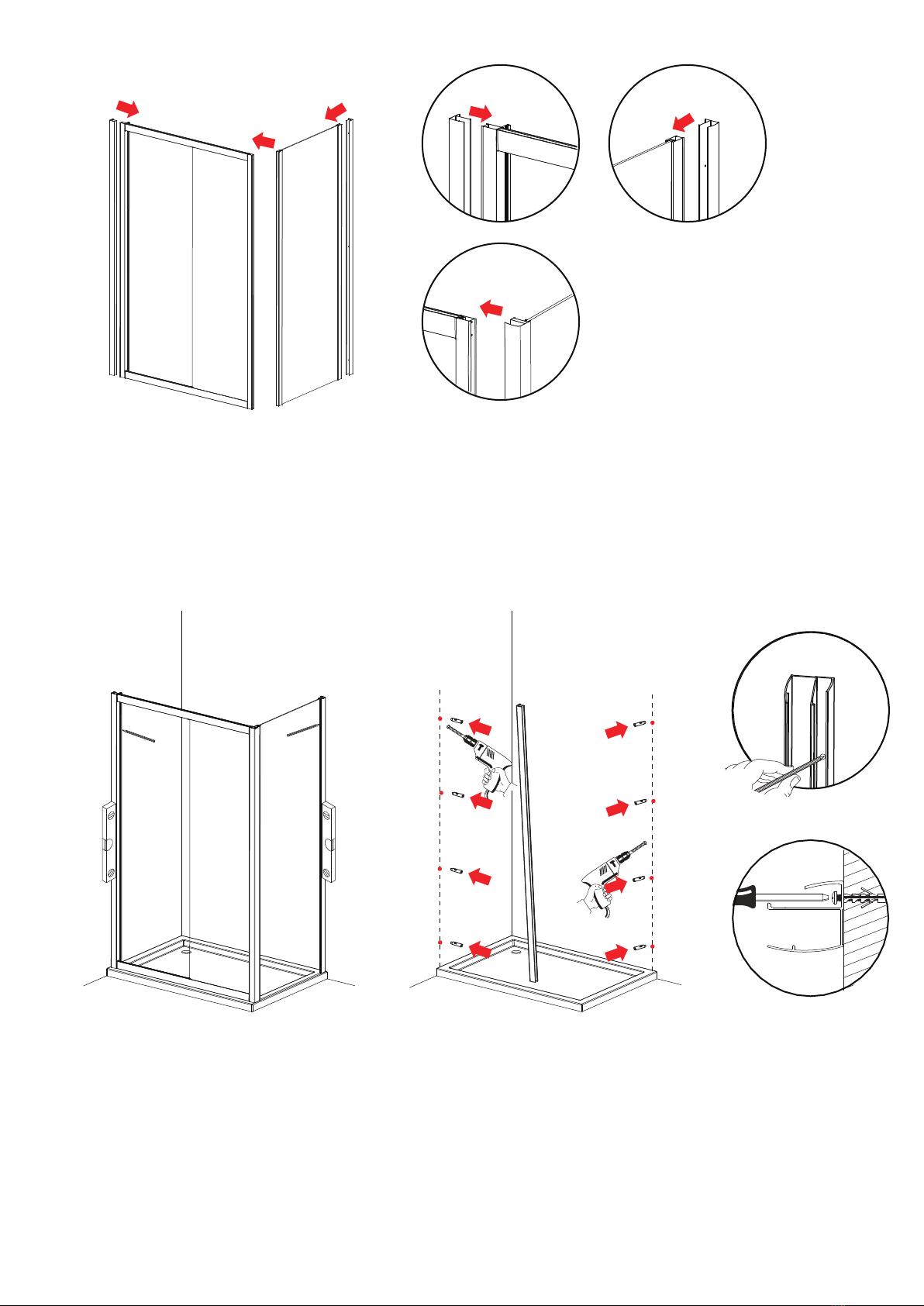

Step 5.
5.1 Level the frame using a spirit level.
5.2 Once you are happy that the frame sits on the tray correctly mark the wall through the 4 pre-drilled screw holes in the
wall profiles.
NOTE: You may find it easier to mark and drill the wall if you apply masking tape to it first.
5.3 Remove the frame and drill the marked points using a 8mm masonry drill bit, once this is done insert 8 × wall plugs.
5.4 Fix the recess wall profile to wall using the screws ST4× 30.
Step 5.1 Step 5.3
Step 4.1 & 4.2
Step 4.1
Step 4.2
Step 4.1
Step 4.
4.1 Push the wall profiles ( packed with the door ) to the assembled frame and side panel.
4.2 Push the side panel to the assembled frame.
Step 4.1 Step 4.1
Step 4.2
Step 5.2
Step 5.4

5

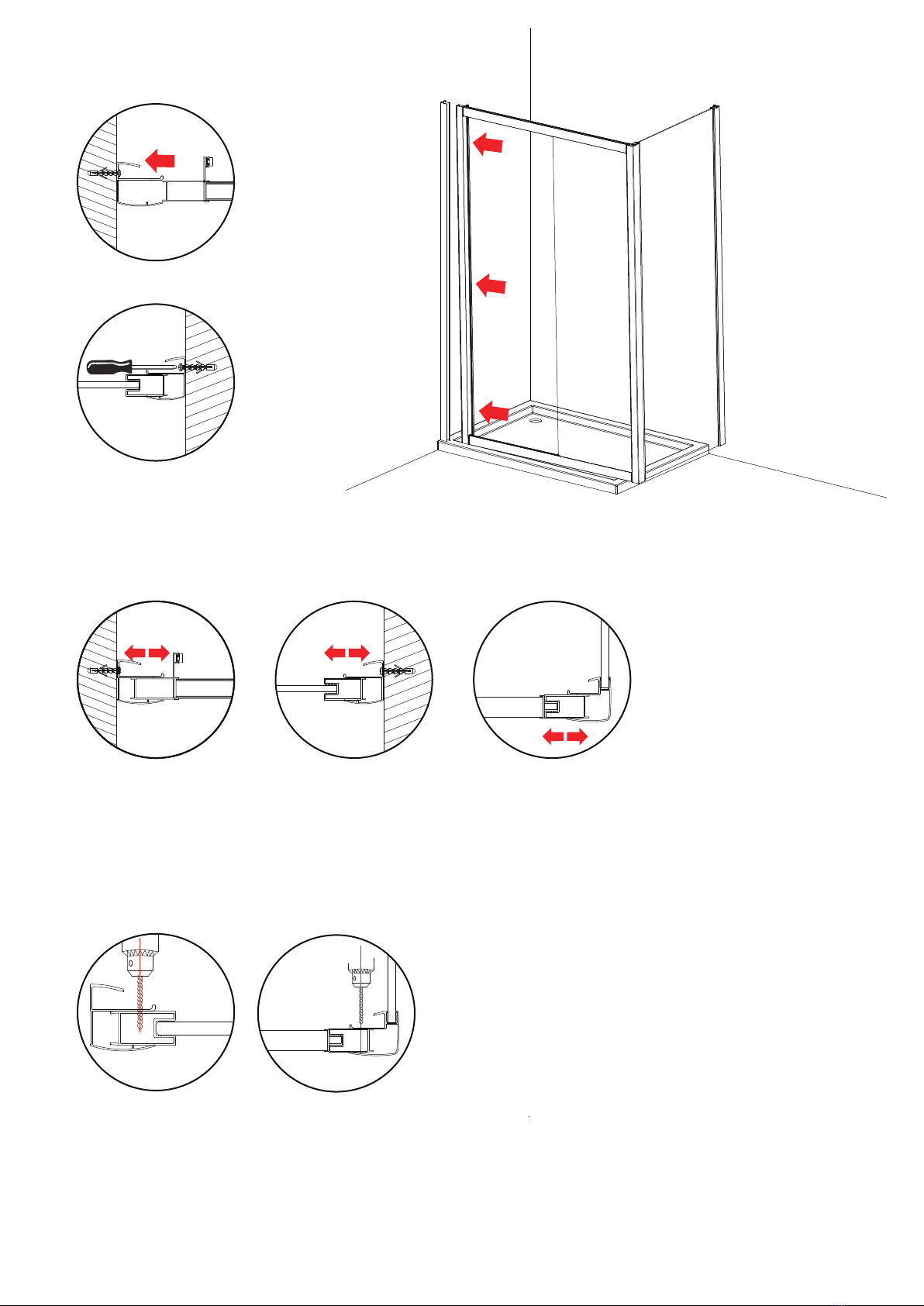

Step 6.
6.1 Insert the frame into the wall profile.
6.2 Fix the other wall profile using screws ST4× 30.
Step 7.
Adjust the frame and side panel to ensure that they are central between the wall profiles and corner post and level against
the shower tray at the base.
Step 8.
Drill 4 equally spaced holes with a 3mm drill bit through the wall profiles and corner post into the frame and side panel.
Step 6.2
Step 6.1
Step 6.1
Step 8

6
Step 10.
10.1 Fix the top and bottom rollers onto the door panel then hang the door onto the frame, start by lifting the door up and
guiding the top rollers into the top horizontal profile.
10.2 Then using the quick release mechanism on the bottom rollers guide them into the bottom horizontal profile as shown.
Step 11.
If the wheels do not fit into the profile, or the door can not be closed satisfactorily, the top roller can be adjusted using the
adjustment screw in the top rollers as shown.
Step 11
Step 9.
9.1 Fix the frame to the wall profiles using the screwsST4 × 12 (4 per wall profile).
9.2 Fix the frame to the side panel using the screws ST4 x 12.
Step 9.1
Step 9.1
Step 9.2
Step 10.1
Step 10.2
Step 10.1
Step 10.1
Top Roller Bottom Roller

7
Step 12.
12.1 Remove any excess silicone from Step 2.1.
12.2 Push the shorter vertical seal onto the fixed glass panel,
12.3 Push the longer vertical seal onto the back edge of the moving glass panel (door) as shown.
Step 13.
Push the magnetic strip onto the front edge of the moving glass panel as shown.
Step 12.2
Step 12.3
Step 13
Step 15.
Once you are happy that the installation is correct and that the door is running smoothly , push the cover strip onto
Step 14.
Fix the handle to door panel.
Step 15 Step 15
Step 14
wall profile and corner post profile as shown above.

8
Step 16.
Fit the corner post top cover caps as shown.
24 HRS
DO NOT USE THE
ENCLOSURE FOR
24 HOURS AFTER
SEALING

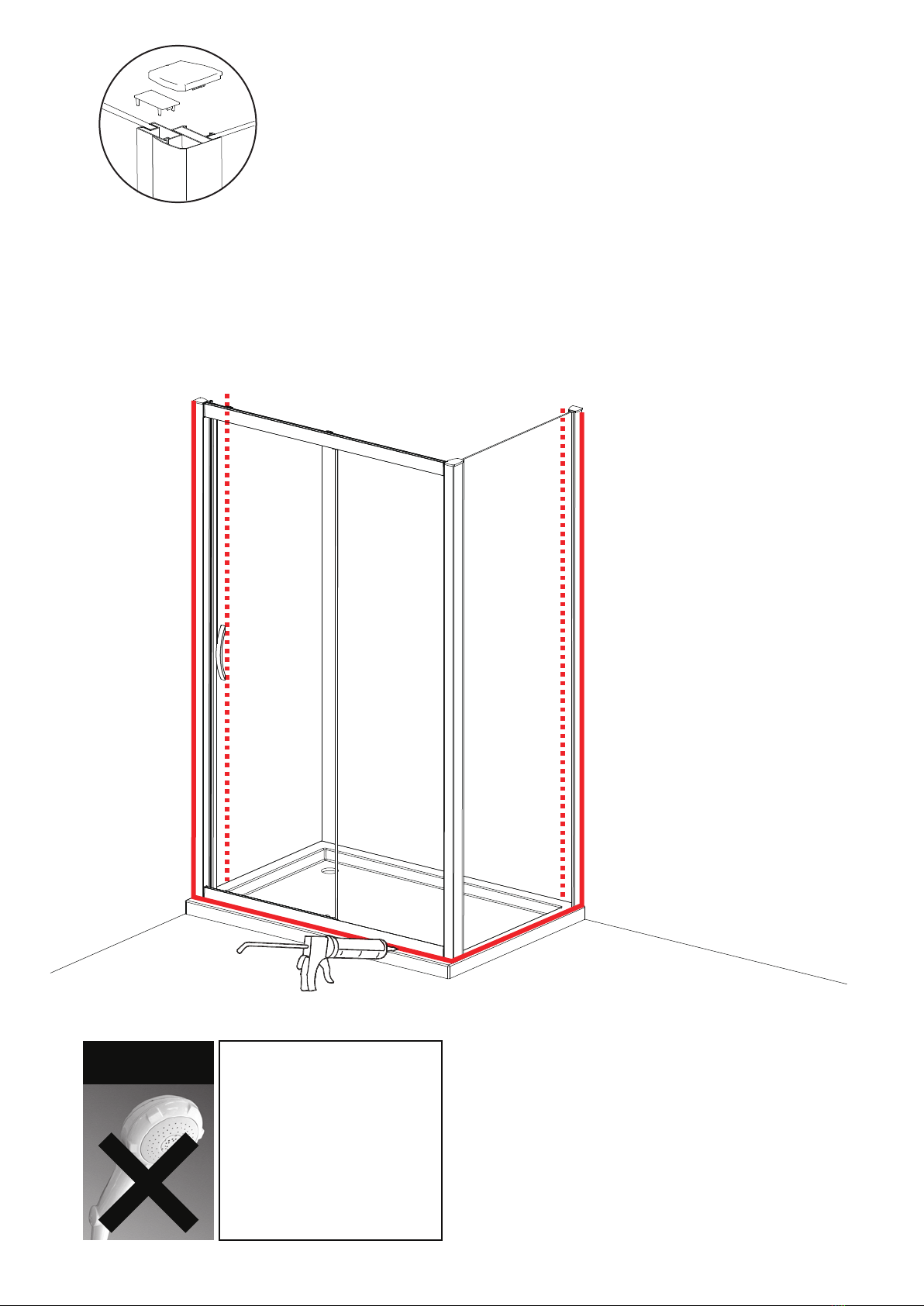

Applying Silicone Sealant
Sealing Inside
Seal from the top of the wall profile to the bottom on the INSIDE
between the wall profile and the wall.
IMPORTANT: Do not apply sealant on inside of the tray.
Sealing Outside
Seal from the top of the wall profile to the bottom between the
wall profile and tiles on both sides. Also seal along the bottom
where the frame meets the tray. Seal the joints between the
bottom profile and any upright profiles.
Step 16

This product has been treated with Clean & Clear™ easy clean glass treatment, a protective barrier which creates
a ‘non-stick’ surface on your glass, helping to resist lime scale build up and water spots. For further information on
Clean & Clear™ please visit www.aprilproducts.co.uk
Clean & Clean™ glass can be cleaned with any suitable nonabrasive glass cleaner - with PH value of between 3-
11; the coating will not be damaged. Avoid surfactants and heavily perfumed products. Vinegar and water based
products are very effective. Do not use abrasive scrubbing cleaners or equipment for cleaning.
Limited 5 year Warranty for Clean & Clear™ treatment: To guarantee treated surfaces will remain more repellent
than untreated glass for 5 years from start of use, as long as basic manufacturer maintenance recommendations
are followed and no harsh or abrasive cleaners are used.
It is important to clean your April shower enclosure after every use. Please wipe down all glass and metal parts
with a clean soft cloth. Ensure that all residual water on the glass is removed after every use.
For reliable, watertight performance from your April enclosure your shower head should not be positioned so that
the shower sprays directly onto the enclosure door. Failure to comply with this may cause the shower to leak.
Outward opening doors may cause water to drip onto the floor, please ensure that the floor covering immediately
outside the enclosure will not be affected by water.
APRIL PRODUCTS
Riverside Business Park, Royd Ings Avenue, Keighley, West Yorkshire, BD21 4AF
For technical/aftersales queries,please visit our website:
www.aprilproducts.co.uk
or Sales Tel: [phone] Technical: 01535 613830 Fax: [phone]
