April identiti U Shape Quadrant User manual

6
PH2 TYPE
3.2
INSTALLATION INSTRUCTIONS www.aprilproducts.co.uk
Tools Required
Lifetime Product Guarantee
ATTENTION!
Are you fitting this April enclosure to an April
shower tray?
The Lifetime Product Guarantee is only valid
when an April enclosure is fitted with an April
shower tray and are used and maintained in
accordance with the manufacturer’s instructions
(guarantee excludes seals and magnets).
When April enclosures are used with any other
shower tray the guarantee period is limited to
10 years.
Please see our website for full Terms &
Conditions.
To activate your Product Guarantee please visit
www.aprilproducts.co.uk and complete the
online form.
U Shape Quadrant
This product should be installed by a suitably qualified and proficient person. The fitting instructions should be
followed carefully to ensure a proper and safe installation. Failure to follow these instructions could result in future
injury.
These instructions and list of parts assume that installation is done against solid/tiled walls.
Please check this product for damage prior to starting the installation. No claims can be made after the product has
been fitted.
PLEASE NOTE :The minimum and maximum adjustment sizes noted on the product brochures are based on
perfectly plumb walls and trays.

COMPONENTS AND BOX CONTENTS
Box Contents
Note: Further part details for fixing kit available on page 2
1
1
2
3
4
5
6
7
8
9
10
11 12
13
14
15
16
17
18
19
20
21
22
23
24
25 26
27
28
NO. Code Descrip on Qty
1 ID2PF001 Wall Profile 2
2 ID2PF002 Cover Strip 2
3 ID2PF017 Upright Profile 2
4 ID2PF035 Top Profile 1
5 ID2PF036 Bo om Profile 1
6 ID2GS014 Fixed Glass Panel A 1
7 ID2GS016 Fixed Glass Panel B 1
8 ID2GS020 Moving Glass Panel 2
9 ID2FT003 Upright Profile Cap 2
10 ID2FT008 Wall Profile Cap - LH 1
11 ID2FT009 Wall Profile Cap - RH 1
12 ID2FT024 End Cap A - L 2
13 ID2FT025 End Cap A - R 2
14 ID2FT028 Glass Edge Cover - L 2
15 ID2FT029 Glass Edge Cover - R 2
NO. Code Descrip on Qty
16 ID2FT032 Roller Buffer - L 4
17 ID2FT033 Roller Buffer - R 4
18 ID2FT001 Top roller 4
19 ID2FT002 Bo om roller 4
20 ID2FT040 Handle 2
21 ID2SL008 Gasket for fixed glass panel A 2
22 ID2SL010 Gasket for fixed glass panel B 2
23 ID2SL021 Ver cal Seal for Fixed Glass Panel 2
24 ID2SL022 Ver cal Seal for Moving Glass Panel 2
25 ID2SL025 Magne c Strip Moving Glass Panel 2
26 APTL001 Wall Plug 8
27 APTL008 Screw ST3.5×10 18
28 APTL009 Screw ST4.0×30 14

2
IMPORTANT - Missing Components
Please check this product for missing components prior to installation.
For spare parts visit www.aprilproducts.co.uk
IMPORTANT - Installation site
1. Ensure the top surface of the shower tray on which the enclosure will be installed is level in every direction.
2. The tiles or other wall finishing should be effectively sealed at tray edges.
3. Tiles should extend at least to the corner of the tray and a minimum of 1.9 metres from the top of the tray.

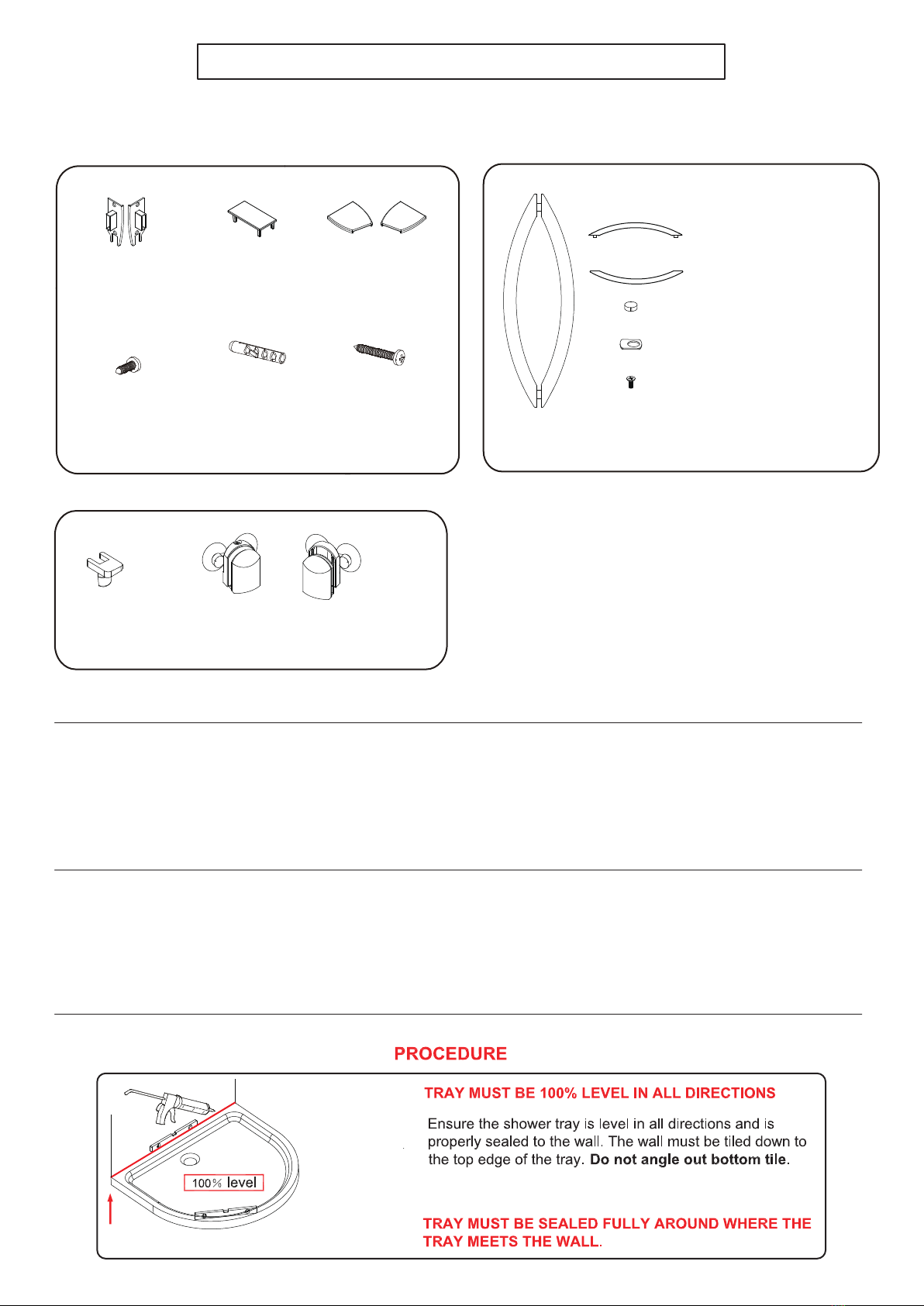

FIXING KIT COMPONENTS, SITE CONDITIONS
Screw Cap A × 2
FIXING KIT
Horizontal Profile
End Cap A
× 4
Wall Profile
Top Cover Cap
× 2
Upright Profile
Top Cover Cap
× 2
Wall Plug
8 pcs
Round Head
Tapping Screw
4.0 × 30
16 pcs
Round Head
Tapping Screw
4.0 × 12
8 pcs
Handle × 2
Grip Handle A × 2
Screw Cap × 4
Washer × 8
Countersunk Screw × 4
M4×12
Grip Handle B × 2
Glass Clip
x 4
Top Roller
x4
Bottom Roller
x4

3
INSTALLATION INSTRUCTIONS
Step 2.
Attach the horizontal profile caps (No.12,13)then fix the pieces together using 2×ST3.5×45 fixing screws through
the metal profile of the fixed panels and into the end of the horizontal rail,then attach the other fixed panel to the
horizontal profile in the same way.Once both fixed panels are attached to the bottom horizontal rail repeat for the
top horizontal.
Step 1
Step 1.
Drop the silicone into the groove of the raill profiles along with the pre-fitted seal,then push the top and bottom profiles (No.4,5)
into the fixed glass panels (No.6,No.7), make sure the fixed glass panels (No.6,No.7) are pushed into the gaskets (No.22,23)
fully as shown(A).
Note: Put a little bit of silicone in the corner of the profile cap and the horizontal profile as shown in diagram (B),
the other side needs sealing in the same way (C).
Note:You may find it will be more easy to assemble if the curved edge of the fixed glass panel has been push into the gasket
first.
Step 2
B
Inside enclosure
Outside enclosure
C
Outside enclosure
Inside enclosure
A1
Step 1
A2

4
Step 4.
Remove the wall profiles and drill the marked points using an 6mm masonry drill bit, once this is done insert 8 × wall
plugs (No.27).
Step 4
Step 3.2 & 3.3
Step 3.
3.1 Push the wall profiles (No.1) onto the frame.
3.2 Place the assembled frame onto the tray.
3.3 Level the frame using a spirit level.
3.4 Once you are happy that the frame sits on the tray correctly mark the wall through the 4 pre-drilled screw holes in the
wall profiles.
NOTE: You may find it easier to mark and drill the wall if you apply masking tape to it first.
Step 3.4
Step 3.1

5
Step 5.
Re-position the frame and fix both of the wall profiles to the wall using 8 × ST4.0 × 30 screws (No.29).
Step 6.
Adjust the frame to ensure that it is central between the wall profiles and level against the shower tray at the base.
Step 7.
7.1 Drill 4 equally spaced holes with a 3mm drill bit through the wall profiles into the frame.
7.2 Fix the frame to the wall profiles using the screws ST3.5 × 10 (No.28 - 4 per wall profile).
Step 5
Step 6
Step 7.1

6
Step 9.
If the wheels do not fit into the profile, or the door can not be closed satisfactorily, the top roller can be adjusted using
the adjustment screw in the top rollers (No.19) as shown.
Step 10.
10.1 Remove any excess silicone from Step 1
10.2 Push the shorter vertical seal (NO.24) onto the fixed glass panels (No.6,7).
10.3 Push the longer vertical seal (NO.25) onto the back edge of the moving glass panels (No.8) as shown.
Step 11.
Push the magnetic strip (NO.26) onto the front edge of the moving glass panels (No.8) as shown.
Step 10.2
Step 10.3
Step 11
Step 9
Step 8.
8.1 Fix the top and bottom rollers onto the door panel then hang the door onto the frame, start by lifting the door up and
guiding the top rollers (No.19) into the top horizontal profile (No.4).
8.2 Then using the quick release mechanism on the bottom rollers (No.20) guide them into the bottom horizontal profile
(No.5) as shown.
Step 8.1
Step 8.2
Step 8.1
Step 8.1
Top Roller Bottom Roller

7

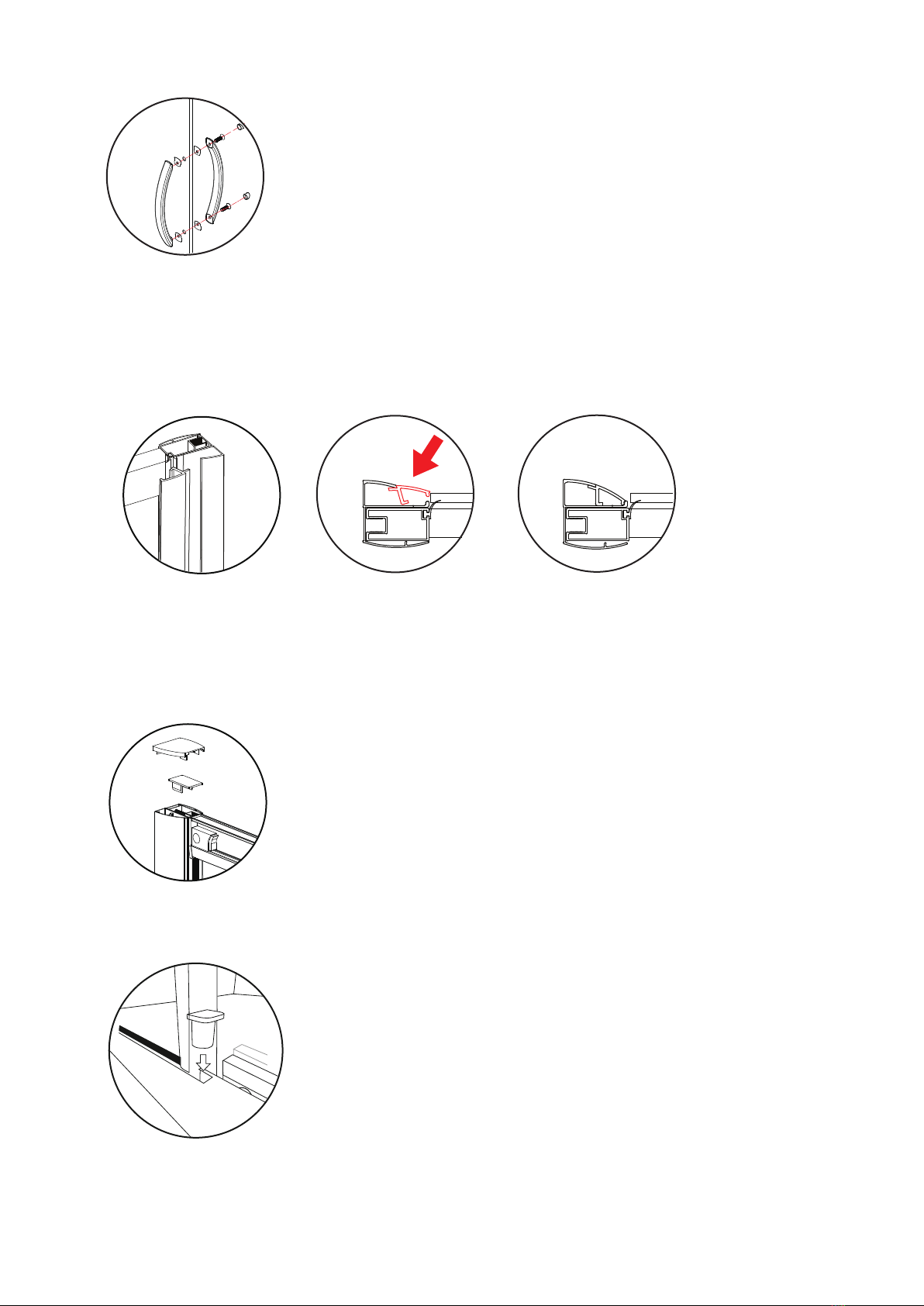

Step 13.
Step 12.
Fix the handle (No.21) to door panels (No.8).
Step 14.
Fit the top caps as shown.
Step 14
Step 15
Step 15.
To finally seal the installation, plug the small holes at the end of the fixed glass panel with a little bit of silicone
and insert the glass clips as illustrated.
Step 12
Step 13
Once you are happy that the installation is correct, Push the cover strip onto the wall profile as shown above.

8
24 HRS
DO NOT USE THE
ENCLOSURE FOR
24 HOURS AFTER
SEALING
Applying Silicone Sealant
Sealing Inside
Seal from the top of the wall profile to the bottom on the INSIDE
between the wall profile and the wall.
IMPORTANT: Do not apply sealant on inside of the tray.
Sealing Outside
Seal from the top of the wall profile to the bottom between the
wall profile and tiles on both sides. Also seal along the bottom
where the frame meets the tray. Seal the joints between the
bottom profile and any upright profiles.

This product has been treated with Clean & Clear™ easy clean glass treatment, a protective barrier which creates
a ‘non-stick’ surface on your glass, helping to resist lime scale build up and water spots. For further information on
Clean & Clear™ please visit www.aprilproducts.co.uk
Clean & Clean™ glass can be cleaned with any suitable nonabrasive glass cleaner - with PH value of between 3-
11; the coating will not be damaged. Avoid surfactants and heavily perfumed products. Vinegar and water based
products are very effective. Do not use abrasive scrubbing cleaners or equipment for cleaning.
Limited 5 year Warranty for Clean & Clear™ treatment: To guarantee treated surfaces will remain more repellent
than untreated glass for 5 years from start of use, as long as basic manufacturer maintenance recommendations
are followed and no harsh or abrasive cleaners are used.
It is important to clean your April shower enclosure after every use. Please wipe down all glass and metal parts
with a clean soft cloth. Ensure that all residual water on the glass is removed after every use.
For reliable, watertight performance from your April enclosure your shower head should not be positioned so that
the shower sprays directly onto the enclosure door. Failure to comply with this may cause the shower to leak.
Outward opening doors may cause water to drip onto the floor, please ensure that the floor covering immediately
outside the enclosure will not be affected by water.
APRIL PRODUCTS
Riverside Business Park, Royd Ings Avenue, Keighley, West Yorkshire, BD21 4AF
For technical/aftersales queries,please visit our website:
www.aprilproducts.co.uk
or Sales Tel: [phone] Technical: 01535 613830 Fax: [phone]
