APT APT-1 User manual

APT-1
USER’S MANUAL
Original instructions

APT-1 –User’s Manual (EU) Rev. 2019-01 en for il 2

APT-1 –User’s Manual (EU) Rev. 2019-01 en for il 3
Table of contents:
Page
Section A –Pre-sales Information
4
1.
Introduction
4
2.
Technical Data
5
3.
Safety
6
4.
System Components and Details
7
5.
Accessories
10
Section B –User Information
11
6.
Preparing the APT-1 Hi-Lo
11
7.
Installation for use –Arms exercise
12
8.
Installation for use - Legs exercise
14
9.
Operation instructions
16
10.
Transportation and Storage
20
11.
EMI –Electromagnetic Interference
21
Section C –Service Information
26
12.
General Maintenance, Inspections and Storage
26
13.
Disposing and Recycling
27
14.
Trouble Shooting
28
15.
Appendix –Exercise Parameter Values
29
NOTE: Design details may change without notice

APT-1 –User’s Manual (EU) Rev. 2019-01 en for il 4
SECTION A –PRE-SALES INFORMATION
1. INTRODUCTION
The APT-1 is an electric exercise machine used for the improvement of
physical abilities. The APT-1 provides the user with a variety of exercise
options and modes of operation that meet a broad range of physical needs.
A wide range of accessories are available that offer many exercise options
and make the APT-1 suitable for the maintenance of fitness and physical
well being.
The APT-1 can be operated in either the ACTIVE mode at varying degrees
of resistance or in the PASSIVE mode at adjustable speed and torque lev-
els. In the PASSIVE mode it is also possible to combine PASSIVE with
ACTIVE training by using physical effort in conjunction with the electrical
operation of the motor. The APT-1 functions forwards or backwards and is
suitable for arm or leg exercises (upper or lower limbs).
The APT-1’s light weight makes it portable, easy to store and convenient to
use.
Use of the APT-1 is recommended for the maintenance of muscle strength,
flexibility, muscle tone, endurance and general fitness for users of all ages.
Ministry of Health Medical device registration number: 24900002

APT-1 –User’s Manual (EU) Rev. 2019-01 en for il 5
2. TECHNICAL DATA
APT-1
Weight
10 Kg. (22 lbs.)
Length
72 cm. (28 in.) overall
Width
46 cm. (18 in.)
Height
16 cm. (6½ in.) folded
Working voltage
24 VDC
Revolutions per minute
20 - 60 RPM
Current Rating
4.16 A Max.
Accuracy of measurement display
±10%
Liquid ingress protection level
IPX1
Type B equipment
External Power Supply
Weight
800 g. (1.8 lbs.)
Length
19 cm. (7½ in.)
Width
9 cm. (3½ in.)
Height
4.6 cm. (1¾in.)
Input:
100-240 V 47-63 Hz 1.25 A
Output:
24 VDC 100 W Max. 4.16 A
Class I equipment
Continuous operation
Equipment not suitable for use in the presence of flammable anaesthetic
mixture with air or with oxygen or nitrous oxide.
WARNING: To avoid the risk of electric shock, this equipment must only
be connected to a supply mains with protective earth.
The APT-1 Active Passive Trainer and its accessories have been designed
and manufactured in accordance with the specification of the following:
DIRECTIVE: Medical devices 93/42 EEC (Annex V)

APT-1 –User’s Manual (EU) Rev. 2019-01 en for il 6
3. SAFETY
These safety considerations and tips will help you to operate the APT-1
safely and prevent personal injury and damage to your wheelchair.
1. Read this manual and all labels before operating. If you do not fully
understand any part of this manual, please contact your authorized
dealer or service agent.
2. The APT-1 should not be used in the vicinity of sensitive medical equip-
ment.
3. Electromagnetic interference (“EMI”) can cause APT-1 to behave errat-
ically, which could be dangerous to the user. For your safety and pro-
tection, it is imperative that you read the information on EMI before op-
erating the APT-1, see chapter 11.
4. EMC Warning: Radio wave sources such as radio and T.V. stations,
transmitters and cellular telephones can affect the performance of pow-
ered wheelchairs and mobility devices.
5. Do not operate the APT-1 when under the influence of alcohol, medi-
cations or drugs that may impair your safety.
6. Only the authorized dealer or service agent may perform specified set-
up procedures and controller settings; programming of the settings out-
side the limits as specified by the manufacturer may have adverse ef-
fects on the performance.
7. Do not use the APT-1 if it behaves abnormally or erratically, contrary to
the usual performance as described in this user manual.
8. CAUTION: Surface temperatures can increase when exposed to exter-
nal sources of heat (e.g. sunlight).

APT-1 –User’s Manual (EU) Rev. 2019-01 en for il 7
4. SYSTEM COMPONENTS AND DETAILS

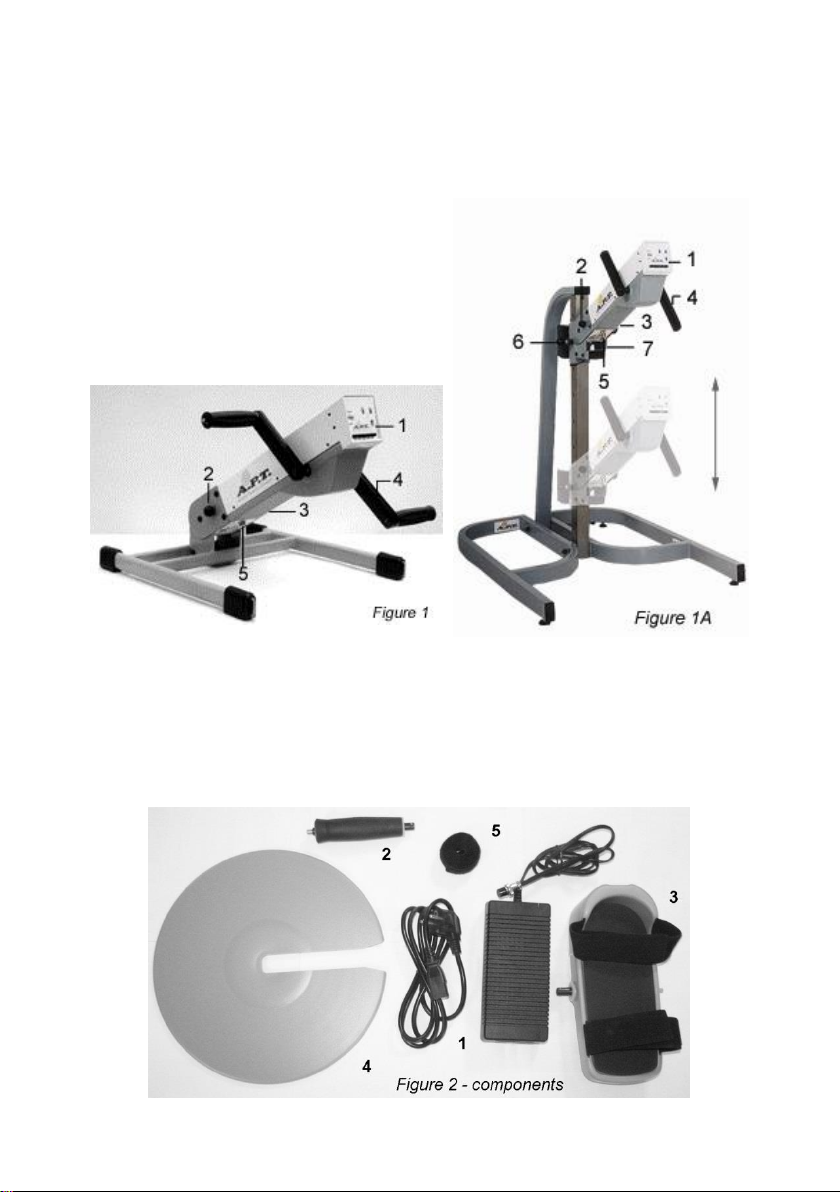

4.1 APT-1 unit (Figure 1)
APT-1 Hi-Lo (Figure 1A)
1. Operator panel
2. Angle release knob
3. Angle securing knob
4. Crank-arm
5. Power input socket
6. Height release knob (Hi-Lo only)
7. Height securing know (Hi-Lo only)
4.2 Primary components (Figure 2):
1. Power supply unit
2. Straight hand-grips
3. Footrests
4. Finger protection disks
5. Securing straps

APT-1 –User’s Manual (EU) Rev. 2019-01 en for il 8
2.1. The Type Plate
The Type Plate can be found on the underside of the APT-1 body
next to the power input socket.
Figure 2A
This label contains the serial number of the APT-1
The serial number consists of 11 digits and one letter:
Example: Serial no. 32001103001X
3100
11
03
001
X
1
2
3
4
5
1. Model: APT-1
2. Year of manufacturing (last two digits of the year)
3. Month of manufacturing
4. Sequential number of batch
5. Letter identifying the manufacturing location
IPX1
Liquid ingress protection level
Read this user manual and all labels before operat-
ing.
When this equipment is no longer operational it
must be sent to a separate collection facility for re-
covery and recycling.
CE approved Notified Body No. 0123.
Type B equipment.
Read the warnings in this manual before operating.

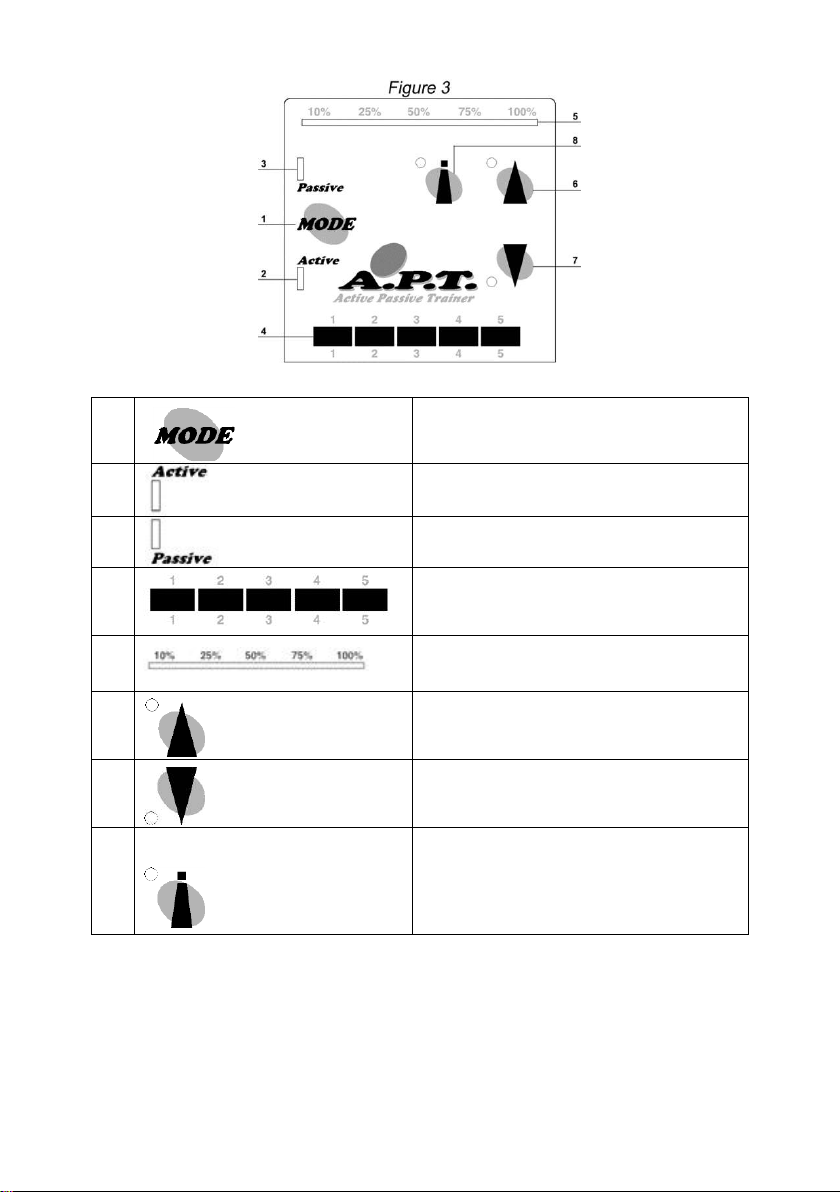

4.4. The APT-1 - Operator Panel

APT-1 –User’s Manual (EU) Rev. 2019-01 en for il 9
1
Operation mode Button - for selecting
mode of operation.
2
Green indicator is lit when ACTIVE
mode is selected by mode button.
3
Green indicator is lit when PASSIVE
mode is selected by mode button.
4
Exercise level selection push switches
1 - Lowest level
5 - Highest level
5
Indicates actual load level (%)
6
Button for forward operation in the PAS-
SIVE mode. The green indicator is lit to
indicate forward operation.
7
Button for backward operation in the
PASSIVE mode. The green indicator is
lit to indicate backward operation.
8
Button activating Auto-Reverse function
in the PASSIVE mode. In the ACTIVE
mode this button activates the constant
force function. The green indicator is lit
when activated.

APT-1 –User’s Manual (EU) Rev. 2019-01 en for il 10

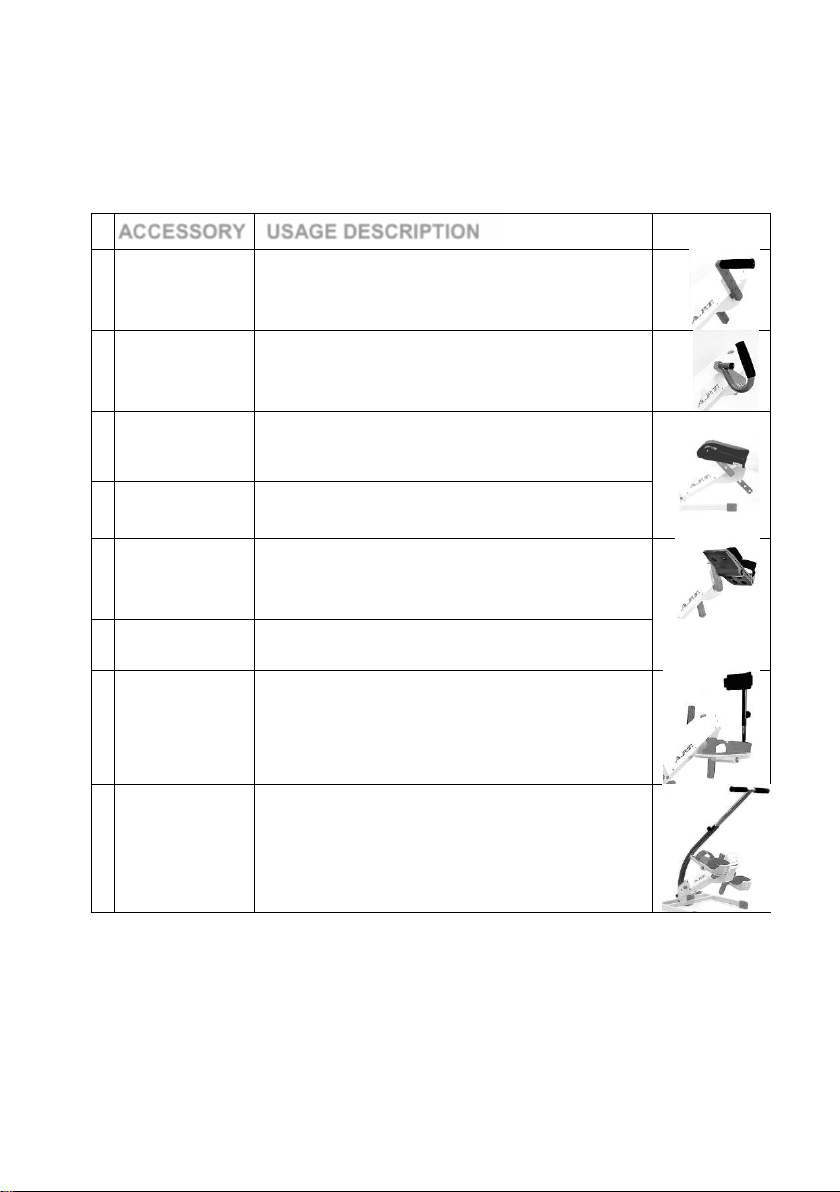

5. ACCESSORIES
The following items are designed for use in combination with the APT-1.
CAUTION: The use of accessories other than these can be unsafe.
5.1. Hand grips and Footrests
#
ACCESSORY
USAGE DESCRIPTION
FIGURE
a)
Straight
Handgrips
Used for most of the upper limb exercising.
b)
Angled
Handgrips
Ergonomically designed, mainly for
strength exercising in the Active mode.
c)
Hemi-glove
Used for securely supporting the wrist and
hand on the handgrips for users who have
little or no muscle strength.
d)
Pediatric
Hemi-glove
Hemi-glove specially designed to be used
by children.
e)
Standard
Footrests
Used for most of the lower limb exercising.
f)
Pediatric
Footrest
Footrest specially designed to be used by
children.
g)
High support
for footrests
May be attached to footrests for supporting
the lower limbs of users that have little or
no muscle strength.
h)
Handle Bar
Used to improve hold on APT-1 during leg
exercise.

APT-1 –User’s Manual (EU) Rev. 2019-01 en for il 11
SECTION B –USER INFORMATION
6. PREPARING THE APT-1 HI-LO
6.1. Moving your APT-1 Hi-Lo
The APT-1 Hi-Lo can easily be moved by lifting the end of the frame
and pushing the unit using its wheels, see Figure 4.
6.2. Positioning the APT-1 Hi-Lo
Position the APT-1 Hi-Lo close to an electrical socket outlet. The ad-
justable feet on the underside keep the APT-1 Hi-Lo level and prevent
it from sliding.
NOTE: Ensure that the APT-1 Hi-Lo is level in order to prevent damage
to the trainer or its components.
If readjustment of one of the feet is needed, open the contra nut (4A/1),
turn the foot (4A/2) to the desired height and secure the foot with the
contra nut (4A/1).

APT-1 –User’s Manual (EU) Rev. 2019-01 en for il 12
7. INSTALLATION FOR USE –ARMS EXERCISE
Step 1: Position the APT-1 on a level table top close to an electrical socket
outlet (Figure 5).
For the APT-1 Hi-Lo: loosen the height securing knob (Figure 1A-
7, pull the grey ring of the height release knob (Figure 1A-6) and
adjust the unit to the required height. Release the grey ring and
tighten the height securing knob (Figure 1A-7).
Step 2: Loosen the angle-securing knob (Figure 5-1) and adjust the APT-
1to the required angle. To increase the angle, lift the body of the
APT-1, allow it to “click” into one of the operating positions and
retighten the securing knob. To decrease the angle, pull the angle
release knob (Figure 6), lower the body of the APT-1, allow it to
“click” into another operating position and tighten the securing
knob.
CAUTION: Make sure that the minimum distance between
crank arm and the table surface is approximately 5 cm. / 2”
(Figure 5-2).
Step 3: Connect the output connector (Figure 7-1) of the power supply
(Figure 7-4) to the APT-1 power input socket (Figure 7-2) while
ensuring correct position of connector groove opposite the guide
key of socket (Figure 7-3).
NOTE: The APT-1 must be used only with an original APT-1
Power Supply unit.

APT-1 –User’s Manual (EU) Rev. 2019-01 en for il 13

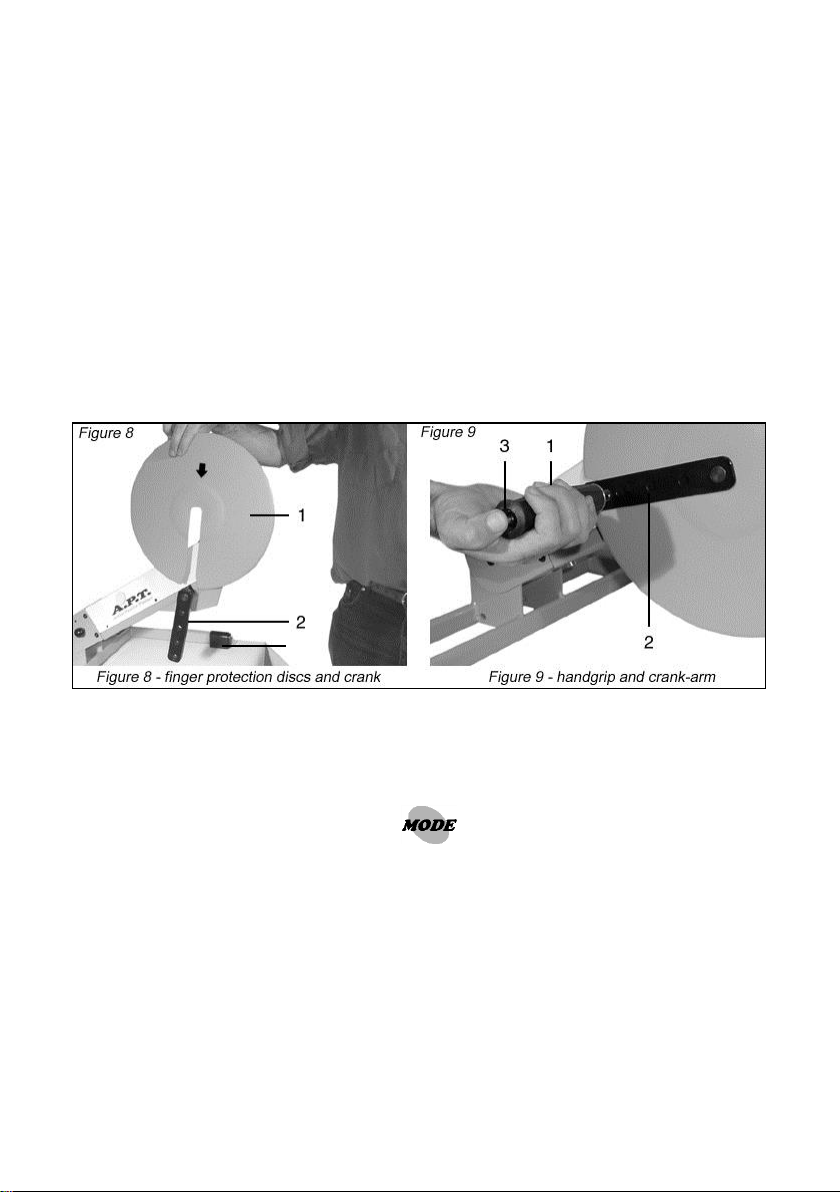

Step 4: Install the finger protection discs (Fig. 8-1) by sliding them into the
grooves on the outside edges of the crank arms (Figure 8-2) in the
direction shown.
NOTE: The finger protection discs are important for safe operation
of the unit during hands exercise.
Step 5: Insert handgrip (Figure 9-1) in one of the four mounting holes (Fig-
ure 9-2) in each of the APT-1 crank arms. Installation or removal
requires only a straight push or pull while simultaneously pressing
on the release pin (Figure 9-3) at the end of the handle.
NOTE: The choice of mounting hole provides variable resistance
levels and ranges of motion. See operation instructions.
Step 6: Plug the power supply mains power plug into the electrical socket
outlet (Figure 5-3). The APT-1 will enter a stand by position. To
start operating, press the button. The green ACTIVE mode
indicator will light up. You may start exercising in the ACTIVE
mode. For operation instructions, see 5.1 & 5.2.
NOTE: If the APT-1 moves across the table during arm exercises,
anti-slip pads (Figure 8-3) may require cleaning.
3

APT-1 –User’s Manual (EU) Rev. 2019-01 en for il 14

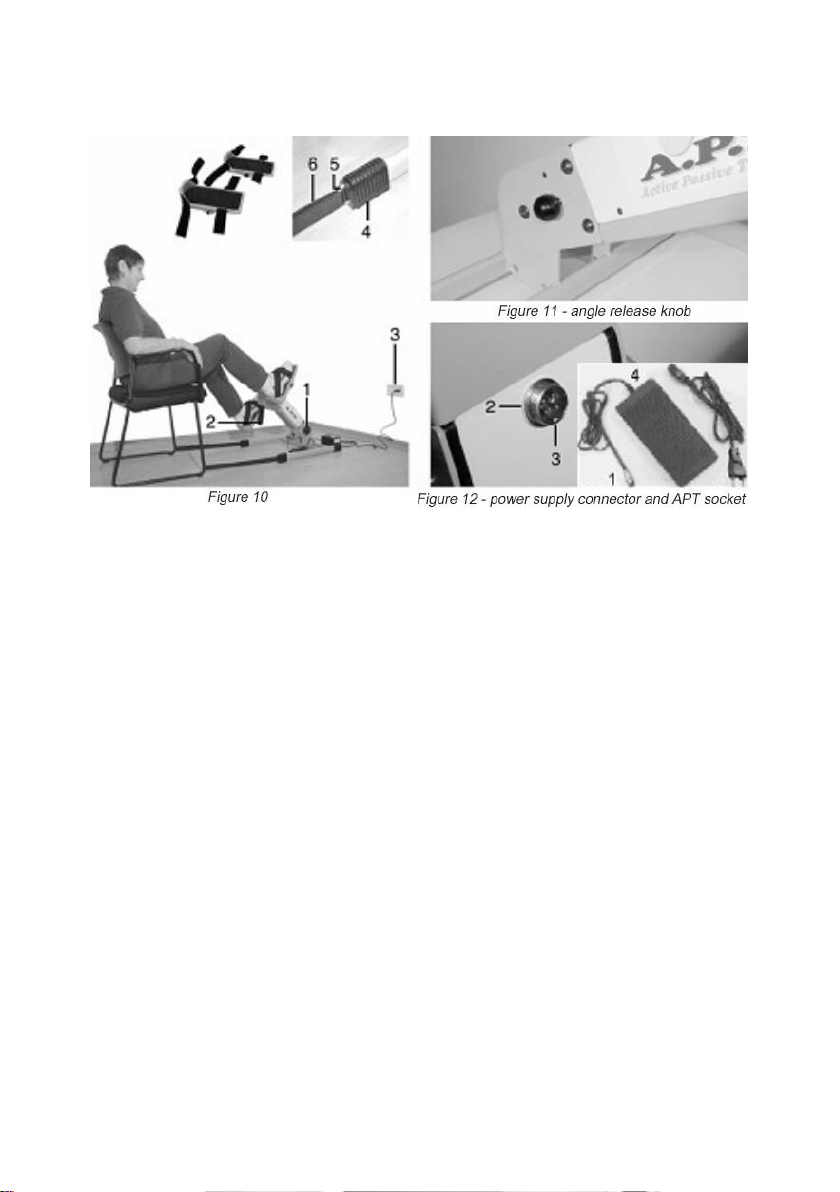

8. INSTALLATION FOR USE –LEG EXERCISE
Step 1: Position the APT-1 on the floor close to an electrical socket outlet
(Figure 10).
For the APT-1 Hi-Lo: loosen the height securing knob (Figure 1A-
7, pull the grey ring of the height release knob (Figure 1A-6) and
adjust the unit to the required height.
Step 2: Loosen the angle-securing knob (Figure 10-1) and adjust the APT-
1to the required angle. To increase the angle, lift the body of the
APT-1, allow it to “click” into one of the operating positions and
retighten the securing knob. To decrease the angle, pull the angle
release knob (Figure 11), lower the body of the APT-1, allow it to
“click” into another operating position and tighten the securing
knob.
CAUTION: Make sure that the minimum distance between
crank arm and the floor surface is approximately 5 cm. / 2”
(Figure 10-2)
Step 3: Place a chair at the desired distance from the APT-1. If necessary,
attach the Securing straps (Figure 10-6) between the APT-1 base
rings (Figure 10-5) and the chair legs to prevent any change in
distance between the APT-1 and the chair during leg exercises.

APT-1 –User’s Manual (EU) Rev. 2019-01 en for il 15
Step 4: Connect the power output connector (Figure 12-1) of the power
supply (Figure 12-4) to the APT-1 power input socket (Figure 12-
2) while ensuring correct position of connector groove opposite the
guide key of socket (Figure 12-3).
NOTE: The APT-1 must be used only with an original APT-1
Power Supply unit.
Step 5: Insert Footrest (Figure 13-1) in one of the four mounting holes (Fig-
ure 13-2) in each of the APT-1 crank arms. Installation or removal
requires only a straight push or pull while simultaneously pressing
on the release pin (Figure 13-3) as shown. Secure feet in place
with straps fastened diagonally as shown in Figure 10.
NOTE: The choice of mounting hole provides variable resistance
levels and ranges of motion. See operation instructions.
Step 6: Plug the power supply mains power plug into the electrical socket
outlet (Figure 10-3). The APT-1 will enter a stand by position. To
start operating, press the button. The green ACTIVE mode
indicator will light up. You may start exercising in the ACTIVE
mode. For operation instructions, see 5.1 & 5.2.
NOTE: If the APT-1 moves across the floor during leg exercises,
make sure anti-slip pads (Figure 10-4) are clean. If possible –use
the APT-1 on a carpet or rubber mat.

APT-1 –User’s Manual (EU) Rev. 2019-01 en for il 16
9. OPERATION INSTRUCTIONS
NOTE: Install APT-1 for arms or legs exercise as described in the previous
chAPT-1ers.
9.1. Active mode - ISOKINETIC operation
Step 1: Insert the handgrips or footrests in one of the four mounting
holes according to the radius and range of motion required.
NOTE: As the effective crank arm length is reduced in the ACTIVE
mode, the amount of effort required increases while the range of motion
decreases, and vice versa.
Step 2: To activate the active mode from the stand by position (after
the electrical power is supplied to the APT-1): press the
button. The green ACTIVE mode indicator (Figure 3-2) will light
up.
Step 3: Set the desired load level by pressing one of the five load se-
lection push switches (Figure 3-4).
Step 4: Rotate the APT-1 handgrips or footrests forward or backward.
Actual exercising force is displayed as a percentage (%) on
the Bar Indicator (Figure 3-5).
NOTE: In this mode, an increase in the rotation speed (RPM) will lead
to an increase in the exercising force (Table 1, Appendix 1).
9.2. Active mode - CONSTANT FORCE Operation
Step 1: Press the button to activate the CONSTANT FORCE
FUNCTION in the ACTIVE mode. The green indicator will light
up.
Step 2: Set the desired load level by pressing one of the five load se-
lection push switches (Figure 3-4).
Step 3: Rotate the APT-1 handgrips or footrests forward or back-
wards. The exercising force as displayed on the Bar Indicator
(Figure 3-5) will now remain constant at 50% for the selected
load level, irrespective of the crank arm rotation speed (Table
2, Appendix 1).

APT-1 –User’s Manual (EU) Rev. 2019-01 en for il 17
9.3. PASSIVE mode
Step 1: Insert the handgrips or footrests in one of the four mounting
holes according to the radius and range of motion required.
NOTE: As the effective crank arm length is reduced in the PASSIVE
mode, the range of movement is reduced and the degree of resistance
that the motor can overcome is increased.
Step 2: To activate the passive mode from the stand by position (after
the electrical power is supplied to the APT-1): Press the
button two times, until the green PASSIVE mode indicator (Fig-
ure 3-3) will light up. From the ACTIVE mode –press once
only.
Step 3: Set the desired rotation force and speed by pressing one of
the five exercise level selection push switches (Figure 3-4). 1
= lowest force, 20 rpm / 5 = highest force, 60 rpm
Step 4: Hold onto the handgrips (for arm exercise) or secure both feet
to the footrests (for legs exercise). Make sure that APT-1 is
placed at a comfortable distance for exercise by turning the
crank arms one complete revolution.
Press the button for forward rotation.
Press the button for backward rotation.
NOTE: There will be a short delay before the APT-1 begins to turn in
the chosen direction.
Step 5: The operation force of the crank arms should rotate the arms
or legs of with no effort on the part of the user. This rotation
force varies according to exercise level and crank arm mount-
ing hole location selected (Table 3, Appendix 1).
Step 6: To stop the rotation of the crank-arms and exit the PASSIVE
mode, press the button. The indicators will turn off and
the APT-1 will return to the stand-by position.

APT-1 –User’s Manual (EU) Rev. 2019-01 en for il 18
9.4. COMBINED active/passive mode
Step 1: Operate the APT-1 in the passive mode and work against the
force of the motor by applying resistance to the rotation of the
crank arms.
Step 2: The resistance force to the rotation is displayed on the on the
Bar Indicator as a percentage (%) at each level.
Step 3: If the resistance force stops the crank arm rotation completely,
the Bar Indicator (Figure 3-5) reaches 100% and the red indi-
cator will light up. After holding this position for approximately
2 seconds, the crank arm rotation will stop automatically.
NOTE: To restart, Press the button for forward rotation, or the
button for backward rotation.
9.5. Passive mode - AUTO-REVERSE function
Step 1: Push the button to activate the AUTO-REVERSE function
in the PASSIVE mode. The green indicator will light up.
Step 2: Operate the APT-1 as in usual passive or combined ac-
tive/passive mode.
Step 3: When the resistance force stops the crank arm rotation com-
pletely, the Bar Indicator (Figure 3-5) reaches 100% and the
red indicator will light up. After holding this position for approx-
imately 2 seconds, the crank arm rotation will stop automati-
cally. After a short delay the DIRECTION OF ROTATION
WILL BE REVERSED. This feature also serves as an ANTI-
SPASM function, stopping the motor in case of muscle spasm
and reversing the direction of rotation after a short delay.
Step 4: As long as the button indicator is lit, this function will con-
tinue to operate in the PASSIVE mode.

APT-1 –User’s Manual (EU) Rev. 2019-01 en for il 19
9.6. Shut down
Step 1: To turn off the APT-1, from the PASSIVE mode- press the
button once. From the Active mode –press twice. The
indicators will turn off and the APT-1 will return to its stand-by
position.
Step 2: Disconnect the power from the APT-1 by first disconnecting
the mains electrical plug from the electrical socket outlet. Dis-
connect Power supply output connector from the APT-1 power
input socket.
CAUTION: For safe disconnection always take the mains plug out of
the electrical socket before disconnecting the Power supply from the
APT-1.
9.7. Emergency Switch
In the event of the need to stop the APT-1 quickly, press the red mush-
room headed button (Figure 14-1) situated on the top of the trainer body
(above the control panel). This will immediately cut the electrical supply
to the APT-1.
The button will stay depressed and
as long as it is in this position the
APT-1 will not function.
In order to restore the electrical
supply to the APT-1, turn the
knurled black disc underneath the
red button (Figure 14-2) in the di-
rection of the white arrow (Figure
14-3) on the red button (clockwise).
The red button will then return to its
original position.
The APT-1 may then be restarted
as previously described.
Figure 14 –Emergency Switch

APT-1 –User’s Manual (EU) Rev. 2019-01 en for il 20
10. TRANSPORTATION AND STORAGE
The APT-1 can be lifted safely in its folded position by grasping onto
the centre of either of the legs of the base unit and carrying like a
suitcase.
For storage in a confined space, fold the APT-1 unit by pulling the
angle release knob (Figure 1-2) and lowering it to the flat position.
Tighten the angle-securing knob (Figure 1-3) to prevent uninten-
tional unfolding.
Temperature range: -20°C to 40°C
Relative humidity range: 10% to 80%
Atmospheric pressure range: 700 hPa to 1060 hPa
