Aqua Creek F-004PLB-23 User manual

©AQUA CREEK, LLC 2003 JUNE 2009
INSTALLATION AND OPERATING INSTRUCTIONS
PRO POOL LIFTTM EXTENDED BASE
MODEL # F-004PLB-23 & -26
400 LB. MAXIMUM CAPACITY (PRO POOL LIFT)
AQUA CREEK PRODUCTS
9889 GARRY MORE LANE
MISSOULA, MT 59808
1-888-687-3552
FAX: [phone]
-
WARNING
-
IMPORTANT SAFETY INSTRUCTIONS
1. READ AND FOLLOW ALL INSTRUCTIONS. LIFT SAFETY CAN ONLY BE ENSURED IF THE
LIFT IS INSTALLED AND OPERATED PROPERLY –ACCORDING TO THESE INSTRUCTIONS.
2. TO REDUCE THE RISK OF INJURY, DO NOT PERMIT CHILDREN TO USE THIS PRODUCT
UNLESS THEY ARE CLOSELY SUPERVISED AT ALL TIMES.
3. DO NOT PERMIT CHILDREN TO PLAY ON OR AROUND THIS PRODUCT.
4. NEVER APPLY DIRECT WATER PRESSURE TO THE ELECTRONIC COMPONENTS.
5. SAVE A COPY OF THESE INSTRUCTIONS IN A SAFE AND EASILY ACCESSIBLE PLACE.

2
PRO POOL LIFTTM
PARTS LIST
INSTALLATION: ADA GUIDELINES
ADA REQUIREMENTS:
The PRO POOL LIFTTM is
designed and manufactured to
be 100% ADA compliant. But
for the installed lift to be 100%
compliant the installation must
meet the requirement for
CLEAR DECK SPACE as
shown in the diagram to the left.
To be compliant, install the lift
at 14 inches [357mm] (the
maximum setback) from the
pool edge, and make sure the
deck has the required CLEAR
DECK SPACE as shown.
HARDWARE BAG –PRO POOL LIFT
ITEM # QTY. DESCRIPTION PART USE / LOCATION
1 4 1/2 x 1-1/2” HEX HEAD BOLT S.S. LIFT ANCHOR BOLTS
2 4 1/2" NYLON FLAT WASHER S.S. LIFT ANCHOR BOLTS & ACTUATOR
3 1 SEAT BELT CHAIR
4 1Me ANTI-SEIZE CREAM
1. PRO POOL LIFTTM W/ FOOTREST
2. HARDWARE BAG
3. INSTALLATION INSTRUCTIONS
4. 24V BATTERY
5. BATTERY CHARGER W/ MOUNTING PLATE
6. WATERPROOF CONTROLLER
7. ANCHOR BOLT BAG (SET OF 4)
8. ANCHOR JIG PLATE

3
PRO POOL LIFT: 4 –POINT ANCHOR INSTALLATION
NOTE: THE PRO POOL LIFT ANCHOR CAN BE INSTALLED IN EITHER A
NEW POOL DECK OR AN EXISTING DECK.
RETRO-FIT INSTALLATION / EXISTING DECK APPLICATION
TOOLS REQUIRED:
MARKING PEN/PENCIL LEVEL
2” CORE DRILL BIT HIGH STRENGTH ANCHOR ADHESIVE*
POWER DRILL HAMMER & CHISEL
1. Locate the anchor jig and the FOUR (4) anchor bolts.
2. Determine the anchor locations using FIGURE 1 and the following
information. The SETBACK DISTANCE is the distance from the pool
wall to the CENTER of the front two anchors. For the -23 unit
(F-004PLB-23) the MAXIMUM SETBACK DISTANCE is 23”. For
the -26 unit (F-004PLB-26) the maximum setback is 26”. Place the
anchor jig plate at the desired location as shown in FIGURE 3 and
mark the four locations. Keep the jig plate parallel to the pool wall.
3. Remove the 1” hex nuts from the anchor bolts and core drill a 1-1/4
inch [32mm] hole at the four anchor locations. Remove the core and
all debris from the holes. Use a hammer and chisel if necessary.
4. Fill each hole approximately ½ full with high strength anchor
adhesive.
5. Install the FOUR (4) anchor bolts into the holes. Make sure that the
top of the bolts are flush and plumb with the top of the pool deck.
6. Let the adhesive cure as per the manufacturer’s instructions before
installing the PRO POOL LIFTTM.
*Use HILTI HIT HY-150 or SIMPSON ET22 StrongTie anchor adhesive or equivalent.
ANCHOR BOLTS
(SHOWN WITH HEX-
NUTS –REMOVE NUTS
FOR RETRO-FIT)

4
NEW CONSTRUCTION: ANCHOR INSTALLATION
When the lift is installed on a new deck, the slab should be a minimum of 6” [15cm] thick at the
lift location, and should be reinforced with #4 reinforcing bar at 10” [25.4cm] on center in each
direction. The total pad area should be 3 feet [92cm] wide (from the edge of the pool back) by 3
feet [92cm] long.
1. Locate the preset anchor jig assembly and the four (4) anchor bolts. Mount the anchor
bolts to the jig plate as shown in FIGURE 2.
2. Ground the jig plate using the attached bronze grounding lug. Check local codes for
anchor grounding.
3. Locate the jig assembly at the desired pool location. The setback distance must be no
greater than 23” (F-004PLB-23) or 26”(F-004PLB-26) as shown in FIGURE 3.
Make sure to keep the front two anchor holes parallel to the pool wall.
4. Make sure the anchor assembly is plumb and level –secure the anchors, and then
pour the deck.

5
PRO POOL LIFT - ASSEMBLY INSTRUCTIONS
1. Attach Seat belt to the seat as shown.
2. Install the PRO POOL LIFTTM onto the four
(4) anchors using the supplied 1/2 x 1-1/2”
stainless steel hex-head bolts and 1/2"
stainless steel flat washers. Make sure all
bolts are tight before using the lift.
3. Plug the handset cable into the large handset
socket on the bottom of the control box. Be
sure you press the cord end firmly into the
socket until you are sure it is all of the way
into the socket. Failure to fully push the
remote cord into the socket may result in
faulty or interrupted operation.
4. Before installing the battery, place it on the
charging unit and let it charge for 24 hours.
Make sure the orange “charge” light
illuminates when the battery is being
charged.
5. Remove the fully-charged battery from the
charger and install it on top of the Control
Box. The battery will line up square with the
control box, and will ‘click’ when it locks in
place properly. The lift will only operate
when the battery is mounted properly.
DO NOT LEAVE THE BATTERY ON
THE LIFT! WHEN NOT IN USE
STORE THE BATTERY ON THE
CHARGER.

6
24V BATTERY SYSTEM OPERATING AND
INSTALLATION INSTRUCTIONS
The Pro Pool Lift TM Battery system comes with a 24v sealed rechargeable battery, wall
mount charging unit (with mounting bracket), control box, and a waterproof handheld
controller. The control box is mounted to the Pro Pool Lift TM and has a plug-in socket for
both the actuator and the handheld controller. The battery mounts directly above the
control box with a quick-release clip.
To operate the Pro Pool Lift TM , plug in the handheld controller to the control box and
push the corresponding button to either lower or raise the unit. The lift should be able to
complete approximately 10-20 full cycles before the low battery indicator tone will
sound. The low battery tone indicates that there is approximately 20% battery life
remaining. At this point, DO NOT ATTEMPT TO OPERATE THE LIFT, remove the
battery from the unit and recharge on the wall mounted charging unit.
To recharge the battery, simply grip the top of the battery and depress the clip on the back
of the battery. This will unclip the battery from the control box bracket and the battery
can then be clipped into the wall mount charger. When the charger is plugged in the
green ON light will illuminate. When the battery is correctly mounted to the charger, the
orange CHARGE light will illuminate. When the battery is fully charged, the
CHARGE light will GO OFF and you can return the battery to the Pro Pool Lift TM.
DO NOT LEAVE THE BATTERY ON THE LIFT. WHEN
NOT IN USE STORE THE BATTERY ON THE CHARGER.
24V SEALED BATTERY
WALL MOUNT CHARGER
CONTROL BOX
& HANDSET REMOTE

7

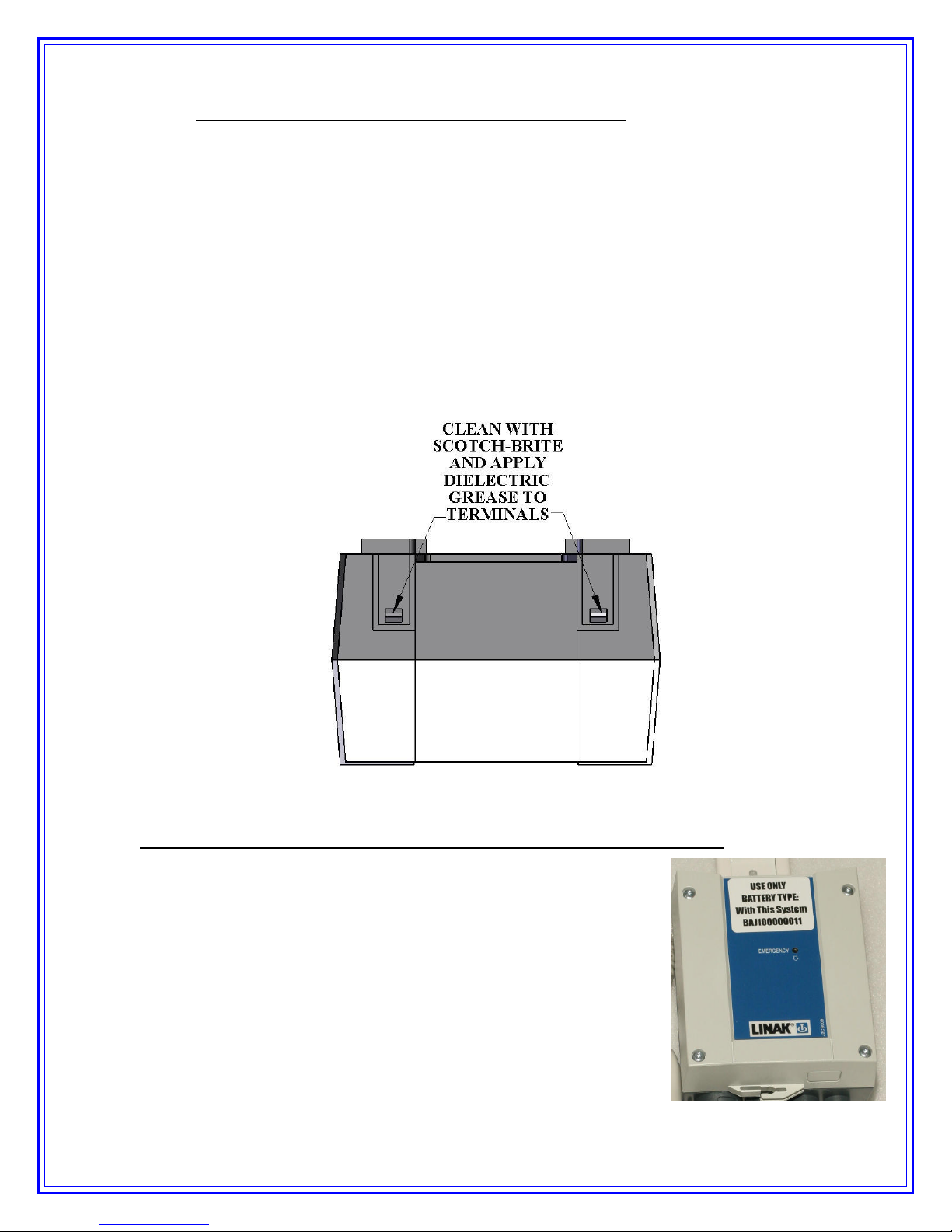

BATTERY MAINTENANCE
1. RECHARGE THE BATTERY AS OFTEN AS POSSIBLE. The battery power unit is
a sealed lead acid battery pack. Frequent recharges will prolong the battery life and
maintain a high cold amperage capacity.
2. Do NOT expose the battery to freezing temperatures.
3. Do NOT expose the battery to prolonged periods of extreme heat or severe cold
temperatures.
4. Do NOT expose the battery to long periods of direct sunlight. Heat will shorten your
battery life. Optimum operating temperature is below 20 degrees Celsius (68 degrees F.)
5. Never drop or bump the battery pack. This may result in loose or damaged internal
connections, and may bend the battery terminals.
6. Keep battery terminals clean and free from dirt and corrosion to ensure good contact. The
terminals may be cleaned using Scotch Brite or any similar product. Clean off any
corrosion or discoloration on the very top surfaces of the battery contacts and then apply
dielectric grease (supplied with lift) as shown in the figure below.
USING THE “EMERGENCY BUTTON”on the Pro Pool Lift Control Box
On the front side of the control box is a small recessed
button marked “emergency”. Take a pen or pencil or other
pointed object and depress the “emergency” button. This
will bypass the remote control and send a signal directly to
the actuator to raise the seat out of the pool and back to the
deck or up position.
NOTE: This function will only work if there is sufficient
power in the battery, the battery is properly attached to
the control box, and the control box must be operating
properly.

8
PRO POOL LIFT OPERATING INSTRUCTIONS:
NOTE:CHECK ALL NUTS & BOLTS FOR TIGHTNESS AND FOR
WORN PARTS BEFORE EACH USE. NEVER OPERATE THE LIFT
WITH THE ARMRESTS FLIPPED UP.
The Pro Pool Lift TM should always be in the full up or deck position before a user
attempts to transfer into the chair. Before attempting to transfer into the chair, check to
make sure the lift is operating by making a short test run: move the chair at least part way
in and out of the pool.
As you are standing in front of the chair, facing the chair, the armrest on either side will
flip up to allow for easier lateral transfers. Transfer into the chair and then lower the flip-
up armrest back into its normal position. Secure the adjustable lap belt around the waist
so that the belt is snug, but not uncomfortably tight.
You are now seated comfortably in the Pro Pool Lift TM, and ready to move into the pool
or spa. Before you begin the operating cycle, take a visual check of the deck area and
pool area to make sure the operating path of the lift is clear.
It is not necessary to lower the lift all the way to the bottom of the lift’s stroke. You may
stop the lift at any time in the downward cycle when it is comfortable for you to exit the
chair into the water.
This is NOT true however, when returning to the deck during the up cycle. The lift
should always be cycled completely to the up or deck position before attempting to exit
the chair on the deck.
To lower the lift into the pool, simply apply pressure on the down arrow button on the
remote control handset and the chair will start to move towards the pool. NOTE: for
safety reasons, it is necessary to maintain continuous pressure on the control button. If
you take your finger off of the control button the lift will stop.
When you are sufficiently submerged into the water to allow for an easy exit from the
chair, you may stop the lift cycle by releasing pressure on the down arrow button on the
remote control handset. Now release the lap belt by grasping the end of the belt that is
protruding above the lap belt and tugging gently. You may now flip up the footrest to
create more room in front of the chair for you to exit. Exit the chair by sliding straight
forward until you are clear of the seat and the footrest.
When you are ready to return to the lift seat and exit the pool or spa, make sure that the
chair is lowered (submerged) sufficiently to allow you to easily slide into the chair. You
should not attempt to “lift” or raise yourself into the chair. Once you are reseated into the
chair, you may lower the footrest to it normal operating position and place your feet on
the footrest. Next, re-secure the adjustable lap belt snugly around your waist. To raise the
chair out of the pool, simply press on the up arrow button on the remote control handset
and apply continuous pressure until the lift chair comes to a rest on the deck in the full up
position. You may now release the lap belt and exit the chair.

9
PRO POOL LIFTTM –HEADREST
(OPTIONAL)
TOOLS NEEDED:
5/64” DRILL BIT
PHILLIPS SCREWDRIVER
ASSEMBLY INSTRUCTIONS
1. Begin by locating all parts in the above parts list.
2. Attach the headrest pad to the support bar by slipping the
cross bar into the sewn supports on the back of the headrest
pad.
3. Adjust the height of the headrest for the user and mark the
hole locations (FIGURE 8).
4. Drill a 5/64 inch [2 mm] hole at the marked locations from
step 3.
5. Install the headrest with the supplied stainless steel screws
(FIGURE 8).
ITEM # QTY. DESCRIPTION
1 1 HEADREST PAD
2 1 HEADREST SUPPORT
3 2 1/8” x 3/4" S.S. SCREW
SAFETY & MAINTENANCE INSTRUCTIONS
Do not play on or around this lift
1. Check the PRO POOL LIFTTM before each use to assure there are no worn parts
and that all hardware is properly tightened. If there are any worn parts, replace
them BEFORE using the Pro Pool LiftTM. You can call our customer service at 1-
888-687-3552 to order any parts.
2. Aqua Creek Products, LLC lifts shall be grounded per local codes.
3. At least ONCE A WEEK, the Pro Pool LiftTM must be cleaned with fresh water.
Do not spray the Pro Pool LiftTM 24v battery unit directly with any pressure.
Wipe all surfaces clean with a damp, non-abrasive cloth. When cleaning the Pro
Pool LiftTM , use non-abrasive soap and water. Avoid harsh chemicals and
disinfectants.
4. Always read the label instructions on any cleaner carefully before applying it to a
surface.
5. The WARNING & INTENDED USE labels on the Pro Pool LiftTM need to be
maintained in readable fashion. If they become un readable or faded, please
replace the label immediately. Replacement labels are available from AQUA
CREEK PRODUCTS LLC. 1-888-687-3552.
FIGURE 8

10
CARE OF YOUR LIFT
Routine cleaning is an absolute necessity to ensure the integrity of the lift. Note that the
Aqua Creek Pool Lift should not be stored in a pump room or in a storage room where
pool chemicals are kept. Storing the lift near pool chemicals may cause rusting and other
damage to occur. Your Aqua Creek stainless steel lift is powder coated to protect the
stainless steel from rusting. Most rusting will occur at weld points, crevices, under
gaskets, rivets or bolt heads.
The choice of a proper cleaning product is up to the consumer and there are many to
choose from. Depending on the type of cleaning and the degree of contamination
(rusting), some products are better than others. For routine cleaning the products most
recommended are gentle soaps or detergents or dilute mixtures of ammonia. For
stubborn spots and stains try using soft scrub with some brisk rubbing.
DO NOT USE POOL WATER TO CLEAN USE ONLY FRESH
WATER
If the lift is used DAILY make sure to wash the lift at the end of the day. Wash the lift
off using a mild soap and a soft cloth. Make sure to pay special attention to weld points
and crevices. Do not use a bristled brush or steel wool to clean the lift. Check that the
lift is working properly and then place the battery on the charger. It is recommended that
the battery be charged after every day of use.
If the lift is used WEEKLY follow the same steps as above. Also be sure to check all of
the contact points (terminals) for damage or corrosion. If you notice corrosion gently
clean the terminals. To clean corrosion from the terminals use a q-tip and some rubbing
alcohol. If the corrosion is particularly stubborn try using a 3M scotch brite pad, but be
careful not to damage the terminals. Apply dielectric grease to the terminals after
cleaning them. This will help to prevent further corrosion. Do not leave the battery on the
lift. Always store the battery on the charger whenever the lift is not being used.
If the lift is used MONTHLY follow the same steps as above. Also check the nuts and
bolts to make sure they are securely fastened (this is always a good idea, no matter how
often or infrequently the lift is used). Also make sure to store the battery on the charger
and not on the lift. Leaving the battery on the lift for extended periods will significantly
shorten the battery’s lifespan.
If the lift is being STORED for an extended period of time follow all of the steps above.
Check for rusting at all crevice and weld points. If you notice rusting spray some WD-40
on the affected area and take a 3M scotch brite pad and rub briskly. Afterwards be sure
to wash and rinse the lift again with soap and water. When storing the lift make sure it is
in a dry area and covered. DO NOT STORE in or around pool chemicals.

11
TROUBLESHOOTING GUIDE
Before troubleshooting make sure the battery is fully charged.
If the lift doesn’t move when the handset button is pressed:
When you can’t get the lift to move check the following things:
1. Make sure the battery is fully charged:
A. Before charging the battery first make sure the green light on the front
of the charger is illuminated (this means that the charger is on). Then
check to make sure the silver contact points on the battery and charger
are not damaged or corroded, and that they are clean. Then place the
battery on the charger and look for the orange charge light to
illuminate on the front of the charger. When the orange light goes off
the battery is fully charged.
B. When the battery is correctly installed on the charger or control box
you should hear a “click” indicating the battery is properly seated on
the unit. Also note that when the battery is properly seated there
should not be any gaps between the battery and the control
box/charger.
The top
green light
will always
be illuminated indicating that it
has power. When charging the
battery the bottom orange light
will illuminate, until fully
charged.
Not attached properly
.
Note
the white bracket is in front of
silver clip, which will not allow
for an electrical connection.
Properly Attached.
Note that the white bracket is
behind the silver clip. Not allowing
movement.

12
If the battery is fully charged and the lift is not moving then:
2. Check all cords:
A. Check that the cords are properly plugged in. Start by unplugging the
remote and the actuator cord from the control box. Once these cords
are removed check the ends for corrosion or damage. Plug the remote
cord back in by lining up the raised tab on the plug to the grooved line
on the control box outlet. Note that these cords require some force to
plug them in fully. You will know they a correctly inserted when you
here a “popping sound”. The cords will be recessed into the outlet. If
they are flush with the outside of the outlet they are not plugged in
fully and the lift will not function. Make sure you do this for both
cords.
If you have checked all the cords and the lift still doesn’t move:
3. Check the contact points:
A. After you have fully charged the battery and checked the cords to
make sure they are properly plugged in, check to make sure the contact
points are not corroded or bent. If the contact points are corroded take
some rubbing alcohol and a q-tip and clean off the points. After
cleaning the contact points it is recommended to put some dielectric
grease on the contact points (terminals) to help ensure good electrical
contact and prevent corrosion. Then reinstall the battery on top of the
control box. Make sure you hear a “click”, which indicates that the
battery is correctly seated. The lift will not work if the battery is not
seated correctly.
NOT inserted fully. Fully inserted.
Silver tabs are the contact
(terminal) points.

13
If the lift stops moving over the water and is stuck:
4. Then try pushing the emergency button:
A. If the lift gets stuck out over the water use a pen or pencil tip and stick
it into the emergency button on the front of the control box to retract the
lift. Note the lift will not retract if the battery is not fully charged or if the
control box is not working. The emergency button only overrides the
remote in case it has gone bad. If this does not retract the lift then chances
are the remote is fine and you either have a problem with the battery, the
control box, or the cords are damaged or not plugged in properly.
Use a pen or pencil tip
to push in the small
black circle located next
to the word emergency,
on the front of the
control box.

14
PRO POOL EXTENDED BASE: PARTS LIST
ITEM #
QTY
DESCRIPTION
PART NUMBER
1 1 PRO POOL EXTENDED BASE A-2011PPB-26
2 1 PRO POOL FRAME A-0404PPF
3 1 PRO POOL ACTUATOR FRAME A-8980PPAF
4 1 PRO POOL SEAT ROTATE ARM P-2012SRS
5 1 PRO POOL SEAT ARM A-2012ARM
6 1 PRO POOL CONTROL ARM L-2014FBL
7 1 CHAIR ASSEMBLY (SEE NEXT PG)
8 1 FOLDING FOOTREST TUBE P-2035LEG
9 1 FOLDING FOOTREST P-910
10 1 LINEAR ACTUATOR F-499RAS
11 1 24 VDC LEAD-ACID BATTERY F-004AB
12 1 CONTROL BOX F-40CBJ
13 1 HANDSET CONTROL F-100JH
14 1 BATTERY/CB BRACKET MBJ2-01
15 1 1/4"-20 x 1/2" HEX BOLT, S.S. BOLT1/4X1/2SSHEX
16 1 1/4"-20 x 3" HEX BOLT, S.S. BOLT1/4X3SSHEX
17 4 1/4" FLAT WASHER, S.S. FLATWASHER1/4SS
18 1 1/4"-20 NYLOCK NUT, S.S. NYLOCK1/420SS
19 1 3/8"-16 x 2 1/2" HEX BOLT, S.S. BOLT3/8X21/2SSHEX
20 1 3/8"-16 x 1 3/4" HEX BOLT, S.S. BOLT3/8X13/4SSHEX
21 2 3/8" FLAT WASHER, S.S. FLATWASHER3/8SS
22 2 3/8"-16 NYLOCK NUT, S.S. NYLOCK3/816SS
23 2 1/2" FLAT WASHER, S.S. FLATWASHER1/2SS
24 2 1/2"-13 NYLOCK NUT, S.S. NYLOCK1/213SS
25 2 1/2" x 1/8" THRUST WASHER, BRONZE TW1/2X1/8BRNZ
26 2 1/2" x 1/4" FLANGE BEARING, BRONZE FB1/2X1/4BRNZ
27 1 5/8"-11 x 6" HEX BOLT, S.S. BOLT5/8X6SSHEX
28 2 5/8"-11 x 1 1/2" HEX BOLT, S.S. BOLT5/8X11/2SSHEX
29 4 5/8" FLAT WASHER, S.S. FLATWASHER5/8SS
30 3 5/8"-11 NYLOCK NUT, S.S. NYLOCK5/811SS
31 3 5/8" x 1/8" THRUST WASHER, BRONZE TW5/8X1/8BRNZ
32 2 5/8" x 1 1/8" FLANGE BEARING, BRNZE FB5/8X1/8BRNZ
33 1 3/4" FLAT WASHER, S.S. FLATWASHER3/4SS
34 1 3/4"-10 NYLOCK NUT, S.S. NYLOCK3/410SS
35 2 3/4" x 1 1/8" FLANGE BEARING, BRNZE FB3/4X11/8BRNZ

15
SEAT ASSEMBLY: PARTS LIST
ITEM # QTY DESCRIPTION PART NUMBER
1 1 SEAT BODY F-132RC
2 2 SEAT ARMREST TUBE SA-0904SAT
3 2 SEAT ARMREST HANDGRIP RUBBERFINGERGRIPS
4 2 1/4"-20 x 3" HEX BOLT, S.S. BOLT1/4X3SSHEX
5 2 1/4" FLAT WASHER, S.S. FLATWASHER1/4SS
6 1 1/4" QUICK RELEASE PIN, S.S. PIN1/4X3SS
7 1 LANYARD FOR QRP LANYARD
8 1 SHEET METAL SCREW, S.S. SA-0904SMS

16
Aqua Creek Products, LLC Limited Warranty:
Pro Pool Lift™ - Extended Base (-23 & -26)
Aqua Creek Products, LLC (a.k.a. Aqua Creek) warrants to the original end user purchaser that products
manufactured by Aqua Creek, when properly installed in accordance with assembly and installation instructions, and
properly used and maintained, shall be free from defects in material and workmanship for a period of five (5) years
from the date of original purchase, provided that Aqua Creek receives prompt notice in writing of any defect or
failure and satisfactory proof thereof, with the following exceptions:
Exception : All electrical components, including the linear actuator shall have the following warranty period:
Year 1-2: 100% Coverage
Year 3: 60% Coverage (Customer is responsible for 40% of replacement cost)
Year 4: 50% Coverage (Customer is responsible for 50% of replacement cost)
Year 5: 40% Coverage (Customer is responsible for 60% of replacement cost)
All warranty calculations are from date of original purchase at manufacturers suggested retail price.
This warranty specifically excludes reimbursement for labor to remove, repair, or install the product and any freight
charges.
This warranty does not cover any damages due to accident, misuse, abuse, negligence or failure to properly maintain
any products, or normal wear and tear from day to day operations. In the event that any products are altered,
repaired, or improperly installed by anyone without the prior written approval by Aqua Creek, all warranties are
void. IMPORTANT: AMOUNT OF WEIGHT PLACED ON LIFT SHALL NOT EXCEED THE RATED
LIFTING CAPACITY OF 400 POUNDS FOR THE EXTENDED BASE UNIT.
To initiate a warranty claim, the owner of an Aqua Creek product must provide the place of purchase, in writing,
with a full description of the product, its serial number, the dates of purchase and installation, and the exact nature of
the defect. Within thirty (30) days after receipt of a written warranty claim by Aqua Creek, and barring any
unforeseen delays, the place of purchase will be notified of Aqua Creek’s decision regarding the claim.
If requested by Aqua Creek, any defective product must be returned, freight prepaid, to Aqua Creek’s designated
factory location or duly appointed distributor for inspection and/or repair. Aqua Creek will, at its option, repair or
replace the failed or defective item, and deliver the repaired product or replacement to the seller of the product,
freight prepaid to the destination provided for in the original order. Products returned to Aqua Creek for which Aqua
Creek provides replacement under this limited warranty shall become the property of Aqua Creek.
A new warranty period shall NOT be established for the repaired or replaced products. Such products shall remain
under warranty only for the remainder of the original warranty period on the original products purchased.
This written limited warranty constitutes the final, complete and exclusive statement of warranty terms. No person
or organization is authorized to make any other specific or implied warranties or representations on behalf of Aqua
Creek.
THE WARRANTIES SET FORTH HEREIN ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR
IMPLIED, WHICH ARE HEREBY DISCLAIMED AND EXCLUDED, INCLUDING WITHOUT LIMITATION
ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR USE.
THE SOLE AND EXCLUSIVE REMEDIES FOR BREACH OF ANY AND ALL WARRANTIES WITH
RESPECT TO THE PRODUCTS SHALL BE LIMITED TO REPAIR OR REPLACEMENT AT AQUA CREEK’S
DESIGNATED FACTORY LOCATION, OR DULY APPOINTED DISTRIBUTOR, OR IN PLACE AT AQUA
CREEK’S OPTION. IN NO EVENT SHALL AQUA CREEK’S LIABILITY EXCEED THE ENTIRE AMOUNT
PAID TO AQUA CREEK BY THE ORIGINAL PURCHASER FOR THE FAILED OR DEFECTIVE PRODUCT.
IN NO EVENT SHALL AQUA CREEK PRODUCTS, LLC BE LIABLE FOR ANY INCIDENTAL,
CONSEQUENTIAL, SPECIAL, INDIRECT, PUNITIVE OR EXEMPLARY DAMAGES OR LOST PROFITS
FROM ANY BREACH OF THIS LIMITED WARRANTY OR OTHERWISE.
Aqua Creek Products
9889 Garry More Lane
Missoula, MT 59808
