AQUA DREAM AD-1060 WS User manual

Aquarium Assembly Instructions
*AD-1060 WS *AD-1260 WS/SILVER
*AD-1560 SILVER *AD-1560 WS
*AD-1760 WS *AD-1980 WS
*AD-2320 BP

Aquarium Assembly Instructions
*AD-1060 WS *AD-1260 WS/SILVER
*AD-1560 SILVER *AD-1560 WS
*AD-1760 WS *AD-1980 WS
*AD-2320 BP
A
C
B
C
D
A
B
H
F
G
D
E
I
A - Aquarium tank
B - Cabinet/Sump System
C - Overow Box
D - Example Water Pump Set Up
A - Outow Pipe
B - Inlet Pipe
C - Inlet Hose
D - O-Rings
E - Rubber Gasket
F - Water Pump
G - Pump Outlet Parts
H - LED Lamps and Power Adapters
I - LED Lamp Suction Cups
Diagram 2:
Diagram 1:
©2023 AquadreamUSA all rights reserved www.aquadreamusa.com Aquarium and Parts Diagrams

1 - Attach the outow pipe to the underside of the
tank. Be sure to guide the pipe end into the guide
hole at the top of the lter box before tightening it
down. [g. 1 and g. 2]
2 - Locate the Outlet Valve Hose [g.3]
3 - Insert the rubber gasket inside the end of the
outlet valve hose, then attach the outlet valve
hose to the underside of the tank.[g. 4, g. 5, g. 6]
4 - Use a Philips head screwdriver to tighten the
O-ring clamps at both ends of the Outlet Valve Hose
[g. 7 and g. 8]
©2023 AquadreamUSA all rights reserved www.aquadreamusa.com plumbing and component set up page 1
g. 1
g. 2
g. 3
g. 4
g. 5
g. 6
g. 7

5 - Locate the included pump and accessories [g. 9]
6 - Slide the two metal O-ring clamps onto the inlet
hose [g.10]
7 - Assemble the outlet that corresponds to the inlet
hose diameter, using an outlet and locking nuts
[g. 11, g. 12, and g. 13]
8 - Install the rubber gasket inside the end of the
inlet hose and attach it to the pump.
[g. 14 and g. 15]
g. 8
g. 9
g. 10
g. 11
g. 12
g.13
g. 14
©2023 AquadreamUSA all rights reserved www.aquadreamusa.com plumbing and component set up page 2

9 - Tighten the metal O-ring clamps onto both ends
of the hose and lower the water pump into the
marked Water Pump bay in the ltration system
[g. 16, g.17, g. 18]
10 - Install the rubber gasket in the end of the inlet
hose and attach it to the underside of the tank
[g.19 and g. 20]
11 - Feed the pump’s power cable through the hole
in the back of the tank [g. 21]
g. 15
g. 16
g. 17
g. 18
g. 19
g.20
g. 21
©2023 AquadreamUSA all rights reserved www.aquadreamusa.com plumbing and component set up page 3

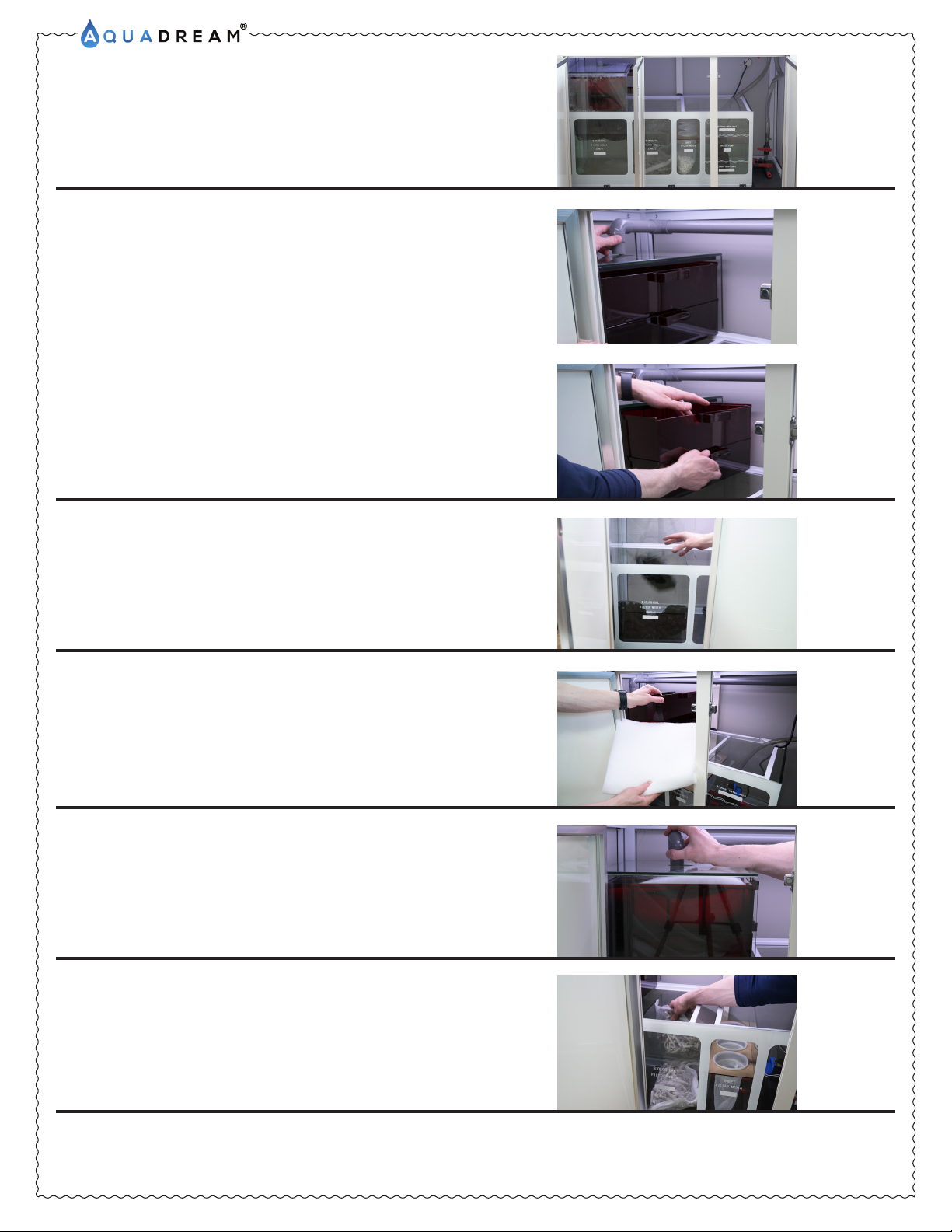

12 - Filter Media Example Set up
Preprared lter media [g. 22]
13 - Gently li the outow pipe out of the guide hole
in the top of the red lter box and remove
the drawers [g. 23 and g. 24]
14 - Add lter media to Zone 1
(bio balls pictured) [g. 25]
15 - Add lter media to lter box drawers
(sheet media pictured) [g. 26]
16 - Close lter box drawers and reposition
the outow pipe into the guide hole at the top
[g. 27]
17 - Add lter media to Zone 2
(coral pictured) [g. 28]
g. 22
g. 23
g. 24
g. 25
g. 26
g. 27
g. 28
©2023 AquadreamUSA all rights reserved www.aquadreamusa.com plumbing and component set up page 4

18 - Add lter media to basket lters
(ceramic rings pictured) [g. 29 and g. 30]
19 - Install the glass cover to the sump system [g. 31]
20 - On the top of the tank, connect the inow pipe
to the elbow at the top of the overow box [g. 32]
g. 29
g. 30
g. 31
g. 32
©2023 AquadreamUSA all rights reserved www.aquadreamusa.com plumbing and component set up page 5
