aqua greek products Portable Pro Pool 2 User manual

Copyright © 2020 Aqua Creek Products All Rights Reserved Revised 7/28/20
Portable
Pro Pool 2
Check entire box and inside all packing materials for parts. Before beginning assembly, read the
instructions and identify parts using the fi gures and parts listed in this document.
It is critical all parts be carefully inspected by the installer prior to installation to ensure no damage
occurred in transit and a damaged part is not used. If any damage occurred in transit, Aqua Creek
Products, LLC must be notifi ed within three days of receipt of unit.
Proper installation cannot be overstressed, as an improper installation voids Aqua Creek’s warranty
and may aff ect the safety of the user.
READ CAREFULLY
PART #: F-PPP2 / F-PPP2S
US PATENT NUMBER: [D507,769 S] [7,249,386 B2]
350 LB. [160 kg] MAXIMUM WEIGHT CAPACITY
MANDATORY
LEAVE THIS MANUAL WITH LIFT OWNER
Read and follow all instructions.
Lift safety can only be ensured if the lift is installed and
operated according to these instructions.
• NEVER permit children to play on or around the lift
• Do not allow children to use the lift without adult
supervision
• NEVER apply direct water pressure to the electronics
• Do not use the Portable Pro Pool 2 for deck-to-waterline
measurements over 13”
• NEVER operate lift without the 11 weight plates installed
OR 650 pounds of sand.
• NEVER use the lift with a dry pool
• For safety reasons, NEVER swim alone
9889 Garrymore Ln
Missoula, MT 59808
888-687-3552 | [phone]
www.aquacreek.com
1

Copyright © 2020 Aqua Creek Products All Rights Reserved Revised 7/28/20
Portable Pro Pool 2 Components
1. PORTABLE PRO POOL 2 LIFT
2. LINAK BATTERY CHARGER
3. 24V LINAK BATTERY
4. LINAK HANDSET REMOTE
5. SEAT BELT
6. 11 CONCRETE WEIGHT PLATES*
*only if weight plate version of lift was
purchased*
Portable Pro Pool 2 Lift
Table of Contents
PAGE DESCRIPTION PAGE DESCRIPTION
2 Portable Pro Pool 2 Components 8 Portable Pro Pool 2 Lift Parts List
3-5 Portable Pro Pool 2 Assembly Instructions 9 Portable Pro Pool 2 Cart Parts List
6 Basic Troubleshooting 10 Warranty
7 Proper Care of Pool & Spa Lifts
2
3
4
1
5*6
2

Revised 7/28/20
Copyright © 2020 Aqua Creek Products All Rights Reserved Revised 7/28/20
Portable Pro Pool 2 Assembly Instructions (Weight Plates)
1. Using a 7/16” wrench, remove the four (4) nylock nuts and at washers that are currently
holding the hood onto the platform. These were installed strictly for shipping purposes and
can be thrown away. Remove the hood and set aside.
2. Begin stacking the eleven (11) supplied weight plates on the portable platform. To ensure
proper alignment, slide the hood over the stack every three (3) or four (4) plates. Continue
this until all eleven (11) weight plates are in place.
3. Using a 7/16” wrench, slide the hood over the stack of weight plates and attach to the
platform using the twelve (12) supplied 1/4” nylock nuts and at washers. NOTE: Be sure to
use silicone to seal the ange before bolting together.
TOOLS REQUIRED:
• 7/16” wrench
BALLAST COVER
WEIGHT PLATES (11)
1/4 FLAT WASHERS (12)
1/4 NYLOCK NUTS (12)
3

Copyright © 2020 Aqua Creek Products All Rights Reserved Revised 7/28/20
Portable Pro Pool 2 Assembly Instructions (Sand Ballast)
USE A LARGE FUNNEL
TO FILL THE TANK WITH
"ALL-PURPOSE" SAND
REMOVE SCREWS &
CAPS FROM BOTH
HOLES TO FILL TANK
BALLAST TANK
FILL THE TANK WITH 650lbs
OF "ALL-PURPOSE" SAND
(13, 50lb BAGS)
WARNING! DO NOT
OPERATE THE LIFT
BEFORE FILLING THE
BALLAST TANK.
!
1. Fill the ballast tank with sand (not included) as shown below. Gently shake or tap the tank
sides periodically to help level the sand. Alternate between ll ports to make sure sand is
evenly distributed (use a large funnel to help in this step).
2. Once all the sand has been poured into the tank, return the caps to the top of the tank and
attach them with the screws.
3. With the counter weight now in place, roll the lift to the desired location on the pool deck.
4

Revised 7/28/20
Copyright © 2020 Aqua Creek Products All Rights Reserved Revised 7/28/20
Portable Pro Pool 2 Assembly Instructions
LOOP ON TOP
FOR EASY ACCESS
THREAD THROUGH
SLOTS AND PINCH
TOGETHER TO HOLD
4. Attach seat belt to the seat as shown in diagram to the
right.
5. Place the battery on the charger and bring to a full charge.
6. Apply dielectric grease on the metal tabs of the battery
and the control box on the lift.
7. Mount the battery onto the control box on the lift and
snap the battery into place. Listen for a ‘click’ when the
battery is installed properly. There should be no gap
between the battery and control box. See FIGURE 1.
NOTE: To extend battery life, always store battery on the
charger when the lift is not in service.
FIGURE 1
SLOTS AND PINCH
SLOTS AND PINCH
TOGETHER TO HOLD
FIGURE 1
ATTACH FULLY
CHARGED BATTERY
CONTROL BOX
5

Copyright © 2020 Aqua Creek Products All Rights Reserved Revised 7/28/20

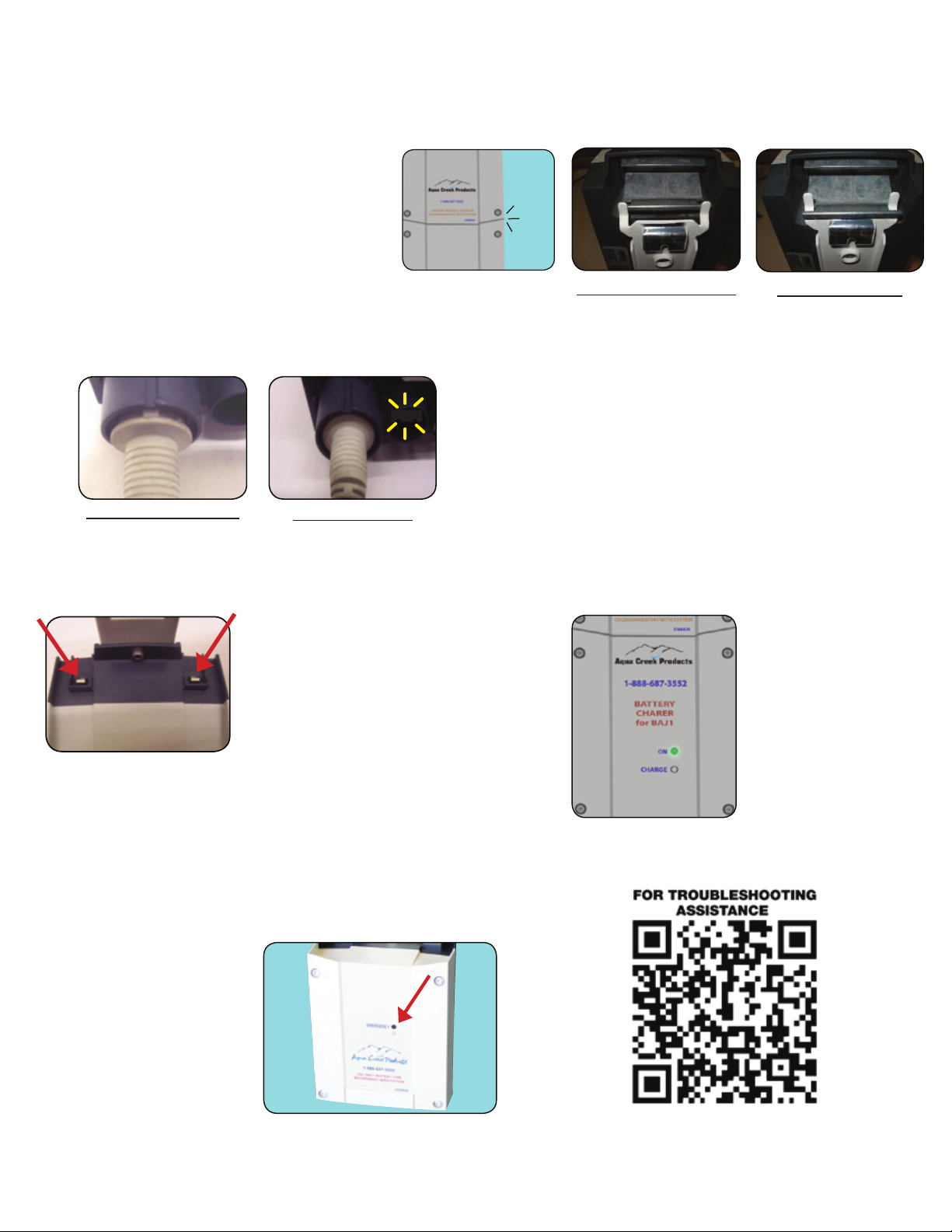

Basic Troubleshooting
Problem: The lift won’t move.
Solution:
1. Make sure the battery is properly seated:
You should hear a click when
the battery is properly seated
on the control box or charger.
Click!
NOT Properly Attached:
Note: the white bracket is
in front of the silver clip,
which will not allow for
an electrical connection
Properly Attached:
Note: the white bracket
is behind the silver clip,
holding it securely to al-
low for an electrical con-
nection
Check the ends of the cords for corrosion or
damage. The cord plugs should be recessed
into the outlet. You should feel them pop into
place when they are correctly inserted.
2. Make sure the cords are properly plugged in:
NOT Properly Inserted:
The cord plug is fl ush with
or sticking out of the outlet
Properly Inserted:
The cord plug is recessed
into the outlet
POP!
The Charger is ON
when the green
light is glowing
The Battery is CHARG-
ING when the orange
light is glowing
When the Battery is
charged the orange
light will stop glowing
4. Make sure the battery is fully charged:3. Check the contact points:
Make sure the contact points of
the control box and the battery
are not damaged or corroded.
If there is corrosion clean with
Scotch-BriteTM pad. Put some
dielectric grease on the contact
points before reattaching the
battery.
Problem: The lift stopped moving over the water and is stuck.
Solution:
1. Press the emergency button
Use a pen or pencil tip and
stick it into the emergency
button on the front of the
control box to retract the lift.
Note: the lift will not retract if
the battery is not fully charged
or if the control box is not
working. The emergency but-
ton only overrides the remote
handset.
6

Revised 7/28/20
Copyright © 2020 Aqua Creek Products All Rights Reserved Revised 7/28/20
PROCEDURE BEFORE
EACH USE
DAILY WEEKLY MONTHLY
Check battery level indicator on control box 
Run the lift through a complete test cycle (fully ex-
tend actuator) to verify it is functioning properly 
Wash lift with fresh water and dry with clean, soft,
non-abrasive cloth 
Recharge battery 
Visually inspect lift for damage, corrosion, and loose
or missing hardware 
Check all contact points for damage and/or corrosion 
Repair, clean and apply dielectric grease to all contact
points 
Thoroughly clean lift frame and apply a liberal coat of
car wax to maintain the lift’s nish 
Check all Warning and Cautionary labels to make sure
they are not faded or worn. Replace as needed. 
Proper Care of Pool & Spa Lifts
PROPER CARE NOTES
• Use only fresh water to wash your lift. Do not wash with pool water.
• Use only clean, soft, non-abrasive cloths on your lift.
• Do not store lift in pump room or near chemicals.
• Do not allow children to play on or around this lift.
• When cleaning the lift, do not spray water directly on control box or battery.
• The lift may need to be bonded according to local code requirements.
For service and/or replacement parts, contact Aqua Creek Products
Toll free: [phone]
To remove stubborn stains from nish, spray aected area with mild dish soap, rub
briskly with a 3M Scotch Brite™ pad. Use white epoxy paint to touch up the nish. Apply
wax to protect when dry.
STAIN REMOVAL TIPS:
7

Copyright © 2020 Aqua Creek Products All Rights Reserved Revised 7/28/20
Portable Pro Pool 2 Lift Parts List
ITEM # QTY PART # DESCRIPTION
1 1 PF2-100-02 BASE WELDMENT
2 1 PF2-200-03 MAIN FRAME ASSEM-
BLY
3 1 PF2-300-03 CHAIR CRADLE AS-
SEMBLY
4 1 PF2-400-04 CONTROL ARM
5 1 PF2-500-00 BRACKET ASSEMBLY
6 1 340665-00 LINAK 400MM PULL
ACTUATOR
7 1 F-0904CA-A CHAIR ASSEMBLY
8 1 F-FRB-03 FOOTREST ASSEMBLY
9 1 MBJ2-01 LINAK CONTROL
BRACKET
10 1 CBJ2-U033-00 LINAK CONTROL BOX
11 1 BAJ1-U026-00 24V LINAK BATTERY
12 1 M5 LPCS CONTROL BOX
SCREW
13 1 WF 10 #10 FLAT WASHER
14 2 BSH 10 X 3/8 10-24 X 3/8 SHCS
15 1 BB 1/4 X 1/2 1/4-20 X 1/2 BHSCS
16 1 WF 1/4 1/4 FLAT WASHER
17 1 WL 1/4 1/4 LOCK WASHER
ITEM # QTY PART # DESCRIPTION
18 1 BH 5/16 X 4 1/2 5/16-18 X 4 1/2 HCS
19 5 WF 5/16 5/16 FLAT WASHER
20 4 NN 5/16 5/16-18 NYLOCK NUT
21 1 BS 3/8 X 9/16 3/8 X 9/16 SHOULDER
BOLT
22 1 BS 3/8 X 1 3/4 18-8 3/8 X 1 3/4 SHOUL-
DER BOLT
23 1 BS 3/8 X 2 18-8 3/8 X 2 SHOULDER
BOLT
24 2 BC 3/8 X 3 3/8-16 X 3 FHSCS
25 2 WF 3/8 3/8 FLAT WASHER
26 2 NN 3/8 3/8 NYLOCK NUT
27 1 BH 5/8 X 5 7/8 18-8 5/8 X 5 7/8 HCS
28 2 WF 5/8 5/8 FLAT WASHER
29 1 NN 5/8 5/8 NYLOCK NUT
30 1 NNJ 1 1” NYLOCK JAM
31 1 BRB EP060803 3/8 X 1/2 X 3/16
SLEEVE BUSHING
32 2 BRB SS-1216-6 1/2 X 3/8 X 3/8
BRONZE SLEEVE
33 1 F-UBC BATTERY COVER
8
22 30 2 20 19 25 26
5
31 21 19 7 19 20
18
3
20
19
416
17
152728
1
33
14
11
32
19
20
29 28 23
32
24
6
14
12
13
9
10

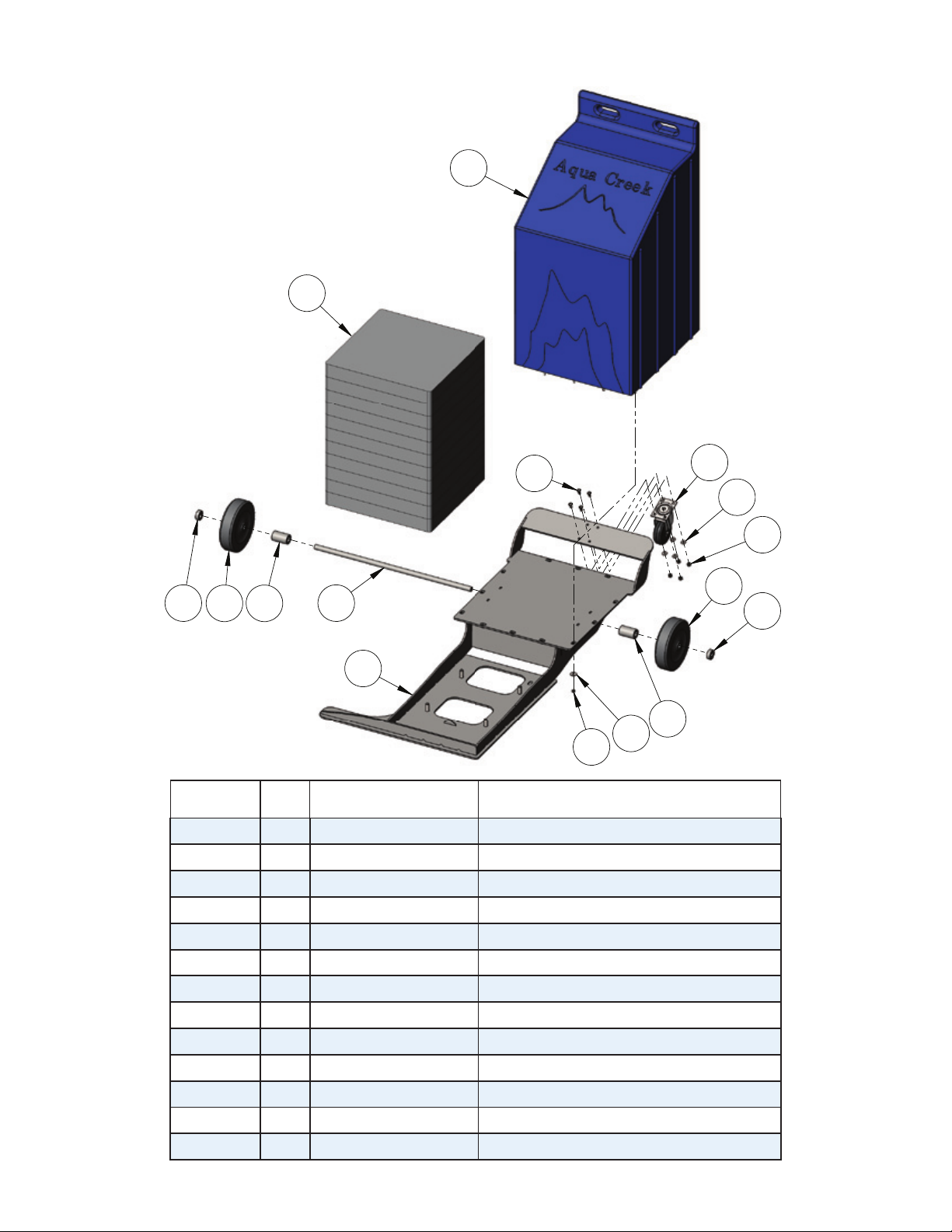

ITEM NO. PART NUMBER DESCRIPTION QTY.
1 PF2-100-02 RANGER 2 BASE WELDMENT 1
2
PF2-200-03
RANGER 2 MAIN FRAME
ASSEMBLY
1
3 PF2-300-03
RANGER 2 CHAIR CRADLE
ASSEMBLY
1
4 PF2-400-04
RANGER 2 CONTROL ARM
ASSEMBLY
1
5 PF2-500-00
ADMIRAL ACTUATOR BRACKET
ASSEMBLY
1
6
340665-00 ACTUATOR, LINAK, 400MM 1
7
F-0904CA-A CHAIR ASSEMBLY, 18" WIDE 1
8
F-FRB-02 FOOTREST ASSEMBLY, BLUE 1
9
MBJ2-01 BRACKET, MOUNTING, T-SHAPED 1
10 CBJ2-U033-00 CONTROL BOX, LINAK, 2-PORT 1
11 BAJ1-U026-00 BATTERY, LINAK, 24 VOLT 1
12 M5 LPCS
CONTROL BOX SCREW (NON
INVENTORY)
1
13 WF 10 WASHER, FLAT, #10 SAE, 316 SS 1
14 BSH 10 X 3-8 BOLT, 316 SS, 10-24 X 3/8 SHCS 2
15 BB 1-4 X 1-2 BOLT, 316 SS, 1/4-20 X 1/2 BHSCS 1
16 WF 1-4 WASHER, FLAT, 1/4, 316 SS 1
17 WL 1-4 LOCK WASHER, 1/4", 316 SS 1
18 BH 5-16 X 4 1-2 BOLT, 316 SS, 5/16-18 X 4 1/2 HCS 1
19 WF 5-16 WASHER, FLAT, 5/16, 316 SS 5
20 NN 5-16 NUT, 316 SS, NYLOCK, 5/16"-18 4
21 BS 3-8 X 9-16
BOLT, 316 SS, 3/8 X 9/16
SHOULDER, 5/16-18 THREAD
1
22 BS 3-8 X 1 3-4 18-8
BOLT, 18-8 SS, 3/8 X 1 3/4
SHOULDER, 5/16-18 THREAD
1
23 BS 3-8 X 2 18-8
BOLT, 18-8, 3/8 X 2 SHOULDER,
5/16-18 THREAD
1
24 BC 3-8 X 3 BOLT, 316 SS, 3/8-16 X 3 FHSCS 2
25 WF 3-8 WASHER, FLAT, 3/8, 316 SS 2
26 NN 3-8 NUT, 316 SS, NYLOCK, 3/8"-16 2
27 BH 5-8 X 5 7-8 18-8 BOLT, 18-8 SS, 5/8-11 X 5 7/8 HCS 1
28 WF 5-8 WASHER, FLAT, 5/8, 316 SS 2
29 NN 5-8 NUT, 316 SS, NYLOCK, 5/8"-11 1
30 NNJ 1 NUT, NYLOCK JAM, 316 SS, 1-8 1
31 BRB EP060803
BUSHING, BRONZE SLEEVE,
EP060803, 3/8 X 1/2 X 3/16
1
32 BRB SS-1216-6
BUSHING, BRONZE SLEEVE, 1/2 X
3/8 X 3/8
2
33 F-UBC
COVER, UNIVERSAL BATTERY
COVER
1
8

Revised 7/28/20
Copyright © 2020 Aqua Creek Products All Rights Reserved Revised 7/28/20
Portable Pro Pool 2 Cart Parts List
Item # QTY PART # DESCRIPTION
1 1 PP2-100WM-00 PORTABLE PRO POOL 2 CART WELDMENT
2 2 PP2-109-00 WHEEL SPACER
3 1 PP2-110-00 AXLE SHAFT
4 2 5.00008.459.2.SSRB WHEEL, RUBBER, PERFORMA, SS BEARING
5 1 2NF100SA 4” SS CASTER ASSEMBLY
6 4 BB 5/16 X 3/4 BOLT, 316 SS, 5/16-18 X 3/4 BHSCS
7 4 WF 5/16 WASHER, FLAT, 5/16, 316 SS
8 4 NN 5/16 NUT, 316 SS, NYLOCK, 5/16-18
9 2 LOCK COLLAR 3/4 SS LOCK COLLAR, 3/4, SS, SINGLE SPLIT
*10 11 WP-60 WEIGHT PLATE, CONCRETE, 2”x 18” x 18”
11 1 A-985B COVER ASSEMBLY
12 12 WFE 1/4 WASHER, FENDER, 316 SS, 1/4 X 1
13 12 NN 1/4 NUT, 316 SS, NYLOCK, 1/4-20
1
3
24
9
10
11
2
4
9
65
7
8
12
13
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 PP2-100WM-00
PORTABLE PRO POOL 2 CART
WELDMENT
1
2
PP2-109-00 PPP2 WHEEL SPACER 2
3
PP2-110-00 AXLE, FOR PORTABLE BASE 1
45.00008.451
WHEEL, RUBBER, PERFORMA 2
5
2NF100SA 4" SS CASTER ASSEMBLY 1
6
BB 5-16 X 3-4 BOLT, 316 SS, 5/16-18 X 3/4 BHSCS 4
7
WF 5-16 WASHER, FLAT, 5/16, 316 SS 4
8
NN 5-16 NUT, 316 SS, NYLOCK, 5/16"-18 4
9
LOCK COLLAR 3-4 SS
LOCK COLLAR, 3/4", SS, SINGLE
SPLIT
2
10 WEIGHT PLATE STACK 1
11 A-985BW WEIGHT PLATE COVER ASSEMBLY 1
12 WFE 1-4 WASHER, FENDER, 316 SS, 1/4 X 1 12
13
NN 1-4 NUT, 316 SS, NYLOCK, 1/4"-20 12
*only if weight plate version of lift was purchased 9

Copyright © 2020 Aqua Creek Products All Rights Reserved Revised 7/28/20
Revised_07.24.20
AQUA CREEK PRODUCTS, LLC LIMITED FIVE (5) YEAR WARRANTY:
PORTABLE PRO POOL 2 LIFT
(ITEM #’s F-PPP2, F-PPP2-T, F-PPP2-G, F-PPP2-C, F-PPP2S, F-PPP2S-T, F-PPP2S-G, F-PPP2S-C)
Aqua Creek Products, LLC (a.k.a. Aqua Creek) warrants to the original end user purchaser that products manufactured by Aqua
Creek, when properly installed in accordance with assembly and installation instructions, and properly used and maintained, shall be
free from defects in material and workmanship for a period of five (5) years from the date of original purchase, provided that Aqua
Creek receives prompt notice in writing of any defect or failure and satisfactory proof thereof, with the following exception(s):
Exceptions:
•All electrical components, including the linear actuator shall have the following warranty period:
oYear 1-2: 100% Coverage
oYear 3: 60% Coverage (Customer is responsible for 40% of replacement cost)
oYear 4: 50% Coverage (Customer is responsible for 50% of replacement cost)
oYear 5: 40% Coverage (Customer is responsible for 60% of replacement cost)
•Hydraulic actuators and mesh slings shall have a warranty period of one (1) year from the date of original purchase.
•Powder coat finish scratches, scrapes, corrosion, or dents from customers normal use, negligence, or abuse
This warranty specifically excludes reimbursement for labor to remove, repair, or install the product and any shipping charges.
These warranties do not cover any damages due to accident, force majeure, act of nature, misuse, abuse, negligence or failure to
properly maintain any products, or normal wear and tear from day to day operations. In the event that any products are altered,
repaired, or improperly installed or improperly used by anyone without the prior written approval by Aqua Creek, all warranties are
void. IMPORTANT: AMOUNT OF WEIGHT PLACED ON LIFT SHALL NOT EXCEED THE RATED LIFTING CAPACITY FOR THE LIFT. NEVER
OPERATE THE LIFT UNDER LOAD IN A DRY POOL (WITH NO WATER IN THE POOL). It is the responsibility of the lift owner to verify
the weight of the patron for warranty claim purposes and to ensure that the lift is not overloaded. Non-payment for product to
Aqua Creek may void warranty.
To initiate a warranty claim, the owner of an Aqua Creek product must provide the place of purchase, in writing, with a full
description of the product, its serial number, the dates of purchase and installation, and the exact nature of the defect. Within thirty
(30) days after receipt of a written warranty claim by Aqua Creek, and barring any unforeseen delays, the place of purchase will be
notified of Aqua Creek’s decision regarding the claim.
If requested by Aqua Creek, any defective product must be returned, freight prepaid by customer, to Aqua Creek’s designated
factory location or duly appointed distributor for inspection and/or repair. Aqua Creek will, at its option, repair or replace the failed
or defective item, and deliver the repaired product or replacement to the customer. All freight charges are the responsibility of the
customer. Products returned to Aqua Creek for which Aqua Creek provides replacement under this limited warranty shall become
the property of Aqua Creek. A new warranty period shall NOT be established for the repaired or replaced products. Such products
shall remain under warranty only for the remainder of the original warranty period on the original products purchased.
This written limited warranty constitutes the final, complete and exclusive statement of warranty terms. No person or organization
is authorized to make any other specific or implied warranties or representations on behalf of Aqua Creek.
THE WARRANTIES SET FORTH HEREIN ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, WHICH ARE HEREBY DISCLAIMED AND EXCLUDED,
INCLUDING WITHOUT LIMITATION ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR USE.
THE SOLE AND EXCLUSIVE REMEDIES FOR BREACH OF ANY AND ALL WARRANTIES WITH RESPECT TO THE PRODUCTS SHALL BE LIMITED TO REPAIR OR
REPLACEMENT AT AQUA CREEK’S DESIGNATED FACTORY LOCATION, OR DULY APPOINTED DISTRIBUTOR, OR IN PLACE AT AQUA CREEK’S OPTION. IN NO EVENT
SHALL AQUA CREEK’S LIABILITY EXCEED THE ENTIRE AMOUNT PAID TO AQUA CREEK BY THE ORIGINAL PURCHASER FOR THE FAILED OR DEFECTIVE PRODUCT.
IN NO EVENT SHALL AQUA CREEK PRODUCTS, LLC BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, INDIRECT, PUNITIVE OR EXEMPLARY DAMAGES OR
LOST PROFITS FROM ANY BREACH OF THIS LIMITED WARRANTY OR OTHERWISE.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH MAY VARY FROM STATE TO STATE. SOME STATES DO NOT
ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, SO SOME OF THE ABOVE LIMITATIONS OR EXCLUSIONS MAY
NOT APPLY TO YOU.
Aqua Creek Products, LLC
9889 Garrymore Lane
Missoula, MT 59808
Toll Free: [phone]
Local/Intnl: [phone]
www.aquacreek.com
10
