Aqua-Sigma UB-6500U User manual

Please read all instructions before installation and leave this document with the end
user for future reference as it contains important warranty information
GInstallation uide
UB-6500U:
Bidet Seat

2
TABLE OF CONTENTS
Table of Contents
Contents ..................................................................................................................................................................3
Important Safety Information.................................................................................................................................4
Important Information ............................................................................................................................................5
...........................................................................................................................................6
Technical Dimensions.............................................................................................................................................7
Overview ..................................................................................................................................................................8
Installation ........................................................................................................................................................9-10
Installation - Remote Control......................................................................................................................... 11-12
Maintenance ........................................................................................................................................................ 13
Notes ................................................................................................................................................................... 14
Warranty .............................................................................................................................................................. 15
Contact Us............................................................................................................................................................ 16

3

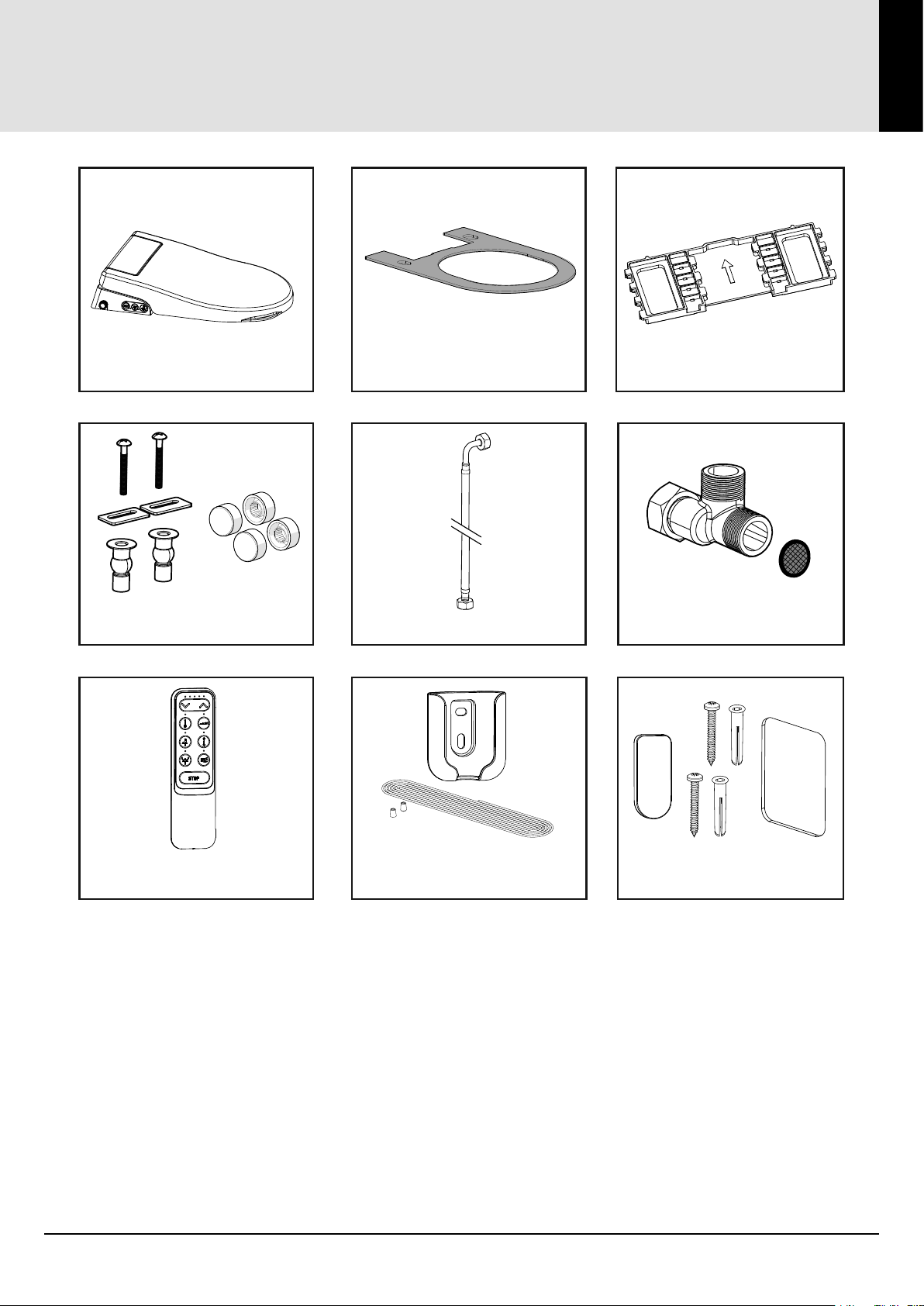

CONTENTS
Contents
3
Fixing Plate
Bidet Fitting Template
Remote Control
(Batteries not supplied) Remote Holder Fixings,
Cover & Double Sided Tape
Remote Control Holder
& Cord
Braided Water Hose Tee Junction & Filter
Expansion Fittings, Adjustment
Plates & Seat Hinge Covers

4
IMPORTANT SAFETY INFORMATION
Important Safety Information
CAUTION
1. Isolate the electrical and water supplies before commencing installation. The electricity must
be isolated at the consumer unit.
2. This equipment is “Class 1” type electrical appliance, and must be Earthed.
3. The equipment is an electrical appliance, do not install in areas with high humidity or where
it can be easily splashed with water or exposed to high temperatures. (eg. Steam rooms and
Saunas). Ensure that an extractor fan is installed to aid good ventilation when using the bathroom.
4. 
plugged into a electrical socket. If the power supply cord is damaged, it must be replaced by

5.   
pipe assembly for installation and maintenance.
6. Do not switch on the appliance if water is leaking from the casing. Isolate the electricity supply
immediately and then isolate the water supply.
7. This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction by a person responsible for their safety and shown how to use

and low temperature settings initially.
8. Children must not play with the appliance. Cleaning and user maintenance must not be
undertaken by children.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:
Installation of this appliance must be carried out in accordance with these instructions by
a competent and experienced installer. The supplier shall not be liable for any loss arising
from the failure to comply with the following instructions.

5
IMPORTANT INFORMATION
Important Information
CAUTION
1. Do not tilt or turn the bidet upside down if there is any water in the tank. See page 13.
2. Only connect to mains cold water supply.
3. After the installation, make sure to check all water supply connections for leaks.
Rubber washers should be in place for the water connection hoses and Tee junction.
4. Do not open/close the seat/seat lid cover using excessive force.
5. Ensure that the user is familiar with the operation of the bidet and leave the user manual
with the owner.
6. Exercise caution that urine does not come into contact with the warm air dryer outlet.
Failure to do so may result in bad odours or malfunction.
7. If the appliance is not to be used for a long period of time (more than a few weeks), switch
off the appliance at the mains, isolate the water supply and drain the heater tank. See page
13.
8. When this appliance has reached the end of its serviceable life, it should be disposed of
in a safe manner in accordance with current local authority recycling or waste disposal
policy.
These instructions are provided to advise the minimum standards of installation and recommends
what the best practice for the installation is. Due to the very wide variability of possible installation
conditions, Kaizen Solutions EU Limited cannot provide all circumstances for the installation.
Kaizen Solutions EU Limited cannot accept any liability in connection with this information or its
use. This information is provided on the condition that the person receiving it shall make his/her
own tests to determine the suitability for the particular purpose. Failure to install this product in
accordance with supplied instructions or the making of unauthorised modifications will invalidate
any warranty and may affect product safety. None of the foregoing affects your statutory rights.

6
TECHNICAL SPECIFICATION

Wash
Rear Wash
Female Wash
Oscillating Spray
Pulsating Spray
Oscillating and Pulsating Spray
Adjustable Water Temperature
Temperature modes
Adjustable Flow Rate
Adjustable Spray Position
Yes
Yes
Yes
Yes
Yes
6 Levels (Default 4th)
Constant temperature (Default) and Gradual cooling
5 Steps (Default 3rd)
5 Steps (Default 3rd)
Warm
Air
Air Drying
Adjustable Dryer Temperature
Adjustable Dryer Rate
Yes
6 Levels(Default 3rd)
5 Steps(Default 3rd)
Hygiene 

Yes
Yes
Features
Night Light
Soft Closing Seat And Cover
Quick Release Seat And Cover
Control buttons
Remote Control
Yes
Yes
Yes
Yes
Yes

Water Supply Connector
Water Supply Direction
G 1/2”
Side Entry
Water Supply Pressure (Standard)
Water Supply Pressure (Low)
Water Supply Temperature
Rated Voltage
Power Rating
Length Of Power Cord
Ambient Temperature
Protection Degree
Maximum weight loading
Min 0.5 (dynamic)~Max 8 (static) Bar
Min 0.2 (dynamic)~Max 8 (static) Bar
4~30°C

1750W
approx. 1.5m
4~40°C
IPX4
150kG
Wash
Device
Flow Rate (Standard)
Flow Rate (Low)
Water Temperature
Wash Cycle Time (Standard)
Wash Cycle Time (low)
Heating Mode
Safety Device

600~1000mL/min
450~650mL/min
31~39°C
2 Minutes at Constant temperature mode or 1 minute at
gradual cooling mode.
1 Minute at Constant temperature mode and gradual
cooling mode.
Element
Thermal Cut Out Fuses\Liquid Level Switch\Thermostat
Air Gap
Dry
Device
Minimum Air Volume
Maximum Dryer Power
Warm Air Temperature
Dry Cycle Time
Safety Device
0.2m³/min
350W
40~52°C
3 minutes
Thermal Cut Out Fuses/Thermostat
Remote
Control
Frequency
Maximum RF Output Power
Type of Batteries

0dBm
2x 1.5V LR03 AAA (Batteries not included)

7
TECHNICAL DIMENSIONS
Technical Dimensions
566
520
289
106 30
369
Standard Bidet Seat Special Order Bidet Seat
264
369
533
490
30
106

8
OVERVIEW
Overview
Power switch (rear face)
Seat lifting tab
Program
port
Unlatch Button/
Thermostat reset Button
Seated detector
Seat
Air dry
Air dry
Power light/
LED Fault
Indication
Night detector
Night light
Female wash
Female wash
Rear wash
Rear wash
Seat side
transfer
adjustable pegs
Lid lifting tab

9

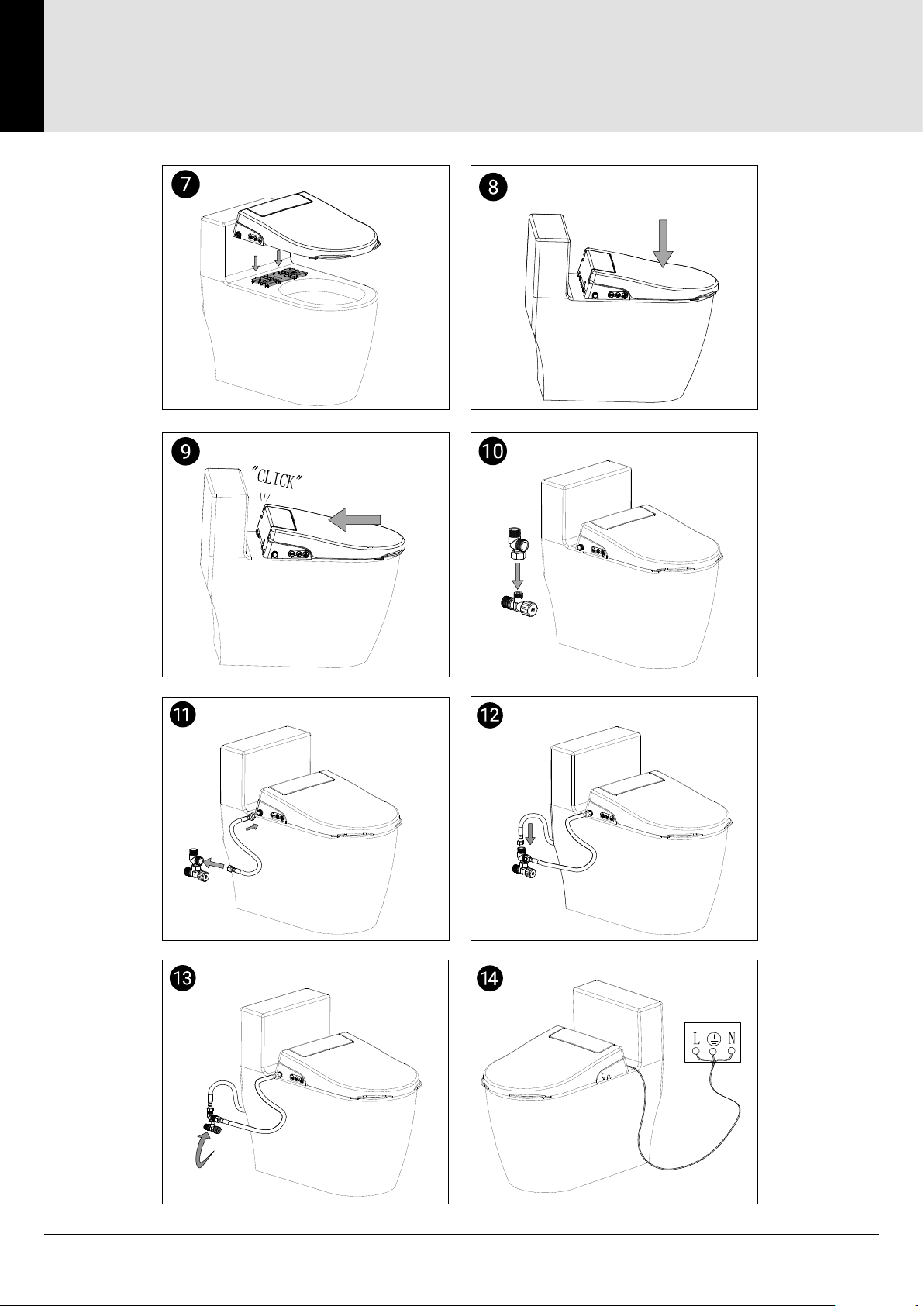

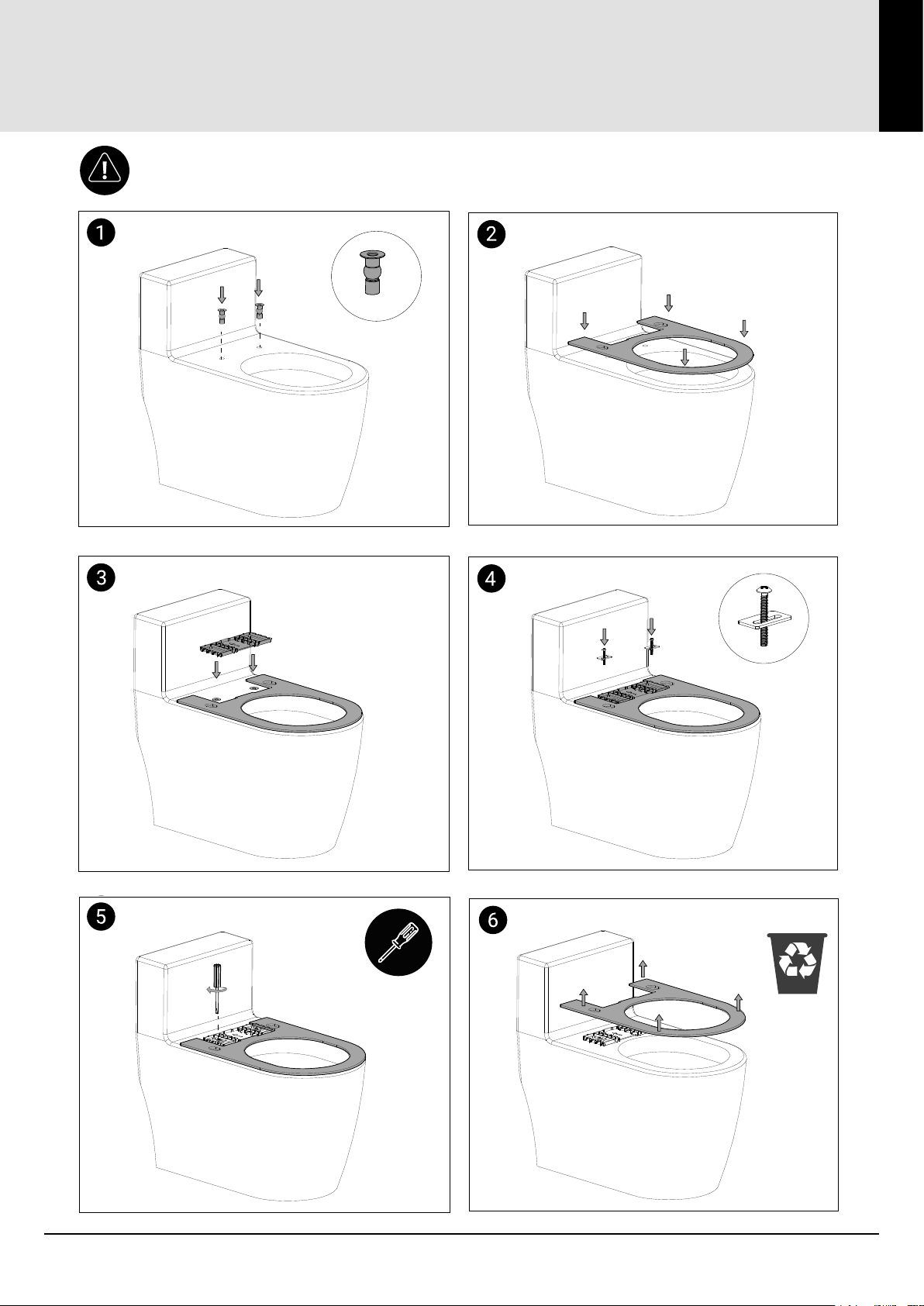

INSTALLATION
Installation
Caution: Ensure that the power supply is turned off at the mains supply and the
water is turned off at the isolation valve.

10
INSTALLATION
Installation
ON
Refer to the User Instructions for functions and operations.

11
INSTALLATION - REMOTE CONTROL
Installation - Remote Control
20cm
20cm

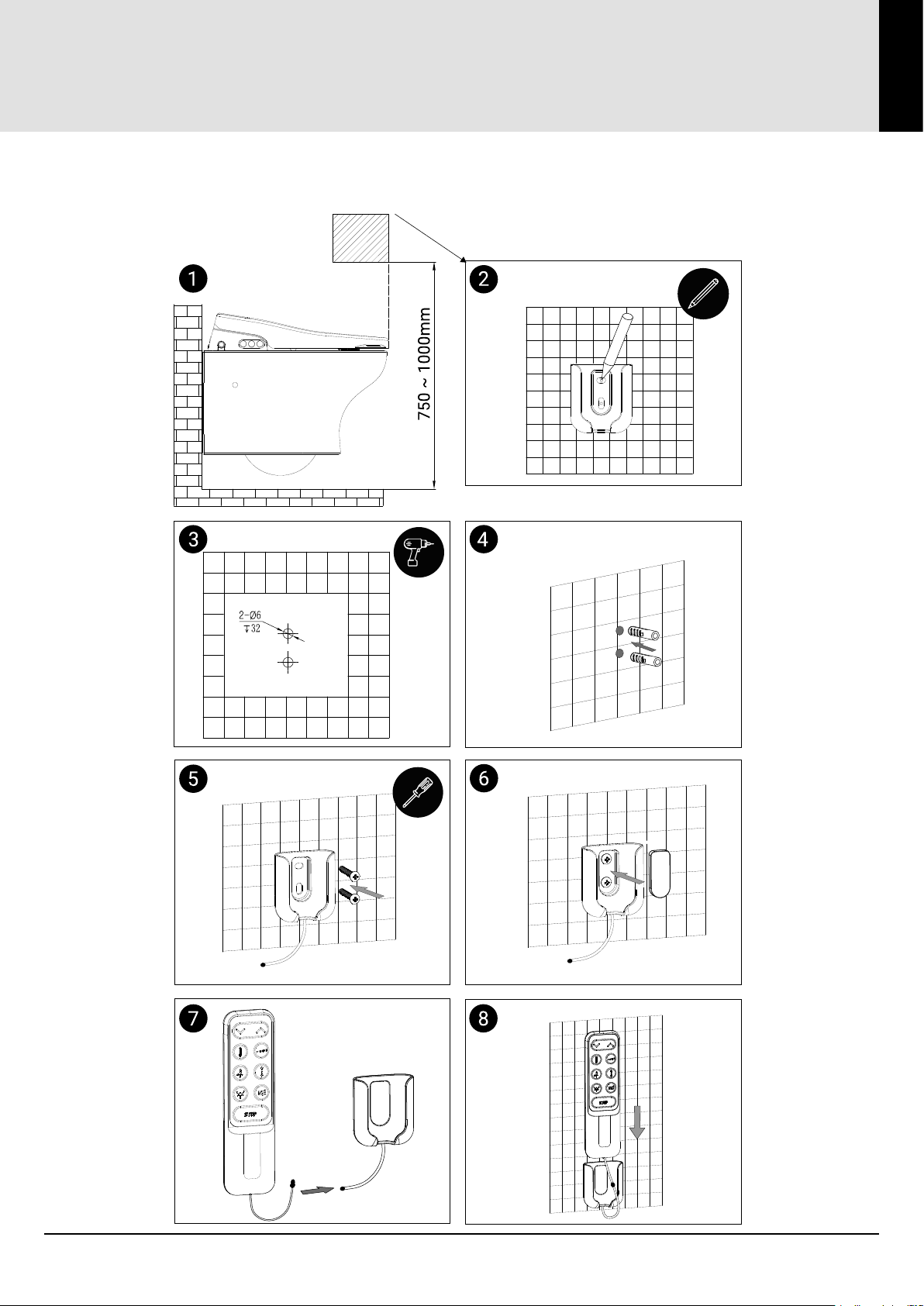

Recommended Installation area for
the remote control holder.
Using Wall Fixings

12
INSTALLATION - REMOTE CONTROL
Installation - Remote Control
Using Double-sided Tape
Recommended Installation area for
the remote control holder.
20cm
20cm

13
MAINTENANCE
Maintenance

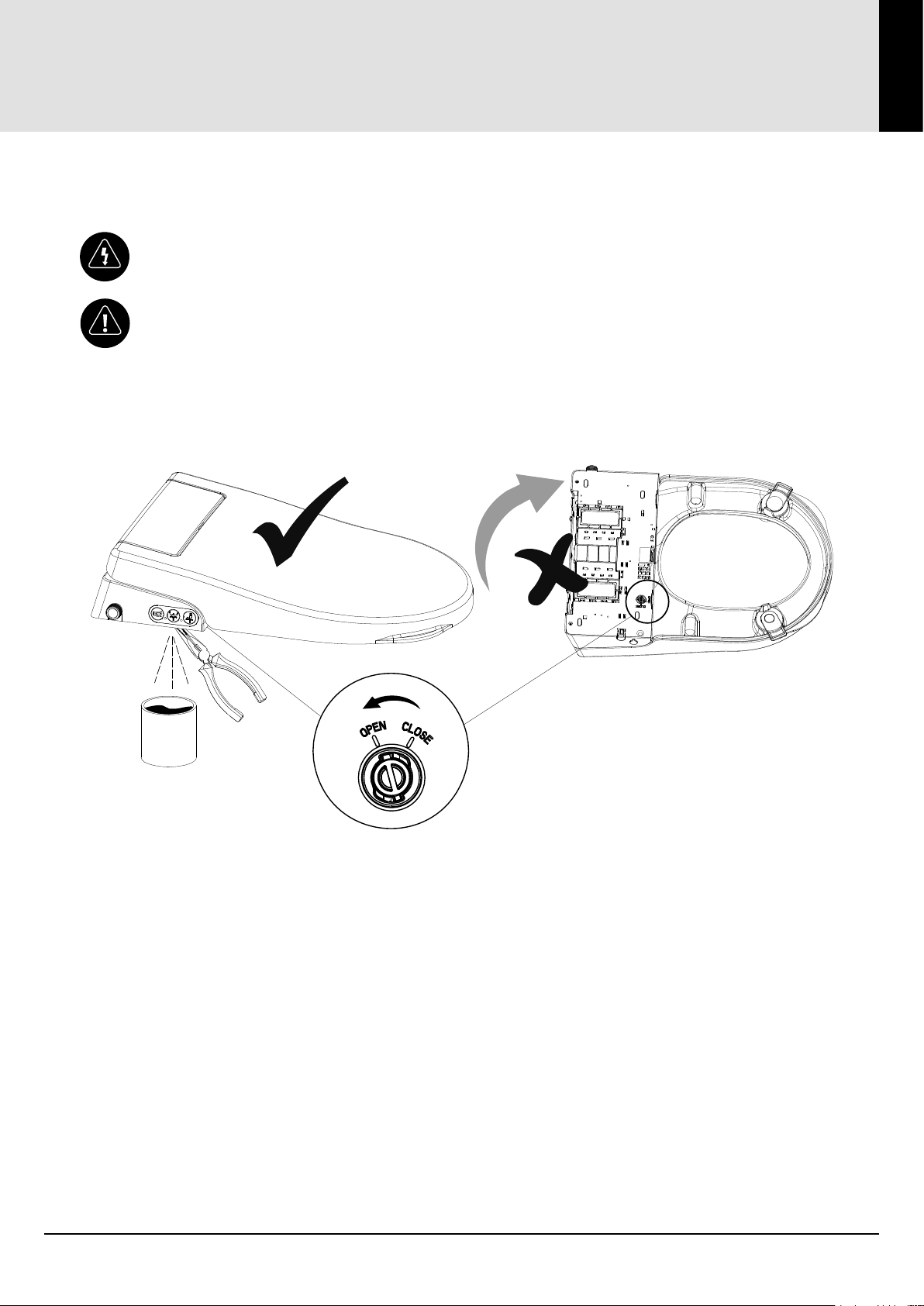

Draining the water tank
Do not turn the appliance over to drain
the tank. Only drain from underneath
and catch the water.
Insert and turn to close
Turn and pull out to open.
Isolate the power and water supply before attempting to uninstall the bidet.


Contact Us
Kaizen Solutions Distribution Centre,
Mile Barn Farm Business Park,
Hemel Hempstead Road,
Nr Dagnall,
HP4 1QR
United Kingdom
W3W Location: lighten.laces.brilliant
Phone: [phone] | Email: [email protected]
We guarantee this product to be free of defects for 2 years from the date of sale, any
extended or longer warranty periods will be advised on the product page on our website if
applicable. We aim to repair any defective items or if this is not possible replace with a
like for like replacement, if this is not possible we shall refund your payment on receipt of
the defective item. Kaizen Solutions EU Limited will decide to repair or replace as we
may choose any defective unit This guarantee is conditional on the one- time correct
installation of the product and does not apply to breakages, accidental damage or impact
damages. it does not cover installation issues with water pressure, electrical or isolation
issues. This guarantee does not cover damages caused by malfunctions resulting from
incorrect use or damages caused by the lack of maintenance including the build up of dirt
, filth or water borne contaminants. it does not cover damages that result from unintended
use or modifications. This guarantee excludes defects caused by extreme temperature
changes or damages resulting from inappropriate cleaning with harsh chemicals or
staining by foreign objects, substances, general wear and tear through usage and does
not apply to surface finishes.
It is the customers responsibility to disconnect the main housing, drain, box and return
to us
for repair during the warranty period. We recommend you retain the box
the main housing
was shipped in for this purpose
What to do if something goes wrong? in the event that you should encounter a problem
with this product, please contact us to report any issues. see the Terms & Conditions on
our website for further information. none of the preceding affects your statutory rights.
Certification
CE, EN 1717 back flow prevention.
Please Note. To achieve compliance an ‘Approved’ double check valve or some other
no less effective back-flow prevention device providing backflow prevention protection
to at least fluid category two must be fitted at the point of connection between
the
water supply and the water inlet to this appliance.
Warranty
