FLECK 5800 XTR2 Quick Start MANUAL
10"
66"
Brine Tank Dimensions:
14" wide x 17" deep x 38" tall

4. Soldering of joints near the drain port must be done prior to
connecting the Drain Line Flow Control fitting (DLFC). Leave
at least 6" (15 cm) between the DLFC and solder joints when
soldering pipes that are connected on the DLFC. Failure to
do this could cause interior damage to the DLFC.
5. Plumber tape is the only sealant to be used on the drain
fitting.
6. Make sure that the floor is clean beneath the salt storage
tank and that the tank is level.
7. Add 2 gallons of water to the brine tank.
8. On units with a bypass, place in bypass position. Turn on the
main water supply. Open a cold soft water tap nearby and let run a
few minutes or until the plumbing is free from foreign material
(usually solder) that may have resulted from the installation. Once
clean, close the water tap.
9. Slowly place the bypass in service position and let water flow into
the mineral tank. When water flow stops, slowly open a cold water
tap nearby and let water run until the air is purged from the unit.
10. Plug the transformer into an electrical outlet.
NOTE: All electrical connections must be connected
according to local codes. Be certain the outlet is uninterrupted.
60002 Rev E
Figure 1 Residential Air Check Valve
Electrical Connection
The controller operates on 12-volt DC power supply. This
requires use of the supplied power adapter included with your
system.
NOTE: The power source should be constant. Be certain the
power adapter is not on a switched outlet. Power
interruptions longer than eight hours may cause the
controller to lose the time setting. When power is
restored, the time setting must then be re-entered.
INSTALLATION
Water Pressure
A minimum of 20 psi (1.4 bar) of water pressure is required for
the regeneration valve to operate effectively.
Electrical Facilities
An uninterrupted power supply is required. The control uses a
transformer to supply 12 VDC. Please make sure your voltage
supply is compatible with your unit before installation.
Existing Plumbing
Condition of existing plumbing should be free from lime and
iron buildup. Piping that is built up heavily with lime and/or iron
should be replaced. If piping is clogged with iron, a separate
iron filter unit should be installed ahead of the system.
Location Of System And Drain
The system should be located close to a drain to prevent air
breaks and back flow.
Outdoor Locations
When the water conditioning system is installed outdoors,
several items must be considered.
• Moisture — The system is not designed to withstand
extreme humidity or water spray from below. Examples
are: constant heavy mist, near corrosive environment,
upwards spray from sprinkler.
CAUTION
This unit is for dry location use only unless used
with a Listed Class 2 power supply suitable for
outdoor use.
• Direct Sunlight — The materials used will fade or
discolor over time in direct sunlight. The integrity of the
materials will not degrade to cause system failures. If
it is necessary to locate the system in direct sunlight, a
protective outdoor cover (P/N 61882) over the valve and
controller is necessary.
• Insects — If installing in an environment that may expose
the system to insects or other small animals, a protective
cover is required. The protective outdoor cover (P/N
61882) has been designed to keep all but the smallest
insects out of the critical areas. The cover should be
installed securely in place.
Bypass Valves
Always provide for the installation of a bypass valve if unit is not
equipped with one.
CAUTION
Water pressure is not to exceed 125 psi (8.6 bar),
water temperature is not to exceed 110°F (43°C),
and the unit cannot be subjected to freezing
conditions.
WARNING:
The system must be depressurized before
removing any connections for servicing.
Installation Instructions
1. Place the media tank where you want to install the unit.
Make sure the unit is level and on a firm base.
2. During cold weather, the installer should warm the valve to
room temperature before operating.
3. All plumbing should be done in accordance with local
plumbing codes. The pipe size for a residential drain line
should be a minimum of 1/2" (13 mm). Backwash flow rates
in excess of 7 gpm (26.5 Lpm) or drain line length in excess
of 20' (6 m) require 3/4" (19 mm) drain line. Commercial
drain lines should be the same size as the drain line flow
control.
Fleck 5800 XTR2 Quick Start Manual • 2

TOUCHSCREEN CONTROL QUICK START
The 5800 XTR2 control was designed to be easy to set up
and begin using right out of the box. The following simple
procedure can be used to set up the system and begin treating
water in most typical applications.
NOTE: Steps 2 - 4 are optional and are not required to start
the system. All control settings may be changed after
the unit is in service.
1. After plugging in the unit, the Format screen (Figure 3) is
displayed.
Figure 3 Format Screen
Press the units button to adjust the system's units of
measure (either U.S. or metric). Press when finished.
NOTE: If the screen is blank after plugging in the unit, touch
the screen to turn the screen on.
2. After pressing , the Assistance Name screen (Figure 4) is
displayed.
Figure 4 Assistance Name Screen
Using the keypad, type the name of the water treatment
professional or company that the homeowner may call for
system service (optional).
To enter a letter using the keypad, quickly press the keypad
button the number of times that correspond with the
position of the correct letter on the button. For example,
to enter the letter "C", quickly press the ABC button three
times. Press when finished.
3. After pressing , the Assistance Phone screen (Figure 5)
is displayed.
Figure 5 Assistance Phone Screen
Enter the phone number of the water treatment
professional or company that the homeowner may call for
system service (optional). Press when finished.
4. After pressing , the Assistance Interval screen (Figure 6)
is displayed.
Figure 6 Assistance Interval Screen
Use the Assistance Interval screen to set the interval in
which the homeowner will need to call a water treatment
professional for system service (optional). The assistance
interval can be based on a set number of months (month
based) or a number of regenerations (regen based).
Press the interval button to select a month-based or regen-
based assistance interval, then press . Press either
the month or regen button (depending on your previous
selection), and select the number of months (up to 60) or
regenerations (up to 2000) until the homeowner will need to
call for service. Press when finished.
Fleck 5800 XTR2 Quick Start Manual • 3

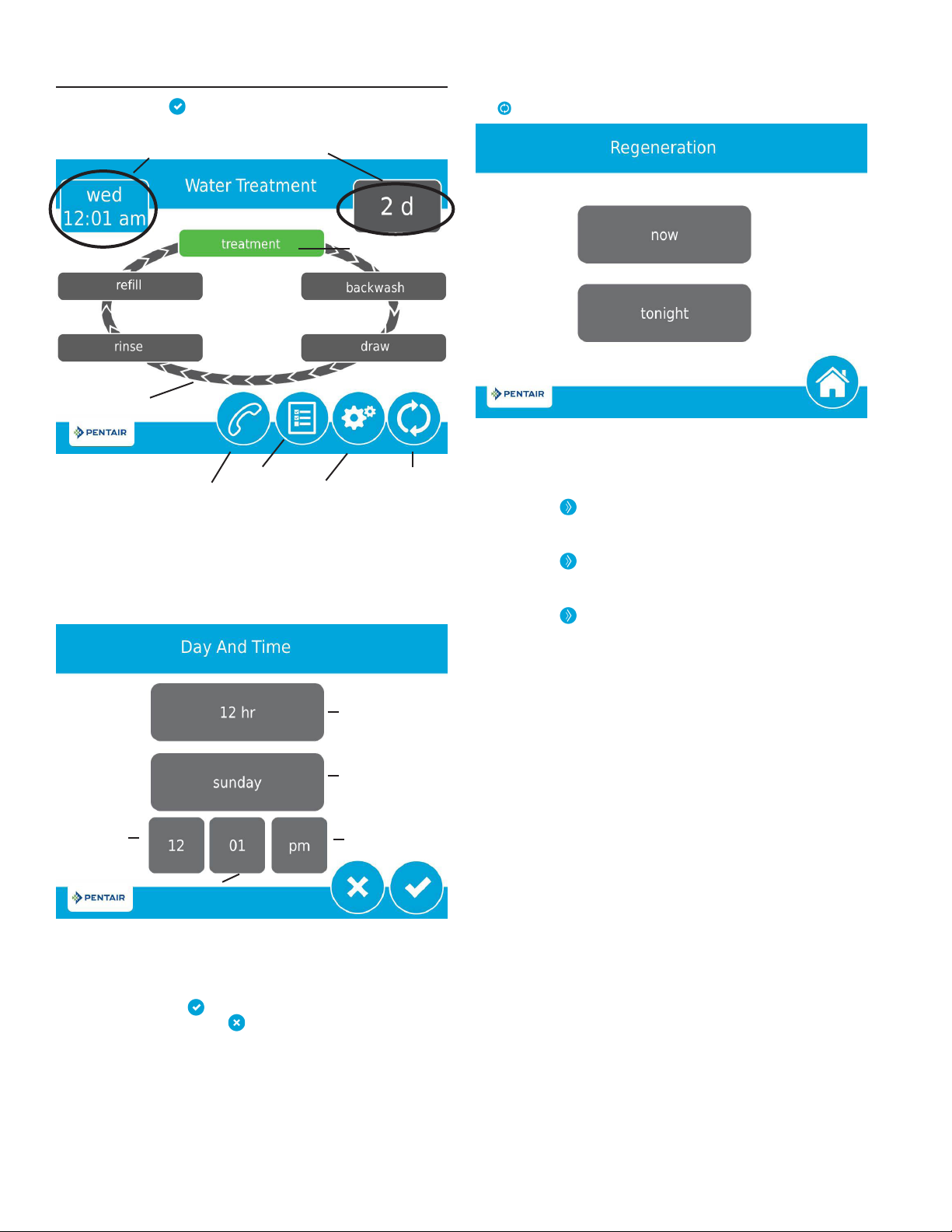

5. After pressing , the Home screen (Figure 7) appears.
Figure 7 Home Screen
The Day and Time button will be flashing, indicating that the
day of the week and time need to be set. If the date and time
are incorrect, press the Day and Time button to update to
the correct day and time. The Day and Time screen (Figure
8) appears.
Figure 8 Day and Time Screen
Press the Day of Week, Hour, Minute, and AM/PM buttons
to adjust the values to the correct day and time. Press
the 12/24 Hour button to display the time in 12 or 24 hour
format. Press the button when finished to return to
the Home screen. Press to return to the Home screen
without saving.
Day and Time
Regeneration
Settings
Regeneration
Cycle Wheel
Next Scheduled
Regeneration
Current Cycle
Step
Diagnostics
Assistance
Day of Week
Minute
Hour AM/PM
12/24 Hour
6. Start a regeneration by pressing the Regeneration button
. The Regeneration screen appears (Figure 9).
Figure 9 Regeneration Screen
Press the now button to begin a regeneration immediately.
7. The valve will cycle to backwash. Ensure the drain line flow
remains steady for 10 minutes or until the water runs clear.
8. Press the button to cycle to the brine / slow rinse (Draw)
position. Ensure the unit is drawing water from the brine
tank.
9. Press the button to cycle to the rapid rinse (Rinse)
position. Check the drain line flow, and run for five minutes
or until the water runs clear.
10. Press the button to cycle to the brine tank fill (Refill)
cycle. Ensure water goes into the brine tank at the desired
rate. The brine valve drive cam will hold the valve in this
position to fill the brine tank for the first regeneration.
11. Put salt in the brine tank.
NOTE: Do not use granulated or rock salt.
The unit is now fully programmed and ready to treat water.
This quick setup uses the control's default settings, which are
appropriate for most residential applications.
TOUCHSCREEN CONTROL QUICK START
continued
4• Fleck 5800 XTR2 Service Manual

TOUCHSCREEN CONTROL FEATURES
Features of the XTR2 Touchscreen Control
• Full-featured easy to use graphical touchscreen interface
for programming, servicing, and diagnostics.
• Non-linear programming no longer requires cycling
through every parameter when programming/servicing.

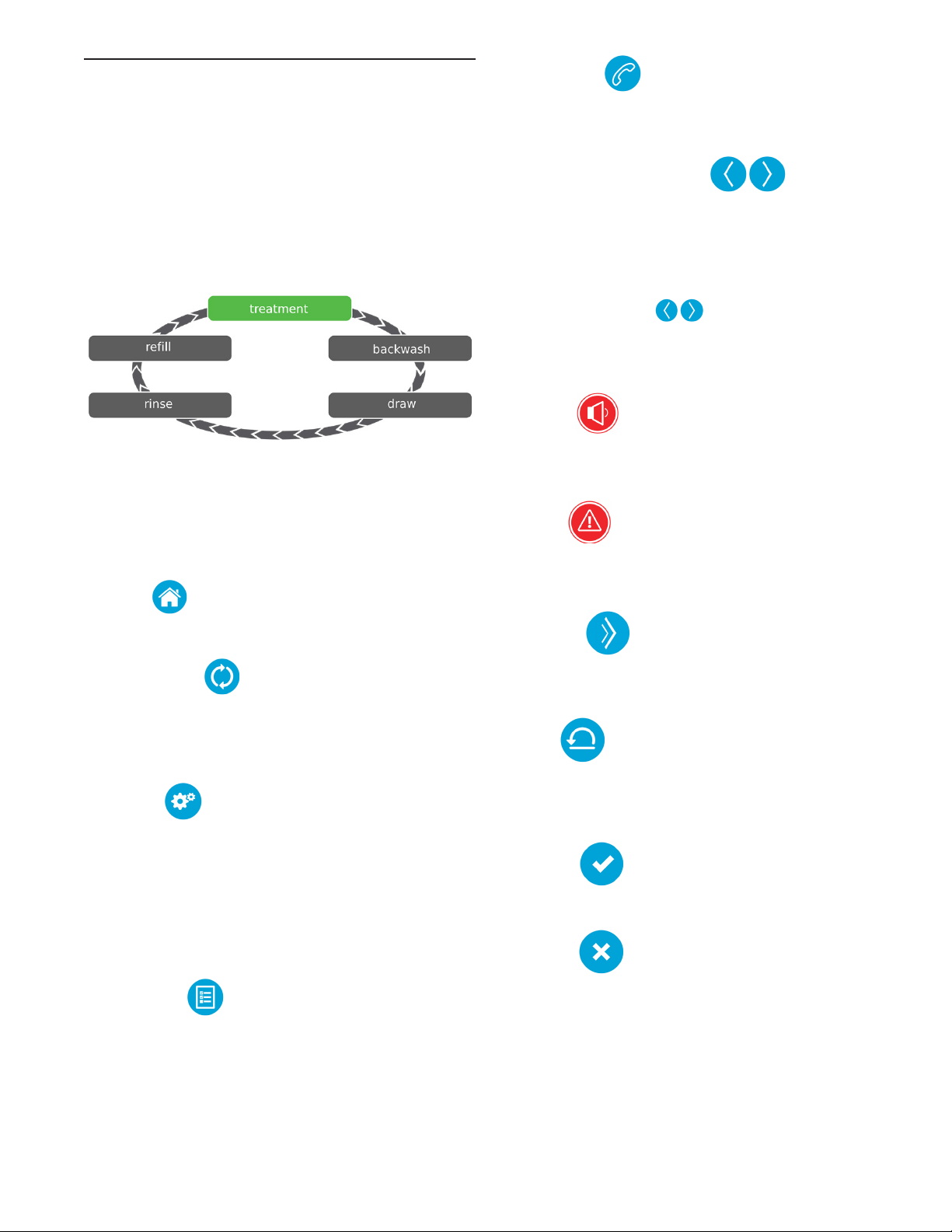

Buttons and Symbols
NOTE: Not all buttons appear on all screens.
Regeneration Cycle Wheel
• Displays the regeneration cycle step the system is
currently in. The wheel rotates with each step so that the
current step is shown in green.
NOTE: On metered units, the "Treatment" step on the
Regeneration Cycle Wheel will flash when water is
flowing through the unit.
Home
• Displays the Home screen.
Regeneration
• Displays the Regeneration screen, which allows you to
start a regeneration and manually cycle through the
regeneration steps.

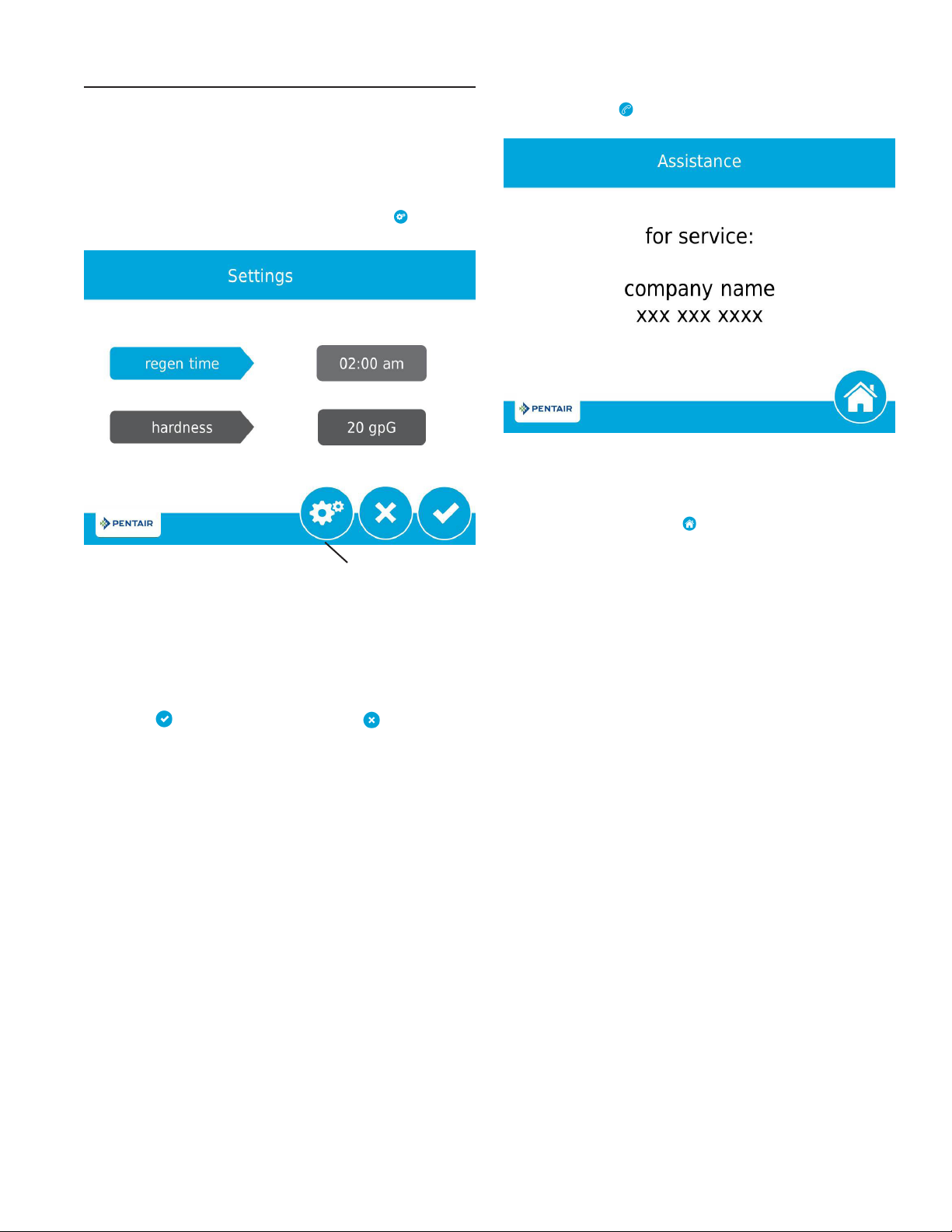

Settings
• Displays the Settings screen, which allows you to adjust
commonly used settings. Pressing this button while in the
Settings screen provides access to the Master Settings
screen, which allows you to fully program the valve.
NOTE: Due to the complexity of these settings and the
potential for errors, Master Settings should only be
accessed by your local water professional.
Diagnostics
• Displays the Diagnostic screen, which can assist
in performing maintenance and troubleshooting
performance issues with the valve.
Assistance
• Displays a name and phone number to call for unit
service.
Screen Navigation Arrows
• Displayed in the upper-left and upper-right corners of
the screen, these arrows allow you to navigate from one
screen to another.
Settings Arrows
• These arrows allow you to change the values of certain
settings when programming the control.
Alarm
•Displayed when an alarm has occurred; accompanied with
an audible alarm. Press to silence the audible alarm.
Error
• Displayed when an error has occurred. Press to display
the Error screen for more detailed error information.
Advance
• This arrow allows you to advance through cycle steps
during a regeneration.
Reset
• Displayed in the Diagnostics screen to reset Totalizer
and Peak Flow data and in Master Settings to reset
parameters to default settings.
Accept
• Press to save or accept changes in control configuration.
Cancel
• Press to cancel configuration and exit to previous screen
without saving.
Fleck 5800 XTR2 Quick Start Manual • 5

Screen Features
Home Screen
Figure 10 - Home Screen
The Home screen is always displayed unless the control
settings are being configured or during regeneration. This
screen displays general information about the system and
allows you to start a manual regeneration or access control
settings. Features of the screen are described below, followed
by more detailed information about each feature.
NOTE: If no button is pushed for five minutes, the screen will
enter a power save mode. The unit will continue to
operate, but the screen will be blank. Touch anywhere
on the screen to exit power save mode.
• Regeneration: Press to start a manual regeneration.
• Settings: Press to access commonly used settings.
• Diagnostics: Press to view diagnostic data.
• Assistance: Press to display the name and phone number
to call for service.
• Regeneration Cycle Wheel: Displays the cycle steps the
valve will step through during a regeneration; the current
cycle step is always at the top of the wheel.
• Treatment: The unit is treating water
• Backwash: Water flows from the bottom of the vessel
to the top of the vessel to clean the media
• Draw: Brine is drawn into the media and then slowly
rinsed out
• Rinse: Water flows from the top of the vessel to the
bottom of the vessel to rinse the media
• Refill: Brine tank is refilled with water
• Next Scheduled Regeneration: Displays the next
scheduled regeneration in either time or volume,
depending on control settings.
Day and Time
Regeneration
Settings
Regeneration
Cycle Wheel
Next Scheduled
Regeneration
Current Cycle
Step
Diagnostics
Assistance
• Day and Time: Displays the currently programmed day of
the week and time. This button will flash if the control has
been reset.
Regeneration
Regenerate the system on demand by pressing the
Regeneration button on the home screen. Manual Regeneration
can only be used while the valve is in the treatment position.
From the Home screen, press the Regeneration button . The
Regeneration screen appears.
Figure 11 Regeneration Screen
• Press the now button to begin a regeneration
immediately, or press the tonight button to queue the
regeneration for the programmed regeneration time (2:00
AM by default). Pressing the tonight button again will
cancel the manual regeneration.
• During Regeneration, press the button to immediately
advance to the next cycle step. Once in regeneration, the
volume or time will be displayed below the button.
Day and Time
From the Home screen (displayed in Figure 10 above) press the
Day and Time button. The Day and Time screen appears.
Figure 12 Day and Time Screen
•Press the Day of Week, Hour, Minute, and AM/PM buttons
to adjust the values to the correct day and time. Press
the 12/24 Hour button to display the time in 12 or 24 hour
format. Press the button when finished to return to the
Home screen.
Return
to Home
Screen
Day of Week
Minute
Hour AM/PM
12/24 Hour
TOUCHSCREEN CONTROL FEATURES
continued
6• Fleck 5800 XTR2 Quick Start Manual

Settings
The Settings screen allows you to change basic control settings
including time of regeneration and water hardness. These
settings improve the operational efficiency of the system and
can be adjusted independently from other control settings
without needing to enter Master Settings.
From the Home screen, press the Settings button . The
Settings screen is displayed.
Figure 13 Settings Screen
• Press regen time to adjust the time of day that an
automatic regeneration cycle will begin.
• Press hardness to adjust the hardness setting. This value
should match the hardness of the incoming untreated
water supply.
• Press to save your changes or press to return to
the Home screen.
Additional features may be accessed from the Settings screen
by pressing the Settings button at the bottom of the screen (see
Figure 13):
• Master Settings: Displays the Master Settings screen,
which allows you to fully program the valve.
NOTE: Due to the complexity of these settings and the
potential for errors, Master Settings should only be
accessed by your local water professional.
NOTE: Settings can not be accessed during a regeneration.
If a regeneration starts while in the settings menu,
the screen will return to the main screen and all
parameters will be voided.
Master Settings
User Assistance
The Assistance screen displays the name and phone number
that the homeowner may call for service of the unit. Press the
Assistance button from the Master Settings or Home
screens. The Assistance screen is displayed.
Figure 14 Assistance Screen
• This information is entered upon initial control startup
(see TOUCHSCREEN CONTROL QUICK START) or can be
changed in Master Settings.
• Press the Home button to return to the Home screen.
NOTE: The Assistance screen is also displayed automatically
when the system reaches the programmed assistance
interval. See TOUCHSCREEN CONTROL QUICK START.
TOUCHSCREEN CONTROL FEATURES
continued
7• Fleck 5800 XTR2 Quick Start Manual7• Fleck 5800 XTR2 Quick Start Manual7• Fleck 5800 XTR2 Quick Start Manual https://www.aquaoxfilters.com
