ARAG Bravo 400S LT User manual

INSTALLATION
4674L0701
4674L0713
COMPUTER BRAVO 400S LT
WITH INTEGRATED GPS NAVIGATOR

2
• LEGENDA SIMBOLI
=Generic danger
=Warning
This manual is an integral part of the equipment to which it refers and must accompany the equipment in case of sale or change of ownership. Keep it for any
future reference; ARAG reserves the right to modify product specications and instructions at any moment and without notice.
CONTENTS
LEGEND OF SYMBOLS
1 Risks and protections before assembly ...................................................................................................................................................... 3
2 Intended use .................................................................................................................................................................................................. 3
3 Precautions .................................................................................................................................................................................................... 3
4 Package content ............................................................................................................................................................................................ 3
5 Position on farming machine ....................................................................................................................................................................... 4
5.1 System recommended composition...................................................................................................................................................... 4
5.2 Computer positioning ............................................................................................................................................................................ 5
5.3 Bracket fixing ........................................................................................................................................................................................ 6
5.4 Control unit position .............................................................................................................................................................................. 6
5.5 Hydraulic unit positioning ...................................................................................................................................................................... 6
6 Wiring connections ....................................................................................................................................................................................... 7
6.1 General precautions for a correct harness position .............................................................................................................................. 7
6.2 Control unit valve connection ................................................................................................................................................................ 8
6.3 Hydraulic valves connection.................................................................................................................................................................. 8
6.4 Sensor connection................................................................................................................................................................................ 9
6.5 Auxiliary functions................................................................................................................................................................................. 9
6.6 Power supply connection .................................................................................................................................................................... 10
7 Accessories ................................................................................................................................................................................................. 11
7.1 SD memory card................................................................................................................................................................................. 11
7.2 Pendrive.............................................................................................................................................................................................. 11
8 Maintenance / diagnostics / repairs ........................................................................................................................................................... 12
8.1 Troubleshooting................................................................................................................................................................................... 12
8.2 Cleaning rules..................................................................................................................................................................................... 12
9 Technical data.............................................................................................................................................................................................. 12
10 End-of-life disposal ..................................................................................................................................................................................... 13
11 Guarantee terms .......................................................................................................................................................................................... 13
12 EU Conformity declaration ......................................................................................................................................................................... 13

3
INTRODUCTION
1 RISKS AND PROTECTIONS BEFORE ASSEMBLY
All installation works must be done with battery disconnected, using suitable tools and any individual protection equipment
deemed necessary.
Use ONLY clean water for treatment tests and simulations: using chemicals during simulated treatment runs can seriously injure
persons in the vicinity.
2 INTENDED USE
The device you have purchased is a computer which, when connected to a valve or suitable control unit, makes it possible to control all phases of
treatment in agricultural applications directly from the cabin of the farming machine it is installed in.
The computer is directly connected to the system by means of two cables connected to the hydraulic and control unit valves and the sensors. In the
cabin you nd all controls necessary to manage the system ensuring great safety during the job.
Bravo 400S LT features a satellite navigator that – through the external GPS receiver – can be used for agricultural applications and navigation.
Bravo 400S LT is not designed for use on public roads and should only be used on farmland.
This device is designed to work on agricultural machinery for spraying and crop spraying applications.
The machine is designed and built in compliance with ISO 14982 standard (Electromagnetic compatibility - Forestry and farming
machines), harmonized with 2004/108/EC Directive.
3 PRECAUTIONS
• Do not aim water jets at the equipment.
• Do not use solvents or fuel to clean the case outer surface.
• Do not clean equipment with direct water jets.
• Comply with the specied power voltage (12 VDC).
• In case of voltaic arc welding, remove connectors from Bravo 400S LT and disconnect the power cables.
• Only use ARAG genuine spare parts and accessories.
• Bravo 400S LT can control hydraulic valves to open / close the boom.
The computer does not feature emergency stop devices: the manufacturer must provide all necessary safety devices for the
hydraulic boom control.
Any time one hydraulic boom section is opened or closed the computer emits an acoustic signal and the display shows the
relevant indication. The manufacturer should also provide acoustic and optical warnings in the vicinity of the boom.
4 PACKAGE CONTENT
The table below indicates the components that you will nd in the Bravo 400S LT computer package:
BRAVO 400S LT BRAVO 400S LT WITH HYDRAULIC CONTROLS
Fi g . 1
Fi g . 2
Legend:
1 Bravo 400S LT
2 Instruction manual (DVD-ROM)
3 Power cable
4 Fixing kit
5 Power supply connector
6 Valve and sensor harness
7 Control unit valves connector seals
Legend:
1 Bravo 400S LT
2 Instruction manual (DVD-ROM)
3 Power cable
4 Fixing kit
5 Power supply connector
6a Valve and sensor harness
6b Hydraulic unit harness
7a Control unit valves connector seals
7b Hydraulic valves connector seals

4
INSTALLATION
5 POSITION ON FARMING MACHINE
5.1 System recommended composition
ASSEMBLY DIAGRAM FOR CROP SPRAYER WITH DIAPHRAGM PUMP
Fi g . 3
Legend:
AMonitor
BBattery
CGPS receiver
DFilling pump
EOil-hydraulic unit
FFlowmeter
GMain valve
HExternal main control
MPressure sensor
PControl valve
SSpeed sensor
TFilling owmeter /
Level sensor
V1 Camera 1
V2 Camera 2
XRPM sensor
1-7 Section valves
ASSEMBLY DIAGRAM FOR CROP SPRAYER WITH CENTRIFUGAL PUMP
Fi g . 4
Legend:
AMonitor
BBattery
CGPS receiver
DFilling pump
EOil-hydraulic unit
FFlowmeter
GMain valve
HExternal main control
MPressure sensor
PControl valve
SSpeed sensor
TFilling owmeter /
Level sensor
V1 Camera 1
V2 Camera 2
XRPM sensor
1-7 Section valves

5
INSTALLATION

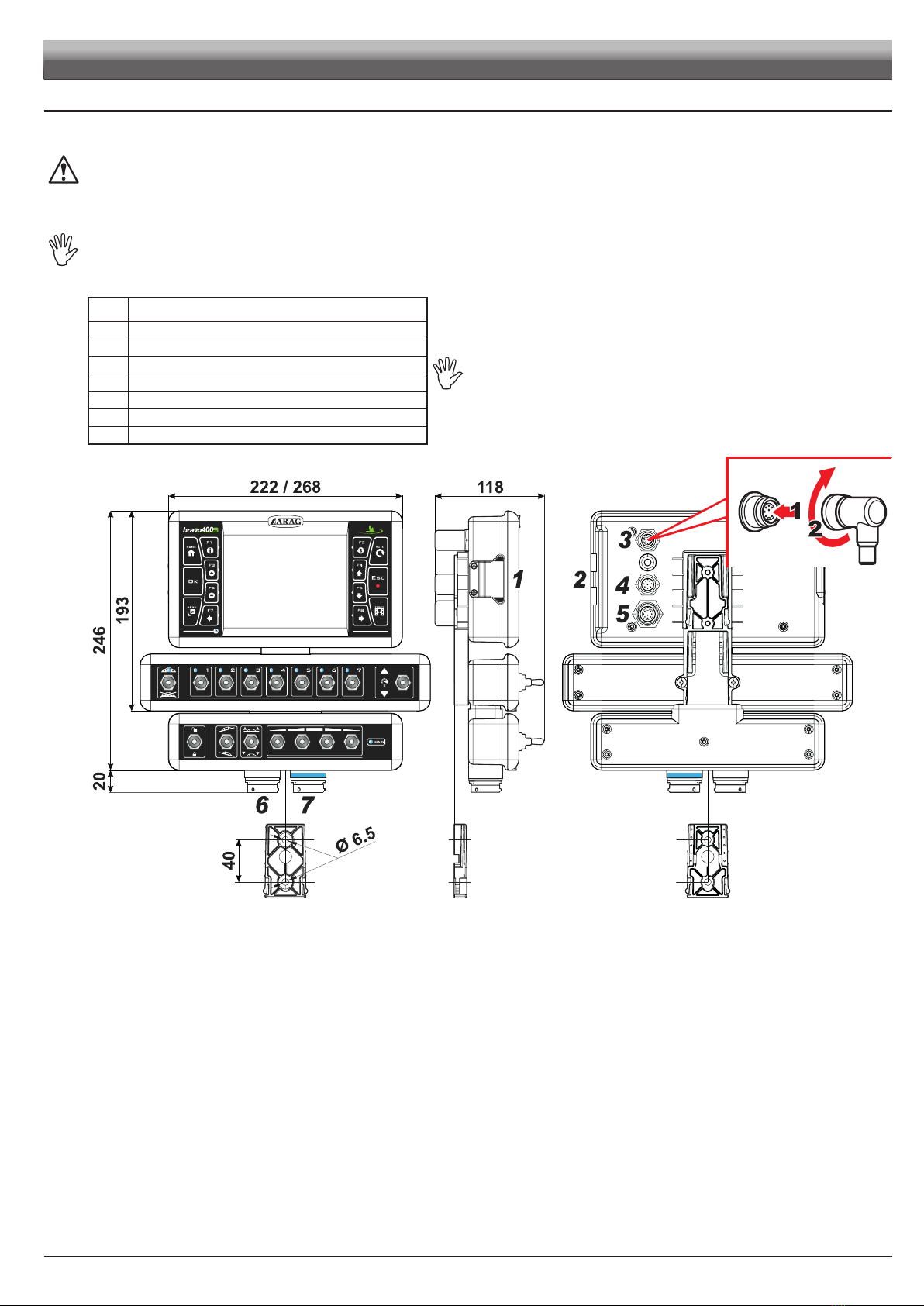

5.2 Computer positioning
•The computer series Bravo 400S LT must be placed in the control cabin of the farming machine. Observe the following precautions:
- Do NOT install the computer in areas where it would be subjected to excessive vibrations or shocks, to prevent any damage or
accidental use of the control keys;
- Install the device in a visible position within easy reach by hand; bear in mind that the computer should not obstruct the
operator’s freedom of movement or block his view.
Consider all necessary connections of the computer (Fig. 5), the cable length, and make sure there is enough space for
connectors and cables.
An identication symbol is located next to each connector to indicate its function.
ITEM CONNECTION POINTS
For any reference to the system conguration read par. 5.1 System
recommended composition.
1SD memory card
2USB (2)
3GPS receiver
4Auxiliary functions
5Power supply
6Control unit and sensors
7Hydraulic unit
Fi g . 5

6
INSTALLATION

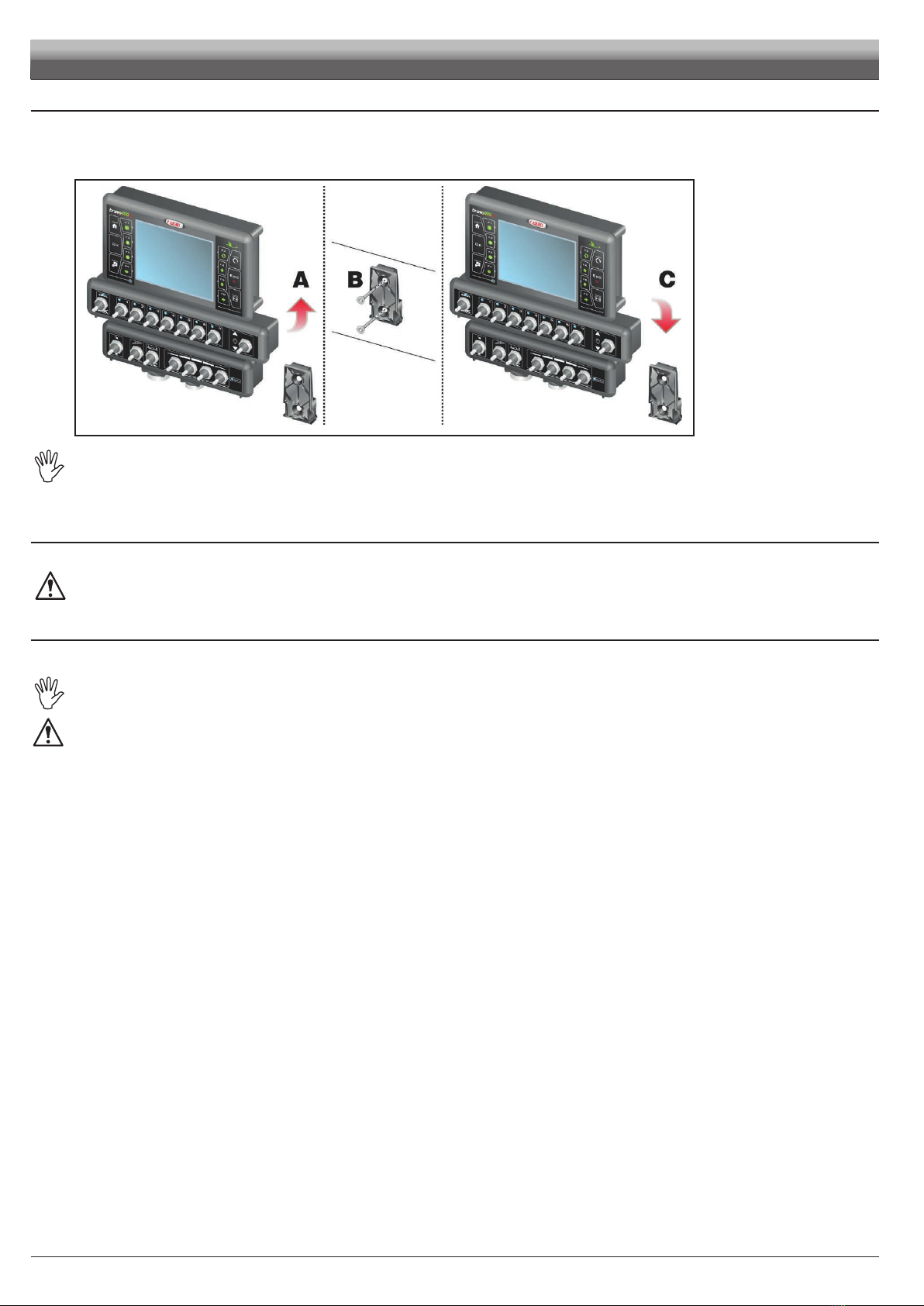

5.3 Bracket xing
The computer must be mounted after having xed the bracket at the desired location (the previous paragraph shows the bracket drilling template).
The bracket must be slid out of the computer seat (A, Fig. 6) and xed using the supplied screws (B).
Make sure the bracket is securely mounted, t the computer on it, and push it until it locks in place (C).
Fi g . 6
WARNING: the computer Bravo 400S LT must only be fastened through the supplied bracket, using suitable screws.
NO OTHER TYPE OF FASTENING IS ALLOWED.
ARAG is not liable for damages to the equipment, persons or animals caused by failure to observe the above instructions.
5.4 Control unit position
The control unit must be xed with the special brackets supplied and tted to the unit, positioning it as shown in the manual provided with the assembly.
MAKE SURE TO FOLLOW ALL THE SAFETY INSTRUCTIONS GIVEN IN THE CONTROL UNIT’S MANUAL.
5.5 Hydraulic unit positioning
The hydraulic unit shall be secured to the machine, making sure it is well protected against the elements and the uid sprayed by the machine.
ARAG IS NOT LIABLE FOR ANY DAMAGE RESULTING FROM THE INSTALLATION BY UNSKILLED PERSONNEL. ANY SYSTEM
DAMAGE CAUSED BY A WRONG INSTALLATION AND/OR CONNECTION AUTOMATICALLY VOIDS THE WARRANTY.
WARNING! DO NOT CONNECT HYDRAULIC UNITS OTHER THAN THE SPECIFIED ONES (SEE ARAG GENERAL CATALOGUE).
ARAG IS NOT LIABLE FOR ANY DAMAGE TO THE PRODUCT, MALFUNCTION ERRORS AND ANY KIND OF RISK IF THE MODULE
IS CONNECTED TO NON ORIGINAL UNITS OR UNITS NOT SUPPLIED BY ARAG.

7
INSTALLATION
6 WIRING CONNECTIONS
WARNING:
To avoid short circuits, do not connect the power cables to battery before the installation is completed.
Before powering up the computer, make sure the tractor battery voltage is as specied (12 VDC).
• Only use ARAG harnesses suitable for Bravo 400S LT computer.
• Take care not to break, pull, tear or cut the cables.
• Use of unsuitable cables not provided by ARAG automatically voids the warranty.
• ARAG is not liable for damages to the equipment, persons or animals caused by failure to observe the above instructions.
6.1 General precautions for a correct harness position
• Securing the cables:
- secure the harness so that it does not interfere with moving parts;
- route the harnesses so that they cannot be damaged or broken by machine movements or twisting.

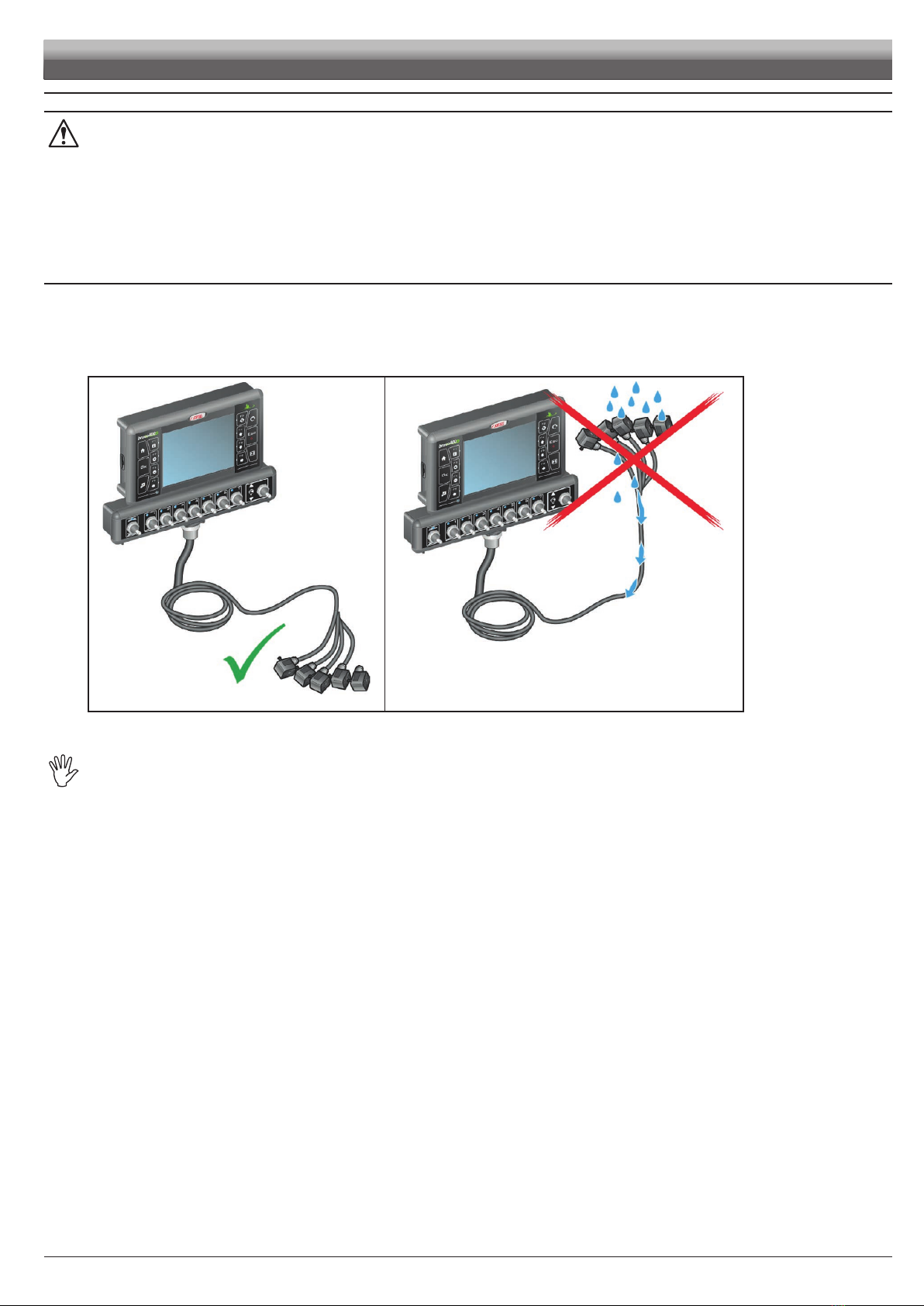

• Routing the cables to protect against water inltrations:
- the cable branches must ALWAYS be face down (Fig. 7).
Fi g . 7
Fi g . 8
• Fitting the cables to the connection points:
- do not force the connectors by pushing too hard or bending them: the contacts may be damaged and computer operation may be compromised.
Use ONLY the cables and accessories indicated in the catalogue, having technical features suitable for the use to be made of
them.

8

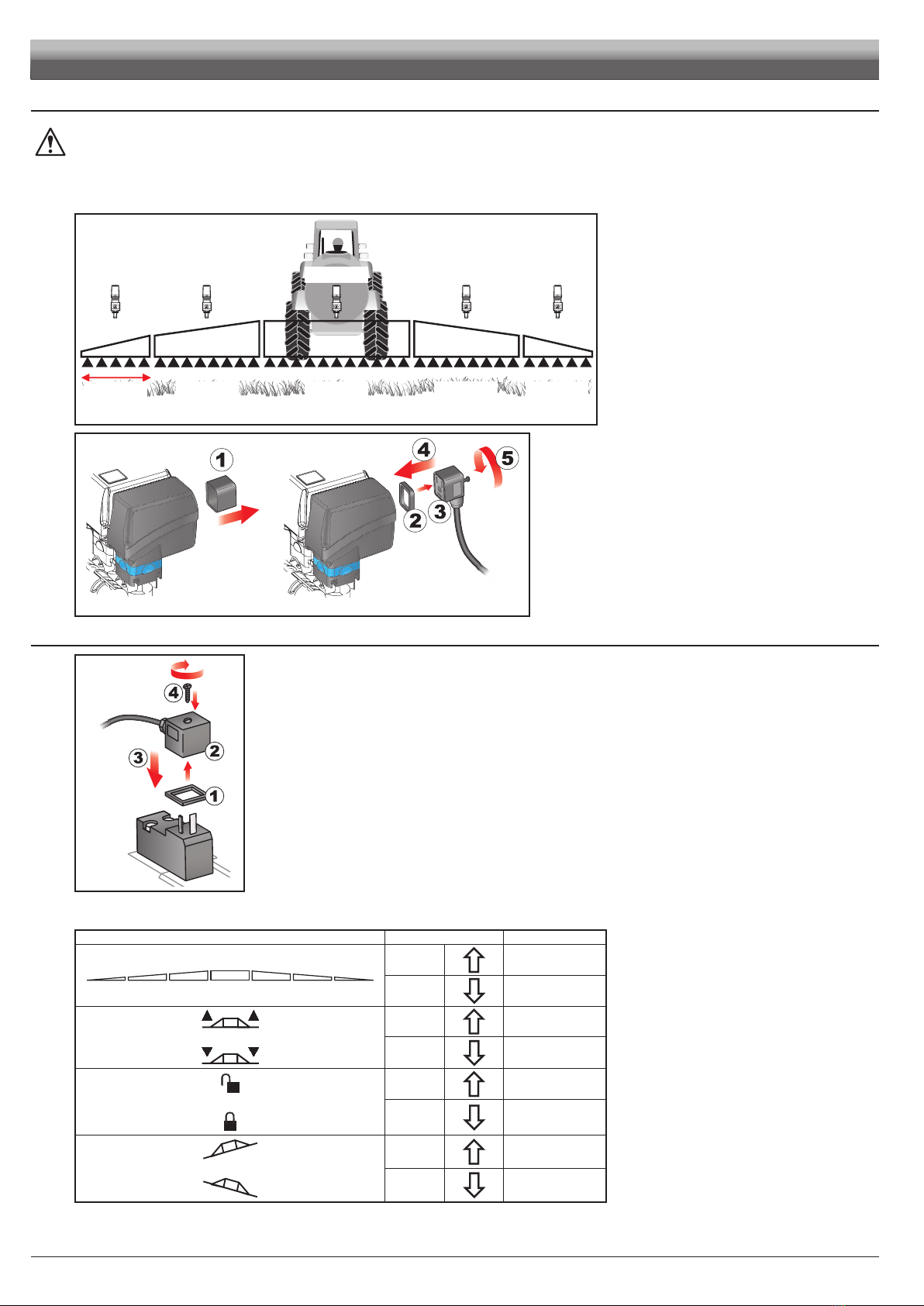

6.2 Control unit valve connection
• System only works if connected to the 3-wire type valves.
• Use ARAG valves: use of unsuitable valves not provided by ARAG automatically voids the warranty.
ARAG is not liable for damage to the equipment, persons or animals caused by failure to observe the above instructions.
• All valve connectors must be provided with seals before being connected (Fig. 10).
• Make sure the seals are correctly tted to avoid water inltration when using the control unit.
Boom
section 1
Boom
section 2
Boom
section 3
Boom
section 4
Boom
section 5
Valve 1 Valve 2 Valve 3 Valve 4 Valve 5
Fi g . 9
Connector 1 shall control the valve which in turn is
connected to the boom section 1, and so on with
the other valves.
Connect "connector 1" to "valve 1", and then the
other connectors with increasing numbers from left
to right the boom section 1 is the furthest from
the machine on the left, looking at the machine
from the rear side (Fig. 9).
Fi g . 10
Fix the connectors to the relevant valves according to the initials
indicated in your assembly general diagram (par. 5.1 System
recommended composition)
• Remove the protection cap (1, Fig. 10) from the electric valve.
• Place the seal (2) onto the connector (3), and push the
connector fully on (4): be careful not to bend the contacts upon
insertion on the valve.
• Tighten the screw (5) fully home.
6.3 Hydraulic valves connection
Fi g . 11
Bravo 400S LT can control up to 7 hydraulic functions through double-acting valves.
Fix the connectors to the relevant valves according to the initials indicated in your assembly general diagram (par. 5.1).
• Position seal (1) onto connector (2), then connect the latter pressing it fully home (3):
during this operation, take special care not to bend valve electric contacts.
• Insert screw inside connector, and screw it (4) until it is tightened.
The function of each switch on the hydraulic function control panel is described below.
Connect the connector marked with "DD" to the pilot valve, and then the other connectors, as specied on the table:
CONTROL MOVEMENT CONNECTOR
Section movement
1 - 2 - 3 - 4
Opening 1 ÷ 4 A
Closing 1 ÷ 4 C
Boom height
Opening AA
Closing AC
Boom locking
Opening BA
Closing BC
Boom leveling
Opening CA
Closing CC
INSTALLATION

9
INSTALLATION
6.4 Sensor connection
Fix the connectors to the relevant functions according to the initials indicated in your assembly general diagram (par. 5.1).
Harness cables are marked with a symbol denoting their functions: please see the table for correct harness connection.
Use ARAG sensors: use of unsuitable sensors not provided by ARAG automatically voids the warranty.
ARAG is not liable for damage to the equipment, persons or animals caused by failure to observe the above instructions.
ITEM MAIN CONNECTION ALTERNATIVE
CONNECTION
FFlowmeter -
MPressure sensor -
SSpeed sensor -
TFilling owmeter Level sensor
XRPM sensor -
- The products are supplied with the sensor installation instructions.
The following speed sensors can also be used as RPM sensors:
• inductive speed sensor (code 467100.086);
• magnetic speed sensor (code 467100.100).
- Connection of:
• owmeter;
• pressure sensor;
• level sensor
• lling owmeter;
• RPM sensor.
All ARAG sensors use the same type of connector. Connect the sensor connector to the relevant harness; make sure it is correctly tted and push it
until locking it.
Fi g . 1 2 Fi g . 1 3
6.5 Auxiliary functions
Depending on the auxiliary functions requested, various harnesses are available for connecting cameras, spraying activation
signal and treatment status (ARAG general catalog).
• Camera connection
Bravo 400S LT can be connected to one or two cameras code 46700100 (purchased separately) using the suitable cables listed in the ARAG general
catalog. Connect the connector to the computer (see connection points at par. 5.2) and the other cable end to the camera: ensure it is correctly in
place and turn the ring nut clockwise until blocking it.
• Enable spraying
The harness that connects Bravo 400S LT to a spraying activation control is available on the ARAG general catalog.
CABLE COLOR FUNCTION LABEL STATUS
1RED Enable spraying SERVICE IN Active low
2GREEN General status SERVICE OUT Output +12Vdc
3BLACK Ground GND --
Fi g . 1 4

10
6.6 Power supply connection
The package includes the power connector (component 5, Fig. 1 / Fig. 2) to be connected to the farming machine battery;
Fig. 17 shows the drilling template of the power connector.
Connect the power connector to the battery wires using two 6-mm faston connectors, as indicated in Fig. 15 and Fig. 16.
Use the cable provided with the package (component 3, Fig. 1 / Fig. 2) to connect the computer to the power supply.
Fig. 15 Fig. 16 Fi g . 1 7
WARNING:
To avoid short circuits, do not connect the power cables to battery before the installation is completed.
Before powering up the computer and control unit, make sure the battery voltage is as specied (12 Vdc).
Bravo 400S LT is supplied directly by the farming machine battery (12 Vdc):ALWAYS switch on the computer through the monitor, and then remember
to switch it off using the specic key on the control panel.
If Bravo 400S LT remains on for a long time with the machine off, the tractor battery could run at: in case of prolonged breaks of
the machine with engine off, make sure the computer is off, too.
The power source must be connected as indicated in Fig. 18: the computer must be connected directly to the farming machine battery.
DO NOT connect the computer to key-operated switch (15/54).
Fig. 18
WARNING:
• The power circuit shall ALWAYS be protected by a 10 A fuse
like the ones for automotive applications.
• All cables connected to the battery shall have a minimum cross-
section of 2.5 sq. mm.
To avoid short-circuits, connect the power cable connector only
after completing installation.
• Use cables with suitable terminals ensuring correct connection
of all wires.
INSTALLATION
