ARAG Skipper 467031 User manual

satellite navigator
02
Software rel. 1.2X
installation
467031

2
Illustrations, images and photographs given in this manual have been supplied merely as indications and
are not in any way binding; ARAG reserves the right to modify the specications and instructions regarding
the product at any time and without prior notice.
LEGEND SYMBOLS
=Generic danger
=Warning

3
Contents
Legend symbols...............................................................................................................................................2
1 Product description........................................................................................................................................4
1.1 Intended use ......................................................................................................................... 4
2 Precautions.........................................................................................................................................................4
3 Contents of the package..............................................................................................................................4
4 Installation........................................................................................................................................................... 5
4.1 Introduction............................................................................................................................ 5
4.2 System configuration ........................................................................................................... 5
4.3 General precautions for locating the SKIPPER and cable runs................................... 6
4.4 Overall dimensions .............................................................................................................. 7
4.5 SKIPPER navigator position............................................................................................... 7
4.6 Locating the antenna........................................................................................................... 8
4.7 Electrical connections - general diagram....................................................................... 10
4.8 Connection to the GPS receiver ...................................................................................... 10
4.9 Treatment status signal ......................................................................................................11
4.10 Connections to BRAVO 300S ...........................................................................................11
4.11 Connection to the power source...................................................................................... 12
5 Control panel.................................................................................................................................................... 13
5.1 Keys ...................................................................................................................................... 13

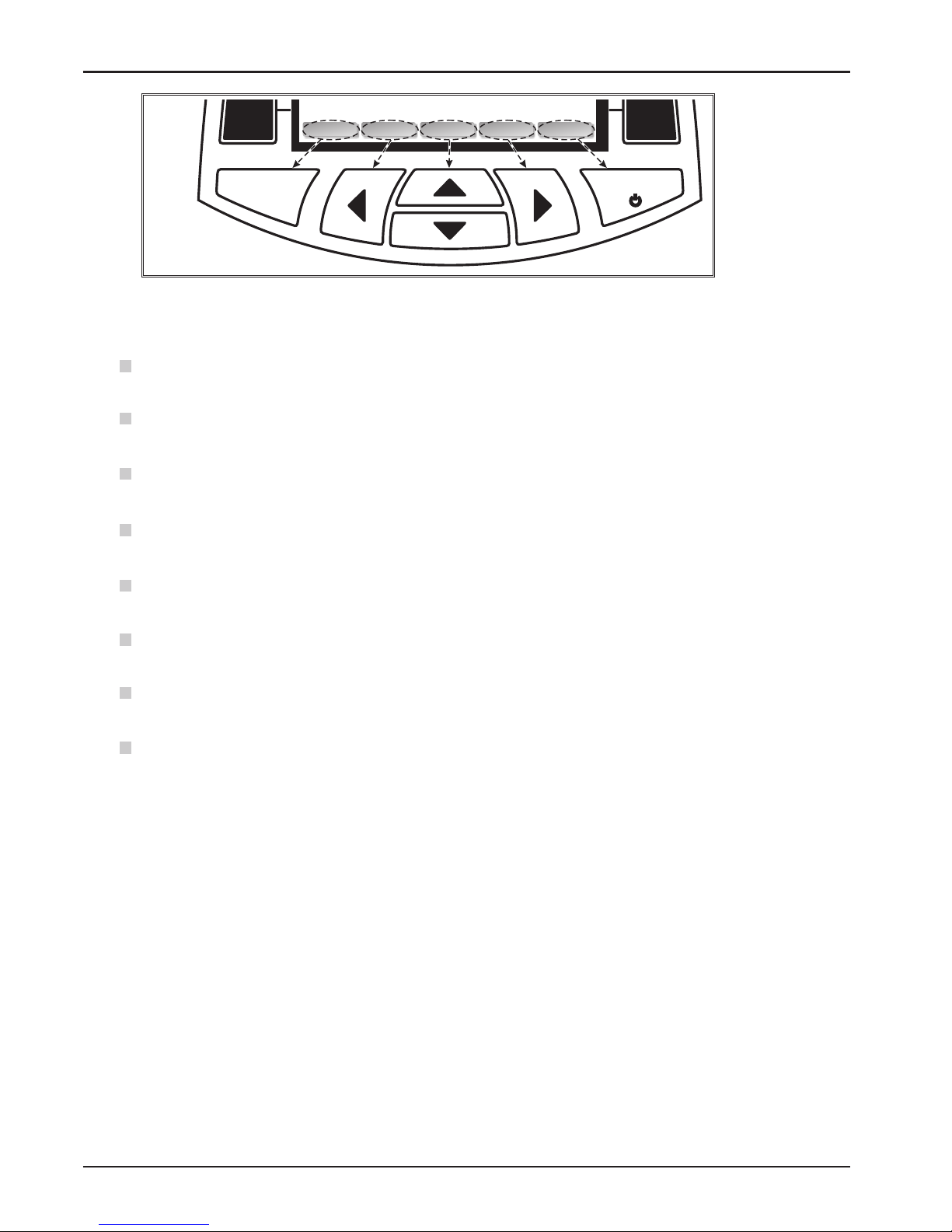

5.2 Navigation keys................................................................................................................... 14
6 Use......................................................................................................................................................................... 15

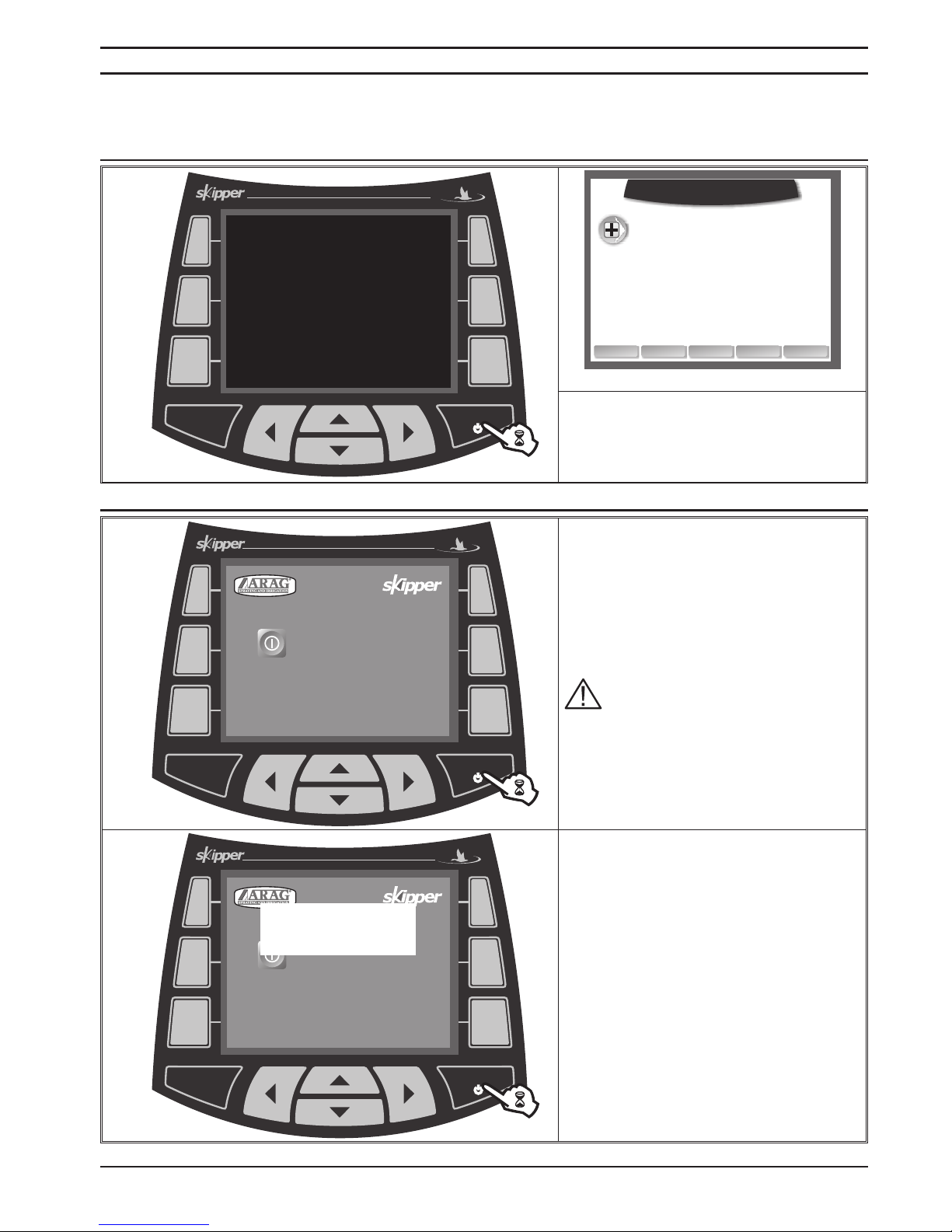

6.1 Switching ON ...................................................................................................................... 15
6.2 Switching OFF .................................................................................................................... 15
6.3 Language............................................................................................................................. 16
6.4 Differential correction function DGPS (SBAS)............................................................... 16
7 Online guides................................................................................................................................................... 17
7.1 Main menu online guide.................................................................................................... 17
7.2 Configuration online guide................................................................................................ 17
7.3 Navigation online guide..................................................................................................... 18
8 Maintenance / diagnostics / repairs..................................................................................................... 19
8.1 Troubleshooting .................................................................................................................. 19
9 Technical data ................................................................................................................................................ 19
10 Disposal at the end of service................................................................................................................ 19
11 Guarantee terms.............................................................................................................................................22

4
1 Product descriPtion
Skipper is a satellite navigator which can be used for agricultural purposes thanks to its GPS
receiver.
1.1 Intended use
This device is designed to work on agricultural machinery for crop spraying
applications.
The device is designed and manufactured to comply with the requirements of direc-
tive 89/336/EEC, dated 03/05/1989 and subsequent modications, and of the EN ISO
14982 standard.
SKIPPER is not a road navigator and should only be used for eld mapping.
2 Precautions
• Do not expose the device to jets of water.
• Do not use solvents or benzene for cleaning the exterior of the housing.
• Do not use direct jets of water for cleaning the device.
• Make sure the power voltage meets the device’s rated power requirement (12 Vdc).
• If doing arc-welding, disconnect the three connectors from the back of the SKIPPER
device and disconnect its power cable.
• Only use original ARAG accessories and spare parts.
3 contents of the Package
The following table lists the components contained in the SKIPPER package:
SKIPPER
USO EMANUTENZION E
OWNER’S MANUAL
UTILISATION ET ENTRETIEN
USO YMANTENIMIENTO
BEDIENUNG UND WARTUNG
USOEMANUTENÇÃO
3
1
2
4
5
6
Fig. 1
Legend:
1SKIPPER satellite navigator
2Connection cable SKIPPER -
BRAVO 300S - Power supply
3Instruction manual
4GPS receiver
5Receiver support
6Receiver cable

5
4 installation
4.1 Introduction
Installation of the SKIPPER system does not require specialist knowledge.
We recommend however that this be done by a qualied technician in as much as the installation
also requires electrical connections to be made.
ARAG IS NOT LIABLE FOR ANY DAMAGE CONSEQUENT ON INSTALLATION BY
UNQUALIFIED PERSONS.
IF CASE OF DAMAGE TO THE SYSTEM CAUSED BY INCORRECT INSTALLATION OR
CONNECTIONS, THE WARRANTY IS AUTOMATICALLY VOIDED.
CAUTION! THE CONNECTION OF RECEIVERS OTHER THAN THE SPECIFIED ONE IS
NOT ALLOWED (art. no. 520100.602).
ARAG IS NOT LIABLE FOR DAMAGE TO THE PRODUCT, FAULTS OR RISKS OF
ANY NATURE CONSEQUENT ON CONNECTING THE MODULE TO NON-ORIGINAL
RECEIVERS OR THOSE NOT SUPPLIED BY ARAG.

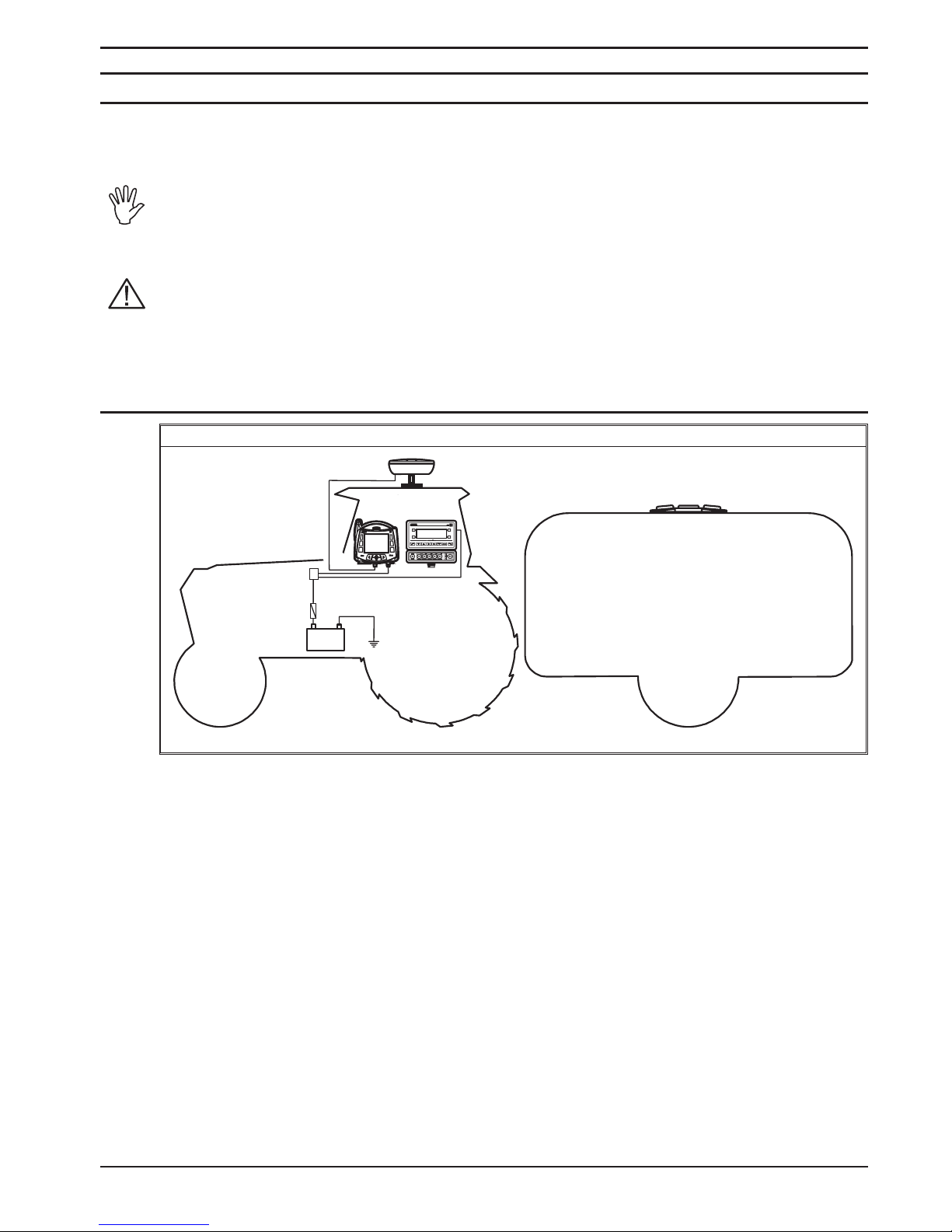

4.2 System conguration
System with SKIPPER and BRAVO 300S
B
A
C
+-
D
12Vdc
Fig. 2
Legend:
aSKIPPER satellite navigator
BBRAVO 300S computer
cGPS antenna and receiver
dBattery

6
4.3 General precautions for locating the SKIPPER and cable runs
• Positioning the SKIPPER device in the cab:
- DO NOT place the navigator in areas subject to excessive vibrations and shocks or
close to moving parts which might cause damages;
- Mount the remote control unit in a visible position, without obstructing the opera-
tor’s view, and within easy reach by hand;
- Take care to position the device away from moving parts to avoid accidental opera-
tion of its keys.
• Inserting the connectors:
- Fit supplied O-rings into connectors and then connect paying special attention to
the notch. Press gently and then tighten the ring nut.
CAUTION: do not use tools to tighten down the connector locking collars.
- Do not force the connectors by pushing too hard or bending them: the contacts
can be damaged and monitor operation compromised.
• Securing the cables:
Note the various connections required for the SKIPPER system to operate, the ne-
cessary length of the cables, and ensure that there is sufficient space for the cable
runs and connectors:
- Route the cables in such a way that twisting and machine movements cannot da-
mage or break them.
- If, due to limited space, the cabling has to run around a corner, make sure that the
bend is not too sharp as this may cause the cable to break.
• Use ONLY the cables and accessories listed in the catalogue; these have the cor-
rect specications for their intended application.

7
4.4 Overall dimensions
Fig. 3
3
12
Legend:
1USB HOST port (pendrive, etc.)
2GPS Receiver
3BRAVO 300S - Power supply
Enable current treatment
4.5 SKIPPER navigator position
Carefully read all instructions as described in par. 4.3 - General precautions for cor-
rect SKIPPER and cable positioning before positioning the satellite navigator.
Position SKIPPER centrally into the cab so that it does not impair driving visibility while allowing
data check during treatment.
Fig. 4
1) Install the mount slide in the cab with
the provided bolts, in a location which
is within easy reach and visible to the
operator, and away from moving parts.
2) Fit the satellite navigator by
pushing it onto the mount slide and
pushing down until it locks in place.

8
4.6 Locating the antenna
• Installing the antenna
Installation of the antenna on agricultural equipment must observe certain basic requirements:
• it must be installed on the highest point of the machine (including trailer): the skywards reception
angle must be as unobstructed as possible.
180°
Fig. 5
140°
Fig. 6
• The antenna must be installed on the lengthwise axis of the machine.
Fig. 7 Fig. 8

9
• Securing the antenna:
If the surface to which the antenna is to be mounted is metal or steel, use the provided magnetic
plate: the magnet is equipped with a threaded shaft to which the antenna can be installed by
screwing it fully down (Fig. 9).
Make sure that the antenna is mounted to a perfectly at metal surface, free of any
surface treatment capable of reducing the strength of the magnet itself.
Fig. 9 Fig. 10
If the magnetic mount is not secure enough, screw the mounting shaft directly onto the chassis of
the machine as shown in Fig. 11; drill a hole in the chassis and mount the shaft with an M10 nut.
5/8”UNC
M10
Fig. 11
The operator is responsible for checking that the mounting system is completely
secure. ARAG is not liable for damage of any nature caused by the antenna working
free, independently of which mounting system is used.

10
4.7 Electrical connections - general diagram
A
F
4m 0,5 m
3m
6m
+-
3A D
C
E
B
WIRE COLOR
(POWER CABLE)
RESPECTIVE
CONNECTION
Black Negative
Red Positive
Green Treatment status signal
Fig. 12
aSatellite navigator
BGPS antenna and receiver
cBattery
dAutomotive fuse - 3 A
eTreatment status signal +12 Vdc (from main control valve)
fBRAVO 300S computer
4.8 Connection to the GPS receiver
Only use ARAG receiver especially designed for SKIPPER. ARAG is not responsible
for any damages caused by the use of non-authorized receivers.
Before making the connection, carefully read par. 4.3 - General precautions for loca-
ting the SKIPPER and cable runs.
Connect the GPS receiver to the guidance monitor with cable 6in Fig. 1 (chapter 3 - Contents of
the package).
The connection points are given in par. 4.7 - Electrical connections - general diagram.
