ARBOC Spirit 2015 User manual
Revised: 5/22/2015 Page 1
www.ARBOCsv.comTelephone:574‐825‐4880Fax:574‐825‐1755
2015 Spirit of Mobility
ARBOC Specialty Vehicles, LLC.
Service & Operations Manual
2015 Spirit of Freedom
Photos Shown with Optional Equipment
Revised: 5/22/2015 Page 2
CONTENTS
CONTENTS ..................................................................................................................................2
FOREWARD .................................................................................................................................5
OVERVIEW...................................................................................................................................6
VEHICLE INFORMATION ............................................................................................................7
ARBOC Specialty Vehicles, LLC Limited Warranty..........................................................................7
General Motors “G Van Cut-Away” (GMT 610) Chassis................................................................11
Dealer Documentation.........................................................................................................................12

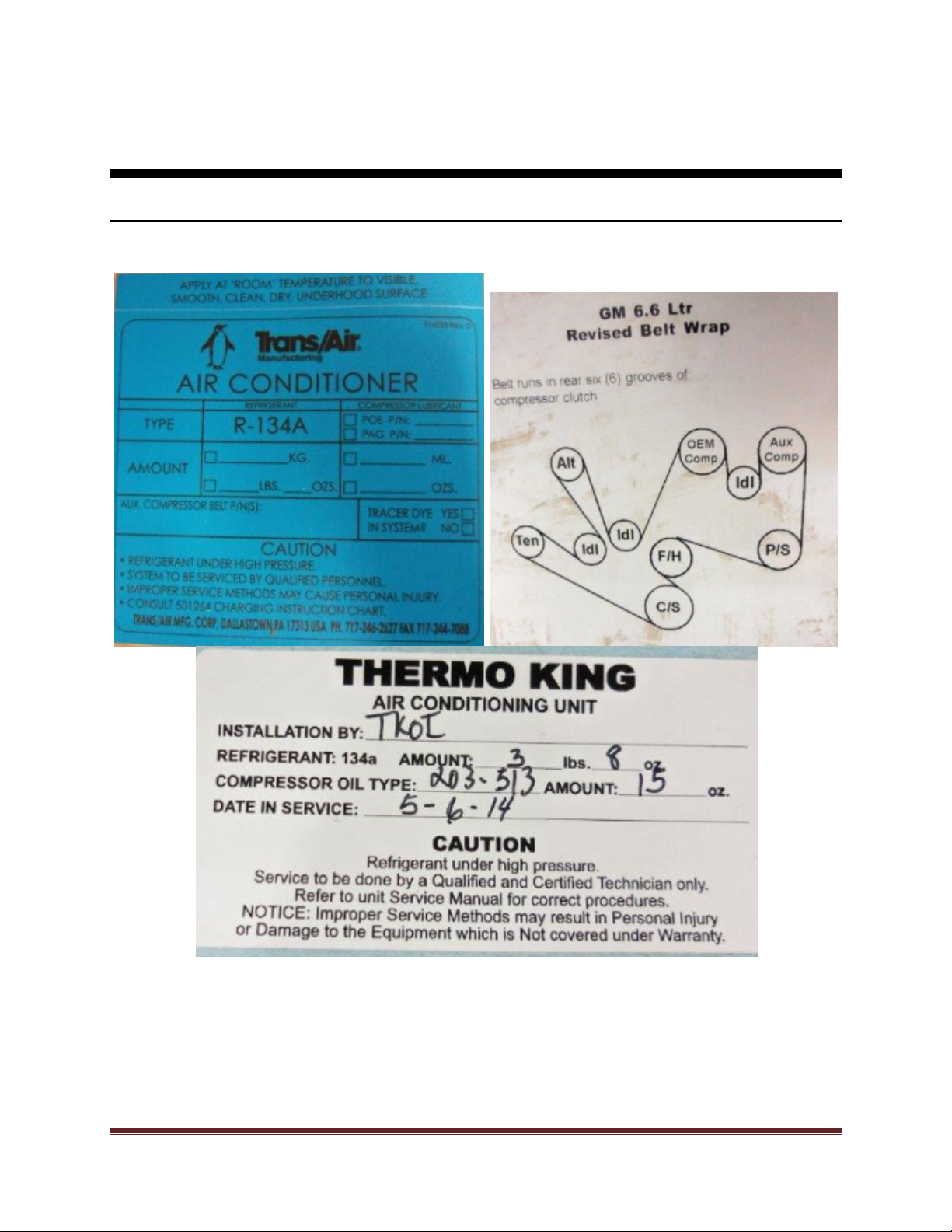

Important Decal Information and Location.......................................................................................12
Important Decal Information and Location.......................................................................................13
Suggested Pre-trip Inspection............................................................................................................14
Driver’s Compartment..........................................................................................................................15

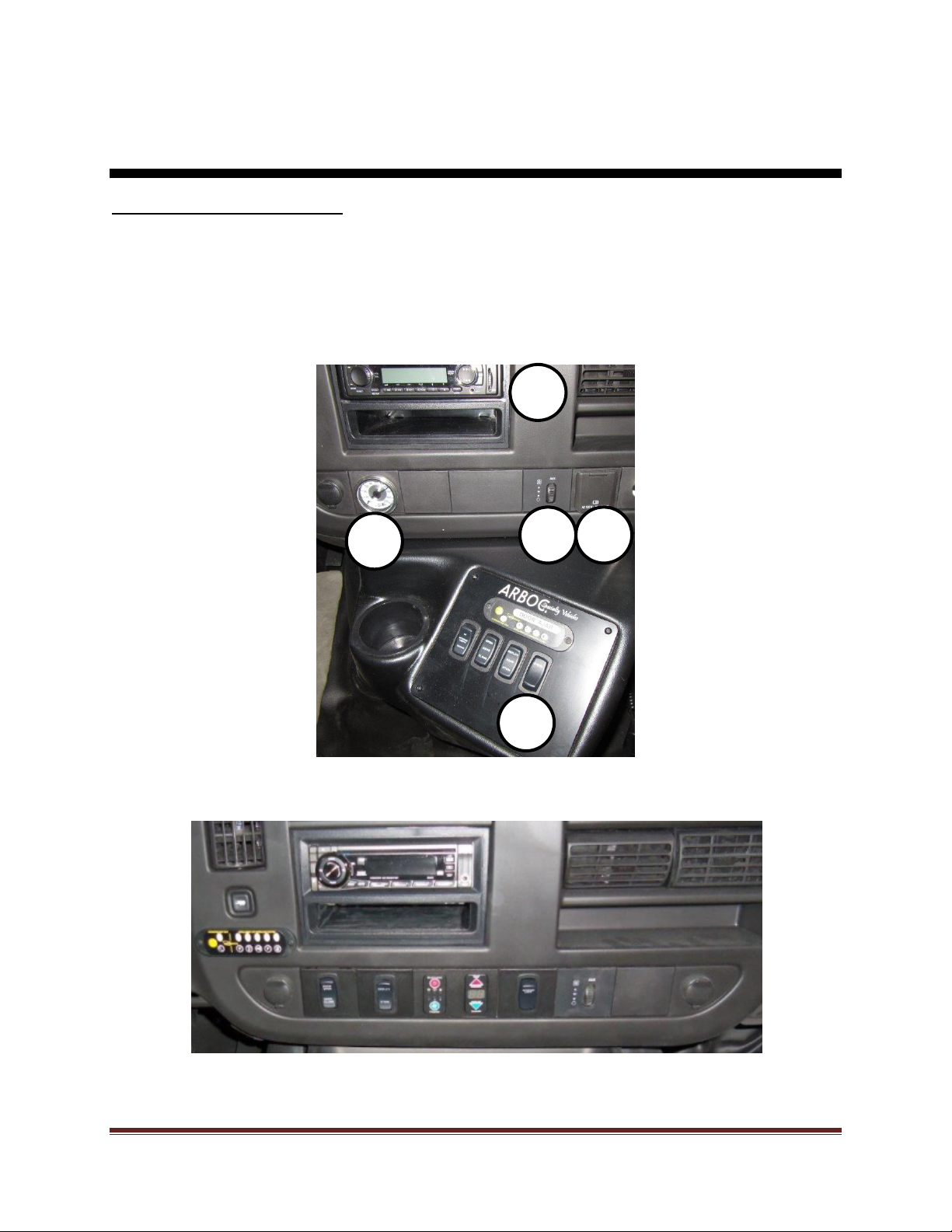

ARBOC Specialty Vehicles Control Panel........................................................................................17
Intermotive Interlock System Display................................................................................................19
Velvac Remote/Heated Mirror Directional Controls (Optional).....................................................20
Thermo King ClimaAIRE Controls (Optional)..................................................................................21
Axion Destination Sign Controls (Optional)......................................................................................28
Luminator Destination Sign (ODK4 Controller) Operations (Optional Equipment)....................44
MobiLite Destination Sign Operations (Optional Equipment)........................................................59
Manual Operation of the Power Ramp (Optional Equipment).......................................................
82
Emergency Exits...................................................................................................................................82
Q-Straint QRT User Instructions (Optional Equipment).................................................................83
Q-Straint Q’UBE User Instructions (Optional Equipment).............................................................84
Troubleshooting....................................................................................................................................85
MAINTENANCE..........................................................................................................................86
Preventative Maintenance Schedule.................................................................................................86
Suggested Stock Replacement Parts...............................................................................................87
Front Suspension Assembly (Spirit of Mobility)...............................................................................88
Rear Suspension Assembly (Spirit of Mobility)................................................................................90
Rear Suspension U-Bolt Service Recommendations (Spirit of Mobility).....................................91
Revised: 5/22/2015 Page 3
CONTENTS
Air Suspension (Spirit of Mobility)......................................................................................................92
Air Suspension – Component Service Schedule...........................................................................119
Mor/ryde Rear Suspension (Spirit of Freedom).............................................................................120
Torque Specifications........................................................................................................................124
Electrical – Legend.............................................................................................................................126
Electrical – Schematics and Routings.............................................................................................132
Electrical – Symbols...........................................................................................................................133
Electrical – Cab Routing....................................................................................................................134
Electrical – Driver Side Routing.......................................................................................................137
Electrical – Passenger Side Routing...............................................................................................138
Electrical – Aux Heater Routing.......................................................................................................139
Electrical – Dual Aux Heater Routing..............................................................................................140
Electrical – Rear Cap Routing..........................................................................................................141
Electrical – Switch Panel Routing....................................................................................................142
Electrical – Under Cab Routing........................................................................................................143
Electrical – Ricon Ramp Routing.....................................................................................................144
Electrical – Braun Ramp Routing.....................................................................................................145
Electrical – Door Ajar Routing..........................................................................................................146
Electrical – Power Seat.....................................................................................................................147
Electrical – Auto Lighting Schematic...............................................................................................148
Electrical – Battery (Gas) Circuit Schematics................................................................................149
Electrical – Entry Door Schematic...................................................................................................150
Electrical – Auxiliary Heater Schematic..........................................................................................151
Electrical – Ramp Schematic & Lighting.........................................................................................152
Electrical – Intermotive Interlock......................................................................................................153
Electrical – Intermotive Schematics................................................................................................164
Electrical – Intermotive Interlock Diagnostics................................................................................165
Electrical – Interior Lighting Schematics.........................................................................................177
Electrical – Rear Door Schematics..................................................................................................178
Revised: 5/22/2015 Page 4
CONTENTS
Electrical – Optional Power Distribution Module (PDM)...............................................................179
Electrical – Stop Request Schematic..............................................................................................180
Electrical – Radio Schematic............................................................................................................181
Electrical – Auxiliary Battery Compartment (Spirit of Mobility)....................................................182
Electrical – Auxiliary Battery Compartment (Spirit of Freedom).................................................183
Electrical – Standard SOM Rear Tail Light Details.......................................................................184
Electrical – Standard SOF Rear Tail Light Details........................................................................185
Exterior Components (Spirit of Mobility).........................................................................................186
Exterior Components (Spirit of Freedom).......................................................................................191
Interior Components – Front ABS....................................................................................................195
Revised: 5/22/2015 Page 5
FOREWARD
Thank you for your business and congratulations on your purchase of our product.
Every ARBOC Specialty Vehicles, LLC bus we build complies with or exceeds ADA
standards. Our primary focus is on all of your passengers, all of the time.
Welcome to ARBOC Specialty Vehicles, LLC. Our Spirit of Mobility (SOM) and Spirit of
Freedom (SOF) feature premium technology for safety, reliability, and ease of
operation. We realize that as a Service/Parts or Operating professional that you
represent your agency and ultimately, our product. Your understanding of the parts and
procedures to maintaining the vehicle is vital to your satisfaction. We hope that you will
find this manual to be an informative and useful reference tool.
Our Spirit of Mobility and Spirit of Freedom are built on the GM 3500/4500 chassis and
include premium components for the most reliable and comfortable travel experience.
Because most functions and features are unchanged, the GM service manual should be
reviewed in conjunction with this guide for location, proper operation, and service of
these features. Reference to the GM Service Manual is REQUIRED for specific
information on safety practices, cautions, and important information such as torque
specifications.
Please contact ARBOC Specialty Vehicles, LLC Service Operations with any questions
and/or suggestions at 1-888-953-5555.
ARBC Specialty Vehicles
51165 Greenfield Parkway
Middlebury, Indiana 46540
Publication Number SM13-001
Copyright 2013 ARBOCSV
Notice
The information presented in this manual is correct at the time of printing. However,
ARBOC Specialty Vehicles reserves the right to make changes without notice as we
move towards our ongoing product improvements, policies, and procedures.
Revised: 5/22/2015 Page 6
OVERVIEW
This Spirit of Mobility bus features premium technology for safety, reliability and ease of
operation. Your understanding of the proper operation of this bus is absolutely essential
to succeed in these key areas.
This guide was crafted to familiarize the operator with basic procedures. It must be read
and understood before driving and operating the controls. It is not all-inclusive of
situations that may occur. Operators must have a level of skill and familiarity that does
not come without conventional experience. Once understood and practiced, operation
will be straightforward and comfortable.
Your Spirit of Mobility bus is known to provide some of the most comfortable ride
characteristics available. Remember that this unit is larger than a typical automobile.
Care must be taken to insure all paths are clear before moving any bus in any direction.
Safe operation requires care and common sense.
In this guide you will find examples of standard and optional equipment. Your Spirit of
Mobility bus is equipped as specified and may have features in addition to this guide’s
content. There may also be examples represented that are not part of your bus as built.
All information contained is based on information available at the time of printing. With
our program of ongoing improvement, ARBOC Specialty Vehicles, LLC reserves the
right to make changes without notice.
Revised: 5/22/2015 Page 7
VEHICLE INFORMATION
ARBOC Specialty Vehicles, LLC Limited Warranty
Scope
ARBOC Specialty Vehicles, LLC (ARBOC) warrants to the original purchaser that each
new transit vehicle sold by an authorized ARBOC dealer (“Dealer”) will be free from
defects in material and workmanship under normal use and service within these limits:
1. For three (3) years/36,000 miles, whichever occurs first, from the original purchase
date (“Warranty Period”), the transit vehicle portions, which may also be described
as the final stage up-fit, in each case originally built, installed, or modified by
ARBOC, specifically, electrical systems unrelated to the propulsion of the vehicle,
flooring, manual ramp, chassis-frame sections, and other interior and exterior
components, not warranted separately by the manufacturer.
2. For five (5) years/100,000 miles, whichever occurs first, from the original purchase
date (“Warranty Period”), the basic body structural components in each case
originally built, installed, or modified by ARBOC, specifically, the exterior sidewalls,
rear wall, roof structure, and floor structures.
ARBOC’s sole obligation and your exclusive remedy under this Limited Warranty is to
repair or replace the defective item or provide other such relief as ARBOC deems
appropriate in its sole discretion. ARBOC reserves the right to substitute parts or
components of substantially equal quality.
Conditions
This Limited Warranty:
1. applies only to new transit vehicles and does not include vehicles: (a) considered
“distressed” (i.e., not purchased as new or not sold as new by a Dealer); (b)
purchased from unauthorized dealers, through auction, through banks, or financial
institutions; (c) sold to the Dealer “AS IS” with no warranty; or (d) used for
promotional purposes.
2. is not transferable. Original purchasers must be properly registered with ARBOC
within thirty (30) days of the first day of the Warranty Period to be considered for
eligibility.
3. applies only to vehicles registered and used in one of the United States or Canada.
Revised: 5/22/2015 Page 8
VEHICLE INFORMATION
Exclusions
Any claim or damage related to or caused by the following are specifically EXCLUDED
FROM COVERAGE IN THIS LIMITED WARRANTY:
1. Items with a Separate Manufacturer’s Warranty.
a. The automotive chassis or any components thereof which are warranted
separately by the chassis manufacturer, including but not limited to
problems caused by or related to the engine, drive train, steering,
electrical system, fuel system, brake system, wheel balance or alignment,
tires, batteries, and gauges; and
b. Components that are warranted separately by the component
manufacturer, including but not limited to batteries, seating, electronic
components (TVs, radios, PA systems, signs, etc.), windows, passenger
entrance door, electric ramps, heating and air conditioning not related to
the chassis system.
2. Maintenance and Service. Maintenance items, such as filters, belts, fluids or
other operational parts and supplies, service calls and procedures, such as
adjustments to doors and ramps, that are part of normal, routine maintenance.
3. Wear and Tear. Wear and tear from operation.
4. Other Causes.
a. Use or loading in excess of stated capacities or in non-standard
applications, including but not limited to off-road use;
b. Abuse, misuse, accident, collision, neglect, negligence, vandalism, fire,
riot, war, terrorism, or Acts of God;
c. The environment, including but not limited to rust, exposure to natural
atmospheric elements, corrosion, ash or fumes, road hazards, rock chips
or other road debris, flaking, peeling, fading, or discoloration of the exterior
or finish;
d. Structural or other modification or alteration;
e. Unauthorized repair or attempted repair;
f. Cosmetic flaws, including but not limited to scratches, bumps, minor
imperfections;
g. Upholstery damage, including but not limited to tears, punctures, misuse,
or fading;
h. Mold or mildew;
i. Exterior paint or finish (except for apparent application defects
documented and communicated to ARBOC at the time of delivery) unless
covered by a separate paint manufacturer’s warranty.
j. Chemical off-gassing of any type; and
k. Aging of exterior fiberglass materials, including but not limited to yellowing,
curing, or surface stress cracks (or crazing).
Revised: 5/22/2015 Page 9
VEHICLE INFORMATION
Disclaimer of Warranties and Consequential and Incidental Damages
EXCEPT AS STATED IN THIS LIMITED WARRANTY, ARBOC MAKES NO EXPRESS
OR IMPLIED REPRESENTATIONS OR WARRANTIES, AND ARBOC HEREBY
EXPRESSLY DISCLAIMS OR LIMITS TO THE TERM OF THIS LIMITED WARRANTY
ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED
TO WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. Some states do not allow limitations on how long an implied warranty lasts,
so the above limitation may not apply to you.
No person has authority to extend, enlarge, amend, or modify this Limited Warranty.
Dealer is not ARBOC’s agent, but an independent entity. ARBOC is not responsible for
any undertaking, representation, or warranty made by any Dealer or other person
different from or in addition to those expressly set forth in this Limited Warranty.
THIS LIMITED WARRANTY EXPRESSLY EXCLUDES ALL SPECIAL, INDIRECT,
CONSEQUENTIAL, AND INCIDENTAL DAMAGES, INCLUDING, BUT NOT LIMITED
TO TRANSPORTING THE VEHICLE FOR SERVICE, LOSS OF USE OR PROFITS,
LOSS OR DAMAGE TO PERSON OR PROPERTY, INCONVENIENCE, OR LOSS OF
TIME. Some states do not allow the exclusion or limitation of consequential or
incidental damages, so the above exclusions may not apply to you.
Legal Claims
ANY ACTION TO ENFORCE THIS LIMITED WARRANTY, ANY IMPLIED WARRANTY
ALLEGED TO EXIST, OR ANY STATUTORY CLAIM MUST BE COMMENCED
WITHIN ONE (1) YEAR AFTER THE EXPIRATION OF THIS WARRANTY. THE
EXCLUSIVE JURISDICTION AND APPLICABLE LAW FOR DECIDING ANY CLAIMS
RELATING TO THE SALE, PURCHASE, OR USE OF THE TRANSIT VEHICLE, THIS
LIMITED WARRANTY, ANY IMPLIED WARRANTY, OR ANY STATUTORY RIGHTS
OR CAUSES OF ACTION FOR DEFECTS OR REPRESENTATIONS OF ANY
NATURE FOR DAMAGES DUE FROM SUCH DEFECTS OR REPRESENTATIONS
SHALL BE IN THE COURTS IN THE STATE OF MANUFACTURE WITHOUT
REGARD TO ANY STATE’S CONFLICT OF LAWS PROVISION. If any provision of
this Limited Warranty shall for any reason be held to be unenforceable in whole or in
part in any respect, then such unenforceable provision or part shall be construed as if it
had never been contained in this Warranty. This Warranty gives you specific legal
rights, and you may have other rights that vary from state to state.
Revised: 5/22/2015 Page 10
VEHICLE INFORMATION
Attorney’s Fees, Costs and Expenses
If you or anyone on your behalf files any lawsuit or legal proceeding, the prevailing party
shall be entitled to recover attorney’s fees and legal costs and expenses incurred up to
a maximum recovery of twenty-five percent (25%) of the total retail cost of the vehicle.
The determination of the “prevailing party” shall be made by comparing any offers made
by ARBOC to you prior to or during the pendency of the lawsuit or proceeding, whether
through final judgment, mediation, or other form of settlement.
To Obtain Service
For warranty service, simply contact an authorized ARBOC Dealer or authorized service
center for an appointment or consultation, and then take the vehicle (at your expense)
to the servicing facility. If you have a problem obtaining satisfactory and timely warranty
service, please call us on our toll free line (1-866-953-5555) so that we may attempt to
resolve your concerns. Under the terms of this Limited Warranty, ARBOC reserves the
right to perform warranty repair upon any alleged defect at ARBOC’s manufacturing
facility.
Revised: 5/22/2015 Page 11
VEHICLE INFORMATION
General Motors “G Van Cut-Away” (GMT 610) Chassis
Our Spirit of Mobility and Spirit of Freedom are built on the GM 4500 chassis and
include premium components for the most reliable and comfortable travel experience.
Because most functions and features are unchanged, the GM service manual should be
reviewed in conjunction with this guide for location, proper operation, and service of
these features. Reference to the GM Service Manual is REQUIRED for specific
information on safety practices, cautions, and important information such as torque
specifications.
Engine: Vortec 6.0L Gas (Duramax 6.6L Diesel)
Base Transmission: Heavy Duty 6-Speed Automatic (MYD) with auxiliary
transmission cooler
Horsepower at RPM: 342 at 5,400 (Gas)/260 at 3,100 (Diesel)
Torque FT/LBS at RPM: 373 at 4,700 (Gas)/525 at 1,600 (Diesel)
Standard Axle Ratio: 4.10 (Gas)/3.73 (Diesel)
Fuel System: Electric Fuel Injection (Gas)/Direct Injection (Diesel)
Battery: Heavy Duty 770 CCA (2 batteries equipped)
Alternator: 160-Amp (Gas)/145-Amp (Diesel)
GVWR Standard: 14,200 – 4,600 Front Axle & 9,600 Rear Axle
Fuel Tank Capacity – 57 gallons
Tires: LT225/75R16E with Dual Rear Wheels
Brakes: Heavy Duty Disc Brakes with Four-Wheel Anti-Lock System
Park Brake: Internal Rear Disc
Passenger Seat: Omitted
Mirror: Inside Rearview Day/Night
Horn: Dual Note Tone
Air Cleaner: Heavy Duty type with replaceable element
Driver Side Visor
50 State Emissions
Power Ports: (2) 12 Volt & (1) 120 Volt/150 Watt
Daytime Running Lights
Factory A/C, Defroster, and Heat
Low Oil Pressure Light
Full-flow Oil Filter
High Engine Coolant Temperature
Power Steering
Driver Dome Light
Revised: 5/22/2015 Page 12
VEHICLE INFORMATION
Dealer Documentation
ARBOC Specialty Vehicles, LLC provides multiple documents on your specific unit to
the dealership that can be obtained that may not be part of this manual. Information
includes:
Floor Plan – document that shows the layout of the bus floor plan as ordered
and initially produced.
Unit Information Sheet – document identifies all of the options that were
included on the bus at time of production
Product Data Sheet –document contains the model and serial numbers of the
primary optional components that were installed on the bus at the time of
production. These are required by suppliers for proper replacement and warranty
coverage.
Weight Analysis – document contains details the curb weight of that bus as built
for each wheel location.
Paint Schematic - document identifies any special paint or decals that were
included in the production of the bus.
Parts List – list of components used during the production of the bus.
Front End Alignment Sheet – document shows the alignment specifications for
the vehicle prior to shipping
Important Decal Information and Location
ARBOC Specialty Vehicles, LLC provides several informative decals.
1. Vehicle Certification Label is located in the driver’s doorjamb area and
identifies the following:
A. Vehicle manufacturer and all identifying VIN & model numbers
B. Gross Vehicle Weight Rating (GVWR)
C. Gross Axle Weight Rating (GAWR) for both front and rear
D. Cold tire inflation for front and rear tires
E. Date of Manufacture
Revised: 5/22/2015 Page 13
VEHICLE INFORMATION
Important Decal Information and Location
2. A/C Labels are located under the hood and will provide information/belt routing –
see below for examples:
Revised: 5/22/2015 Page 14
OPERATIONS
Suggested Pre-trip Inspection
Prior to entering into service, ARBOC Specialty Vehicles suggests that the operator
conduct a pre-trip inspection of the bus:
1. Engine Compartment
a. Engine oil, coolant, transmission fluid, power steering, brake fluid, and
battery electrolyte levels (See the GM Operator’s Manual)
b. Hoses for leaks
c. Belts for wear and tension
d. Cables for fraying and security
2. Exterior
a. all exterior lights for proper operation
i. Front Lights – Headlights, Right Front Turn Signal, Left Front Turn
Signal, and Clearance Lights
ii. Side Lights - Side Turn Marker Lights
iii. Rear Lights – Tail Lights, Stop/Brake Lights, Reverse Lights, Four-
way Flashers, Right Rear Turn Signal, Left Rear Turn Signal, Rear
Side Marker Lights, License Plate Light, and Clearance Lights
b. Windshield wipers
c. Tires and lug nuts – check for tire pressure and wear/damage
d. Side windows
e. Side mirrors
f. Body Damage
g. Under engine – fluid leaks
h. Bike Rack (optional) for function
i. Storage compartment doors (optional) for function
3. Interior
a. Driver Compartment
i. Disconnect Switch in the “ON” position
ii. Wiper controls
iii. Horn
iv. Adjust driver seat
v. Adjust steering wheel
vi. Adjust interior/exterior mirrors
vii. ARBOC Control Panel Function Test
1. Door open/close – Front of vehicle should kneel on SOM
unit only.
2. Ramp deploy/stow – Rear and front of vehicle should kneel
on SOM unit only.
3. Interior lights
4. Auxiliary floor heater
Revised: 5/22/2015 Page 15
OPERATIONS
b. Emergency exits – side windows, rear window/rear door, and emergency
exit handle above the passenger entry door – verify that they are
closed/latched
c. Passenger seats and belts – damage and function
d. Mobility Aid Securement – damage and function
e. Fire Extinguisher (optional) – check level of charge
f. Emergency Triangle Kit (optional)
Driver’s Compartment
Battery Disconnect
The battery disconnect switch (A) is located in the step well area inside the driver’s
door. Rotate the rotary switch to the “ON” position before starting the bus and to the
“OFF” position when the bus is not being used. This will prevent the batteries from
being depleted if an accessory is left on.
Notice: Do not operate the bus with the disconnect switch in the “OFF” position. The
engine will start and run with the disconnect switch off, but other bus functions including
park interlock, power door, ramp, interior lights, etc. will not work. In the “OFF” position,
the unit cannot be shifted out of Park.
Revised: 5/22/2015 Page 16
OPERATIONS
ARBOC Installed Controls
The Spirit of Mobility was designed with the ease of operation in mind. The information
to follow will describe the controls installed by ARBOC Specialty Vehicles.
A. Radio
B. Suspension air gauge
C. Heater Control Switch
D. OEM Power Port
E. ARBOC Specialty Vehicles Control Panel
In the Spirit of Freedom, the suspension air gauge are removed and operating switches
are added to the OEM spaces between the (2) 12-volt outlets. The ARBOC Specialty
Vehicles Control Panel is an option.
A
BC D
E
Revised: 5/22/2015 Page 17
OPERATIONS
ARBOC Specialty Vehicles Control Panel
The switch panel controls all major bus functions:
A - Interior Lights On/OFF Switch
When the switch is in the “ON” position, all passenger lights will illuminate.
When the switch is in the “W/DOOR” position, all passenger lights will illuminate
when the entry door is FULLY opened.
B - Door Open/Close Switch Operation
To Open the Door:
oBring the bus to a complete stop.
oPress the brake and shift the transmission into park.
oPress and hold the door switch to open the door (you must hold this switch
to allow the door to open completely). The ramp area lights will light up
when the door is fully open.
oIf you release the switch prior to the door fully opening, the door will stop
opening. Press and hold the switch again and the door will resume
opening.
oThe door switch must be held until the desired operation is completed.
Releasing the switch in mid-operation will halt the door at that position.
To Close the Door:
oPress and hold the door switch to close the door.
The door will ALWAYS open when the vehicle is Key-off, but is limited to 5 mph
or less when the vehicle is key-on operational.
The door will only close when the ramp is fully stowed.
C – Power Ramp Deploy/Stow Switch Operation
As a safety feature, you can stop the ramp at any time by releasing the switch.
To prevent injury or bus damage do not attempt to operate the control panel until
you’ve determined that nothing is blocking the doors, ramp, and path is clear of
obstacles.
oBring the bus to a complete stop. Press the brake pedal and shift
transmission into PARK.
oThe switch is active only when the vehicle is key-on operational and in
secure mode (park brake set, shifter in Park, and entry door fully opened).
oEnsure that customers are clear of the ramp area and press the power
ramp switch. You can either use the dash console switch or the exterior
switches (optional).
The Ramp switch must be held until the desired operation is completed.
oDepress/Hold the “DEPLOY” to extend the ramp.
oDepress/Hold the “STOW” to retract the ramp.
Revised: 5/22/2015 Page 18
OPERATIONS
D – Kneeling Switch Operation
When the vehicle is in secure mode (park brake set, shifter in Park, and entry
door fully opened), depressing the Kneel Switch ONCE will initiate a half kneel by
lowering the front of the vehicle.
If the ramp is deployed, a full kneel will be initiated by lowering the rear of the
vehicle.
The unit will automatically return to ride height once the ramp is stowed and entry
door is closed.
D
C
B
A
Revised: 5/22/2015 Page 19
OPERATIONS
Intermotive Interlock System Display
ARBOC Specialty Vehicles has provided an Intermotive Shift Interlock System that will
enable the ramp when certain vehicle safety conditions are met, and will lock the
transmission shifter in Park when the passenger entry door is open and the Park Brake
is applied.
A – Advanced Fast Idle System
The Fast Idle System receives input from various components (park brake,
transmission, engine, and charging system) to determine when fast idle is
needed and for how long.
The System will automatically increase engine speed to 1500 rpm for up to 15
minutes. You can discontinue the fast idle by stepping on the service brake
pedal. Fast Idle will not operate if parking brake is off and/or the transmission is
in gear.
This display will indicate the status of the fast idle system and you may select
fast idle manually by pressing the yellow “Engage” button.
B – Vehicle Secure
This display will indicate that all safety conditions have been met and it is safe to
deploy the ramp.
C – Park Brake
This display will indicate that the park brake has been applied.
D – Park
This display will indicate that the transmission is in the Park position.
E – Shift Lock
This display will indicate that the ramp is completely stowed.
F – Door Ajar
This display will indicate that the entry door is completely open.
BE
D
C
F
A
Revised: 5/22/2015 Page 20
OPERATIONS
Velvac Remote/Heated Mirror Directional Controls (Optional)
The Velvac Remote/Heated Mirrors are optional for both the Spirit of Mobility and the
Spirit of Freedom. The controls are located on the driver door in front of the side
window.
A – Mirror Heat Switch
Press the Mirror Heat Switch to heat the mirrors. The switch will return to its
original position and the red light will indicate the heater is working. Mirror heat
will automatically shut off after a period of time
B – Top Mirror Switch
The top mirror switch will control the upper outside mirrors. Put the switch in the
“L” position for left mirror adjustments and in the “R” position for the right mirror
adjustments.
C – Bottom Mirror Switch
The bottom mirror switch will control the lower outside mirrors. Put the switch in
the “L” position for left mirror adjustments and in the “R” position for the right
mirror adjustments.
A
C
B
