Versalift TEL-29-N User manual

Operator’s Manual
Time Manufacturing Co. 7601 Imperial Drive P.O. Box 20368 Waco, Texas 76702 Phone: [phone] Fax: [phone]
Aerial Device
ATTENTION:
THIS MANUAL CONTAINS CONFIDENTIAL INFORMATION
AND IS THE SOLE PROPERTY OF TIME MANUFACTURING CO.
CONTENTS ARE NOT TO BE DISCLOSED, COPIED, OR REPRODUCED
IN ANY MANNER WITHOUT THE EXPRESSED, WRITTEN PERMISSION
OF TIME MANUFACTURING CO.
DO NOT ATTEMPT TO OPERATE THIS VERSALIFT UNTIL
YOU HAVE READ AND UNDERSTOOD ALL INFORMATION IN BOTH
OPERATOR’S AND SERVICE MANUALS, PROVIDED WITH EACH
VERSALIFT.
MANUAL PART NUMBER
22011-12
SERIAL NUMBER
TEL-29-N/NE
Time Manufacturing Co. reserves the right to improve the design or change specifications at any time without notice.
02/19
PLEASE NOTE THE ANSI A92.2 STANDARD AND THE MANUAL OF RESPONSIBILITIES CONTAINS
RECENTLY UPDATED INFORMATION. DEALERS, OWNERS, USERS, OPERATORS, LESSORS AND LESSEES MUST
ADHERE TO THESE UPDATED STANDARDS.

MANUFACTURING COMPANY
OWNER’S WARRANTY
The Versalift Aerial Platform Lift is engineered and designed to perform as stated on
published specifications. Only quality material and workmanship are used in the
manufacture of this product. With proper installation, regular maintenance, and periodic
repair service, the equipment will provide excellent service.
Those parts of the Versalift that are manufactured by Time Manufacturing Company
are warranted for one full year from date of purchase. Structural components will carry
a lifetime warranty for defects in material and workmanship which existed at the time of
initial delivery, wear components are not covered by this statement. This warranty is
issued only to the original purchaser and promises that Time Manufacturing Company
manufactured products are free from defects in material and factory workmanship
when properly installed, serviced, and operated under normal conditions, according to
the manufacturer’s instructions.
Manufacturer’s obligation under this warranty is limited to correcting without charge at
its factory any part or parts thereof which shall be returned to its factory or one of its
Authorized Service Stations, transportation charges prepaid, within one year after being
put into service by the original user, and which upon examination shall disclose to the
Manufacturer’s satisfaction to have been originally defective. Correction of such defects
by repair to, or supplying of replacements for defective parts, shall constitute fulfillment
of all obligations to original user.
This warranty shall not apply to any of the Manufacturer’s products which must be
replaced because of normal wear, which have been subject to misuses, negligence or
accident, or which shall have been repaired or altered outside of the Manufacturer’s
factory (unless authorized by the Manufacturer in writing), products which have not
been maintained and operated in accordance with Time Manufacturing Company’s
operators, maintenance manuals and bulletins, products which are repaired without
using original Time Manufacturing Company parts. This limited warranty does not
cover transportation fees and/or consumables used for the repair. Products or parts
manufactured by others are covered only by such warranties as are extended to TIME
MANUFACTURING CO. by its suppliers.
Manufacturer shall not be liable for loss, damage, or expense directly or indirectly from
the use of its product or from any cause.
The above warranty supersedes and is in lieu of all other warranties, expressed or
implied, and of all other liabilities or obligations on part of Manufacturer. No person,
agent, or dealer is authorized to give any warranties on behalf of the Manufacturer or to
assume for the Manufacturer any other liability in connection with any of its products
unless made in writing and signed by an officer of the Manufacturer.

i
TEL-29-N/NE
TABLE OF CONTENTS
TABLE OF CONTENTS
Introduction Section 1
Manual Structure ....................................................................................................................... 1-1
Additional Manual Features .......................................................................................................1-1
Nomenclature ............................................................................................................................. 1-2
Responsibilities/Safety Section 2
Responsibilities of Dealers, Owners, Users, Operators, Lessors, and Lessees ......................... 2-1
Decals ........................................................................................................................................ 2-2
Think Safety ............................................................................................................................... 2-4
Additional Safety Considerations ................................................................................................ 2-6
Specifications Section 3
General Specifications ............................................................................................................... 3-1
Option Specifications ................................................................................................................. 3-2

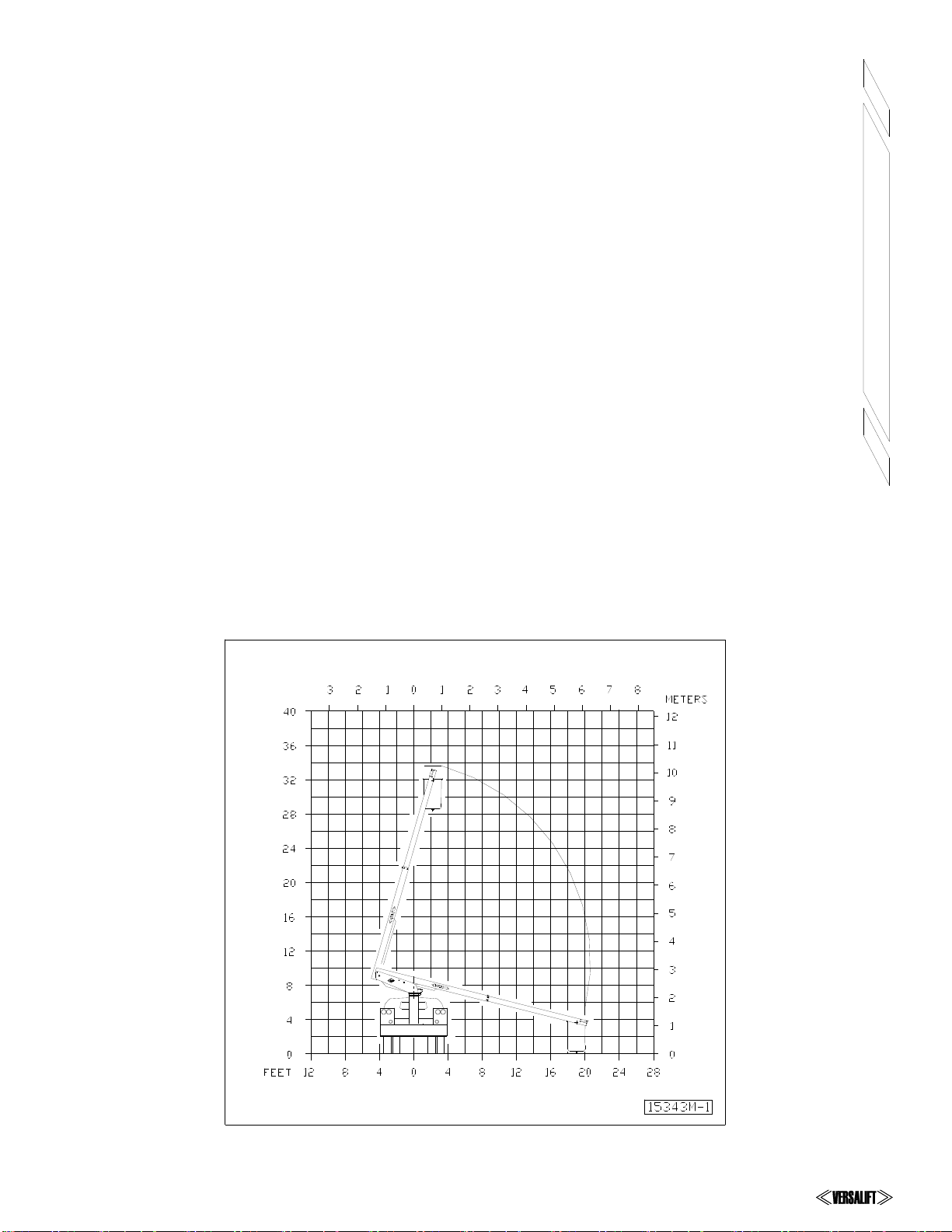

Dimensional Specifications ........................................................................................................ 3-5
Vehicle Specifications ................................................................................................................ 3-9
Operation Section 4
Positioning the Versalift for Operation ........................................................................................ 4-1
Aerial Lift Operations ................................................................................................................. 4-2
Cab Control Operation ................................................................................................................ 4-4
Lower Control Operation ............................................................................................................. 4-4
Upper Control Operation ............................................................................................................. 4-5
Storing the Aerial Lift .................................................................................................................. 4-7
Emergency Operation Section 5
Daily Visual Inspection Section 6

1-1
TEL-29-N/NE
INTRODUCTION
The Versalift aerial device has been designed and
engineered to conveniently place personnel at work
stations above the ground. This aerial device, as
manufactured, meets or exceeds all applicable ANSI
A92.2. Full controls at the platform and complete
freedom of boom movements make the Versalift a
truly flexible and functional work platform.
NOTE: As the aerial device users, you must read,
understand, and follow the instructions in this
manual and other manuals supplied with this
aerial lift unit.
This manual is furnished to provide practical and
essential information for efficient operation of the
Versalift aerial device. Proper operation of this aerial
lift is the responsibility of the operator and requires a
thorough understanding of its capabilities. Personnel
responsible for the operation of the aerial lift must be
familiar with and understand this manual.
In addition to, dealers, owners, operators, renters,
lessors and lessees are required to comply with the
requirements of the applicable section or sections
found in ANSI A92.2.
NOTE: For additional safety information and
required responsibilities, refer to the
accompanying EMI Safety Manual and Manual
of Responsibilities.
Detailed information for the maintenance inspection
and service of the Versalift aerial device can be found
in the accompanying Service Manual. Should further
installation information be required, contact your local
Versalift dealer or Time Manufacturing Company.
DANGER: THIS EQUIPMENT SHOULD
BE OPERATED AND SERVICED ONLY BY
COMPETENT PERSONNEL FAMILIAR WITH
GOOD SAFETY PRACTICES. THIS
INSTRUCTION IS WRITTEN FOR SUCH
PERSONNEL AND IS NOT INTENDED AS A
SUBSTITUTE FOR ADEQUATE TRAINING AND
EXPERIENCE IN SAFE PROCEDURES FOR THIS
TYPE OF EQUIPMENT.
DANGER: READ AND UNDERSTAND
THIS MANUAL BEFORE ATTEMPTING TO
OPERATE THISAERIAL DEVICE.
The manual identifies all the controls and their locations
and describes how the controls function.
Routine preventive maintenance is very important in
maintaining reliable aerial lift service. A preventive
maintenance schedule is provided and must be
understood and followed by all operators.
DANGER: THISISNOTMAINTENANCE
FREE EQUIPMENT.
NOTICE: THIS MANUAL IS A PERMANENT
PART OF THE VERSALIFT AERIAL DEVICE AND
MUST REMAIN WITH THE UNIT ALWAYS.
Time Manufacturing Company reserves the right
to improve the design or specifications at any time
without any obligation to incorporate new features
into products previously sold.
MANUAL STRUCTURE
This manual is divided into six, numbered chapters.
The first number in the page number at the bottom
of each page identifies the chapter number. Chapter
tabs, with titles printed on them, allow easy location
of the desired subject.
ADDITIONAL MANUAL FEATURES
Danger, caution, and warning notes are indented,
bold faced, and separated from the regular text to
emphasize their importance and the need for
attention.
English measurements are followed by equivalent
metric measurements in parenthesis.
Non-critical units of measure are usually rounded-
off to the nearest whole unit.
Notes referring the reader to related information in
the manual indicate the chapter or a section of a
chapter, not to a single page. The reader may need
to scan a few pages to find the needed information.
INTRODUCTION
THIS MANUAL CONTAINS CONFIDENTAL
INFORMATION AND IS SOLE PROPERTY OF
TIME MANUFACTURING, AND IS NOT TO BE
DISCLOSED, COPIED, OR REPRODUCED
WITHOUT EXPRESSED PERMISSION OF
TIME MANUFACTURING.

1-2
TEL-29-N/NE
INTRODUCTION
Figure 1.1 Model TEL-29-N/NE Nomenclature

2-1
TEL-29-N/NE
RESPONSIBILITIES / SAFETY
DANGER: FAILURETO COMPLY WITH
YOUR REQUIRED RESPONSIBILITIES IN THE
USE AND OPERATION OF THE AERIAL DEVICE
COULD RESULT IN DEATH OR SERIOUS
INJURY.
IMPORTANT
You are required by ANSI/SIA A92.2 to read and
understand YOUR RESPONSIBILITIES before you
use or operate the Aerial Device. It is your
responsibility and your employer’s responsibility to
identify and comply with applicable codes, standards,
and regulations.
The operation of any aerial device is subject to certain
HAZARDS that can be protected against only by the
exercise of INTELLIGENCE, CARE AND COMMON
SENSE. It is essential to have COMPETENT,
CAREFUL PERSONNEL, TRAINED in the
INTENDED USE, SAFE OPERATION,
MAINTENANCE AND SERVICE of this type of
equipment.
The USER and OPERATOR MUST MAKE
DECISIONS on the maintenance, use and operation
of the Aerial Device with due consideration for the
fact that the SAFETY OF THE OPERATOR AND
OTHER PERSONNEL is dependent on those
decisions. FAILURE TO COMPLY with your
REQUIRED RESPONSIBILITIES in the use and
operation of the Aerial Device could result in DEATH
OR SERIOUS INJURY.
DANGER: READ AND UNDERSTAND
THIS MANUAL BEFORE ATTEMPTING TO
OPERATE THIS AERIAL DEVICE.
RESPONSIBILITIES
(for Dealers, Owners, Users, Operator, Lessors and Lessees)

2-2
RESPONSIBILITIES / SAFETY
TEL-29-N/NE
Only properly trained operators are qualified to
operate the Versalift aerial lift. Operator training shall
include complete instruction and understanding of
the manufacturer’s manuals, employer’s work rules,
and all related governmental regulations. Prior to
operation from the platform the machine must be
operating properly, must have been installed properly,
inspected, and maintained in accordance with the
manufacturer’s instructions. All safety signs, guards,
and covers must be in place and in proper condition.
DANGER: AN UNTRAINED OR
CARELESS OPERATOR SUBJECTS HIM/
HERSELFAND OTHERS TODEATH OR SERIOUS
INJURY.
Throughout this manual there are danger, warning,
and caution notes that emphasize the possible
hazards when operating the Versalift. It is the
responsibility of the operator to become familiar with
the contents of this manual.
Two of the main risks associated with operating an
aerial lift:
(1) Electrocution caused by operating too close
to power lines.
(2) Injuries caused by falling as a result of
equipment failure or the operator performing
an unsafe or unstable maneuver.
No manual can address every conceivable operating
hazard. Therefore, the prevention of accidents is
greatly dependent upon good judgement and
common sense of the operator.
It is the responsibility of the operator to use the
Versalift only when it has been installed and
maintained in accordance with the manufacturer’s
manuals. The preventive maintenance program
outlined in this manual and the Service manual must
be followed.
It is extremely important for the operator to be
thoroughly familiar with the Versalift aerial device.
Study the information in this manual and the Versalift
controls until both are completely mastered. Then
go to a large, open area to practice using the aerial
lift.
Decals are installed at numerous locations on the
aerial lift to warn personnel of the potential hazards
during the use and operation of the aerial lift. It is
important that the operator and ground personnel
read and understand the information on the decals.
If any decals are defaced, illegible or lost, they must
be replaced. Refer to the “Decal Placement”
illustration in this manual for a complete listing and
the locations of the decals. For your convenience
these decals are pictured on the following pages as
a quick reference for reviewing safety concerns and
for providing part numbers when ordering
replacements.
DECALS
All the warning and instruction decals, and their
respective part numbers, on the Versalift aerial
device are included below and on the following pages.
The decals are not shown at actual size.
SAFETY

2-3
TEL-29-N/NE
RESPONSIBILITIES / SAFETY

2-4
RESPONSIBILITIES / SAFETY
TEL-29-N/NE
Don’t park the truck on a hill unless absolutely
necessary. When the truck is parked on a slope,
take the special precautions defined in Chapter
4, “Operation”.
Remember to set the parking brake and chock
the truck’s wheels.
Watch the booms to make sure they clear the
truck and other obstructions.
A safe attitude is very important to you, the operator.
Practice anticipating accidents and operating haz-
ards. Then determine a corrective course of action
to respond to the situation. This habit will sharpen
your safety awareness, quicken your reaction time,
and prevent many accidents.
THINK SAFETY
The following sketches illustrate some of the unsafe
situations that might occur during the use or opera-
tion of the Versalift. Some of these safety problems
are very basic and as a result are often taken for
granted.
Always engage the outriggers, and maintain the
correct tire pressure to increase vehicle stability.
Always wear a personnel restraint system
attached to the lanyard anchor.

2-5
TEL-29-N/NE
RESPONSIBILITIES / SAFETY
Maintain safe clearances from electrical power
lines and apparatus. The aerial lift does not
provide protection from contact or proximity to
two or more electrically charged conductors.
Never use the VERSALIFT as a crane
Stow the booms securely before moving the truck.
Whenever tools or equipment are included with
the operator in the platform the combined weight
must not exceed the rated load capacity.
Avoid dropping tools. Use a hand line to raise or
lower tools to/from the platform.
Stand only on the platform floor.

2-6
RESPONSIBILITIES / SAFETY
TEL-29-N/NE
ADDITIONAL SAFETY CONSIDERATIONS
1. Report any unusual occurrence during the
operation of the aerial lift that may require repair
or adjustment.
2. Keep the work space in the truck bed clean
and neat.
3. Avoid parking on soft surfaces. Soft surfaces
may suddenly collapse, shift, or sink beneath
the truck’s weight.
4. There is no insulating value in the fiberglass
platform, with or without platform liner.
5. No attempt should be made to clean, oil, or
adjust a machine while the machine is in
motion.
6. If an aerial lift has set idle for an extended period
(i.e. overnight) or has been recently serviced,
cycle the aerial-lift through it’s full range of
motion several times. This procedure will force
any trapped air out of the hydraulic system.
Do not operate the lift from the platform until
this process is completed. Air trapped in the
hydraulic oil can cause lift movements to be
erratic and unpredictable.
7. Don’t operate any part of the unit (platform,
booms, outriggers, etc.) outside the work-site
barricades into the traffic lanes. Set up
adequate cones or barricades to mark the
boundaries of the work-site to alert motorists
and pedestrians.
8. Only qualified mechanics are authorized to
service the aerial lift.
9. Avoid contacting a spray mist produced by a
high pressure hydraulic leak. This spray or
mist can puncture or become embedded
beneath the skin or contaminate the eyes.
These conditions require immediate medical
attention.
10. Hydraulic oil is flammable. Avoid any contact
between hydraulic oil and sources of high heat
or open flames.
11. Bodily contact with hot hydraulic oil can cause
serious burns which require immediate medical
attention.
Don’t climb out of a raised platform onto poles,
etc.

3-1
TEL-29-N/NE
SPECIFICATIONS
GENERAL SPECIFICATIONS
Note: Specifications on units may vary or change
without prior notifications due to option selections.
The Versalift TEL-29-N aerial device provides a side
mounted single man platform. The Versalift TEL-29-
NE aerial device provides an end mounted single man
platform. The following is a brief description of the
major components of the aerial lifts.
PLATFORM - The standard fiberglass platform is 24
in X 24 in. X 42 in. (.61 m X .61 m X 1.07 m) with a
step-through opening for easy access. The standard
platform capacity is 350 lbs. (136 kg) for side mounted
and end mounted platforms. For maximum capacity
platforms, please refer to Option Specifications.
Leveling is gravity actuated with a hydraulic dampener,
travel limit stops, and a spring loaded pin lock.
Hydraulic leveling is standard on the TEL- NE (end
mounted platform) and optional on the TEL-N (side
mounted platform). Walk-in platforms, splicing
platforms, and rotating splicing platforms are also
available.
PERSONNEL RESTRAINT SYSTEM - A safety belt
or harness and a lanyard are required and can be
supplied by TIME Manufacturing Company at an
additional cost. Consult applicable work practices
and regulations to choose between a safety belt and
a harness. The anchor for the lanyard is attached to
the upper platform support.
OUTER/INNER BOOM ASSEMBLY - The major
components of the outer/inner boom assembly
include an outer boom, a telescoping inner boom,
an extension cylinder, a hose carrier system, and slide
pads mounted on the inner and outer boom.
The outer boom consists of an 6 in. X 8 in. (152 mm
X 203 mm) rectangular steel section. The telescoping
inner boom consists of a 5 in. X 7 in. (127 mm X 178
mm) rectangular aluminum section. The inner boom
does not have to be removed to service the extension
cylinder or slide pads.
The extension system consists of a hydraulic cylinder
with wear rings on the piston and end gland and a
holding valve mounted to the cylinder base. The hose
carrier system is a multi-link assembly with adequate
space to carry hoses and wiring to the upper control
station.
Ultra high molecular weight plastic slide pads
mounted on the inner boom can be changed without
removing the inner boom. The outer boom side and
top slide pads are infinitely adjustable and the lower
pad can be replaced without removing the inner boom.
The telescoping outer/inner boom assembly
articulates from 14° below horizontal to 74° above
horizontal. A double acting cylinder, equipped with a
counter balance holding valve provides boom elevation.
A boom support cradle and a ratchet-type boom tie
down strap are included.
TURRET - The turret wings are 1/2 in. (13 mm) thick
steel plate. A steel tube is welded between the turret
wings to support the boom cylinder and provide
rigidity. The turret plate is machined flat to support
the rotation bearing. A bearing cover is provided to
prevent foreign material from interfering with lift
rotation.
ROTATION - Rotation is 360° non-continuous with
an electric limit switch to prevent hose and wiring
damage. Continuous unrestricted rotation is
available as an option (see option descriptions).
Rotation is accomplished by a hydraulically driven
worm and spur gear and a shear-ball rotation bearing.
The critical bolts holding the turret to the rotation
bearing and the rotation bearing to the pedestal meet
SAE grade 8 specifications. These critical bolts are
Torque Seal Marked to provide a quick means to
inspect for loosening. An adjustment screw is
provided to adjust pinion and rotation gear
clearances.
PEDESTAL - The standard pedestal is a rectangular
shape with an access door on one side. The
hydraulic reservoir is built into the pedestal. A 100
mesh suction strainer, 10 micron return filter and shut
off valves are located inside the pedestal. The top
plate of the pedestal is 1-1/4 in. (32 mm) thick and
machined flat to support the rotation bearing.
Extended and bridge mount pedestals are available
(see option descriptions).
LUBRICATION - Non-lube bearings are used at all
points of motion. The rotation bearing is the only
component that requires lubrication.
PAINTING - The complete unit is primed and painted
prior to assembly. The standard color is white
urethane.
HYDRAULIC OIL RESERVOIR - Designed as an
integral part of the pedestal, the reservoir has an
anti-splash baffle and easy-to-read fluid level gauges.
The total volume of the reservoir is 8 gallons (30.3 l)
with a 7 gallon (26.5 l) oil capacity.
CYLINDERS - The extension cylinder has wear rings
on the piston and end gland for extended seal life. A
SPECIFICATIONS

3-2
TEL-29-N/NE
SPECIFICATIONS
double acting holding valve is mounted at the extension
cylinder base to prevent boom creep during travel or
uncontrolled movement in case of hydraulic hose
failure. The extension cylinder can be removed without
removing the inner boom. A hydraulic regeneration
feature on the extension cylinder provides extension
and retraction at approximately the same speed. The
boom elevation cylinder has a single acting holding
valve.
BOOM AND CYLINDER PINS - Pins are high strength
alloy steel and chrome plated for a hard finish and
corrosion resistance. Cylinder pins are held in place
with a Torque-Seal marked bolts at one end and a pin
cap bolted to the end.
CONTROL VALVE - The system pressure relief,
hydraulic leveling (standard on TEL-NE), two speed
(option), variable speed (option), and the electric/
hydraulic boom function valves are a single integrated
system and mounted on the turret wing. Electric lower
controls which override the upper controls are located
below rotation.
UPPER CONTROL - On the TEL-N (side mounted
platform) all switches are recessed into the inner
boom. The TEL-NE (end mount platform) has the
control panel mounted inside the platform (an outside
the platform control panel is available as an option).
To protect against inadvertent operation, a spring
loaded master control switch is provided. Boom
function switches are self-centering, weather resistant,
and are located in a logical sequence for the operator.
Engine stop and start is one dual action switch. The
engine stop is an instant kill circuit. GFCI receptacle
(120 V power) and optional pneumatic circuits (1 or 2)
are located at the end of the boom.
HYDRAULIC SYSTEM - The open center hydraulic
system operates at 2250 PSI (155 bars) at 2 GPM (8
LPM). The pump draws oil through a 100 mesh suction
strainer that is equipped with a bypass valve. A 10
micron return filter with shut-off valve is included. Sight
gauges are furnished for checking fluid level. This
system can be powered by the chassis engine, a
chassis transmission power take off, a separate
engine/generator package or an electric motor (see
option descriptions).
ENGINE START/STOP - The start/stop system has
been designed so that the lift cannot be operated
normally unless the Versalift power switch is activated
and the truck ignition is in the “on” position. This
feature makes it difficult for unauthorized individuals
to operate the lift when the truck is locked. Start/stop
controls are located at the upper and lower control
stations.
SLOPE INDICATORS – Slope indicators are required
on Versalift units and supplied by Time Manufacturing
Co. Slope indicators shall be installed to indicate
the level of rotation bearing relative to the ground.
MANUALS - Two Operator’s Manuals and two Service
Manuals, one Manual of Responsibilities, and one
EMI Safety Manual are included with each unit.
OPTION SPECIFICATIONS
Below is a brief description of some of the available
options for the aerial lifts.
BRIDGE MOUNT PEDESTALS - These pedestals
allow for a 26-1/4 in. x 25-1/2 in. (.67m x .65m) or a
taller 26-1/4 in. x 32-1/2 in. (.67m x .83m)
unobstructed truck body tunnel from street side
through to the curb side. Special mounting hardware
is included. The 10 gallon (38 l) poly reservoir is
mounted on the bridge structure. A 100 mesh suction
filter and spin-on 10 micron return line filter are
included.
CONTINUOUS ROTATION - Rotation is continuous
and unrestricted in either direction. An electric and
hydraulic collector assembly provides a path for
hydraulic oil and electric signals from the pedestal to
turret. This option is available on all pedestals.
HYDRAULIC LEVELING - Platform leveling is
controlled automatically by a master and slave
cylinder arrangement. The platform leveling system
can be manually activated from the upper or lower
controls to level the platform, to stow and unstow the
platform, or to tilt the platform for clean out and
rescue. While optional on the TEL-N (side mounted
platform), this feature is standard on the TEL-NE (end
mounted platform).
BACKUP PUMP - An auxiliary hydraulic pump
designed to bring the booms down in case the main
hydraulic source fails. This system consists of a
hydraulic pump driven by a DC motor, which is powered
by the truck engine battery. The system is connected
in parallel with the main pump and is designed for
non-continuous operation. Toggle switches are used
to energize the system at the upper and lower
controls. Backup pump is only available when the
primary power source is not operating.
EMERGENCY LOWERING - This system consists
of an electric solenoid valve attached to the lower
boom cylinder. When actuated at the upper controls,
the valve opens and allows the boom to slowly bleed
down.

3-3
TEL-29-N/NE
SPECIFICATIONS
TORSION BAR - Over frame and under frame torsion
bars are available and add to the stability of the vehicle.
All Stable Ride torsion bars include rubber bushings
at all points of movement and do not require lubrication.
PNEUMATIC CIRCUIT(S) TO THE PLATFORM - This
system consists of one or two air lines from the
pedestal to ports at the end of the inner boom.
EXTRA CONTROL CIRCUIT FROM THE
PLATFORM - Consists of an additional toggle switch
at the platform. The number of additional control
circuits available depends on the number of control
options selected.
TWO-SPEED MANUAL THROTTLE CONTROL -
Gives the operator a choice of efficient, economical
engine idle speed or a preset higher engine speed
when operating hydraulic tools.
VARIABLE SPEED CONTROL - This option is
designed as an integral part of the control valve on
the aerial devices. The inlet flow to the four way control
valve is regulated from no flow to maximum flow by a
flow control valve. The controls include the same
switches to control the lift functions with a rotational
control knob to regulate the speed of operation. The
upper control arrangement on the TEL-N stays
basically the same with the exception of the addition
of the variable speed control switch, and the removal
of the master control push button switch. The upper
control arrangement on the TEL-NE includes a control
housing installed on the outside of the platform.
HYDRAULIC PUMP POWER SELECTION - Various
systems are available to power the aerial devices. All
orders must include one of the following selections
and additional information on the chassis engine,
transmission, and air conditioning options. Not all
chassis will accept a belt-drive and/or a power-take-
off.
A belt drive variation includes an electric clutch/pump
assembly for mounting on the engine accessory belt
drive. Consult factory installation information for
details. Chassis with air conditioning may not be
suitable for this option.
A power-take-off may be used and is installed on the
chassis transmission. Some chassis with automatic
transmissions will not accommodate this drive option.
A 5,500 or 7,000 watt engine generator with extended
shaft driving the hydraulic pump is available.
An electric motor drive for the hydraulic pump is also
available.
MANUAL PLATFORM ROTARY POSITIONER - This
feature is designed to allow the platform to be
positioned manually while the platform is level and
not loaded. A spring-loaded pin locks th eplatform in
one of nine positions over a 180° range. This rotary
positioner is only available on the TEL-NE (end-
mounted platform)
PLATFORM VARIATIONS - The standard platform
has a step through opening. The following platform
options are available.
The step through splicing platform and walk-in
splicing platform can be equipped with door, top, tent,
seat, heater, accessory cavity, tool pouches, and
splicing machine stand. The side mounted walk-in
rotating splicing platform can be equipped with door,
top, tent, heater, tool pouches, and splicing machine
stand. This option is not available on the TEL-NE.
Hydraulic leveling is required. The capacity for the
rotating splicing platform is restricted to 300 lbs. (136
kg).
An open square steel platform is available.
The TEL-NE can be equipped with a 24 in. X 30 in. X
42 in. (.61 m X .76 m X 1.07 m) step through or walk-
in platform.
The reverse mount platform is mounted on the
opposite side of the boom. This orients the platform
to the curb side when the aerial is stowed to the front
and mounted over the rear axle. Hydraulic leveling
is recommended with this platform option. The
extended pedestal may be required for chassis
clearance.
CAPACITY VARIATIONS:
•A maximum of 350 lbs. (160 kg) can be
specified on the TEL-N only.
•A maximum of 400 lbs. (181 kg) can be
specified on the TEL-NE only.
Increased curb weight may be required for stability
with either the 350 lbs. (160 kg) or 400 lbs. (181 kg)
capacity. The 350 lbs. (160 kg) and 400 lbs. (181 kg)
capacity are not available with the walk-in rotating
splicing platform.
VINYL PLATFORM COVER - A 24 in. X 24 in. (.61
m X .61 m) and a 24 in. X 30 in. (.61 m X .76 m) soft
vinyl cover is available.
UPPER CONTROL COVER - A hinged cover
protects the upper controls from exposure to the
weather (TEL-N only).

3-4
TEL-29-N/NE
SPECIFICATIONS
TALLER PEDESTAL - A 6 in. (152 mm) and 12 in.
(305 mm) taller pedestal are available for increased
cab clearance.
120V HOUR METER - This option is available with
the engine driven generator power source and the
electric drive power source.
REMOTE LOWER CONTROL - This option allows
remote operation of the aerial device. The remote
lower controls override the upper controls and are
housed in a weather-resistant metal box.

3-5
TEL-29-N/NE
SPECIFICATIONS
TEL-29-N DIMENSIONAL SPECIFICATIONS
Note: All dimensions and angles are nominal, based on 40 in. (1.02 m) frame height with bottom of
pedestal mounted 5 in. (127 mm) above the top of the frame.
Horizontal Reach ............................................................................................................ 20 ft. 8 in. (6.30 m)
Maximum Rated Platform Capacity .................................................................................... 350 lbs. (160 kg)
Standard Rated Platform Capacity ..................................................................................... 300 lbs. (136 kg)
Outer Boom Travel ...................................................................................................................... -14° to +74°
Inner Boom Extension ........................................................................................................... 116 in. (2.95 m)
Standard Pedestal
Height to Bottom of Platform .........................................................................................28 ft. 11 in. (8.81 m)
Working Height ............................................................................................................ 33 ft. 11 in. (10.34 m)
Stowed Travel Height ....................................................................................................... 9 ft. 9 in. (2.97 m)
Weight of Lift w/ Mounting Hardware ................................................................................ 1,440 lbs. (653 kg)
6 in. (152 mm) Taller Pedestal
Height to Bottom of Platform .......................................................................................... 29 ft. 5 in. (8.97 m)
Working Height ..............................................................................................................34 ft. 5 in. (10.50 m)
Stowed Travel Height ..................................................................................................... 10 ft. 3 in. (3.12 m)
Weight of Lift w/ Mounting hardware .................................................................................. 1,465 lbs.(664 kg)
12 in. (305) Taller Pedestal
Height to Bottom of Platform .........................................................................................29 ft. 11 in. (9.12 m)
Working Height ............................................................................................................ 34 ft. 11 in. (10.64 m)
Stowed Travel Height ..................................................................................................... 10 ft. 9 in. (3.28 m)
Weight of Lift w/ Mounting hardware ................................................................................. 1,490 lbs. (676 kg)
Ambient Temperature Range for Structural Integrity ............................... -40°F (-40°C) to 125°F (52°C)
TEL-29-N
Platform Travel

3-6
TEL-29-N/NE
SPECIFICATIONS
