Lift-Rite Titan Series Manual

Lift-Rite, Tel: Toll Free from USA: 1-800-558-6012, Greene, NY 13778, Publication Number 1149374/001D ©2020 Dated 31 Jan 2020
Owner’s Manual, Operating
Instructions Manual, and
Replacement Parts Manual
Lift-Rite Titan Series Hand Pallet Trucks
Models LCM50, LCU50, LCUUF, and
Four-Way Versions

Lift-Rite, Tel: Toll Free from USA: 1-800-558-6012, Greene, NY 13778, Publication Number 1149374/001D ©2020 Dated 31 Jan 2020
This publication, 1149374/001D, applies to the Lift-Rite Titan Series Hand Pallet Trucks, Models LCM50,
LCU50, LCUUF, and Four-Way versions, and to all subsequent releases of this product until otherwise
indicated in new editions. Changes occur periodically to the information in this publication.
To order additional copies of this manual, part number 1149374/001D, contact your local authorized Lift-
Rite Sales and Service Center.
If you need assistance with your lift truck, contact your local authorized Lift-Rite Sales and Service Center.
For more information please visit www.liftrite.com
©2020

1
Lift-Rite, Tel: Toll Free from USA: 1-800-558-6012, Greene, NY 13778, Publication Number 1149374/001D ©2020 Dated 31 Jan 2020
TABLE OF CONTENTS
DELIVERY INSPECTION 2
OPERATING INSTRUCTIONS 2
SAFETY PROCEDURES 3
DAILY INSPECTION 3
MAINTENANCE 4-5
TROUBLESHOOTING 6
PARTS 7-9
Hydraulic Assembly 7
LCM50 and LCU50 Chassis 8
LCM4W and LCU4W Chassis 8
LCUUF Chassis 9
Recycling Old Parts 10
WARRANTY 11

2
Lift-Rite, Tel: Toll Free from USA: 1-800-558-6012, Greene, NY 13778, Publication Number 1149374/001D ©2020 Dated 31 Jan 2020
Visually inspect hand pallet truck frame components and hydraulic unit for damage during
shipment by carrier. If damage is evident, notify delivering carrier immediately and file necessary
claims. Test the hand pallet truck pump for proper operation. If the hydraulic pump does not
respond to movement of the handle, an air lock may have developed during shipping. To
remedy this, go to the user friendly TROUBLESHOOTING guide in this manual.
DELIVERY INSPECTION

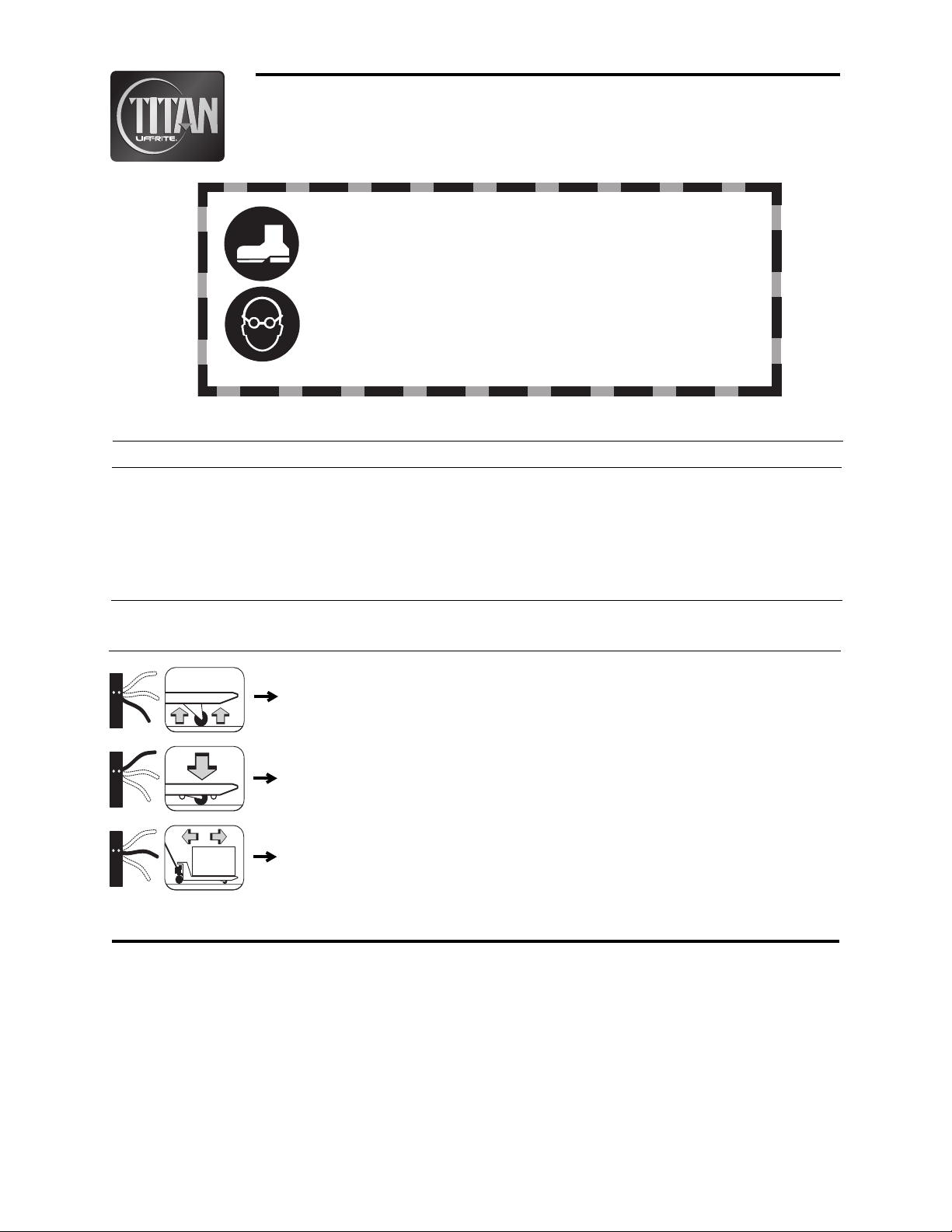

OPERATING INSTRUCTIONS
(Read and understand prior to using this product)
To raise the load, push down on
the fingertip control. Pump the
handle to raise the load from the
floor.
To lower the load, pull up on the
fingertip control.
For free handle movement, place
the fingertip control in the neutral
position.
NOTE:
The neutral position disengages
the pump from the lifting
mechanism. This frees the handle,
which makes pulling loads easier.
In addition, the pump is not
subject to shock pressures while
the truck is in motion.
SAFETY SHOES
Alwayswear safety shoes when working with hand pallet trucks.
PROTECTIVE GLASSES
When assembling or dismantling a hand pallet truck, protective
glasses must be worn to avoid personal injury.
OPERATOR’S RESPONSIBILITY
While operating a hand pallet truck, alwayswear safety equipment
and operate in a responsible manner to ensure a safe work area.

3
Lift-Rite, Tel: Toll Free from USA: 1-800-558-6012, Greene, NY 13778, Publication Number 1149374/001D ©2020 Dated 31 Jan 2020
• Read and obey all labels on this product. If you have any questions about these, ask your
supervisor.
•Donot operate this hand pallet truck unless you are authorized and trained to do so.
•Never overload your hand pallet truck. Stay within its rated capacity.
•Donot operate this truck if damaged or not in proper working order.
• Distribute the load evenly on the forks. Do not concentrate loads at one point or load one fork
more than the other.
• When the load impairs visibility, the hand pallet lift truck should be pulled and not pushed.
•Always look where you are operating. Keep a clear view.
• Only handle loads on flat level surfaces. Do not use a loaded truck on inclines or declines.
•Never carry passengers.
•Never put your feet, hands, or any other body part under the frame assembly.
•Always yield right of way to pedestrians.
•Donot allow your hand pallet truck to drop from one level to another. Even a drop of 1 in.
(25 mm) more than doubles the effective load momentarily and results in a loading that can bend
or break components.
• Move loads only with the hand pallet truck in its lowest position.
•Always make sure that the load is stable before moving to eliminate the opportunity for load
shift.
• Use extreme care when rounding corners. Too fast a speed could cause a hand pallet lift truck to
tip. If loaded, the load could shift and fall.
• When not in use, fully lower the forks.
At the start of your shift, check the items listed below. Report any malfunctions or unsafe conditions
to your supervisor. Do not use this product until it is repaired.
CHECK
POINTS Steering
Hydraulic
System Wheels
Chassis/
Handle
Lifting/
Lowering Labels
ACTION Check full
rotation
Check for
excessive oil
on exterior
and check for
function
Check for wear,
damage, and
remove debris
Check for
damage and
remove debris
Check for
function
Check for
readability
SAFETY PROCEDURES
(Read and understand prior to using this product)
DAILY INSPECTION

4
Lift-Rite, Tel: Toll Free from USA: 1-800-558-6012, Greene, NY 13778, Publication Number 1149374/001D ©2020 Dated 31 Jan 2020
LUBRICATION
All pivot points are equipped with permanently lubricated bushings and bearings. To increase
bearing life, it is recommended that a few drops of light machine oil be applied at each pivot point
every 6 months. The thrust plate is equipped with three grease fittings. Apply grease under normal
conditions every 6 months.
PUSH BAR LINKAGE ADJUSTMENT
If the forks do not rise evenly at the tips, or the roller levers begin to drag on the floor, the following
adjustment is necessary:
LCM/LCU/LCUUF MODELS
• Turn the hand pallet truck over so that the underside of the forks are accessible.
• Remove one split pin (PL-20269) with 3/16 in. punch.
• Remove pin (PL-20227) from bracket.
• Adjust eyebolts (PL-20226). Turn counterclockwise to raise fork tips and clockwise to lower
fork tips.
• Replace pin (PL-20227) through eyebolt and replace split pin (PL-20269).
• When adjusted properly, the forks should be 2 in. (LCM)/1-3/4 in. (LCU) low height from
ground level in the lowered position.
HYDRAULIC SYSTEM
Your hydraulic system is maintenance free. Do not add hydraulic oil unless there is, or has been,
a leak. Use Premium HVI hydraulic oil or equal. Other oils, fluids, or solvents may damage your
hydraulic system. If you suspect additional oil is required, follow these steps:
1. Check for and fix any possible oil leaks.
2. Lower the truck and load with 600 lbs. (approximate).
3. Pump the truck to its maximum lift height.
4. Measure the vertical height of the exposed piston (215030) and refer to the chart below.
Distance (inches) 5-1/8 in. 4-3/4 in. 4-3/8 in. 4 in. 3-1/2 in. 3-1/8 in. 2-3/4 in. 2-3/8 in.
Oil to add (Fl. Oz.) 0 2.7 3.0 3.4 3.7 4.0 4.4 4.7
MAINTENANCE

5
Lift-Rite, Tel: Toll Free from USA: 1-800-558-6012, Greene, NY 13778, Publication Number 1149374/001D ©2020 Dated 31 Jan 2020
ADDING OIL (IF REQUIRED)
1. Place and secure the truck on its right side (release valve facing the floor).
2. Pull up on the release lever (PL-40274BDM) and extend the lift piston fully.
3. Remove screw (221586) and add the amount of oil determined by the chart in step 4.
4. Reinstall screw (221586) but do not tighten. Leave a 1/32 in. gap.
5. Pull up on the release lever (PL-40274BDM) and collapse the lift piston until oil starts to
ooze from the screw.
6. Tighten the screw (221586) fully and return the truck upright.
MAINTENANCE (CONT.)
CAUTION! - It is extremely important that step 5 is performed. Otherwise, air in
the pump can force out the wiper seal (20066). Take care when adding oil not to
introduce impurities into the hydraulic system.

6
Lift-Rite, Tel: Toll Free from USA: 1-800-558-6012, Greene, NY 13778, Publication Number 1149374/001D ©2020 Dated 31 Jan 2020
CONDITION POSSIBLE CAUSE ACTION
Pump does not lift load. An air lock in the hydraulic
system.
Pull up on fingertip control and hold
while pumping the handle 8 to 10 times
to bleed air from the system.
Lifting, neutral, and lowering
do not function properly.
Chain anchor out of adjustment. Turn nut (21094) on chain anchor
clockwise until pumping action, while in
neutral, does not raise forks.
Forks raise and sink with
pump action.
Dirt or foreign particle caught in
cone valve seat.
Pull up on fingertip control and hold
while pumping the handle 8 to 10 times
to purge the valve system.
Pump does not lift load to
complete raised height.
Pump is low on oil. Check for and fix any leaks. Then add oil
as instructed in the MAINTENANCE
section.
Forks are not lowering
completely.
Push jam nut is loose. Push bars
require adjustment.
Refer to Push Bar Linkage Adjustment
in the MAINTENANCE section.
TROUBLESHOOTING

7
Lift-Rite, Tel: Toll Free from USA: 1-800-558-6012, Greene, NY 13778, Publication Number 1149374/001D ©2020 Dated 31 Jan 2020
ITEM DESCRIPTION QTY PART NO.
1 COMPLETE HANDLE (ITEMS 2-10) 1 PL-40276M
2SPLIT PIN 120105
3 CONTROL LEVER 1 PL-40274BDM
4CONTROL LEVER SLEEVE 154140
5 CONTROL LEVER SPRING 1 218182
6CHROME BALL 220065
7 CONTROL ROD ASSEMBLY 1 215775
8SPLIT PIN 120461
9 AXLE 1 47930
10 ROLLER W/BUSHING 1202755
11 AXLE 1 7500086
12 ADJUSTING NUT 121094
13 LOCKING PIN 1 220312
14 LOWERING ARM 1215128
15 COVER 2 156623BT
16 LOCKING RING 120043
17 SLEEVE 1 215803
18 WASHER 1215282
19 SPRING 1 215156
20 PISTON 1215030
21 PISTON 1 215286
22 SEALING RING 17500105CE
23 LOCKING RING 1 20642
24 SEALING 120066
25 SEALING 1 215866
26 SEALING 1215867
27 LOCKING PIN 1 20014
28 BUSHING 2215913
29 SCREW 1 221586
30 O-RING 124213
31 WASHER 1 235545
32 SPRING 139106
33 VALVE CONE 1 223935
34 SCREW (0VERLOAD) 1221232
35 O-RING (OVERLOAD) 1 22032
36 SPRING (OVERLOAD) 1221227
37 GUIDE PIN (OVERLOAD) 1 221231
38 BALL (OVERLOAD) 122055
39 BALL 1 20065
40 WASHER 1215288
41 O-RING 1 22032
42 VALVE BODY 17500112
43 SPRING 1 47071
45 U-RING 17500100
46 PISTON 1 7500116
47 LOWERING VALVE (COMPLETE) 17518604CE
48 BALL BEARING 1 213056
49 LOCKING PIN 1220312
50 LOCKING PIN 2 PL-20269
51 THRUST PLATE 1245552
52 LOCKING PIN 1 21737
53 GREASE NIPPLE 127662
54 LOCKING RING 2 20019
55 SPACER 2161637
(REQUIRED WITH 200965BT ONLY)
56 AXLE 1220310
57 BEARING 4 22226
58 WHEEL COMPLETE
NYLON 2 251189
POLY 2160422
POLY/STEEL 2 200965BT
STEEL 2160433
60 HYDRAULIC UNIT 1 PM-30277BN
REBUILD KIT 1243772
COMPLETE HYDRAULIC ASSEMBLY (PM-30277BN)
29
31
28
30
32
33
38 37
36
35
34
39
40
41
42
43
45
46
48
53
52
49
17
20
23
24
26
25
22
21
19
18
16
ITEM 60
47
50
50
51
27
58
15
56
54
55
57
2
4
5
63
14
11
10
9
1
8
13
12
7

8
Lift-Rite, Tel: Toll Free from USA: 1-800-558-6012, Greene, NY 13778, Publication Number 1149374/001D ©2020 Dated 31 Jan 2020
ITEM DESCRIPTION QTY PART NO.
1 CHASSIS
(SPECIFY LENGTH AND WIDTH)
- FOR LCM50
(2 IN. LOW PROFILE) 1Consult
Factory
- FOR LCU50
(1.75 IN. ULTRALOW PROFILE) 1Consult
Factory
2 AXLE
- (INCLUDES BOLT SLEEVE & NUT) 2PM-10215
3 LOAD ROLLER (LCM50 & LCM4W)
- STEEL
(W/BEARING & SLEEVE) 2 PM-10210S-B
POLYURETHANE
(W/BEARING & SLEEVE) 2 PM-10210P-B
LOAD ROLLER (LCU50 & LCU4W)
- STEEL
(W/BEARING & SLEEVE) 2PM-10210U-B
4 BEARING (LCM50 & LCM4W)
- FOR STEEL & POLYURETHANE
LOAD ROLLER 4 PM-10214S
BEARING (LCU50 & LCU4W)
- FOR STEEL LOAD ROLLER 4 PM-10214P
5SPACER WASHER 4PL-10216
6 LEVER ARM ASSEMBLY
(INCLUDES BUSHINGS)
- FOR LCM50 & LCM4W 2 PM-30212
- FOR LCU50 & LCU4W 2PM-30212U
7 FORK PIN 2 PM-10219
9BUSHING 6PL-20206
10 PUSH BAR
- FOR LCM50 & LCM4W
(48 IN. LONG FORK) 2 PM-20224x48
- FOR (LCU50 & LCU4W)
(48 IN. LONG FORK) 2 1125142/003
11 EYE BOLT
(INCLUDES NUT & BUSHING) 2 PL-20226
12 SPLIT PIN 6PL-20269
13 THRUST PLATE SHOULDER PIN 2 PL-30207
14 BUSHING 2PL-20203A
16 TORSION BAR
- 20.5 IN. WIDE (LCM50 & LCU50) 1PM-30201
- 27 IN. WIDE (LCM50 & LCU50) 1 PM-30202
17 EYE BOLT PIN 2PL-20227
19 BULKHEAD PIN 2 PL-20204
21 CHASSIS (SPECIFY LENGTH &
WIDTH)
- FOR LCM4W
(2 IN. LOW PROFILE) 1Consult
Factory
- FOR LCU4W
(1.75 IN. ULTRALOW PROFILE) 1Consult
Factory
22 TORSION BAR
- 33 IN. WIDE(LCM4W & LCU4W) 1PF-30203
23 BUSHING 6 PL-20226A
25 SPLIT PIN 2PM-20269
9
9
9
9
12
12
7
6
6
5
5
4
4
3
2
17
25
23
23
19
23
21
22
14
14
13
13
11
10
9
9
9
9
12
12
7
6
6
5
5
4
4
3
2
17
25
23
23
19
23
1
16
14
14
13
13
11
10
MODELS LCM4W AND LCU4W
CHASSIS DIAGRAM
MODELS LCM50 AND LCU50 CHASSIS DIAGRAM

9
Lift-Rite, Tel: Toll Free from USA: 1-800-558-6012, Greene, NY 13778, Publication Number 1149374/001D ©2020 Dated 31 Jan 2020
.ONTRAPYTQNOITPIRCSEDMETI 23202-LP1gnirpanS1 20203-FS1raBknarC2 A30202-LP2gnihsuB3 70203-LP2nipetalptsurhT4 60202-LP2gnihsuB5 72202-LP2niptlobeyE6 96202-LP2niptilpS7 62202-LP2ylbmessatlobeyE01 A62202-LP2gnihsuB11 40202-FS2nipeyedaehkluB21 96202-FS2niptilpS31 84X92-3-FS1sissahC41 U84X42202-FS2rabhsuP51 60202-LP4gnihsuB61 61201-FS6rehsawrecapS71 91202-FS2nipkroF81 71202-FS2gnirgniniateR91 A62202-LP4gnihsuB02 100/70225114wercS12 R-21203-FS2r arm ass’yevelthgiR22 51202-FS2elxarelloR32 61201-LP4rehsawrecapS42 B-U01201-MP2relloR52 S41201-MP4gniraeB62 L-21203-FS2r arm ass’yeveltfeL72 O-51201-MP2elxAretuOiniM82
2
0
2
0
3
-
F
S
1
r
a
B
k
n
a
r
C
2
7
0
2
0
3
-
L
P
2
n
i
p
e
t
a
l
p
t
s
u
r
h
T
4
7
2
2
0
2
-
L
P
2
n
i
p
t
l
o
b
e
y
E
6
6
2
2
0
2
-
L
P
2
y
l
b
m
e
s
s
a
t
l
o
b
e
y
E
0
1
4
0
2
0
2
-
F
S
2
n
i
p
e
y
e
d
a
e
h
k
l
u
B
2
1
8
4
X
9
2
-
3
-
F
S
1
s
i
s
s
a
h
C
4
1
6
0
2
0
2
-
L
P
4
g
n
i
h
s
u
B
6
1
9
1
2
0
2
-
F
S
2
n
i
p
k
r
o
F
8
1
A
6
2
2
0
2
-
L
P
4
g
n
i
h
s
u
B
0
2
R
-
2
1
2
0
3
-
F
S
2
r arm ass’
y
e
v
e
l
t
h
g
i
R
2
2
6
1
2
0
1
-
L
P
4
r
e
h
s
a
w
r
e
c
a
p
S
4
2
S
4
1
2
0
1
-
M
P
4
g
n
i
r
a
e
B
6
2
O
-
5
1
2
0
1
-
M
P
2
e
l
x
A
xx
r
e
t
u
O
i
n
i
M
8
2
MODEL LCUUF CHASSIS DIAGRAM

10
Lift-Rite, Tel: Toll Free from USA: 1-800-558-6012, Greene, NY 13778, Publication Number 1149374/001D ©2020 Dated 31 Jan 2020
Chassis Steel
Roller suspension Steel and cast iron
Bushings Brass
Grease fittings Steel
Rollers Nylon, polyurethane, steel
Hydraulic body Cast iron
Thrust plate Cast iron
Handle Steel
Wheel Nylon, polyurethane, steel
Bushings Brass
Hydraulic oil Disposal in accordance with local regulations
Assembly parts Steel, brass, nylon
RECYCLING YOUR OLD LIFT-RITE PARTS

11
Lift-Rite, Tel: Toll Free from USA: 1-800-558-6012, Greene, NY 13778, Publication Number 1149374/001D ©2020 Dated 31 Jan 2020
The Lift-Rite Titan Series Hand Pallet Trucks, Models LCM50 and LCU50 versions, are warranted against defects
in materials and workmanship for a period of two (2) years for the hydraulic pump, one (1) year for the truck
chassis, and six (6) months for wearable components. All periods begin from date of installation.
Wearable Components include but are not limited to:
• Wheels, Rollers, and Bearings
• Oilite Bearings and Bushings
Components found to be defective by an authorized Lift-Rite Sales and Service Center during the warranty
period will be replaced or repaired as indicated above. Replacement components installed during the defined
period set forth above, are warranted for the balance of the applicable truck warranty period, or 90 days,
whichever is longer. Additionally, freight charges for parts involved in the replacement or repair of a defective
component will be paid by Lift-Rite, provided that the replacement or repair is made by an authorized Lift-Rite
Sales and Service Center. Labor or miscellaneous costs involved in the replacement of any components
determined to be defected are not covered. Local taxes, if any, are excluded.
This warranty is void in the event of defects or damage caused by misuse, abuse, or accident. Any truck used
under adverse conditions, such as fish, meat or poultry processing plants, tanneries, freezer applications, or
any other application where the unit is operating in water or subjected to fluid or chemicals is NOT covered
under any warranty.
This warranty does not cover oil leaks, adjustments, or loose hardware.
Lift-Rite reserves the right to make changes and improvements in design without making changes to
previously manufactured vehicles.
Notwithstanding any other language contained herein, this warranty is expressly voided without any further
notice if any modification is made to the Lift-Rite equipment, or if additional components or devices are added
to the Lift-Rite equipment, without prior approval having been granted in writing by Lift-Rite.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED, IMPLIED, OR STATUTORY.
THERE ARE NO WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
In no event shall Lift-Rite be liable for incidental, special, or consequential damages.
HAND PALLET TRUCK WARRANTY

Lift-Rite, Tel: Toll Free from USA: 1-800-558-6012, Greene, NY 13778, Publication Number 1149374/001D ©2020 Dated 31 Jan 2020
Part Kit Number
1357097/001
