ARC SKBLE-1927 User manual

1
Issue Date: 24/12/2019
WIRELESS BLUETOOTH
CONVERTER
SKBLE-1927
CONTENTS
1. Overview and features Page 2.
2. Diagrams Page 3.
3. Application Control Page 4.
4. Pairing / Un-pairing device Page 5.
5. Specifications Page 19.
6. Warning Page 20

2
Issue Date: 24/12/2019
1.Overview and features
Compact wireless battery operated BLE converter enables you to control from
any Smartphone / tablets via Bluetooth and converts into 433Mhz RF to control
Home Automation System.
Simple App set up to manage up to 8 rooms, with 8 individual devices per room,
create 8 events, sharing configurations to unlimited Smartphone and control
unlimited Skybridge converter within one app.
Main features;
•Free standing on table
•BLE 5.0 & 433MHz
•1.5V (AAA) alkaline battery *2
•Red LED indicator
•Control individual device via App. (On/Off)
•8 Individual room control –8 devices
•8 Event Control
•Easy one button sync configuration to cloud. (Export & Import setting)
•Ability to rename each Skybridge device, room name, receiver device
and event name.
Why via app?
1. User friendly interface and easy to set up.
2. Manage or change timer setting anytime.
3. Control multiple timer Skybridge converter with one app.
Cloud Support?
Yes, user data settings will be backed up onto Amazon Web Service (AWS) free
of charge.
OVERVIEW AND FEATURES
OVERVIEW AND FEATURES

3
Issue Date: 24/12/2019
2.Diagrams
Notes for the diagrams:

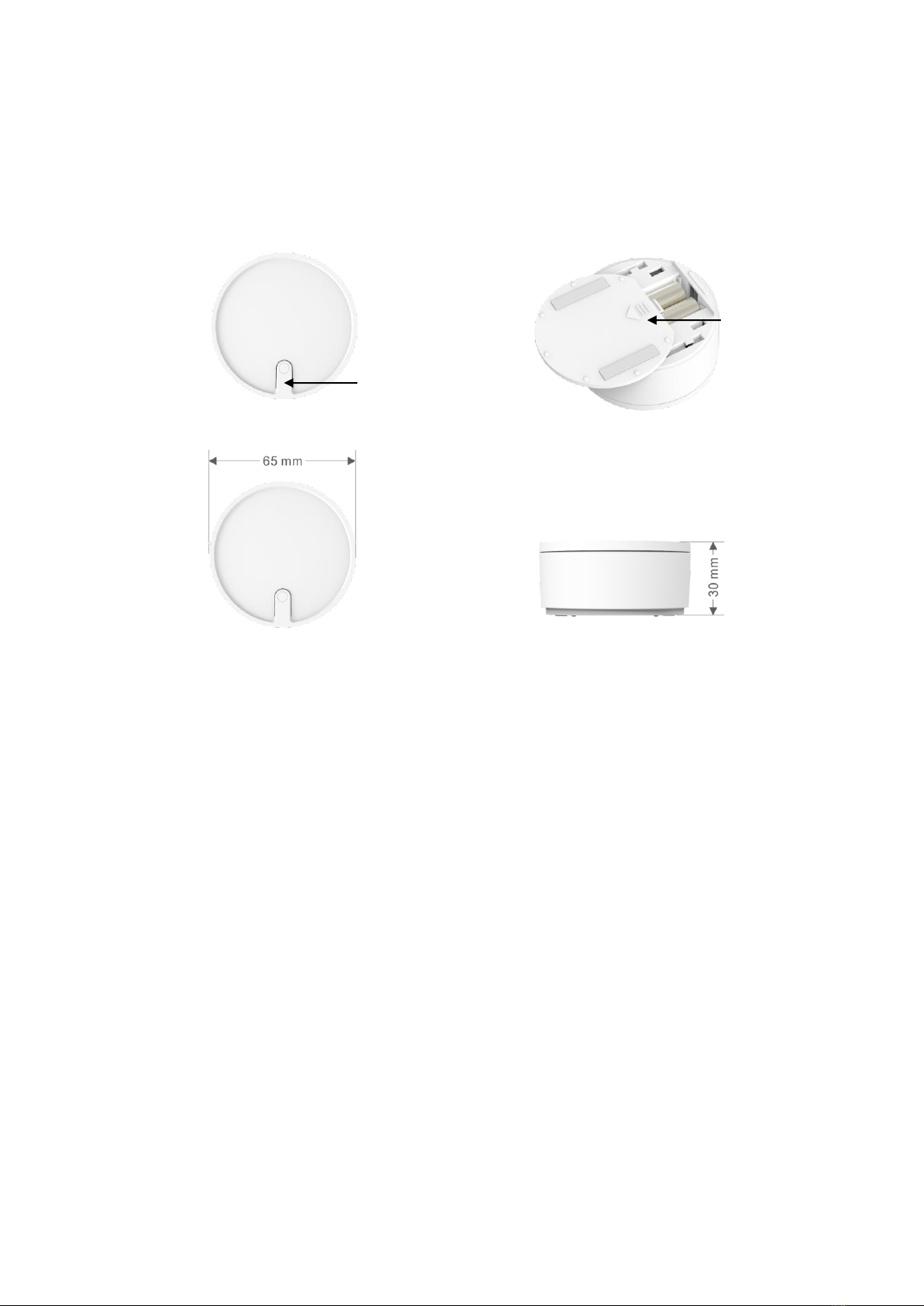

DIAGRAMS
Red LED
Link
button
Battery
Compartment

4
Issue Date: 24/12/2019
3.Application Control
App Name: Sky Bridge
Free app download.
Available in Apple App Store or Google Play.
No registration needed.
No annual fees.
App Control
Bluetooth
⚫Please ensure Bluetooth is enabled from your Smartphone setting.
⚫Only one Smartphone can control one Skybridge converter at one time.
Launch App
1. Allow Bluetooth to connect to and control devices.
2. Press “Scan”to search for surrounding Skybridge device and select the
smallest -DB number. (the smaller the decibel number the closer the
Skybridge device is)
In this example, select -41DB “SkyBridge”
APPLICATION CONTROL

5
Issue Date: 24/12/2019

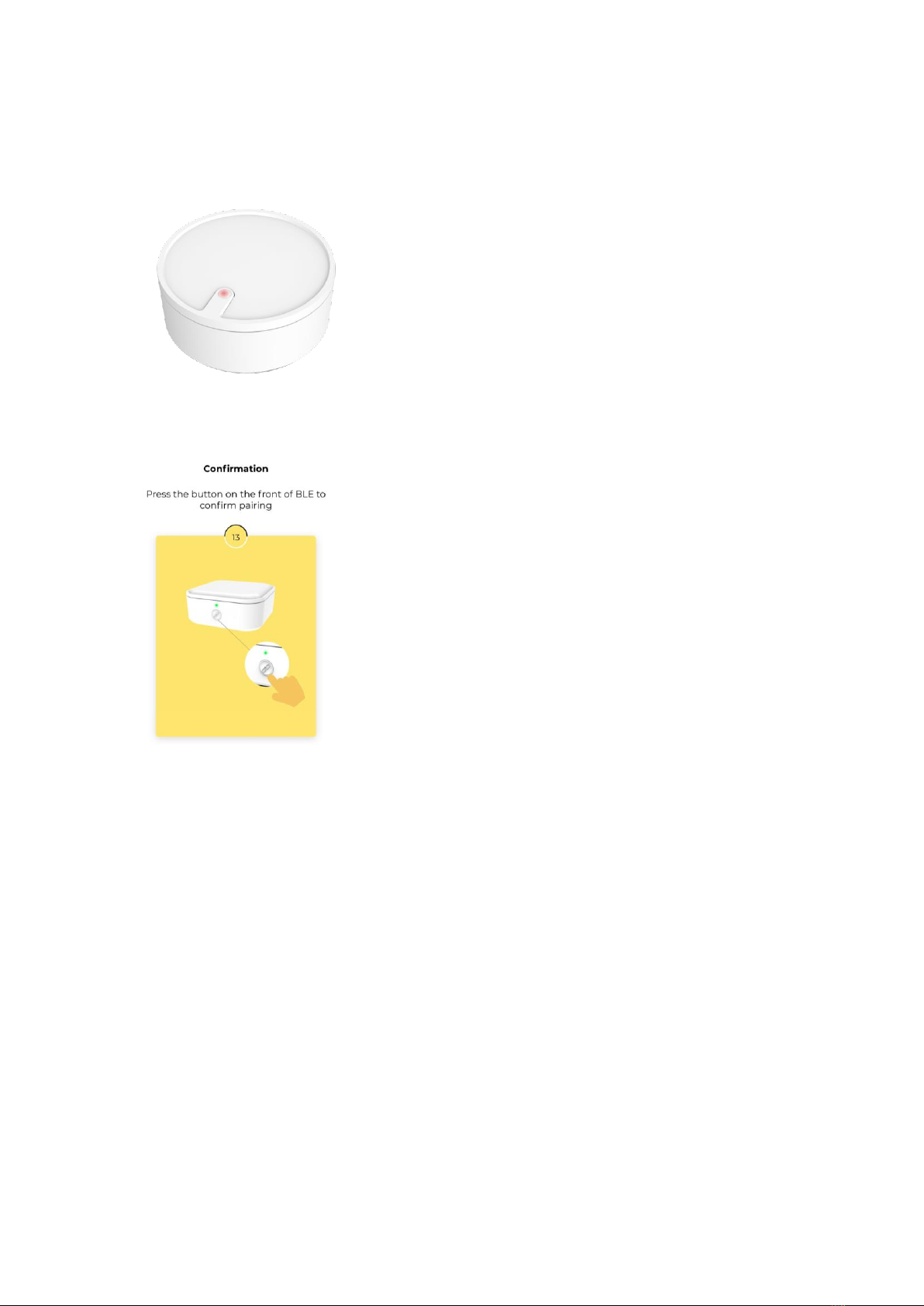

3. First time connect, the app needs to link with the Skybridge device.
During linking process, the red LED on Skybridge device will flash until you
press the “Link”button or within the 13 seconds limitation.
Linking process will exit and resume to the list of Skybridge device page after
13 seconds limitation count down
Once linking process is complete, the app will direct you to the “Device”page,
this is when you start pairing all the receiver devices that you wish to individually
control or use them in creating timers.
APPLICATION CONTROL

6
Issue Date: 24/12/2019
Pairing / Unpairing Receiver Device
Pairing
Select ‘Lighting’to start pairing device.

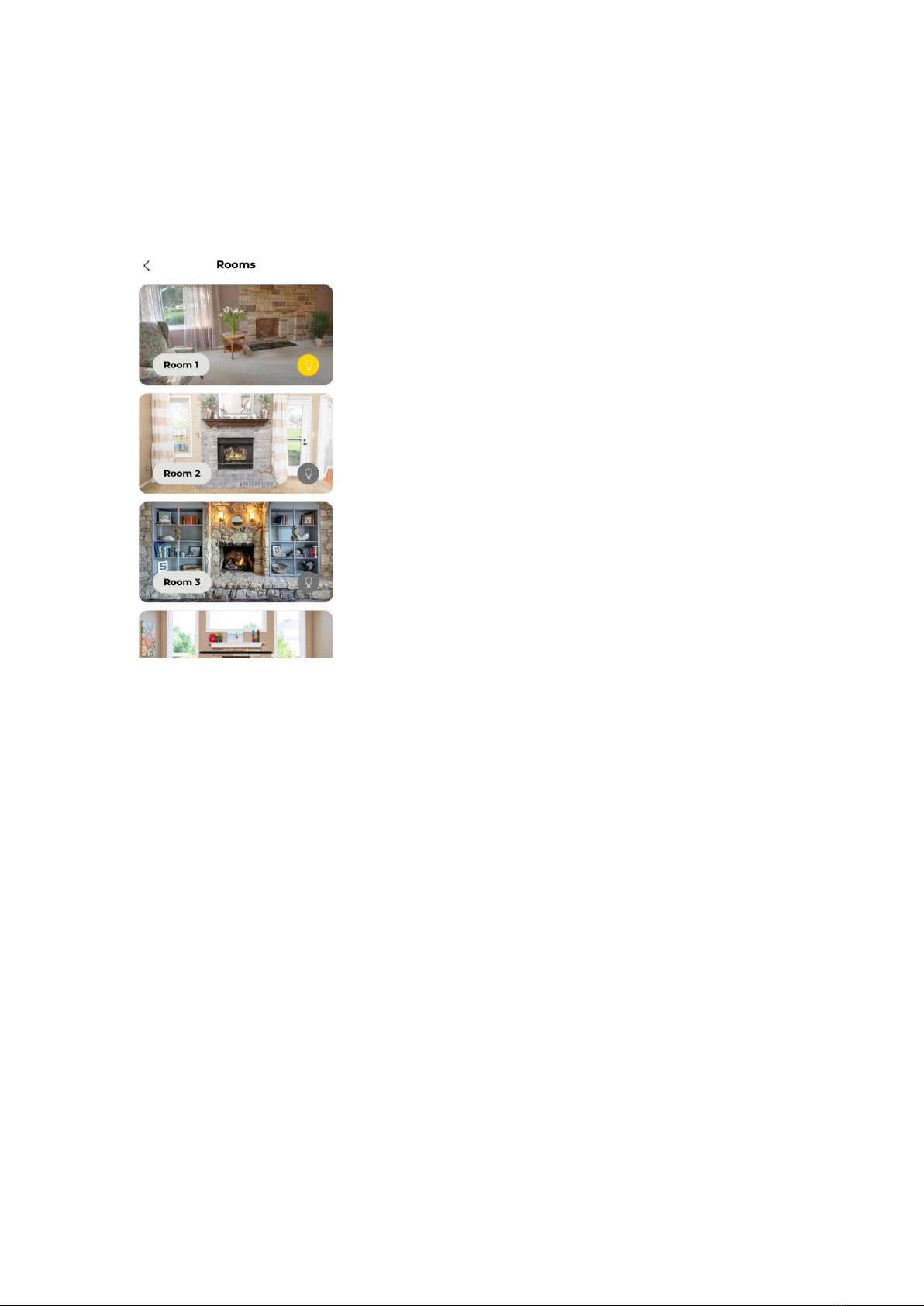

1. Select a room.
APPLICATION CONTROL

7
Issue Date: 24/12/2019
2. Press the + button to pair device.
3. Select the device type. (Fireplace, Space Heater, Lamp)
4. Enter ‘pairing mode’on receiver device and press the “Confirm”button to
confirm pairing.
5. Once paired, receiver device will appear in the list.
APPLICATION CONTROL

8
Issue Date: 24/12/2019

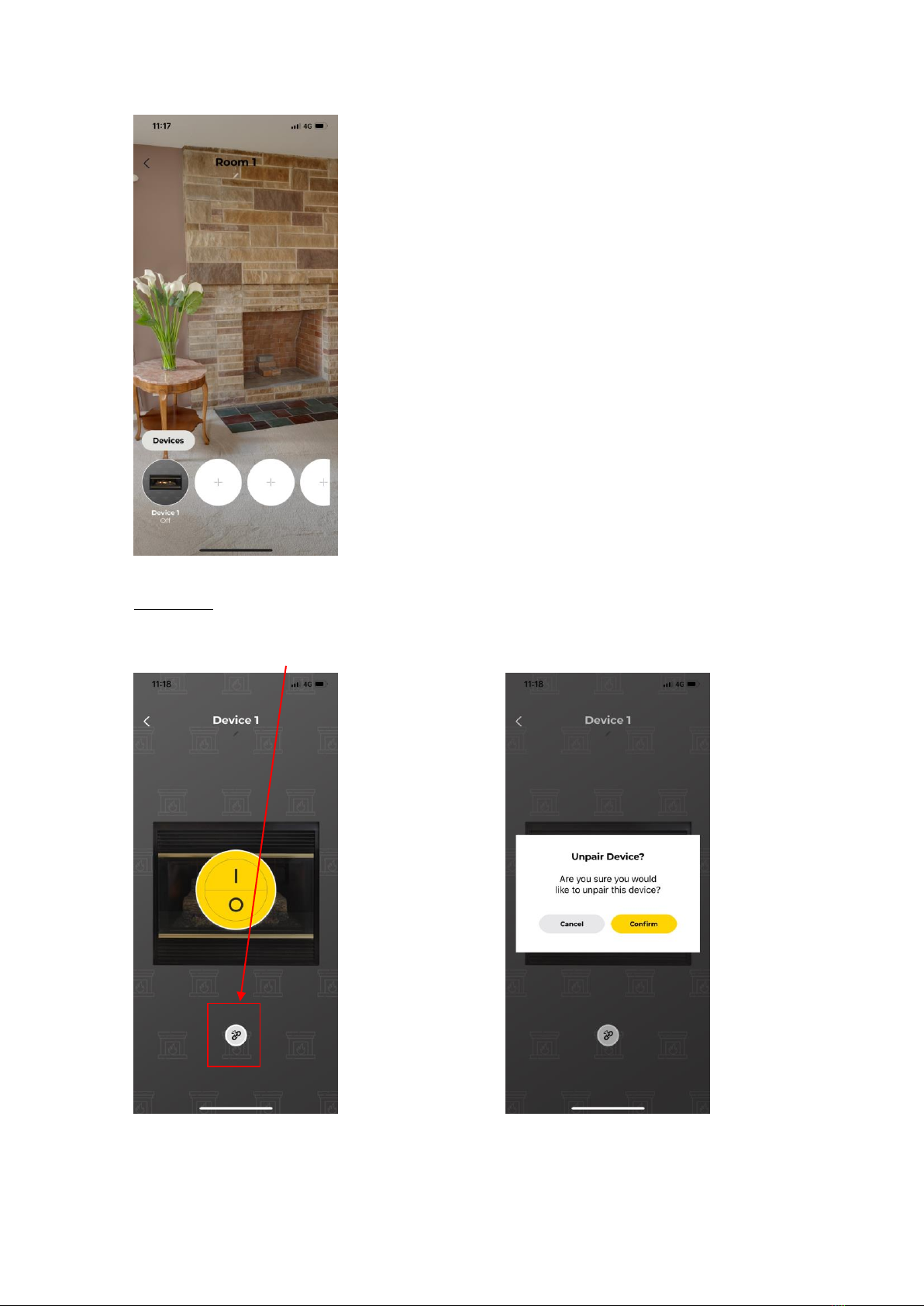

Unpairing
1. Select the device that you wish to unpair.
2. Press the ‘unpair’button and press ‘confirm’.
APPLICATION CONTROL

9
Issue Date: 24/12/2019
Control Receiver Device

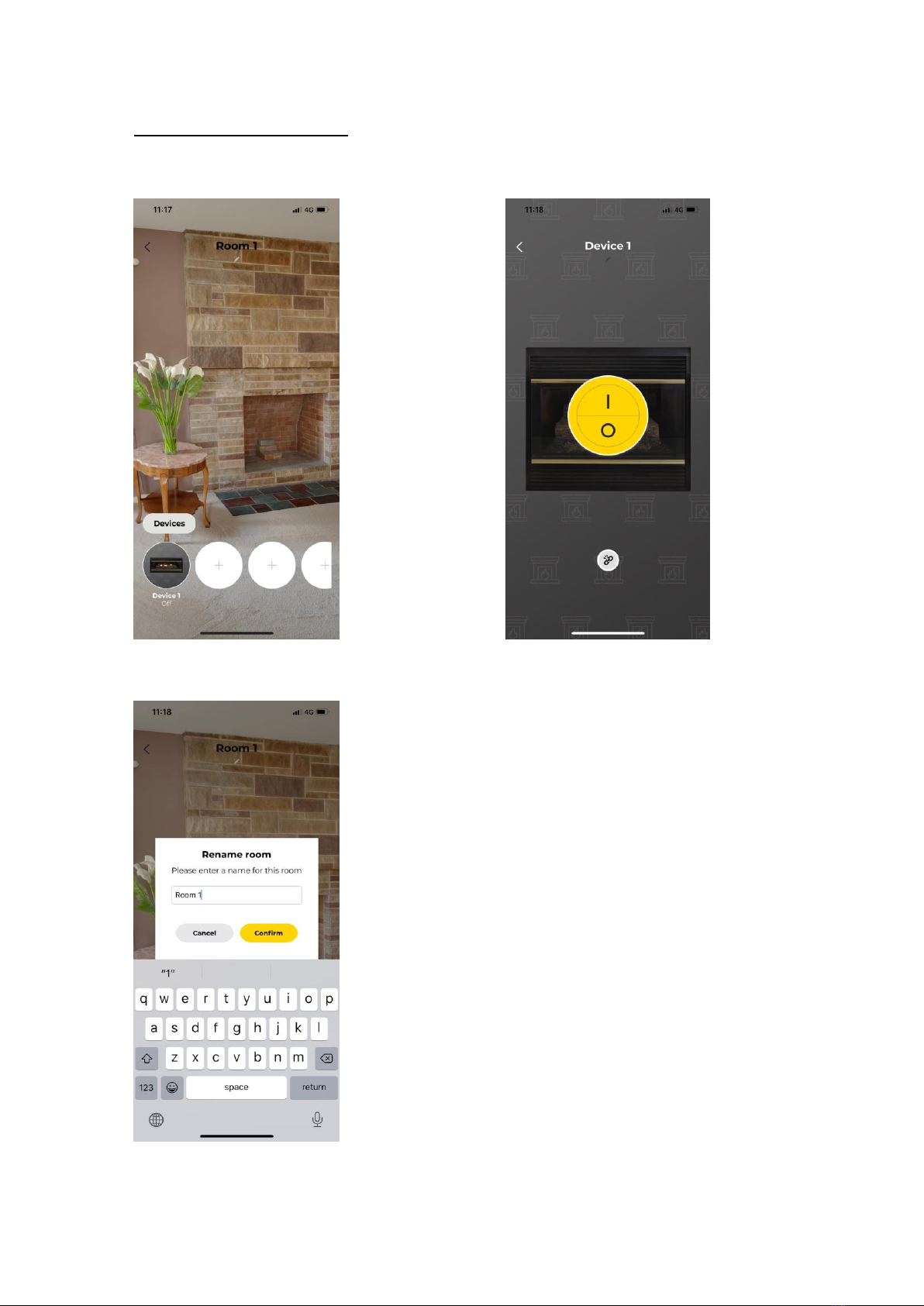

1. To control individual device, select the device and press I to turn ON or O to
turn OFF.
2. Rename Room or Device.
By pressing the ‘pen’mark you can rename all rooms and devices.
APPLICATION CONTROL

10
Issue Date: 24/12/2019
3. You may control all the device in that room as ‘All On –All Off’by pressing
the light bulb icon.
Yellow stands for All On.
Grey stands for All Off.
APPLICATION CONTROL

11
Issue Date: 24/12/2019
Event Setup
In this page, you can create up to 8 timers.
Each event can store up to 7 devices with All Off built-in slot at the end.

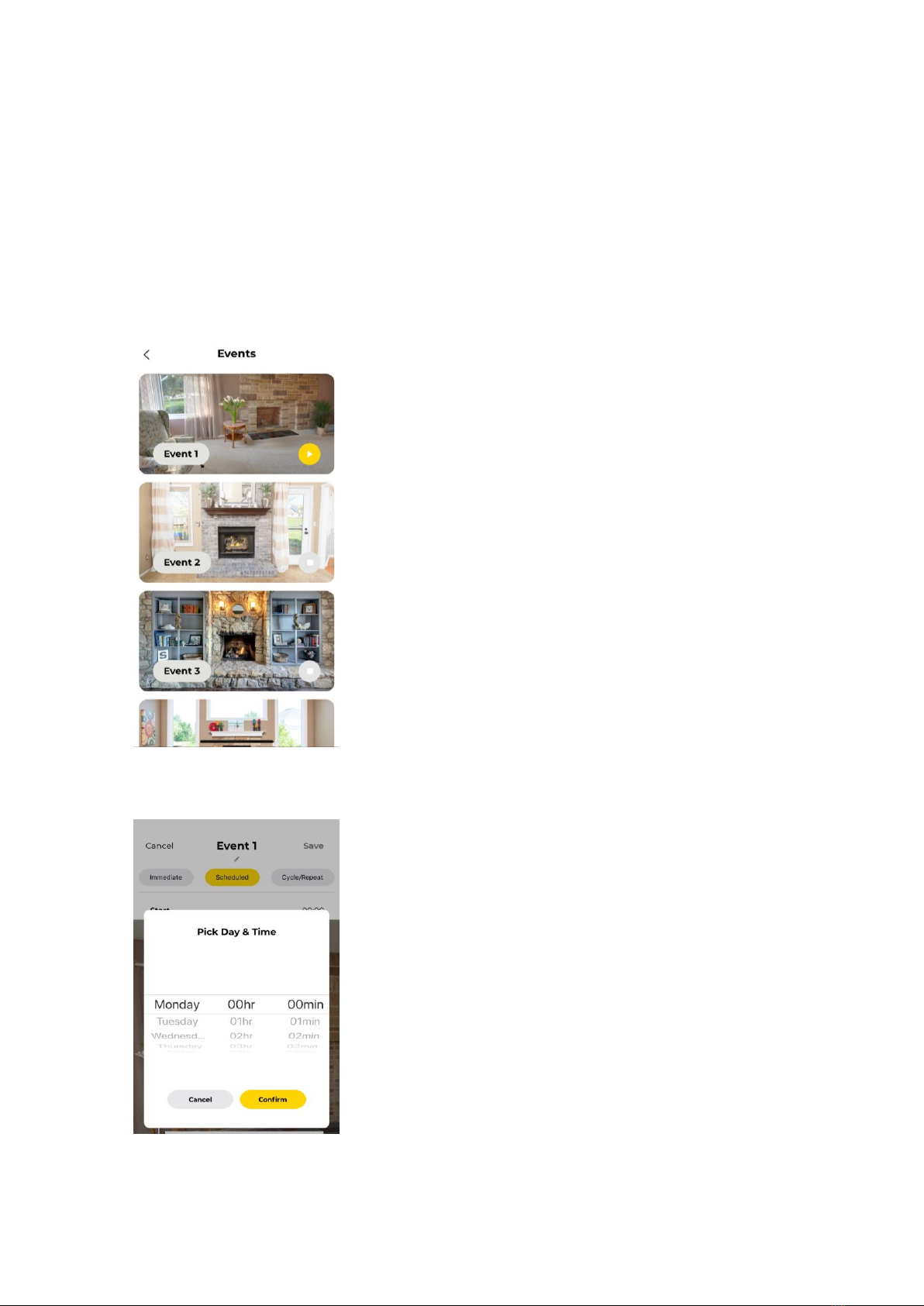

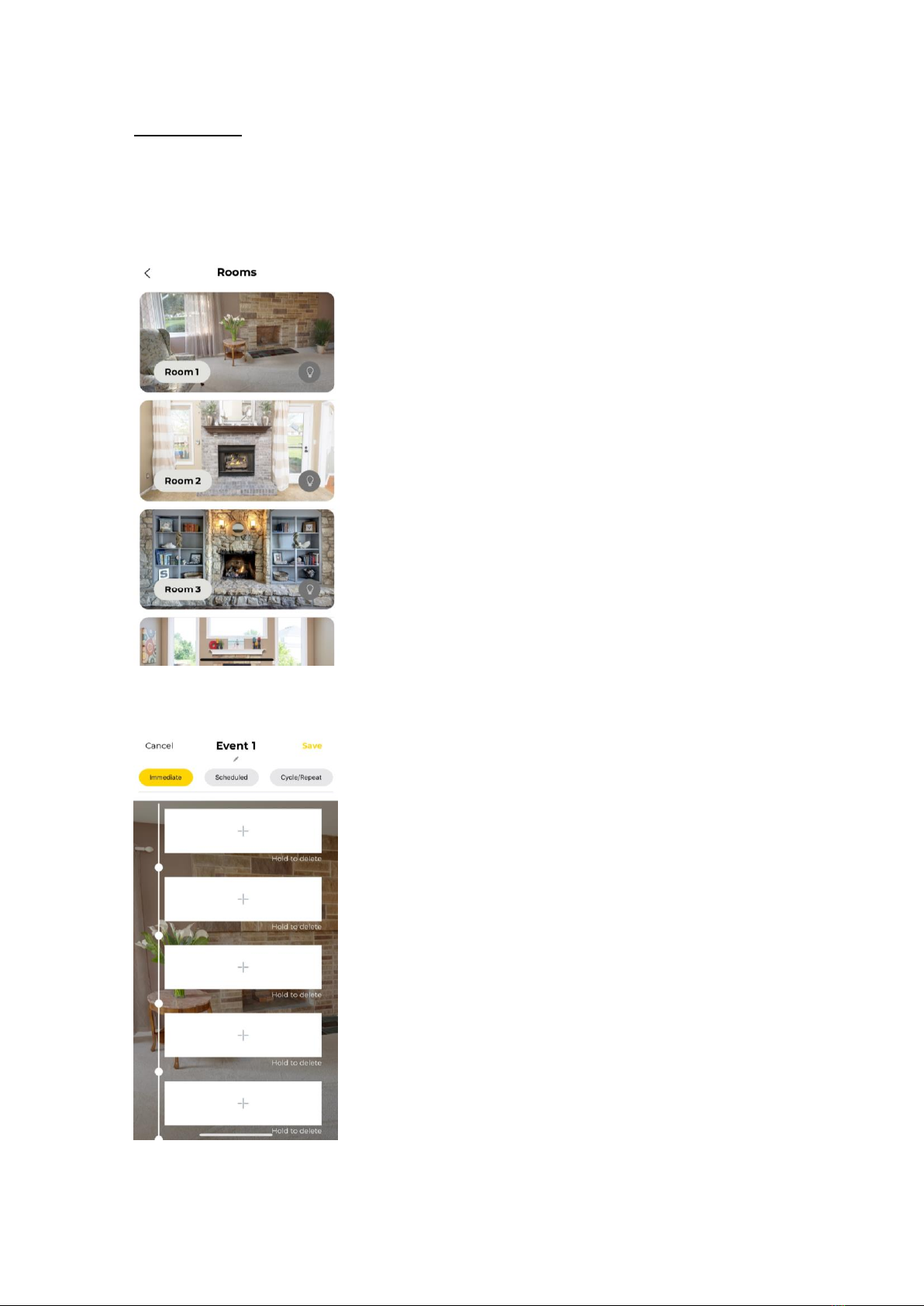

1. Select an event slot to create an event.
2. Press the + button to add device.
Start & Finish time will appear here
APPLICATION CONTROL

12
Issue Date: 24/12/2019
3. From the device list, select the device you wish the event to include.
4. After device are added, the very last slot is the default ‘ALL OFF’command.
5. Each device can set timer interval delays.
6. Once done, select from the 3-event action.
Immediate –single timer. (once only event)
Scheduled –single timer, set the start day & time.
APPLICATION CONTROL

13
Issue Date: 24/12/2019
Cycle - repeat timer, set day(s) & start time.
(For your information, the app is written this way. Once user presses “SAVE”
button, it only sends the setting command packet to Skybridge device. Then if
user presses the activate / deactivate button (the play button) the app then
send the command to start or stop the event. So this means user can save
settings and choose when to activate/deactivate events at the desired time)

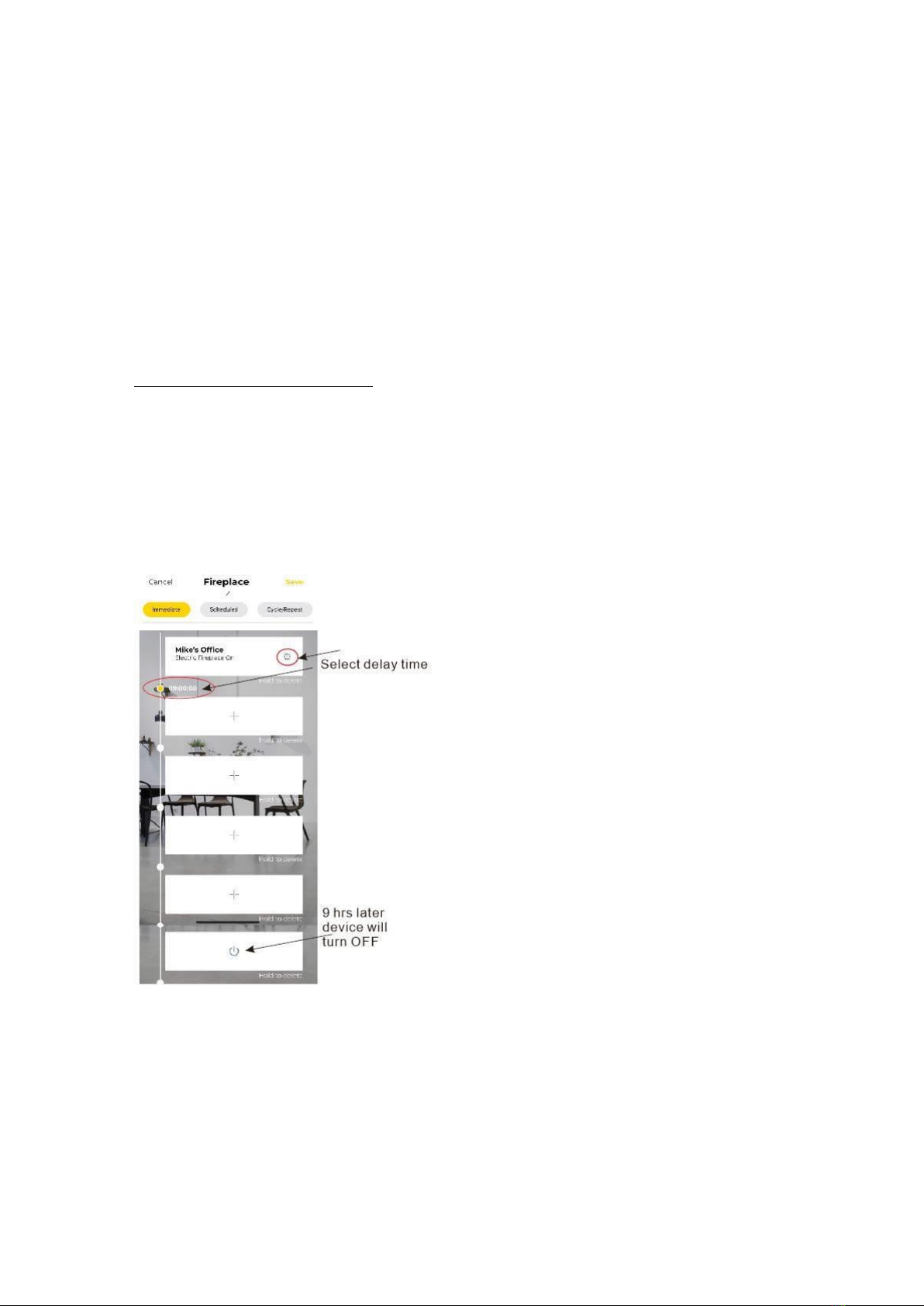

Example Setting:
Immediate Event 8am ~ 5pm
Current time 8am.
1. Select electric fireplace ON.
2. Set the delay for 9hrs.
3. Electric fireplace will turn OFF at 5pm.
(you see that the last slot is the default ALL OFF command so that means
after the delay time all devices will turn OFF)
Software command flow chart for better understanding on the logic structure.
1. Default ALL OFF icon:
As you can see there is an ALL OFF icon at the very last slot of each event and
this is to avoid devices not turning OFF as it should at the completion of each
event.
The very last “clock” icon is for the user to set the delay off time for up to 23hrs
APPLICATION CONTROL

14
Issue Date: 24/12/2019
59min, which means that the event can actually overlap to the next day if
needed.
In addition, this will actually save one event slot been used.
2. Difference between the 3 types of event (Immediate / Scheduled / Repeat)
Immediate Event →when user press the play button (turn to yellow) the
activate command will be sent and devices will turn ON or OFF (depending on
your setting). Note that the delay timer will count from the last device.
Scheduled Event →this is an onetime day based event. (so once the user
presses the play button then the event will only happen once)
APPLICATION CONTROL

15
Issue Date: 24/12/2019
For example:
⚫If current time Tuesday 9am, then the user must set the event timer to be
activated after Tue 9am. (i.e. Tuesday 9:01am ~ 9:05am etc..)
⚫If user sets the time at Tuesday 8:45am~8:55am then activated the event,
immediately the device will turn ON then OFF straight away as the software
thinks the time has gone past but still needs to execute the command.**
The reason for device to turn ON and OFF immediately is to let the user
know that the time they’ve set have gone past which means the following
Tuesday will not execute since it is an onetime event only. (If the ON then
OFF device status is not shown then the user may think that the following
Tuesday the event will be executed but in real life it won’t).
⚫If user sets the time at Monday 8:45am then the event will be executed the
following Monday.
⚫If user sets the time at Tuesday 9:01am then the event will be executed on
the same day at 9:01am.
Repeat Event →this is an ongoing event and will not stop until user presses the
play button to deactivate the event.
⚫The setting logic is exactly same as to scheduled event however the
difference is the user can select the days of the week to execute the events.
APPLICATION CONTROL

16
Issue Date: 24/12/2019
Setting
In the setting page, you can switch between 2 or more Skybridge devices,
rename Skybridge device or synchronize configuration to AWS cloud service,
turn On/Off Vibration from device control.
1. Switch in between Skybridge device.
If you have another Skybridge device, you may switch within the one app
and control the 2nd Skybridge device.
2. Rename Skybridge device.
APPLICATION CONTROL

17
Issue Date: 24/12/2019

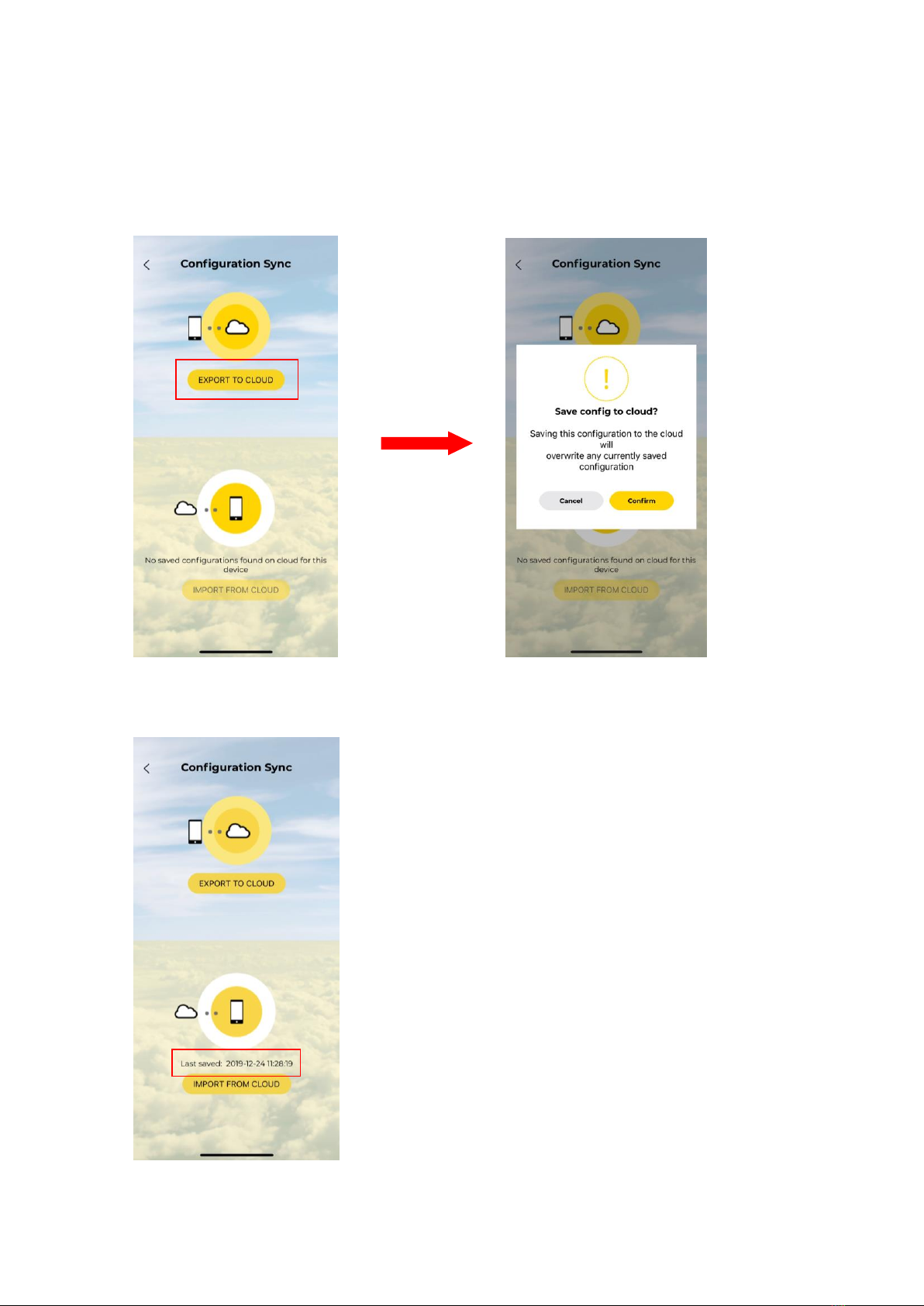

3. Synchronize configuration onto AWS.
You can share your settings to another smartphone by exporting data to
AWS, and the 2nd smartphone imports the data from AWS.
Export configuration press the ‘EXPORT TO CLOUD’button to upload data.
Once saved, the last setting date and time will be displayed at the bottom of the
app.
APPLICATION CONTROL

18
Issue Date: 24/12/2019

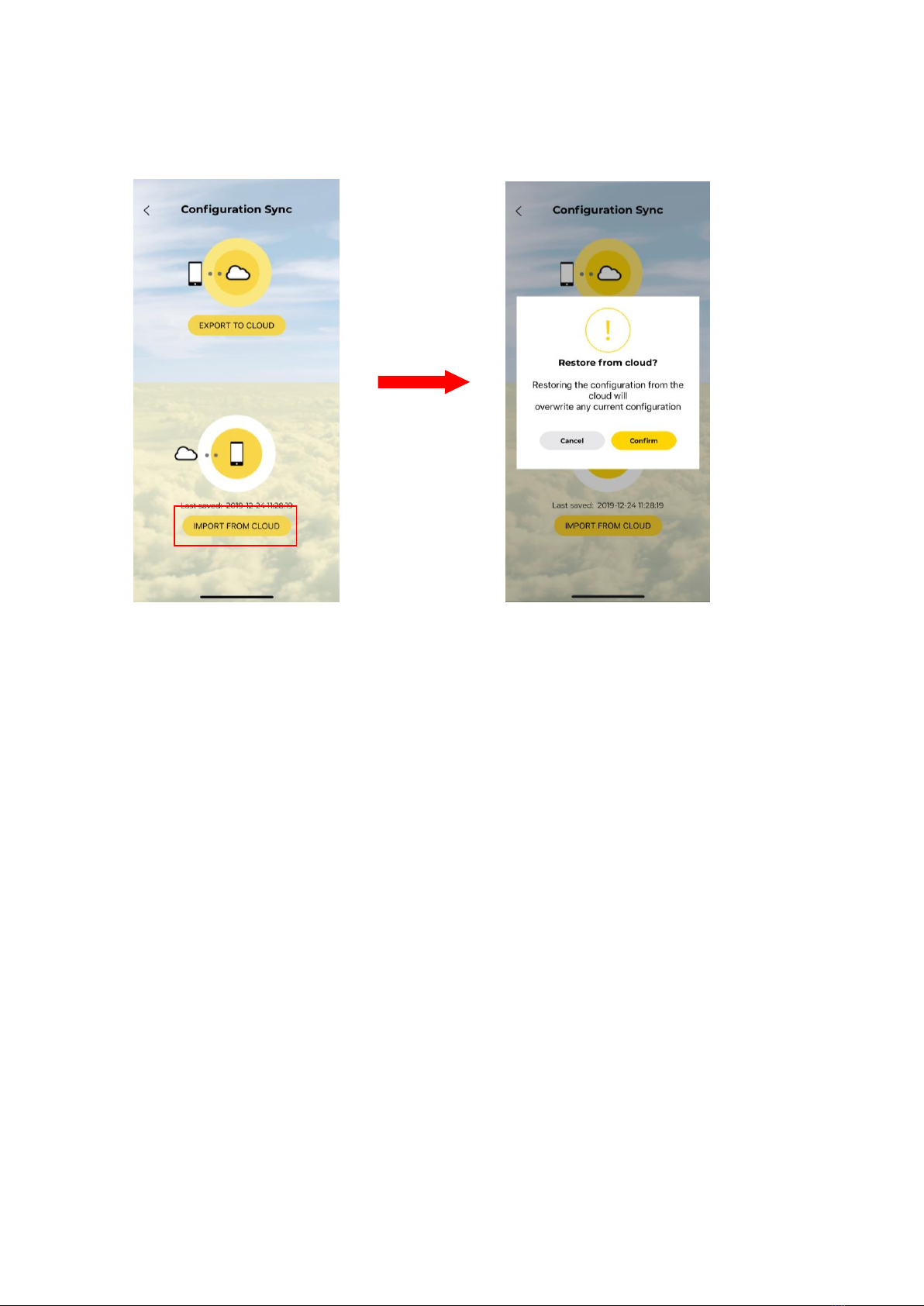

Import configuration, press the ‘IMPORT FROM CLOUD’button to download
data onto 2nd Smartphone.
APPLICATION CONTROL

19
Issue Date: 24/12/2019
Input Rating:
Radio Frequency:
Environment Temperature:
CE Certification:
4. Specifications
DC 3V (1.5V AAA alkaline battery * 2)
433.92MHz, 2.4GHz
1-40 ºC
The CE marked affixed to this product confirms
Its complaisance with the European Directives
Which apply to the product and in particular its
compliance with the harmonizes standards and
specifications.
Dimension (L x W x H) 65 x 30mm
Weight: 40 g
SPECIFICATION

5.Warning
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Note: The Grantee is not responsible for any changes or modifications not expressly
approved by the party responsible for compliance. such modifications could void the user's
authority to operate the equipment.
The device has been evaluated to meet general RF exposure requirement.
This equipment complies with FCC's RF radiation exposure limits set forth for an
uncontrolled environment. This device and its antenna(s) must not be co-located or
conjunction with any other antenna or transmitter.
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux
conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même
si le brouillage est susceptible d'en compromettre le fonctionnement.
The device has been evaluated to meet general RF exposure requirement. The
device can be used in portable exposure condition without restriction.
L'appareil a été évalué pour répondre aux exigences générales
d'exposition RF. le dispositif de a été évalués à répondre général rf
exposition exigence.
20
