Arcadian Networks V487i User manual

An Arcadian Networks Inc. Technical Document
V487i
WIRELESS MODEM UNIT
User’s Guide
Version 101
Version: 101
P/N: 3BR0035

i
V487i WMU User’s Guide
Copyright and Trademark Information:
© 2008 Arcadian Networks Inc. All rights reserved.
Arcadian Networks Inc. reserves the right to alter the equipment specifications and
descriptions in this publication without prior notice. No part of this publication shall
be deemed part of any contract or warranty unless specifically incorporated by
reference into such contract or warranty.
The information contained herein is merely descriptive in nature, and does not
constitute a binding offer for the sale of the product described herein. Any use of
the Arcadian Networks Inc. logo or trademarks is forbidden without prior written
approval from Arcadian Networks Inc.
All trademarks mentioned herein are the property of their respective owners.
Arcadian Networks Inc.’s trademarks include, but are not limited to, “Arcadian
Networks” and “Wireless liberty for all.”

ii
V487i WMU User’s Guide
FCC COMPLIANCE STATEMENT
NOTE: This equipment is authorized under FCC ID:V72V487I
to operate in the A Block (re-banding) of the Upper 700 MHz
Band pursuant to Part 27 of the FCC’s rules.
In addition, this equipment has been tested and found to
comply with the limits for a Class B digital device pursuant to
Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
•Reorient or relocate the antenna.
•Increase the distance between the equipment and
receiver.
•Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician
for help.
Warning!
Changes or modifications to this equipment not expressly approved by
Arcadian Networks, Inc. could void the user’s authority to operate the
equipment.
Warning!
This product was tested and shipped with shielded coaxial cable and
Category 5 Ethernet cable equipped with a shielded RJ-45 connector.
These cables must be used with the unit to ensure compliance.

iii
V487i WMU User’s Guide
CONTENTS
1Overview and Purpose .....................................................4
1.1 Purpose of This User’s Guide..........................................4
1.2 Target Audience...............................................................4
1.3 Arcadian Networks...........................................................5
2Modem Features and Components .................................6
2.1 Front Panel Indicators......................................................6
2.2 Rear Panel Connectors....................................................7
3Using the Modem..............................................................8
4Technical Specifications..................................................9
5Problem Troubleshooting ................................................11
6Warranty Information........................................................13
7FCC Declaration of Conformity........................................14
8Contacting Arcadian Networks........................................15

4
V487i WMU User’s Guide
1 OVERVIEW AND PURPOSE
Welcome to the User’s Guide for the Arcadian Networks Inc.
V487i Modem.
Figure 1-1: The Arcadian Networks V487i Wireless Modem Unit
1.1 Purpose of This User’s Guide
This guide is designed to be used as a tool in the initial
installation and periodic maintenance of the V487i. It contains
information on how to perform the following tasks:
•Installing the V487i
•Configuring the V487i
•Maintaining the V487i
•Troubleshooting the V487i
1.2 Target Audience
This guide is intended for service personnel required to install,
configure or maintain the V487i modem.

5
V487i WMU User’s Guide
1.3 Document Conventions
This guide is intended for service personnel required to install,
configure or maintain the V487i modem.
The following icons appear throughout this guide:
Note: This is a note. It provides additional information on
the current topic.
Warning: This is a warning. It contains cautionary
information on the current topic.
Tip: This is a tip. It provides time saving information to the
reader.
1.4 Arcadian Networks
Arcadian Networks Inc. provides fixed wireless broadband
end-to-end telephony and high-speed data connections to
business and residential subscribers. Arcadian Networks Inc.
technology uses point-to-multipoint architecture to deliver
circuit-switched telephony and data over IP to commercial and
private customers throughout the world.

6
V487i WMU User’s Guide
2 MODEM FEATURES AND COMPONENTS
The V487i modem offers the following features:
•Point-to-multipoint broadband wireless Internet access
•Superior operations over a wide range of modulation formats
and IF bandwidths, including noisy channels
•Easy installation
•Robust RF performance
•Internal radio for UHF bands
2.1 Front Panel Indicators
There are two connectors located on the rear panel of the
V487i modem.

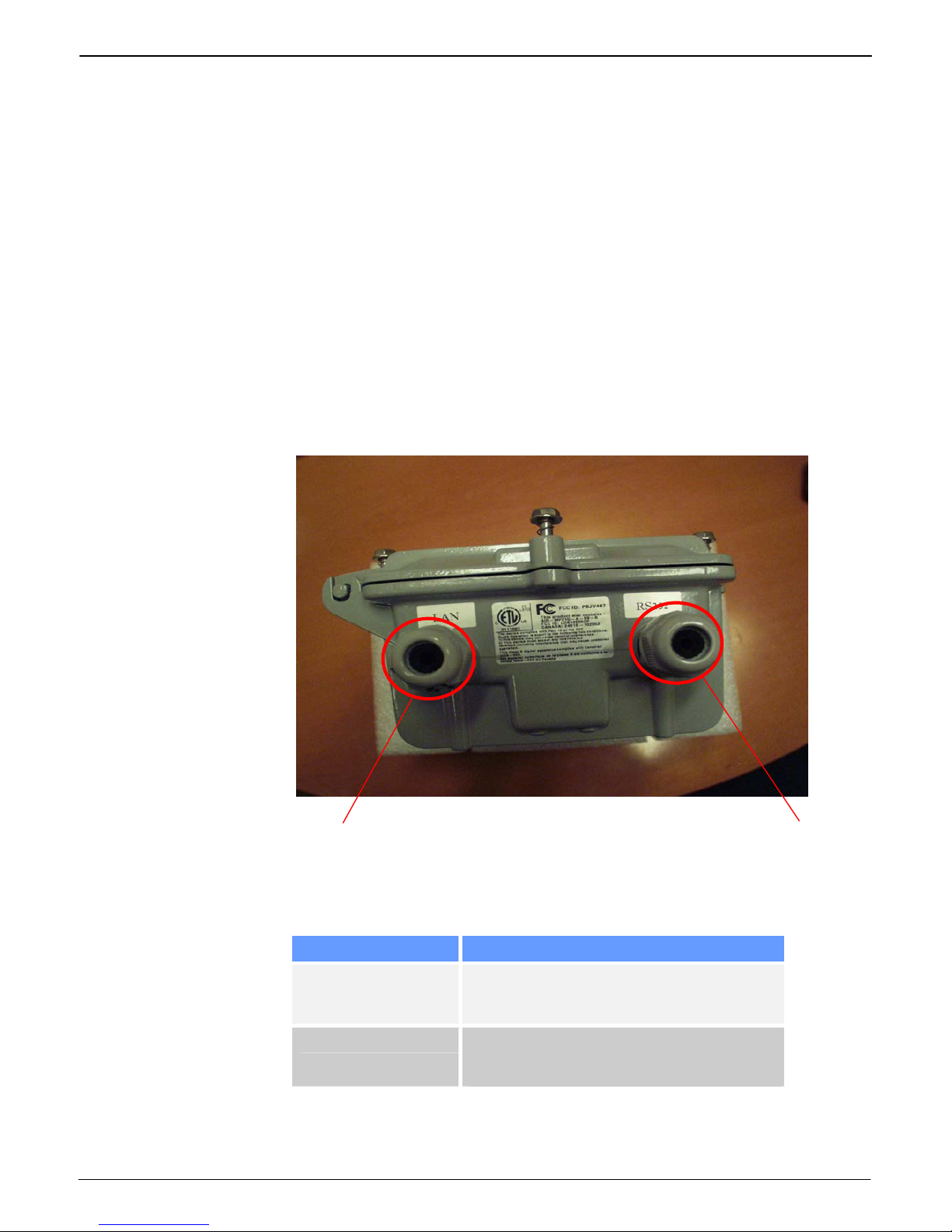

Figure 2-1: V487i
Connector Function
LAN Connect an RJ-45 Ethernet cable to this port.
The other end of the cable can be connected to
the PC or RTU
RS232 Connect a RS232 cable to this port.
The other end of the cable can be connected to
the subscriber’s SCADA devices
RS232
LAN

7
V487i WMU User’s Guide
2.2 Rear Panel Connectors
There are two connectors located on the rear panel of the
V487i modem.
RF Link

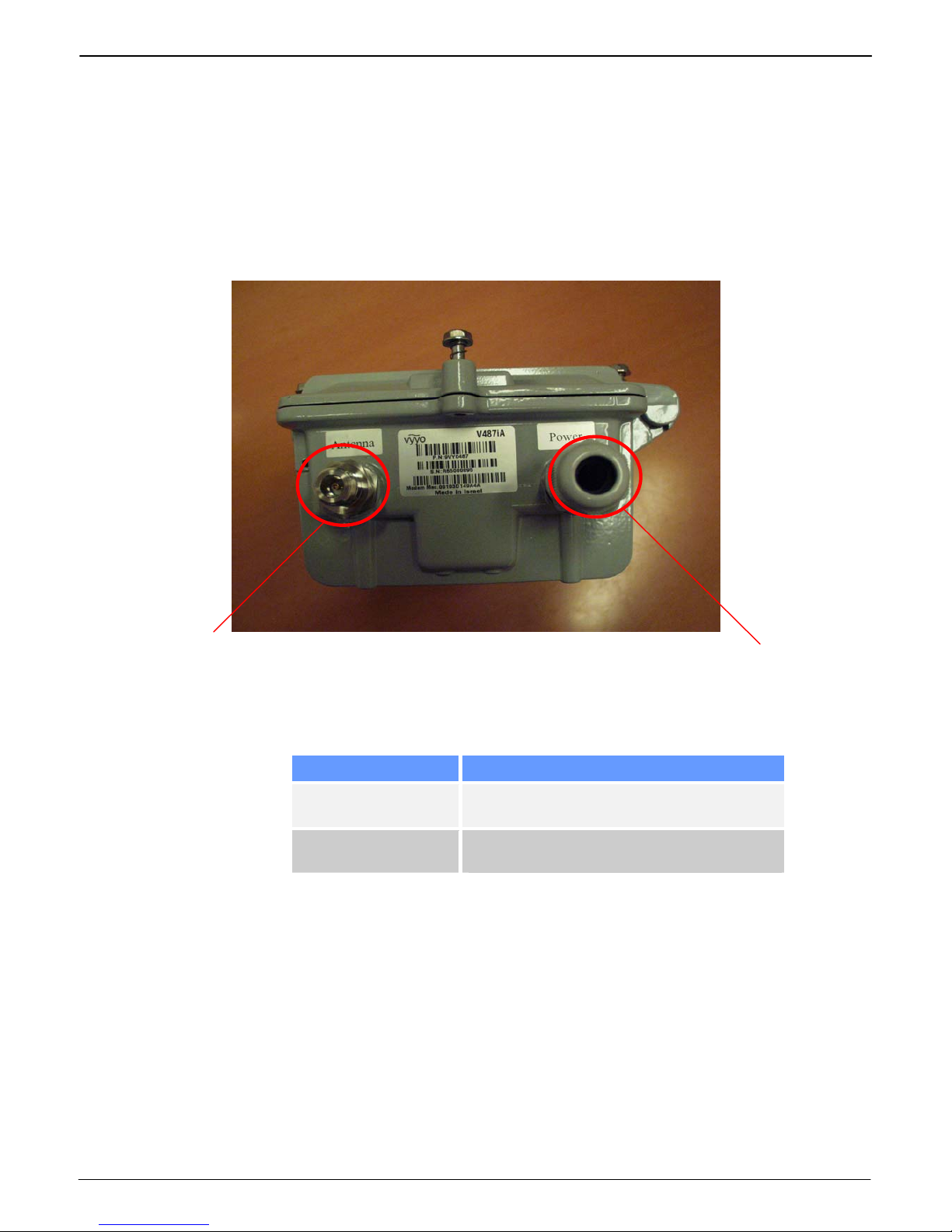

Figure 2-2: V487I WMU Rear Panel Connectors
Connector Function
POWER Connect 9.5V to 29 V external power source
here.
Antenna Connect this N-type connector to the UHF
antenna.
Table 2-1: V487i Rear Panel Connectors
Power

8
V487i WMU User’s Guide
3 USING THE MODEM
Follow the steps below to use the modem properly.
To use the modem:
1 Check that the computer with which you are using the
V487i modem contains a working Ethernet network card,
and has the following software installed and operational:
•Microsoft Windows 95 operating system or later
•A standard Internet browser application
•The Telnet communications utility
2 Attach your computer to the modem’s LAN port with the
included RJ-45 Ethernet cable.
3 Connect the antenna cable to the CABLE connector on the
rear of the modem.
4 Plug the 9.5-29Volt modem power supply jack into the
POWER socket on the rear of the modem.
Note: As with any household electrical device, avoid the risk of accidental
electrical shock. Make sure that your hands are completely dry and that there is
no moisture on the floor or other surfaces in the immediate area of the electrical
wall outlet.
Hazard: Avoid of getting the human body closer than 84 Cm to the antenna.

9
V487i WMU User’s Guide
4 TECHNICAL SPECIFICATIONS
General
Dimensions 5.25 x 4.25 x 1.00 in. (26 x 20 x 212 cm)
Operating
Temperature -30 to 60° C
Power 9.5V-29V (Max 3A)
Interface
Data Interface RS232 (SCADA service)RJ45 – 10/100 baseT Ethernet
full/half duplex
RF Interface 50 ohm N Type Female Connector
RF Characteristics Downstream
RX Frequency 757 – 758 MHz Downstream Receive
Channel Bandwidth 330 KHz
Modulation Format QPSK, 16QAM, & 64QAM
Data Rates 0.55 – 1.65 Mbps
Rx Sensitivity (dBm) BW
(KHz) 64 QAM 16 QAM QPSK
330 -81 -87 -91
RF Characteristics
Upstream
Frequency Range 787 – 788 MHz
Channel Bandwidth 325 kHz
Modulation Format QPSK & 16QAM
Data Rates (Raw) 0.52 – 1.04 Mbps
RF Amplifier P1dB 37 dBm
Linear Output Power 27 dBm

10
V487i WMU User’s Guide
Service
Network Management Protocol: SNMP
MIB: RFC1213, RFC1493, RFC2233, RFC2669,
RFC2670, DOCSIS Privacy MIB
Provisioning: As per DOCSIS
Security Link Layer
Encryption: DES CBC, 40 and 56 Bits per user (Sara)
Key
Distribution: Two-layer key distribution protocol, which includes DES-ECB and RSA public key
encryption and HMAC-SHA1 authorization
IP Protocols Network
Protocols: IP, ICMP, ARP, PPPoE, 802.1Q/p, IP Multicast
Transport
Protocols: TCP, UDP, RTP
Application
Protocols: SNMP, TFTP, DHCP
# IP Data Services 64 CPE MAC
Addresses

11
V487i WMU User’s Guide
5 PROBLEM TROUBLESHOOTING
If you encounter problems with your modem, try the following
steps.
1 Check for damage to the external modem casing during
shipping or installation. If you see visible damage, the
modem may need replacement.
2 Verify that the 9.5Volt to 29V modem power supply jack is
connected to the modem POWER connector on the rear of
the modem, and that the modem power supply is
connected to a known-good AC power outlet.
3 Verify that the RF coaxial cable is connected properly to
the modem N-type connector.
4 Verify that the PC LAN LED is illuminated and that the LAN
cable is connected to a working Ethernet network port on
the PC.
Following are further steps you can take to identify and
correct modem problems.
# Problem Description Possible Cause Potential
Resolutions
1 The RS232 does not
connected to the PC
•The DC plug
may not be
installed
correctly.
•The power
supply may be
faulty.
•The serial port
of the PC is not
enabled
1. Check the
connection of the
power supply.
2. Test the power
supply using
another modem.
3. Replace the
power supply if
necessary.
4. check the serial
port configuration
on the PC

12
V487i WMU User’s Guide
# Problem Description Possible Cause Potential
Resolutions
2 The LAN LED does not
light up. •The connection
between the
modem and
the PC may be
faulty.
1. Check the
10/100BaseT
cable connection.
2. Check the
network
configuration: IP
address,
Gateway, DHCP,
and DNS.
3. Reset the modem
by disconnecting
and reconnecting
the power.
4. Replace the NIC
Ethernet card.
5. Test the
connection using
another modem
or network
device.

13
V487i WMU User’s Guide
6 WARRANTY INFORMATION
The Arcadian Networks Inc. Limited Warranty and related
information can be found in the terms and conditions and/or
other contracts under which this product was purchased.

14
V487i WMU User’s Guide
7 FCCDECLARATION OF CONFORMITY
The Responsible Party for this equipment is:
Company: ARCADIAN NETWORKS Inc.
Address: 6625 The Corners Pkwy Suite 210 Norcross GA 30041
Country: USA
Telephone number: 001-650-3194037
Fax number: 001-650-3194066
ARCADIAN NETWORKS Inc. hereby certifies and declares that the following
equipment:
Brand Type Product description
ARCADIAN NETWORKS V487i UHF WIRELESS MODEM
complies with Part 15 of the FCC Rules as an unintentional radiator. With respect
to its status as a Part 15 Class B digital device, operation of this equipment is
subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Drawn up at:
Arcadian Networks Inc.
400 Columbus Avenue
Valhalla, NY 10595
USA
On June 12, 2008
Arcadian Networks Inc. Arnon Afgin
General Manager and VP RND

15
V487i WMU User’s Guide
CONTACTING ARCADIAN NETWORKS
For further information about the V487i WMU or other
Arcadian Networks products, visit the Arcadian Networks
Website at:
www.Arcadian Networks.com .
