Archgard 22-DVIE22LN-1 User manual

MODEL: 22-DVIE22LN-1
GAS FIRED DIRECT VENT
FIREPLACE INSERT
S/N 220000 AND UP
ARCHGARD FIREPLACE PRODUCTS
7116 Beatty Drive
Mission, BC V2V 6B4 Canada 200-0278-01
July 2, 2019
English and French Installation Manuals available through your
local dealer or visit our website at: www.archgard.com
Les manuels d'installation en anglais et en français son
disponibles chez votre détaillant local ou en visitant notre site
web: www.archgard.com
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
This appliance may be installed in an aftermarket
permanently located, manufactured home (USA only) or
mobile home where not prohibited by local codes.
This appliance is only for use with the type of gas indicated
on the rating plate. This appliance is not convertible for use
with other gases, unless a certied kit is used.
INSTALLATION, OPERATION, AND
MAINTENANCE MANUAL
−Do not store or use gasoline or other ammable vapors
or liquids in the vicinity of this or any other appliance.
−WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a
neighbor's phone.Follow the gas suppliers
instructions.
• If you can not reach your gas supplier, call the re
department.
−Installation and service must be performed by a
qualied installer, service agency or the gas supplier.
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in
serious injury, death, or property damage.
Gas Fireplace Energy E󰀩ciency Rating
67.21%
Based on CSA P.4.1-15

2
TABLE OF CONTENTS
1.0 Introduction 3
2.0 Safety Information 4
3.0 Technical Information 5
3.1 Appliance Certication 5
3.2 Installation Codes 5
3.3 Specications 5
3.4 High Altitude Installation 5
4.0 Rating Plate 6
5.0 Installation Checklist 7
6.0 Appliance Overview 8
6.1 Rating Plate Location 8
6.2 Appliance Overview 8
6.3 Leveling the Appliance 8
6.4 Accessing the Controls 9
6.5 Identifying the Controls 9
7.0 Electrical Connections 9
8.0 Appliance Dimensions 10
9.0 Minimum Opening Dimensions 11
9.1 Surround Conguration Options 12
9.2 Factory Built Fireplaces 14
9.3 Refacing a Masonry Fireplace 15
10.0 Clearances to Combustibles 16
10.1 Mantel Clearances 16
10.2 Sidewall Clearances 17
10.3 Hearth Clearances 17
11.0 Gas Connections 18
11.1 Clocking Procedure 18
12.0 Conversion Kit Instructions 19
12.1 Prepare the Fireplace 19
12.2 Pilot Conversion 19
12.3 Convert the Gas Valve 20
12.4 Complete the Conversion 20
13.0 Venting Instructions 21
13.1 Approved Venting Components 22
13.3 Min/Max Vent Run 24
13.4 Using a Co-linear to Coaxial Adapter 25
14.0 Barrier Screen Installation 26
15.0 Glass Door Installation 27
15.1 If Your Glass Breaks 27
16.0 Surround Installation 28
16.1 Bottom Filler Plate 29
16.2 Surround Dimensions 30
17.0 Firebox Liner Installation 32
17.1 Brick Panel Installation 32
17.2 Reective Glass Installation 33
18.0 Media Installation 34
18.1 Log Set 34
19.0 Operation 38
19.1 Before Lighting 38
19.2 First Fire 38
19.3 Lighting Instructions 39
19.4 Dynamic Start Advantage 40
19.5 Remote Control Operation 41
20.0 Maintenance 47
20.1 Cleaning and Routine Maintenance 47
20.2 Servicing Under Warranty 48
20.3 Checking Inlet and Outlet Pressure 48
20.4 Checking and Adjusting Pilot 48
20.5 Adjusting the Primary Air 49
20.6 Replacing the Burner 50
20.7 Replacing the Pilot 51
20.8 Replacing the Valve 52
20.9 Replacing the Backup Batteries 54
20.10 Replacing the Fuse 54
20.11 Replacing the Control Board 55
20.12 Replacing the Optional Fan 56
20.13 Wiring Schematic 58
20.13 Troubleshooting 59
21.0 Frequently Asked Questions 60
22.0 Replacement Parts List 61
Archgard Limited Warranty 65

3
General Information
1.0 Introduction
Thank You and Congratulations for choosing an Archgard Gas Fireplace insert!
The 22-DVIE22LN-1 is among the most advanced Direct Vent Insert heaters available today. It is solidly designed using the latest
technology and manufactured to the highest quality. It is our aim to provide you with an appliance that brings many trouble-free years of
reliable service.
Some of the many features of your 22-DVIE22LN-1 are:
• Heater Classication This replace is classied as a heating appliance. Therefore, it uses Direct Vent safety technology
and it is suitable for continuously operated zone heating.
• High E󰀩ciency This replace has one of the highest e󰀩ciencies of any Direct Vent gas insert, ensuring it is less
expensive to operate.
• Adjustable Fan Speed
(optional)
An adjustable six speed circulation fan is available for this replace insert. This fan is controlled
using the remote from the comfort of your chair.
• Adjustable Flame This replace provides the ability to adjust the ame aesthetics and heat output to suit the owner's
liking and heating needs.
• Solid Construction This replace is mainly constructed of 16 and 18 gauge galvanized and aluminized coated steel for
long life and durability.
• Optional Accessories Speak with your local Authorized Archgard Dealer for a full complement of decorative accessories
to suit your home's decor and personal tastes.
• Electronic Control System This replace comes standard with the Dynamic Start Advantage. This new electronic ignition
system is the latest in replace technology. It helps to create a better draft, better ame
appearance, less condensation on the glass, and years of carefree operation. See Section 19.4 for
complete explanation of how the system works.
• Multiple Electronic Pilot
Settings
This replace uses a gas control valve that is operated by a Multifunction Remote Control. It can be
set up as either an Intermittent Pilot Ignition (IPI) system, or Continuous Pilot on Demand Ignition
(CPI) system (also known as a Pilot on Demand (POD)).
CPI vs IPI:
Continuous Pilot on Demand Ignition (CPI): In this mode the pilot runs continuously even when the main burner is o󰀨. The
Continuous Pilot on Demand Ignition operates on a seven day cycle. If the main burner is not turned on for seven continuous days, the
pilot will turn itself o󰀨. When the main burner is lit again the cycle repeats. The pilot will remain lit for seven days, even after the main
burner is turned o󰀨. If the main burner is lit during a seven day timing cycle, the seven day timer will reset.
Intermittent Pilot Ignition (IPI): A fuel saving mode in which the pilot is only used when the main burner is on.
This appliance is shipped in IPI mode. IPI mode is often the preferred method, however, there are some situations where it may be
preferable to switch the replace into CPI mode. For example, in colder climates the glass door or the front of the replace could
become very cold to the touch. Dynamic Start Advantage will solve most problems experienced by older IPI operated replaces.
Please complete and submit the warranty registration card included in the back of this manual or by visiting us at:
www.archgard.com/warranty-registration

4
General Information
2.0 Safety Information
Caution
FOR YOUR SAFETY - Do not install or operate this appliance without reading and understanding this manual. Any installation or
operational deviation from this instruction manual voids the warranty and may prove hazardous.
• This appliance must be installed by a qualied gas installer and the installation must conform to the installation codes.
• Provide adequate clearance around air openings into combustion chamber.
• Never obstruct front openings.
• Provide adequate clearances for proper operation and servicing of the appliance.
• This appliance must be properly connected to an approved venting system and must not be connected to a chimney ue serving a
separate solid fuel burning appliance.
• Flow of combustion and ventilation air must not be obstructed.
• Always provide adequate clearance around the intake and exhaust openings.
Safety
• Due to high temperatures, the appliance should be located out of tra󰀩c and away from furniture and draperies.
• Children and adults should be alerted to the hazards of high surface temperature and stay away to avoid burns or clothing ignition.
• Young children should be carefully supervised when they are in the same room as the appliance. Toddlers, young children and
others may be susceptible to accidental contact burns. A physical barrier is recommended if there are at risk individuals in the
house. To restrict access to a replace or stove, install an adjustable safety gate to keep toddlers, young children and other at risk
individuals out of the room and away from hot surfaces.
• Do not store or place combustibles, gasoline, and other ammable vapors and liquids near the appliance.
• Clothing or other ammable material should not be placed on or near the appliance.
• Do not operate with cracked or broken glass. Do not to strike or slam the glass.
• WARNING: Do not operate appliance with the glass front removed, cracked, or broken. Removal of the glass should be done by a
licensed or qualied service person.
• Any safety screen or guard removed for servicing an appliance must be replaced prior to operating.
• Installation and Repair should be done by a qualied service person. The appliance should be inspected before use and at least
annually by a professional service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding
materials, etc. It is imperative that the control compartments, burners and circulating air passageways of the appliance are kept
clean.
• Do not use this appliance if any part has been under water. Immediately call a qualied service technician to inspect the appliance
and to replace any part of the control system and any gas control which has been under water.
• California Proposition 65 Warning: This product can expose you to chemicals including Carbon Monoxide, that is an externally
vented by-product of fuel combustion, which is [are] known to the State of California to cause cancer, birth defects, or other
reproductive harm. For more information, visit www.P65Warnings.ca.gov.
Each Archgard Gas Fireplace is checked and tested at the factory prior to being packaged and shipped to our dealers and nally
installed in your home. Before leaving this unit with the customer, the installer must ensure that the appliance is ring correctly and that
the electrical system is in working order. The Installation Checklist in Section 5.0 should be used to ensure the proper installation of this
gas replace insert and to document any deviations from a typical install.
Any alteration to the product that causes carbon or soot deposits that results in any damage or requires
cleaning is not the responsibility of the manufacturer.

5
General Information
3.0 Technical Information
3.1 Appliance Certication
This appliance was listed by QAI Laboratory Inc to the following USA and Canadian gas appliance standards.
- ANSI Z21.88-2017/CSA 2.33-2017 Vented Gas Fireplace Heaters
- CSA-2.17-2017, Gas-Fired Appliances for Use at High Altitudes
- CSA P.4.1-15 testing method for measuring annual replace e󰀩ciency
- CSA 22.2 No.3-M1988(R2014) electrical standard
The listing label is attached to the appliance on the bottom right side of the appliance.
A copy is shown on Section 4.0.
Commonwealth of Massachusetts: This appliance has been manufactured in accordance with Massachusetts code 248 CMR 5.00.
Approval Code: TBD. (http://license.reg.state.ma.us/public/licque.asp).
Please contact Archgard Industries Ltd., if you have any questions regarding the certication of this appliance.
3.2 Installation Codes
This appliance must be installed by a qualied gas appliance installer. The installation must conform with the local codes or, in the
absence of local codes, with the current National Fuel Gas Code ANSI Z223.1/ NFPA 54 in the US, or the Natural Gas and Propane
Installation Code CSA B149.1 in Canada. Electrical connections and grounding must conform with local code, or current National
Electrical code ANSI/NFPA No. 70-1987 in the US, and in Canada the current Canadian Electrical Code CSA C22.1.
This appliance is certied for installation in a bedroom or a bed sitting room. Please refer to local codes for thermostat requirements.
We recommend that our gas hearth products be installed and serviced by professionals who are certied in the U.S. by the
National Fireplace Institute® (NFI) as NFI Gas Specialists.
3.3 Specications
Natural Gas (NG) Propane (LP)
Manifold Pressure 1.6 - 3.5 in. W.C. (0.4 - 0.9 kPa) 6.4 - 10.0 in. W.C. (1.6 - 2.5 kPa)
Min. Supply Pressure
Max Supply Pressure
5.0 in. W.C. (1.24 kPa)
14.0 in. W.C. (3.5 kPa)
11.0 in. W.C. (2.7 kPa)
14.0 in. W.C. (3.5 kPa)
Orice Size #44 DMS (2.18 mm dia) #54 DMS (1.397 mm dia)
Input Rating 15,000 - 22,000 BTU/hr (4.4- 6.45 kW) 15,000 - 22,000 BTU/hr (4.4 -6.45 kW)
P.4 Fireplace E󰀩ciency (FE) 67.21%
P.4 Steady State E󰀩ciency 70.01%
Electrical Rating 120 VAC, 60Hz less than 2 A.
Gas Control SIT 885 Proame II Dynamic Start Advantage with Continuous Pilot on Demand
Altitude 0 - 4,500 ft. (0 - 1372 M)
Primary Air Opening 1/4” (6.35 mm) OPEN 1/4” (6.35 mm) OPEN
3.4 High Altitude Installation
When installing this appliance beyond 4500 ft. (1372 M) above sea level, the appliance must be properly derated and installed
according to local codes, in the absence of local codes, with the current National Fuel Gas Code, ANSI Z223.1/ NFPA 54, in the US or
Installation Code, CAN/CGA-B149.1, in Canada.

6
General Information
4.0 Rating Plate
SAMPLE
MODEL: 22-DVIE22LN-1
DO NOT REMOVE THIS LABEL
LISTED VENTED GAS FIREPLACE HEATER and GAS-FIRED APPLIANCES FOR USE AT HIGH ALTITUDES. Tested to: ANSI
Z21.88-2017 / CSA 2.33-2017, CSA 2.17-2017, CSA P.4.1-15, and CSA 22.2 No.3-M1988 (R2014). This vented gas replace heater
is not for use with air lters. Certied for use in both CANADA and USA.
VENTED GAS FIREPLACE HEATER-NOT FOR USE WITH SOLID FUEL.
Manufactured as Natural Gas
NG LPG
Input rating 15,000 - 22,000 BTU/hr
(4.4 - 6.45 kW)
17,000 - 22,000 BTU/hr
(4.98 - 6.45 kW)
Manifold Pressure 1.6 - 3.5 in. W.C. (0.4 - 0.9 kPa) 6.4 - 10.0 in. W.C. (1.6 - 2.5 kPa)
Orice size #44 DMS (2.18 mm dia.) #54 DMS (1.397 mm dia.)
Supply pressure (Min - Max) 5.0 - 14.0 in. W.C.
(1.2 - 3.5 kPa)
11.0 - 14.0 in. W.C.
(2.7 - 3.5 kPa)
Burner Primary Air Setting 1/4” (6.35mm) Open 1/4” (6.35mm) Open
Altitude 0 - 4500 ft (0 - 1372 m) 0 - 4500 ft (0 - 1372 m)
Gas Control SIT 885 Proame II Dynamic Start with Continuous POD
Electrical rating 120 VAC, 60 Hz less than 2 A.
P.4.1 Fireplace E󰀩ciency (FE) 67.21%
Replacement fan Optional fan kit available
Keep burner and control compartment clean. See
Instructions accompanying the heater.
Optional fuel conversion kit : See Manual
Minimum opening Dimensions:
23.9”(60.7 cm)W x 17.98”(45.7 cm)H x 16.125”(40.96 cm)D
Minimum Chimney Flue Size:4” (100 mm) x 7” (176 mm)
Minimum clearances to Combustibles:
Sides from glass door frame: 7” (17.8 cm)
Mantle: max 8” (20.3 cm) at min 15” (38.1 mm)
from top of appliance door
See Manual for additional dimensions and clearances
This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI
Z223.1/NFPA 54, or Natural Gas and Propane Installation Codes, CSA B149.1. Electrical connections and grounding must
be in accordance with local codes, if any; if none, follow the current CAN/CSA C22.1 in Canada and ANSI/NFPA 70 in the
US. This appliance is certied for installation in a bedroom or a bed sitting room. This appliance is only for use with the gas
indicated on the rating plate and may be installed in an aftermarket, permanently located, manufactured (mobile) home where
not prohibited by local codes. See owner’s manual for details. This appliance is not convertible with other gases, unless a
certied kit is used.
WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Refer
to the owner’s information manual provided with this appliance. For assistance or additional information consult a
qualied installer, service agency, or the gas supplier. This appliance must be properly connected to a Direct Vent
venting system in accordance with the manufacturer’s installation instructions.
WARNING: Failure to install this appliance per the manufacturer’s instructions or failure to use only parts specically
approved with this appliance may result in property damage or personal injury.
WARNING: Do not operate the appliance until all sections have been assembled and installed in accordance with the
manufacturer’s instructions.
WARNING: Operation of this appliance when not connected to a properly installed and maintained venting system can result
in carbon monoxide (CO) poisoning and possible death.
ONLY DOORS CERTIFIED WITH THE APPLIANCE SHALL BE USED.
For use only with barrier part # 22-BS. Follow installation instructions.
Made in Canada by:
Archgard Industries Ltd.
7116 Beatty Dr., Mission, B.C.
July 2019 303-0154-01
MANUFACTURE DATE: 2019 2020 2021 JAN FEB MAR APR MAY JUN JUL AUG SEP OCT NOV DEC

7
Installation
5.0 Installation Checklist
This standard installation checklist is to be used by the installer in conjunction with, not instead of, the instructions contained
within this installation manual.
Customer: Date Installed:
Install Address: Location of Fireplace:
Installer:
Solid Fuel Zero Clearance Install: (Section 9.2) YES NO IF NO, WHY NOT?
Was the bottom of the existing zero clearance rebox removed?
Was a 0.15" (3.8 mm) minimum clearance maintained as shown in
Figure 9.2.02?
Venting: (Section 13.0) YES NO IF NO, WHY NOT?
Venting conguration complies with vent diagrams.
Venting installed, fastened, and secured in place maintaining proper
clearances.
Secured or removed existing solid fuel replace damper.
Terminations installed and sealed in compliance with local building
code.
Direct vent termination is highest point in vent assembly.
Wiring / Electrical: (Section 7.0) YES NO IF NO, WHY NOT?
Connected to household 110/120v per local codes.
Unit is properly grounded.
Gas: (Section 11.0) YES NO IF NO, WHY NOT?
Proper appliance for fuel type?
Was a conversion performed?
Leak check performed & inlet and manifold pressures veried?
Was the rating of the insert clocked?
Finishing: YES NO IF NO, WHY NOT?
Only noncombustible material installed in noncombustible areas.
Clearances meet installation manual requirements.
Mantels and/or projections comply with install manual.
Was the solid fuel replace warning plate installed (Figure 9.0.02)?
Appliance Setup: YES NO IF NO, WHY NOT?
Log set, door, and screen installed according to install manual.
Manual given to home owner.
Did you check operation of the fan (if installed) and ame modulation?
Does the main burner light within 4 seconds of main gas valve
opening (see Section 20.1)?
Door buckles operate freely?

8
Installation

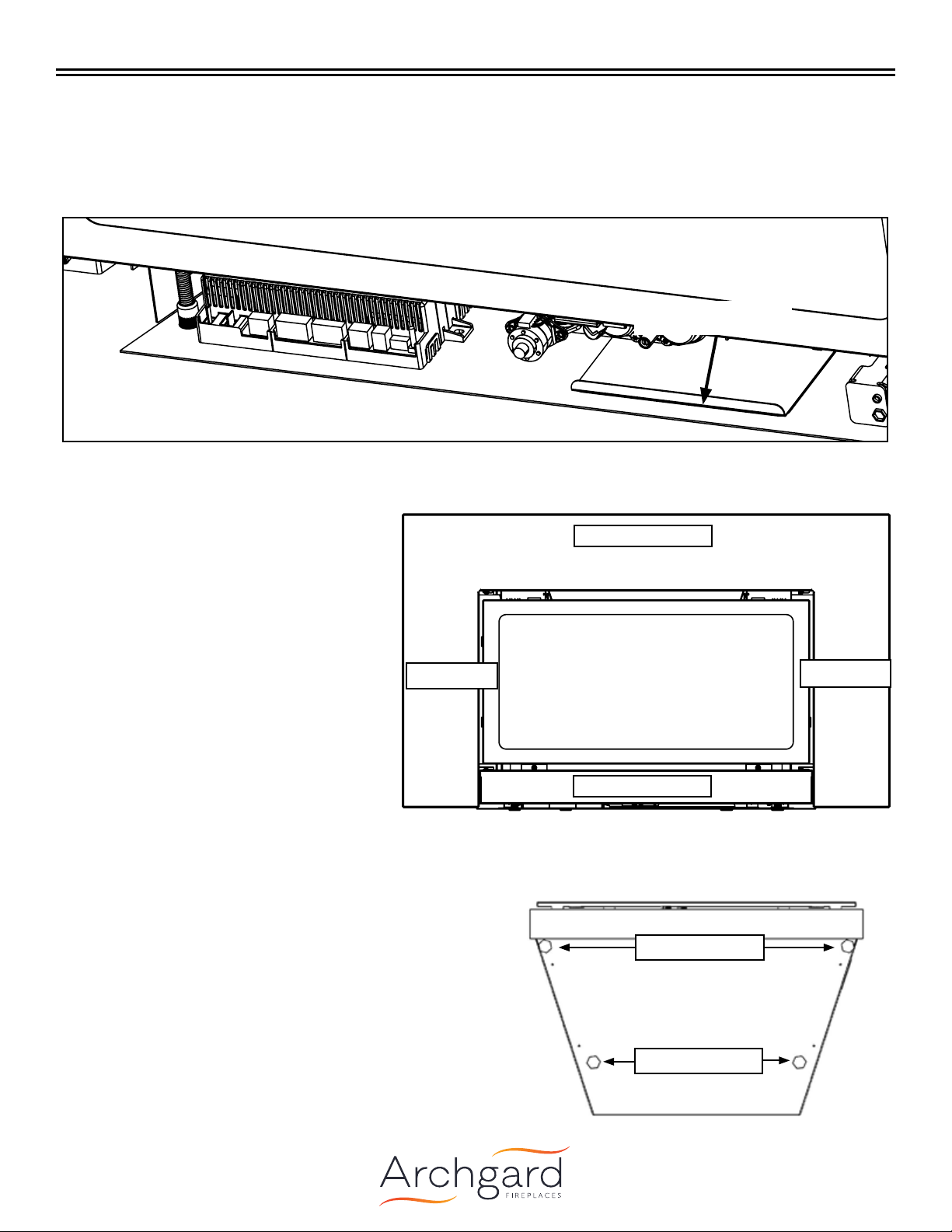

6.0 Appliance Overview
6.1 Rating Plate Location
Figure 6.1.01:
6.2 Appliance Overview
The valve and control module are located
underneath the replace. They can be accessed
by ipping down the control access cover on the
replace surround.
The optional fan is located on the inside of the rear
replace shell and can only be accessed from the
rear of the replace.
Note: This manual may use images of an unpainted
replace for the purposes of illustration.
*Left and right side references in this manual
correspond with the sides identied in Figure
6.2.01.
6.3 Leveling the Appliance
The 22-DVIE22LN-1 is equipped with front and rear leveling bolts.
The replace has the ability to independently level left/right and
front/back.
Leveling is done from the bottom of the unit
Figure 6.2.01:
Figure 6.3.01:
The rating plate is located under the rebox, behind the control access cover. See Section 6.4 for information on accessing the
controls.
Front Bolts
Rear Bolts
Surround
Left Side Right Side
Control Access Cover
Rating Plate Location

9
Installation
6.4 Accessing the Controls
The controls for the 22-DVIE22LN-1 are located underneath the
replace and are accessed by ipping down the control access
cover shown in Figure 6.4.01.
Figure 6.4.01:
6.5 Identifying the Controls

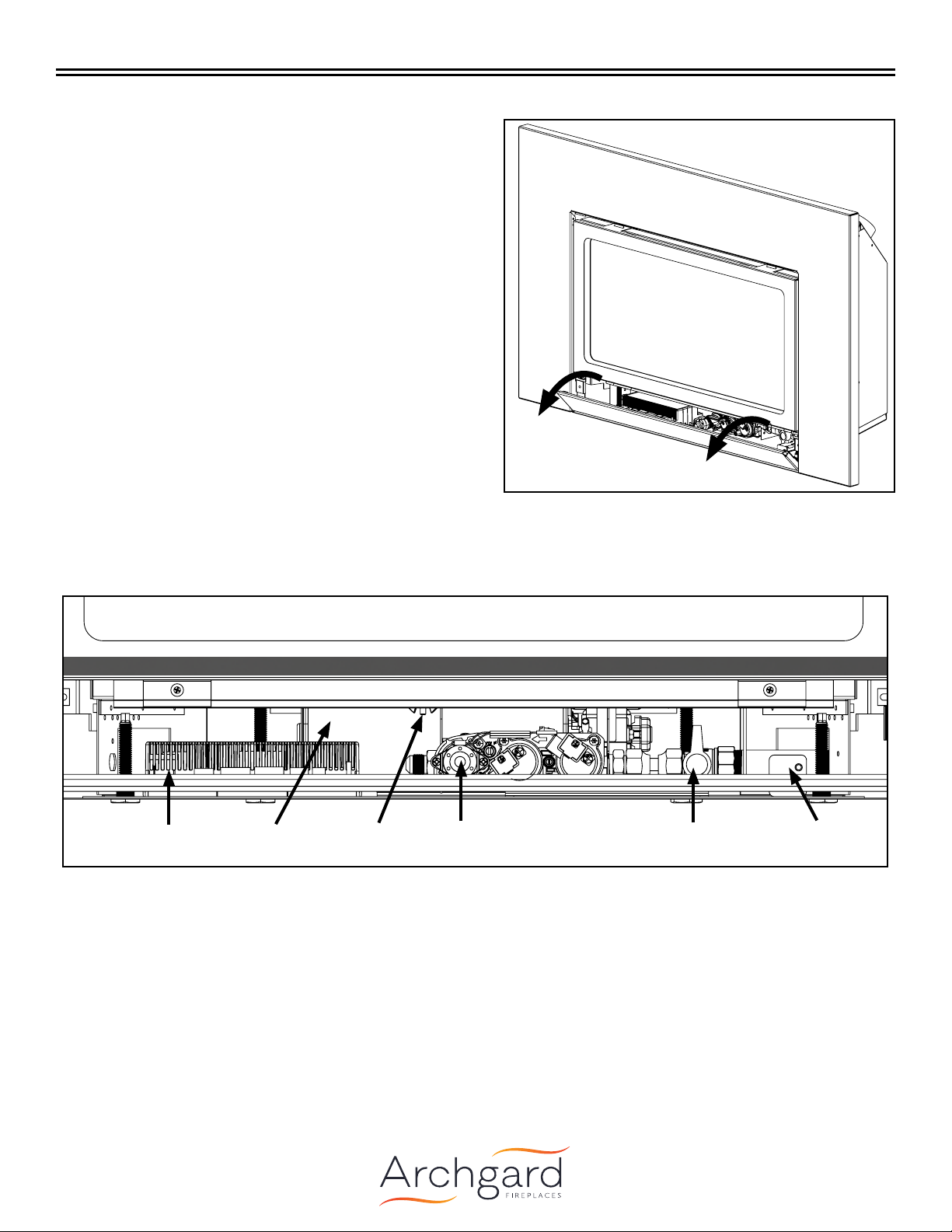

See Figure 6.5.01 for Identication of the controls. See Operation Section 19.0 for operation instructions.
Figure 6.5.01
Gas Shut-o󰀨
Valve
Valve
7.0 Electrical Connections
The 22-DVIE22LN-1 comes complete with a variable ame burner wired directly to the main control module. An optional adjustable
6 speed fan is available from your local authorized Archgard dealer. When installed, the optional fan must be wired by a qualied
technician to the main control module and operated by the remote control included with this replace insert.
Do not cut or remove the grounding prong from the main power supply plug.
CAUTION: Label all wires prior to disconnection when servicing.
NOTE: This appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes,
with the National Electrical Code, ANSI / NFPA 70, or the Canadian Electrical code, CSA C22.1.
Control Board Air Shutter
Adjuster
Optional
Fan
Backup
Batteries

10
Installation
8.0 Appliance Dimensions
23.000in
10.518in
25.485in
12.765in
25.291in
17.976in
16.885in
1.133in
3.000in
13.485in
12.995in
15.885in 16.885in
22.923in
23.000in
10.518in
25.485in
12.765in
25.291in
17.976in
16.885in
1.133in
3.000in
13.485in
12.995in
15.885in 16.885in
22.923in
23.000in
10.518in
25.485in
12.765in
25.291in
17.976in
16.885in
1.133in
3.000in
13.485in
12.995in
15.885in 16.885in
22.923in
Top View
Front View
Side View

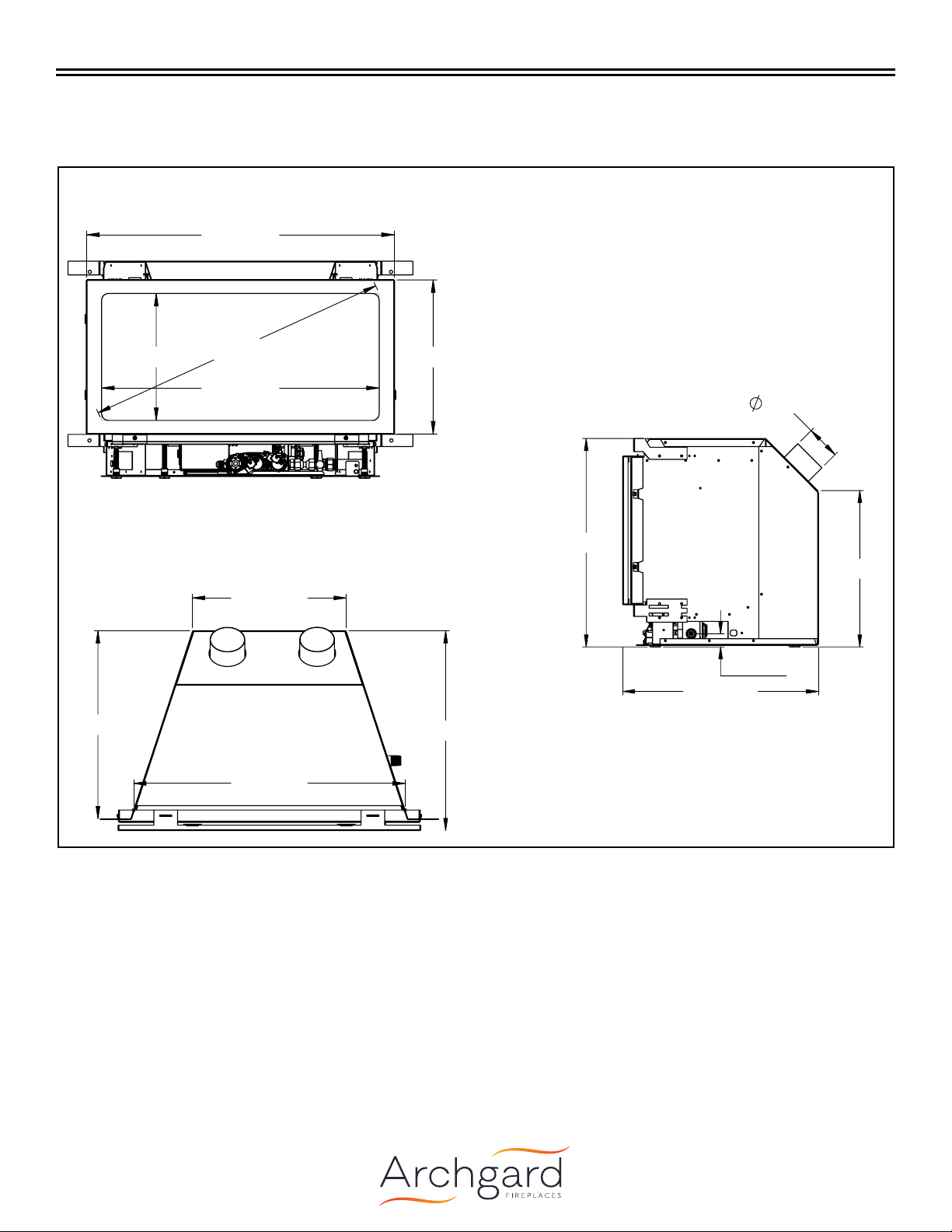

Figure 8.0.01:

11
Installation
9.0 Minimum Opening Dimensions
The installer must mechanically attach the marking supplied with the gas replace insert to the inside of the rebox of the replace into
which the gas replace insert is installed. See Figure 9.0.02.
Cutting of any sheet-metal parts of the replace, in which the gas replace insert is to be installed, is prohibited except as described in
Section 9.2.
The replace and replace chimney must be clean and in good working order and constructed of noncombustible materials. The
chimney clean-outs must t properly.
WARNING: This replace has been converted for use with a gas replace insert only and cannot be used
for burning wood or solid fuels, unless all original parts have been replaced, and the replace
reapproved by the authority having jurisdiction.
AVERTISSEMENT: Ce foyer a ete converti pour utilisation avec un foyer au gaz encastrable et ne peut etre utiliser
pour bruler du bois ou autres combustibles solides a moins que toutes les pieces d'origine ete
remplacees et que le foyer ait ete approuve de nouveau par l'autorite competente.
303-0123
Figure 9.0.02:
Figure 9.0.01:
WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specically approved with this
appliance may result in property damage or personal injury.
The following opening dimensions show the absolute minimum opening size allowable for the 22-DVIE22LN-1. This appliance may be
congured to accommodate a variety of openings and aesthetic preferences.
Depending on the conguration of the surround, the minimum opening dimensions may change. Refer to Section 9.1 for installation
options.
SIDE VIEW
TOP VIEW
Min ue size required 4" (10.2 cm) x 7" (17.8 cm) unless
reducer kit 22-LKF2 is used*. See Section 13.3.

12
Installation
9.1 Surround Conguration Options
The surround may be adjusted to accommodate a variety of openings and aesthetic preferences.
The following table indicates opening dimensions required for each possible position of the surround. The dimensions indicated in the
images below correspond with the locations shown in Figure 9.0.01.
Position 1 Position 2 Position 3
A
B
C
A
B
C
A
B
C
Minimum Depth
Door Flush Screen Flush
A
B
C
A
B
C
A
B
C
Minimum Depth
Door Flush Screen Flush
A
B
C
A
B
C
A
B
C
Minimum Depth
Door Flush Screen Flush
E
F
D
G
E
F
D
G
E
F
D
G
Minimum Depth
Screen Flush Door Flush
E
F
D
G
E
F
D
G
E
F
D
G
Minimum Depth
Screen Flush Door Flush
E
F
D
G
E
F
D
G
E
F
D
G
Minimum Depth
Screen Flush Door Flush
Minimum Depth:
The screen and door both extend
outside of the surround.
Door Flush:
The screen extends outside of the
surround but the face of the door does
not.
Screen Flush:
The face of screen is ush with the
surround.
A18.0" (45.72 cm) 18.0" (45.72 cm) 18.0" (45.72 cm)
B12.94" (32.87 cm) 13.41" (34.06 cm) 14.10" (35.81 cm)
C3.76" (9.55 cm) 4.22" (10.72 cm) 4.91" (12.47 cm)
D14.17" (35.99 cm) 12.48" (31.70 cm) 12.48" (31.70 cm)
E16.13" (40.97 cm) 16.62" (42.21 cm) 17.31" (43.97 cm)
F23.91" (60.73 cm) 25.92" (65.83 cm) 26.48" (67.26 cm)
G106.75⁰112⁰112⁰
Figure 9.1.01:
Caution: if installing at minimum depth, the rigid black pipe included with this replace may impact with the side of some masonry
openings. If so, replace the black pipe provided with a exible gas line. Follow all local codes.

13
Installation
Position 1 Position 2 Position 3
Upper Surround BracketLower Surround Bracket
Minimum Depth:
The screen and door both extend
outside of the surround.
Door Flush:
The screen extends outside of the
surround but the door does not.
Screen Flush:
The face of screen is ush with the
surround.
Remove the two 1/4" tek screws holding
the brackets in place.
Move the bracket toward the rear of the
replace by two holes and reinsert the
tek screws.
Remove the two 1/4" tek screws holding
the brackets in place.
Move the bracket toward the rear of the
replace by one hole and reinsert the tek
screws.
Default position. The replace is shipped
in this conguration.
Two holes can be seen beyond the end
of each bracket.
Adjusting the Surround
To change the position of the surround brackets, remove the Tek screws securing each bracket, move the bracket to the desired
location and reinsert the screws.
Figure 9.1.02:

14
Installation
9.2 Factory Built Fireplaces
The following information applies to Factory Built (metal) Wood-Burning Fireplace installations:
Trim panels must not seal ventilation openings in the replace. Any parts that are removed must be saved and reinstalled if the insert
is ever removed. If the factory-built replace has no gas access hole(s) provided, an access hole of 1 1/2” (38.1 mm) or less may be
drilled through the lower sides or bottom of the rebox in a proper workmanship-like manner. This access hole must be plugged with
noncombustible insulation after the gas supply line has been installed.
The damper (A) and grate with logset (B) must be removed or fully blocked open.
The smoke shelf (C), internal ba󰀪es (D), screen ( E), masonry lining or refractory (G and I), and metal or glass doors (F) may be
removed.
The replace must be permanently marked to indicate that it has been altered and is no longer suitable for burning any fuel unless the
removed parts are reinstalled (See Figure 9.0.02). Cutting out of any metal parts is prohibited, except the metal oor (J) as specied.
The insulation (H), and any structured rigid frame member must not be removed or altered (side and top of door frame, side and top of
the face of replace, metal sides, etc.).
The metal oor of the rebox may be removed only if the following is strictly adhered to.
The metal oor (J) may be removed to allow additional room for installation of the insert as long as it does not compromise the
structural integrity of the existing replace. If the oor is removed the insert must be placed directly on the metal base of the metal
replace. Under no circumstance can it be placed directly on a combustible material.
A
C
D
G
I
F
H
J
E
B

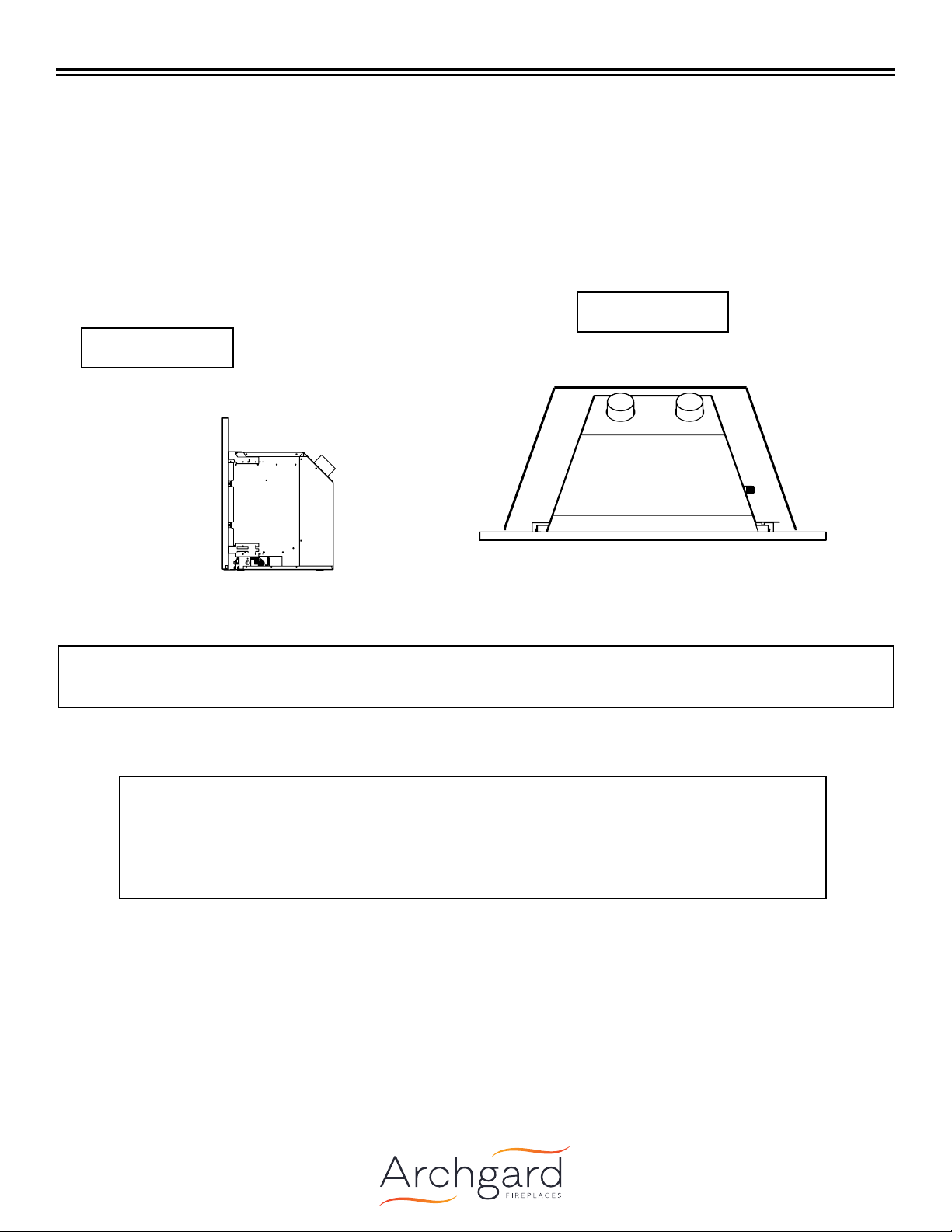

Figure 9.2.01: Side view of Factory Built (metal) Wood Burning
Fireplace.
Figure 9.2.02: Removing the Metal Floor
REMOVE THIS
SECTION OF
METAL FLOOR
REMOVE THIS
SECTION OF
METAL FLOOR
REMOVE THIS
SECTION OF
METAL FLOOR
Factory built
replace shell Factory built
replace
rebox
Remove this
section of
rebox oor
0" Minimum
Clearance

15
Installation
9.3 Refacing a Masonry Fireplace
Using Steel Studs and Cement Board on Wood Fireplaces
Brick or rock facing may be removed and replaced with noncombustible material such as steel studs and cement board.
WARNING: Only facing material may be removed. All other masonry material must not be cut out, chipped away, or removed.
WARNING: Louvers or any air circulation around existing solid fuel replace must not be blocked or covered.
The area between the masonry and the cement board must be sealed so that no heat can enter the open space between the masonry
of the wood replace and the refacing material. The insert must be moved outward so that the face of the replace is ush with
the nishing material.
Using Steel Studs and Cement Board on Wood Fireplaces
Brick / rock facing may be removed and replaced with non-combustible materials like steel studs and
cement board. Only the facing material can be removed. All other masonry material must not be cut out,
chipped away or removed. The area between the masonry and the cement board, must be sealed so that no
heat can enter the open space between the masonry of the wood fireplace and the re-facing material.
The insert must be pulled out so the face of the fireplace will be flush with the finishing materials.
Steel Studs
Original “Zero Clearance”
Wood Burning / Masonry
fireplace
Sealant to be used to avoid heat from
entering enclosure
Sealant
Note: all areas of the wood burning
firebox must be sealed to avoid heat
entering any cavities.
Use Cement Board on front and around
Steel Stud enclosure and where needed to
ensure no heat enters any cavities.
Figure 9.3.01:
Original Wood Burning
Masonry Fireplace

16
Installation
10.0 Clearances to Combustibles
CAUTION: This appliance is designed for use in any masonry or factory-built, wood-burning replace. It cannot be enclosed by
combustible material and used as a factory built gas replace (zero clearance replace).

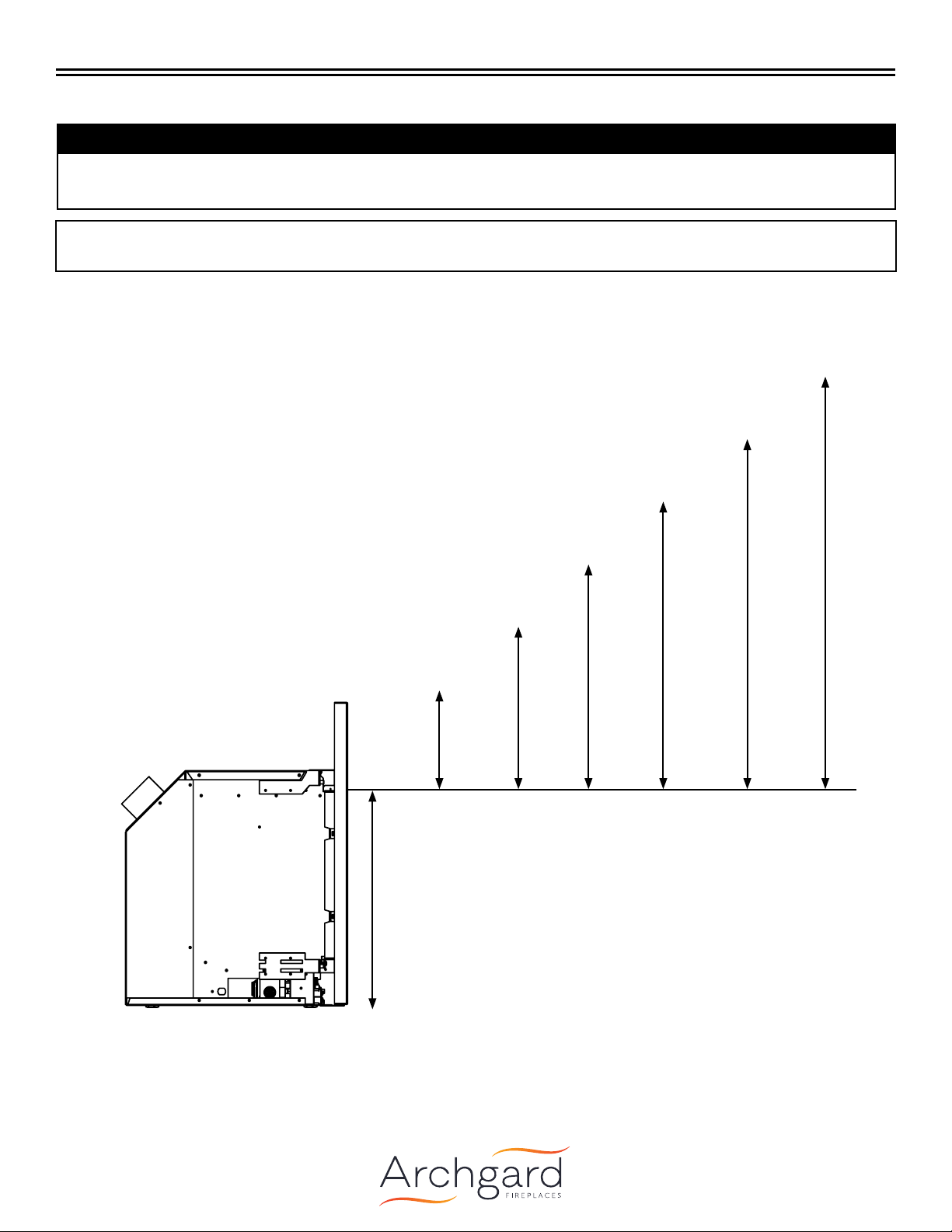

Figure 10.1.01
10.1 Mantel Clearances
Mantel clearances are measured from
the top of the appliance door. Ensure
combustible material is not placed
within the area shown.
9"
(22.9 cm)
11"
(27.9 cm)
13"
(33 cm)
15"
(38.1 cm)
17"
(43.2 cm)
19"
(50.8 cm)
18"
(45.72 cm)
WARNING
Failure to position the parts in accordance with these diagrams or failure to use only parts specically approved with this appliance
may result in property damage or personal injury.

17
Installation
10.2 Sidewall Clearances
Figure 10.2.01
Maintain a minimum of 7" (17.8 cm) clearance
from the side of the door to sidewalls or mantel
supports.
10.3 Hearth Clearances
Figure 10.3.01
Non Combustible
Zone
16”
Non Combustible
Zone
16”
31 3/4”
Combustible
Material
Any hearth that extends outward in front of the insert may have any
combustible material up to the bottom of the gas replace insert.
7"
(17.8 cm)
7"
(17.8 cm)

18
Installation
11.0 Gas Connections
Before connecting the appliance to the gas supply line, double check that the appliance you have purchased is designed for the
gas type you are using. The gas type markings are located on the rating plate (See Section 4.0 and Section 6.1) and also on the
appliance’s gas valve.
Adequate clearance for proper installation and checking of the gas connections must be provided. All gas connections must be
checked for gas leaks.
Have your gas supplier or a qualied gas tter run a gas supply line into the solid fuel replace. The line must be properly sized and
tted according to the installation codes. Immediately upstream of the supply connection, the tter shall provide an accessible manual
shut-o󰀨 valve. When connecting the supply line to the gas valve, the installer shall brace the gas valve to ensure that the gas valve is
not moved from its bracket. If the valve is not braced when the supply line is connected, the valve may be moved and cause a “break”
in the main burner supply line. Such damage is not covered by the manufacturer’s warranty.
CAUTION: The appliance and its individual shut-o󰀨 valve must be disconnected from the gas supply piping system during any
pressure-testing of that system at test pressures in excess of 1/2 psig (3.5 kPa). The appliance must be isolated from the gas supply
piping system by closing its individual manual shut-o󰀨 valve during any pressure-testing of the gas supply piping system at test
pressures equal to or less than 1/2 psig (3.5 kPa). Failure to do so will damage the appliance’s gas valve. Such damage is not covered
by the manufacturer’s warranty.
Natural Gas Pressure Settings:
The inlet supply or line pressure must be a minimum of 5.0” W.C. (1.2 kPa) and a maximum of 14.0" W.C. (3.5 kPa). The orice is a
#44 DMS (2.18 mm) drill size.
ELEVATION INPUT RATING
0-4500 ft (0-1372 M) 15000 - 22,000 BTU/hr (4.4 - 6.45 kW)
4500 ft (1372 M) and above. 15000 - 22,000 BTU/hr (4.4 - 6.45 kW) less 4% per 1000 ft. (305 M) above sea level.
Please contact your local distributor for the appropriate orice size you require.
Propane Pressure Settings:
The inlet supply or line pressure must be a minimum of 12.0” W.C. (2.98 kPa) and a maximum of 14” W.C. (3.5 kPa). The orice is a
#54 DMS (1.397 mm) drill size.
ELEVATION INPUT RATING
0-4500 ft. (0-1372 M) 15000 - 22,000 BTU/hr (4.4 - 6.45 kW)
4500 ft. (1372 M) and above. 15000 - 22,000 BTU/hr (4.4 - 6.45 kW) less 4% per 1000 ft. (305 M) above sea level.
Please contact your local distributor for the appropriate orice size you require.
11.1 Clocking Procedure
IMPORTANT: THE INPUT RATING SHOULD ALWAYS BE CHECKED WHEN FIRST FIRING THIS APPLIANCE.
Before you begin, shut o󰀨 all other gas appliances including any standing pilots. Light the replace and wait 15 minutes. Clock the
time to burn 1ft³ of gas on the meter. Check with your gas supplier for the gas BTU content at your elevation. Input is the rate of ow
multiplied by the heating value of the gas (cubic feet/hour x BTU per cubic feet). Note: This assumes a dry gas meter at 1/2 psi. If using
a 2 psi dry gas meter the unit will rate lower as the calculation has to correct for the higher pressure in the meter. If the unit is over-
rated, contact your authorized Archgard dealer. The following calculation equation gives a rough estimation as it does not correct for
temperature and pressure.
Rough Calculation Equation:
1 / Time to burn 1ft³ of gas in seconds / 3600 x gas caloric value in BTU/ft³ = Rating

19
Installation
12.0 Conversion Kit Instructions
IMPORTANT: This replace is Natural gas ready. If converting to LP gas, follow instructions below.
WARNING: This conversion kit shall be installed by a qualied service agency in accordance with the manufacturers instructions
and all applicable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed
exactly, a re, explosion or productions of carbon monoxide may result, causing property damage, personal injury or loss of life. The
qualied service agency is responsible for proper installation of this kit. The installation is not proper and complete until operation
of the converted appliance is checked as specied in the instructions supplied with the kit. Refer to appliance owner’s manual or
product data plate for proper inlet and manifold pressure adjustments and orice sizing.
IMPORTANT: For high altitude installations above 4500 ft (1372 meters), consult local gas distributor or the authority having
jurisdiction for proper derating methods.
KIT NUMBERS: 22-CKELP for LP gas and 22-CKENG for Natural Gas
KIT INCLUDES:
• Gas conversion label (303-0128)
• Burner orice (part number 301-6000-54, #54 DMS [1.397 mm] for LPG) (part number 301-6000-44, #44 DMS [2.18 mm] for NG)
• Instruction Sheet
• SIT 885 Valve conversion kit c/w instructions & gas type label
WARNING: SHUT OFF GAS SUPPLY AND ELECTRICAL POWER TO FIREPLACE
SHUT OFF GAS SUPPLY BEFORE DISCONNECTING ELECTRICAL POWER
12.1 Prepare the Fireplace
Remove the surround, barrier screen, glass frame assembly, logs or glass media, embers and brick panels or rebox liner (if
applicable)*.
Remove the burner*.
*See relevant sections in this manual.
Remove the burner orice using a 3/8” wrench. Replace with the orice supplied with the
conversion kit. Use a small amount of pipe sealant on the threads of the orice mount. Do not
use too much as it can block the orice.
Figure 12.1.01:
WARNING: Installation should be carried out in a clean environment.
WARNING: This modulating conversion kit must ONLY be applied as part of a conversion kit supplied by the APPLIANCE
MANUFACTURER.
WARNING: Correct operation of the system cannot be guaranteed if the conversion kit or valve has been dropped or has
sustained a strong impact.
INSTALLER NOTICE: These instructions must be left with appliance.
12.2 Pilot Conversion
Using a 7/16” wrench and loosen the pilot hood 1/4 turn.
Slide the tab at the bottom of the orice hood all the way
so the red side (propane) with the hole in it is showing.
Tighten the pilot hood back up so that it is lined up with
the two probes on both sides of the pilot assembly.
Figure 12.2.01:

20
Installation
12.4 Complete the Conversion
• Reinstall the burner, brick liners or rebox liner, logs, embers, and door*
• Turn on the gas and electrical supplies
• Turn on the replace so the burner is on
• Check for leaks at all connections
Test inlet and outlet pressure (See Section 11.0). Visually check pilot ame. Flame should envelope top of the ame sensor and
extend forward onto the burner. To adjust pilot turn the pilot adjustment screw on the control valve clockwise to decrease or counter
clockwise to increase pilot ame. Clock the rating as shown in Section 11.1. Adjust the primary air according to specications in this
manual or as found on the rating plate.
• Turn replace o󰀨
• A󰀩x gas type label to the rating plate label (See Section 6.1 for rating plate location)
• Complete the conversion label and a󰀩x to valve assembly plate
• Reinstall the barrier screen and surround*
12.3 Convert the Gas Valve
WARNING: Installation of this conversion kit must only be undertaken by a
qualied and certied gas appliance installer.
Verify that the following items are present in the package:
• Pressure regulator assembly (E)
• Two (2) screws (F)
• Identication label (G)
• Installation instructions (this document)
1. Shut o󰀨 the gas supply to the valve and shut down the electric supply.
2. See Figure 12.3.01. Using a Torx T20, or slotted screwdriver, remove
and discard the two (2) pressure regulator mounting screws (A), pressure
regulator tower (B), and the spring and diaphragm assembly (C), (If
applicable).
3. Ensure the rubber gasket (D), which is pretted as part of assembly (E),
is properly positioned, see Figure 12.3.02, otherwise t the gasket as
shown Figure 12.3.02.
4. Install the new STEPPER MOTOR pressure regulator assembly, as
shown in Figure 12.3.03 and Figure 12.3.04. Use the supplied screws
(F), M4 x 0.7 threaded, length of thread L=( 16 mm + 0 - 0.5 mm ), steel
material, resistance class 8.8 (see Figure 12.3.05).
5. Manually thread the two conversion kit mounting screws into the valve
body. Use a standard screwdriver or T20 Torx bit and tighten to the
screws with a xing torque of 25lb-in ± 5%.
IN THE EVENT THAT THE THREADS OF THE VALVE ARE STRIPPED
OR DAMAGED, REPLACE THE VALVE.
6. Install the enclosed identication label (G) to the valve body where it can
be easily seen.
7. Make STEPPER MOTOR and valve electrical connections, apply gas to
system and relight appliance according to manufacturers instructions.
8. With the main burner "ON", test the new pressure regulator assembly for
leaks using a soap solution.
9. Relight the main burner and verify proper burner ignition and operation.
WARNING: Installation should be carried out in a clean environment.
WARNING: This modulating conversion kit must ONLY be applied as part of a conversion kit supplied by the APPLIANCE
MANUFACTURER.
WARNING: Correct operation of the system cannot be guaranteed if the conversion kit or valve has been dropped or has
sustained a strong impact.
INSTALLER NOTICE: These instructions must be left with appliance.
Figure 12.3.01:Figure 12.3.05:
Figure 12.3.03:
Figure 12.3.02:
Figure 12.3.04:
*See relevant sections in this manual.
