Archgard 72-DVTE30P-2-ERG User manual

200-1917-13
September 18, 2023
Archgard Fireplace Products
7116 Beatty Dr
Mission, BC V2V 6B4
Canada

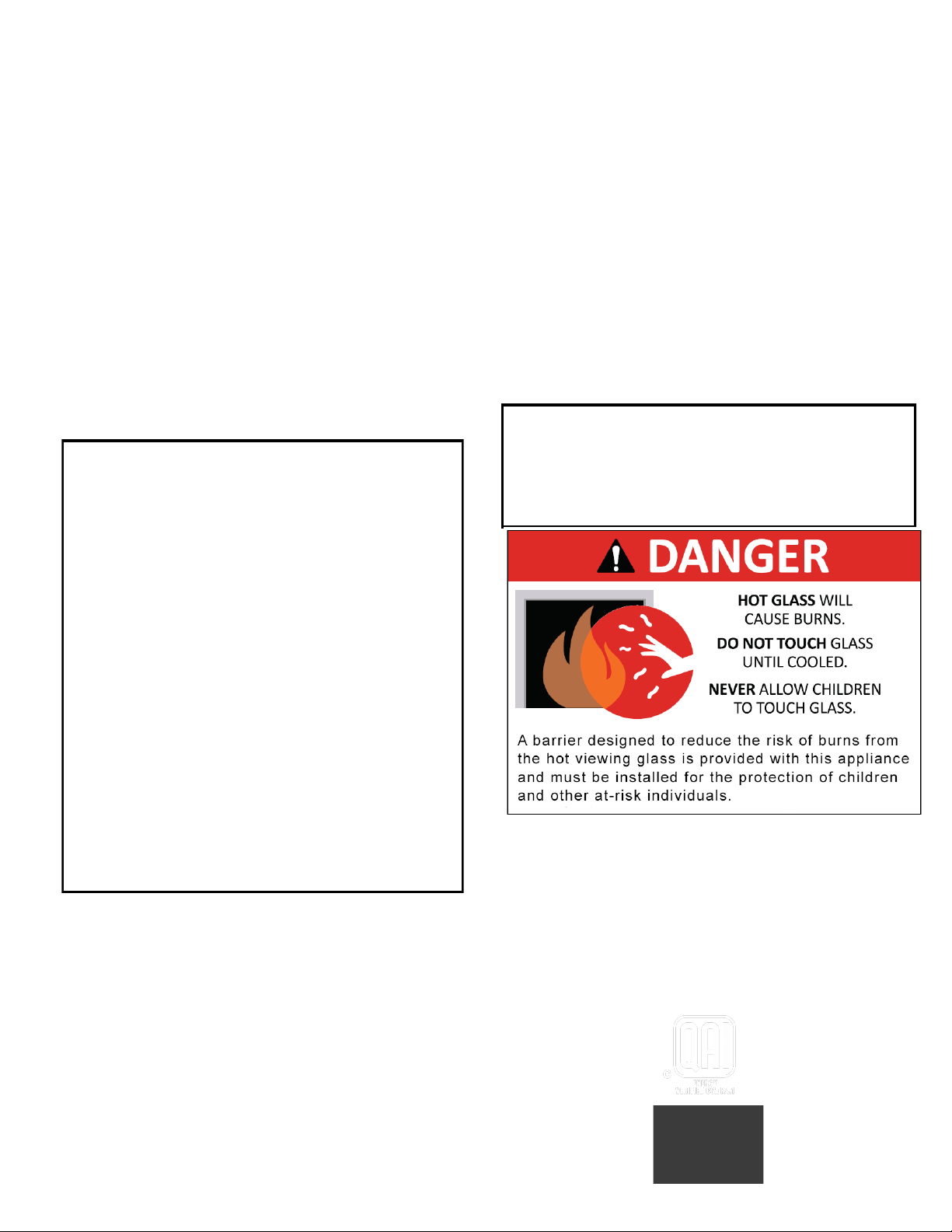

WARNING: If the information in this manual is
not followed exactly, fire or explosion may result
causing property damage, personal injury or loss
of life.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
WHAT TO DO IF YOU SMELL GAS:
 Do not try to light any appliance.
 Do not touch any electrical switch; do not use
any phone in your building.
 Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
 If you cannot reach your gas supplier, call the
fire department.
Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
INSTALLER:
LEAVE THIS MANUAL WITH THE
APPLIANCE.
CONSUMER:
RETAIN THIS MANUAL FOR FUTURE
REFERENCE.
For use with natural gas or propane
(Conversion kit required to change fuel)
Gas Fireplace Efficiency Rating
68.45%
Based on CSA P.4.1-15
INSTALLATION, OPERATION,
AND MAINTENANCE MANUAL
This appliance may be installed in an aftermarket
permanently located, manufactured home (USA only) or
mobile home where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the
rating plate. This appliance is not convertible for use with other
gases, unless a certified kit is used.
Optima 72
Direct Vent Fireplace Heater
Serial Numbers 700714 and higher
72-DVTE30P-2Models:
72-DVTE30N-2
72-DVTE30P-2-ERG
72-DVTE30N-2-ERG

72-DVTE30-2
2
TABLE OF CONTENTS
Caution and Safety Instructions 6
Appliance Certification, Installation Codes and Specifications, High Altitude Installation 7
Gas Connections 8

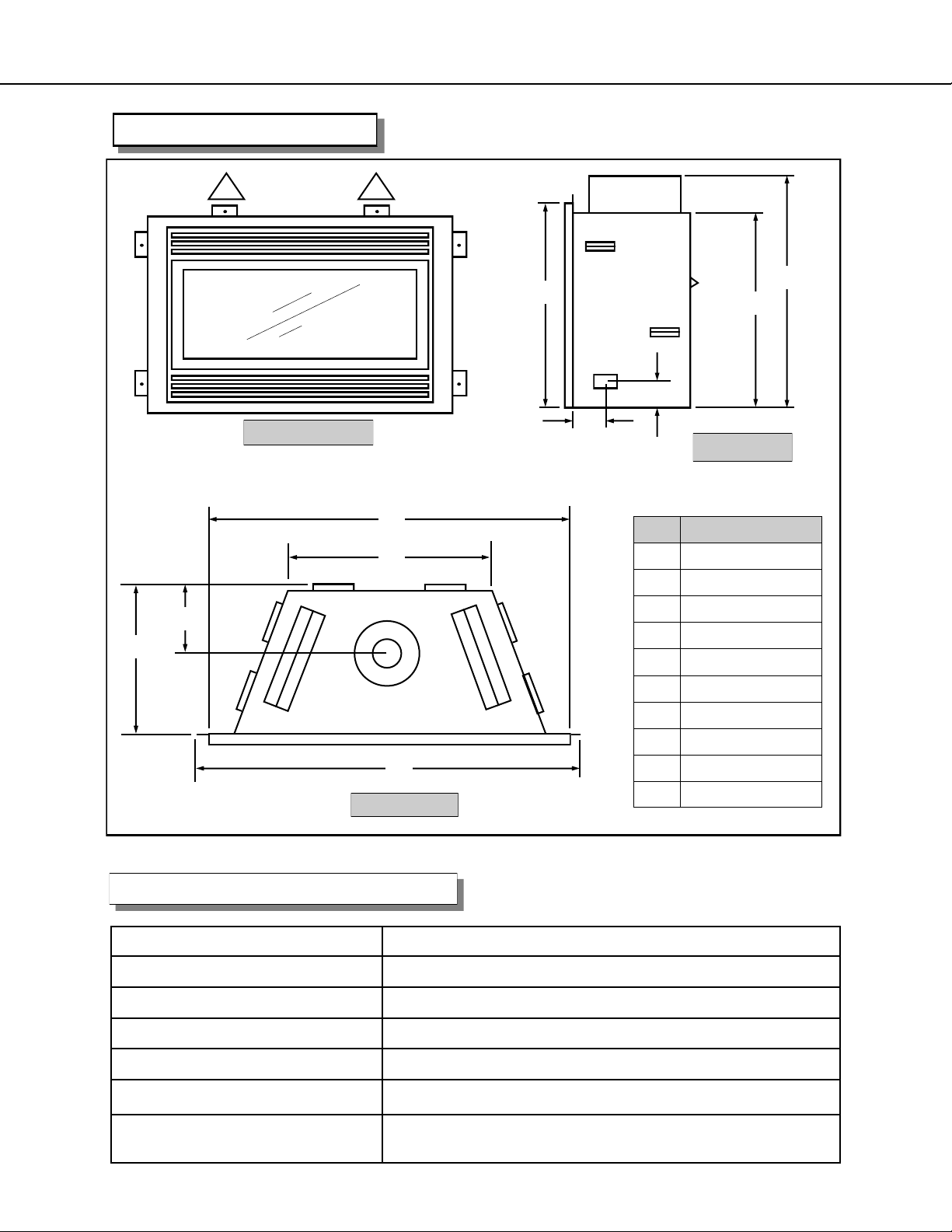

Appliance Dimensions and Clearance to Combustibles 9
Mantle Clearances 10
Framing Dimensions, Termination 11
Locating Gas Fireplace and Vent Termination Locations 12
Allowable Termination Locations 13
Approved Vent Components and Venting Connection 14
Venting 14-24
Electrical Connections (Fan System) and Wiring Diagram 25
Log Placement (Fiber Log Set) 26-30
Brick panel set installation 31-33
Eternal Flame Reflective Ceramic Glass panel set installation 34-35
First Fire and Lighting Instructions (CAUTION) 36
Final Installation Check and Initial Operation 37
Lighting Instructions on Rating Plate 38
Glass Door Removal and If your Glass Breaks 39
Louver (grill) instructions 40
Safety Barrier Installation 41
Eclipse Front 42-43
Dynamic Start Advantage 44
Remote Control Set-up and Operation 45-50
Maintenance and Cleaning the Appliance 51
Servicing Under Warranty & Adjusting Primary Air Shutter 52
Adjusting Primary Air Shutter (Continued) Changing Main Burner Orifice 53
Checking Inlet/Outlet gas pressures, Adjusting Pilot and Convertible Pilot Orifice 54
Replacing Convection Blower (Fan) 55
Valve Tray Assembly and Parts List 56
Log and Pan Burner Parts List 57
Replacement Parts List 58-59
Warranty 60
Frequently Asked Questions 61
Warranty Registration 62

72-DVTE30-2
3
INTRODUCTION
Congratulations on choosing an Archgard fireplace!
The Optima 72-DVTE30-2 is one of the most advanced direct vent fireplace heaters available. It is solidly designed using
the latest technology and manufactured to the highest quality. It is our aim to provide you with an appliance for many
trouble-free years of reliable service.
The following are just some of the many features of your new gas fireplace:
Please read the manual carefully prior to installation and operation of the appliance. Proper installation,
operation and maintenance of the appliance will provide you with many years of enjoyment.
Please complete and submit the warranty registration card included in the back of this manual
or by visiting us at:
www.archgard.com/warranty-registration
• Heater Classification The 72-DVTE30-2 is classified as a heating appliance. In conjunction with an op-
tional thermostat, the Optima 72 can be operated continuously for zone heating.
• High Efficiency The 72-DVTE30-2 has one of the highest efficiencies of any fireplace, which
means that it is less expensive to operate.
• Adjustable Fan Speed Heat circulation fan is fully adjustable. The fan can be adjusted through 6 speeds
to suit your comfort level.
• Adjustable Flame The flame aesthetics and heat output can be adjusted to suit your heating needs.
• Solid Construction The 72-DVTE30-2 is constructed mainly of 14 and 18 gauge galvanized and alu-
minized steel for long life and durability.
• Electronic Control System This fireplace comes standard with the Dynamic Start Advantage. This new elec-
tronic ignition system is the latest in fireplace technology. It helps to create a better
draft, better flame appearance, less condensation on the glass, and years of care-
free operation. See Page 40 for complete explanation of how the system works.
• Multiple Electronic Pilot Settings This fireplace uses a gas control valve that is operated by a Multifunction Remote
Control. It can be set up as either an Intermittent Pilot Ignition (IPI) system, or Con-
tinuous Pilot on Demand Ignition (CPI) system (also known as a Pilot on Demand
(POD)).
Model Number Definition
(72-DVTE30P-2 / 72-DVTE30N-2) (-ERG)
72 Number assigned to identify the fireplace
DV Direct Vent
TTop Vent
EElectronic Ignition
30 Natural Gas Input Rating in BTU
N or P Natural Gas or Propane
-2Revision Number
-ERG Includes Eclipse faceplate and Eternal
Flame reflective ceramic glass panel set
CPI vs IPI:
Continuous Pilot on Demand Ignition (CPI): In this mode the
pilot runs continuously even when the main burner is off. The
Continuous Pilot on Demand Ignition operates on a seven day
cycle. If the main burner is not turned on for seven continuous
days, the pilot will turn itself off. When the main burner is lit
again the cycle repeats. The pilot will remain lit for seven days,
even after the main burner is turned off. If the main burner is lit
during a seven day timing cycle, the seven day timer will reset.
Intermittent Pilot Ignition (IPI): A fuel saving mode in which the
pilot is only used when the main burner is on. This appliance is
shipped in IPI mode. IPI mode is often the preferred method,
however, there are some situations where it may be preferable
to switch the fireplace into CPI mode. For example, in colder
climates the glass door or the front of the fireplace could become
very cold to the touch. Dynamic Start Advantage will solve most
problems experienced by older IPI operated fireplaces.

72-DVTE30-2
4

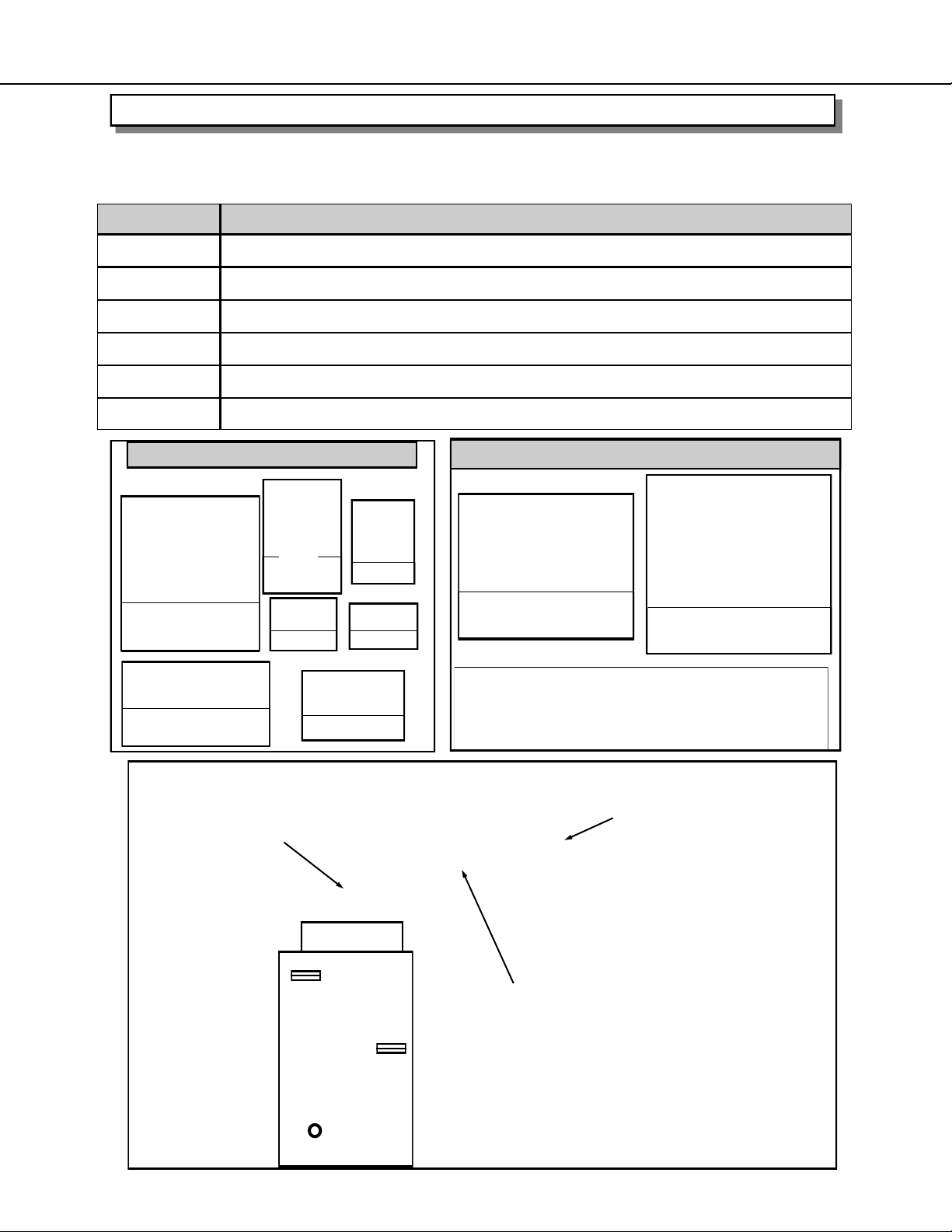

RATING PLATE SAMPLE

72-DVTE30-2
5
Installaon Checklist
This standard installaon checklist is to be used by the installer in conjuncon with, not instead of, the instrucons contained
within this installaon manual.
Customer: Date Installed:
Install Address: Locaon of Fireplace:
Installer:
Appliance Install: YES IF NO, WHY NOT?
Standos and side nailing anges are installed.
Fireplace is leveled and secured.
Venng: YES IF NO, WHY NOT?
Venng conguraon complies with vent diagrams.
Venng installed and secured in place maintaining proper clearances.
Maintained 1/4" rise for every 1 . on horizontal run.
Terminaons installed and sealed in compliance with local building code.
Direct vent terminaon is highest point in vent assembly.
Wiring / Electrical: YES IF NO, WHY NOT?
Connected to household 110/120v per local codes.
Unit is properly grounded.
Gas: YES IF NO, WHY NOT?
Proper appliance for fuel type?
Was a conversion performed?
Leak check performed & inlet and manifold pressures veried?
Veried proper air shuer seng?
Finishing YES IF NO, WHY NOT?
Only noncombusble material installed in noncombusble areas.
Clearances meet installaon manual requirements.
Mantels and/or projecons comply with install manual.
Appliance Setup: YES IF NO, WHY NOT?
Burner media / log set, glass door, and screen or Eclipse front installed according to
manual
Manual given to home owner.
Did you check ame modulaon?
Comments:

72-DVTE30-2
6
Safety Informaon
Cauon
FOR YOUR SAFETY - Do not install or operate your 72-DVTE30-2 without reading and understanding this manual.
Any installation or operational deviation from this instruction manual voids the warranty and may prove hazardous.
• This appliance must be installed by a qualified gas installer and the installation must conform to the installation
codes
• Provide adequate clearance around air openings into combustion chamber
• Never obstruct front openings
• Provide adequate clearances for proper operation and servicing of the appliance
• This appliance must be properly connected to an approved venting system and must not be connected to a chim-
ney flue serving a separate solid fuel burning appliance
• Flow of combustion and ventilation air must not be obstructed - always provide adequate combustion and ventila-
tion air
• Always provide adequate clearance around the intake and exhaust openings
Safety
• Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies
• Children and adults should be alerted to the hazards of high surface temperature and stay away to avoid burns or
clothing ignition
• If this appliance is installed directly on carpeting, tile, or other combustible material other than wood flooring, the
appliance shall be installed on a metal or wood panel extending the full width and depth of the appliance
• Young children should be carefully supervised when they are in the same room as the appliance. Toddlers, young
children and others may be susceptible to accidental contact burns. A physical barrier is recommended if there
are at risk individuals in the house. To restrict access to a fireplace or stove, install an adjustable safety gate to
keep toddlers, young children and other at risk individuals out of the room and away from hot surfaces
• Do not store or place combustibles, gasoline, and other flammable vapors and liquids near the appliance
• Clothing or other flammable material should not be placed on or near the appliance
• WARNING: Do not operate appliance with the glass front removed, cracked, or broken. Removal of the glass
should be done by a licensed or qualified service person. Do not to strike or slam the glass
• Any safety screen or guard removed for servicing an appliance must be replaced prior to operating
• Installation and Repair should be done by a qualified service person. The appliance should be inspected before
use and at least annually by a professional service person. More frequent cleaning may be required due to exces-
sive lint from carpeting, bedding materials, etc. It is imperative that the control compartments, burners and circu-
lating air passageways of the appliance are kept clean
• Under no circumstances should any solid fuel (wood, coal, paper or cardboard, etc.) be used in this appliance
• Keep burner and control compartment clean
• Do not use this appliance if any part has been under water. Immediately call a qualified service technician to in-
spect the appliance and to replace any part of the control system and any gas control which has been under wa-
ter
• California Proposition 65 Warning: This product can expose you to chemicals including Carbon Monoxide, that
is an externally vented by-product of fuel combustion, which is [are] known to the State of California to cause can-
cer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
Each Archgard Gas Fireplace is checked and tested at the factory prior to being packaged and shipped to our dealers
and finally installed in your home. Before leaving this unit with the customer, the installer must ensure that the appli-
ance is firing correctly and that the electrical system is in working order. The Installation Checklist should be used to
ensure the proper installation of this gas fireplace heater and to document any deviations from a typical install.
Any alteraon to the product that causes carbon or soot deposits that results in any damage or requires cleaning is not the
responsibility of the manufacturer.

72-DVTE30-2
7
SPECIFICATIONS
This appliance is tested and safety approved under the following US and Canadian gas appliance standards:
- ANSI Z21.88-2019 / CSA 2.33-2019, Vented Gas Fireplace Heaters,
- CAN/CGA-2.17-M91(R2104), Gas-Fired Appliances for Use at High Altitudes,
- CSA – P.4.1-15 – Testing Method for Measuring Annual Fireplace Efficiency,
- CSA C22.2 No.3 - M1998(R.2014) - Electrical Features of Fuel-Burning Equipment
Commonwealth of Massachusetts: This appliance has been manufactured in accordance with Massachusetts
code 248 CMR 5.00. Approval Code: G1-0319-387 . (http://license.reg.state.ma.us/public/licque.asp).
Please contact Archgard Industries Ltd., if you have any questions regarding the certification of this appliance.
APPLIANCE CERTIFICATION
INSTALLATION CODES
This appliance must be installed by a qualified gas appliance installer. The installation must conform with
the local codes or, in the absence of local codes, with the current National Fuel Gas Code, ANSI Z223.1/
NFPA 54, in the US or Installation Code, CAN/CGA-B149.1, in Canada. Electrical connections and
grounding must conform with local codes, or current National Electrical code, ANSI/NFPA No. 70-1987, in
the US and in Canada, the current Canadian Electrical Code, CSA C22.1.
We recommend that our gas hearth products be installed and serviced by professionals who are
certified in the U.S. by the National Fireplace Institute® (NFI) as NFI Gas Specialists.
Natural Gas (NG) Propane (LP)
Manifold Pressure 1.6 - 3.5 in. w.c. (0.4 - 0.9 kPa) 6.4 - 10.0 in. w.c. (1.6 - 2.5 kPa)
Min. Supply Pressure
Max Supply Pressure 5.0 in. w.c. (1.2 kPa) 14.0 in. w.c. (3.5 kPa) 11.0 in. w.c. (2.74 kPa) 14.0 in. w.c. (3.5 kPa)
Orifice Size #37 DMS (2.65 mm dia.) #52 DMS (1.62 mm dia.)
Nominal Input Rating 20,100 - 30,000 BTU/hr
(5.9 - 8.8 kW) 23,000 - 30,000 BTU/hr (6.7 - 8.8 kW)
P.4 Fireplace Efficiency (FE) 68.45%
P.4 Steady State Efficiency 68.49%
Electrical Rating 120 VAC, 60 Hz less than 2 A.
Gas Control SIT 885 Proflame II Dynamic Start Advantage with Continuous Pilot on
Demand
Altitude 0-4500 ft (0 - 1372 M) 0 - 4500 ft (0 - 1372 M)
Primary Air Opening ¼” (6 mm) OPEN ½” (13 mm) OPEN
HIGH ALTITUDE INSTALLATION
When installing this appliance beyond 4500 ft. (1372m) above sea level, the appliance must be
properly de-rated and installed according to local codes; in the absence of local codes, with the
current National Fuel Gas Code, ANSI Z223.1/ NFPA 54 in the U.S., or Installation Code CAN/
CGA-B149.1 in Canada.

72-DVTE30-2
8
Before connecting the appliance to the gas supply line, double check that the appliance you
have purchased is designed for the gas type you are using. The gas type markings are located
on the certification label and also on the appliance’s gas valve.
Adequate clearance for proper installation and checking of the gas connections must be
provided. All gas connections must be checked for gas leaks.
GAS CONNECTIONS
Have your gas supplier or a qualified gas fitter run a gas supply line into the fireplace.
The line must be properly sized and fitted according to the installation codes. Immediately
upstream of the supply connection, the fitter shall provide an accessible manual shut-off valve
and a ⅛” (3mm) NPT plugged tapping accessible for connection to a test gauge. When
connecting the supply line to the gas valve, the installer should brace the gas valve to ensure
that it is not moved from its bracket. If the valve is not braced when the supply line is
connected, the valve may be moved and cause a “break” in the main burner supply line. Such
damage is not covered by the manufacturer’s warranty.
CAUTION: The appliance and its individual shutoff valve must be disconnected from the gas
supply piping system during any pressure-testing of that system at test pressures in excess of
½ psig (3.5 kPa). The appliance must be isolated from the gas supply piping system by closing
its individual manual shutoff valve during any pressure-testing of the gas supply piping system
at test pressures equal to or less than ½ psig (3.5 kPa). Failure to do so will damage the
appliance’s gas valve. Such damage is not covered by the manufacturer’s warranty.
Natural Gas Pressure Settings:
The inlet supply or line pressure must be a minimum of 5.0” W.C. 1.2 kPa) and a maximum of
14.0” W.C. (3.5 kPa). The orifice is a #37 DMS (2.65 mm) drill size.
ELEVATION INPUT RATING
0-4500 ft (0-1372 M) 30,000 BTU/hr (8.8 kW)
4500 ft (1372 M) and above 30,000 BTU/hr (8.8 kW) less 4% per 1000 ft. (305 M)
Please contact your local distributor for the appropriate orifice size you require.
Propane Pressure Settings:
The inlet supply or line pressure must be a minimum of 11.0” W.C. (2.8 kPa) and a maximum of
14.0” W.C. (3.5 kPa). The orifice is a #52 DMS (1.62 mm) drill size.
ELEVATION INPUT RATING
0-4500 ft. (0-1372 M) 30,000 BTU/hr (8.8 kW)
4500 ft. (1372 M) and above 30,000 BTU/hr (8.8 kW) less 4% per 1000 ft. (305 M)
Please contact your local distributor for the appropriate orifice size you require
NOTE: THE INPUT RATING SHOULD ALWAYS BE CHECKED WHEN FIRST RUNNING
THIS APPLIANCE. To do this, reduce the background flow rate, time the meter, light the
fireplace and take another reading after 15 minutes of operation. Check with your gas supplier
for the gas BTU content at your elevation. Input is the rate of flow multiplied by the heating
value of the gas (cubic feet/hour x BTU per cubic feet). Adjust the manifold pressure so that
the unit does not operate above the rated input.

72-DVTE30-2
9
APPLIANCE DIMENSIONS
BACK 0” to stand-offs
SIDES 0” to stand-offs
TOP 0” to stand-offs
BOTTOM 0”
ADJACENT SIDE WALL 1” (25 mm) to side of faceplate
MANTLE see diagram
VENT 1” (25 mm) to outside side and bottom surface,
2” (50 mm) to outside top surface.
CLEARANCES TO COMBUSTIBLES
FRONT VIEW
DIMENSIONS
A31” (787 mm)
B6” (152 mm)
C3” (76 mm)
D29-¾” (756 mm)
E38” (965 mm)
F38” (965 mm)
G21-½” (545 mm)
H39-¾” (1010 mm)
I6-½” (164 mm)
J16-¼” (412 mm)
SIDE VIEW
A
B
C
D
E
TOP VIEW
F
G
I
J
H

72-DVTE30-2
10
MANTLE CLEARANCE
NOTE:
Low profile wooden crowns and moldings above the unit are not considered as mantles.
I.E. 1” (25 mm) or less protrusions on the upper mantle facing are acceptable.
6” (152 mm) projection
Mantle may start
39” (990 mm) and
above
Minimum Height from Top of Surround:
14” (356 mm) from front top of appliance to a
6” (152 mm) mantle
Minimum Height
From Bottom of Appliance:
45” (1143 mm) with a
6” (152 mm) mantle
Combustible mantle allowed in shaded area. Mantle extension may be increased 1” (25 mm)
for each additional 1” (25 mm) increase in clearance height.

72-DVTE30-2
11
FRAMING DIMENSIONS
C
B
C
AB
*This dimension allows the top of
the fireplace to slide under. If
more rigidity is required, a steel
stud may be added to the back
of the fireplace top nailing flange
after the fireplace is installed.
Dimensions
A * 38” (965 mm)
B16-¼” (412 mm)
C 38” (965 mm)
TERMINATION
FRAMING
H
I
NOTE: Be sure to include
¼” (6mm) rise per 12” (305
mm) of horizontal length
DIMENSIONS
H 11” (279 mm)
I10” (254 mm)
D
E
F
G
DIMENSIONS
D 39-⅛”” (994 mm)
E27-⅝”” (700 mm)
F 38” (965 mm)
G55-¼” (1403 mm)
CORNER FRAMING

72-DVTE30-2
12
NOTE:
See venting chart for maximum and minimum vertical / horizontal venting configurations.
LOCATING GAS FIREPLACE
This appliance must be installed in any location that is free of plumbing, electrical wiring and
heating or air conditioning ducts. Select a location that is accessible for venting.
See ALLOWABLE TERMINATION LOCATIONS listed in this manual. The fireplace may be
installed in any location that maintains proper clearances to combustibles, air conditioning ducts, electrical
wiring and plumbing. Select a location that is accessible for venting See section Allowable Termination
Locations listed in this manual. When the appliance is installed directly on carpeting, vinyl tile or other
combustible materials, other than wood flooring, the appliance must be installed on metal or wood panel
extending the full width and depth of the appliance.
VENT TERMINATION LOCATIONS
ALLOWABLE TERMINATION LOCATIONS and establish a suitable vent termination location.
1. In heavy snowfall areas make sure the vent termination is located where it can not be
blocked by snowfall and / or snow from snow-removal equipment.
2. Locate the vent termination away from plants, bushes or any other object near the vent
termination that will interfere with or obstruct the airflow around it.
3. DO NOT recess vent termination into walls, sidings or planters.
4. Vent terminations located below 7ft (2.13 M) from grade level or anywhere that it can be a
burn hazard to the public, such as patios and balconies, must be protected with an approved
termination cage. If using Archgard Venting System, order Part # C-1.

72-DVTE30-2
13
ALLOWABLE TERMINATION LOCATIONS
Canadian Installations (1) US Installations (2) Canadian Installations (1) US Installations (2) A= Clearance above grade, veranda, porch, deck, or balcony 12 inches (30 cm) 12 inches (30 cm) J= Clearance to non-mechanical air
supply inlet to building or the combustion air inlet o any other appliance
12 inches (30 cm) 9 inches (23 cm)
B= Clearance to window or door that may be opened 12 inches (30 cm) 12 inches (30 cm) K= Clearance to a mechanical
air supply inlet 6 feet (1.83 m) 3 feet (91 cm) above if
within 10 feet (3 m) hori-
zontally
C= Clearance to permanently closed window **L= Clearance above paved
sidewalk or paved driveway located on public property
7 feet (2.13 m) + *
D= Vertical clearance to ventilated soffit located above the terminal within a horizontal distance of 2 feet (61 cm) from the center line of the terminal
**M= Clearance under veranda,
porch, deck, or balcony 12 inches (30 cm) ++ *
E= Clearance to unventilated soffit ** F= Clearance to outside corner ** G= Clearance to inside corner 9” (22.5cm) 9” (22.5cm) H= Clearance to each side of center line extended above meter/regulator assembly
3 feet (91 cm) within a
height 15 feet (4.5 m) above
the
meter/regulator assembly
*
L= Clearance to service regulator vent outlet 3 feet (91 cm) *
(1) In accordance with the current CSA B149.1, National Gas and Propane Installation Code (2) In accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas Code (+) A vent shall not terminate directly above a side walk or paved driveway that is located between two single family dwellings and serves both dwellings (++) Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the floor. (*) For clearances not specified in ANSI Z223.1/NFPA 54 or CSA B149.1, “Clearances shall be in accordance with local installation codes and the requirements of the gas supplier.”

72-DVTE30-2
14
APPROVED VENT COMPONENTS
PART # DESCRIPTION
999-DV-TVK3 Archgard Flex Vent Kit with 36” (914 mm) vent length (includes 999-
DV-HTC)
999-DV-TVK5 Archgard Flex Vent Kit with 60” (1.52 M) vent length (includes 999-DV
-HTC)
999-DV-DV-HTC Archgard Horizontal termination head only
999-DV-SC Archgard Safety Cage for Horizontal termination head (999-DV-HTC)
999-DV-VSD Archgard Vinyl siding deflector
999-DV-SDA Universal Adapter, Simpson Dura-Vent / Flex
DV-GS Simpson Dura-Vent venting system
For best and safe venting performance, here are some general venting rules:
• Use only Archgard or Simpson Dura-Vent direct vent systems and components.
• Maintain a minimum of 1” (25mm) clearance to combustibles from the outside
surfaces of vertical vents and minimum of 1” (25mm) sides and bottom, and 2” (50mm)
from top surfaces of horizontal vents.
• Observe local code restrictions, if any, regarding the installation of this type of gas appliance.
• Observe the venting charts given in this manual.
• Use vent spacers between the inside 4” (101mm) and outside 7” (178mm) vents at 3 ft
(915mm) intervals (Archgard Direct Vent System ONLY).
• Never slope horizontal vents downwards towards the vent termination.
• Maintain a minimum ¼” rise (6mm) for every linear foot (305mm) of horizontal vent.
• Terminate (Horizontally) the vent only with an approved vent termination supplied by
Archgard Industries (Part # 999-DV-HTC) or Simpson Dura-Vent Termination Cap.
• Terminate (Vertically) the vent only with Simpson Dura-Vent Vertical Termination Cap.
• Support horizontal vents every 3 ft (915mm) to prevent sagging.
VENTING CONNECTION
The appliance will not function without being connected to a proper venting system. This
appliance may only use direct vent system supplied by Archgard Industries or Simpson Dura-
Vent direct vent systems with the appropriate adaptor dependent upon the venting guidelines
within this manual.
Please strictly follow the venting instructions for optimum performance from the
appliance and to avoid sooting and/or service calls.
NOTE: Only the venting components listed below are approved for the 72-DVTE30-2

72-DVTE30-2
15
VENTING - RESTRICTOR PLACEMENT
NOTE: Vent restrictors are designed to reduce vertical stack action
for vent terminations which will reduce the velocity of incoming com-
bustion air and not adversely affect the standing pilot or the efficiency
of the appliance.

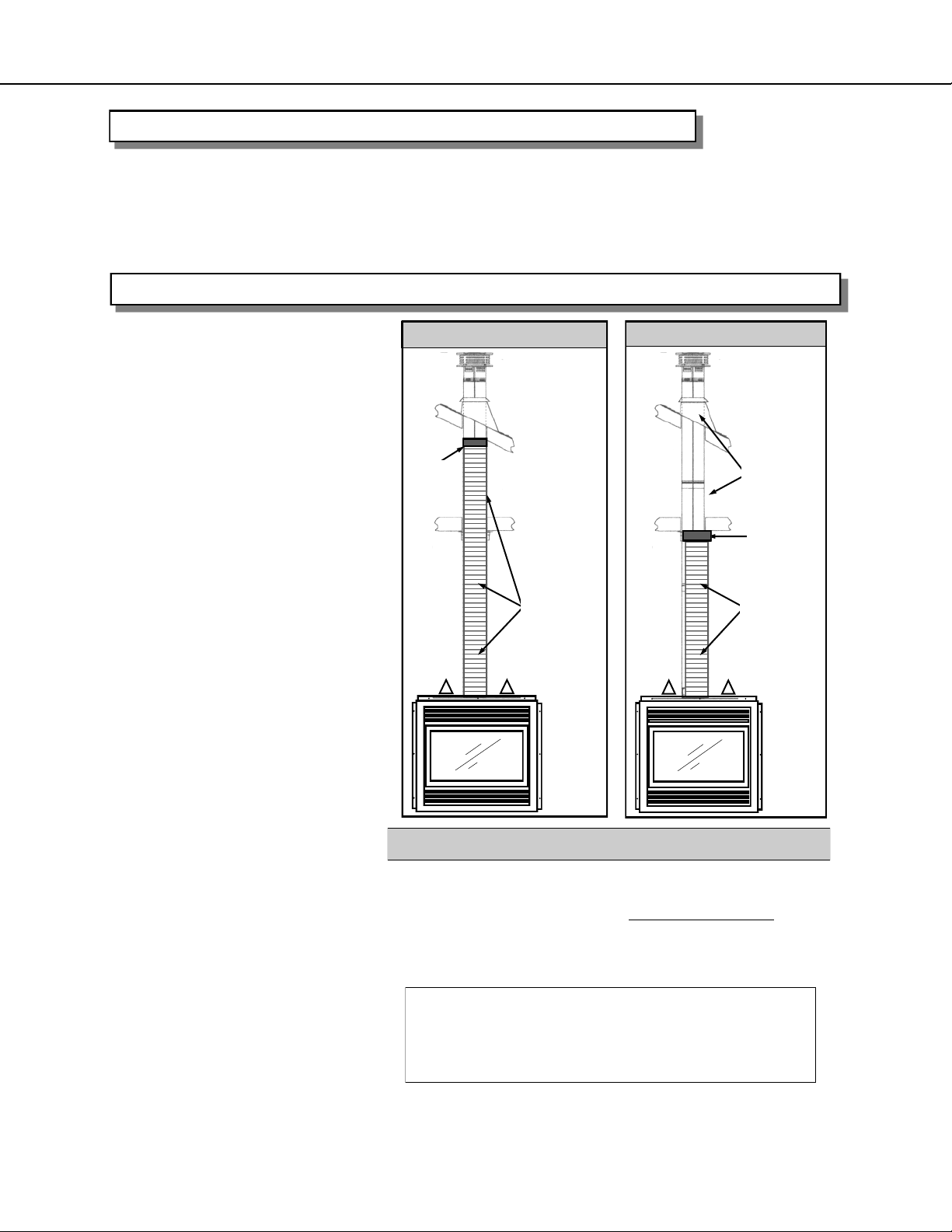

RESTRICTOR PLACEMENT FOR ROOFTOP VENTED APPLICATIONS ONLY
WARNING: These restrictors are only to be installed in the vent system if the vent exceeds 10’ in
vertical height. Restrictor Number 1 below is required if the vent system is between 10’-18’ and Re-
strictor Number 2 below is required if the vent system exceeds 18’. Installing them under any
other circumstances may cause hazardous venting conditions and may result in personal
injury, property damage or death.
NOT FOR USE IN SIDEWALL VENTED APPLICATIONS
Simpson Dura-Vent
Simpson Dura-Vent
With Simpson Dura-Vent, locate
the restrictor in the exhaust
section fitting into the formed lip.
Archgard System
Archgard System
In the Archgard system, the restrictors
are placed on the exhaust outlet on
the appliance.
Restrictor Number #1
Rooftop Venting Above
Ten Feet (10’)
Restrictor Number #2
Rooftop Venting Above
Eighteen Feet (18’)
Restrictor Number #3
Rooftop Venting Above
Thirty Five Feet (35’)

72-DVTE30-2
16

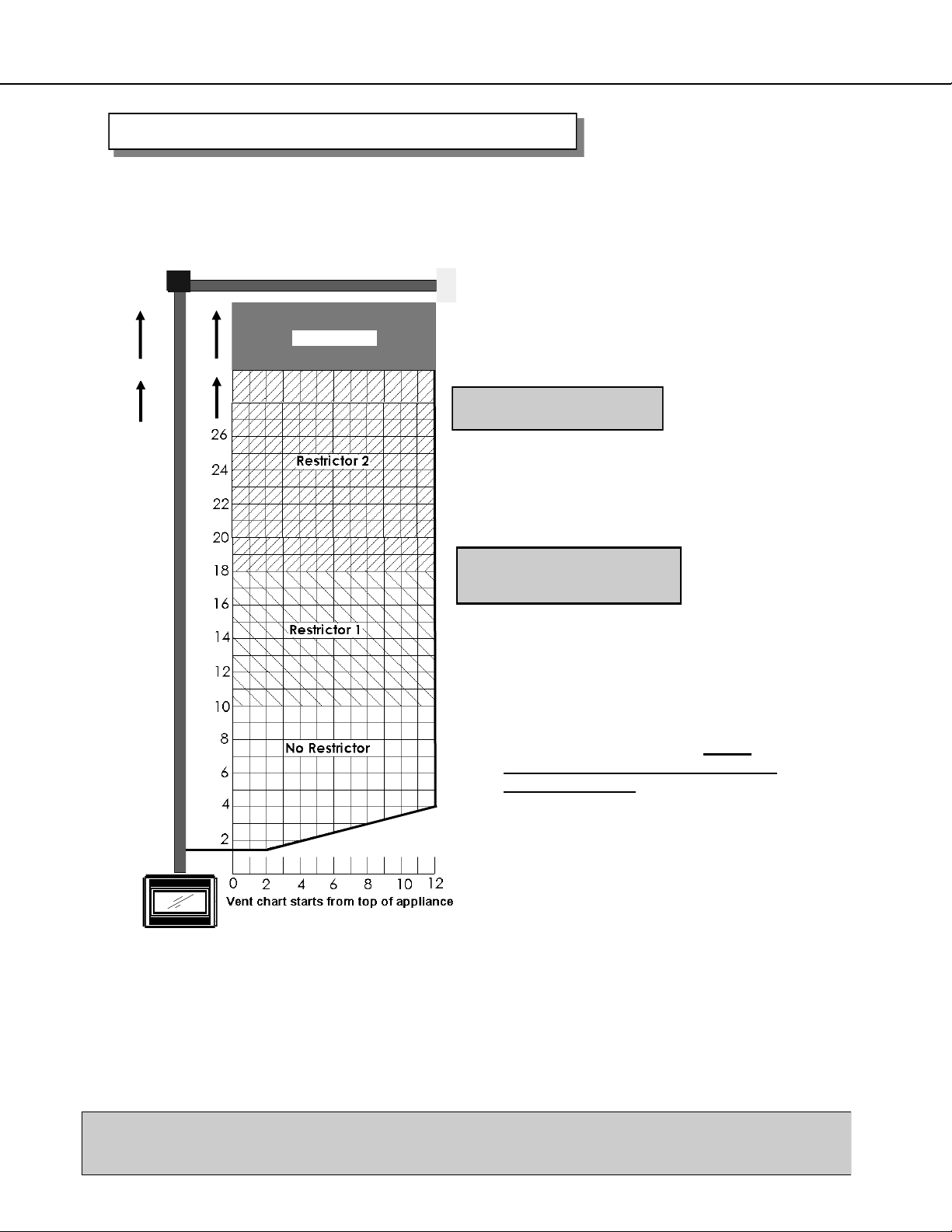

VENTING - VERTICAL TERMINATION CHART
The appliance will not function without being connected to a proper venting system. This
appliance may only use direct vent system approved by Archgard, or Simpson Dura-Vent
direct vent systems with Archgard 999-DV-SDA adapter.
Please strictly follow the venting instructions for optimum performance
from the appliance and to avoid sooting and/or service calls.
VENTING ABOVE ROOF OF THE HOUSE USING A VERTICAL TERMINATION
Use Simpson Dura-Vent listed direct vent system caps for all vertical vent termination
applications (through the roof).
• Minimum 18” rise vertical required
• Chart is for one 90° bend, with a
1/4” (6 mm) minimum vertical rise
per running foot of horizontal length.
• For each additional 90° or two 45°, add
one foot of vertical height.
• Maximum three 90º bends, or
equivalent allowed in the system.
• Minimum 2 ft (610 mm) straight length
between bends.
HORIZONTAL LENGTH
.610 m 1.22 m 1.83 m 2.44 m 3.05 m 3.66 m
7.93 M
7.32 M
6.71 M
6.10 M
5.49 M
4.88 M
4.27 M
3.66 M
3.05 M
2.44 M
1.83 M
1.22 M
610 mm
V
E
R
T
I
C
A
L
H
E
I
G
H
T
VENTING CHART
NOTE: NO INSTALLATIONS ARE
PERMITTED OUTSIDE
OF THIS RANGE
SEE PAGE 14 FOR RESTRICTOR
SHAPE & PLACEMENT
18”
457 mm
50
15.24 M
35
10.67 M
Restrictor 3

72-DVTE30-2
17
1. Maintain 1” (25mm) clearance (air space) to combustibles when passing through ceilings,
walls, roof, enclosures, attic rafter, or other nearby combustible surfaces. Do not pack air
spaces with insulation. Check Page 15 (Venting Chart) for the maximum vertical rise of the
venting system.
2. Set the gas appliance in its desired location. Drop a plum bob down from the ceiling to the
position of the appliance flue exit, and mark the location where the vent will penetrate the
ceiling. Drill a small hole at this point. Next, drop a plumb bob from the roof to the hole previ-
ously drilled in the ceiling, and mark the spot where the vent will penetrate the roof.
NOTE: you may wish to relocate the appliance to avoid cutting load-bearing members.
3. A Firestop spacer must be installed in the floor or ceiling of every level. To install the Firestop
spacer in a flat ceiling cut a 10” (254mm) square hole. Frame the hole as shown Fig. 1 and
install the firestop.
4. Assemble the desired lengths of pipe and elbows as outlined in the Venting Chart, necessary
to reach from the Appliance adaptor (999-DV-SDA). Ensure that all Simpson Dura-Vent and/
or flexible gas liners are connected and sealed accordingly.
5. Cut a hole in the roof centered on the small drill hole placed in the roof as outlined in Step 2.
6. The hole should be of sufficient size to meet the minimum requirements for each combusti-
bles of 1” (25mm). Slip the flashing under the shingles (shingles should overlap half of the
flashing) as per Fig.2.
7. Continue to assemble pipe lengths and/or flexible gas venting.
8. Ensure vent is vertical and secure the base of the flashing to the roof with roofing nails;
slide storm collar over the section and seal with a mastic.
9. Install the vertical termination cap by twist-locking it.
10” (254mm)
square hole
framing
firestop
spacer
Fig. 1 Fig. 2
Female
Locking
Lugs
Male
Locking
Lugs
Fig. 3
VENTING - VERTICAL TERMINATION USING SIMPSON DURA-VENT PIPE ONLY
The 72-DVTE30-2 can be vented vertically using Simpson Dura-Vent Direct Vent System. To
vent using Simpson Dura-Vent exclusively, you must use the Archgard 999-DV-SDA Adapter
and connect the adapter to the top of flue outlet on the Optima 72 gas fireplace.

72-DVTE30-2
18
NOTE:
• Galvanized pipe is desirable above the roofline
due to its higher corrosion resistance. Continue
to add pipe sections throughout the flashing
until the height of the vent cap meets the mini-
mum height requirements specified in Fig. 5. or
local codes.
• For steep roof pitches, the vertical height must
be increased. A poor draft, or down drafting
can result in high wind conditions, trees or
neighbor's roof lines. In these cases, increas-
ing the height may solve a drafting problem.
REMEMBER to check that you are within the
maximum vertical height restrictions, and are
placing the appropriate vent restrictors as out-
lined in the venting chart within this manual.
• Any storage spaces or closets which the vent
must pass through must be enclosed.
Flat to 7/12 2 Feet 0.61 Meters
Over 7/12-8/12 2 Feet 0.61 Meters
Over 8/12-9/12 2 feet 0.61 Meters
Over 9/12-10/12 2.5 Feet 0.76 Meters
Over 10/12-11/12 3.25 Feet 1.00 Meters
Over 11/12-12/12 4 Feet 1.22 Meters
Over 12/12-14/12 5 Feet 1.52 Meters
Over 14/12-16/12 6 Feet 1.83 Meters
Over 16/12-18/12 7 Feet 2.13 Meters
Over 18/12-20/12 7.5 Feet 2.29 Meters
Over 20/12-21/12 8 Feet 2.44 Meters
Roof Pitch Minimum Vent Height
Vertical Termination Cap
Storm Collar
Flashing
Ceiling Firestop
Round Support Box /
Wall Thimble
Length of Pipe
Length of Pipe
SDA-U adaptor
VENTING - VERTICAL TERMINATION USING SIMPSON DURA-VENT PIPE ONLY
Typical Vertical venting
configuration using Simpson Dura-
Vent Direct Vent System
Simpson Dura-Vent venting
components are listed on page 22
Fig. 5
H-represents vent
height
H

72-DVTE30-2
19
The 72-DVTE30-2 can be used with Flexmaster Model GA 4” & 7” (101mm & 178mm) vent lin-
ers, and terminate through the roof using Simpson Dura-Vent by using an 999-DV-SDA
(Adapter, Flex to Simpson Dura-Vent).
• Refer to the venting chart before considering vertical termination.
• Check the Allowable Termination Locations chart within this manual.
CONNECTING THE 999-DV-SDA ADAPTER TO FLEX & SIMPSON DURA-VENT
Clearance to combustible material and fire-stops
must be installed as required by local codes; in the
absence of local codes, in accordance with the local
enforcing authority.
VENTING - VERTICAL TERMINATION USING FLEX GAS LINER
FLEXIBLE PIPE CONNECTIONS
1. The intake pipe must be
securely fastened to the
appliance and to the terminal
and all joints must be secured
using a minimum of 3 screws
evenly spaced around the
pipe.
2. Approximately 1” (25mm)from
the end of the 4” (101mm)
pipe outlet at the appliance
and at the 4” (101mm)
terminal inlet, apply a bead of
high temperature non-silicone
sealant approximately
¼” (6mm) wide. Slide the
4” (101mm) pipe onto the
appliance and secure with 3
screws evenly spaced to the
outlet. Repeat the procedure
at the terminal inlet.
3. Install a vent spacer between
the outer and the inner liner to
maintain clearances. Spacers
should be installed at every
change of direction and every
3 ft. (914mm).
4. See Fig. 1 & 2 to determine
where to place the 999-DV-
SDA adapter, and connect the
999–DV-SDA adaptor as
shown in Fig. 3.
5. Follow all vertical venting di-
rections as outlined in the Ver-
tical termination sections.
Connecting the SDA-U Adaptor
Slide the 4” (101mm) flex pipe over the 4” (101mm) section
of the 999-DV-SDA adapter, and secure with a bead of mil-
pac or other non-silicone sealant (DO NOT use silicone) and
3 screws. Repeat the process for the 7” (178mm) liner. Fol-
low with Simpson Dura-Vent Pipe and guidelines for installa-
tion as outlined within this manual
Flex to Roofline
4” & 7”
(101 mm &
178 mm)
Flex Liner
999-DV-
SDVTC
(991) Term
Head or
Simpson
Dura-Vent
4” & 7”
(101 mm &
178 mm)
Flex Liner
999-DV-
SDA
Simpson Dura
-Vent System
Flex to Ceiling
999-DV-
SDVTC
(991) Term
Head or
Simpson
Dura-Vent
999-DV-
SDA

72-DVTE30-2
20
VENTING - HORIZONTALLY USING FLEXIBLE DIRECT VENT SYSTEMS
The 72-DVTE30-2 can be vented Horizontally by using the Archgard Direct Vent System of
flexible pipe.
PART # DESCRIPTION
999-DV-TVK3 Flex Vent Kit with 36” (914 mm) vent length (includes 999-DV-HTC)
999-DV-TVK5 Flex Vent Kit with 60” (1.52 M) vent length (includes 999-DV-HTC)
999-DV-TVK10 Flex Vent Kit with 120” (3.05 M) vent length (includes 999-DV-HTC)
999-DV-HTC Horizontal termination head only
999-DV-SC Safety Cage for Horizontal termination head (999-DV-HTC)
999-DV-VSD Vinyl siding deflector
4” and 7” flex pipe
(100 mm x 173 mm)
Telescoping Thimble
Archgard Horizontal
termination cap
NOTE:Pitch the flexible pipe up towards the
Horizontal Termination Cap
VENT ASSEMBLY
4” exhaust vent
with spring spacers Fully Assembled Flexible
Direct Vent System
VENT KIT COMPONENTS (TVK)
Horizontal Termination
Cap
7” & 4” flexible liner
(compressed)
Telescoping
Thimble Firestop
Sealant
Screws
Spring spacers
