Archgard Pele 345-DVTE31LN-1 User manual
Pele 345
MODEL: 345-DVTE31LN-1
GAS FIRED DIRECT VENT FIREPLACE
S/N 340000 AND UP
ARCHGARD FIREPLACE PRODUCTS
7116 Beatty Drive
Mission, BC V2V 6B4 Canada 200-3345-01
July 8, 2020
English and French Installation Manuals available through your
local dealer or visit our website at: www.archgard.com
Les manuels d'installation en anglais et en français son
disponibles chez votre détaillant local ou en visitant notre site
web: www.archgard.com
INSTALLER:
LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER:
RETAIN THIS MANUAL FOR FUTURE REFERENCE.
This appliance may be installed in an aftermarket
permanently located, manufactured home (USA only) or
mobile home where not prohibited by local codes.
This appliance is only for use with the type of gas indicated
on the rating plate. This appliance is not convertible for use
with other gases, unless a certied kit is used.
INSTALLATION, OPERATION, AND
MAINTENANCE MANUAL
- Do not store or use gasoline or other ammable vapors or
liquids in the vicinity of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance
• Do not touch any electrical switch; do not use any
phone in your building
• Leave the building immediately
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas suppliers instructions
• If you can not reach your gas supplier, call the re
department
- Installation and service must be performed by a qualied
installer, service agency or the gas supplier.
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in
serious injury, death, or property damage.
Gas Fireplace Energy Eciency Rating
67.98%
Based on CSA P.4.1-15
2
TABLE OF CONTENTS
1.0 Introduction 3
2.0 Safety Information 4
3.0 Technical Information 5
5
5
5
5
4.0 Rating Plate 6
5.0 Installation Checklist 7
6.0 Appliance Overview 8
6.1 Appliance Overview 8
8
6.3 Barrier Screen (345-BS) 9
13
15
7.0 Electrical Connections 16
8.0 Fireplace Dimensions 17
9.0 Prepare The Fireplace 18
18
9.2 Nailing Flange Tabs 18
19
10.0 Venting Instructions 21
21
23
24
26
28
30
11.0 Framing 31
31
32
33
12.0 Clearances to Combustibles 35
12.1 Mantel Clearances 35
36
36
37
12.5 Finishing (Open Face) 39
13.0 Gas Connections 41
41
42
14.0 Conversion Kit Instructions 43
14.1 Prepare the Fireplace 43
43
44
44
15.0 Firebox Liner Installation 45
45
47
49
16.0 Log Set Options 51
17.0 Operation 52
52
17.2 First Fire 52
53
54
55
18.0 Maintenance 62
62
63
63
63
64
18.6 Replacing Batteries 65
18.7 Replacing Fuse 65
66
67
68
69
18.12 Replacing the Burner 70
71
18.14 Replacing the Fan 72
74
75
19.0 Frequently Asked Questions 76
20.0 Replacement Parts List 77
Archgard Limited Warranty 78
3
General Information
1.0 Introduction
345-DVTE31LN-1.
345-DVTE31LN-1 are:
•
•
•
•
•
Lighting
•
•
•
Section 17.4
•
Please complete and submit the warranty registration card included in the back of this manual or by visiting us at:
www.archgard.com/warranty-registration
Model Number Denition (345-DVTE31LN-1)
345
DVT
E
31
L
N
-1
CPI vs IPI:
Continuous Pilot on Demand Ignition (CPI)
Intermittent Pilot Ignition (IPI)
4
General Information
2.0 Safety Information
Caution
FOR YOUR SAFETY345-DVTE31LN-1
•
•
•
•
•
•
•
Safety
•
•
•
•
•
•
• WARNING:
•
•
clean
•
•
•
• California Proposition 65 Warning:
Section 5.0
Any alteration to the product that causes carbon or soot deposits that results in any damage or requires cleaning is not the
responsibility of the manufacturer.
5
General Information
3.0 Technical Information
3.1 Appliance Certication
Section 4.0.
Commonwealth of Massachusetts
Archgard Industries Ltd
3.2 Installation Codes
C22.1.
We recommend that our gas hearth products be installed and serviced by professionals who are certied in the U.S. by the
National Fireplace Institute (NFI) as NFI Gas Specialists.
3.3 Specications
Natural Gas (NG) Propane (LP)
Manifold Pressure
Min. Supply Pressure
Max Supply Pressure
Orice Size
Input Rating
P.4 Fireplace Eciency
(FE) 67.98%
P.4 Steady State Eciency 75.23%
Electrical Rating
Gas Control
Altitude
Primary Air Opening
3.4 High Altitude Installation
6
General Information
4.0 Rating Plate
SAMPLE
Figure 4.0.01:
MODEL:
345-DVTE31LN-1
DO NOT REMOVE THIS LABEL
LISTED VENTED GAS FIREPLACE HEATER and GAS-FIRED APPLIANCES FOR USE AT HIGH ALTITUDES. Tested to: ANSI
Z21.88-2017 / CSA 2.33-2017, CSA 2.17-2017, CSA P.4.1-15, and CSA 22.2 No.3-M1988 (R2014). This vented gas replace heater
is not for use with air lters. Certied for use in both CANADA and USA.
VENTED GAS FIREPLACE HEATER-NOT FOR USE WITH SOLID FUEL.
Manufactured as Natural Gas
NG LPG
Input rating 17,000 - 31,000 BTU/hr
(4.98 - 9.09 kW) 16,000 - 30,000 BTU/hr
(4.69 - 8.79 kW)
Manifold Pressure 1.1 - 3.8 in. W.C. (0.27 - 0.95 kPa) 2.9 - 11.0 in. W.C. (0.72 - 2.74 kPa)
Orice size #36 DMS (2.71 mm dia.) #52 DMS (1.61 mm dia.)
Supply pressure (Min - Max) 5 - 14 in. W.C. (1.2 - 3.5 kPa) 12 - 14 in. W.C. (2.99 - 3.5 kPa)
Burner Primary Air Setting 1/8” (3.175 mm) Open 1/2” (12.7 mm) Open
Altitude 0 - 4500 ft (0 - 1372 m) 0 - 4500 ft (0 - 1372 m)
Gas Control SIT 885 Proame II Dynamic Start with Continuous POD
Electrical rating 120 VAC, 60 Hz, less than 2 A.
P.4.1 Fireplace Eciency (FE) 67.98%
Replacement fan Part no. RF-305-0024 fan must be used
Keep burner and control compartment clean.
See Instructions accompanying the heater.
Optional fuel conversion kit : See Manual
Minimum clearances to Combustibles:
Chase sides, back & top from replace standos: 0” (0 cm).
Interior sidewall from replace opening: 4” (10.2 cm).
Mantle: 8” (20.32 cm) mantel at min 21.25” (53.975 cm) from top of the
replace opening.
Vent pipe: Sides & Bottom: 1” (2.54 cm), Top: 2” (5.08 mm).
Ceiling: 60” (152.4 cm) from replace opening.
See Manual for additional dimensions and clearances.
See IHEAT Manual for clearances with IHEAT installed.
This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI
Z223.1/NFPA 54, or Natural Gas and Propane Installation Codes, CSA B149.1. Electrical connections and grounding must
be in accordance with local codes, if any; if none, follow the current CAN/CSA C22.1 in Canada and ANSI/NFPA 70 in the
US. This appliance is certied for installation in a bedroom or a bed sitting room. This appliance is only for use with the gas
indicated on the rating plate and may be installed in an aftermarket, permanently located, manufactured (mobile) home where
not prohibited by local codes. See owner’s manual for details. This appliance is not convertible with other gases, unless a
certied kit is used.
WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Refer
to the owner’s information manual provided with this appliance. For assistance or additional information consult a
qualied installer, service agency, or the gas supplier. This appliance must be properly connected to a Direct Vent
venting system in accordance with the manufacturer’s installation instructions.
WARNING: Failure to install this appliance per the manufacturer’s instructions or failure to use only parts specically
approved with this appliance may result in property damage or personal injury.
WARNING: Do not operate the appliance until all sections have been assembled and installed in accordance with the
manufacturer’s instructions.
WARNING: Operation of this appliance when not connected to a properly installed and maintained venting system can result
in carbon monoxide (CO) poisoning and possible death.
Only doors certied with the appliance shall be used.
For use with Archgard barrier screen part #345-BS. Follow installation instructions.
Optional Archgard barrier screens available. See the Installation manual for options.
Made in Canada by:
Archgard Industries Ltd.
7116 Beatty Dr., Mission, B.C.
July 2020 303-3345-01
MANUFACTURE DATE: 2020 2021 2022 JAN FEB MAR APR MAY JUN JUL AUG SEP OCT NOV DEC
7
Installation
5.0 Installation Checklist
This standard installation checklist is to be used by the installer in conjunction with, not instead of, the instructions contained
within this installation manual.
Customer: Date Installed:
Install Address: Location of Fireplace:
Installer:
IHEAT: (See IHEAT Installation, Operation, and Maintenance Manual) YES IF NO, WHY NOT?
Appliance Install: (Section 9.0) YES IF NO, WHY NOT?
Venting: (Section 10.0) YES IF NO, WHY NOT?
Maintained 1/4 rise for every 1 ft. on horizontal run.
Wiring / Electrical: (Section 7.0) YES IF NO, WHY NOT?
Gas: (Section 13.0) YES IF NO, WHY NOT?
Finishing (Section 12.0): YES IF NO, WHY NOT?
Appliance Setup: YES IF NO, WHY NOT?
Comments:
8
Installation
6.0 Appliance Overview
6.1 Appliance Overview
burner.
Note:
Figure
6.1.01.
Figure 6.1.01:
Rating Plate
Figure 6.2.01: Upper Valve Access Cover Removed
6.2 Rating Plate Location
Section 6.5
Note:
Rating Plate
Fan
Figure 6.2.02: Both Valve Covers Removed
9
Installation
6.3 Barrier Screen (345-BS)
Section 20
WARNING
DO NOT INSTALL THE BARRIER SCREEN WITH THE
GLASS DOOR REMOVED.
Removal
Figure 6.3.01: Screen retainer tabs
Figure 6.3.02:
Installation
Figure 6.3.04:
Figure 6.3.05:
Figure 6.3.03: Screen pin
Note: Section 20
Section 12.4 and Section 12.5.
10
Installation
Figure 6.3.06: Figure 6.3.07:
Figure 6.3.08:
Grandview Park Front
Dimensions
33
23
23
323
Note:
Section 12.4Section 12.5

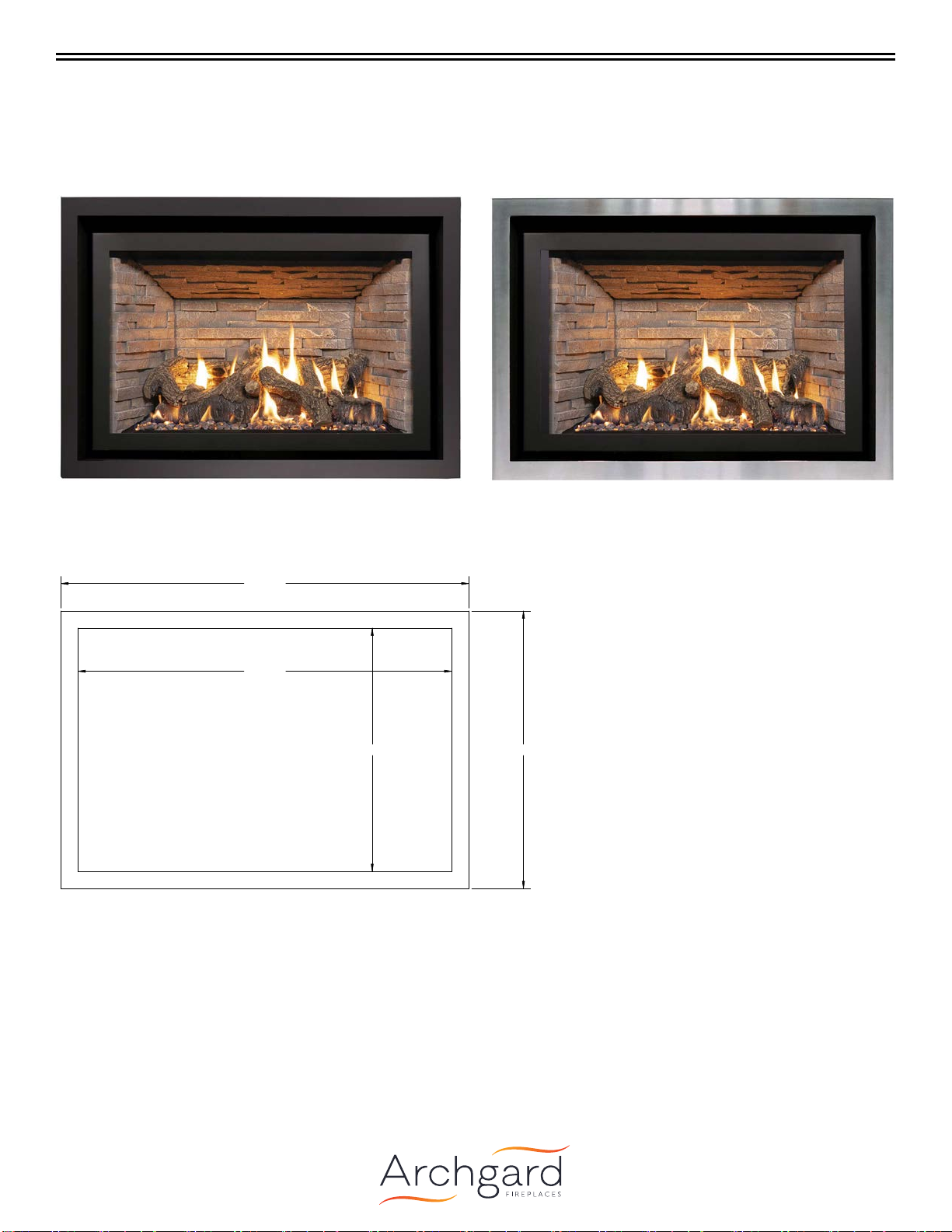

Model Numbers: 345-FSGPB (Black) and 345-FSGPBN (Brushed Nickel)
11
Installation
Mission Hills Wrought Iron Front
Model Numbers: 345-WIFASDB (Arched) and 345-WIFSSDB (Square)
Figure 6.3.09: Figure 6.3.10:
3
3
23
22
22
222
333
32
:
SIE
D
A
SEET 2 3
:
3IASD
IIS
ATEIAL
DIESIS AE I ICES
TLEACES:
ACTIAL
T LACE DECIAL
TEE LACE DECIAL
ALL EDS AE ASSED
T E
LESS TED
TEISE
CECED
DA
DATE
AE
2021-01-27
A II
3IASD
PROPRIETARY AND CONFIDENTIAL
U:\ENINEERIN\PRODUCT\ACCEORIE\urrounds\45-DVTE1LN-1\45-IFAD\45-IFAD
anuary 27, 2021 7:25:2 AM
SCALE
3
2
233
22
22
32
:
SIE
D
A
SEET 2 3
:
3ISSD
IIS
ATEIAL
DIESIS AE I ICES
TLEACES:
ACTIAL
T LACE DECIAL
TEE LACE DECIAL
ALL EDS AE ASSED
T E
LESS TED
TEISE
CECED
DA
DATE
AE
2021-01-27
A II
3ISSD
PROPRIETARY AND CONFIDENTIAL
U:\ENINEERIN\PRODUCT\ACCEORIE\urrounds\45-DVTE1LN-1\45-IFD\45-IFD
anuary 27, 2021 7:16:54 AM
SCALE
Note:
Section 12.4Section 12.5
Figure 6.3.11:
Figure 6.3.12:
Dimensions
12
Installation

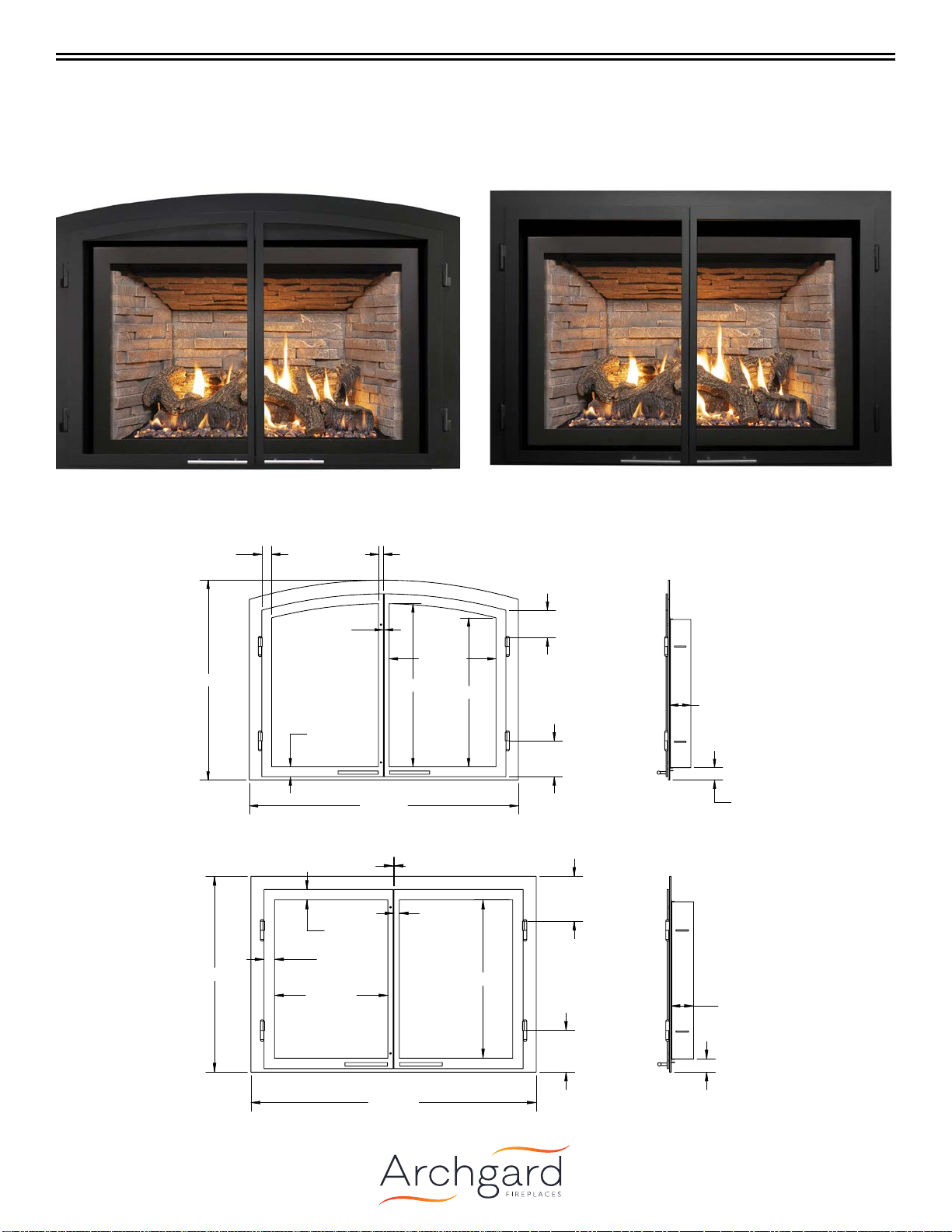

Hemlock Valley Front
Model Numbers: 345-DAHVB (Arched) and 345-DSHVB (Square)
3
3
2
3
2 222
22
32
:
SIE
D
A
SEET 2 3
:
3DA
IIS
ATEIAL
DIESIS AE I ICES
TLEACES:
ACTIAL
T LACE DECIAL
TEE LACE DECIAL
ALL EDS AE ASSED
T E
LESS TED
TEISE
CECED
DA
DATE
AE
2021-01-27
A II
3DA
PROPRIETARY AND CONFIDENTIAL
U:\ENINEERIN\PRODUCT\ACCEORIE\urrounds\45-DVTE1LN-1\45-DAV\45-DAV
anuary 27, 2021 7::10 AM
SCALE
2
3
3
2
222
32
:
SIE
D
A
SEET 2 3
:
3DS
IIS
ATEIAL
DIESIS AE I ICES
TLEACES:
ACTIAL
T LACE DECIAL
TEE LACE DECIAL
ALL EDS AE ASSED
T E
LESS TED
TEISE
CECED
DA
DATE
AE
2021-01-27
A II
3DS
PROPRIETARY AND CONFIDENTIAL
U:\ENINEERIN\PRODUCT\ACCEORIE\urrounds\45-DVTE1LN-1\45-DV\45-DV
anuary 27, 2021 7:1:18 AM
SCALE
Figure 6.3.15:
Figure 6.3.16:
Dimensions
Note:
Section 12.4Section 12.5
Figure 6.3.13: Figure 6.3.14:
13
Installation

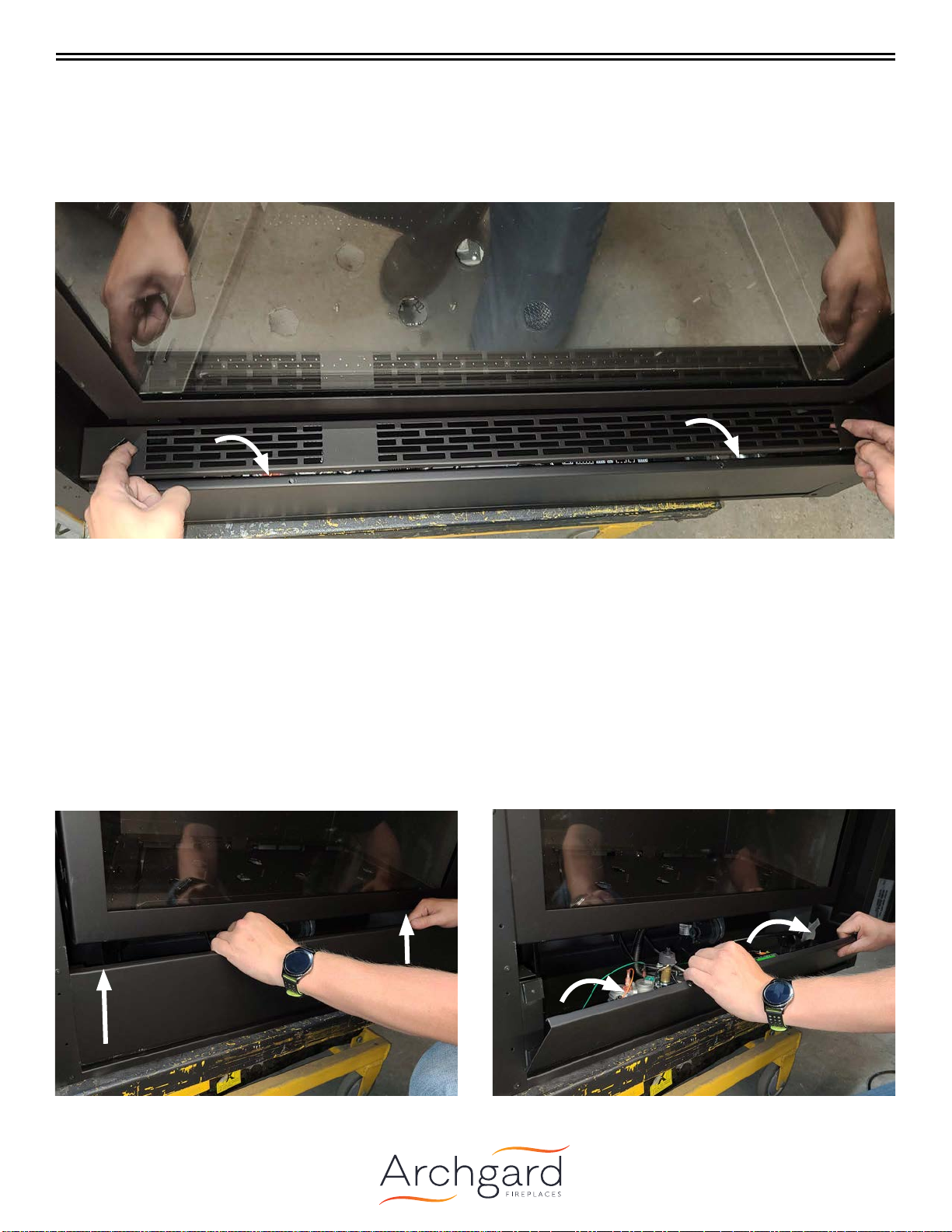

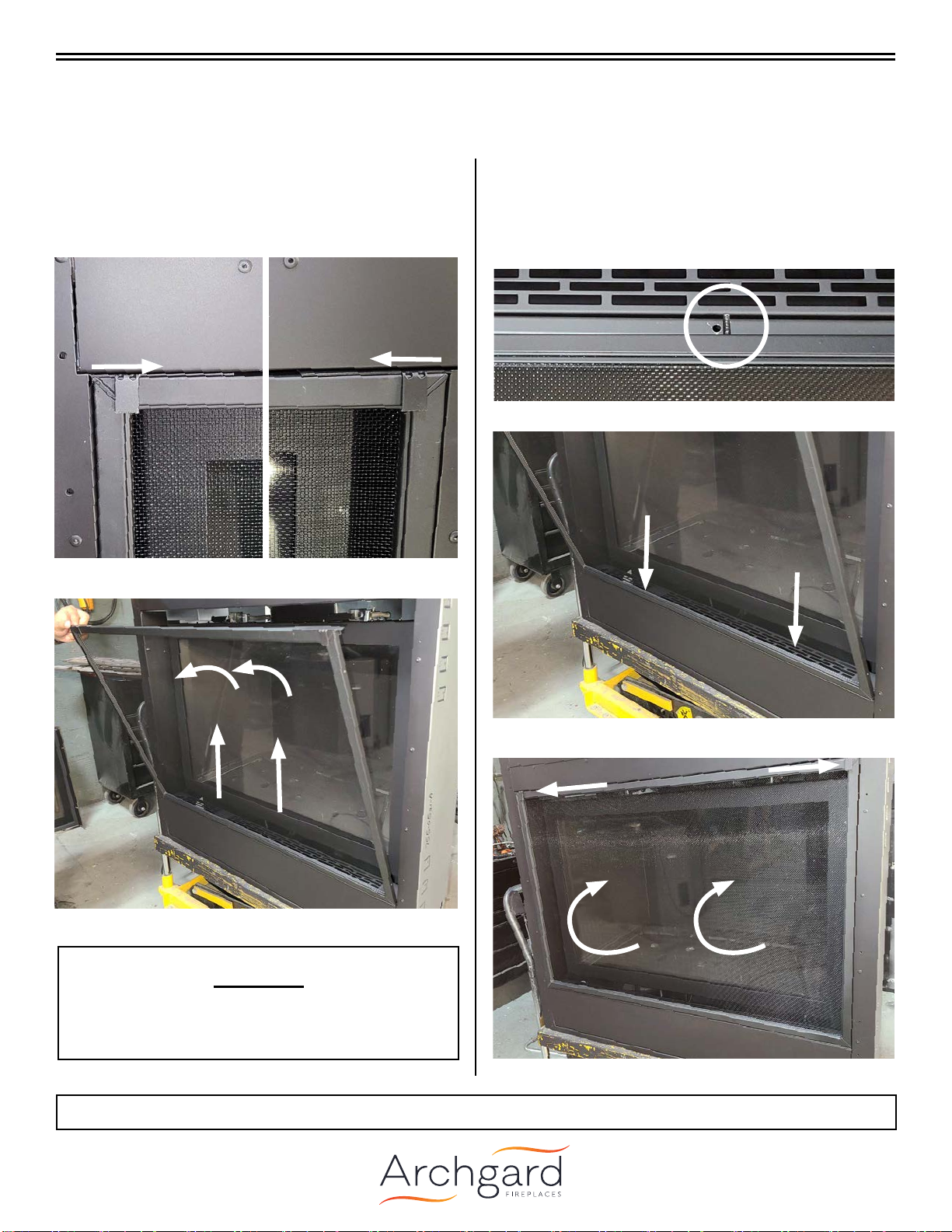

6.4 Glass Door Installation
WARNING:
Figure 6.4.01: Figure 6.4.02:
Step 1:
Step 2:
Step 3:
Step 4:
Figure 6.4.03: Figure 6.4.04:
Upper Hooks:
Note: Section 6.5.
14
Installation
If Your Glass Breaks
Section
6.3
NOTE:
Warning:
Figure 6.4.05: Figure 6.4.06:
Step 1:
Step 2:
Step 3:
Figure 6.4.07:
Lower Hooks:
15
Installation
6.5 Accessing The Controls
Figure 6.5.01:
To access the control board or valve in a fully nished installation:
1. Ensure the replace is o and cool.
2. Section 6.3).
3.
To access the control board or valve in a open faced installation:
1. Ensure the replace is o and cool.
2. Section 6.3).
3.
4.
Figure 6.5.02: Figure 6.5.03:
16
Installation

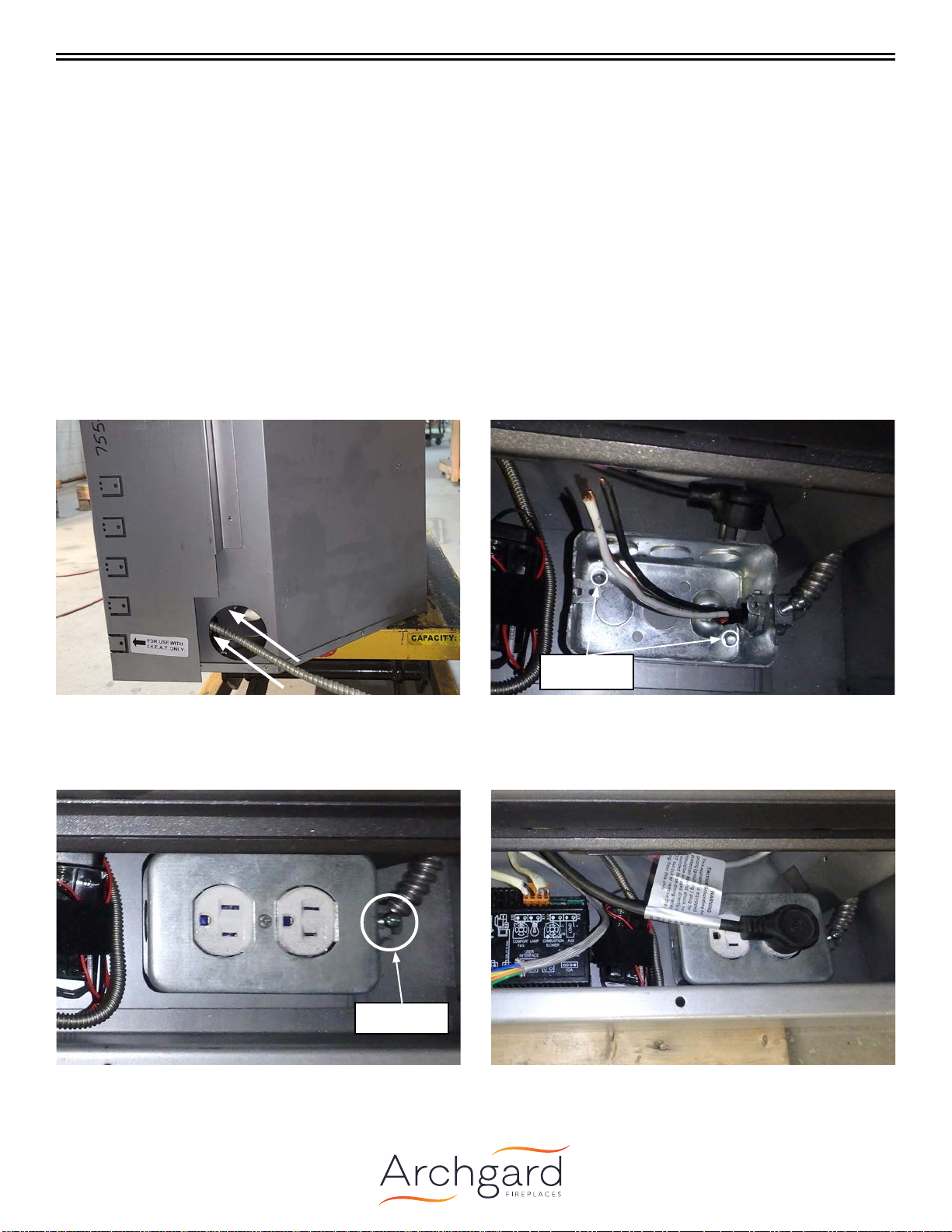

7.0 Electrical Connections
The 345-DVTE31LN-1
CAUTION:
NOTE:
• Section 6.3)
• Section 6.4)
• Section 6.5)
Step 1:
Figure 7.0.01:
Step 2:
Figure 7.0.02:
Step 3:
Figure 7.0.03:
Strain Relief
Step 4:
the receptacle.
Figure 7.0.04:
Screws
17
Installation
8.0 Fireplace Dimensions
WARNING
Figure 8.0.01:
333
233
3
2
2
3
2
3
2
233
2
23
2
2
3
3
Front View
Left Side View
2
33
2
33
3
3
3
2
23
2
33
Top View
Right Side View
18
Installation
NOTE
9.1 Installation Overview
9.0 Prepare The Fireplace
9.2 Nailing Flange Tabs
CAUTION
Always install nailing ange extension regardless of installation variances.
Wall Board Thickness
(Nailing Flange Setting)
Side Nailing Flanges
(see Figure 9.2.01Figure 9.2.02).
Figure 9.2.02:
Flange Tabs
OFlush
Face* IHEAT
ONLY
O
O
O
O
Figure 9.2.01:
1.
2.
3.
4.
5. Install hearth (if applicable).
6.
7.
8.
9.
clearances.
10. Section 12-
11.
12.
13.
PLACEMENT CLEARANCE REQUIREMENTS
•
• -
• Section 12
•
•
•
IMPORTANT
Appliance clearances and framing specications dier if IHEAT is installed.
See the IHEAT manual before planning your installation.
19
Installation
DETAIL
SCALE 2 :

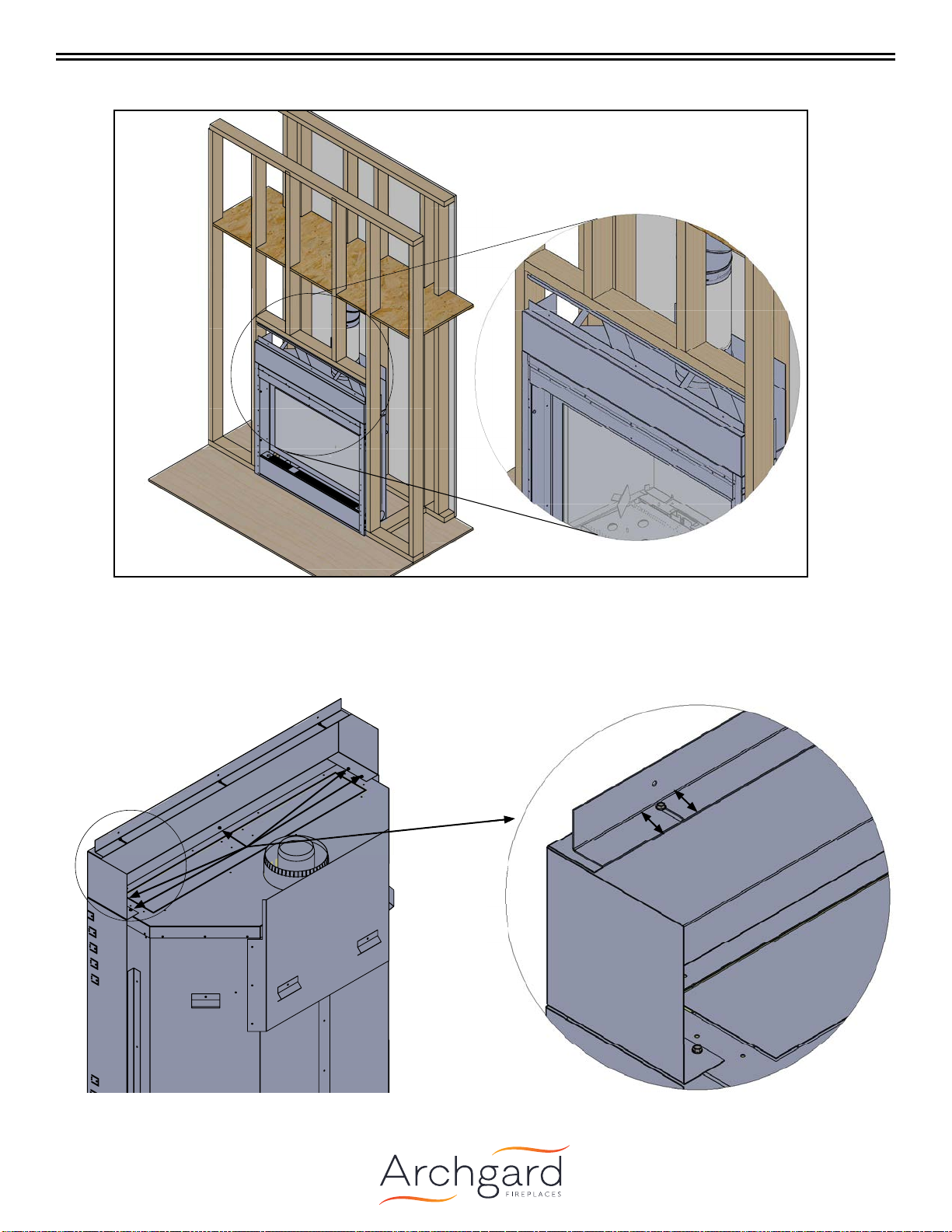

Figure 9.3.01:
DETAIL
SCALE 2 :
Attaching The Nailing Flange Extension
Adjusting The Top Nailing Flange
Figure 9.3.02: Figure 9.3.03:
9.3 Nailing Flange Extension & Upper Standos
DETAIL
SCALE 2 :
20
Installation
DETAIL
SCALE 2 : 3
DETAIL
SCALE 2 : 3
Installing the top stand-o
Figure 9.3.04:
Figure 9.3.05:
This manual suits for next models
1
Table of contents
Other Archgard Indoor Fireplace manuals
Archgard
Archgard Optima 32-1 Owner's manual
Archgard
Archgard marquis AGDV-38D User manual
Archgard
Archgard 40-dvi40n Optima 40 - SB User manual
Archgard
Archgard Optima 34 User manual
Archgard
Archgard Sereno 41 User manual
Archgard
Archgard 25-BVI20N-2 Owner's manual
Archgard
Archgard Optima 20-1 Owner's manual
Archgard
Archgard 37-DVTE30LN-1 User manual
Archgard
Archgard Kojin 50 User manual
Archgard
Archgard DV-520NG Owner's manual
Archgard
Archgard Chantico 31 User manual
Archgard
Archgard Chalet 1800I Owner's manual
Archgard
Archgard Optima 34 34-DVI34N Owner's manual
Archgard
Archgard 27-DVIE22N-2 User manual
Archgard
Archgard 25-BVI20N-3 Owner's manual
Archgard
Archgard EURO 25 --1 Operating instructions
Archgard
Archgard Optima 3600O Guide
Archgard
Archgard 72-DVTE30P-2-ERG User manual
Archgard
Archgard Optima 72 User manual
Archgard
Archgard CHALET 1600I Owner's manual
Popular Indoor Fireplace manuals by other brands
Horizon Fitness
Horizon Fitness 24VF Installation operation & maintenance
Empire Comfort Systems
Empire Comfort Systems LTH718-1 installation instructions
Napoleon
Napoleon NEFE29-1415E Installation and operating instructions
Greentouch
Greentouch kathy ireland HOME 1498FSO-26-267 Assembly / care & use instructions
M Design
M Design Luna Gold 700 H+ quick start
PORTABLE HEATING SOLUTIONS
PORTABLE HEATING SOLUTIONS FBD28T-W user guide
Riello
Riello RS 70/M Installation, use and maintenance instructions
Tecno Air System
Tecno Air System RUBY CAMOGLI installation instructions
Majestic fireplaces
Majestic fireplaces Woodland UVLC18RN Installation and operating instructions
Bellfires
Bellfires Room Divider Large 3 installation manual
Empire Comfort Systems
Empire Comfort Systems VFLC10IN32N-1 Installation instructions and owner's manual
Continental Fireplaces
Continental Fireplaces CX36NTR-1 Installation and operating instructions
Heatilator
Heatilator GC300 series owner's manual
Montigo
Montigo H34DL Information sheet
Baxi Fires Division
Baxi Fires Division Dream BR660VA Installer's guide
Century Heating
Century Heating CB00006 Installation and operation manual
Marquis
Marquis MQRB4436N Infinite Series installation instructions
Faber
Faber Vaska installation manual
