Arct PT-01 User manual

1


OperatingInstructions

PortableTransmitter

ModelNo.PT‐01





2


Introduction:
ThankyouforpurchasingARCTPT‐01Transmitter.TheoperatinginstructionisforPT‐01transmitter.
Beforeconnectingandoperatingtransmitter,pleasereadfollowinginstructionscompletely,and
savethismanualforfutureuse.






Hereby,wedeclarethatARCTPT‐01isincompliancewithPart15oftheFCCRulesandessentialrequirements
andotherrelevantprovisionsofdirective1999/5/EC.Operationisthesubjecttothefollowingtwoconditions:
(1)Thisdevicemaynotcauseharmfulinterference.
(2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.

WarrantyPolicy:
Thewarrantyperiodis18monthsofservicetimefromdateofinvoice.
(Forfurtherwarrantyperiod,pleasecontactyourdistributorordealer)

Note:
Thefollowingdamagesarenotcoveredbythewarranty,includingdropping,watercontactorany
otherwronguse,otherthanthepurposedesignedfor.

Safetyprecautions:
Topreventsevereinjuryandlossoflife/property,readthissectioncarefullybeforeusingtheunitto
ensureproperandsafeoperationofyourunit.
 Thesectionexplainsthegraphicsymbolsusedinthismanual.

Denotesapotentialhazardthatcouldresultinseriousinjuryordeath.




3



PT‐01Transmitter

DonotthrowthePT‐01intofireorheatthedevise.ThesameappliestotheusedAlkalinebattery.
Thereistheriskofheatgeneration,fire,orexplosion.
Donotshortpositive(+)andnegative(‐)contactofAlkalinebattery.
DisposeoftheAlkalinebatteryafterinsulatingpositive(+)andNegative(‐)contactsbyfriction
tape.
Thereistheriskofheatgeneration,fire,orexplosion.
Donotcharge,use,orleavethePT‐01awayfromfireanddirectsunlight.
ThesameappliestotheusedAlkalinebattery.
Thereistheriskofheatgeneration,fire,orexplosion.
DonotsplashwateronthePT‐01ormoistenonthedevise.
Thereistheriskofheatgeneration,fire,orexplosion.
DonottouchtheelectrolyteleakedfromtheAlkalinebattery.
Entryoftheelectrolyteintoaneyemayleadtoblindness.Incase,rinsetheaffectedeyethoroughly
withcleanwater,andthenseekmedicalattentionimmediately.
DonotputthePT‐01intoamicrowaveovenorpressurizedchamber.
Thereistheriskofheatgeneration,fire,orexplosion.

REPLACEDBYANINCORRECTTYPEWILLCAUSETHERISKOFEXPLOSION.
DISPOSEOFUSEDBATTERIESACCORDINGTOTHEINSTRUCTIONS.



4

UsePrecautions:
Readthefollowinginstructionstousethisproductcorrectly.
PT‐01transmitter
 Donotopenormodifythemainunitcase.
 DonottouchthecontactportionsoftheAlkaline.Failuretoobservethemaycausepoor
contact.
 RemovetheisolationfilmfromthePT‐01beforeusing.
Operationenvironmentandserviceplace
 Keepthedeviceawayfromhightemperatureorexcessivedust.
 Donotputthisdevicewherestaticislikelytobegeneratedorwheremagnetismgenerating
devicesasTVsetandradioarenearby.
 Donotleavethisproductunderdirectsunshineoratexcessivehighorlowtemperaturesof
longtime.
Howtomaintainthedevice:
 Useadrysoftclothtoremovedirtfromthisproduct.Whenstubbornstainsareobserved,use
atightlytwistedwatersoakedclothtowipethepointsoftlyandusedryanotherclothtowipe
thepointagain.
 Donotusethinner,benzene,wax,kerosene,polish,hotwater,chemicalclothandthelike.
 Thedirtyconnectormaycausechargingfailure.



5

AccessoriesConfirmation:
Beforeusing,examinethefollowingaccessories.
 Iftheremissinganyitems,pleasecontactyourdealer.
 Mainunit:


 Operatinginstructions(thisdocument)

 Accessorybag:3MStickerX1,M3ScrewX4,Sticker(White)X1


OptionAccessory


6

Unitpartsandfunctions

 Mainunit(frontside)

NoNameDetails
1
Indicator LightBlue:Transmittermode

BlinkBlue:Lowbattery.
2TransmitterIDTransmitterIDnumber
3PressbuttonPressthebuttontosendamessageorsignal









7

EffectiveUseofPT‐01transmitter:
1. Removethebatteryisolationfilmbeforeusing(asbelow)

2. Tapingwhitestickeronthedesignatedarea



8

Installations

 PT‐01transmitterinstallations:
1. PlacethePT‐01onthetable.


2. Mountedonthetable.(Option)
Step1.FixtheHolderonthetablewithdoublesidedtapeortwoself‐tappingscrews

 
Step2.SlidethePT‐01intothebracket.
 



9



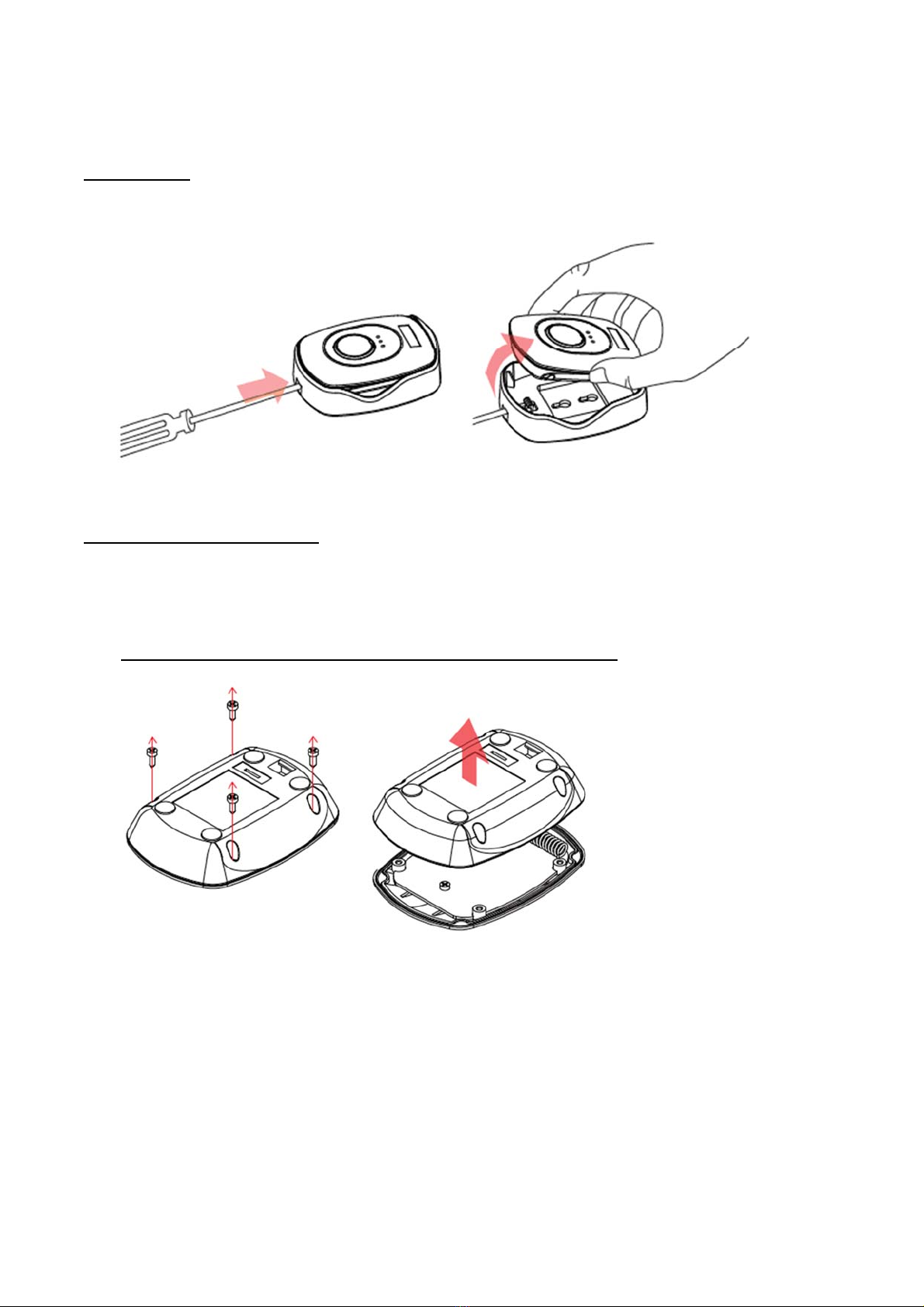

Dismount:
1. RemovethePT‐01fromtheHolder


ReplaceaBatteryPack
 HowtoreplaceAlkalinebattery
1. ScrewedthebackcoverofthePT‐01Transmitter






10

2. TakeouttheAlkalinebattery

3. ReplaceanewAlkalinebattery
WheninsertingtheAlkalinebatteryintotheunit,makesurethattheterminalsarecorrectly
directed.

4. ClosethebackcoverofPT‐01
PutbackthebackcoverofthePT‐01,andfastenscrews


11


Specifications
PT-01 Transmitter
Item Specifications
Frequency 433.92MHz
Baud rate: 1200 bps
Modulation type FSK
Channel Spacing 12.5K
Frequency stability 10ppm at -10℃~+60℃
Current consumption Standby: 20uA
Dimension 75 mm x 55 mm x 18.5 mm
Weight Approx..58g
Power supply 3V DC; 1.5V Alkaline AAA x 2pcs
Battery Life 1 year days
Certification


