Arctic King MWHUK-15CRN8-BCK8 User manual

information about this product, please call our toll-free number.
SAVE THIS MANUAL
Keep this manual and the original sales invoice in a safe, dry place for future reference.
Notre personnel du service à la clientèle est disponible pour vous aider. En cas de problème avec votre achat, ou pour
obtenir plus d’informations à propos de ce produit, veuillez composer notre numéro sans frais.
CONSERVEZ CE GUIDE
Conservez ce manuel avec la facture d’origine dans un endroit sûr et sec pour référence future.
Our customer service staff is available to help you. For any problem with your purchase, or to receive further
Customer Service / Service à la clientèle: 1-866-206-0888
WINDOW AIR CONDITIONER
Operator's Manual
Item No. 817035 SKu No. 21615019 Model NO. MWHUK-15CRN8-BCK8

1
24
25
35
2. OPERATING INSTRUCTIONS

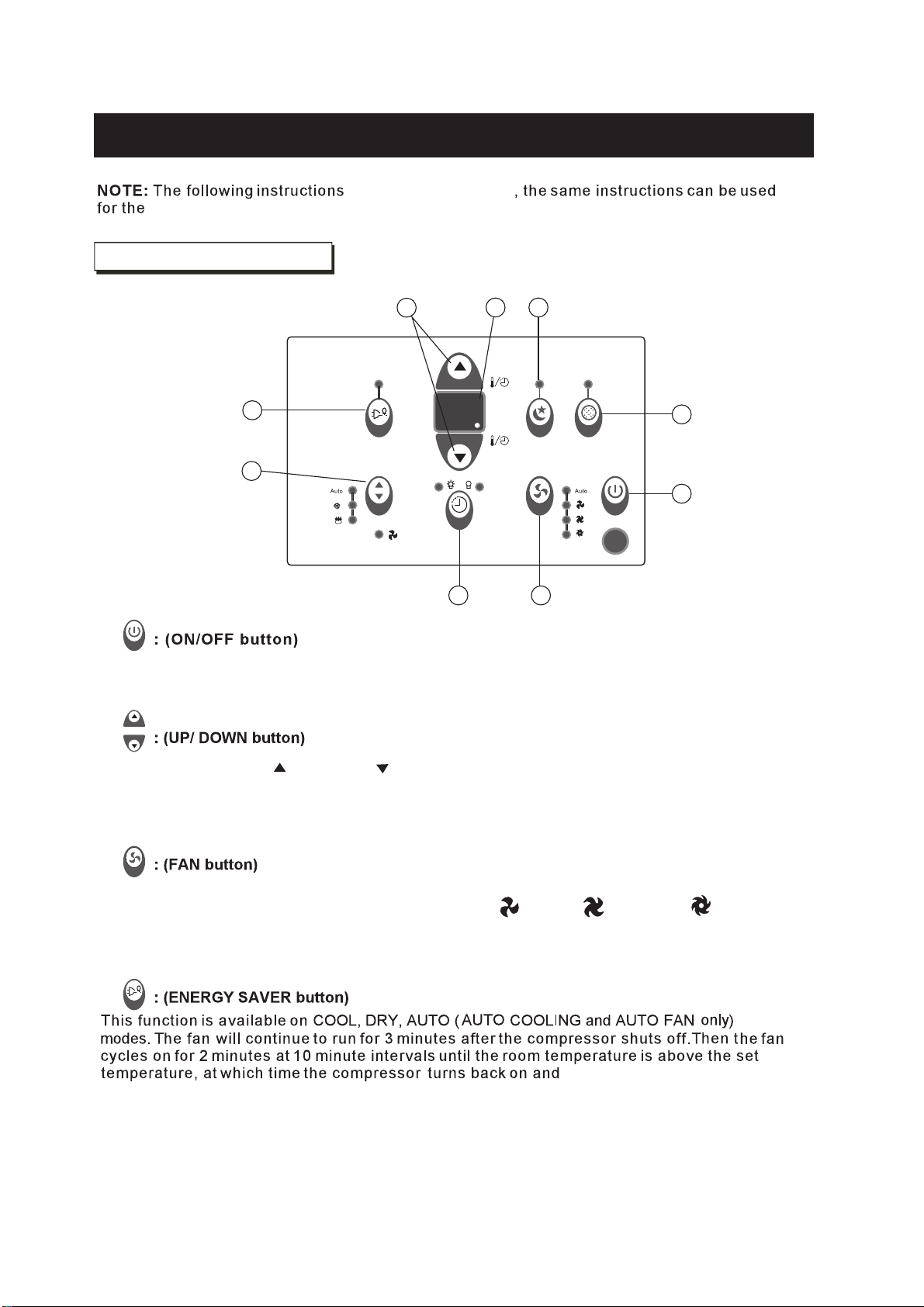

REMOTE CONTROL OPERATING INSTRUCTIONS
3.
11
4.
5.
6.
7.
26
Read this Manual
disabled
You will find inside many helpful tips on how to use and maintain your air conditioner
properly. Just a little preventive care on your part can save you a great deal of time
and money over the life of your air conditioner. You'll find many answers to common
problems in the Troubleshooting chart. Reviewing this chart first may prevent you
from calling for service.
15

must be followed. Incorrect operation due to failure to following the instructions may cause
harm or damage. The severity level is classified as follows:
This symbol indicates a risk of death or serious injury.
This symbol indicates a risk of injury or damage to property.
Unplug the unit in the
presence of strange sounds,
smell, or smoke.
It may cause an explosion, fire, and burns. It may cause failure of the unit and electric shock.
2
Always ensure proper
grounding.
grounding
A damaged unit may cause fire
and electric shock.
place
Plug in the power plug
properly.
Do not modify the power
cord's length or share the
outlet with other appliance.
Do not operate with wet hand
or in a damp environment. Do not direct airflow at room occupants only.
This may be harmful to your
health.
a circuit
It may cause failure of the unit or
electrical shock.
Ventilate the room before operating the air
conditioner if there is a gas leak from
another appliance.
Do not disassemble or modify the unit.

any other
purpose than air cooling.
3

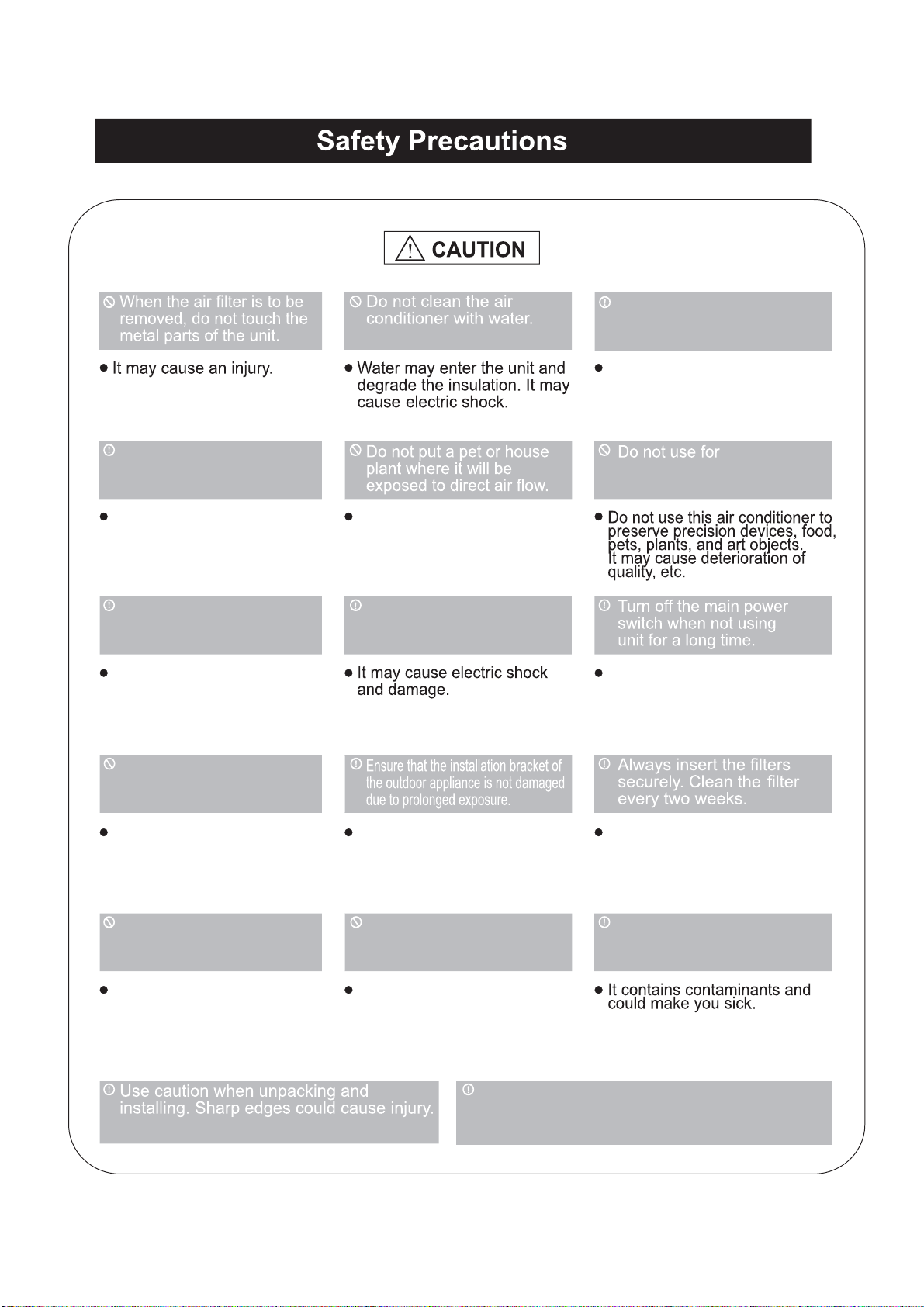

Ventilate the room properly
when used together with a
stove, etc..
An oxygen deficiency may occur.
When the unit is to be
cleaned, switch it off and
turn off the circuit breaker.
Do not clean the unit when the
power is ON as it may cause fire,
electric shock, and even an injury.
This could harm the pet or plant.
Stop operating the unit and close
the window during storms or
hurricanes.
Disconnect the power cord by
pulling it out by the plug.
Operation with windows opened
may cause indoor wetting and
soaking of household furniture.
It may cause failure of the unit or
fire.
Do not place obstacles around
the air inlet or inside the air
outlet.
It may cause failure of the unit or
an accident. A damaged bracket may cause the
unit to overturn. Operation without filters may cause failure of the unit.
Do not use abrasive detergents,
such as wax or thinner, but use
a soft cloth.
Do not place heavy objects on
the power cord and ensure that
the cord is not compressed.
Do not drink water drained from
the air conditioner.
The appearance may deteriorate
due to discoloration or surface
scratches of the product.
It may cause fire or electric shock.
If water enters the unit, turn the unit off at the power outlet and
switch off the circuit breaker. Isolate the supply by unplugging
the power cord and contact a qualified service technician.

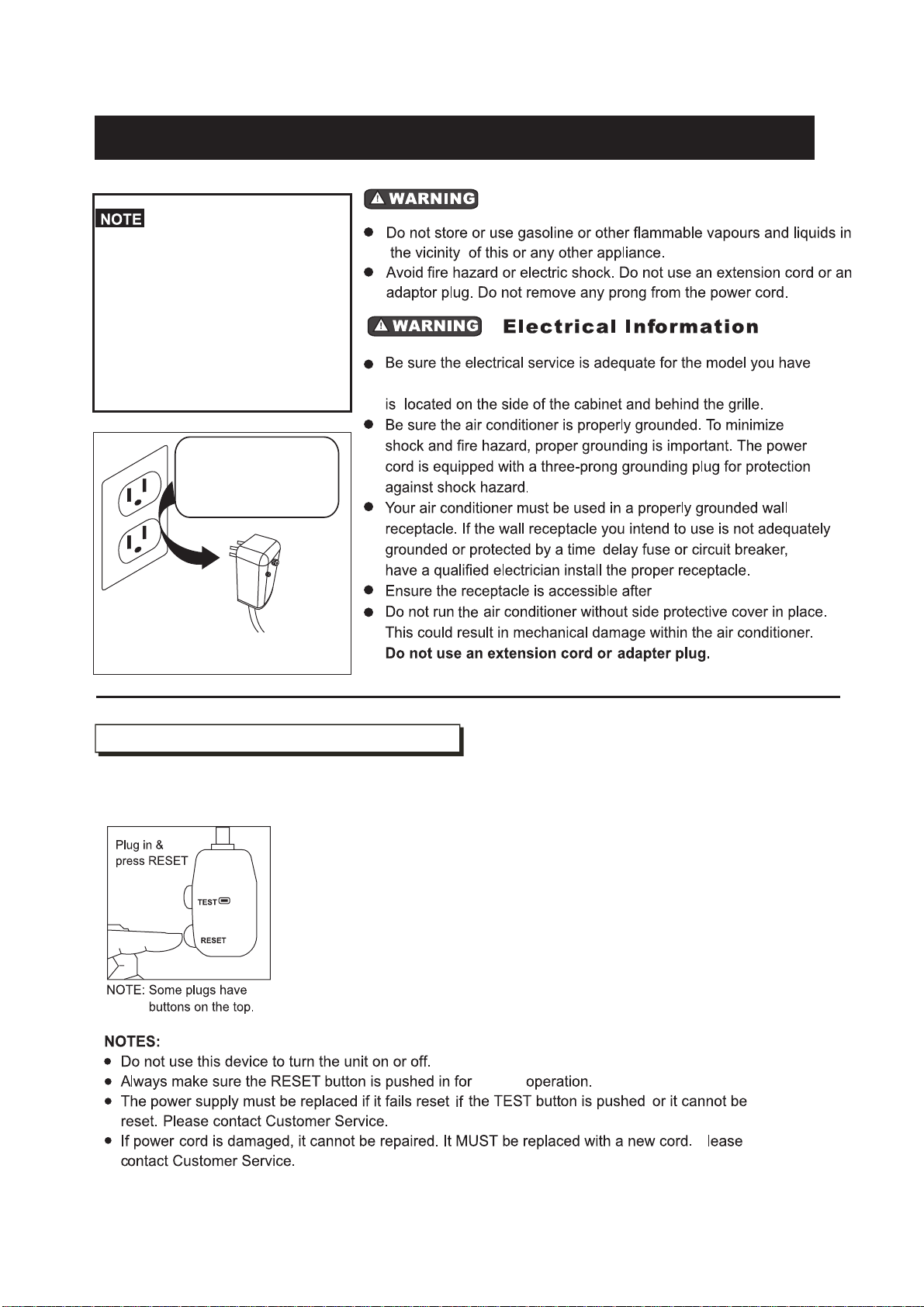

For Your Safety
The power supply with this
air conditioner contains a current
detection device designed to reduce
the risk of fire.
Please refer to the section
"Operating the Current Device" for
details. In the event that the power
cord is damaged, it cannot be
repaired-it must be replaced with a
cord from the product manufacturer.
NEVER cut, remove or
bypass the grounding
prong of the plug.
The power cord contains a current device that detects damage to the power cord. To test your power cord,
perform the following:
1. Plug in the air conditioner.
2. The power supply's plug has TWO buttons. By pressing the TEST button,
you will hear a click as the RESET button pops out.
3. Press the RESET button again to hear another click sound as the button
engages.
4. The power cord is now supplying electricity to the unit. (On some models,
the plug is equipped with a light indicating that the power is ON.)
proper
P
Safety Precautions
Operating the Current Device
selected.Ths information can be found on the serial plate, which
-
installing the unit.
Power supply cord
with three-prong grounding plug
and current detection device
4

5
-Do not use means to accelerate the defrosting process or to clean, other than those
recommended by the manufacturer.
-The appliance shall be stored in a room without continuously operating ignition
sources (for example: open flames, an operating gas appliance) and ignition sourcesor
(for example:an operating electric heater) close to the appliance. The appliance shall
be stored in a room without continuously operating ignition sources (for example: open
flames, an operating gas appliance or an operating electric heater).
-Do not pierce or burn.
-Be aware that the refrigerants may not contain an odour.
-Compliance with national gas regulations shall be observed.
-Keep ventilation openings clear of obstruction.
-The appliance shall be stored so as to prevent mechanical damage from occurring.
-A warning that the appliance shall be stored in a well-ventilated area where the room
size corresponds to the room area as specified for operation.
-Any person who is involved with working on or breaking into a refrigerant circuit should
hold a current valid certificate from an industry-accredited assessment authority, which
authorises their competence to handle refrigerants safely in accordance with an
industry recognised assessment specification.
-Servicing shall only be performed as recommended by the equipment manufacturer.
Maintenance and repair requiring the assistance of other skilled personnel shall be
carried out under the supervision of the person competent in the use of flammable refrigerants.
-DO NOT modify the length of the power cord or use an extension cord to power the unit.
DO NOT share a single outlet with other electrical appliances. Improper power supply
can cause fire or electrical shock.
-Please follow the instruction carefully to handle, install, clear, service the air
conditioner to avoid any damage or hazard. Flammable Refrigerant R32 is used within
air conditioner. When maintaining or disposing the air conditioner, the refrigerant (R32
or R290) shall be recovered properly, shall not discharge to air directly.
-No any open fire or device like switch which may generate spark/arcing shall be
around air conditioner to avoid causing ignition of the flammable refrigerant used.
Please follow the instruction carefully to store or maintain the air conditioner to prevent
mechanical damage from occurring.
-Flammable refrigerant -R32 is used in air conditioner. Please follow the instruction
carefully to avoid any hazard.
WARNING: (
for using R290/R32 refrigerant only)
Caution: Risk of fire/
flammable materials
(Required for R32/R290 units only)
IMPORTANT NOTE:Read this manual
carefully before installing or operating
your new air conditioning unit. Make sure
to save this manual for future reference.
AVERTISSEMENT
Ne pas utiliser de produits permettant d acc l rer le d gel ou de produits de nettoyage
autres que ceux recommand s par le fabricant.
L appareil doit tre entrepos dans un endroit sans source d allumage fonctionnant
en continu (par exemple : flamme nue, appareil au gaz en marche ou radiateur lectrique
en marche).
Ne pas percer ni bruler.
Attention : les frigorig nes peuvent tre inodores.
é é é
é
ê é é
è ê
,
,
,

6
WARNINGS (for using R290/R32 refrigerant only)
!
Explanation of symbols displayed on the unit(For the unit adopts R32/R290 Refrigerant only):
WARNING
This symbol shows that this appliance used a flammable refrigerant. If the
refrigerant is leaked and exposed to an external ignition source, there is a risk of fire.
CAUTION
This symbol shows that the operation manual should be read carefully.
CAUTION
This symbol shows that a service personnel should be handling this
equipment with reference to the installation manual.
CAUTION
This symbol shows that information is available such as the operating
manual or installation manual.
1.Transport of equipment containing flammable refrigerants
See transport regulations
2.Marking of equipment using signs
See local regulations
3.Disposal of equipment using flammable refrigerants
See national regulations.
4.Storage of equipment/appliances
The storage of equipment should be in accordance with the manufacturer's instructions.
5.Storage of packed (unsold) equipment
Storage package protection should be constructed such that mechanical damage to the
equipment inside the package will not cause a leak of the refrigerant charge.
The maximum number of pieces of equipment permitted to be stored together will be determined
by local regulations.
6.Information on servicing
1)Checks to the area
Prior to beginning work on systems containing flammable refrigerants, safety checks are
necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating system, the
following precautions shall be complied with prior to conducting work on the system.
2)Work procedure
Work shall be undertaken under a controlled procedure so as to minimise the risk of a flammable
gas or vapour being present while the work is being performed.
3)General work area
All maintenance staff and others working in the local area shall be instructed on the nature of work
being carried out. Work in confined spaces shall be avoided. The area around the workspace shall
be sectioned off. Ensure that the conditions within the area have been made safe by control of
flammable material.
4)Checking for presence of refrigerant
The area shall be checked with an appropriate refrigerant detector prior to and during work,
to ensure the technician is aware of potentially flammable atmospheres. Ensure that the leak
detection equipment being used is suitable for use with flammable refrigerants, i.e. non-sparking,
adequately sealed or intrinsically safe.
5)Presence of fire extinguisher
If any hot work is to be conducted on the refrigeration equipment or any associated parts,
appropriate fire extinguishing equipment shall be available to hand. Have a dry powder or CO2 fire
extinguisher adjacent to the charging area.
6)No ignition sources
No person carrying out work in relation to a refrigeration system which involves exposing any

7
7)Ventilated area
Ensure that the area is in the open or that it is adequately ventilated before breaking into the
system or conducting any hot work. A degree of ventilation shall continue during the period that
the work is carried out. The ventilation should safely disperse any released refrigerant and
preferably expel it externally into the atmosphere.
8)Checks to the refrigeration equipment
Where electrical components are being changed, they shall be fit for the purpose and to the
correct specification. At all times the manufacturer's maintenance and service guidelines shall be
followed. If in doubt consult the manufacturer's technical department for assistance.
The following checks shall be applied to installations using flammable refrigerants:
The charge size is in accordance with the room size within which the refrigerant containing parts
are installed;
The ventilation machinery and outlets are operating adequately and are not obstructed;
If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the
presence of refrigerant;
Marking to the equipment continues to be visible and legible. Markings and signs that are
illegible shall be corrected;
Refrigeration pipe or components are installed in a position where they are unlikely to be
exposed to any substance which may corrode refrigerant containing components, unless the
components are constructed of materials which are inherently resistant to being corroded or are
suitably protected against being so corroded.
9)Checks to electrical devices
Repair and maintenance to electrical components shall include initial safety checks and
component inspection procedures. If a fault exists that could compromise safety, then no
electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault
cannot be corrected immediately but it is necessary to continue operation, an adequate
temporary solution shall be used. This shall be reported to the owner of the equipment so all
parties are advised.
Initial safety checks shall include:
That capacitors are discharged: this shall be done in a safe manner to avoid possibility of
sparking;
That there no live electrical components and wiring are exposed while charging, recovering or
purging the system;
That there is continuity of earth bonding.
1)During repairs to sealed components, all electrical supplies shall be disconnected from the
equipment being worked upon prior to any removal of sealed covers, etc. If it isabsolutely
necessary to have an electrical supply to equipment during servicing, then a permanently
operating form of leak detection shall be located at the most critical point to warn of a potentially
hazardous situation.
2)Particular attention shall be paid to the following to ensure that by working on electrical
components, the casing is not altered in such a way that the level of protection is affected.
7.Repairs to sealed components
pipe work that contains or has contained flammable refrigerant shall use any sources of ignition
in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources,
including cigarette smoking, should be kept sufficiently far away from the site of installation,
repairing, removing and disposal, during which flammable refrigerant can possibly be released to
the surrounding space. Prior to work taking place, the area around the equipment is to be
surveyed to make sure that there are no flammable hazards or ignition risks. No Smoking signs
shall be displayed.

8
8. Repair to intrinsically safe components
Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that
this will not exceed the permissible voltage and current permitted for the equipment in use.
Intrinsically safe components are the only types that can be worked on while live in the presence
of a flammable atmosphere. The test apparatus shall be at the correct rating. Replace
components only with parts specified by the manufacturer. Other parts may result in the ignition
of refrigerant in the atmosphere from a leak.
9. Cabling
Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp
edges or any other adverse environmental effects. The check shall also take into account the
effects of aging or continual vibration from sources such as compressors or fans.
10. Detection of flammable refrigerants
Under no circumstances shall potential sources of ignition be used in the searching for or
detection of refrigerant leaks.Ahalide torch (or any other detector using a naked flame) shall not
be used.
11. Leak detection methods
The following leak detection methods are deemed acceptable for systems containing flammable
refrigerants. Electronic leak detectors shall be used to detect flammable refrigerants, but the
sensitivity may not be adequate, or may need re-calibration. (Detection equipment shall be
calibrated in a refrigerant-free area.) Ensure that the detector is not a potential source of ignition
and is suitable for the refrigerant used. Leak detection equipment shall be set at a percentage of
the LFLof the refrigerant and shall be calibrated to the refrigerant employed and the appropriate
percentage of gas (25 % maximum) is confirmed. Leak detection fluids are suitable for use with
most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine
may react with the refrigerant and corrode the copper pipe-work. If a leak is suspected, all naked
flames shall be removed/ extinguished. If a leakage of refrigerant is found which requires
brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of shut
off valves) in a part of the system remote from the leak. Oxygen free nitrogen (OFN) shall then
be purged through the system both before and during the brazing process.
12. Removal and evacuation
When breaking into the refrigerant circuit to make repairs or for any other purpose conventional
procedures shall be used. However, it is important that best practice is followed since
flammability is a consideration. The following procedure shall be adhered to:
Remove refrigerant;
Purge the circuit with inert gas;
Evacuate;
Purge again with inert gas;
Open the circuit by cutting or brazing.
This shall include damage to cables, excessive number of connections, terminals not made to
original specification, damage to seals, incorrect fitting
of glands, etc.
Ensure that apparatus is mounted securely.
Ensure that seals or sealing materials have not degraded such that they no longer serve the
purpose of
preventing the ingress of flammable atmospheres. Replacement parts shall be in accordance
with the manufacturer's specifications.
NOTE: The use of silicon sealant may inhibit the effectiveness of some types of leak detection
equipment. Intrinsically safe components do not have to be isolated prior to working on them.

9
a) Become familiar with the equipment and its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure that:
Mechanical handling equipment is available, if required, for handling refrigerant cylinders;
All personal protective equipment is available and being used correctly;
The recovery process is supervised at all times by a competent person;
Recovery equipment and cylinders conform to the appropriate standards.
d) Pump down refrigerant system, if possible.
e) If a vacuum is not possible, make a manifold so that refrigerant can be removed from various
parts of the system.
f) Make sure that cylinder is situated on the scales before recovery takes place.
g) Start the recovery machine and operate in accordance with manufacturer's instructions.
h) Do not overfill cylinders. (No more than 80 % volume liquid charge).
i) Do not exceed the maximum working pressure of the cylinder, even temporarily.
j) When the cylinders have been filled correctly and the process completed, make sure that the
cylinders and
13.Charging procedures
In addition to conventional charging procedures, the following requirements shall be followed.
Ensure that contamination of different refrigerants does not occur when using charging
equipment. Hoses or lines shall be as short as possible to minimise the amount of refrigerant
contained in them.
Cylinders shall be kept upright.
Ensure that the refrigeration system is earthed prior to charging the system with refrigerant.
Label the system when charging is complete (if not already).
Extreme care shall be taken not to overfill the refrigeration system.
Prior to recharging the system it shall be pressure tested with OFN. The system shall be leak
tested on completion of charging but prior to commissioning. A follow up leak test shall be
carried out prior to leaving the site.
14.Decommissioning
Before carrying out this procedure, it is essential that the technician is completely familiar with
the equipment and all its detail. It is recommended good practice that all refrigerants are
recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken
in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical
power is available before the task is commenced.
The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall
be flushed with OFN to render the unit safe. This process may need to be repeated several
times. Compressed air or oxygen shall not be used for this task.
Flushing shall be achieved by breaking the vacuum in the system with OFN and continuing to
fill until the working pressure is achieved, then venting to atmosphere, and finally pulling down
to a vacuum. This process shall be repeated until no refrigerant is within the system. When the
final OFN charge is used, the system shall be vented down to atmospheric pressure to enable
work to take place. This operation is absolutely vital if brazing operations on the pipe-work are
to take place.
Ensure that the outlet for the vacuum pump is not close to any ignition sources and there is
ventilation available.

10
15.Labelling
Equipment shall be labelled stating that it has been de-commissioned and emptied of
refrigerant. The label shall be dated and signed. Ensure that there are labels on the equipment
stating the equipment contains flammable refrigerant.
16.Recovery
When removing refrigerant from a system, either for servicing or decommissioning, it is
recommended good practice that all refrigerants are removed safely.
When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery
cylinders are employed. Ensure that the correct number of cylinders for holding the total system
charge is available. All cylinders to be used are designated for the recovered refrigerant and
labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders shall
be complete with pressure relief valve and associated shut-off valves in good working order.
Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs.
The recovery equipment shall be in good working order with a set of instructions concerning the
equipment that is at hand and shall be suitable for the recovery of flammable refrigerants. In
addition, a set of calibrated weighing scales shall be available and in good working order.
Hoses shall be complete with leak-free disconnect couplings and in good condition. Before
using the recovery machine, check that it is in satisfactory working order, has been properly
maintained and that any associated electrical components are sealed to prevent ignition in the
event of a refrigerant release. Consult manufacturer if in doubt.
The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery
cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery
units and especially not in cylinders. If compressors or compressor oils are to be removed,
ensure that they have been evacuated to an acceptable level to make certain that flammable
refrigerant does not remain within the lubricant. The evacuation process shall be carried out
prior to returning the compressor to the suppliers. Only electric heating to the compressor body
shall be employed to accelerate this process. When oil is drained from a system, it shall be
carried out safely.
the equipment are removed from site promptly and all isolation valves on the equipment are
closed off.
k) Recovered refrigerant shall not be charged into another refrigeration system unless it has
been cleaned and checked.

Operating Instructions
Normal Sounds
/64-109°F
/62-90°F
11
The unit may vibrate and make noise
becaure of poof wall or winodw
construction, or incorrect instlalation.
NOTE: Performance may be reduced outside of these operating temperatures.

remote control.
The unit will initiate automatically the Energy Saver function under COOL, DRY, andAUTO (AUTO
COOL andAUTO FAN only) modes.
Unit Control Panel
Operating Instructions
1
2
3
5
4
69
7
8
1)
2)
3)
4)
12
refer to the unit controls
Press or hold either UP ( ) or DOWN ( ) button until the desired temperature is displayed. This
temperature will be automatically maintained anywhere between 62ºF and 86ºF
(17ºC - 30ºC). If
you want the display to read the actual room temperature, refer to "Operating on the Fan Only"
section.
You may select the fan speed in four steps: AUTO, LOW ( ), MED ( ), or HIGH ( ).
Each button press shifts the fan speed mode. For some models, the fan speed cannot be adjusted
under HEAT mode. On DRY mode, the fan speed is automatically controlled at Low.
-
cooling starts.

●To choose the operating mode, press the MODE button. At each button press, a mode is selected in a
sequence that goes from AUTO, COOL, DRYand FAN. The indicator light illuminate and remain
ON once the mode is selected.
operate on AUTO mode:
DRY Mode:
Operating Instructions
SLEEP
5)
6)
7)
- When the unit is ON or OFF, first press the TIMER button. The TIMER ON indicator light will illuminate,
indicating that the AUTO-START program has been initiated.
- When the TIMER ON time is displayed, press the TIMER button again. The TIMER OFF indicator light
will illuminate, indicating that the AUTO-STOP program has been initiated.
- Press or hold the UP or DOWN button to change theAUTO time in 0.5-hour increments, up to 10 hours,
then in 1-hour increments up to 24 hours. The control will count down the remaining time until start.
- The selected time will register in 5 seconds, and the system will automatically revert back to display the
previous temperature setting or room temperature when the unit is ON. (When the unit is OFF, there is
no display.)
- Turning the unit ON or OFF at anytime or adjusting the timer setting to 0.0 will cancel the AUTO/ START/
STOP timed program.
The unit will initiate automatically the Energy Saver function under Cool, Dry, Auto(Auto
-Cooling and Auto-Fan) modes.
8)
13
2ºF/1ºC
2ºF/1ºC
● When you set the air conditioner in AUTO mode, it will automatically select COOLING or FAN ONLY
operation depending on the temperature you have selected and the room temperature.
●The air conditioner will automatically control the room temperature around the temperature point set
by you.
● In this mode, the fan speed cannot be adjusted, it starts automatically at a speed according to the
room temperature.
FAN ONLY mode:
In FAN ONLY mode, the temperature cannot be adjusted.
In this mode, the air conditioner will operate as a dehumidifier. Since the conditioned space is a closed
area, there will still be some degree of cooling.
SLEEP
SLEEP
air filter
CHECK FILTER

AS- Room temperature sensor error. Unplug the unit and
plug it back in. If error repeats, call for service.
NOTE: The FAN ONLY mode will display LO or HI.
● -Evaporator temperature sensor error. Unplug the unit
and plug it back in. If error repeats, call for service.
NOTE: "●" is displayed as shown in the left picture.
HS - Electric heating sensor error. Unplug the unit and
plug it back in. If error repeats, call for service.
Operating Instructions
● The COOL circuit has an automatic 3-minute starting time if the unit is turned OFF and ON quickly. This
prevents overheating of the compressor and possible circuit breaker tripping. The fan will continue to run
during this time.
● The control can display the temperature in Fahrenheit or Celsius. To convert from one to the other, press
and hold the up and down TEMP/TIMER buttons at the same time for 3 seconds.
The fresh air vent allows the air conditioner to:
1. Recirculate air indoors- Vent closed (see Fig. A).
2. Draw fresh air into the room- Vent open (see Fig. B).
3. Exchange air from the room and draws fresh air into
the room- Vent and exhaust open (see Fig. C).
4-way Air Directional Louvers
Air Direction (4 Ways)
Additional
9)
14
Displays
AUTO TIMER setting. While on FAN ONLY
Features you Should Know
AND

Window sash seal
Safety lock
and 3/4" long
hex head screw
Top angle
Foam gasket
Washer head
locking screw
Frame
assembly
(left)
Side retainer
Seal-bottom rail
to unit
3/4" long flat
head bolt
Locknut
1/2" long
screw and
locknuts Frame
assembly
(right)
Window
support
bracket
Sill
angle bracket
Storm window frame or
other obstruction Storm window
frame or
other obstruction
Board thickness
as required,
along entire
stool. Fasten
with two nails
or screws.
Installation Instructions
15
25K
18 5/8
" (473 mm) 17 5/8 " (455 mm)
26 1/2
" (673 mm) 23 5/8 " (600 mm)
19 1/2
" (495 mm) 18 1/2 " (470 mm)
31
" (787 mm) 28 " (710 mm)
42
" (1067 mm) 40 " (1029 mm)
15K,18K

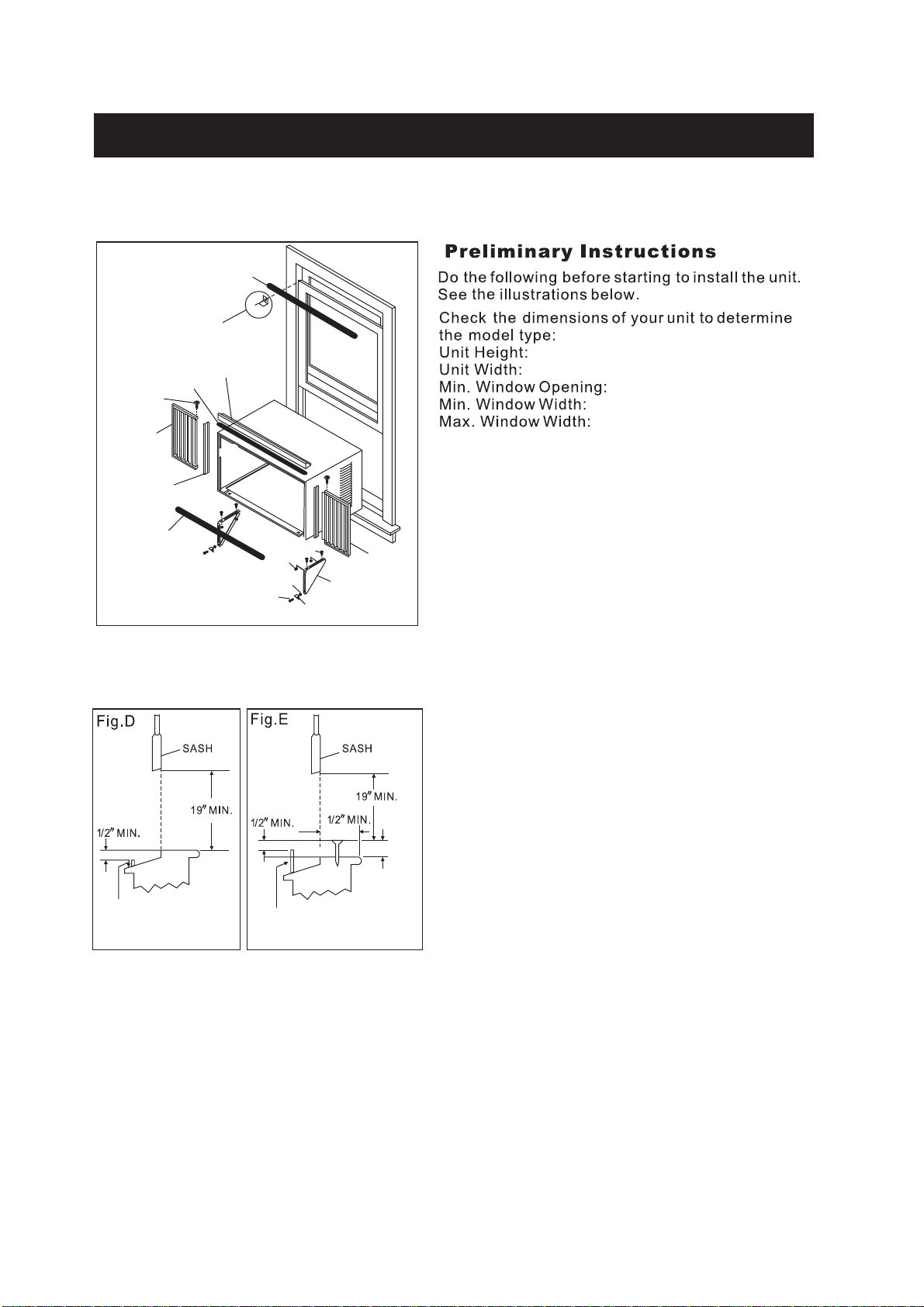

Please read ALL the instructions before installing. Two people are recommended to install this product. If
a new electrical outlet is required, have the outlet installed by a qualified electrician before installing the unit.
1. Check window opening size. The mounting parts provided
with this air conditioner are designed for installation in a
wooden sill double-hung window. The standard parts are for
window dimensions listed above. Open the sash to a minimum
of 19" (483 mm) (see Fig. D).
2. Check the window condition. All the wood parts of window
must be in good shape and able to firmly hold the needed
screws. If not, make repairs before installing the unit.
3. Check your storm window. If your storm window frame
does not allow the required clearance, correct by adding a
piece of wood as shown in Fig. E, or by removing the storm
window when the room air conditioner is being installed.
4. Check for anything that could block the air flow. Check
the outside area of the window for things such as shrubs,
trees or awnings. Be sure that the indoor furniture, drapes,
or blinds will not obstruct the airflow.
5. Check the available electrical service. The power supply
must be the same as specified on the unit serial nameplate.
The power cord is 48" long. Make sure there is an outlet near
the unit.
6. Carefully unpack the air conditioner. Remove all the
packing material. Protect the floor or carpet from damage.
Two people are recommended to move and install the unit.

( )
Installation Instructions
16

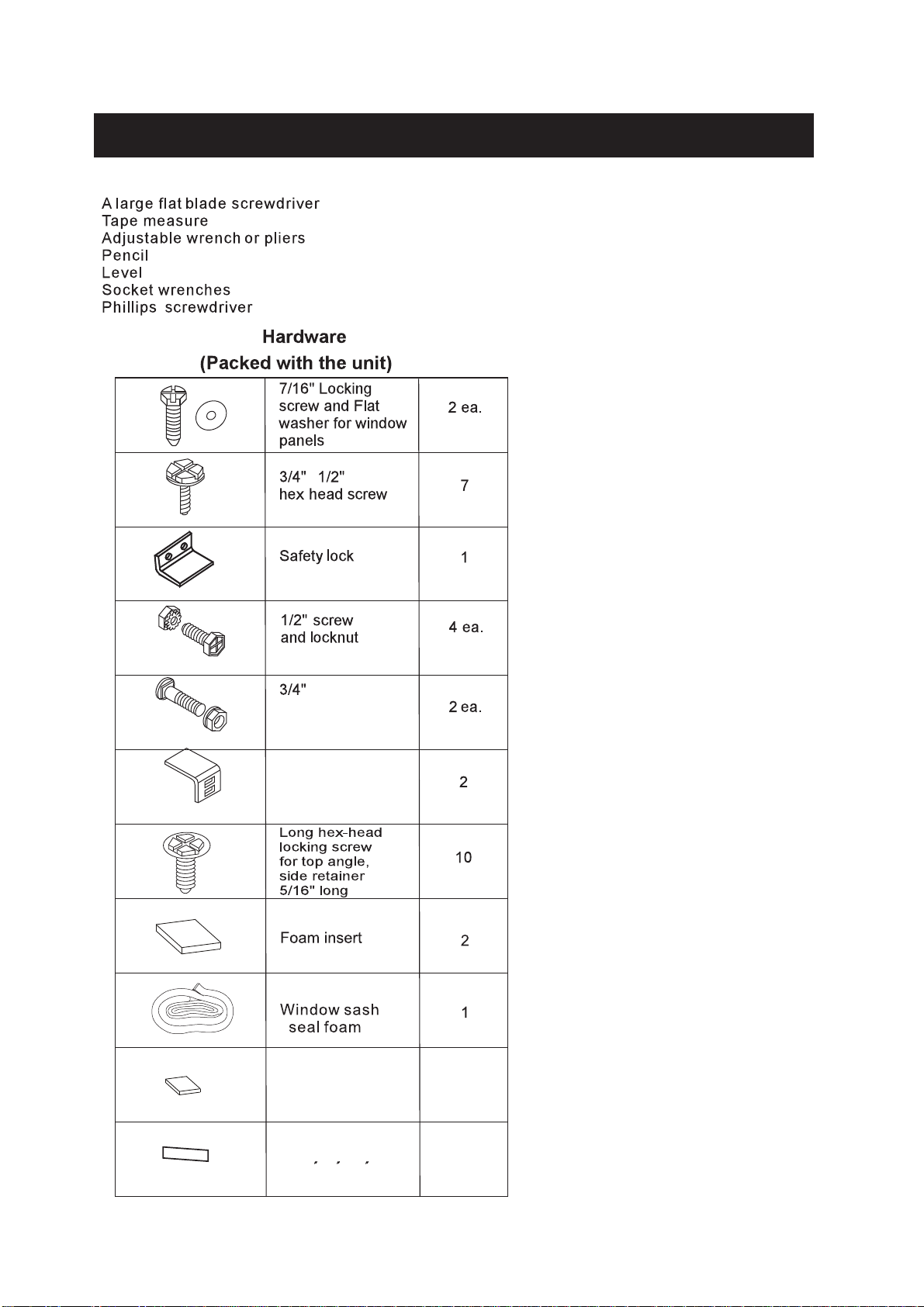

R1 hardware 2
(10 *3/4 *1/12 )
Weather stripping 5
Tools Required (Not Included)
-long flat
head bolt and
locknut
Sill angle
bracket

Installation Instructions
Window Mounting
1
4. Push metal cabinet side to release the plastic tabs
on each side of the front panel (see Fig.3).
5. Gently lift the front panel off the unit (see Fig.4).
6. Disconnect the connector plug of the display
panel from the unit and place the front panel to
one side (see Fig. 5).
2Install the top angle and
side bracket.
3
Plastic
frame Window Filler
panel
Side retainer
Fig.9
5 16 long
hex-head
/
Front grille
Fig.1 Fig.2
Fig.3
Fig.4
Front panel
Fig.5
Shipping
screws
Fig.6 Fig.7
Fig.8
17
Remove the chassis
1. Pull down the front grill and remove the filter
(see Fig.1).
2. Lift the front grill upwards and place to one side.
3. Locate the four front screws and remove.
These screws will be needed to reinstall the
front panel (see Fig.2).
7. Remove the shipping screws from the top of the unit
and on the side by the base, if installed (see Fig.6).
8. Hold the cabinet while pulling on the base pan handle
and carefully remove the unit.
9. Add two foam inserts to the hole on top of the cabinet
where the shipping screws were removed (see Fig.7).
1. Attach the foam gasket to the top angle above
the holes as shown in Fig.6.
2. Install the top angel and side retainers to the
cabinet as shown in Fig.8 (10 screws).
Assemble the window filler
panels.
1. Place the cabinet on the floor, a bench, or a table.
2. Slide the "I" section of the window filler panel into
the side retainer on the side of the cabinet (see
Fig.9 & Fig.10).
Repeat on the other side.
Top
view
Air conditioner
cabinet Plastic
frame
Window
filler
panel
Locking
screw
hole

Place the cabinet in the window.
angle
3. Shift the cabinet to the left or right (as needed) to
line up the centre of the cabinet on the marked
centre line on the stool.
4. Fasten the cabinet to the window stool with 2
screws into the holes (pilot holes may be pre-drilled).
5. Add the bottom rail seal over the screws to the
window stool.
Install the support bracket.
1. Hold each support bracket flush against outside
the sill and tight to the bottom of the cabinet
(see Fig. 14). Mark the brackets at the top level
of the sill, then remove.
2. Assemble the sill angle bracket to the support
brackets at the marked position (see Fig. 15).
Hand tighten to allow for any change later.
Installation Instructions
18
3. Insert the top and bottom legs of the window filler
panel frame in to the channel in the top angle and
bottom rail. Repeat on the other side.
4. Insert the two 7/16" washing head locking screws
(2) into the holes in the top leg of the filler pane
frame (refer to step 6). Do not completely tighten.
Allow the leg to slide freely. The screws will be
tightened after section 6.

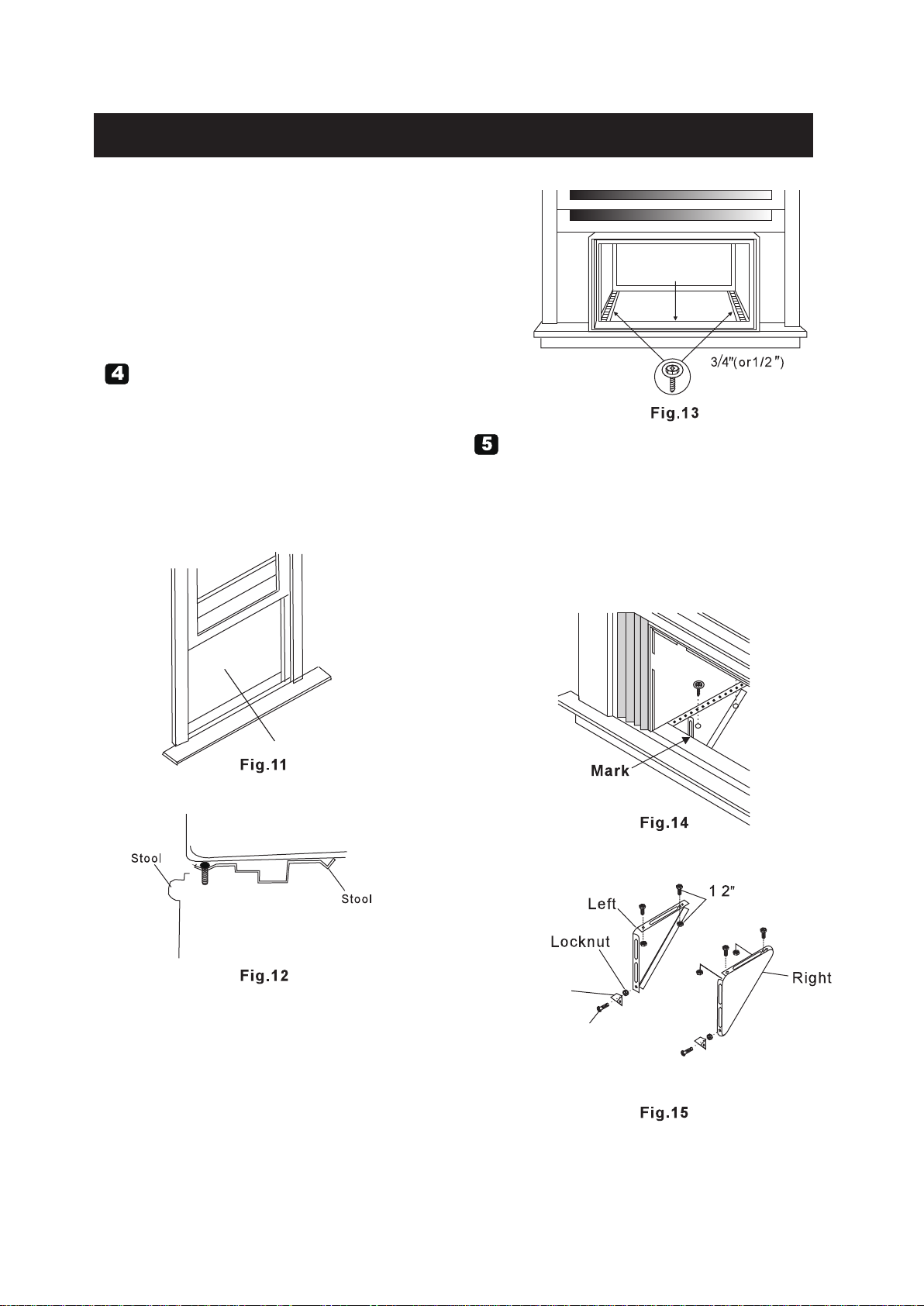

1. Open the window and mark the center of the
window stool as shown (see Fig. 11).
2. Place the cabinet in the window with the bottom
stool angle firmly seater over the window stool.
Bring the window down temporarily behind the
top angle to hold the cabinet in place (see Fig. 12).
Sill angle
bracket
Flat head
bolt
screws
and locknuts
2 screws per support bracket
Bottom
rail seal
hex head screw
