Arctic King F3 User manual

Before operating this product, please read the instructions
carefully and save this manual for future use.
DEHUMIDIFIER
Meijer.com

Producto
Meijer.com

1 866 747 4332
1 866 747 4332
Meijer.com

1
CONTENTS
SAFETY PRECAUTIONS
Warning .................................................................................................................................2
Caution ..................................................................................................................................2
Electrical information .............................................................................................................3
OPERATIING THE UNIT
Positioning the unit ...............................................................................................................6
When using the unit ..............................................................................................................6
Removing the collected water ...............................................................................................7
CARE AND MAINTENANCE
Care and cleaning the dehumidifier ......................................................................................8
TROUBLESHOOTING TIPS
Troubleshooting tips .............................................................................................................9
CONTROL PANEL ON THE UNIT
Control panel...........................................................................................................................4
Other features.........................................................................................................................4
IDENTIFICATION OF PARTS
Identification of parts ............................................................................................................5
WARRANTY INFORMATION
Customer service information .............................................................................................10
Meijer.com

2
To prevent injury to the user or other people and property damage, the following instructions must be
followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The
seriousness is classified by the following indications.
This symbol indicates the possibility of death or serious injury.
Meanings of symbols used in this manual are as shown below.
!
!
WARNING
Always do this.
Never do this.
!
CAUTION
This symbol indicates the possibility of injury or damage to property.
Do not exceed the rating
of the power outlet or
connection device.
Do not modify power cord
length or share the outlet
with other appliances
Disconnect the power if
strange sounds, smell, or
smoke comes from it.
Otherwise, it may cause electric
shock or fire due to heat
generation.
excess
It may cause electric shock or
fire due to heat generation.
It may cause fire and electric
shock.
It may cause electric shock or fire
due to heat generation.
It may cause electric shock.
It may cause failure of machine
or electric shock.
It contains contaminants and
could make you sick.
It may cause electric shock or fire.
Plastic parts may melt and cause
a fire.
It may cause electrical shock or
injury.
It may cause electric shock.
It may cause an explosion or fire.
Do not operate or stop the
unit by switching on or off
the power.
Do not insert or pull out
plug with wet hands.
You should never try to take
apart or repair the unit by
yourself.
Do not drink or use the
water drained from air
conditioner.
Do not damage or use an
unspecified power cord.
Do not place the unit near
a heat source.
Before cleaning, turn off
the power and unplug the
unit.
Do not open the unit
during operation.
Do not use the machine near
flammable gas or combustibles, such
as gasoline, benzene, thinner, etc.
!
!
!
!
WARNING
!
SAFETY PRECAUTIONS
!
CAUTION
When using in closets or
other small spaces, be
sure to keep doors open.
Lack of ventilation can cause
overheating and fire.
Do not put in places where
water may splash onto the
unit.
Water may enter the unit and
degrade the insulation. It may
cause an electric shock or fire.
Place the unit on a
level, sturdy section of
the floor.
If the unit falls over, it may
cause water to spill and
damage belongings, or
cause electrical shock or
fire.
!
Meijer.com

3
Do not cover the intake or
exhaust openings with
cloths or towels.
A lack of air flow can lead
to overheating and fire.
Do not clean unit when
power is on as it may cause
fire and electric shock, it may
cause an injury.
When the unit is to be
cleaned, switch off, and turn
off the circuit breaker.
Do not use in areas
where chemicals are
handled.
This will cause the unit
deterioration due to
chemicals and solvents
dissolved in the air.
Care should be taken when
using the unit in a room with
the following persons:
Infants, children, elderly people,
and people not senstive to
humidity.
You may be injured if you
fall or if the unit falls over.
Water may spill inside the
unit, causing insulation
failure and electrical
shock or fire.
!
!
!
It may cause failure of
appliance or accident.
There is danger of fire or
electric shock.
Do not place heavy object on the
power cord and take care so that
the cord is not compressed.
Operation without filters
may cause failure.
Always insert the filters
securely. Clean filter
once every two weeks.
!
CAUTION
Do not climb up on
or sit on the unit.
If water enters the unit, turn
the unit off and disconnect the
power , contact a qualified
service technician.
!
Do not place flower
vases or other water
container on top of
the unit.
The nameplate is located on the rear panel of the unit and
contains electrical and other technical data specific to this
unit.
Be sure the air conditioner is properly grounded. To minimize
shock and fire hazards, proper grounding is important. The
power cord is equipped with a three-prong grounding plug
for protection against shock hazards.
Your air conditioner must be used in a properly grounded wall
receptacle. If the wall receptacle you intend to use is not
adequately grounded or protected by a time delay fuse or
circuit breaker, have a qualified electrician install the proper
receptacle.
Ensure the receptacle is accessible after the unit installation.
However, if it is necessary to use an extension cord,
use an approved air conditioner extension cord only (available
at most local hardware stores).
To avoid the possibility of personal injury, always disconnect
the power supply to the unit before installing or servicing.
Do not use extension cords or an adapter plug with this
unit.
Electrical Information
Do not, under any
circumstances, cut,
remove, or bypass
the grounding prong.
This unit is grounded through the
power cord plug when plugged
into a matching wall outlet.
SAFETY PRECAUTIONS
Meijer.com

4
CONTROL PANEL ON THE UNIT
12
3
4
5
Power on
indicator light
Continuous
operation on
indicator light
Bucket full
indicator light
High fan
indicator
light
Normal fan
indicator light
Control Panel
1
POWER Button
Press to turn the unit on or off.
2
Continuous Button
Select for the dehumidifier to operate
continuously for maximum dehumidification
until the bucket is full. The Humdity can not
be set when Continuous operation is on.
3
Humidity Set Control Buttons
The humidity level can be set within a
range of 35%RH(Relative Humidity) to
80%RH(Relative Humidity) in 5%
increments.
For drier air, press the button and set
a lower percent value(%).
For moister air, press the button and
set a higher percent value(%).
4
Fan Speed Buttons
Press to select either Turbo or Normal fan speed. Set
the fan speed to Turbo for maximum moisture removal.
When the humidity has been reduced and quiet operation
is preferred, set the fan speed to Normal.
5
Display
Shows the set humidity level( while setting, then shows
the actual(+5% accuracy) room humidity level ( .
Error Codes:
E1- Humidity sensor error--Unplug the unit and plug it back
in. If error repeats, call for service.
E2- Temperature sensor error-- Unplug the unit and plug it
back in. If error repeats, call for service.
P1- Unit is defrosting-- Unit will take time to automatically
defrost. The error will clear after the unit defrosts.
P2- Bucket is full-- Empty the bucket and replace in
the proper position.
%)
%)
Other Features
Bucket Full Light
Lights up when the bucket is ready to be
emptied, or when the bucket is removed
or not placed in proper position.
Auto Shut Off
The water level control switch shuts off the
unit when the bucket is full, or when the
bucket is removed or not placed in proper
position.
When the set humidity is reached, the unit
will also be shut off automatically.
When frost builds up on the evaporator coils, the
compressor will cycle off and the fan will continue to
run until the frost disappears.
Auto Restart
In the case of power outage or interruption, the unit will
automatically restart and restore previous setting after
the power is back on.
Auto Defrost
C
Power
Continuous
Full
Humidity%
Turbo
Normal
Fig.1
Meijer.com

5
IDENTIFICATION OF PARTS
Power Cord
Air Outlet grille
Drain hose outlet
Air filter
Power Plug
Power cord hook or Band
Front
Rear
Control panel
Air intake
grille
Water bucket
Water level
window
Handle Air outlet
grille
Caster
Identification Of Parts
Air outlet
grille
Control panel
Air intake
grille
Water bucket
Water level
window
Handle
NOTE: All the pictures in the manual are for explanation only. The actual shape of the
unit you purchased may be a little different, but the operations and functions
are the same.
Fig.2
Fig.3
12
Drain hose adaptor (1 pc)
Drain hose (1 pc)
Screws (2 pcs)
Accessory:
Meijer.com

6
OPERATING THE UNIT
When Using The Unit
When first using the dehumidifier, operate the unit continuously 24 hours.
This unit is designed to operate with a working environment between 5 C(41 F) and 35 C(95 F).
If the unit has been switched off and needs to be switched on again quickly, allow approximately
three minutes for the correct operation to resume.
Do not connect the dehumidifier to a multiple socket outlet, which is also being used for other electrical appliances.
Select a suitable location, make sure you have easy access to an electrical outlet.
Plug the unit into a 115V~ 60Hz properly grounded electrical outlet.
Make sure the Water bucket is correctly placed otherwise the unit will not operate properly.
Casters
Do not force casters to move over carpet,
nor move the unit with water in the bucket.
(The unit may tip over and spill water.)
A dehumidifier operating in a basement will have little or no effect in drying an adjacent enclosed
storage area, such as a closet, unless there is adequate circulation of air in and out of the area.
Air outlet grille
Air intake
grille
200mm(7.87inches) or more
400mm(15.75inches) or more

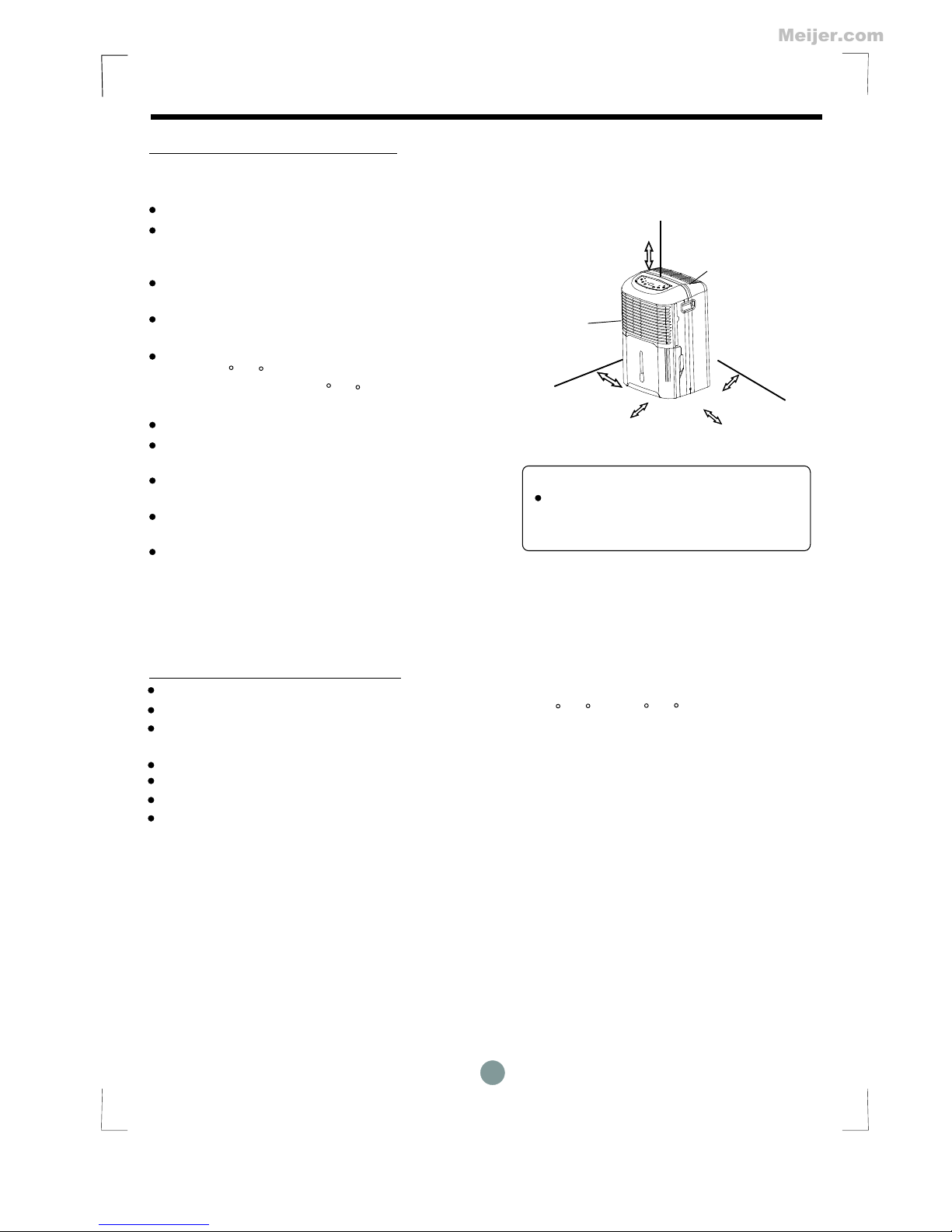

Positioning The Unit
Do not use outdoors.
This dehumidifer is intended for indoor residential
applications only. This dehumidifier should not be used
for commercial or industrial applications.
Place the dehumidifier on a smooth, level floor strong
enough to support the unit with a full bucket of water.
Allow at least 200mm(7.87inches) of air space on all
sides of the unit for good air circulation.
Place the unit in an area where the temperature will not
falll below 5 C(41 F). The coils can become covered with
frost at temperatures below 5 C(41 F), which may reduce
performance.
Place the unit away from the clothes dryer, heater or radiator.
Use the unit to prevent moisture damage anywhere books
or valuables are stored.
Use the dehumidifier in a basement to help prevent
moisture damage.
The dehumidifier must be operated in an enclosed
area to be most effective.
Close all doors, windows and other outside openings
to the room.
Fig.4
200mm(7.87inches) or more
200mm(7.87inches) or more
200mm(7.87inches) or more
Meijer.com

7
CARE AND MAINTENANCE

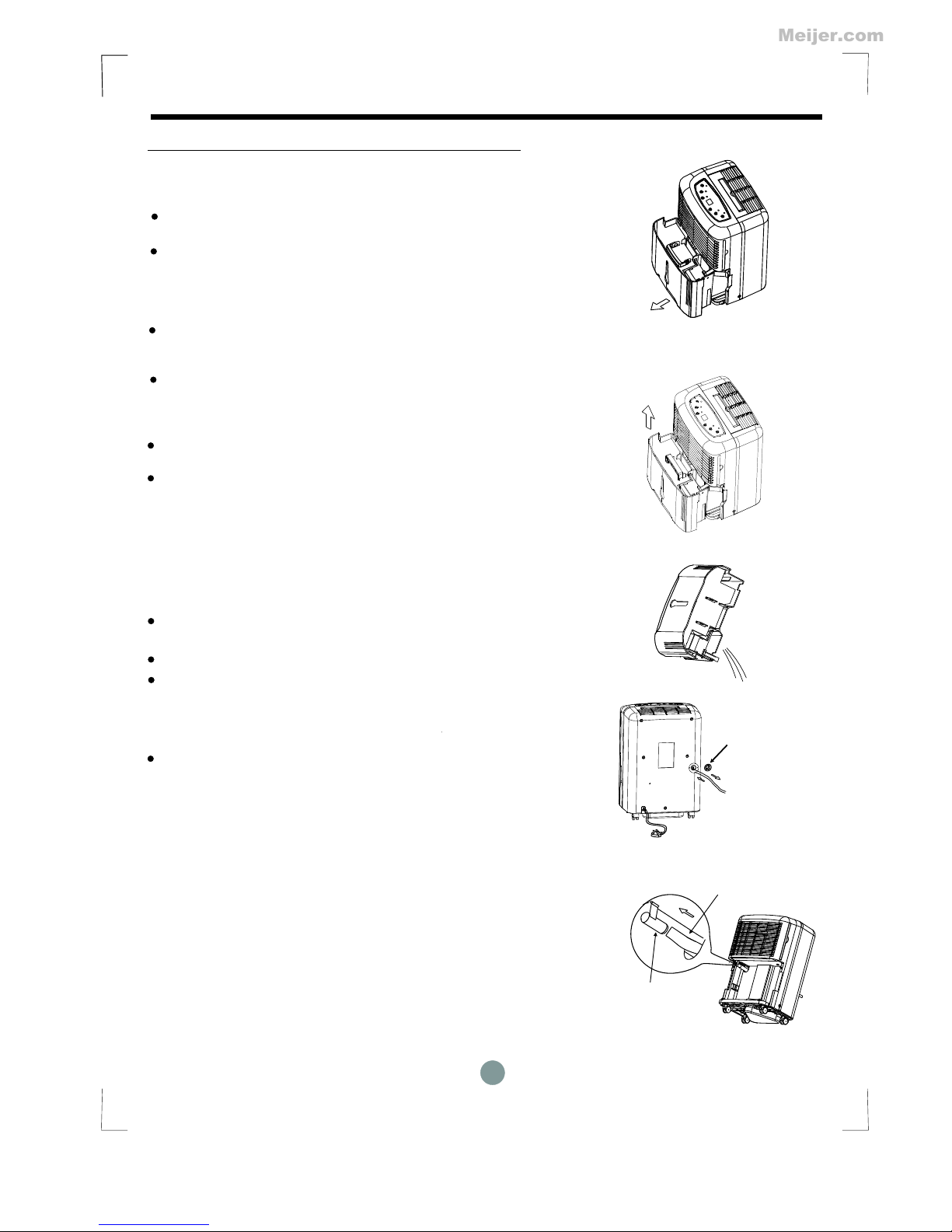

Removing The Collected Water 1. Pull out the bucket a little.
2. Hold both sides of the bucket
securely, and pull it out from
the unit.
3. Pour the water out.
There are two ways to remove collected water.
1. Use The Bucket
When the bucket is full, the unit will automatically stop
running, and the Full indicator light will flash.
Slowly pull out the bucket. Hold left and right handles
securely, and carefully pull out straight so water will
not spill. Do not put the tank on the floor because the
bottom of the bucket is not flat. Otherwise the bucket
will fall and cause the water to spill.
Pour the water and replace the bucket.The bucket
must be in place and securely seated for the
dehumidifier to operate.
The unit will restart when the bucket is replaced
in proper position.
NOTE:
When you remove the bucket, do not touch any parts
inside the unit. Doing so may damage the product.
Be sure to push the bucket gently all the way into the
unit. Banging the bucket against anything or failing to
push it in securely may cause the unit not to operate.
NOTE: When the continuous drain feature is not being
used, remove the drain hose from the connector and
attach the back drain hole with the rubber plug.
Remove the water bucket from the front of the unit, you will
find a section of hose located above the bucket.
Remove the rubber plug from the back of the unit(see Fig.8).
Insert the drain hose through the hole in the back of the unit
and securely press it onto the connector on the front of the
unit(see Fig.9). Then lead the drain hose to the floor drain or
a suitable drainage facility.
Replace the bucket in the unit. The bucket must be in place
and securely seated.
2. Continuous Draining
Water can be automatically emptied into a floor
drain by attaching the unit with a drain hose.
Remove the
rubber plug
Push the hose
into the drain
hole
Fig.5
Fig.6
Fig.7
Fig.8
Connector
Fig.9
Drain hose
Meijer.com

8
3. Clean the air filter
The air filter behind the front grille should be
checked and cleaned at least every 30 days
or more often if necessary.
Grip the tab on the filter and pull it out as shown
in Fig.A.
Clean the filter with warm, soapy water. Rinse and
let the filter dry before replacing it. Do not clean the
filter in a dishwasher.
Insert the air filter into the unit from the side and push
it in. See Fig.C
DO NOT operate the unit without a filter because
dust will block it and reduce performance.
NOTE: DO NOT RINSE OR PUT THE FILTER
IN AN AUTOMATIC DISHWASHER.
To remove:
To attach:
CAUTION:
Fig. A
Fig. B
Fig. C
After turning off the unit, wait one day before
emptying the tank.
Clean the unit, bucket and air filter.
Wrap the cord and bundle it with the band or twist
the excess cord onto the power cord hook.
Cover the unit with a plastic bag.
Store the unit upright in dry, well-ventilated place.
Band
Power cord
4. When not using the unit for a long time
CARE AND MAINTENANCE
Care And Cleaning Of The Dehumidifier
Turn the unit off and remove the plug
from the wall outlet before cleaning.
1. Clean the Grille and Case
Use water and a mild detergent. Do not use bleach
or abrasives.
Do not splash water directly onto the unit. Doing
so may cause an electrical shock, cause the insulation
to deteriorate, or cause the unit to rust.
The air intake and outlet grilles can get soiled easily, so
use a vacuum facility or brush to clean.
2. Clean the bucket
Every few weeks, clean the bucket to prevent growth of
mold,mildew and bacteria. Fill the bucket with clean water
and add a little mild detergent. Swish it around in the
bucket,empty and rinse.
Do not use a dishwasher to clean the bucket.
After cleaning, the bucket must be in place and securely
seated to operate.
NOTE:
Thinner
No
Household
Drain
Cleaner
Meijer.com

9
TROUBLESHOOTING TIPS
Before calling for service, review the chart below first.
Problem What to check
Unit does not start
Make sure the plug is pushed completely into the outlet.
Check the house fuse/circuit breaker box.
Dehumidifier has reached its preset level or bucket is full.
Bucket is not in the proper position.
Dehumidifier does not
dry the air as it should
Do not allow enough time to remove the moisture.
Make sure there are no curtains, blinds or furniture blocking the
front or back of the dehumidifier.
The humidity control may not be set low enough.
Check that all doors, windows and other openings are securely
closed.
Room temperature is too low, below 5 C(41 F).
There is a kerosene heater or something giving off water vapor
in the room.
The unit makes a loud
noise when operating
The air filter is blocked.
The unit is not placed upright as it should be.
The floor surface is not level.
Frost appears on the
coils
This is normal. The dehumidifier has Auto defrost feature.
Water on floor
Hose to connector or hose connection may be loose.
Intend to use the bucket to collect water, but the back
drain plug is removed.
E1, E2, P1 or P2 appear
in the display
These are error codes. See the
section.
CONTROL PANELS ON THE
DEHUMIDIFIER
Meijer.com

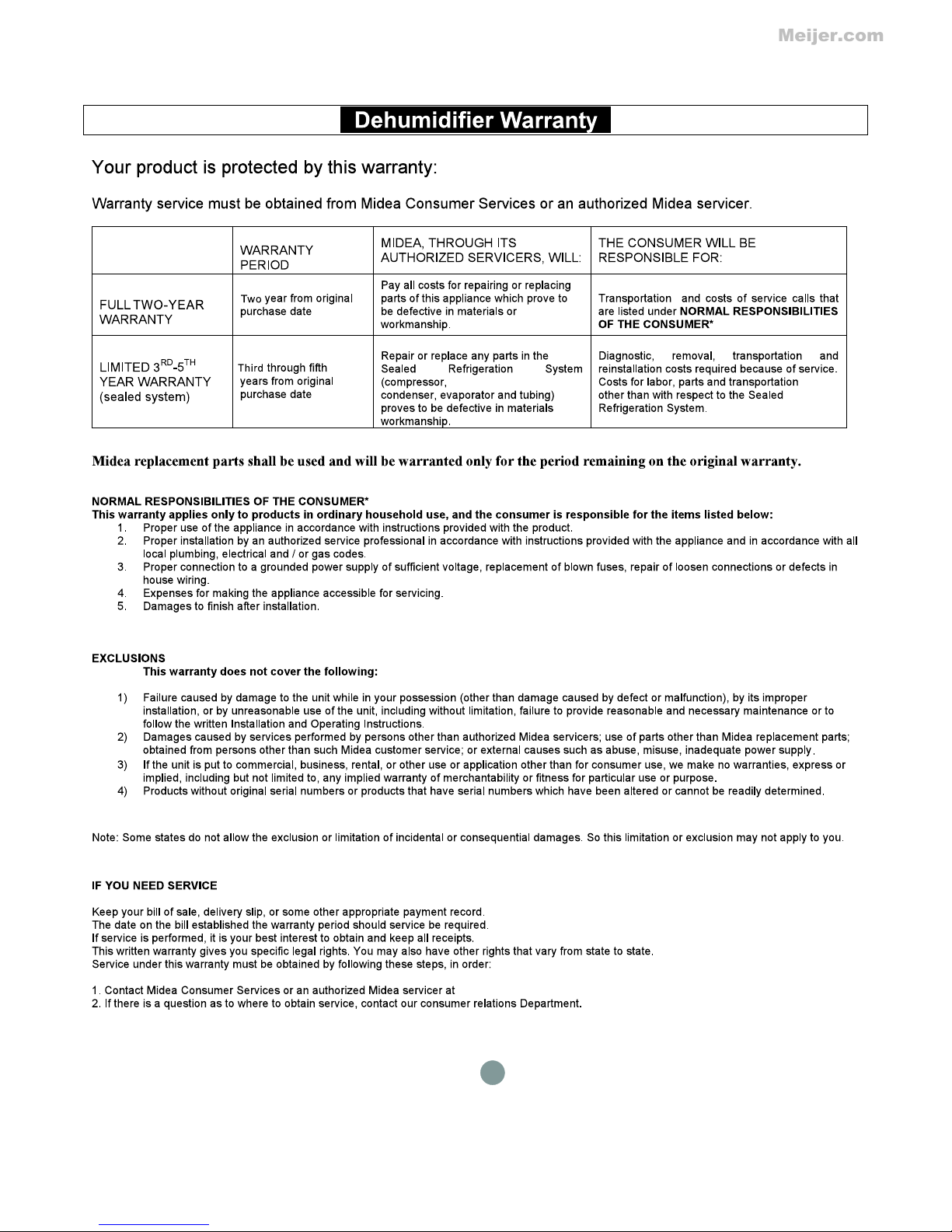

10
1-866-747-4332
Meijer.com

CS416-U
Meijer.com
