Arcus-EDS Touch IT-V-C3 User manual

arcus-eds
Manual
KNX Visualization
Touch_IT-V-C3
Version: V2 / July_01 / 2020
Touch_IT-V-IP65
Touch_IT-V-SMART

Arcus-EDS GmbH
Rigaer Str. 88, 10247 Berlin
www.arcus-eds.de
[email protected]
arcus-eds
A
VISU
arcus-eds
e7 / Subject to change
Tel.: +49 / (0) 30 / 2593 3914
Fax: +49 / (0) 30 / 2593 3915
Table of Content
Manual
AManual KNX Visualization
Preamble
Product Page Touch_IT-V-C3 / -IP65
Product Page Touch_IT-V-SMART
Installation Instructions
Chapter 1 – Application Description

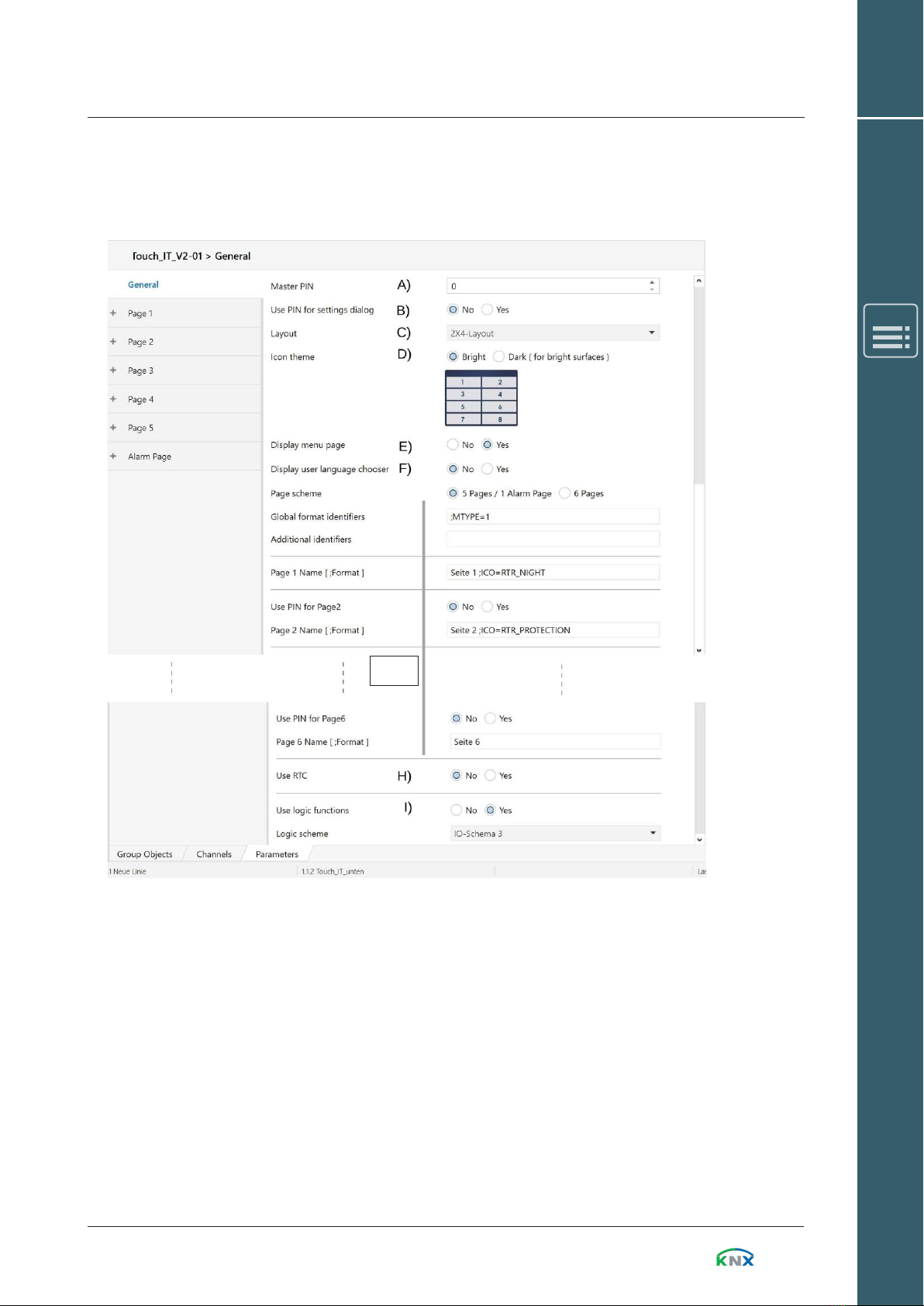

1.1 ETS General Settings
1.2 ETS Objects
Chapter 2 – Description widgets
2.1 Control Elements
2.2 Object & Element Types
2.3 Elements Attribut Assignment (Detailed description in the additional document)
Appendix
Table2ListingofIdentifiersandElements
Table2AIdentier:UniversalButton
Table2BIdentier:ToggleButton
Table2CIdentier:Incremental/DecrementalButton
Table2DIdentier:Timer/Scenes
Table2EIdentier:DimmingRGB/HVAC
Table2FIdentier:Alarm
Chapter 3 - System Settings and Customizing
3.1 Setting and Defaults
3.2Screensaver
Appendix
Table3AAdditionalIdentier:Screensaver
3.3 Custom Properties
Appendix
Table3BInternalIcons
3.4UpdateTool
Chapter 4 - Logic
4.1 ETS
4.2 Functions
4.3 Source Code
Imprint
Touch_IT V2
VISU

KNX
I
Arcus-EDS GmbH
Rigaer Str. 88, 10247 Berlin
www.arcus-eds.de
[email protected]
arcus-eds
Content
A
VISU
arcus-eds
e7 / Subject to change
Tel.: +49 / (0) 30 / 2593 3914
Fax: +49 / (0) 30 / 2593 3915
3,5“ TFT Colour Touch Display
Touch_IT V2
Introduction
3,5“ TFT Color Touch Display
VISU
Subject to change
Arcus-EDS GmbH
www.arcus-eds.de
Rigaer Str. 88 , 10247 Berlin
[e-mail]
Tel.: +49 / (0)30 / 2593 3914
Fax.: +49 / (0)30 / 2593 3915
e5
arcus-eds IKNX Introduction
Touch_IT C3 C3
Introduction
3.5“ TFT Display with 256K colors and touchscreen for visualisation and control in KNX systems.
The display has a resolution of 320x240 pixels with 256K colors (RGB). We use a 32-bit ARM processor with 200 MHz clock
frequency. It is equipped with a Linux operating system and features a mini-USB port and a microSD slot for data storage.
The Touch_IT contains a wide range of functions:
Switching and dimming, Display of the switching status, RGB control, On / Off Switching of several devices, Alarm functions,
Display and setting of heating control parameters, Multiroom Functions, Astronomic clock timer, Clock timer, Datenlogging, Each
page and element can be protected by global or dedicated passwords, Possibility for user defined layouts.
You can choose different housings

KNX
arcus-eds I
Arcus-EDS GmbH
Rigaer Str. 88, 10247 Berlin
www.arcus-eds.de
[email protected]
arcus-eds
Content
A
VISU
arcus-eds
e7 / Subject to change
Tel.: +49 / (0) 30 / 2593 3914
Fax: +49 / (0) 30 / 2593 3915
3,5“ TFT Colour Touch Display
Touch_IT V C3 / IP65
Product Page
KNX
arcus-eds I
Arcus-EDS GmbH
Rigaer Str. 88, 10247 Berlin
www.arcus-eds.de
[e-mail]
arcus-eds
Content
A
VISU
arcus-eds
e7 / Subject to change
Tel.: +49 / (0) 30 / 2593 3914
Fax: +49 / (0) 30 / 2593 3915
3,5“ TFT Colour Touch Display
Touch_IT V C3 / IP65
Product Page
KNX
arcus-eds I
Arcus-EDS GmbH
Rigaer Str. 88, 10247 Berlin
www.arcus-eds.de
[e-mail]
arcus-eds
Content
A
VISU
arcus-eds
e7 / Subject to change
Tel.: +49 / (0) 30 / 2593 3914
Fax: +49 / (0) 30 / 2593 3915
3,5“ TFT Colour Touch Display
Touch_IT C3 / IP65 V2
Product Page
Arcus-EDS GmbH Rigaer Str. 88 , 10247 Berlin Tel.: +49 / (0)30 / 2593 3914
www.arcus-eds.de [e-mail] Fax.: +49 / (0)30 / 2593 3915 e5
Subject to change
arcus-eds I KNX
VISU
C3
3,5“ TFT Color Touch Display
Product Page
Application Description
Touch_IT C3
Page 1
1 Product Page / Application Description
The following section describes the installation, the existing connections, the specifications and the commissioning and
parameterisation by the ETS.
3,5" Display for visualisation and control in KNX systems.
The Touch_IT-V-C3-IP65 ( on-wall, outdoor / damp room, IP65 ) is mounted
with 2 skrews onto the wall.
Installation Touch_IT-V-C3-xxx is carried out using a mounting ring. The
locking screw is used for fixation in a standard 60 mm in-wall socket.
The Touch_IT features an integrated KNX bus coupler and requires
additional voltage 9 .. 32VDC / 1,5W.
Different control elements are available for the application software.
The Touch_IT must be projected using the ETS ( EIB Tool Software ) and the
application program. V2 Control elements and page layout can be
parametrized using the ETS.
Touch_IT-V-C3
-IP65
On wall mounting
Aluminium anodized
22410265
Touch_IT-V-C3
-AE
Metal housing with bevel
Aluminium sandblasted anodized
22410200
Touch_IT-V-C3
-AW
Metal housing with bevel
Aluminium white powder-
coated
22410201
Touch_IT-V-C3
-SAE
Metal housing square-edged
Aluminium sandblasted anodized
22410300
Touch_IT-V-C3
-SAS
Metal housing square-edged
Aluminium sanded anodized
22410303
Touch_IT-V-C3
-SAB
Metal housing square-edged
Aluminium sanded black anodized
22410304
Metal housing square-edged
Aluminium white powder-coated
22410301
Article-No.: 22410xxx
3,5“ Color Touch Display
Touch_IT-V-C3-IP65 On-Wall
Touch_IT-V-C3-xxx In-Wall
›
S
e
it
e
1
»
Product Page – Touch_IT V C3 / IP65
Touch_IT-V-C3
-SAW
Areas of Application
• Switching and dimming of lighting
• RGB control with colorchooser
• Display of the switching status in building
• Control of various devices in the KNX-Bus
• Handling of shutters/blinds
• Acoustic and optic alarm functions
• Display of object states as plain text
• Display and setting of heating control parameters
• Control of multi room audio-systems
• Display of temperatures
• Weekly clock timer
• Astronomic clock timer for sunset/sunrise driven controls
• Datalogging and on display diagram facility
• Internal scenes with 32 action objects and programmable delays
• Logic functions can be implemented in a scripting language
• Separate display page for alarm purposes
• Each page and element can be protected by global or
dedicated passwords
• Different Layouts, visual styles and standby options
• Many languages available
• Character sizes and styles are selectable
• Possibility for user defined layouts, icons, screensavers etc.

KNX
arcus-eds I
Arcus-EDS GmbH
Rigaer Str. 88, 10247 Berlin
www.arcus-eds.de
[email protected]
arcus-eds
Content
A
VISU
arcus-eds
e7 / Subject to change
Tel.: +49 / (0) 30 / 2593 3914
Fax: +49 / (0) 30 / 2593 3915
3,5“ TFT Colour Touch Display
Touch_IT V C3 / IP65
Product Page
KNX
arcus-eds I
Arcus-EDS GmbH
Rigaer Str. 88, 10247 Berlin
www.arcus-eds.de
[e-mail]
arcus-eds
Content
A
VISU
arcus-eds
e7 / Subject to change
Tel.: +49 / (0) 30 / 2593 3914
Fax: +49 / (0) 30 / 2593 3915
3,5“ TFT Colour Touch Display
Touch_IT V C3 / IP65
Product Page
KNX
arcus-eds I
Arcus-EDS GmbH
Rigaer Str. 88, 10247 Berlin
www.arcus-eds.de
[e-mail]
arcus-eds
Content
A
VISU
arcus-eds
e7 / Subject to change
Tel.: +49 / (0) 30 / 2593 3914
Fax: +49 / (0) 30 / 2593 3915
3,5“ TFT Colour Touch Display
Touch_IT C3 / IP65 V2
Product Page
Arcus-EDS GmbH Rigaer Str. 88 , 10247 Berlin Tel.: +49 / (0)30 / 2593 3914
www.arcus-eds.de [e-mail] Fax.: +49 / (0)30 / 2593 3915 e5
Subject to change
arcus-eds I KNX
VISU
C3
3,5“ TFT Color Touch Display
Product Page
Application Description
Touch_IT C3
Page 3
‹
›
S
e
it
e
3
»
«
Touch_IT V IP65 Dimensions
Touch_IT V C3 Dimensions / Connectors

KNX
arcus-eds I
Arcus-EDS GmbH
Rigaer Str. 88, 10247 Berlin
www.arcus-eds.de
[email protected]
arcus-eds
Content
A
VISU
arcus-eds
e7 / Subject to change
Tel.: +49 / (0) 30 / 2593 3914
Fax: +49 / (0) 30 / 2593 3915
3,5“ TFT Colour Touch Display
Touch_IT V C3 / IP65
Product Page
KNX
arcus-eds I
Arcus-EDS GmbH
Rigaer Str. 88, 10247 Berlin
www.arcus-eds.de
[e-mail]
arcus-eds
Content
A
VISU
arcus-eds
e7 / Subject to change
Tel.: +49 / (0) 30 / 2593 3914
Fax: +49 / (0) 30 / 2593 3915
3,5“ TFT Colour Touch Display
Touch_IT V C3 / IP65
Product Page
KNX
arcus-eds I
Arcus-EDS GmbH
Rigaer Str. 88, 10247 Berlin
www.arcus-eds.de
[e-mail]
arcus-eds
Content
A
VISU
arcus-eds
e7 / Subject to change
Tel.: +49 / (0) 30 / 2593 3914
Fax: +49 / (0) 30 / 2593 3915
3,5“ TFT Colour Touch Display
Touch_IT C3 / IP65 V2
Product Page
Arcus-EDS GmbH Rigaer Str. 88 , 10247 Berlin Tel.: +49 / (0)30 / 2593 3914
www.arcus-eds.de [e-mail] Fax.: +49 / (0)30 / 2593 3915 e5
Subject to change
arcus-eds I KNX
VISU
C3
3,5“ TFT Color Touch Display
Product Page
Application Description
Touch_IT C3
Page 5
Technical Data
Behaviour at Bus Voltage Recovery
All settings carried out using the ETS will be preserved.
Discharging Program and Resetting Device
If the visualization does not react due to a malfunction or incorrect configuration of the programming, the entire project work can
be deleted by pressing the programming button. The device will be reset to delivery status. Please hold the programming button
while connecting power supply and wait until the application for touch screen calibration appears. Normally, this takes 40-60
seconds. After entering the 5 calibration points, you can transmit your application once again.
Display 3,5" TFT color display ( 320x240 RGB ) ( 256k color ) touchscreen
Processor 200MHz 32-Bit ARM
Operating system Linux
Background Adjustable LED background light
Parameterization ETS
Max. number of elements / Max. number of pages 8 / ( 5 control pages + 1 alarm page or 6 control pages )
Ambient temperature, storage -5 .. +60 °C
Ambient temperature in operation -5 .. +55 °C
Operational voltage EIB/KNX bus voltage 21 .. 32VDC
Approx. power consumption 10 mA ( at 24V DC )
Additional voltage 9 .. 32VDC / approx. 1.5 W
Bus coupler Integrated
Commissioning via ETS Touch_IT_xxx.pr5
Connections EIB-2-polar terminal ( red / black )
AUX-2-polar terminal ( yellow / white )
Optional Temperature Probe ( 1-Wire ) Yes
On-Wall
Degree of protection IP65
Installation type On wall mounting
Casing Aluminium anodized
Casing measurements 120 x 80 x 48 mm ( W x H x D )
Articlenumber 22310265
In-Wall
Degree of protection IP20
Installation type Installation with a mounting ring
Casing Various
Casing measurements with bevel
Casing measurements square-edged
82 x 82 x 8 mm ( W x H x D )
80,5 x 80,5 x 8 mm ( W x H x D )
Articlenumber 22410xxx
‹
›
S
e
it
e
5
»
«
KNX
AUX

KNX
arcus-eds I
Arcus-EDS GmbH
Rigaer Str. 88, 10247 Berlin
www.arcus-eds.de
[email protected]
arcus-eds
Content
A
VISU
arcus-eds
e7 / Subject to change
Tel.: +49 / (0) 30 / 2593 3914
Fax: +49 / (0) 30 / 2593 3915
3,5“ TFT Colour Touch Display
Touch_IT V SMART
Product Page
KNX
arcus-eds I
Arcus-EDS GmbH
Rigaer Str. 88, 10247 Berlin
www.arcus-eds.de
[e-mail]
arcus-eds
Content
A
VISU
arcus-eds
e7 / Subject to change
Tel.: +49 / (0) 30 / 2593 3914
Fax: +49 / (0) 30 / 2593 3915
3,5“ TFT Colour Touch Display
Touch_IT V SMART
Product Page
Arcus-EDS GmbH
Rigaer Str. 88, 10247 Berlin
www.arcus-eds.de
[e-mail]
arcus-eds
Content
A
VISU
arcus-eds
e7 / Subject to change
Tel.: +49 / (0) 30 / 2593 3914
Fax: +49 / (0) 30 / 2593 3915
Touch_IT SMART
Product Page
3,5“ TFT Colour Touch Display
1.1 Product Page
3,5" Display for visualisation and control in KNX systems.
The Touch_IT V SMART-xxx variants have a very low mounting depth of
10.5mm and have an integrated infrared temperature sensor.
The SD card is accessible without disassembly of the unit.
The device is carried out using a mounting ring. A locking screw are used for
fixation in a standard ( 60/68 mm ) in-wall socket.
The Touch_IT features an integrated KNX bus coupler and requires additional
voltage 9 .. 32VDC / 1,5W.
Different control elements are available for the application software.
The Touch_IT must be projected using the ETS ( EIB Tool Software ) and the
application program. V2 Control elements and page layout can be
parametrized using the ETS.
Areas of Application
• Switching and dimming of lighting
• RGB control with colorchooser
• Display of the switching status in building
• Control of various devices in the KNX-Bus
• Handling of shutters/blinds
• Acoustic and optic alarm functions
• Display of object states as plain text
• Display and setting of heating control parameters
• Control of multi room audio-systems
• Display of temperatures
• Weekly clock timer
• Astronomic clock timer for sunset/sunrise driven controls
• Datalogging and on display diagram facility
• Internal scenes with 32 action objects and programmable delays
• Logic functions can be implemented in a scripting language
• Separate display page for alarm purposes
• Each page and element can be protected by global or dedicated passwords
• Different Layouts, visual styles and standby options
• Many languages available
• Character sizes and styles are selectable
• Possibility for user defined layouts, icons, screensavers etc.
Touch_IT-V-SMART
-SAE
Metal housing without bevel
Aluminium sandblasted anodized
22410500
Touch_IT-V-SMART
-SAW
Metal housing without bevel
Aluminium sandblasted
white powder-coated
22410501
Touch_IT-V-SMART
-SAS
Metal housing without bevel
Aluminium sanded anodized
22410503
Touch_IT-V-SMART
-SAB
Metal housing without bevel
Aluminium sanded eloxiert black
22410504
Articel-No.: 2241050x
3,5“ Color Touch Display
Touch_IT V SMART-xxx
IP20 In-Wall
IR-Temperature Sensor I²C (integrated)
Product Page – Touch_IT V SMART
The following section describes the installation, the existing connections, the specifications and the commissioning and
parameterisation by the ETS.

KNX
arcus-eds I
Arcus-EDS GmbH
Rigaer Str. 88, 10247 Berlin
www.arcus-eds.de
[email protected]
arcus-eds
Content
A
VISU
arcus-eds
e7 / Subject to change
Tel.: +49 / (0) 30 / 2593 3914
Fax: +49 / (0) 30 / 2593 3915
3,5“ TFT Colour Touch Display
Touch_IT V SMART
Product Page
KNX
arcus-eds I
Arcus-EDS GmbH
Rigaer Str. 88, 10247 Berlin
www.arcus-eds.de
[e-mail]
arcus-eds
Content
A
VISU
arcus-eds
e7 / Subject to change
Tel.: +49 / (0) 30 / 2593 3914
Fax: +49 / (0) 30 / 2593 3915
3,5“ TFT Colour Touch Display
Touch_IT V SMART
Product Page
KNX
arcus-eds I
Arcus-EDS GmbH
Rigaer Str. 88, 10247 Berlin
www.arcus-eds.de
[e-mail]
arcus-eds
Content
A
VISU
arcus-eds
e7 / Subject to change
Tel.: +49 / (0) 30 / 2593 3914
Fax: +49 / (0) 30 / 2593 3915
3,5“ TFT Colour Touch Display
Touch_IT SMART
Product Page
-++(0(-,(,& ,#-,,$"1-/$0"/(.1(-,






 
 
 
 
 
 


00

 
 
0
0


V 








Additional Power Supply
9 .. 32 VDC / 1,5 W
Mini-USB
MicroSD Slot
KNX Terminalblock
Integrated Infrared-
Temperature Sensor
_
_
50mm

KNX
arcus-eds I
Arcus-EDS GmbH
Rigaer Str. 88, 10247 Berlin
www.arcus-eds.de
[email protected]
arcus-eds
Content
A
VISU
arcus-eds
e7 / Subject to change
Tel.: +49 / (0) 30 / 2593 3914
Fax: +49 / (0) 30 / 2593 3915
3,5“ TFT Colour Touch Display
Touch_IT V SMART
Product Page
KNX
arcus-eds I
Arcus-EDS GmbH
Rigaer Str. 88, 10247 Berlin
www.arcus-eds.de
[e-mail]
arcus-eds
Content
A
VISU
arcus-eds
e7 / Subject to change
Tel.: +49 / (0) 30 / 2593 3914
Fax: +49 / (0) 30 / 2593 3915
3,5“ TFT Colour Touch Display
Touch_IT V SMART
Product Page
KNX
arcus-eds I
Arcus-EDS GmbH
Rigaer Str. 88, 10247 Berlin
www.arcus-eds.de
[e-mail]
arcus-eds
Content
A
VISU
arcus-eds
e7 / Subject to change
Tel.: +49 / (0) 30 / 2593 3914
Fax: +49 / (0) 30 / 2593 3915
3,5“ TFT Colour Touch Display
Touch_IT SMART
Product Page








 
 
 
 
 
 
 
 
 
 
 
 
 v2
 

 
 
 
 
 00
 4

KNX
arcus-eds I
Arcus-EDS GmbH
Rigaer Str. 88, 10247 Berlin
www.arcus-eds.de
[email protected]
arcus-eds
Content
A
VISU
arcus-eds
e7 / Subject to change
Tel.: +49 / (0) 30 / 2593 3914
Fax: +49 / (0) 30 / 2593 3915
3,5“ TFT Colour Touch Display
Touch_IT V2
Installation Instructions
Installation Instructions Touch_IT-V-x
Fix the frame on the
ush-mounted box.
Turn the Touch_IT slightly to the
left and insert it into the box. Then
turn clockwise until the unit is sitting
straight.
For xture use the screw on the
underneath (Allen Key 1.5).
1.
2.
3.
in-wall 60/68 Ø / depth ≥ 47 mm

Arcus-EDS GmbH
Rigaer Str. 88, 10247 Berlin
www.arcus-eds.de
[email protected]
arcus-eds
A
VISU
arcus-eds
e7 / Subject to change
Tel.: +49 / (0) 30 / 2593 3914
Fax: +49 / (0) 30 / 2593 3915
Content
Chapter1
Main
A
1 Application Description
1.1 General Settings
1.1.1 A) Master Password
1.1.2 B) Use Pin for settings dialog
1.1.3 C) Layout
1.1.4 D) Icon theme
1.1.5 E) Display menu page
1.1.6 F) User language chooser
1.1.7 G) Pages
1.1.8 H) Use RTC
1.1.9 I) Use logic functions
1.2 ETS Objects
Touch_IT V2
VISU

KNX
arcus-eds I
Arcus-EDS GmbH
Rigaer Str. 88, 10247 Berlin
www.arcus-eds.de
[email protected]
arcus-eds
Content
A
VISU
arcus-eds
e7 / Subject to change
Tel.: +49 / (0) 30 / 2593 3914
Fax: +49 / (0) 30 / 2593 3915
Touch_IT V2
Application Description
3,5“ TFT Colour Touch Display
3,5“ TFT Color Touch Display
Application Description
Touch_IT C3_V2
VISU
C3
arcus-eds IKNX
Subjectto change
Page 1
Arcus-EDS GmbH
www.arcus-eds.de
Rigaer Str. 88 , 10247 Berlin
[e-mail]
Tel.: +49 / (0)30 / 2593 3914
Fax.: +49 / (0)30 / 2593 3915
e5
1 Application Description
1.1. General Settings
1.1.1 A) Master Password
A Pin can be assigned to protect the different pages or object functions. In case that the value is “0“, this function is inactive.
e.g.
In case that Pin is “1“, “0001“ must be entered on the Touch_IT in order to access the protected page or to execute a function
of the protected element.
G)

KNX
arcus-eds I
Arcus-EDS GmbH
Rigaer Str. 88, 10247 Berlin
www.arcus-eds.de
[email protected]
arcus-eds
Content
A
VISU
arcus-eds
e7 / Subject to change
Tel.: +49 / (0) 30 / 2593 3914
Fax: +49 / (0) 30 / 2593 3915
Touch_IT V2
Application Description
3,5“ TFT Colour Touch Display
3,5“ TFT Color Touch Display
Application Description
Touch_IT C3_V2
VISU
C3
arcus-eds IKNX
Subjectto change
Page 2
Arcus-EDS GmbH
www.arcus-eds.de
Rigaer Str. 88 , 10247 Berlin
[e-mail]
Tel.: +49 / (0)30 / 2593 3914
Fax.: +49 / (0)30 / 2593 3915
e5
1.1.2 B) Use Pin for settings dialog
YES, if the system settings page is to be secured via the PIN.
1.1.3 C)Layout
There can belayouts 2 x 4 with 2 columns of4 rows
or a 2+ 6layout with 2 large elements and 6 small elements arranged in two columns
and alayout which can be customized
Custom Layout
Only reduced settings are available in the custom layout, the graphical user interface is defined using the
TouchIT-Creator toolfrom Arcus-EDS GmbH (available 4th quarter 2020).
Layout 2 x 4 Layout 2 + 6
1.1.4 D) Icon theme
With light backgrounds, dark icons are used and reversed. All internal icons are available in both versions.
Icon theme : Bright (ICONS) Icon theme : Dark (ICONS)

KNX
arcus-eds I
Arcus-EDS GmbH
Rigaer Str. 88, 10247 Berlin
www.arcus-eds.de
[email protected]
arcus-eds
Content
A
VISU
arcus-eds
e7 / Subject to change
Tel.: +49 / (0) 30 / 2593 3914
Fax: +49 / (0) 30 / 2593 3915
Touch_IT V2
Application Description
3,5“ TFT Colour Touch Display
3,5“ TFT Color Touch Display
Application Description
Touch_IT C3_V2
VISU
C3
arcus-eds IKNX
Subjectto change
Page 3
Arcus-EDS GmbH
www.arcus-eds.de
Rigaer Str. 88 , 10247 Berlin
[e-mail]
Tel.: +49 / (0)30 / 2593 3914
Fax.: +49 / (0)30 / 2593 3915
e5

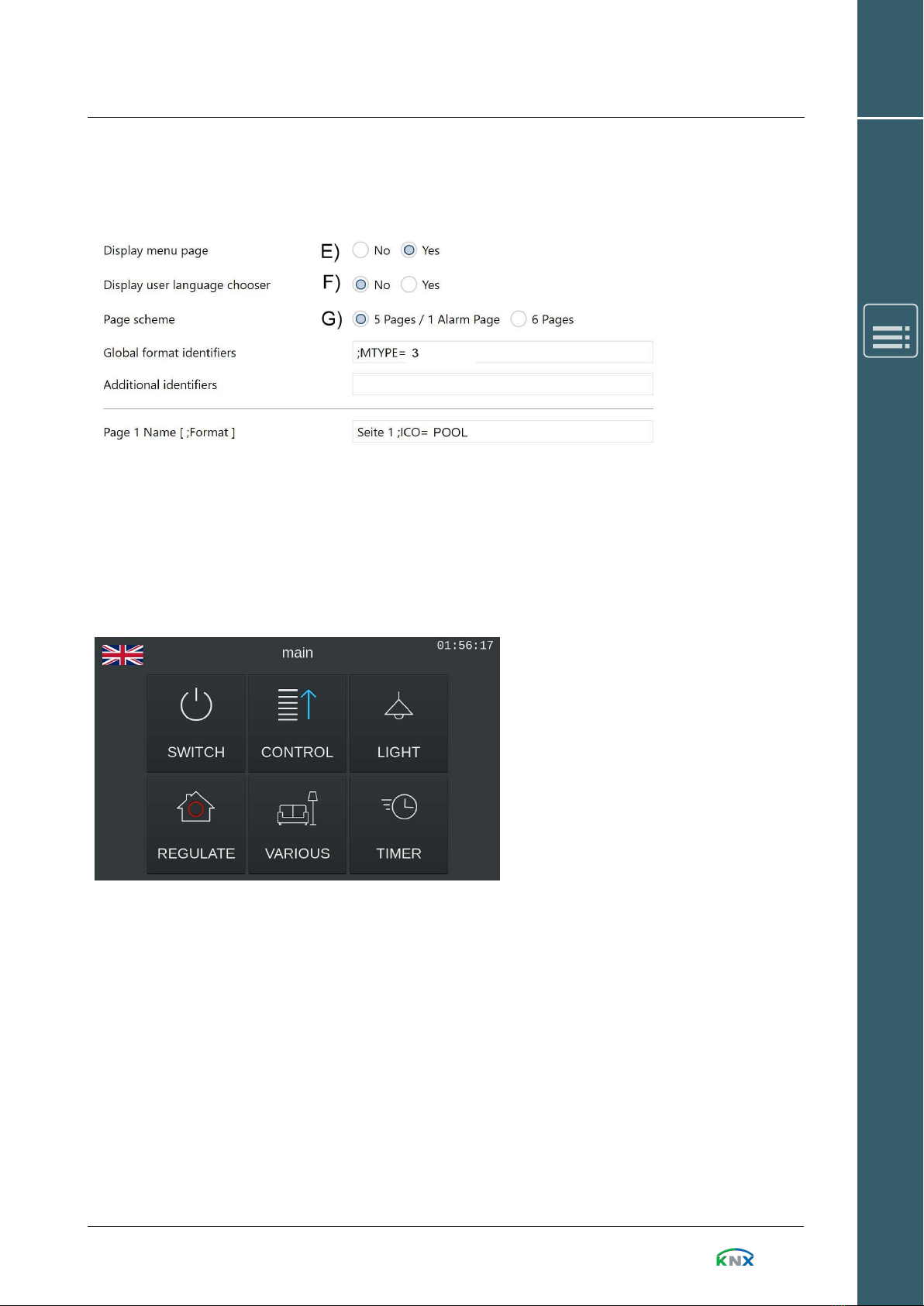

1.1.5 E) Display menu page
An additional page (page 0) is inserted, which represents a menu selection of the defined pages.
The visual representation can be adjusted with the parameter MTYPE:
MTYPE=0 ( default ) : List view of thepage names
MTYPE=1 : Tile view with page names
MTYPE=2 : Tile view with page names and small symbols
MTYPE=3 : Tile view with large symbols
the symbols are defined with ICO =in the page parameters
example: MTYPE=2
1.1.6 F) User language chooser
Different translation files can be created between which the user can choose. The language is selected using flag symbols
in the menu or on the first page. The display elements are then changed automatically.
1.1.7 G) Pages
G1 Page scheme
Page 0 MENU optional see E)
Page1 Control Page 1
Page 2 … 5 Control Pages
Page 6 optional Control Page / Alarm Page

Application Description
3,5“ TFT Colour Touch Display
Touch_IT V2
arcus-eds
G2 Global format identifiers / additional identifiers
These fields are used for global parameter setting. For example the following parameters can be used.
STDLONG
Interpretation of a manual input as LONG (Default 500ms)
STDLONG=xx
Determines the time (in ms) from which the manual input will be taken as LONG.
STDREP
Default use of the general repetition rate. (Default 300ms)
STDREP=xx
Sets the repetition rate (in ms)
CUSTOMLAYOUT
Disables Layout (4x2 and 2+4). Forces widget placement with x,y-koordinates
in Element [;Format].
G3 Pages Name ; Format
Page 2-5
Except for control page 1, all service pages can be protected/locked with a password.
( Exception: When 6 control pages are defined, page 6 also can be protected with a password. )
Page 6 ( Alarm ) Name; Format
The name of the control or alarm page that appears in the layout menu can be assigned
here. In addition, global alarm settings can be set here.
• RESCAN : Defines the time (in s) whenalarm object is rescanned.
• BEEPOFF : Number of acoustic alarmsignals
• AUTOHIDE : Leave alarm page if alarm condition is changed or confirmed in a different point.
Arcus-EDS GmbH
RigaerStr.88, 10247Berlin
www.arcus-eds.de
[e-mail]
Tel.: +49 / (0) 30 / 2593 3914
Fax: +49 / (0) 30 / 2593 3915
e7 / Subject to change
arcus-eds
A
VISU
Content

KNX
arcus-eds I
Arcus-EDS GmbH
Rigaer Str. 88, 10247 Berlin
www.arcus-eds.de
[email protected]
arcus-eds
Content
A
VISU
arcus-eds
e7 / Subject to change
Tel.: +49 / (0) 30 / 2593 3914
Fax: +49 / (0) 30 / 2593 3915
Touch_IT V2
Application Description
3,5“ TFT Colour Touch Display
3,5“ TFT Color Touch Display
Application Description
Touch_IT C3_V2
VISU
C3
arcus-eds IKNX
Subjectto change
Page 5
Arcus-EDS GmbH
www.arcus-eds.de
Rigaer Str. 88 , 10247 Berlin
[e-mail]
Tel.: +49 / (0)30 / 2593 3914
Fax.: +49 / (0)30 / 2593 3915
e5
1.1.8 H) Use RTC
If room temperature control is to be used, several control types are available. These are dealt with in an additional document.
1.1.9 I) Use logic functions
If logic written in LUA is to be used, the IO scheme must be selected.
Depending on the scheme, various KNX objects are available that are not used otherwise in the GUI.
Schema
1-Bit
1-Byte
2-Byte
4-Byte
Schema 1
10
8
8
5
Schema 2
23
4
2
2
Schema 3
15
12
2
2

KNX
arcus-eds I
Arcus-EDS GmbH
Rigaer Str. 88, 10247 Berlin
www.arcus-eds.de
[email protected]
arcus-eds
Content
A
VISU
arcus-eds
e7 / Subject to change
Tel.: +49 / (0) 30 / 2593 3914
Fax: +49 / (0) 30 / 2593 3915
Touch_IT V2
Application Description
3,5“ TFT Colour Touch Display
3,5“ TFT Color Touch Display
Application Description
Touch_IT C3_V2
VISU
C3
arcus-eds IKNX
Subjectto change
Page 6
Arcus-EDS GmbH
www.arcus-eds.de
Rigaer Str. 88 , 10247 Berlin
[e-mail]
Tel.: +49 / (0)30 / 2593 3914
Fax.: +49 / (0)30 / 2593 3915
e5
1.2 ETS Objects
If no elements in the pages are activated yet, only the system objects ( 1 –5) within topology are displayed.
The date /timeobjects can be used for receiving and / or reading. These are used to synchronize the times in
the KNX bus.
The ON /OFF object can beused for receiving and / orreading.
It shows the activity status of the TouchIT. (0 -> OFF 1->ON or SCREENSAVE ).
Sending a 1 to the device sets it in ON mode (1st page ormenu is displayed) regardless of whether
the device is in OFF orin SCREENSAVE mode.
Sending a 0 puts the device in the OFF state, regardless of whether the device is in the ONor SCREENSAVE state.
The standby object can be used for receiving and / orreading.
It shows the activity status of the TouchIT. (0 ->OFF or ON1->SCREENSAVE ).
Sending a 1 to the device bright it in SCREENSAVER mode regardless of whether the device is in OFF orON mode.
Sending a 0 puts the device in the OFF state.
The SYSTEM-LED object actuates the optional notification LED (accessory)
and is connected to the usual SIMPLE ALARM.
If RTC or logic function are used are the corresponding oobjects (6 –31) respectively (32 –62)
HVAC Objects
Logic Objects

KNX
arcus-eds I
Arcus-EDS GmbH
Rigaer Str. 88, 10247 Berlin
www.arcus-eds.de
[email protected]
arcus-eds
Content
A
VISU
arcus-eds
e7 / Subject to change
Tel.: +49 / (0) 30 / 2593 3914
Fax: +49 / (0) 30 / 2593 3915
Touch_IT V2
Application Description
3,5“ TFT Colour Touch Display
3,5“ TFT Color Touch Display
Application Description
Touch_IT C3_V2
VISU
C3
arcus-eds IKNX
Subjectto change
Page 7
Arcus-EDS GmbH
www.arcus-eds.de
Rigaer Str. 88 , 10247 Berlin
[e-mail]
Tel.: +49 / (0)30 / 2593 3914
Fax.: +49 / (0)30 / 2593 3915
e5
Objects in page elements
Additional objects are displayed when the page elements are selected.
Element 1 ist active on page 1 and defined as a 1-Byte object.
Topology will change as follows:
Every element includes function-specific objects that can be linked.
The exact analogy between parameter view and object view within topology will be displayed as follows:
e.g. Page 1,element 1 equals 1.1 -A within topology and 1.1-B

Arcus-EDS GmbH
Rigaer Str. 88, 10247 Berlin
www.arcus-eds.de
[email protected]
arcus-eds
A
VISU
arcus-eds
e7 / Subject to change
Tel.: +49 / (0) 30 / 2593 3914
Fax: +49 / (0) 30 / 2593 3915
Content
Chapter2
Main
A
2 Description Widgets
2.1 Control Elements
2.1.1 Arrangement of the Control Elements
2.1.2 Description of the Control Elements
2.2 Object & Element Types
2.2.1 1 Bit
2.2.2 1 Byte
2.2.3 2 Byte
2.2.4 3 Byte
2.2.5 4 Byte
2.2.6 14 Byte
2.2.7 Scene Control
2.2.8 Light/ RGB Control
2.2.9 Dimmer Control
2.2.10 Shutter Control
2.2.11 HVAC Control
2.2.12 Timer
2.2.13 Datalogging
2.3 Elements Attribut Assignment
2.3.1 Elements Size etc.
2.3.2 Element Format
Appendix
Table2ListingofIdentifiersandElements
Table2AIdentier:UniversalButton
Table2BIdentier:ToggleButton
Table2CIdentier:Incremental/DecrementalButton
Table2DIdentier:Timer/Scenes
Table2EIdentier:DimmingRGB/HVAC
Table2FIdentier:Alarm
Touch_IT V2
VISU

KNX
arcus-eds I
Arcus-EDS GmbH
Rigaer Str. 88, 10247 Berlin
www.arcus-eds.de
[email protected]
arcus-eds
Content
A
VISU
arcus-eds
e7 / Subject to change
Tel.: +49 / (0) 30 / 2593 3914
Fax: +49 / (0) 30 / 2593 3915
3,5“ TFT Colour Touch Display
Touch_IT V2
Description Widgets
8
KNX
arcus-eds I
Arcus-EDS GmbH
Rigaer Str. 88, 10247 Berlin
www.arcus-eds.de
[e-mail]
arcus-eds
Content
A
VISU
arcus-eds
e6 / Subject to change
Tel.: +49 / (0) 30 / 2593 3914
Fax: +49 / (0) 30 / 2593 3915
3,5“ TFT Colour Touch Display
Touch_IT C3 V2
Description Widgets
Subjectto change
Page 1
Arcus-EDS GmbH
www.arcus-eds.de
Rigaer Str. 88 , 10247 Berlin
[e-mail]
Tel.: +49 / (0)30 / 2593 3914
Fax.: +49 / (0)30 / 2593 3915
e5
2 Description Widgets
The following section describes the usable widgets and their special parameterizing and displaying
2.1 Control Elements
2.1.1 Arrangement of the Control Elements
A maximum of 8 elements can be placed on a Touch_IT page.
After uploading the parameters, the pages will be formatted automatically.
If there is a smaller number of elements on a page, they will be maximized to the available surface ( in case that the
expand- settings ( vertically and horizontally ) are enabled ).
2.1.2 Description of the Control Elements
Selecting and Presetting Control Elements
The selection of control elements is carried out through a parameterization within the ETS.
