AREBOS AR-HE-BN380 User manual

User’s manual –AREBOS Electric metal cutting shear 380 W
1
Electric metal cutting shear 380 W
AR-HE-BN380
Please follow all security measures in this user’s manual to ensure a secure use.
Thank you for trusting in AREBOS.

User’s manual –AREBOS Electric metal cutting shear 380 W
2
Please read and save these instructions. Read through this user’s manual carefully before using
product. Protect yourself and others by observing all safety information, warnings and cautions.
Failure to comply with instructions could result in personal injury and/or damage to product or
property. Please retain instructions for future reference.
Security Instructions
Explanation of the symbols
This product has been tested and certified by TÜV Süd.
The symbol "GS" stands for tested safety. Products marked with this
symbol comply with the requirements of the German Product Safety Act
(ProdSG).
By means of a CE marking, it can be recognized that a product complies with the
legal requirements of European legal standards and therefore may be traded
within the European Community.
This product must not be disposed of with household waste!
Warning! Read the safety instructions carefully. Failure to follow the safety
precautions could result in serious injury or damage. Keep the operating
instructions in a safe place.
Warning! Wear safety glasses!
Insulated housing (protection class II)!
Warning! Wear ear protection!

User’s manual –AREBOS Electric metal cutting shear 380 W
3
General safety instructions
•Workplace
- keep clean and well lit. Dark and dirty workplaces lead to accidents.
- Do not use in explosive environments, such as in the presence of flammable liquids, gases
or dust. Electrical equipment causes sparks that can cause a fire.
- Children and other persons present must keep their distance while the device is being used.
Otherwise the operator may be distracted and lose control of the appliance.
•Electrical safety
- only plug into suitable sockets. The socket must not be modified. Do not use adapters on
devices with a safety plug. Suitable sockets and suitable connections reduce the risk of
electric shock.
- Avoid contact with grounded or earthed surfaces such as pipes, radiators, hotplates and
refrigerators.
- Do not expose the appliance to rain or wet conditions. Water inside the unit increases the
risk of electric shock.
- Handle the cord with care. It must not be used to carry, pull or unplug the plug. Keep the
cord away from heat, oil, sharp edges and moving parts. Damaged and uninsulated cables
increase the risk of electric shock.
•Personal safety
- Stay alert while working with an electrical device. Do not use the appliance when tired or
under the influence of alcohol, drugs or medication. A moment of inattention can cause
serious injury.
- Use safety equipment. Safety glasses must always be used. Other protective equipment
such as dust mask, anti-slip safety shoes, helmet, ear protection reduce the risk of injury.
- Avoid unintentional starting. Make sure that the unit is “Off”before plugging in the plug. To
avoid accidents, do not carry the device by hand at the switch and only plug it in when it is
switched off.
- Remove maintenance tools before switching on the device. If it is forgotten on the unit
when it is switched on, it may cause injury.
- Do not overload the machine. The unit provides optimum performance and safety within
the specified parameters. This ensures better control of the machine in unexpected
situations.
- Wear safety clothing. Do not wear baggy clothes or jewelry. Open hair, jewelry, loose
clothing and gloves are prohibited as they can be pulled into the machine.
- Devices used for the extraction of dust and residual metals must be properly installed.
•Use and maintenance of the appliance
- Do not use the device for other purposes. The right tool for the application will do the job
better and safer.
- Do not use the appliance if the on-off switch does not work. Any malfunctioning device
must not be used and must be repaired.
- Unplug the appliance before carrying out any maintenance work, so that the appliance does
not start unintentionally.
- Store the devices out of reach of children. Persons must be familiar with the instructions
before the first operation.
- Maintain electrical equipment regularly. Check the device for yielding, moving parts,
breakage and other errors that affect the operation of the device. If the device is damaged, it

User’s manual –AREBOS Electric metal cutting shear 380 W
4
must first be repaired. Accidents often occur due to poor maintenance.
- Sharpen cutting tools regularly. This ensures a clean cut and easy control of the appliance.
- Use the power tool, accessories and tool inserts, etc. in accordance with this manual and in
the manner intended for the type of power tool in question, taking into account the working
conditions and the work to be performed. Using the power tool for other than the intended
work may cause a dangerous situation.
•Service
- Have your power tool serviced by a qualified repair person, using only identical spare parts.
This will ensure that the safety of the power tool is maintained.
•Further information.
- Wear hearing protection. Exposure to noise can lead to hearing loss.
- Always war eye protection.
- If the power cord is damaged, it must be replaced by an authorized service technician to
avoid danger.
- It is recommended to use a ground fault interrupter with a sensitivity of 30 mA or less in the
power system to which this unit is to be connected.
Specific security instructions
•Injuries may occur if you do not read or understand the instructions.
•Only plug the device into suitable sockets.
•The device must not be overloaded.
•Before punching sheet metal, the device must have reached its full speed.
•Depending on the material a lubricant should be used.
•Children must not use this device.
•Protect eyes with safety glasses.
•Use hearing protection.
•Make sure the handle is in the correct position.
•During operation, the unit is heated up considerably.
•Safe work depends on posture.
•When working at the height of persons and objects, ensure that the unit is lowered.
•Always wear safety shoes when working with the unit.
•To avoid accidents at work due to accidental switching on of the appliance when replacing
the blade, always unplug the appliance from the power outlet.
Note:
1. Please make sure that all screws on the machine are tightened before operating the
nibbler.
2. Children are recommended not to use this machine due to its heavy weight to avoid
possible accidents.
3. The material to be cut should be clamped on a work table. Push the gear lever forward and
the nibbler blade starts to run. You can then start cutting the material, making sure that the
nibbler is held at a flat angle to the workpiece to achieve the best cutting performance.
4. Make sure that the nibbler only rests on the cutting blade when cutting the material.
Otherwise the blade and holder may be damaged.

User’s manual –AREBOS Electric metal cutting shear 380 W
5

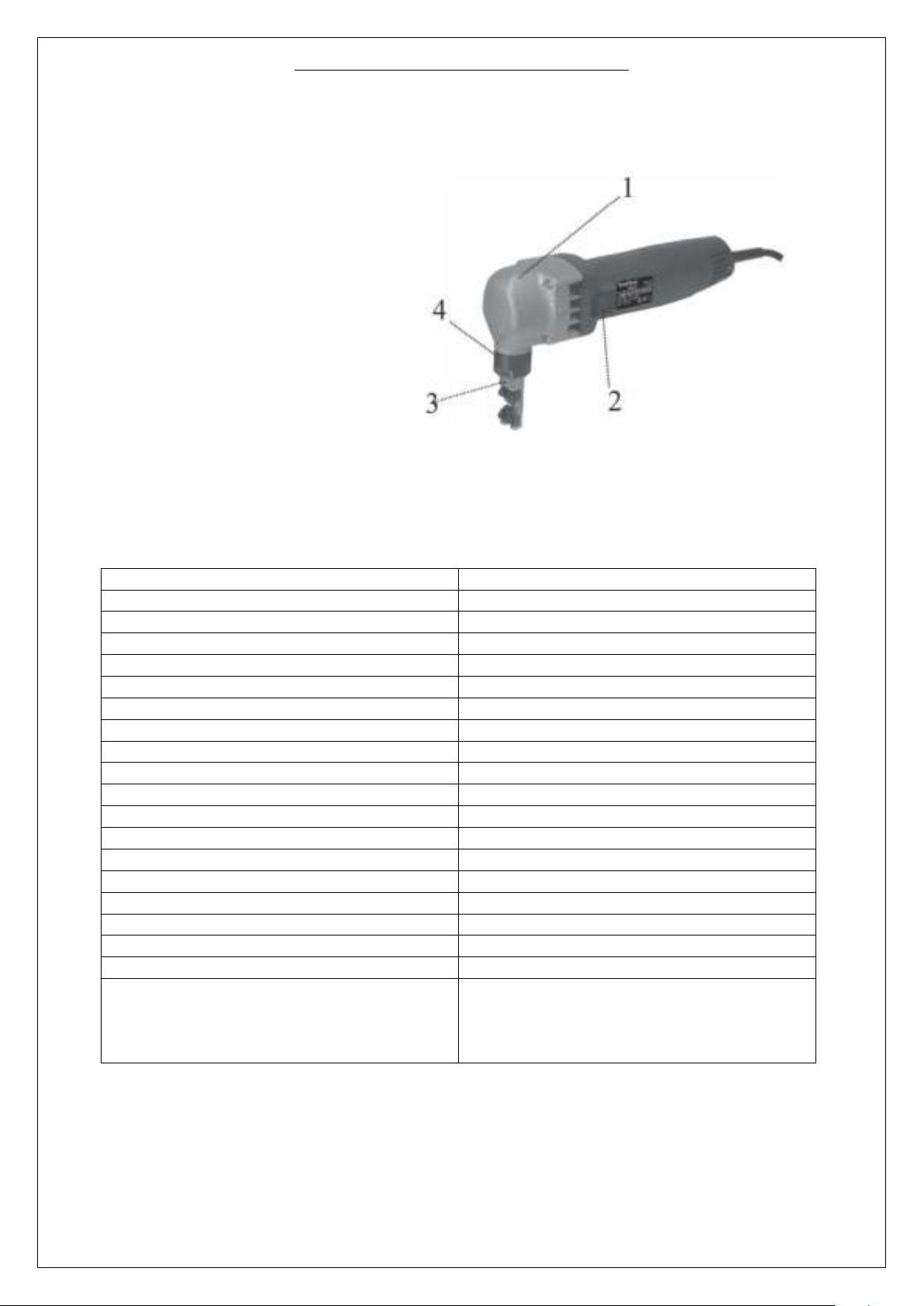

Device setup
1. Gear housing
(with opening for grease)
2. On/Off-Switch
3. Cutting knife
4. Threaded sleeve
Technical Specifications
Model
AR-HE-BN380
Nominal power
380 W
Nominal voltage / frequency
230 V / 50 Hz
Rotation speed without load
1700 U/min
Speed motor
30000 /min
Cable length
180 cm
Cutting width
4 mm (5mm with round punch head)
Cutting thickness
Sheet steel
0,5mm –1,8mm
Stainless steel
< 1,2mm
Other metals (aluminum, copper)
2 mm
Plastic
2 mm
Min. cutting average (circle)
50 mm
Sound power value LwA
97,7 dB(A)
Uncertainty K
3 dB(A)
Sound pressure level LpA
86,7 dB(A)
Uncertainty K
3 dB(A)
Weight
1,8 kg
Product dimensions
28 x 7 x 16 cm
Extras
- Attachment with round punch head 5mm
- 2x hexagon wrench
- 1x open-end spanner
- 1x set of replacement brushes
The noise level may exceed 87 dB (A). Wear hearing protection!

User’s manual –AREBOS Electric metal cutting shear 380 W
6
Use
Use of the device
Before the first commissioning
•Always check the position of the switch before connecting the instrument to the power
supply - OFF (0) –if the switch is in the ON position (I), this can lead to an accident after the
power supply is connected.
•Check the condition of the supply line and the plug. If the cable or the plug needs to be
replaced, this should only be carried out by an authorized service center.
Switching on / off
•Switching on: push the switch (2) in the direction of the working range of the device until it is
blocked.
•Switching off: press the rear part of the switch, which releases the blockage –the switch
switches to the rest position.
Operation
•Fasten the workpiece accordingly. Hold the device with both hands during operation. Switch
on the device. Do not push the device in the workpiece area until it is switched on. Hold the
device vertically in relation to the workpiece during operation (do not tilt, as tilting can
reduce performance and damage the cutting blades). Always be careful not to exert
excessive pressure on the unit during cutting operations in the area of curved surfaces. To
increase the life of the cutting blade and die, use cutting oils that are adapted to the material
to be cut. The cutting blade and die should be lubricated with machine oil. Good cutting
quality is always achieved with a sharp knife. Blunt / worn knives are to be replaced with new
knives. Dull knives must not be ground.
•It is forbidden to switch off the device before finishing work. The cutting head must leave
the workpiece when the machine is still switched on. The device must not be switched off
until the cutting button is outside the workpiece.

User’s manual –AREBOS Electric metal cutting shear 380 W
7
Replacing the cutting blade / inserting the punching head
•Unscrew fixing screws (1), upper guide (2), lower guide (2) and remove both guides. Open the
threaded sleeve (3) with the open-end wrench provided and pull downwards away. To
prevent the remaining loose body (4) from falling out, hold the device upside down. Remove
the body (4) from the device. The cutting blade can now be pulled out of its guide and
replaced with a new blade or the round punch head. To reassemble, follow the steps
backwards. Make sure that the body is back in the guide groove.
•For the round punching head (4) the supplied body (3) is required. Insert the punch head into
the main unit. Then fit the body (3), onto the groove and screw it to the threaded sleeve (1).
With the larger of the two hexagonal wrenches supplied, the grub screw (2) can be opened
and the cutting direction changed.

User’s manual –AREBOS Electric metal cutting shear 380 W
8
Disposal Instructions
Disposal of the packaging
•Please make reference to the guidelines and standards for appropriate disposal of the
packaging valid in your region. In part, the package may consist of plastic bags - watch this
respect, with special care to ensure that this is out of the reach of children. There is a risk of
suffocation!
Disposal of waste equipment
•Equipment must be disposed of in accordance with the rules and regulations of the local
waste disposal.
Meaning of the “dustbin”
Protect our environment; electrical appliances do not belong in household
waste. Use the provided for the disposal of electrical equipment collection
points and enter your electrical and electronic equipment that you no longer
use. They help ensure that the potential effects of incorrect disposal on the
environment and human health to be avoided. So, do your part to recycle,
recycling and other forms of recovery of waste electrical and electronic
equipment. Information on where the devices are disposed of, please contact
your local authorities or local Governments.
Our customer service number: [phone]
Canbolat Vertriebs GmbH • Gneisenaustraße 10-11 • 97074 Würzburg

User’s manual –AREBOS Electric metal cutting shear 380 W
9
Declaration of Conformity EU
We,
Canbolat Vertriebs GmbH, Gneisenaustraße 10--11, 97074 Würzburg, Germany,
Hereby declare that the product named below, seen its design and construction as well as according
to our sales, has been complied with the relevant and basic health and safety EU-requirements.
Name of the product: AREBOS Electric metal cutting shear
Article number: 4260627423088
Model number: AR-HE-BN380
If this product is modified without our consent, this declaration loses its warranty.
Verified acc. to:
Standard EU:
EN 60745-1:2009/A11:2010
EN 60745-2-8:2009
AfPS GS 2014:01 PAK
Date/Manufacturer Signature/Location: Würzburg, 30.03.2020
Identification of the signatory:
Korhan Canbolat, head of the company
Authorised representative for the technical documentation:
Korhan Canbolat
Office address:
Canbolat Vertriebs GmbH
Gneisenaustraße 10-11
97074 Würzburg
Return address can be found in the imprint: https://www.arebos.de/impressum/
VAT identification number: DE 263752326
Court of the Commercial Register is Würzburg, HRB 10082
WEEE Reg.-No. DE 61617071
