AREBOS Palma Series User manual

Original User Manual –AREBOS Rattan Garden Furniture
1
Rattan Garden Furniture
*Product may vary depending on variety
Please follow all security measures in this user´s manual to ensure a secure use.
Thank you for trusting in AREBOS.

Original User Manual –AREBOS Rattan Garden Furniture
2
Table of Contents
1. Safety Instructions ...................................3
1.1 Explanation of the symbols ............................................ 3
2. Environmentally friendly disposal ............3
2.1 Disposal and packaging .................................................. 3
2.2 Disposal of old equipment.............................................. 3
3. Content of Delivery ..................................4
4. Series Drawings........................................5
5. Assembly..................................................7
5.1 Corner Sofa (Parcel 1)................................................... 10
5.2 Armless Sofa (Parcel 2)................................................. 11
5.3 Stool (Parcel 3) ............................................................. 12
5.4 Coffee Table (Parcel 4) ................................................. 13
5.5 Single Arm Sofa (Parcel 5)............................................. 14
5.6 Storage Box (Parcel 6)................................................... 15
6. Technical Data........................................ 18
7. Revocation/Return.................................18
Imprint....................................................... 19

Original User Manual –AREBOS Rattan Garden Furniture
3
Thank you for purchasing our product. Please read the operating instructions carefully before using
the product for the first time. If you give the product to a third party, this manual must be handed
over with it. Keep the instruction manual for future reference.
The drawings in this manual may not match the physical objects. Please refer to the physical
objects.
1. Safety Instructions
1.1 Explanation of the symbols
Warning! Read the safety instructions carefully. Failure to follow the
safety precautions could result in serious injury or damage. Keep the
operating instructions in a safe place.
2. Environmentally friendly disposal
Warning Danger of suffocation! Packaging material is dangerous for children. Never let children play
with packaging material.
2.1 Disposal and packaging
•The packaging of your unit consists of materials that are necessary to guarantee effective
protection during transport. These materials are fully recyclable and therefore reduce the
environmental impact. Dispose of the packaging in a bin for recyclable materials.
2.2 Disposal of old equipment
•Old appliances must be disposed of in accordance with the guidelines and regulations of the
local waste disposal authority. Check with your local administration for the address of the
nearest recycling centre and deliver your appliance there.
Our customer service number: Tel. [phone]
Fax: [phone] / E-Mail: [email protected]
Office address: Canbolat Vertriebs GmbH • Gneisenaustraße 10-11 • 97074 Würzburg
Return address can be found in the imprint: https://www.arebos.de/impressum/

Original User Manual –AREBOS Rattan Garden Furniture
4

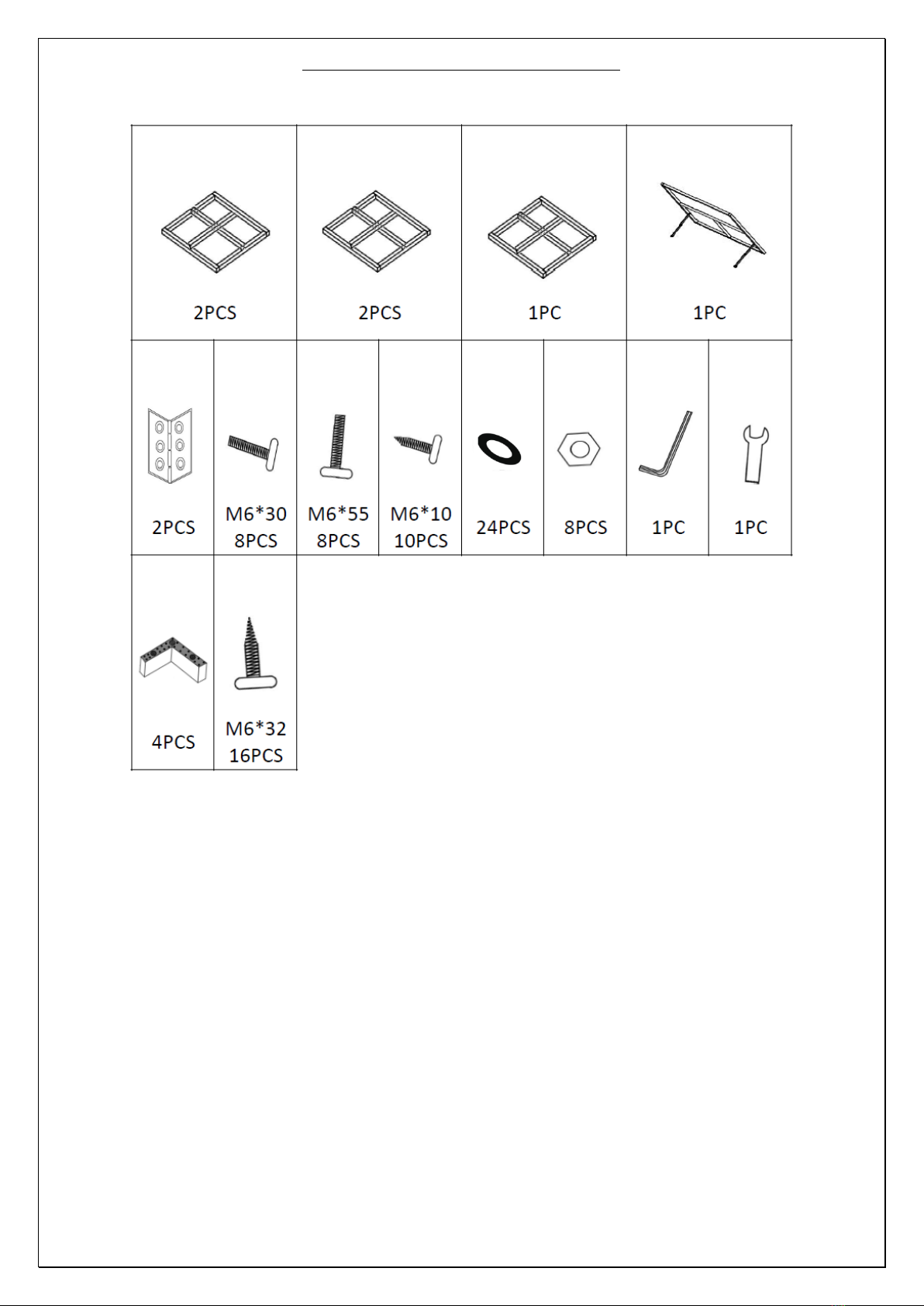

3. Content of Delivery

Original User Manual –AREBOS Rattan Garden Furniture
5

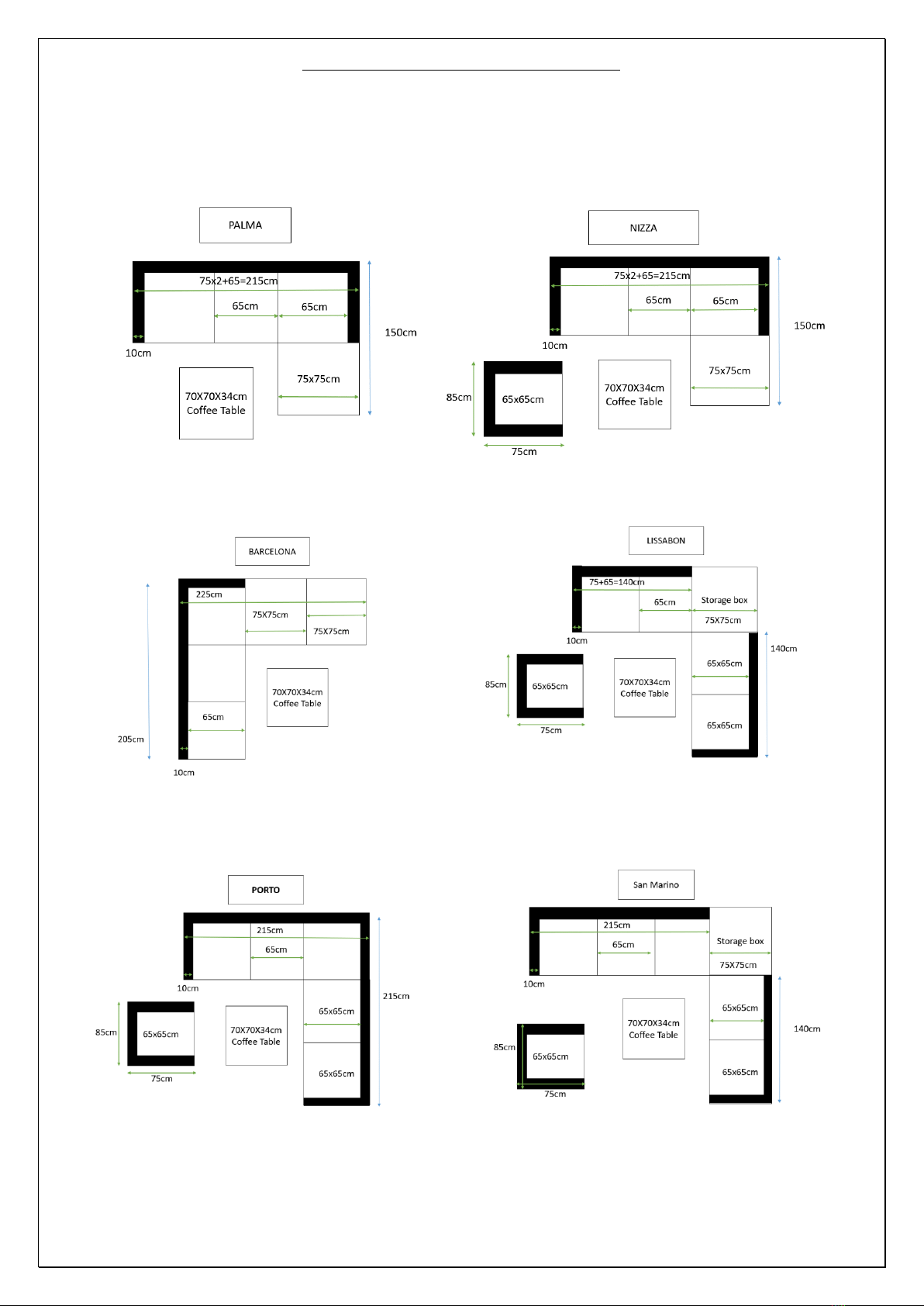

4. Series Drawings

Original User Manual –AREBOS Rattan Garden Furniture
6

Original User Manual –AREBOS Rattan Garden Furniture
7
5. Assembly
Caution: Fine threads! Do not overtighten the screws.
Assembly material
•4x supporting feet
•Screws (short, medium, long)
•Nuts
•Washers
•Tools
•Screws silver, self-tapping
•Clamp
General approach
1. Open the packages and check the scope of delivery (chapter 3).
2. Assemble the components for the assembly.
3. Arrange the components according to the structure.

Original User Manual –AREBOS Rattan Garden Furniture
8
4. Use the short, medium and long screws according to the following points (pages 7 and 8). Do
not (yet) tighten the screws completely.
5. Mount the feet using the self-tapping screws (4x per foot). Use the screw with head to
balance the furniture.
6. Before tightening the screws, make sure that the edges are clean.
Short screws: Use (see picture) if there is a thread in the component (exception for long screws).
Tighten the screw clockwise with the hexagon spanner.

Original User Manual –AREBOS Rattan Garden Furniture
9
Medium screws: These screws are fixed with two washers (one on each side) and a nut (see picture).
Tighten the screw and hold it with the spanner against.
Sequence: Screw, washer, furniture part 1, furniture part 2, washer, nut.
Long screws: Use at the top and bottom corners. Place a washer on top of the screw and screw it
into the thread of the furniture part with the hexagon key.

Original User Manual –AREBOS Rattan Garden Furniture
10
Assembly Instruction
Caution:
A) Check the package having all item shown in the parts list.
B) Read the instruction before assembling.
Note:
Do not tighten screw completely until assembling is completed!
5.1 Corner Sofa (Parcel 1)
W
W
W
W
W
W
S4
Physical representation
S4
S5
S5
N
N
N
F
F
S1
S1
F
Step 1
Step 2
Step 3
R1
R2
R3
T1
T2
R1
R2
R1
R2
R3
T2
T1
T1
T1

Original User Manual –AREBOS Rattan Garden Furniture
11
5.2 Armless Sofa (Parcel 2)
Step 1
Step 2
Step 3
Step 4
F
F
Physical representation
S1
F
N
N
S3
S3
S3
S4
S4
W
W
W
W
S1
R4
R5
R6
R7
T1
T2
R4
R5
R6
R6
R7
T1
T2
T1
T1

Original User Manual –AREBOS Rattan Garden Furniture
12
5.3 Stool (Parcel 3)
Step 1
Step 2
Step 3
Physical representation
F
F
S1
S1
W
W
S3
S3
W
S3
F
T1
R8
R9
R10
R8
R8
R9
R9
R10
T1
T1

Original User Manual –AREBOS Rattan Garden Furniture
13
5.4 Coffee Table (Parcel 4)
F
S3
W
S1
F
F
S3
S3
W
W
Step 1
Step 2
Step 3
Step 4
Physical representation
S1
R11
R13
R12
R14
T1
R11
R11
R12
R12
R13
R14
T1
T1

Original User Manual –AREBOS Rattan Garden Furniture
14
5.5 Single Arm Sofa (Parcel 5)
Physical representation
Step 1
Step 2
Schritt 1
Step 3
Schritt 1
W
W
W
W
W
W
S4
S4
S4
S5
S5
S1
S1
F
F
N
N
N
F
T1
T2
R15
R16
R17
R18
R15
R16
R17
R15
R16
R17
R18
T1
T1
T1
T2
T2

Original User Manual –AREBOS Rattan Garden Furniture
15
5.6 Storage Box (Parcel 6)
Step 1
Step 2
S3
W
W
W
R19
R19
R20
R20
T1
R21
T2
N
S6
T1

Original User Manual –AREBOS Rattan Garden Furniture
16
Step 3
Step 4
F
F
R22
A1
S2
S2
S1

Original User Manual –AREBOS Rattan Garden Furniture
17
A1
W
S3
F
R19
R20
R21
R22
T1
T2
N
S6
S2
S1

Original User Manual –AREBOS Rattan Garden Furniture
18
6. Technical Data
General –Materials: furniture
Polyrattan
Polyethylene
UV resistant
yes
Water resistant
yes
Frame
Aluminum (powder coated)
General –Materials: fabrics
Pillow Case
100% Polyester
Thickness upholstery
8cm
Color of Pillow
grey
Coffee Table 70x70x34cm
Loading Capacity
35kg
Thickness of glass
5mm
Dimension of glass plate
69,5 x 69,5x0,5cm
Armless Sofa
Measurements
65x75x64cm
Corner Sofa
Measurements
75x75x64cm
Single Sofa (with two armrests)
Measurements
85x75x64cm
General
Loading Capacity
120kg
Backrest height (with upholstery)
ca. 23cm
Seat height (with upholstery)
ca. 42cm
Storage Box
Measurements
75x75x64,5cm
Storage compartment size
71x71x60cm
Loading Capacity
30kg
Accessories
Number of stand feet
4
Number of connection clips
2
7. Revocation/Return
•Check the product for transport damage. Immediately report any damage to the transport
company that delivered the product.
•Revocation/Return: Please note that the full purchase price can only be refunded if the
returned goods are unused, new and in their original packaging.

Original User Manual –AREBOS Rattan Garden Furniture
19
Imprint
Name of the product: AREBOS Rattan Garden Furniture
If this product is modified without our consent, it will void any warranty.
Date/Manufacturer Signature/Location: Würzburg, 08 March 2022
Signature:
Dipl.-Inform. (Univ.) Korhan Canbolat, Managing Director
Representative of these instructions for use/technical data:
Dipl.-Inform. (Univ.) Korhan Canbolat, Managing Director
Office address:
Canbolat Vertriebs GmbH
Gneisenaustraße 10-11
D-97074 Würzburg
Return address can be found in the imprint: https://www.arebos.de/impressum/
VAT identification number: DE 263752326
Court of the Commercial Register is Würzburg, HRB 10082
WEEE Reg.-No. DE 61617071
