Arena Luci SOUL LED 25 User manual

SOULLED25
User'smanual
IP65LEDSpotlightwithRGBtechnology
Please note that as part of Arena Luci's ongoing commitment to continuous product development,
specificationsaresubjecttochangeinthecourseofproductimprovementwithoutnotice.Arena Luci is not
responsiblefordamagesresultingfromimproperordifferentusethanexpected.
This unit should only be used for purpose for
which it has been intended and should be
installed using the instructions which are
provided. Arena Luci cannot be held liable for
damages to person, animals or objects as a
result of improper, unreasonable and wrong
usage.
This instruction manual contains important
information about the installation and use of the
projector. Please read and follow these
instructionscarefully.
The security of this device is guaranteed only
with the proper use of the following instructions,
thereforetheymustbekeptcarefully.
Never install the device in locations easily
accessiblebypeoplewhoignoretheexistenceof
thisuser'smanualandsafetyinstructions.
For the wiring please refer to enclosed wiring
diagrams. If in the diagrams indicated there
shouldnotbethatofyourapplication,contactthe
technicaloffice.
Disconnecttheunitfromanypowersupplybefore
attemptinganyoperationincontactor inside the
unit,andwhennotinuse.
Itisessential that electrical installation conforms
toallrelevantstandards.
Prior to connect the unit to the voltage supply,
check the output voltage fits the technical
requirementsonthelabel.
Neverlet the power cord come intocontactwith
othercables.
Nevertouchtheelectricalcontacts,eitherdirectly
withyourfingers,orindirectlybymeansofsharp
ormetalobjects.
Makesurethatcablescannotcausetriphazard.
Donotattempttodismantleandmodifytheunit.
Due to the high technological level of this unit,
anyservicemaintenanceshouldbeperformedby
specialisedoperators.PleasecontactyourArena
Lucidealerforanyoperation.
Alwaysensurethatthestructuretowhichyouare
attachingtheunitissecureandisabletosupport
theweightofeachunit.
Avoidinstallingtheunitclosetoheatsources.
Neverleanthepowercordonhotunitsurfaces.
Allowed to be mounted directly on inflammable
surfaces.
Avoid direct exposure to the light from the lamp.
Thelightluminanceisharmfultotheeye.
Installtheunitwhereitcanbeeasilyaerated.
Do not install the luminaire on deformed or
damagedsurfaces.
Contact yourArena Luci dealer if the protective
shieldisvisiblydamagedtothepointatwhichits
effectiveness is diminished, for example by
becomingcrackedordeeplyscratched.
LEDmoduleisnotreplaceable.
Do not use any solvent based cleaning agents.
Useonlyasoft,dryantistaticcloth.
TheinstallationofLEDmodules(includingpower
supplies) should be done according to current
technical rules and regulations. The installation
shouldbeperformedonlybyaqualifiedoperator.
ThisluminaireisanoutdoorIP65device,butnot
IP68 (underwater). Therefore the proper and
extendedfunctioningwillberelatedtotheproper
installation.
Avoid contact with either corrosive agents or
humidity and moisture on delicate elements:
damages from corrosion are not refunded as
componentdefects.
WARNINGS
SPT2025RGB

2/4
SPT2025
GETTINGSTARTED
Open the shipping carton and verify that all
equipment necessary to operate the system has
arrived intact. Refer to the following packing list
for information on what items are included with
your model. If any equipment is missing or
damaged, contact your Arena Luci dealer
immediately.
n°1SoulLEDSPT2025RGB
n°1fixingpolyurethanedisk
n°15mmAllenkey
Before beginning initial setup of your projector,
make sure that there is no evident damage
caused by transportation. In the event that the
unit’shousing orcableisdamaged, donotplugit
in and do not attempt to use it until after
contactingyourArenaLucidealerforassistance.
INSTALLINGTHEDEVICE
Before carrying out any operation, remove the
mainsvoltagefromthesystem.
Theappliancecanbeinstalledonthefloor,wallor
ceiling. Always make sure that the structure on
which you are fixing the appliance is safe and is
abletobeartheweightofeachunit.
Unscrewthetwoside domenutsofthebaseand
takeoutthelowerfixingplate.
Using the fixing plate as a reference, drill two
holeswitha70mmcenterdistance.
Fix the base plate on the structure with screws
andexpansionplugsofthetypemostsuitedtothe
weight of the appliance and the type of structure
on which you intend to install the appliance,
interposing the polyurethane diskfrom which you
can detach the preshaped parts for passage of
screws and cables. The disc has an adhesive
face: remove the white protective film and stick
the disk to the structure. Then place the base
plateontopofthedisk,takingcaretopositionthe
centralslotoftheplateincorrespondencewiththe
holeforthepassageoftheelectriccables.

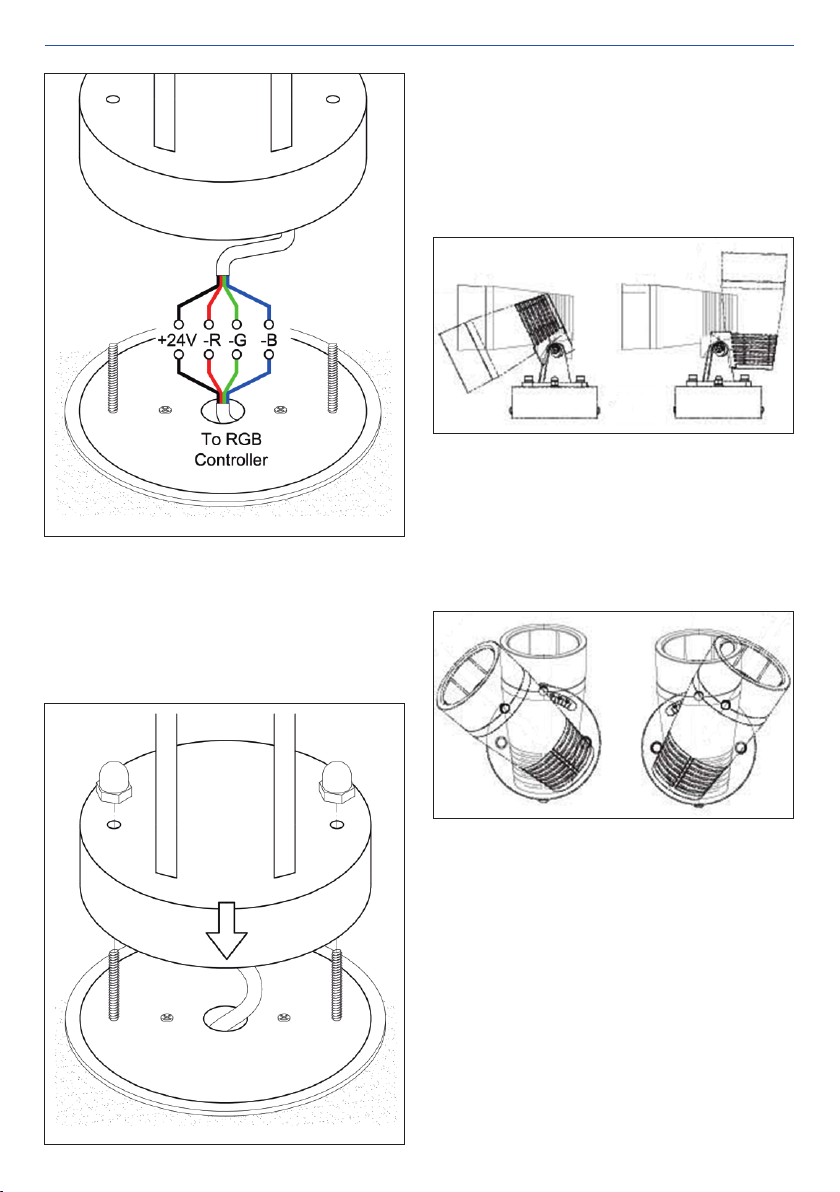

Pass the power cable through the central slot of
the fixing plate, then proceed to the electrical
connection.
The appliance is equipped with a preassembled
powercable,sotheelectricalconnectionmustbe
madebeforefixingtheappliancetothestructure.
Usetheappliance'spowercableforconnectionto
theRGBcontroller,payingattentiontothevoltage
andpolarityindicatedontheratinglabel.
Topreventmoisturerisinginsidetheapplianceitis
advisable to use suitable connection systems,
such as anticondensation joints, selfcaking
bands,thermocoatingsheaths.
Respectthepolarity+24V,R,G,Bindicatedon
theterminals(colorsblack=+24V,red=R,green

3/4
USER'SMANUAL
=G,blue=B).
It is essential that the electrical installation
complies with all current good technical and
safetystandards.
Position the fixture body on the mounting plate
andfirmlytightenthetwosideboltsofthebase.
SoulLEDallowsyoutoadjusttheprojectionangle
both on the horizontal plane and on the vertical
plane.
LoosenthetwoAllenscrewsonbothsidesofthe
fork to adjust the angle vertically; the graduated
scalewillhelpyouinpositioning.
Oncetheprojectorisinthedesiredposition,firmly
tightenthetwoAllenscrewsagain.Theforkallows
anadjustmentoftheprojectionangleof30°/+90°
withrespecttothehorizontal.
To adjust the horizontal plane, loosen the two
Allen screws on both sides of the base; the
graduated scale will help you in positioning. The
system allows the LED head to rotate 30° to the
right and 30° to the left. Once the projector is in
the desired position, firmly tighten the two Allen
screwsagain.
In case of installation for direct lighting, pay
particular attention to avoid dazzling phenomena
towardspeoplepresent.
Note:
In some installations it may be necessary to
comply with local regulations regarding the
reduction of light pollution. To be used in these
situations, Soul LED must be installed facing
exclusivelydownwards.

4/4
SPT2025
ArenaLucisrl viaSvizzera12/1446042CastelGoffredo(MN),Italy
Tel.+390376782411Fax+390376780973
www.arenaluci.com [email protected]
WARRANTYCONDITIONS
The unit is guaranteed for 24 months from the
date of purchase against defects in workmanship
ormaterialsthatcomposeit.
This warranty does faults due to incorrect or
improperuseofthedevice.
The warranty is immediately void if the unit has
been tampered with or opened by unauthorized
personnel.
The warranty provides, at the discretion ofArena
Luci,repairorreplacementoffaultyequipment.
The serial number and model of the device are
required to obtain information or assistance from
the dealer. We invite you to transcribe them in
time: for any request of information or services,
thiswillresultinaquickandeffectiveoperation.
CERULES
The device meets the essential requirements of
the Directives LVD  2014/35/UE, EMC 
2014/30/UE, RAEE  2012/19/UE, RoHS 
2011/65/UE, Ecodesign  2009/125/CE  reg. (UE)
1194/2012, Energy label  2010/30/UE  reg. (UE)
874/2012  reg. (UE) 518/2014, GPSD 
2001/95/CE.
Warnings
DisposalofOldElectrical&ElectronicEquipment
(applicable in the European Union and other
European countries with separate collection
systems).
The product shall not be treated as
householdwastebutmustbehandedoverto
the applicable collection point for the
recycling of electrical and electronic
equipment. By ensuring this product is correctly
disposed, you will help prevent potential negative
consequences for the environment and human
health, which could otherwise be caused by
inappropriate waste handling. The recycling of
materialswillhelptoconservenaturalresources.For
more detailed information about recycling of this
product, please contact your city office, your
householdwastedisposalserviceoryoursupplier.
Powersupply
Powerconsumption
Lightsource
ColourTemp.
Luminousflux
Beamangle
Socket
Material
Fixturecolour
Weight
Dimensions
Insulationclass
Protectionrating
Operatingtemp.
Suitabletobemountedonnormallyinflammablesurfaces
Applicablestandards
24VDC
25W
6RGBLED
FullColor
1589lm
25°
Cable
Aluminum
Silver
2.3kg
Ø120x173mm(body)
II
IP65
20°C...+45°C
TECHNICALSPECIFICATION
