Arena Luci VEGA 12 LED User manual

VEGA12LED
User'smanual
RecessedcarriageableLEDinground230VAC
12out
This unit should only be used for purpose for
which it has been intended and should be
installed using the instructions which are
provided. Arena Luci cannot be held liable for
damages to person, animals or objects as a
result of improper, unreasonable and wrong
usage.
This instruction manual contains important
information about the installation and use of the
projector. Please read and follow these
instructionscarefully.
The security of this device is guaranteed only
with the proper use of the following instructions,
thereforetheymustbekeptcarefully.
Never install the device in locations easily
accessiblebypeoplewhoignoretheexistenceof
thisuser'smanualandsafetyinstructions.
For the wiring please refer to enclosed wiring
diagrams. If in the diagrams indicated there
shouldnotbethatofyourapplication,contactthe
technicaloffice.
Disconnecttheunitfromanypowersupplybefore
attemptinganyoperationincontactorinsidethe
unit,andwhennotinuse.
It is essential that each device is correctly
earthed and that electrical installation conforms
to all relevant standards. Never supply the unit
withouttheearthlink.
Prior to connect the unit to the power supply,
check the output voltage fits the technical
requirementsonthelabel.
Neverlet the powercordcome into contact with
othercables.
Nevertouchtheelectricalcontacts,eitherdirectly
withyourfingers,orindirectlybymeansofsharp
ormetalobjects.
Makesurethatcablescannotcausetriphazard.
Donotattempttodismantleandmodifytheunit.
Due to the high technological level of this unit,
anyservicemaintenanceshouldbeperformedby
specialisedoperators.PleasecontactyourArena
Lucidealerforanyoperation.
When assembling make sure that the cable
glandsaretightenedforawatertightseal.
Avoidinstallingtheunitclosetoheatsources.
Neverleanthepowercordonhotunitsurfaces.
Allowed to be mounted directly on inflammable
surfaces.
LEDmoduleisnotreplaceable.
Do not use any solvent based cleaning agents.
Useonlyasoft,dryantistaticcloth.
TheinstallationofLEDmodules(includingpower
supplies) should be done according to current
technical rules and regulations. The installation
shouldbeperformedonlybyaqualifiedoperator.
ThisluminaireisanoutdoorIP67device,butnot
IP68 (underwater). Therefore the proper and
extendedfunctioningwillberelatedtotheproper
installation.
To avoid infiltrations inside the inground box do
not open or install this luminaire during rainy
daysorinhighhumidityconditions.
Avoid contact with either corrosive agents or
humidity and moisture on delicate elements:
damages from corrosion are not refunded as
componentdefects.
WARNINGS
Please note that as part of Arena Luci's ongoing commitment to continuous product development,
specificationsaresubject to change in the course of product improvement without notice.Arena Luci is not
responsiblefordamagesresultingfromimproperordifferentusethanexpected.
ING0012WW
ING0012W

2/4
ING0012
TRANSPORTANDSHIPPING
Opentheshippingcartonandverifythatallequip
mentnecessarytooperatethesystemhasarrived
intact. Refer to the following packing list for
information on what items are included with your
model. If any equipment is missing or damaged,
contactyourArenaLucidealerimmediately.
No.1LEDingroundING0012
No.1Recessedbox
Before beginning initial setup of your LED
inground, make sure that there is no evident da
mage caused by transportation. In the event that
the unit’s housing is damaged, do not plug it in
and do not attempt to use it until after contacting
yourArenaLucidealerforassistance.

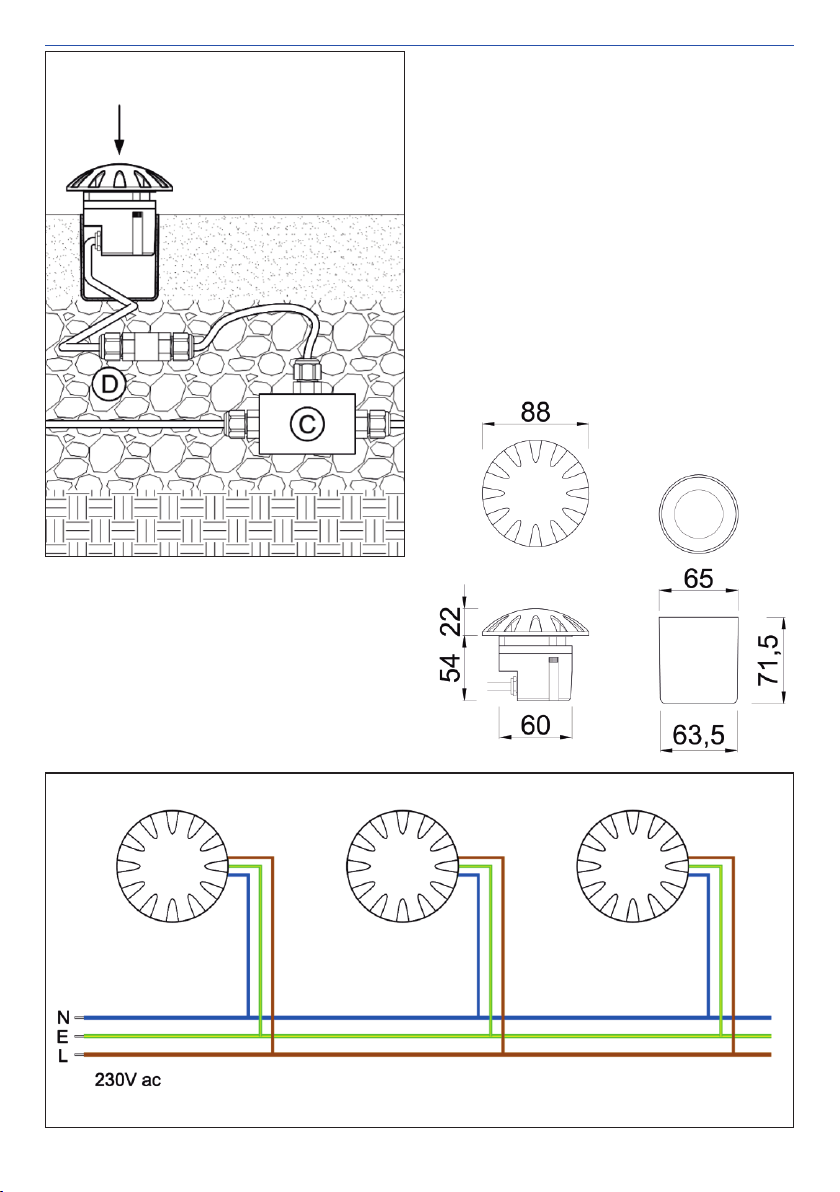

INSTALLINGTHEDEVICE
Before carrying outany operation, disconnectthe
mainsvoltagefromthesystem.
SlidetheLEDheadoutoftherecessedbox.
Theinstallationcanbeperformedviatheincluded
dedicated inground/recessed box. It must be
positioned so that when the installation is
complete, the unit is at the same level of ground
surfaceorfloor:thatis,theuppersideofrecessed
boxshouldmatchthefinishedsurface.
Atheingroundboxmustbeplacedonalayerof
draining pebbles with a minimum thickness of
30cm in order to make easier the flow of rain
waterandavoidtheliftofmoistureinsidethebox.
Atthe end ofthe installation itwill be possibleto
manually orient the LED head to direct the light
beamswheredesired.
Bthebottomlayeroftheinstallationshouldbema 
dewithamaterialwithproperdrainingcapability.
C  the shunt from the 230 VAC line should be
performedusinganIP68ratedcastresinjoint.
Dtheconnectionbetweenthe230VAClineand
the supply cable of the luminaire should be
performed through the recessed box, using an
IP68ratedpowerconnection.Keepenoughcable
lengthformaintenancepurposes.
CompletetheinstallationbyclosingtheLEDheadon
topoftherecessedbox,pushinguntiltheLEDhead
isfullyinserted.
The fixture can be used either for indoor or
outdoorinstallations,thankstothediecastalumi

3/4
USER'SMANUAL
niumbodyandthestainlesssteelAISI316head.
It is not recommended to install the inground
horizontally on walls, since the LED head is not
equipped with fixing screws and could easily
comeoutoftheflushmountedbox.Ifyouwishto
install the fixture on walls, it will be your job to
ensure stable fixing, depending on the type of
structureonwhichtheunitwillbeinstalled.
POWERSUPPLY
Disconnectthemainsvoltagefromthesystem.
The unit does not require an external power
supply; connect the power cable directly to the
230V AC mains voltage, making sure that the
mainsvoltage andfrequency are compatiblewith
the specifications indicated on the label. Respect
theLNEpolarityindicatedonthewiringterminals
(colorsbrown=L,blue=N,yellow/green=E).
It is essential that each unit is correctly earthed
andthattheelectricalinstallationcomplieswithall
thegoodtechnicalandsafetystandardsinforce.
The inground cannot be powered by dimmer
control devices, since the internal power supply
couldbedamaged.
Wiringdiagramtopowersupply

4/4
ING0012
ArenaLucisrl viaSvizzera12/1446042CastelGoffredo(MN),Italy
Tel.+390376782411Fax+390376780973
www.arenaluci.com [email protected]
WARRANTYCONDITIONS
The unit is guaranteed for 24 months from the
date of purchase against defects in workmanship
ormaterialsthatcomposeit.
This warranty does faults due to incorrect or
improperuseofthedevice.
The warranty is immediately void if the unit has
been tampered with or opened by unauthorized
personnel.
The warranty provides, at the discretion ofArena
Luci,repairorreplacementoffaultyequipment.
The serial number and model of the device are
required to obtain information or assistance from
the dealer. We invite you to transcribe them in
time: for any request of information or services,
thiswillresultinaquickandeffectiveoperation.
CERULES
The device meets the essential requirements of
the Directives LVD  2014/35/UE, EMC 
2014/30/UE, RAEE  2012/19/UE, RoHS 
2011/65/UE, Ecodesign  2009/125/CE  reg. (UE)
1194/2012, Energy label  2010/30/UE  reg. (UE)
874/2012  reg. (UE) 518/2014, GPSD 
2001/95/CE.
Warnings
DisposalofOldElectrical&ElectronicEquipment
(applicable in the European Union and other
European countries with separate collection
systems).
The product shall not be treated as
householdwastebutmustbehandedoverto
the applicable collection point for the
recycling of electrical and electronic
equipment. By ensuring this product is correctly
disposed, you will help prevent potential negative
consequences for the environment and human
health, which could otherwise be caused by
inappropriate waste handling. The recycling of
materialswillhelptoconservenaturalresources.For
more detailed information about recycling of this
product, please contact your city office, your
householdwastedisposalserviceoryoursupplier.
Powersupply
Powerconsumption
Lightsource
ColourTemperature
Carriageable
Beamangle
Socket
Material
Fixturecolour
Weight
Size
Insulationclass
Protection
Ambienttemperature
Suitabletobefittedonnormallyinflammablesurfaces
Appliedstandards
230VAC
8W
CreeLED
3200K(WW)5500K(W)
2000kg
12outwindows
Cable3G1mm2,90cmlength
AISI316/Aluminium
Grey
500gLEDhead50gbox
Ø88x76mm(boxexcluded)
I
IP67
25°C...+50°C
TECHNICALSPECIFICATIONS
ING0012ENR0|07/2020
