Argos Home Capella 255/7276 User manual

MADE IN
BRITAIN
Dimensions
Width - 115cm
Depth - 49cm
Height - 181cm
Capella - 3 Drawer 3 Door Robe
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 5 - 23/04/14
Important - Please read these instructions fully before starting assembly
255/7276
239/2682
257/9838
ALR2999
04/08/11 - Drawer assembly changed to Knock-in Pegs.
Drawer Sides and Drawer Back changed to take Knock-in Pegs.
258/4517
Issue 3 - 16/05/12 - New Argos code added
Issue 4 - 31/03/14 - Increase size of drawer boxes.
Add 6 drawer wedges
Add 5 plastinails
Remove old cat codes and add new ones
Issue 5 - 23/04/14 - The flange head screws for the backs have been replaced with 6 Nail Screws and Back Holders.

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 77kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: It is
recommended that this unit is
secured to a wall using the
bracket supplied.
• Dispose of all packaging
carefully and responsibly.
Tools required
Rule
Scissors
Spirit
level
Hammer Bradawl
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Step
ladder
Electric drill
(only use
when drilling
into walls)
Square
mm 10 20 30 40 50 60 70 80 90 100 mm 10 20 30 40 50 60 70 80 90 100

Components - Panels
Please check you have all the panels listed below
2
1
80%
x 3
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Left Side (D1013A)
(1808 x 490mm)
2 3
6
Right Side (D1014A)
(1808 x 490mm)
Top/Base (D1018A)
(1119 x 471mm) x 2
Drawer Front (D1022A)
(369 x 157mm) x 3
Plinth (D1024A)
(1119 x 85mm)
Short Divider (D1019A)
(483 x 470mm)
Fixed Shelf (D1020A)
(346 x 469mm)
10
7
11
Outer Door (D1017A)
(1701 x 369mm) x 2
Long Divider (D1084A)
(1685 x 470mm)
8
4
5
Centre Door (D1025A)
(1221 x 369mm)
9
13
15
12
Drawer Base (T325-367)
(325 x 367mm) x 3
14
18
17 Small Back (X831A)
(1711 x 392mm)
Large Back (X830A)
(1711 x 753mm)
Hanging Rail (FHR723)
(723mm long)
16
Loose Shelf (D1023A)
(369.5 x 469mm) x 3
Drawer Back
(W314-124)
(314 x 124mm) x 3
Left Drawer Side
(W370-124LH)
(370 x 124mm) x 3
Right Drawer
Side (W370-124RH)
(370 x 124mm) x 3

Please check you have all the fittings listed below
3
Components - Fittings If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
A
Wooden dowel (F22) x 10
B
Metal dowel (F901) x 16
C
D E
Large locking
nut (F900) x 10
F
G H I
Nail (F51) x 34
see malibu fitment mk2 for large number of panels and fittings
N
Rail holder
(F1014) x 2
25mm Screw (F50) x 12 13mm Screw (F79) x 11
J
13mm Screw (F63) x 18
Q
Drawer runner (F1004) x 6
K
9mm Screw (F74) x 6
L
9mm Screw (F73) x 12
M
Shelf stud (F110) x 12
P
Handle (F930) x 6
Small locking
nut (F3) x 6
Bracket (F327) x 1
O
S
40mm Screw (F910) x 10
R
Hinge (F518) x 3
Hinge plate
(F523) x 3
Knock-in Peg (F171) x 12
AHP1546
AHP1043
U
Hinge (F522) x 6
T
Hinge plate
(F523) x 6
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Ruler - Use this ruler to help correctly identify the screws
W
Plastic Nail
(F91) x 5
Wedgefix
(F639) x 6
VXY
Nail screw
(F277) x 6
Back holder (F276) x 6
*These can also be round

Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Step 1
x 3
x 3 x 3
Prepare the drawer
fronts
Screw 2 metal dowels
into the holes shown on
the back of each drawer
front .
Note: Tighten the metal
dowels up fully against
the panels.
B
8
Prepare the drawer
sides
Insert a small locking
nut into the hole
shown on the left drawer
side and right drawer
side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
B
E
11
12
Step 2
B
B
8
80%
x 2
Note: Due to the manufacturing process, the holes for the
locking nut can be on either surface of the drawer sides.
E
B
B
E
Note: The locking nuts can be on either surface of the drawer sides.
Make sure that the small groove is on the inside, as shown.
EE
11 12
12
11
8
Small groove
Step 3
Attach the drawer
sides to the drawer
fronts
Push the left drawer sides
. and right drawer sides
. onto the back of the
3 drawer fronts .
Turn the small locking
nuts on the left
drawer side and right
drawer side .
Note: Turn the locking
nuts clockwise to
secure panels - more
than 1/2 a turn.
11
12
8
E
E
11
12
x 3

Assembly Instructions
5
Step 4
Attach the handle
Attach a handle to
each drawer front
using 2 screws .
P
H
Step 6
8
80%
x 2
Step 4
x 3
H
P
Step 5
8
6
7
8
F
F

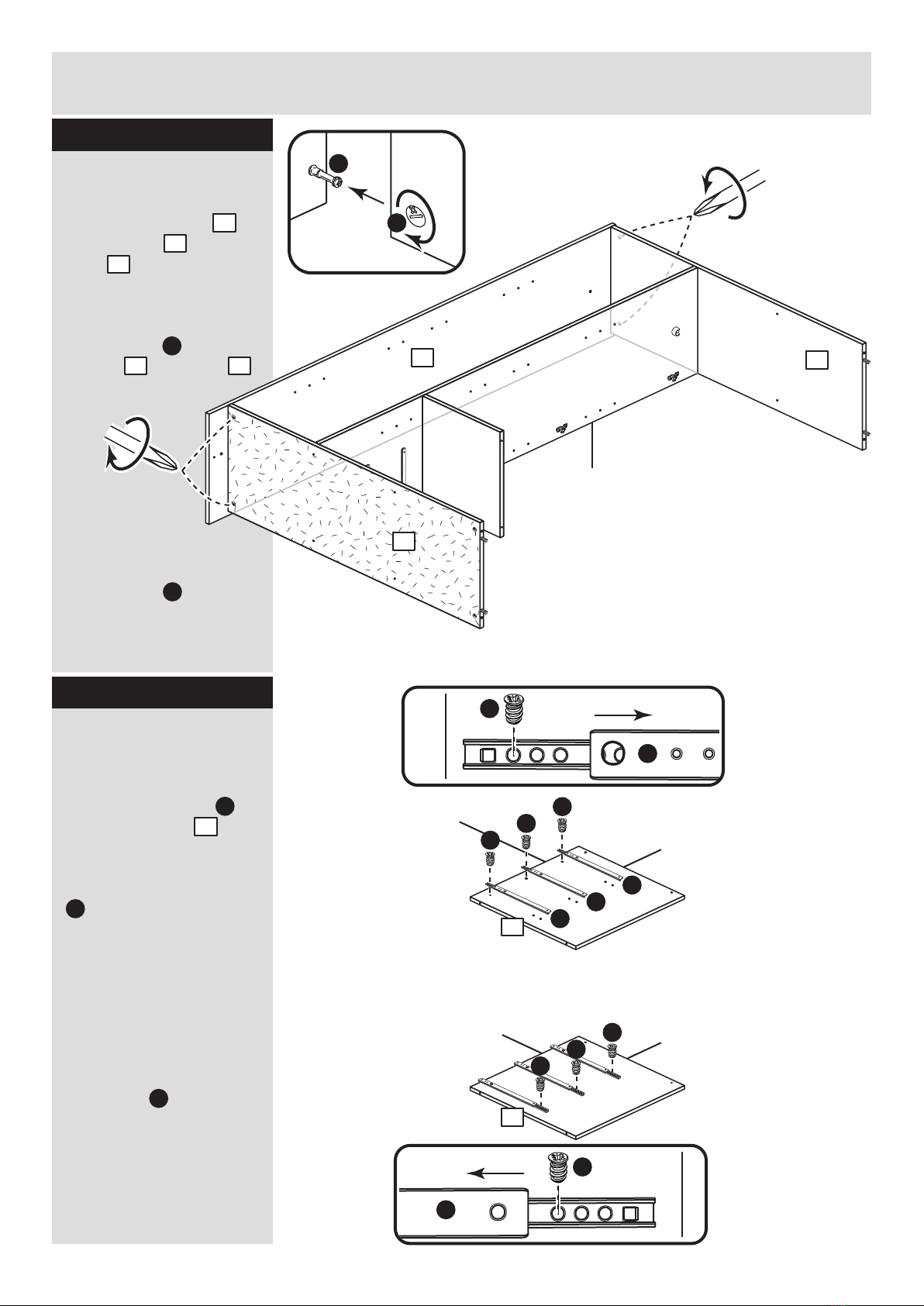

Fit the drawer base
Slide the drawer base
down the grooves in the
drawer sides and
and down into the
groove in the small
drawer front .
Fit the drawer back
Fit the drawer back .
between the drawer
sides and .
Make sure that the
drawer base fits into
the groove in the drawer
back .
Hold the drawer back
in position and tap the
knock-in pegs
through the holes in the
drawer sides and .
15
11 12
8
14
11 12
15
14
14
F
x 3
x 3
F
F
15
12
11
11 12
14
12
11
15
Step 7
Fit the wedgefixes
Turn the drawer
assemblies over and
slide 2 wedgefixes
into the front and back
grooves, as shown, and
tighten up the screws.
V
V
V
Vx 3
8
H

Assembly Instructions
Step 8
3
R
Finished
front edge
L
Q
J
Back edge
L
Q

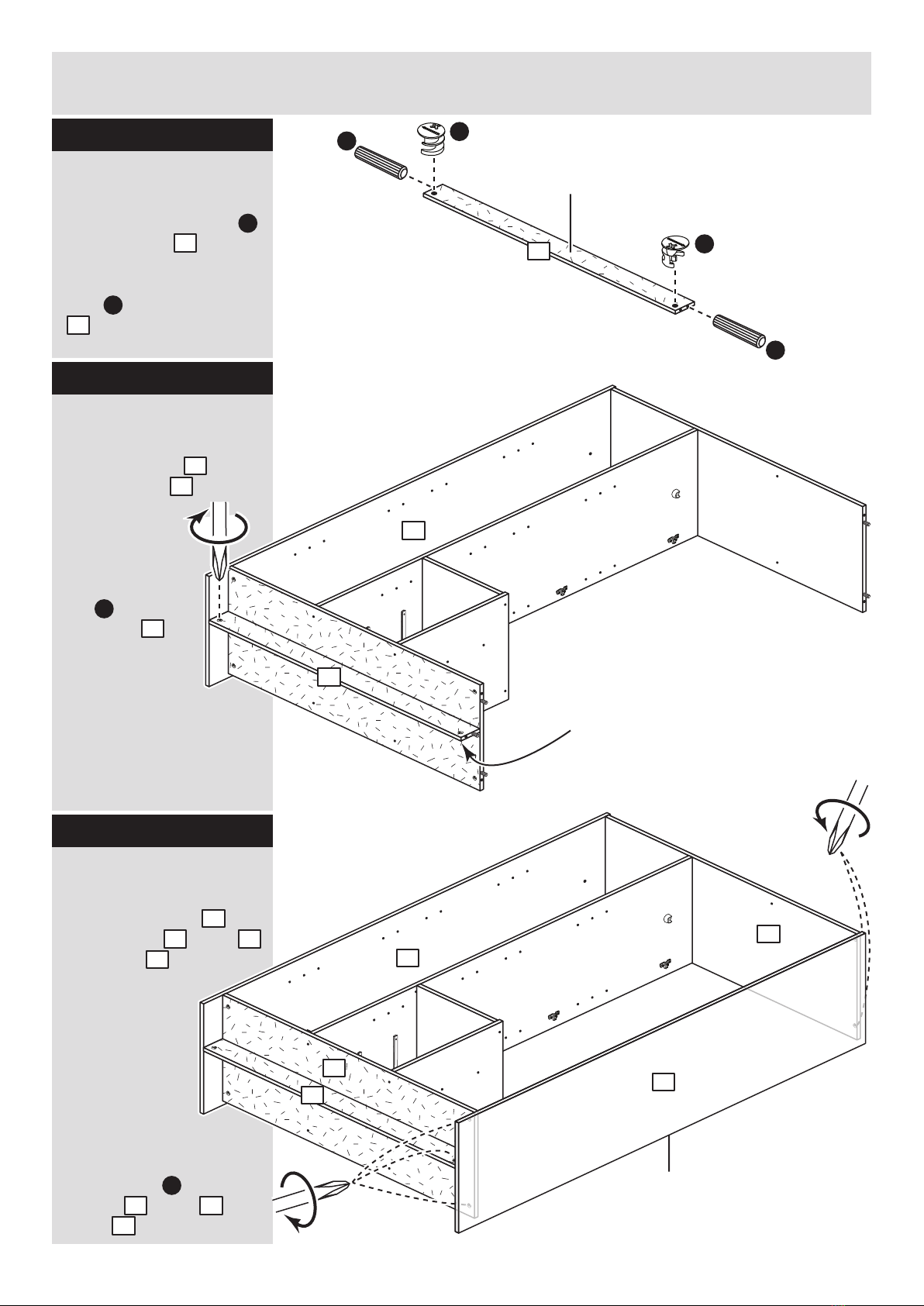

Prepare the long
divider
a: Place 3 runners on
the long divider . Slide
back the top of the
runner and use the 1st
hole from the front to fit
the 1st screw .
b: Slide the runner back
the other way and use
the 3rd hole from the
back to fit the 2nd screw
. .
c: Important: The hinge
plates used in this
step are in the bag
marked as AHP1043.
Fit 3 hinge plates onto
the long divider ,
making sure that the slot
is facing towards the
finished front edge.
Push a rail holder into
the long divider .
Make sure that it is fitted
straight, in line with the
panel edges.
L
Q
3
L
a:
b:
c:
R
R
3
3
N
80%
x 3
L
QL
QL
Q
Finished
front edge
3
LL
L
L
3
Finished
front edge
Finished
front edge
R
R
R
N
3
AHP1043
AHP1546
6

Finished
front edge
Finished
front edge
3
Assembly Instructions
7
Step 9
Step 10
Prepare the top and
base
Tap 4 wooden dowels
into the top and base
. as shown.
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
Insert 4 large locking
nuts into the top
and base as shown.
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
D
D
A
A
A
A
10mm
A
A
4
4
4
4
4
D
Finished
front edge
x 2 D
D
D
G
G
Join the long divider
and fixed shelf
Attach the fixed shelf
to the long divider
using 2 screws .
G
7
3
7
Important: If one of the top/base
panels has a plain chipboard surface
this must be used as the base.

G
Assembly Instructions
8
Step 11
Profiled
front edge
Step 12
Prepare the right side
Important: The hinge
plates used in this
step are in the bag
marked as AHP1546.
Fit 3 hinge plates onto
the right side , making
sure that the slot is
facing towards the
finished front edge.
Screw 5 metal dowels
into the right side .
Note: Tighten the metal
dowels up fully against
the panels.
T
T
2
B
2
2
T
T
T
T
B
B
B
B
B
2
Finished
front edge
Finished
front edge
Finished
front edge
G
4
Fit top and base to
the long divider
Attach the top to the
long divider using 2
screws .
Attach the base to
the long divider using
2 screws .
G
G
4
3
4
3
G
4
3
G
Important: If one of the top/base
panels has a plain chipboard surface
this must be used as the base.
AHP1546
AHP1043

Finished
front edge Finished
top edge
Finished
top edge
Finished
front edge
Assembly Instructions
9
Step 13
Step 14
Profiled
front edge
of right side
Fit the right side
Push the right side
onto the top and
base as shown.
Use a screwdriver to
tighten the 4 large
locking nuts fitted to
the top and base .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
D
B
4
2
2
4
4
4 4
D
D
Finished
front edge
L
Q
Back edge
L
Q
L
L
L
Fit runners to short
divider
a: Place 3 runners on
the short divider .
Slide back top of runner
and use 1st hole from
the front to fit 1st screw
. .
b: Slide runner back the
other way and use 3rd
hole from the back to fit
2nd screw .
Q
6
6
6
L
L
a:
b:
L
Q
L
Q
L
Q
4

Finished
top edge
Finished
front edge
Assembly Instructions
10
Step 15
Step 16
Profiled
front edge
1
T
T
T
T
Prepare the left side
Important: The hinge
plates used in this
step are in the bag
marked as AHP1546.
Fit 3 hinge plates onto
the left side , making
sure that the slot is
facing towards the
finished front edge.
Screw 5 metal dowels
into the left side .
Note: Tighten the metal
dowels up fully against
the panels.
Push a rail holder into
the left side . Make
sure that it is fitted
straight, in line with the
panel edges.
B
B
B
BB
B
N
B
B
T
T
1
1
B
1
N
1
Fit the short divider
Attach the short divider
. to the base using
2 screws .
Attach the short divider
. to the fixed shelf
using 2 screws .
G
G
G
G
6
6
6 7
4
G
G
AHP1546
AHP1043
4
7

Assembly Instructions
11
Step 17
Step 18
Fit the plinth
Push the plinth onto
the right side .
Use a
screwdriver to
tighten the
large locking
nut fitted to
the plinth .
Step 19
Finished
front edge
Fit the left side
Push the left side
onto the top , base
and plinth .
Use a screwdriver to
tighten the 5 large
locking nuts fitted to
the top , base and
plinth .
2
4
1
1
4 4
5
4 4
5
D
Prepare the plinth
Tap 2 wooden dowels
into the plinth .
Insert 2 large locking
nuts into the plinth
. .
D
A
A
D
5
A
5
5
D
2
5
5
2
D
5
5
Note: Support the plinth
until the left side has been
fitted in the next step.
Plain chipboard
surface
4

Assembly Instructions
12
Step 20

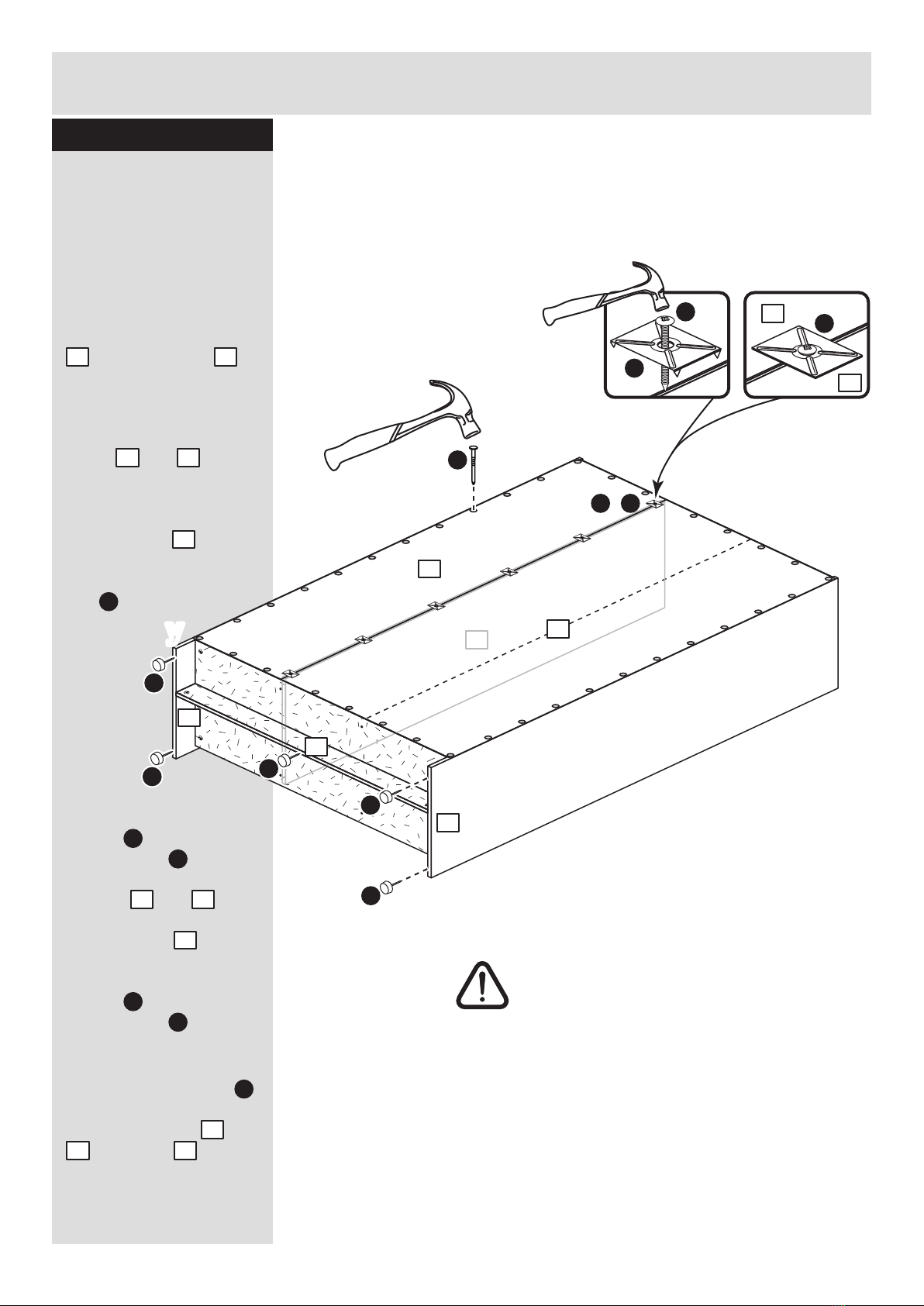

Fit the back panels
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place the small back
. and large back
coloured surface facing
down, onto the unit as
shown.
Make sure that the 2
backs and are
pushed up tight against
each other and that they
meet in the centre of the
long divider’s back
edge.
Nail
around the
outside
edges
of the 2
backs.
c: Push the 6 nail
screws through the 6
back holders and tap
them down between the
2 backs and and
into the back edge of the
centre divider .
Keep tapping the nail
screws in until the
back holders dig into
the backs.
d: Tap 2 plastic nails
into the bottom edge of
each of the sides and
. and plinth .
Stand the unit up for
the next step.
C
17 18
17
3
18
y
x
y
y
x
17
18
b:
d:
C
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
3
1
2
5
W
W
W
W
W
YX +
X
Y
17
18
Y
c:
X
Y
X
Y
17 18
3
Note: Do not nail where
the 2 backs meet.
Nails should be spaced
out evenly.
W
1
25
Warning: The
unit is heavy.
Lift with care.
Note: These can
also be round

Assembly Instructions
Step 21
Fit the hanging rail
and drawers
Push the hanging rail
into the rail holders
fitted to the left side
and long divider .
Starting with the bottom
large drawer, slide both
the runners forward
and locate the drawer
sides and
between them, lining up
the holes in the drawer
wrap with the 2nd
'threaded' holes in the
runners .
Working from the inside
of the drawer, insert 2
screws through the
wrap and out into the
2nd threaded hole in the
runner.
Note: Do not over-
tighten the screws .
If they catch on the
runner you may need
to loosen them slightly.
K
1
16
3
11 12
N
Q
K
2nd threaded
hole
Q
K
K
K
16
N
1
3
11
16
13

Assembly Instructions
14
Step 22
Step 23
Prepare the centre
door
Important: The 3 hinges
used in this step are in
the bag marked as
AHP1043.
Push fit 3 hinges into
the centre door .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the edge of the
door.
S
9
9
Fit the shelves
For each of the 3
shelves , insert 4 shelf
studs at the required
height.
Lower the 3 shelves
down onto the shelf
studs .
13
13
M
M
Fit the shelves
For each of the 3
shelves , insert 4 shelf
studs at the required
height.
Lower the 3 shelves
down onto the shelf
studs .
23
13
13
13
13
13
M
M
M
M
M
AHP1043
AHP1546
S
J
J
90
S
S
J
J
S
J
J
J

Assembly Instructions
15
Step 24
9

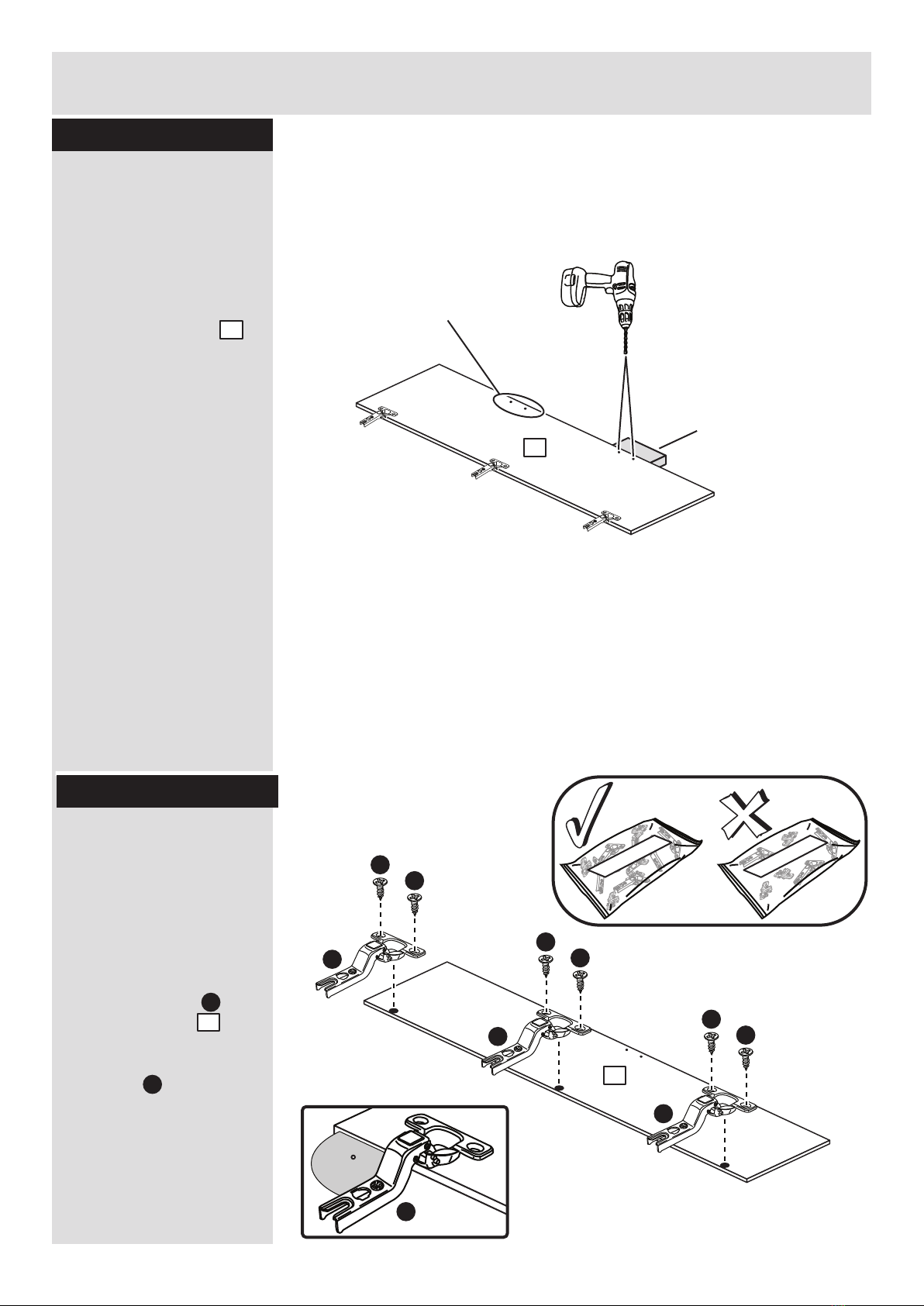

Drill the handle holes
in the centre door
Important: Please follow
these instructions
carefully.
Lay the centre door
down onto a smooth
surface.
Check that the hinges
and holes are in the
same place as the
diagram.
Using the pilot holes in
the rear face of the door,
drill through the holes
indicated opposite, using
a 2.5mm diameter drill.
Turn the door over and
open out the 2.5mm
holes that you have just
drilled by drilling back
through them with a
5mm drill.
DO NOT drill
these holes
ONLY drill these
2 holes in the
centre door
Small piece of
waste wood
Carefully choose the 2 holes you need to drill
Step 25
Prepare the outer
doors
Important: The 6 hinges
used in this step are in
the bag marked as
AHP1546.
Push fit 3 hinges into
each outer door .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the edge of the
door.
90
U
U
U
J
J
U
J
J
U
J
J
10
10
J
Note: We recommend the use of a small piece
of waste wood, placed behind the hole while
drilling, to reduce the possibility of any breakout.
x 2
9
AHP1546
AHP1043

Assembly Instructions
16
Step 26
10
10
H
H
P
P

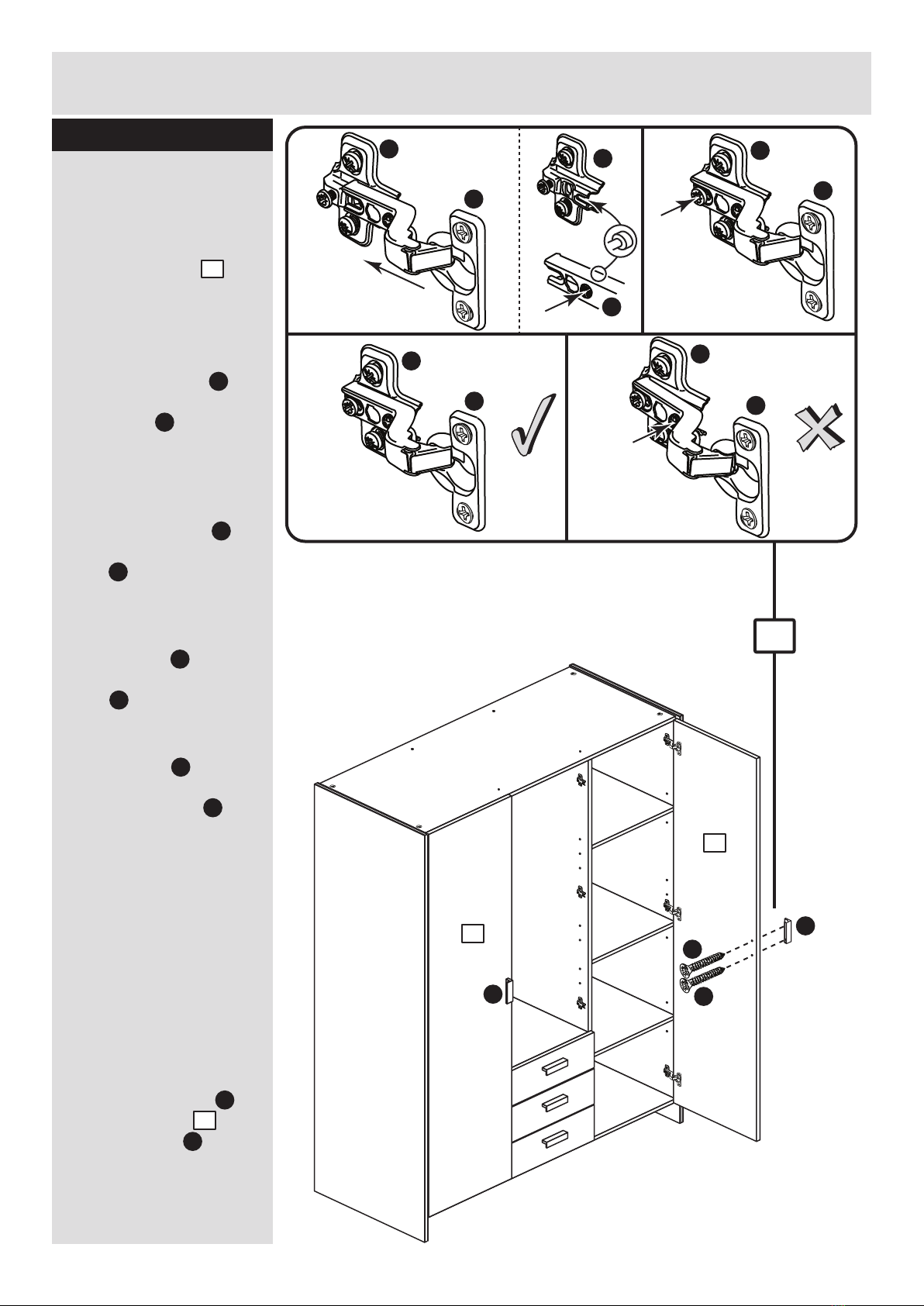

Fit the outer doors
and handles
Note: The easiest way to
attach each door is
to fit the top hinge first,
then align and fit the
other hinges.
a: Push the hinge
onto the front part of the
hinge plate .
The recess at the bottom
of screw B goes into the
slot in the hinge plate.
b: Keep the hinge
FLAT against the hinge
plate as you slide it
across as far as it will go.
Tighten screw A.
c: The hinge must be
flat against the hinge
plate prior to any
adjustment.
d: The hinge must
NOT be AT AN ANGLE
to the hinge plate
when assembled.
This would indicate that
the recess at the bottom
of screw B had not
located in the slot in the
hinge plate and the hinge
would not be secure.
Remove the hinge from
the hinge plate and then
re-assemble being
careful to follow
instructions a-c.
e: Attach a handle to
each outer door
using 2 screws .
U
U
U
T
T
T
U
T
P
H
10
10
e:
a: b:
c: d:
T
U
T
T
B
T
U
U
U
A
U
T
B

Assembly Instructions
17
Step 27
Fit the centre door
and handle
Note: The easiest way to
attach the centre door
. is to fit the top hinge
first, then align and fit the
other hinges.
a: Push the hinge
onto the front part of the
hinge plate .
The recess at the bottom
of screw B goes into the
slot in the hinge plate.
b: Keep the hinge
FLAT against the hinge
plate as you slide it
across as far as it will go.
Tighten screw A.
c: The hinge must be
flat against the hinge
plate prior to any
adjustment.
d: The hinge must
NOT be AT AN ANGLE
to the hinge plate
when assembled.
This would indicate that
the recess at the bottom
of screw B had not
located in the slot in the
hinge plate and the hinge
would not be secure.
Remove the hinge from
the hinge plate and then
re-assemble being
careful to follow
instructions a-c.
e: Attach a handle to
the centre door using
2 screws .
S
S
S
R
R
R
S
R
P
H
9
9
P
P
H
H
e:
9
a: b:
c: d:
R
S
R
R
B
R
S
S
S
A
S
R
B

Assembly Instructions
18
Step 28
b:
c:
d:
a:

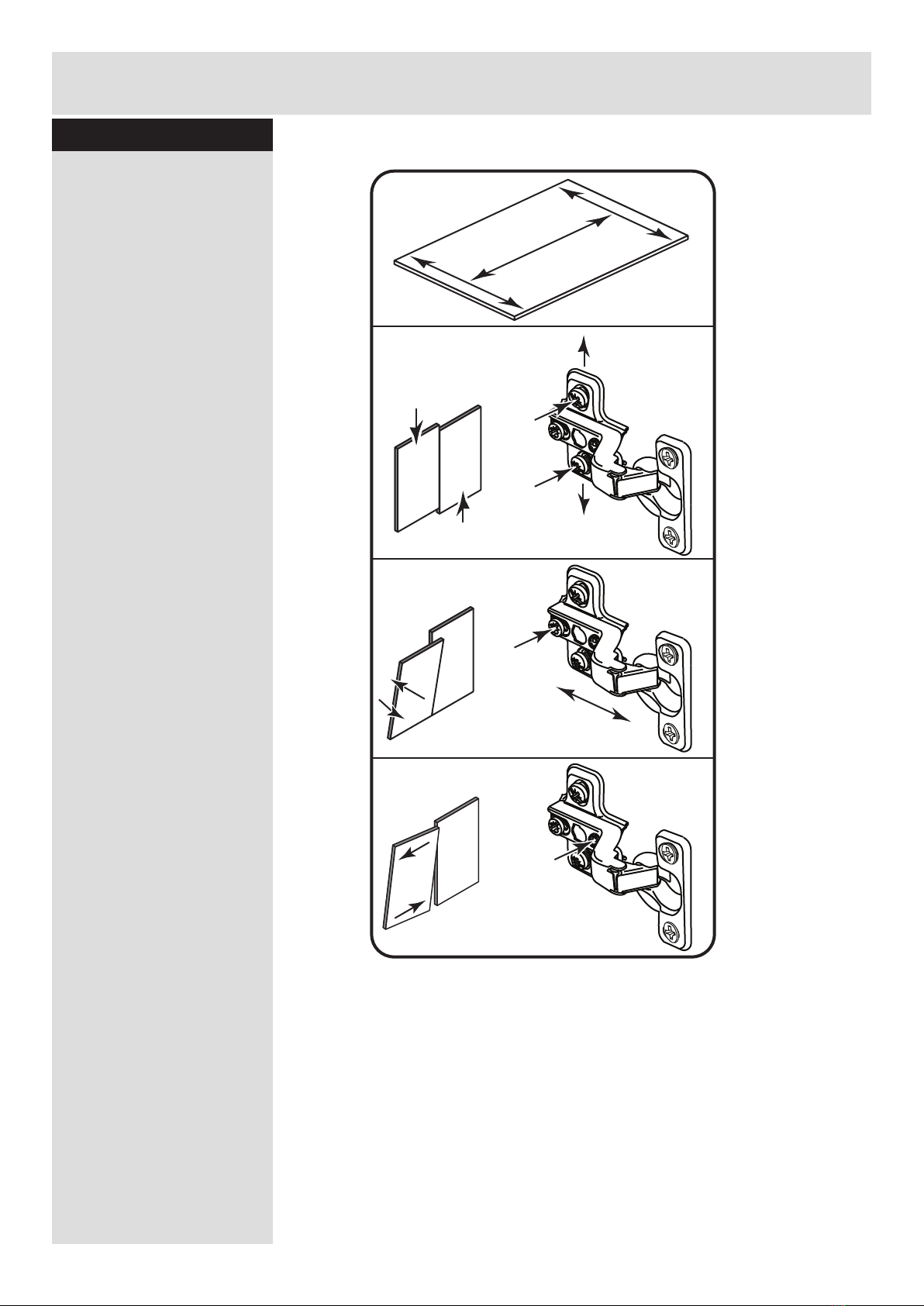

Adjust the doors if
needed
a: Before adjusting the
doors, use a spirit level
to check the base (or
top) of the unit is level,
front-to-back and
side-to-side in the 3
positions shown.
Use suitable packing
pieces (not supplied) to
make the unit level
BEFORE making any
adjustment to the hinges,
as shown.
b: Height adjustment.
Loosen screws A on
hinge plates and move
door up or down as
required.
Retighten screw A.
c: Forward and Back
adjustment.
Loosen screw B on hinge
plate and move door in
or out as required.
Retighten screw B.
d: Sideways
adjustment.
To move door ‘out’
loosen screw C.
To move door ‘in’ tighten
screw C.
A
A
B
C
This shows the hinge and plate that is
fitted to the outer doors.
The ones fitted to the centre door are
adjusted in the same way.

Assembly Instructions
19
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
ALR2999
Step 29
Top of Unit
WALL WALL
Back of Unit

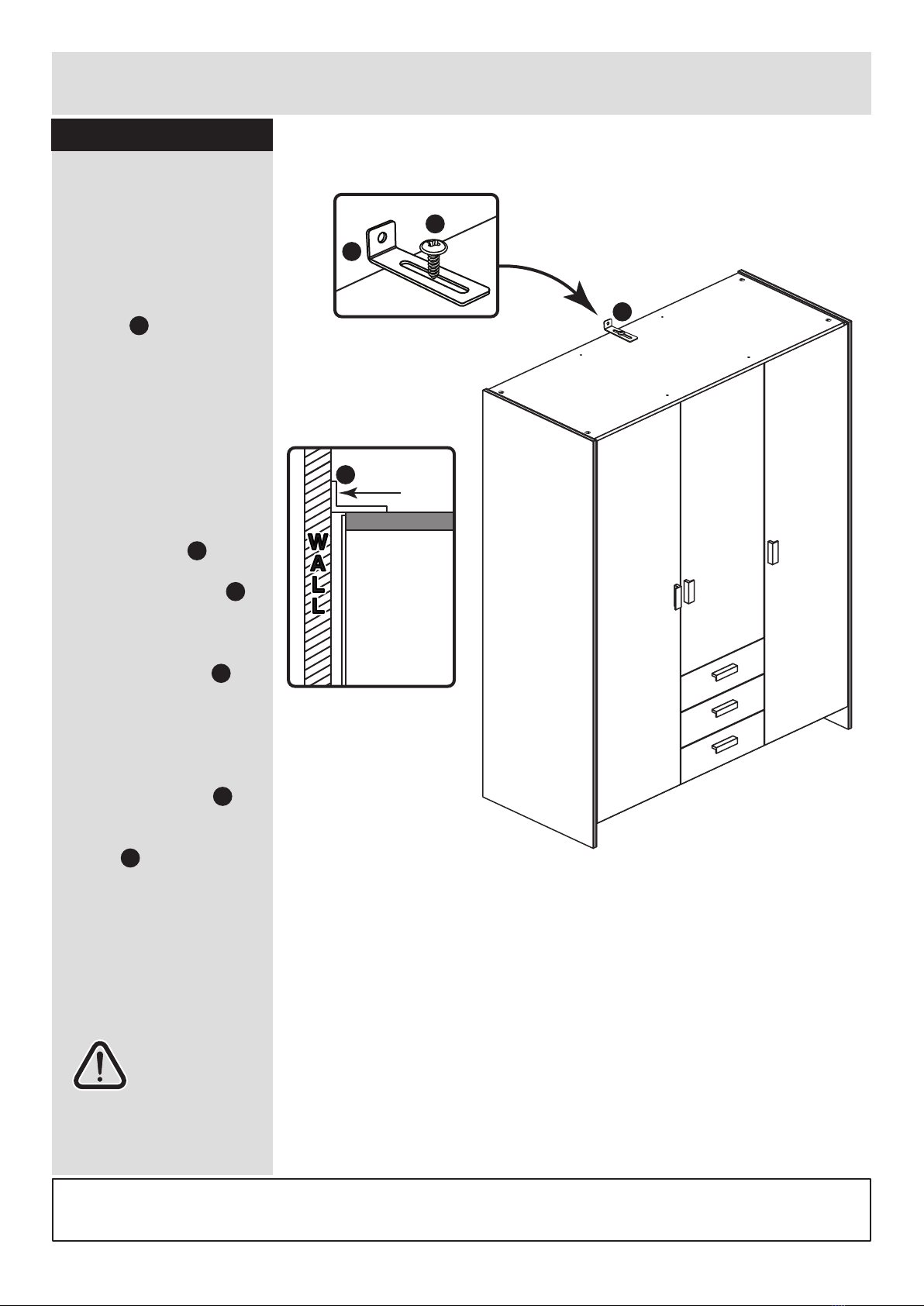

Fit the bracket
To prevent possible
overbalancing, we
recommend that this unit
is secured to a suitable
wall by use of the
bracket fitted to the
top of the unit.
Fixings are not supplied,
as they will need to suit
the wall type and the
length of screw will
depend on the distance
from the back of the unit
to the wall.
Fix the bracket
loosely onto the top of
the unit using screw
and mark the wall for the
wall fixing.
Swivel the bracket
away from the wall and
drill a hole in the wall
using a suitable drill bit
and fit your wall fixing.
Swivel the bracket
back and fix the bracket
to the wall, then tighten
Screw .
Note: Take care when
drilling the wall that you
do not drill into any
pipes, wires etc.
If in doubt, consult an
expert.
Warning: The
unit is heavy.
Lift with care.
Assembly is complete
O
O
I
O
O
I
O
I
O
O
