Argos Home Hallingford Gloss 796/4699 User manual

MADE IN
BRITAIN
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: [email protected]o.uk (quoting your original order number)
Alternatively, call the Spares Helpline on: 0330 016 1114
For any other queries please contact the Customer Helpline on: 0345 640 2020
Important - Please read these instructions fully before starting assembly
Assembly Instructions - Important: Retain these instructions for
future reference
More help is available throughout this
booklet by scanning in the QR codes or
typing in the links

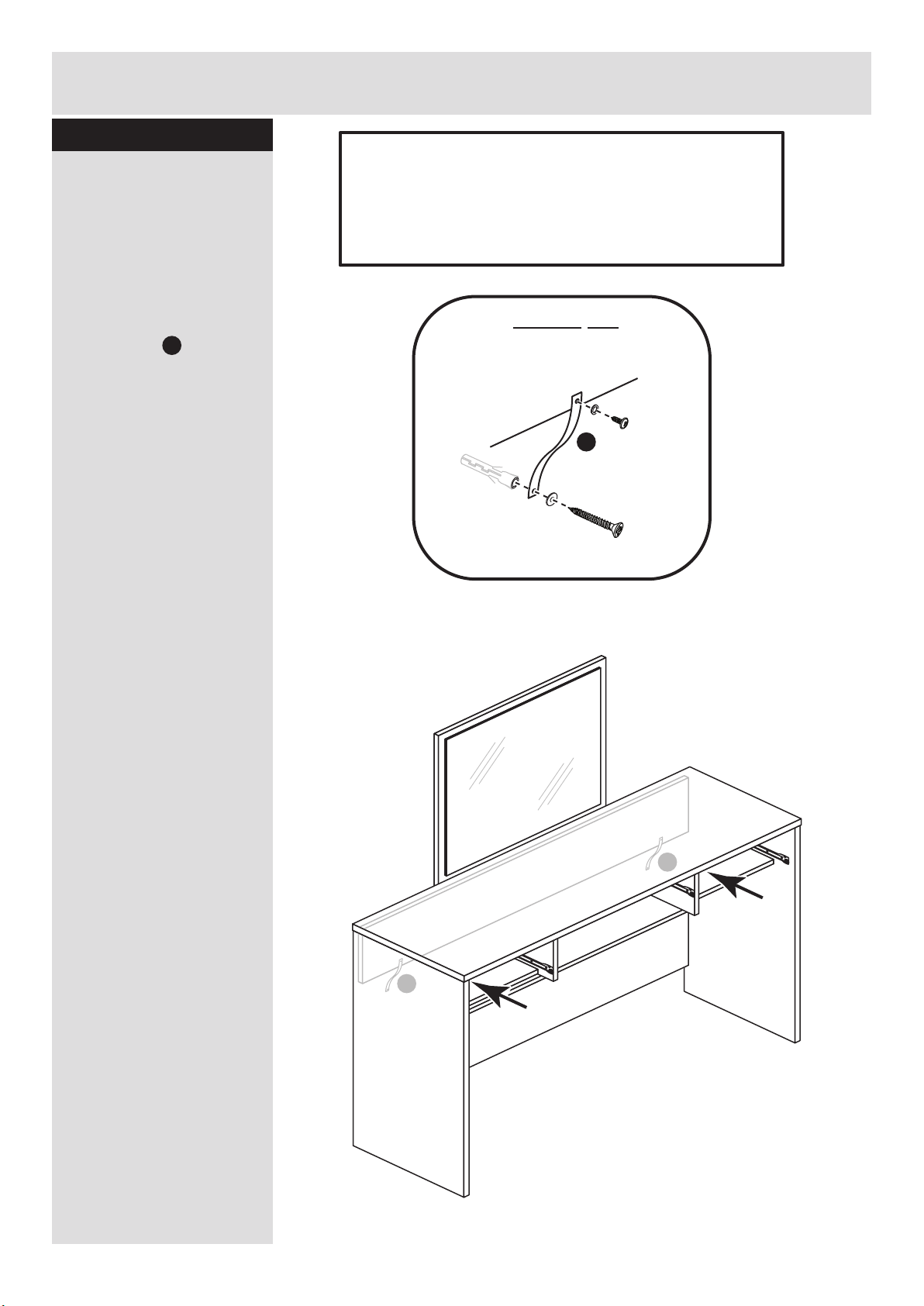

WARNING!
In order to prevent overturning, this product must be used
with the 2 wall attachment devices provided
Dimensions
Width - 119.9cm
Depth - 41.1cm
Height - 79.5cm
Hallingford Gloss - 3 Drawer Dressing Table
Issue 8 - 10/08/20
796/4699
764/5554
CR
CR
CR

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
• Regularly check all fastenings
to ensure that they are properly
tightened.
• Warning: This unit weighs
approximately 44kgs.
Please lift with care.
• Assembly to be carried out by
a competent adult only.
• Check you have all the
components and tools listed on
pages 1 to 3 for the Dressing
Table and pages 22 to 23 for
the Stool.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• During assembly children
should be kept away from the
product due to possible risk of
injury.
• Installation shall only be
carried out exactly according to
the manufacturer’s instructions
- otherwise a safety risk can
occur if incorrectly installed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• WARNING: To prevent
possible overbalancing this unit
must be secured to a wall
using the 2overbalance
protector kits supplied.
• Dispose of all packaging
carefully and responsibly.
• Do not use this item if any
components are missing or
damaged.
Components - Panels for Dressing Table
If you need help or have damaged or missing parts, please refer to page 2
Please check you have all the panels listed below
2Small Cross Rail (DF-00018009)
(32.1 x 9.2cm) x 2
2Top (DF-00013063)
(119.9 x 39.6cm)

Components - Panels for Dressing Table
Please check you have all the panels listed below
2
16 Centre Drawer
Front (DF-00018047)
(48.7 x 12.2cm)
17 Narrow Left Drawer
Side (WD350-95LH)
(35 x 9.5cm)
18 Narrow Right Drawer
Side (WD350-95RH)
(35 x 9.5cm)
19 Narrow Drawer
Back (W436-95)
(43.6 x 9.5cm)
3 Left Side (DF-00013110)
(76.7 x 39.4cm)
4 Right Side (DF-00013111)
(76.7 x 39.4cm)
7 Left Divider
(DF-00018004)
(16.7 x 35.75cm)
8 Right Divider
(DF-00018005)
(16.7 x 35.75cm)
Mirror Back (DF-00018003)
(59.5 x 66.2cm)
5 Top Modesty (DF-00018002)
(115.9 x 19.2cm)
6 Bottom Modesty (DF-00018013)
(115.9 x 19.2cm)
9
2
10 Left Drawer
Front (DF-00018045)
(33 x 16.2cm)
11 Right Drawer
Front (DF-00018046)
(33 x 16.2cm)
12 Deep Left Drawer
Side (WD350-130LH)
(35 x 13cm) x 2
13 Deep Right Drawer
Side (WD350-130RH)
(35 x 13cm) x 2
14 Deep Drawer
Back (W271-130)
(27.1 x 13cm) x 2 15 Deep Drawer
Base (T282-347)
(28.2 x 34.7cm) x 2
20 Narrow Drawer
Base (T447-347)
(44.7 x 34.7cm)
Mirror - MIR-00000011
(54.8 x 48.4cm)
Safety Back SAR

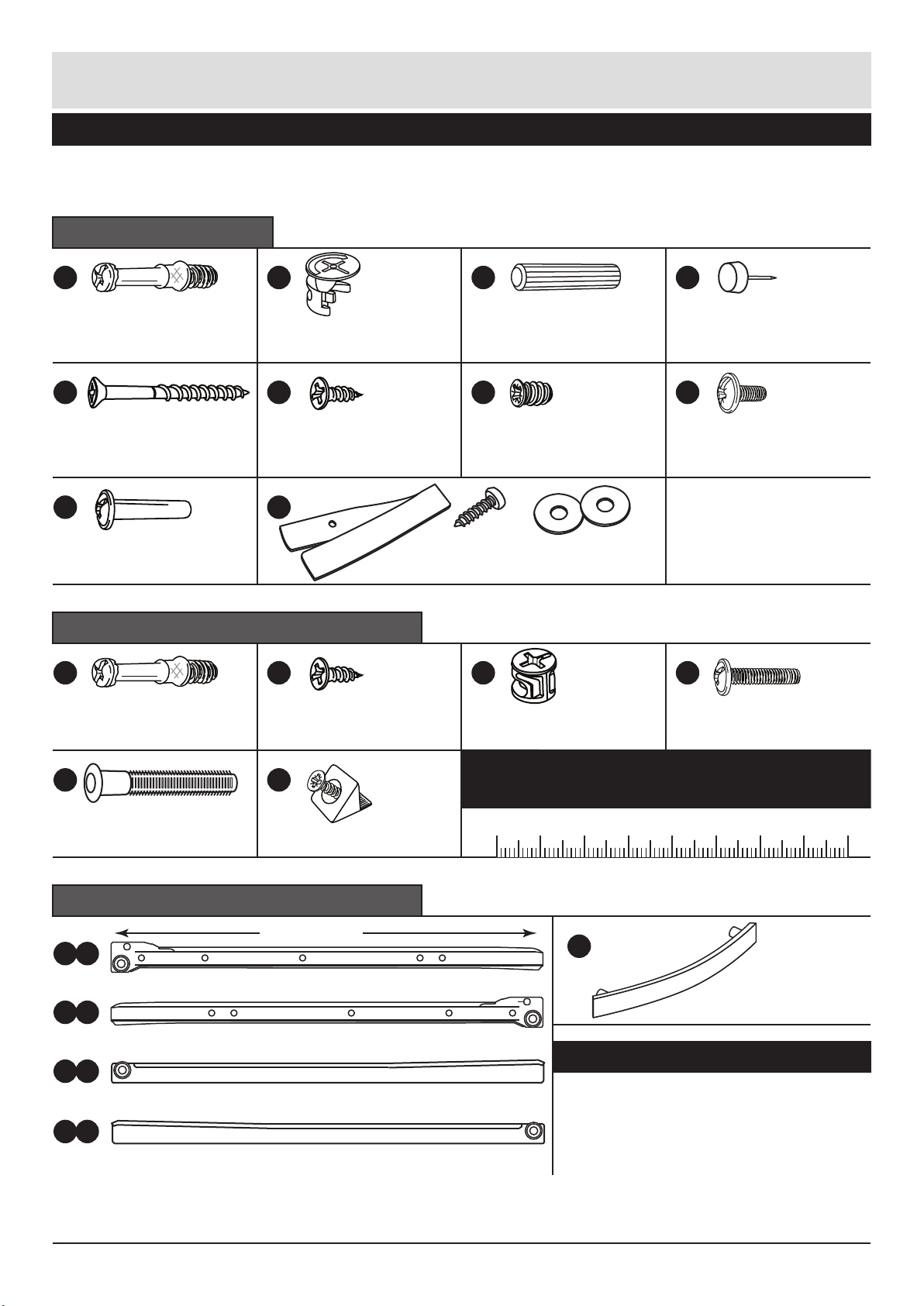

Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
Components - Fittings for Dressing Table
3
Handle (F306) x 2
J
Plastic Nail (F91) x 4
G
9mm Screw (F73) x 18
Bag 1
C
Wooden dowel (F22) x 20
Individual Fittings Bags
Bag 2
A L
19mm Screw (F461) x 4
K
Small locking cam
nut (F3) x 6
Metal dowel (F901) x 6
A
E
Metal dowel (F901) x 20
B
F
Large locking cam
nut (F900)x 20
D
P
45mm Screw (F65) x 3
I
Connecting Sleeve
(F432) x 2
H
9mm Screw (F74) x 213mm Screw (F63) x 6
F
13mm Screw (F63) x 12
Ob
Oa
350mm long
CL
CR
CR Runner (F424) x 3
CL Runner (F422) x 3
Oc
OdDR
DL
DL Runner (F425) x 3
DR Runner (F426) x 3
Wedgefix (F639) x 6
NM
Knock-in Peg (F171GY) x 12
Strap
Screw
Washer x 2
Overbalance protector kit (F269) x 2
mm 10 20 30 40 50 60 70 80
Ruler - Use this ruler to help
correctly identify the screws
Tools required
Scissors •Rule •Hammer •Spirit level •
Flat-head screwdriver •Bradawl•
Cross-head screwdriver
Eye protection (when using a hammer or drill)
Electric drill (only use when drilling into walls)

Assembly Instructions
4

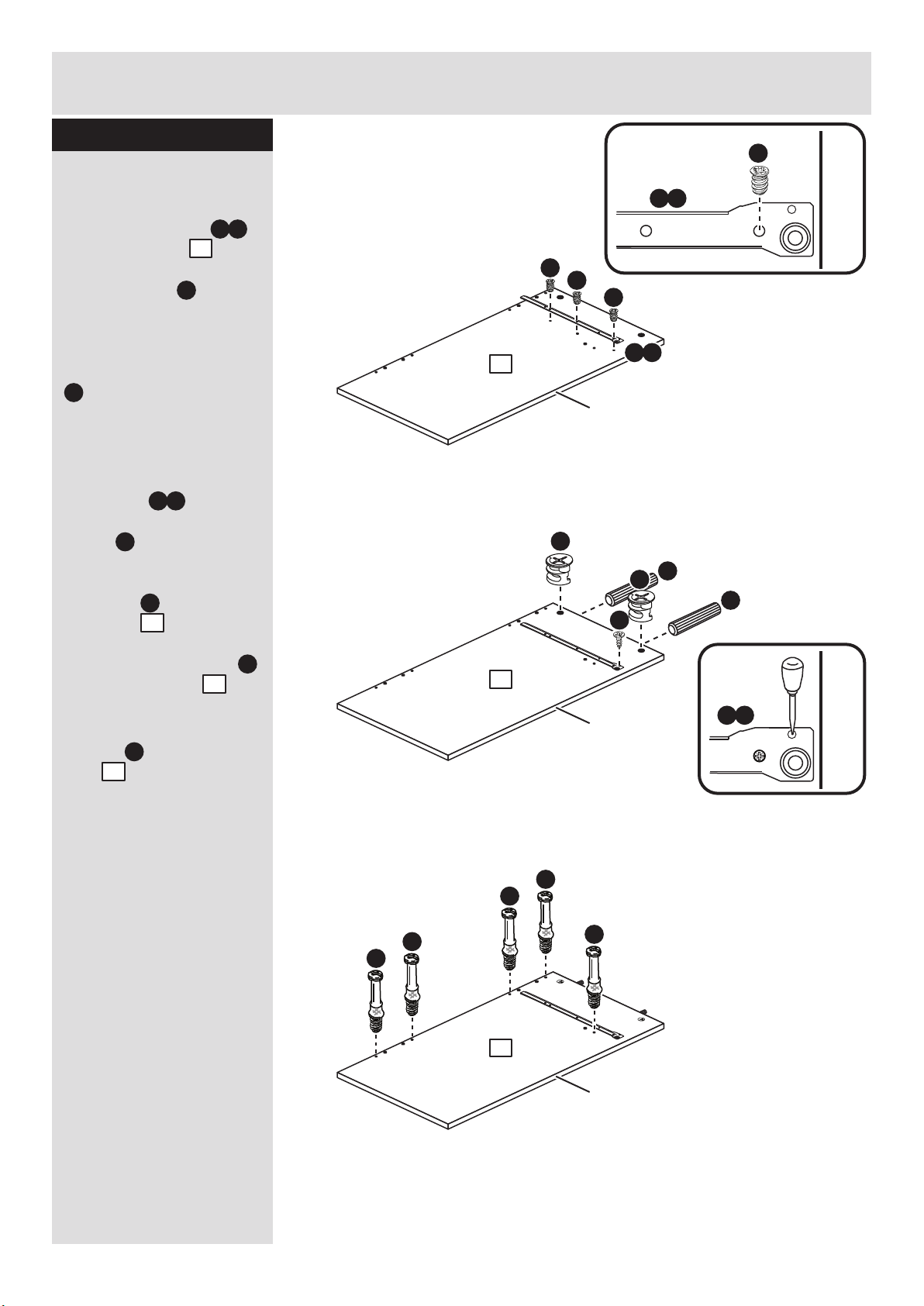

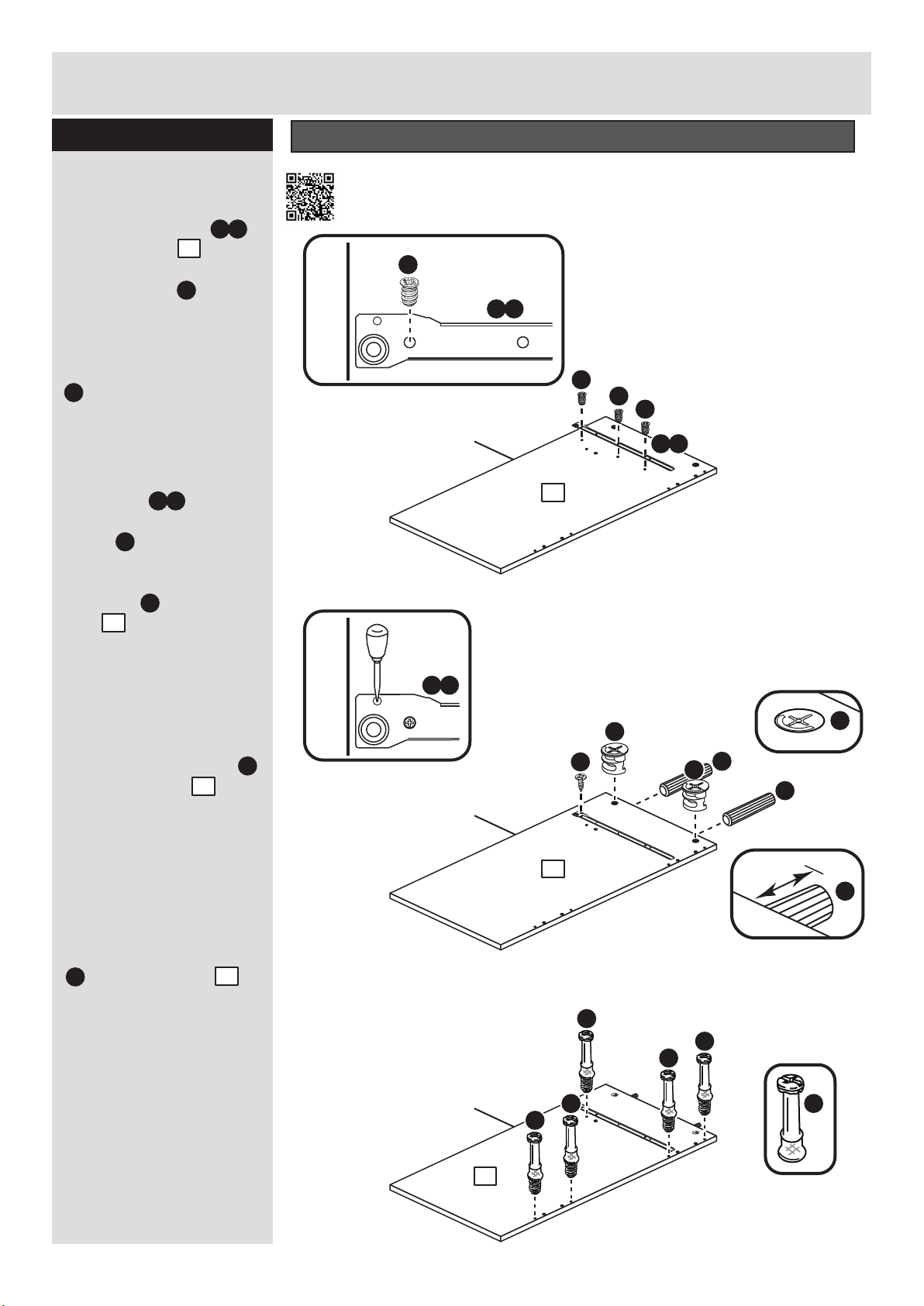

Step 1
Finished
front edge
CL
C
C
Finished
front edge
Finished
front edge
O a
G1st
screw
Finished
front edge
CL
Finished
front edge
Bradawl
O a
hps://www.youtube.com/watch?v=Z6lGMy19h7Q
Fixing Bottom Mounted Runners
a:
b:
c:
Prepare the left side
a: Fit a CL runner
to the left side .
The 1st screw uses
the 1st hole in from the
front of the runner.
The 2nd and 3rd screws
. use the holes that line
up with the other panel
holes.
b: Mark the top hole of
the runner with a
bradawl and then fit a
screw .
Insert 2 large locking
cam nuts into the left
side .
Note: The arrow on the
locking cam nut must
point towards the hole in
the edge of the panel.
Tap 2 wooden dowels
into the left side .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
c: Screw 5 metal dowels
. into the left side .
Note: Tighten the metal
dowels up fully against
the panels.
O a
3
G
G
F
O a
B
3
3
A3
CL
G
G
G
O a
CL
F
CL
B
A
A
A
A
3
3
3
10mm
C
C
A
B
B
Let’s assemble the Dressing Table carcase first
A

Assembly Instructions
5

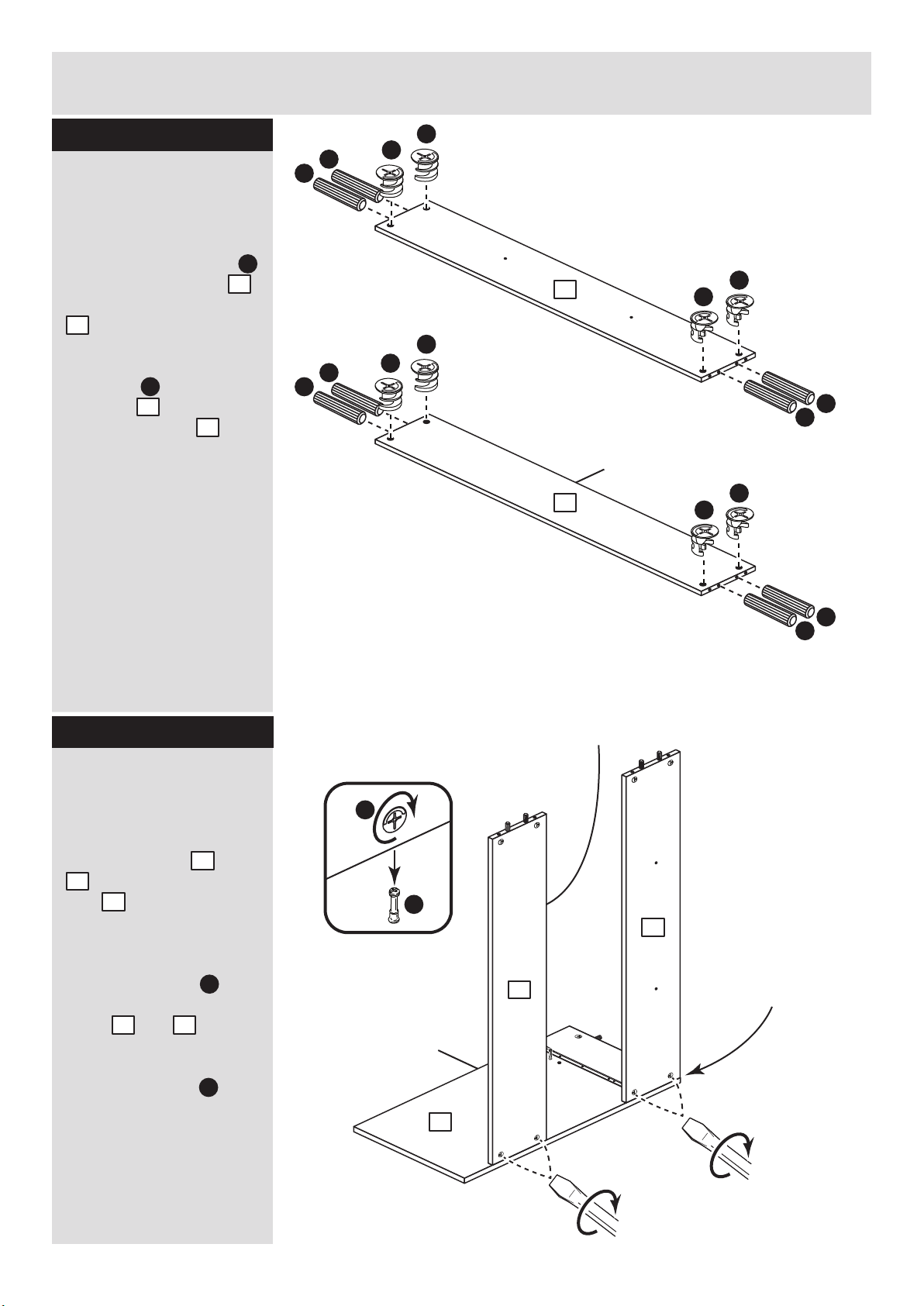

Step 2
Finished
front edge
Finished
front edge
Finished
front edge
C
C
Prepare the top
modesty and bottom
modesty
Tap 4 wooden dowels
into the top modesty
and the bottom modesty
. .
Insert 4 large locking
cam nuts into the top
modesty and the
bottom modesty .
5
6
6
5
C
B
C
C
C
C
C
C
5
6
Step 3
Fit the 2 modesty panels to
the left side
Push the top and bottom
modesty panels and
. down onto the left
side .
Use a screwdriver to
tighten the 2 large
locking cam nuts
fitted to each modesty
panel and .
Note: Turn the large
locking cam nuts as
far as they will go - more
than 1/2 a turn.
B
A
5
6
3
B
B
5 6
CL
3
The top edge of the
top modesty must be
ush with the top
edge of the left side
5
6
B
B
B
B
B
B
B
B

Assembly Instructions
6
Step 4
C
C
b:
c:
a:
Finished
front edge
O b
Bradawl
CR
G
G
G
O b
B
B
CR
F
CR
A
A
A
A
A
Prepare the right side
a: Fit a CR runner
to the right side .
The 1st screw uses
the 1st hole in from the
front of the runner.
The 2nd and 3rd screws
. use the holes that line
up with the other panel
holes.
b: Mark the top hole of
the runner with a
bradawl and then fit a
screw .
Insert 2 large locking
cam nuts into the
right side .
Tap 2 wooden dowels
into the right side .
c: Screw 5 metal
dowels into the right
side .
O b
4
G
G
F
O b
B
4
4
A
4
C
Finished
front edge
4
Finished
front edge
4
Finished
front edge
4
O b
G
1st
screw
Finished
front edge
CR

Assembly Instructions
7

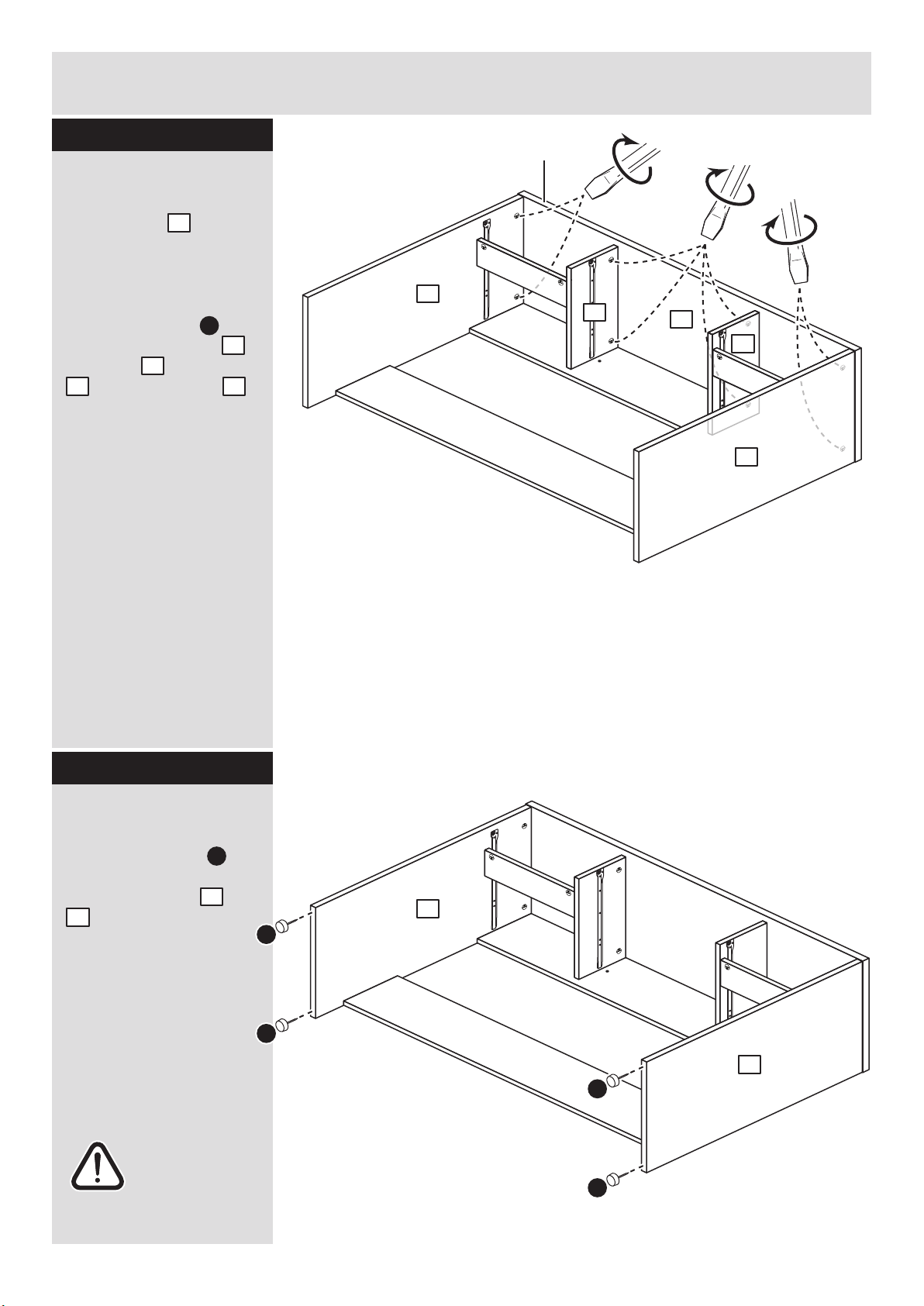

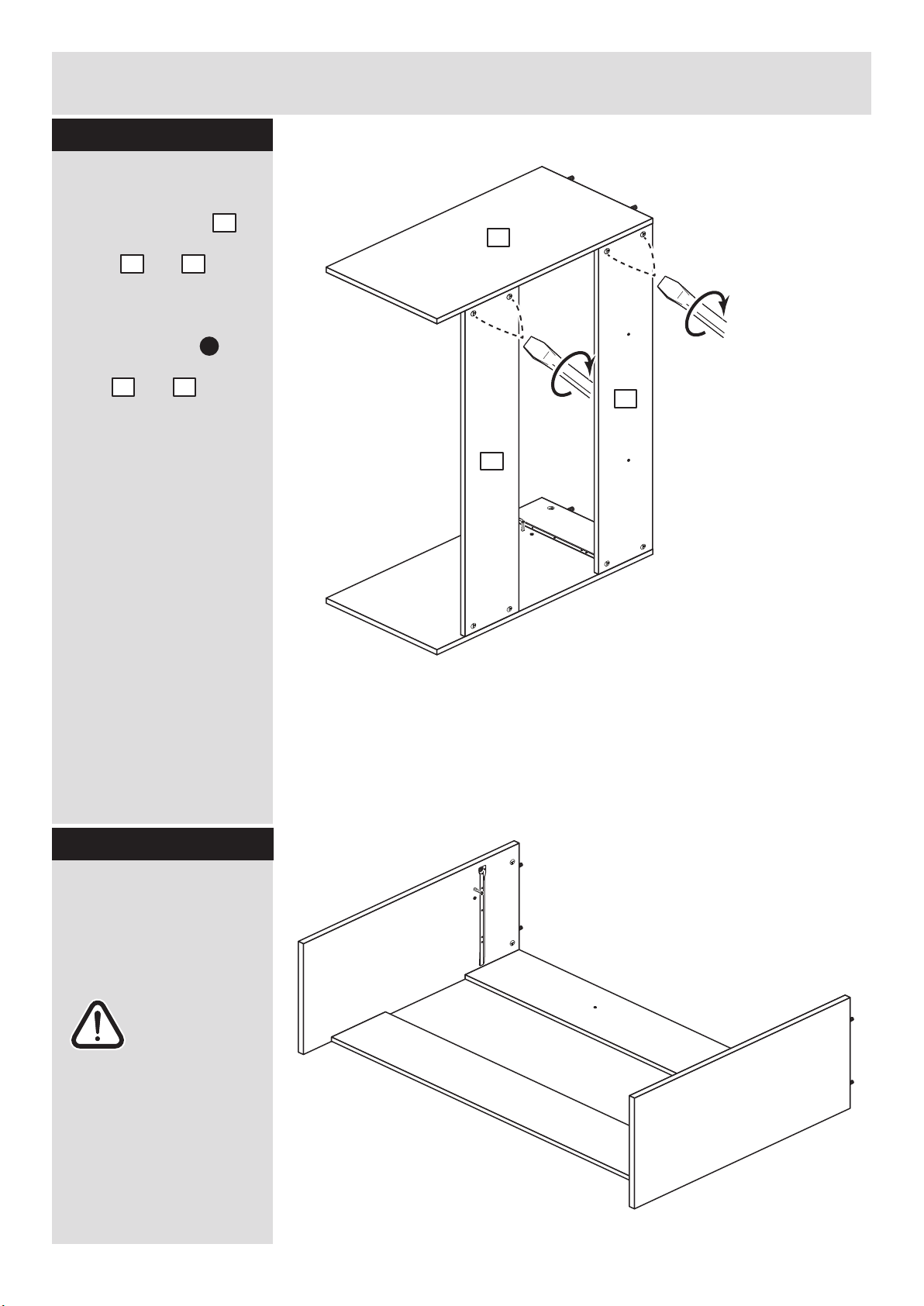

Step 5
Fit the right side
Push the right side
down onto the modesty
panels and .
Use a screwdriver to
tighten the 2 large
locking cam nuts
fitted to each modesty
panel and .
Step 6
Lay the unit down
Carefully lay the unit
down onto its back.
Warning: The
unit is heavy.
Lift with care.
4
5 6
B
5 6
CL
CL
5
6
4
Note: Support the right side
until you lay the assembly
down in the next step.

Assembly Instructions
8

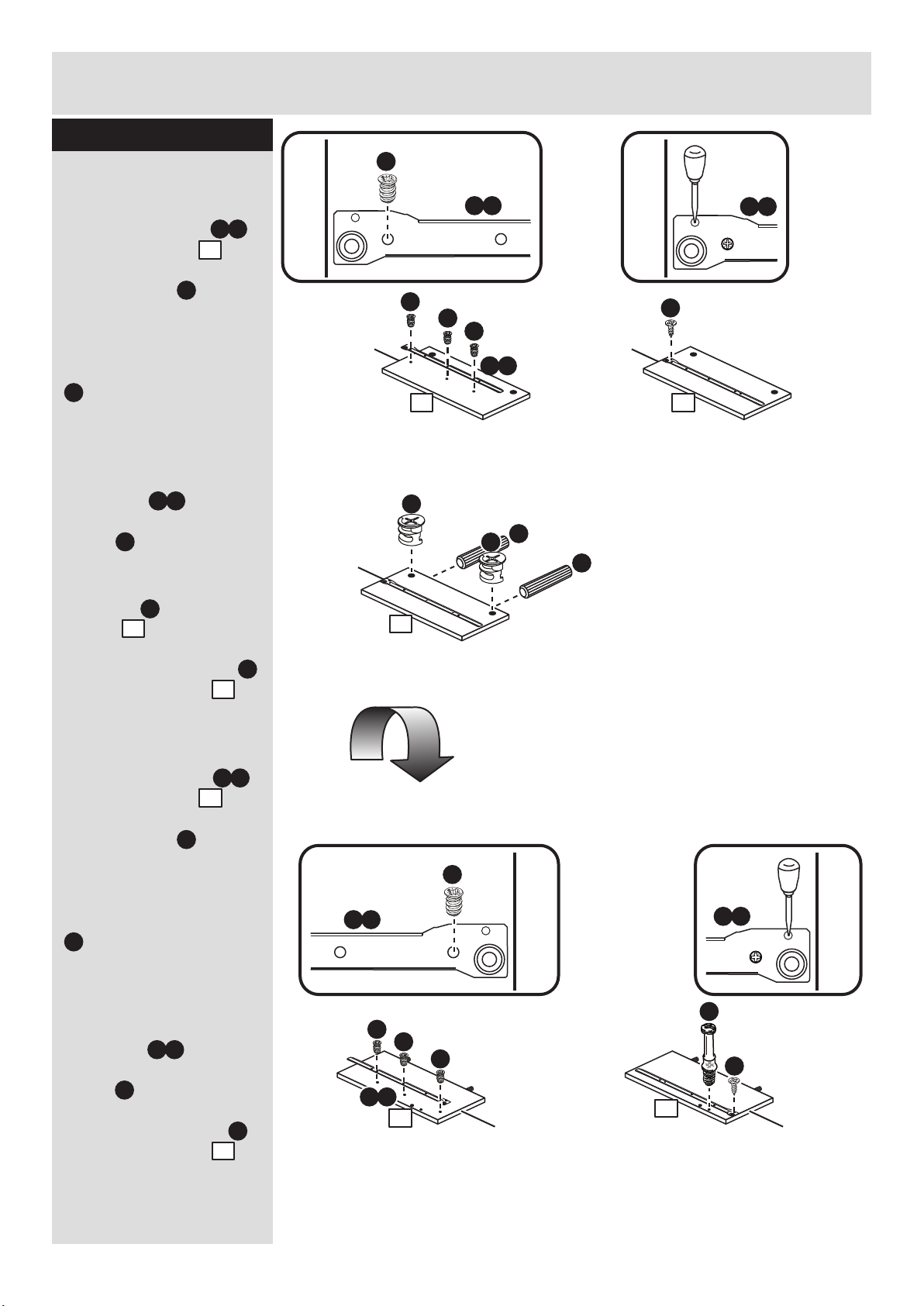

Step 7
C
C
Finished
front edge
Finished
front edge
Finished
front edge
a: b:
d: e:
c:
Turn the divider over
O a
G1st
screw
Finished
front edge
CL
Finished
front edge
Bradawl
O a
Prepare the left divider
a: Fit a CL runner
to the left divider .
The 1st screw uses
the 1st hole in from the
front of the runner.
The 2nd and 3rd screws
. use the holes that line
up with the other panel
holes.
b: Mark the top hole of
the runner with a
bradawl and then fit a
screw .
c: Insert 2 large locking
cam nuts into the left
divider .
Tap 2 wooden dowels
into the left divider .
Turn the divider over
d: Fit a CR runner
to the left divider .
The 1st screw uses
the 1st hole in from the
front of the runner.
The 2nd and 3rd screws
. use the holes that line
up with the other panel
holes.
e: Mark the top hole of
the runner with a
bradawl and then fit a
screw .
Screw a metal dowel
into the left divider .
O a
7
G
G
F
O a
G
G
F
O b
B
7
7
7
CL
G
GG
O a
CL
F
CL
C
B
B
O b
G
1st
screw
Finished
front edge
CR
Finished
front edge
O b
Bradawl
CR
G
G
G
O b
CR
F
Finished
front edge
Finished
front edge
O b
7 7
7
77
A
A
7

Assembly Instructions
9

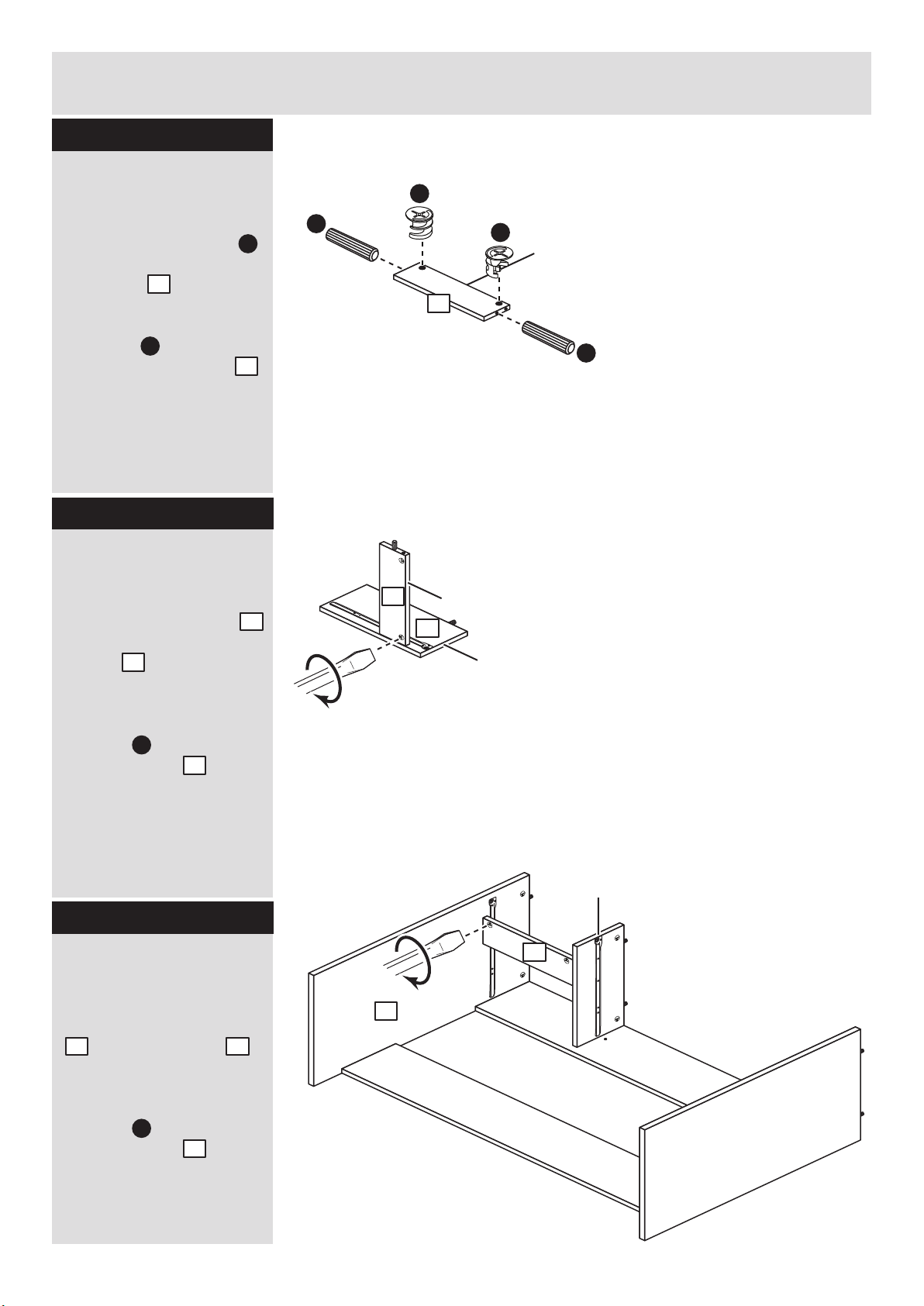

Step 8
C
Prepare the 2 small cross
rails
Tap 2 wooden dowels
into each of the 2 small
cross rails .
Insert 2 large locking
cam nuts into each of
the 2 small cross rails .
Step 10
Step 9
CL
CR
Finished
front edge
7
B
B
C
C
2
2
B
2
Finished
front edge
x 2
Finished
front edge
2
Fit a small cross rail to the
left divider
Push a small cross rail
down onto the left
divider .
Use a screwdriver to
tighten the large locking
cam nut fitted to the
small cross rail .
2
7
B
2
Fit the small cross rail and
left divider
Push the small cross rail
. onto the left side .
Use a screwdriver to
tighten the large locking
cam nut fitted to the
small cross rail .
2 3
B
2
CL
3
2
Finished
front edge

C
C
Assembly Instructions
10
Step 11
Finished
front edge
Finished
front edge
a: b:
d:
e:
c:

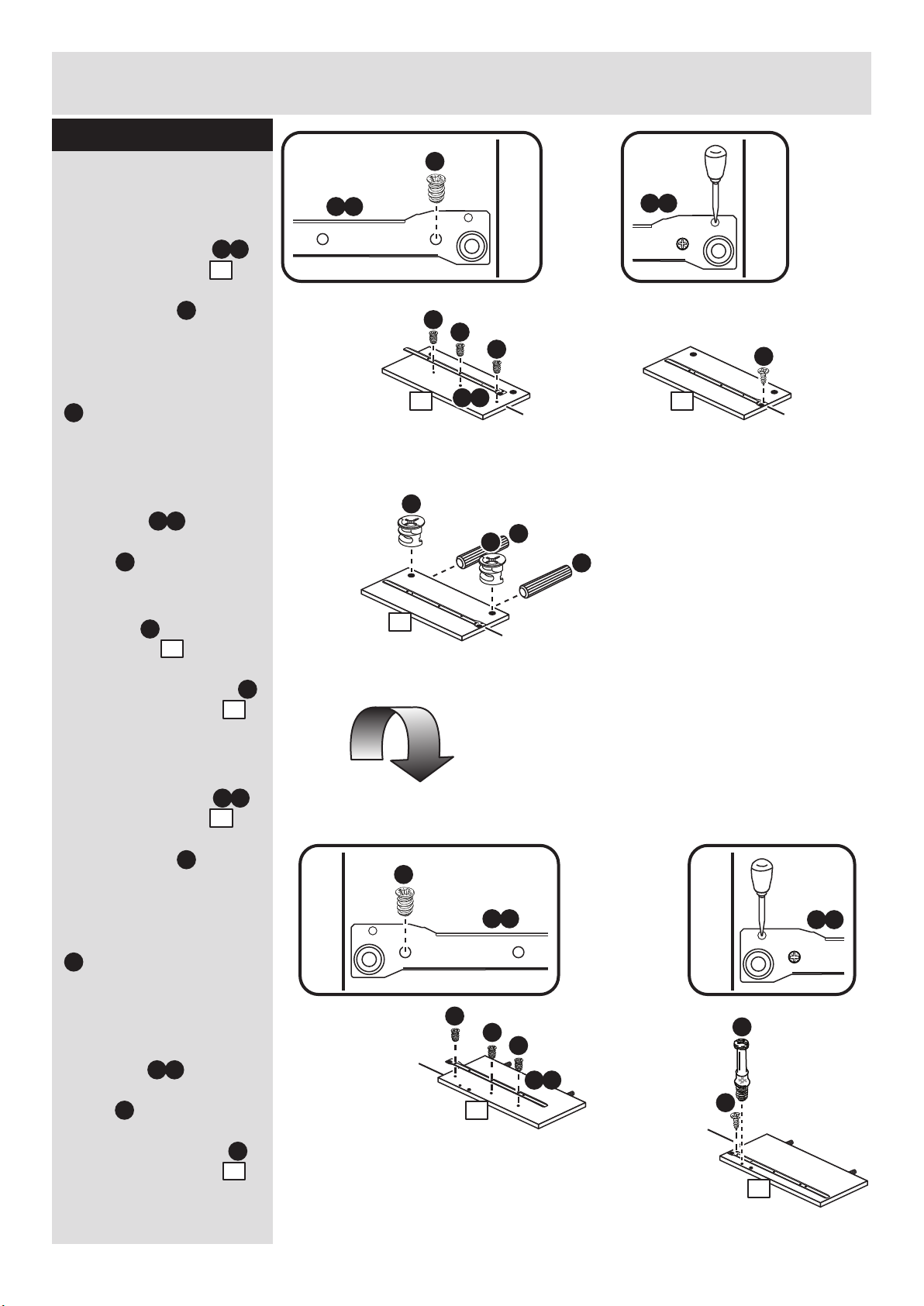

Turn the divider over
Prepare the right
divider
a: Fit a CR runner
to the right divider .
The 1st screw uses
the 1st hole in from the
front of the runner.
The 2nd and 3rd screws
. use the holes that line
up with the other panel
holes.
b: Mark the top hole of
the runner with a
bradawl and then fit a
screw .
c: Insert 2 large locking
cam nuts into the
right divider .
Tap 2 wooden dowels
into the right divider .
Turn the divider over
d: Fit a CL runner
to the right divider .
The 1st screw uses
the 1st hole in from the
front of the runner.
The 2nd and 3rd screws
. use the holes that line
up with the other panel
holes.
e: Mark the top hole of
the runner with a
bradawl and then fit a
screw .
Screw a metal dowel
into the right divider .
O b
8
G
G
F
O b
G
G
F
O a
B
8
8
8
C
O a
A
8
Finished
front edge
O b
Bradawl
CR
G
G
G
O b
CR
F
O b
G
1st
screw
Finished
front edge
CR
Finished
front edge
Finished
front edge
Finished
front edge
CR
O a
G1st
screw
Finished
front edge
CL
Finished
front edge
Bradawl
O a
CL
G
G
G
O a
CL
F
8 8
8
8
8
B
B
A

Assembly Instructions
11
Step 12
Step 13
CL
Fit a small cross rail to the
right divider
Push a small cross rail
down onto the right
divider .
Use a screwdriver to
tighten the large locking
cam nut fitted to the
small cross rail .
2
8
B
2
Fit the small cross rail and
right divider
Push the small cross rail
. onto the right side .
Use a screwdriver to
tighten the large locking
cam nut fitted to the
small cross rail .
Step 14
2 4
B
2
CL
CL
4
2
Finished
front edge
Finished
front edge
CL
8
2
Prepare the top
Screw 8 metal dowels
into the top .
A
1
A
A
A
A
A
A
A
A
1
Finished
front edge
Finished
front edge

Assembly Instructions
12
Step 15
CL
CL
CL
4
3
7
8
Finished
front edge
Fit the top
Push the top onto
the assembly.
Use a screwdriver to
tighten the 8 large
locking cam nuts
fitted to the left side ,
right side , left divider
. and right divider .
1
3
4
7 8
B1
CL
CL
CL
Step 16
Fit the 4 plastic nails
Tap 2 plastic nails
into the bottom edge of
each of the sides and
. .
Carefully stand the unit up
for the next step.
D
3
4
Warning: The
unit is heavy.
Lift with care.
D
D
D
D
3
4

H
Assembly Instructions
13
Step 17
H
Step 18
Secure the mirror back
Secure the mirror back to
the back edge of the top
using the 3 screws .
Fit the mirror back
From the front of the unit,
push the 2 connecting
sleeves through the
holes in the top modesty
. and then locate them
into the holes in the mirror
back .
From the rear of the mirror
back , insert the screws
into the connecting
sleeves and rmly
tighten them up.
I
9
9H
I
1
9
E
Warning:
Glass! Handle
with care
Warning:
Glass! Handle
with care
CR
I
CR
CR
I
5
9
CR
CR
CR
9
E
E
E
1
5

Assembly Instructions
14
Step 19
Fit the 2 overbalance
protector kits
To prevent possible
overbalancing this unit
must be secured to a
suitable wall by tting of
the 2 overbalance
protector kits to the unit
Wall xings are not
supplied as they will need
to suit the wall type.
Note: Take care when
drilling the wall that you
do not drill into any pipes,
wires etc.
If in doubt, consult an
expert.
J
WARNING!
In order to prevent overturning
this product must be used with the 2
wall attachment devices provided
Washer
Screw
J
Washer
Screw
(not supplied)
Wall xing
(not supplied)
Top Modesty Panel
Example
CR
CR
CR
J
J
See the next page for a guide to
wall mounting and xings

Important note:
Important: When drilling into walls always
check that there are no hidden wires or pipes etc.
If plastic wall plugs
are supplied with your
product:
- these are only suitable for
use in masonry walls.
If you are in any doubt about
the correct wall plugs for
your wall, seek professional
advice.
Failure of the product due to
using incorrect fixings is the
responsibility of the installer.
Make sure that the screws and wall plugs being used
are suitable for supporting your unit. Consult a qualifed
tradesperson if you are unsure.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5: Ensure wall plugs are well fitted and are a tight fit in the
drilled hole.
Types of walls You can use one of the following types of wall plug if your
walls are made of brick, breeze block, concrete, stone or wood.
Generally aerated blocks should not
be used to support heavy loads, use
a specialist fitting in this case. For light
loads, general purpose wall plugs can
be used.
For use with plasterboard partitions or
hollow wooden doors.
For use with walls stuck with
plasterboard. The hammer fixing allows
it to be fixed to the wall rather than the
plasterboard. Always check the fixing
is secure to the retaining wall.
For use when attaching light loads on
to plasterboard partitions.
For use when fitting or supporting
heavy loads such as shelving, wall
cabinets and coat racks.
For use with heavier loads such as TV
& HiFi speakers and satelite dishes etc.
No.1 “General Purpose” wall plug No.3 “Cavity Fixing” wall plug No.5 “Hammer Fixing” wall plug
No.2 “Plasterboard” wall plug
No.4 “Cavity Fixing-Heavy Duty”
wall plug
No.6 “Shield Anchor” wall plug
Heavy loads
A Guide to Wall Mounting & Fixings
Care &
Maintenance
Safety: Always check the fitting
and location to ensure your safety
in and around the home.
Fitting: From time to time check
the fitting to ensure the wall plugs
or screws do not become loose.
15

Assembly Instructions
16
Step 20
11
x 2
x 2 x 2
Step 21
Prepare the left and
right drawer fronts
Screw 2 metal dowels
into both the left drawer
front and the right
drawer front .
Note: Tighten the metal
dowels up fully against
the panels.
A
10
11
Prepare the 2 sets of
deep drawer sides
Insert a small locking
cam nut into the deep
left drawer sides and
deep right drawer sides
. .
Note: The arrow on the
locking cam nut must
point towards the hole in
the edge of the panel.
Step 22
K
12
13
Attach the deep
drawer sides to the
left and right drawer
fronts
Push the deep left
drawer side . and
deep right drawer side .
onto the back of the left
and right drawer fronts
. and .
Turn the small locking
cam nuts on the deep
left drawer side and
deep right drawer side .
Note: Turn the locking
cam nuts clockwise
to secure panels - more
than 1/2 a turn.
12
12
13
13
10 11
K
K
A
K
K
KK
12 13
www.youtube.com/watch?v=InNBV_uuMmo
Drawer Assembly
AA
A
10
Now assemble the drawers for the Dressing Table
A
A
Note: The small right
drawer front has a small
identification hole.
13
10 11
12

Assembly Instructions
17
Step 23
M
M
Fit the deep drawer
bases
Slide the deep drawer
base down into the
grooves in the deep
drawer sides and
and down into the
groove in the left drawer
front and right
drawer front .
Step 24
Fit the deep drawer
backs
Fit the deep drawer back
. between the deep
drawer sides and .
Make sure that the deep
drawer base fits into
the groove in the deep
drawer back .
Hold the deep drawer
back in position and
tap the knock-in pegs
through the holes in the
deep drawer sides
and .
15
12 13
11
10
14
12 13
15
14
14
M
Step 25
Step 26
13
14
Fit the wedgefixes
Turn the 2 deep drawer
assemblies over and
slide 2 wedgefixes
into the front and back
grooves, as shown, and
tighten up the screws.
N
x 2
x 2
x 2
x 2
4
10 11
12
13
413
M
M12
15
15
14
L
L
P
Fit the handles
Attach a handle to the
left and right drawer front
. and using screws
. .
P
L
10 11 10 11
N
N
N
Important: Make sure
that the drawer assembly
is square before fitting
the wedgefixes.

Assembly Instructions
18
Step 27
Fit runners to the
drawers
Fit the DL runner to
the bottom edge of the
left drawer side , as
shown, making sure that
it is pushed up against
the back of the drawer
front and . Use a
bradawl to mark the
fixing positions, then
secure with 2 screws .
Fit the DR runner to
the bottom edge of the
right drawer side
using the same method.
13
O c
12
10 11
F
O d
hps://www.youtube.com/watch?v=Z6lGMy19h7Q
Fixing Bottom Mounted Runners
O d
F
F
DR
Bradawl
DL
F
F
O c
DL
Bradawl
Runners must be
pushed up against
the drawer front
Bradawl
10 11
12
13
x 2
Step 29
Prepare the centre
drawer front
Screw 2 metal dowels
into the centre drawer
front .
A
16
Prepare the narrow
drawer sides
Insert a small locking
cam nut into the
narrow left drawer side
. and narrow right
drawer side .
Note: The arrow on the
locking cam nut must
point towards the hole in
the edge of the panel.
Step 28
K
17
18
K
A
A
16
KK
17 18

Assembly Instructions
19
Step 30
M
M
16
16 B
A
K
Attach the narrow
drawer sides to the
centre drawer front
Push the narrow left
drawer side and
narrow right drawer side
. onto the back of the
centre drawer front .
Turn the small locking
nuts on the narrow
left drawer side and
narrow right drawer side
. .
17
18
16
K
17
18
17
18
Fit the narrow drawer
base
Slide the narrow drawer
base down the
grooves in the narrow
drawer sides and
and down into the
groove in the centre
drawer front .
Step 32
Step 31
Fit the narrow drawer
back
Fit the narrow drawer
back between the
narrow drawer sides
and .
Make sure that the
drawer base fits into
the groove in the narrow
drawer back .
Hold the narrow drawer
back in position and
tap the knock-in pegs
through the holes in the
narrow drawer sides
and .
20
17 18
16
19
17
18
20
19
19
M
17
18
20
19
18
20
18
17
17
M
M
