ARID-Dry MS-600 User manual

MS-600
DESICCANT DEHUMIDIFIER
INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
5931 Ford Court
Brighton, MI 48116
Phone: [phone]
Fax: [phone]
E-Mail: [email protected]
Web-site: www.cdims.com
Revised 5/12/2011

APPLICATION & SALES OFFICE
5931 Ford Court
Brighton, MI 48116
PH: 810-229-7900 FX: 810-229-7908
E-Mail: [email protected]

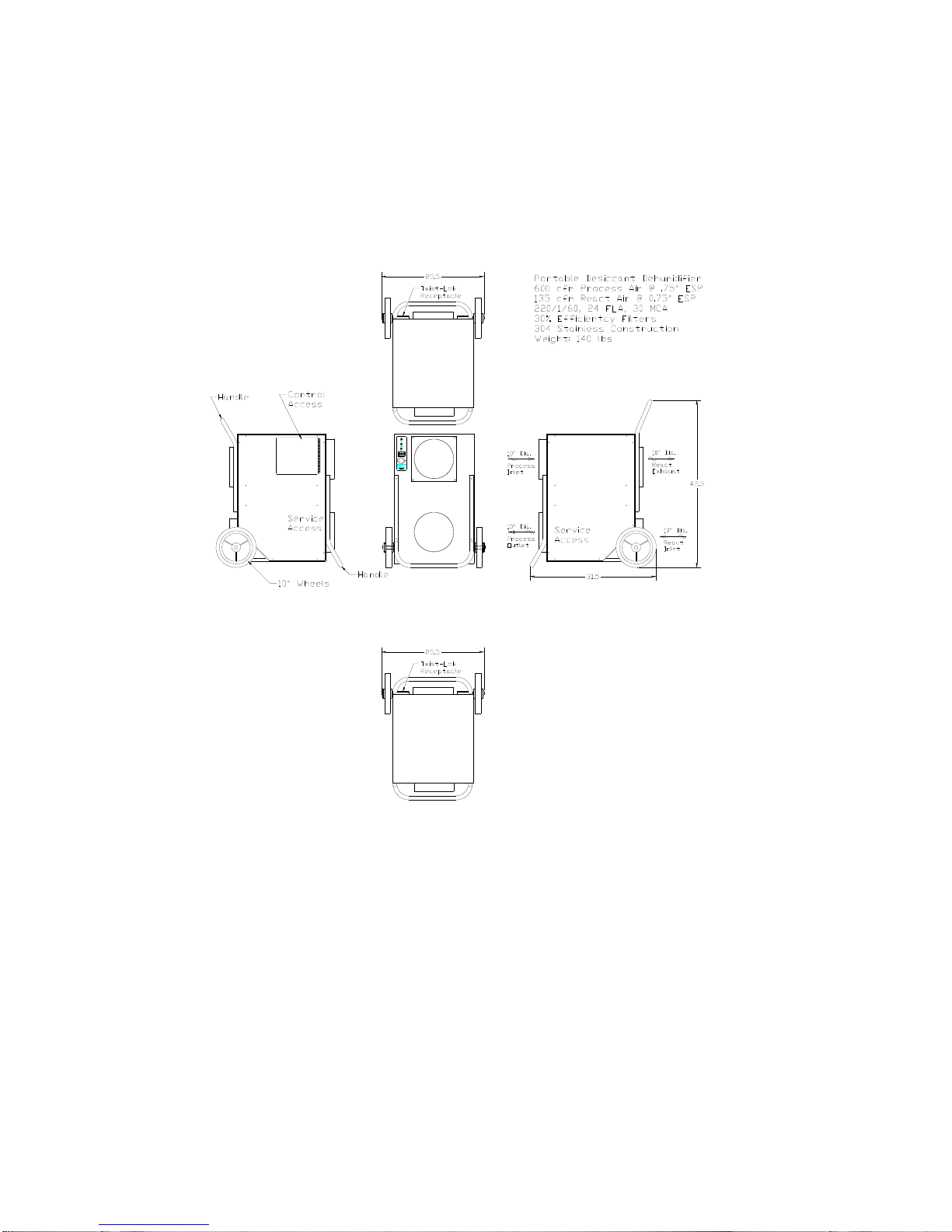

MS-600-ARID-Dry Desiccant Dehumidifier
Model CFM Fuel Type “A” Dim. “B” Dim. “C” Dim. Weight
MS-600 600 Electric 31 ½” 25 ½” 42 ½” 140 lbs
Moisture Moisture Moisture Moisture Electric Electric
Static Removal Removal Remo
v
al Removal Reactivation Reactivation
Pressure Lbs/H
r
Pints/Day Lbs/H
r
Pints/Day FLA Load MCA Load
Air Volume External 80°/60% RH 80°/60% RH 55°/80% RH 55°/80% RH 220/1/60 220/1/60
600 .5” w.c. 7.84 180.7 6.35 146.5 23.5 30
•
(2) Fixed Castors
•Remote Humidistat Connectio
n
•10” Round Connections
•30% Pleated Efficiency Filters
•304 Stainless Construction
•Power Cord Kits Available
Weights and Dimension subject to change without notice

APPLICATION & SALES OFFICE
5931 Ford Court
Brighton, MI 48116
PH: 810-229-7900 FX: 810-229-7908
E-Mail: [email protected]
MS-600 Stationary-ARID-Dry Desiccant Dehumidifier
Model CFM Fuel Type “A” Dim. “B” Dim. “C” Dim. Weight
MS-600 600 Electric 26 ½” 20 ¾” 31 ½” 130 lbs
Moisture Moisture Moisture Moisture Electric Electric
Static Removal Removal Removal Removal Reactivation Reactivation
Pressure Lbs/H
r
Pints/Day Lbs/H
r
Pints/Day FLA Load MCA Load
Air Volume External 80°/60% RH 80°/60% RH 55°/80% RH 55°/80% RH 220/1/60 220/1/60
600 .5” w.c. 7.84 180.7 6.35 146.5 23.5 30
•
Remote Humidistat Connectio
n
•10” Round Connections
•30% Pleated Efficiency Filters
•304 Stainless Construction
•Power Cord Kits Available
Weights and Dimension subject to change without notice

Table of Contents
Subject Page Number
Read this Manual ............................................................................................................................1
Principle of Operation ......................................................................................................................1
Machine Set-Up ..............................................................................................................................1
Operating Instructions......................................................................................................................1
Controls............................................................................................................................................2
Maintenance Instructions.................................................................................................................3
Dehumidifier Service Instructions ....................................................................................................4
Electrical Diagram............................................................................................................................5
Dimension Drawings........................................................................................................................6
Spare Parts List ...............................................................................................................................7
Warranty Information........................................................................................................................8

READ THIS MANUAL
This manual is provided for the MS-600 dehumidifier so the user can gain a thorough
understanding of the proper set-up, operation, and maintenance. This dehumidifier is built around
tested engineering principles and has passed a thorough inspection for quality of workmanship
and function. A thorough understanding of the set-up, operation, and maintenance of this
equipment will allow it to provide maximum performance and reliability.
PRINCIPLES OF OPERATION
The MS-600 is a self-contained desiccant dehumidifier designed to efficiently remove water vapor
from the air. A portion of the desiccant rotor is exposed to the “process” air effectively adsorbing
moisture while the second portion of the rotor is exposed to heated “reactivation” air effectively
removing the adsorbed moisture. This process is done on a continuous basis, providing constant
dehumidified process air.
MACHINE SET-UP
-Carefully remove the machine from its shipping carton.
-Thoroughly inspect the machine for shipping damage. Should any damage be found, report the
damage to the freight company immediately.
-Carefully place the machine on a level surface within the space to be dried.
-Connect 10” hoses to the process inlet and outlet as required for the drying project.
-Connect 10” hoses to the reactivation inlet and outlet as required for the drying project.
CAUTION-Do not pinch or kink the hoses. Blockage of the hoses will result in reduced airflow
and moisture removal capacity.
-Check to ensure the machine is turned “off” prior to connecting power. Circuit breakers are
provided in the control enclosure. Check that they are switched “on” once power is applied.
-Connect an appropriate power cord and locking connector to the flanged inlet receptacle
provided at the rear of the machine. The cord should be connected to 220vac power with 30a
breaker or fuse with proper grounding.
-Unit is intended for indoor operation and needs to be protected from the weather
OPERATION
Machine operation is fully automatic and requires no adjustments to airflow or other primary
functions.
- 1 -

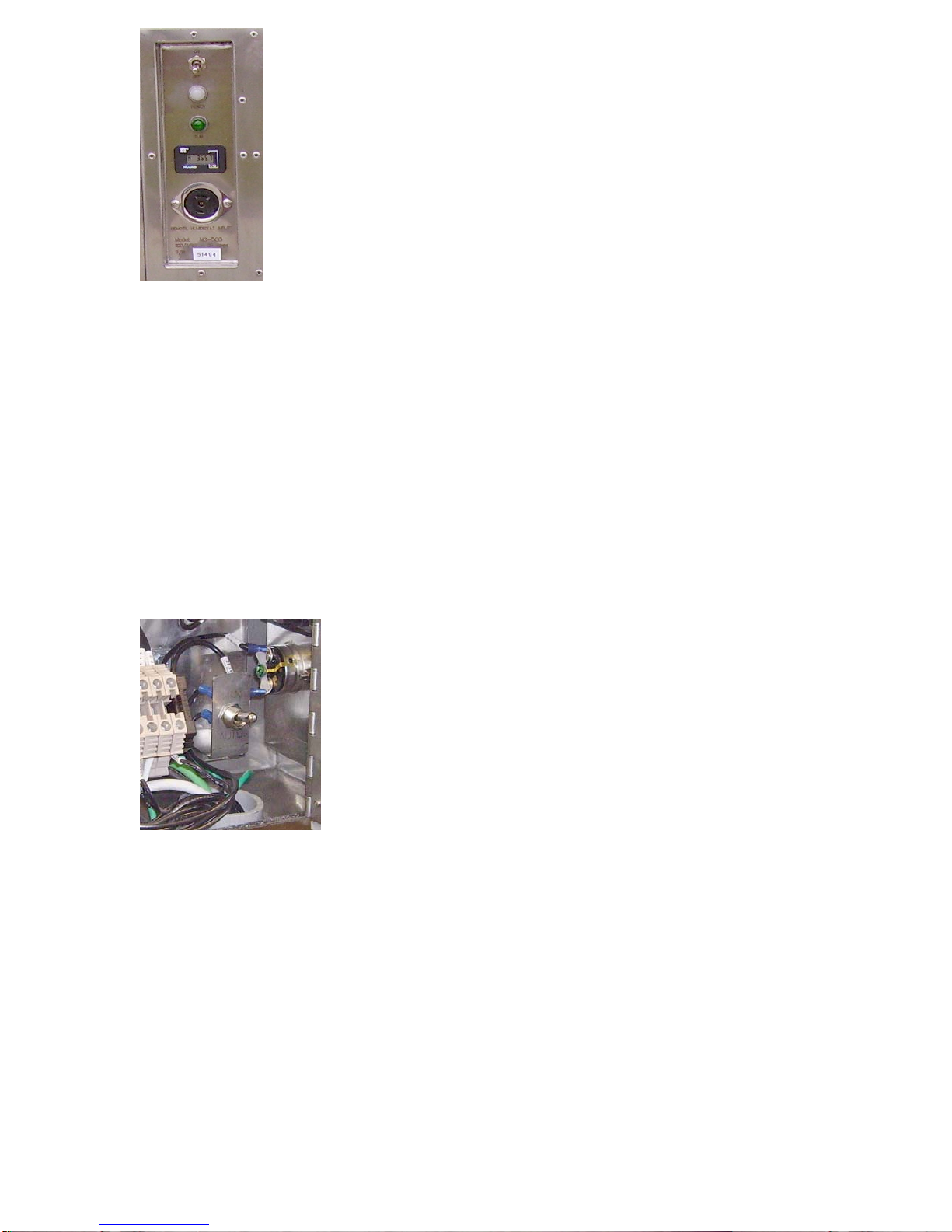

A “POWER ON” lamp is provided to indicate that power is applied to the machine.
A “RUN” lamp is provided to indicate that the unit is operational. This lamp will be illuminated
when the “ON-OFF” switch is in the “ON” position.
Switch the “ON-OFF” to the “ON” position. The machine will start operating. At this point, both
fans, reactivation heaters, and rotor drive will be operational.
If humidity control is desired to prevent over drying, a flanged receptacle is provided for a
remote humidity sensor. Connect the appropriate plug and humidity sensor with dry contacts
only-DO NOT APPLY VOLTAGE TO THIS CIRCUIT. Open the control enclosure door and
switch the “AUTO/MAN” switch to the “AUTO” position. The reactivation fan, heater, and drive
circuit will now cycle on and off from the humidistat input.
An hour meter is provided to track time of operation for to aid in scheduling inspection and
maintenance.
CONTROLS/ELECTRICAL
- 2 -

The controls in this machine are UL listed and provide for automatic operation and all required
protection of the machine components. Access to the control panel is via a hinged access cover.
Air flow is accomplished using internal motorized impellers for process and reactivation air. The
process fan will operate any time the “ON-OFF” switch is in the “ON” position.
A fractional hp gear motor drives the desiccant rotor.
Self-regulating PTC heater elements provide the “heat source” for reactivation.
MAINTENANCE
This machine is designed for minimal maintenance and years of trouble free service.
Clean the exterior of the machine with a damp cloth and mild soap if necessary.
DO NOT use a garden hose or pressure washer to clean this machine !
Occasionally inspect internal components for loose fasteners or damage from handling.
Inspect the flanged power inlet, connector, and cord for damage.
Check to ensure all access panels are in place and secure.

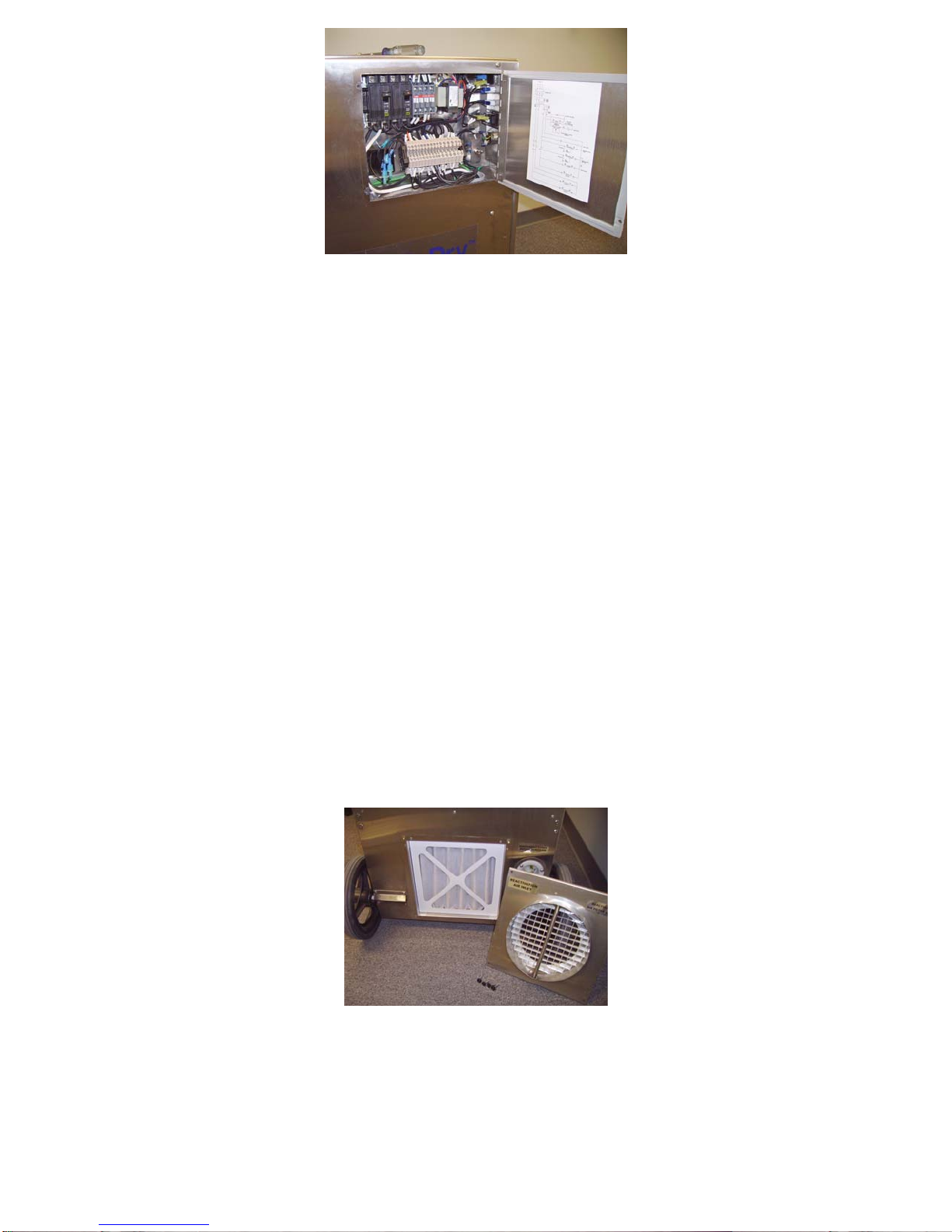

Air Inlet Filters (2 ea. 10x10x2” pleated)
Filter access is accomplished by removing the inlet collar plates for the process (10” collar, top)
and reactivation filter (10” collar, bottom).
Inspect filters regularly and replace if dirty. Regular air filter maintenance is critical to extending
the life of the desiccant rotor and moisture removal efficiency.
Keeping filters clean is the most important long term maintenance on this machine !
- 3 -

In dusty or dirty environments, the filter replacement interval will be greatly reduced. The hour
meter provided can be used to establish a filter replacement interval.
Motorized Impellers (blowers)
The motorized impeller motors provided in this machine require no maintenance. They are sealed
and permanently lubricated.
Desiccant rotor drive system
The rotor drive system consists of a fractional hp gear motor, timing pulley, timing belt, and spring
tensioner. The gear motor is sealed and permanently lubricated. Check the motor fasteners and
timing pulley to be secure. Inspect the timing belt for cracks, tears, or abrasion. The tensioner
should keep slack form the belt with light tension.
Rotor Seals
Periodically inspect the rotor seals for damage, tears, or gaps.
Reactivation Electrical Heaters
The heating elements are self regulating PTC type and require no maintenance.
Heating surfaces of element are “live” conductors.
DO NOT TOUCH ELEMENTS WITH POWER APPLIED !
- 4 -

- 5 -

- 6 -

- 7 -

MS-600 Spare Parts List
PPSR-440-100 Desiccant rotor assembly 1 ea.
28XL037-6FA4 Drive Pulley 1 ea.
608XL037NG Drive Belt 1 ea.
BT-100 Belt Tensioner Assembly 1 ea
HG-001 Heater Gasket 3 ea.
5W977 Filter, 10x10x2 Pleated 2 ea.
VSS-01 Viton Seal Strip, 1" x .040" 13.1 ft.
92196A194 #8-32 x 1/2" Socket Cap Screw, 18-8 SS 8 ea.
94052A025 Plastic Press Fit Thumb Screw Head 8 ea.
WHL522 Wheel with Tire and Hub Cap 2 ea.
MS-600 OM Operators Manual 1 ea.
MS-600 Electrical B/M
CB1 QOU220 Circuit Breaker, 20a, 2P 1 ea.
CB2 QUO215 Circuit Breaker, 15a, 2P 1 ea.
ETM 1878T42 Elapsed Time Meter 1 ea.
MTR1 R3G 250-AK29-71 Centrifugal Fan, 200-277vac, 485w 1 ea.
MTR2 XR225-2B35-12 Motorized impeller, 9", 230/1/60 1 ea.
CAP MO-CAP04M-500V Capacitor 1 ea.
MTR3 V7O2-2512-BXXX Drive Motor 2 rpm, 220vac 1 ea.
HTR 1,2,3 HF214U44F2 1500 Watt Heater 3 ea.
TX 6WU91 Transformer, 230v/24vac 1 ea.
C A16-30-10-81 Contactor, 24vac coil, 4P 1 ea.
W 679-0069 White Pilot Lamp 1 ea.
G 679-9792 Green Pilot Lamp 1 ea.
TS 1-89652-1E Toggle Switch, DPDT 1 ea.
SW 18159 Toggle Switch, SPST 1 ea.
HR 3D271 Humidistat Receptacle 1 ea.
FI 7162K13 Flanged Inlet, L6-32R 1 ea.
HTL STO-160 High Temp Limit Switch 1 ea.
Accessories
10” 10”MYLAR 10” X 25’ Mylar Ducting 2 ea.
Power Cord Kit Power Cord Kit 1 ea.
- 8 -

STANDARD WARRANTY
AND
LIMITATIONOFREMEDIESFORBREACHOFWARRANTY
CDIMS warrants all products to be free of defects in material and workmanship for
twelve (12) months from the date of shipment. CDIMS shall only be liable under this
warranty if the product is installed and used according to the directions furnished by
CDIMS.
CDIMS’ obligation shall be limited to the replacement of new parts of the products for
those returned to CDIMS’ factory at the purchaser’s expense and found to be defective
by CDIMS. Replacement parts will be shipped F.O.B. CDIMS’ factory. Replacement of
parts shall not extend the original warranty period of the original total product, including
replacement parts supplied.
This warranty does not cover corrosion; normal deterioration; misapplication; labor
charges paid for parts replacement, adjustments, repairs or other work; loss of
refrigerant or natural gas, oil, or other fuel; components supplied by others; defects in
parts resulting from neglect, negligence, accident, fire, explosion, high or low voltage,
jumpering or jamming controls, shorting out of components; improper or contaminated
fuel, excessive or inadequate fuel pressure; frozen heating coils; or any acts of nature.
This warranty does not cover failure of the purchaser to provide normal maintenance,
lubrication, adjustments, cleaning or service on the heating system; improper repairs or
alterations; or misapplication of the equipment.
It is expressly understood that this warranty is made IN LIEU OF ALL OTHER
WARRANTIES, EXPRESSED OR IMPLIED, WHETHER ARISING FROM STATUTE,
COMMON LAW, CUSTOM, OR OTHERWISE, INCLUDING WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR ANY PARTICULAR PURPOSE, QUALITY,
DESIGN, CONDITION, DURABILITY OR SUITABILITY, and in consideration of the
express warranty herein contained, BUYER EXPRESSLY WAIVES ANY RIGHT TO
CLAIM OTHER WARRANTIES, EXPRESSED OR IMPLIED.
It is further understood that CDIMS’ liability for breach of warranty shall be limited to
terms of this warranty and buyer agrees that CDIMS SHALL NOT, IN ANY EVENT, BE
LIABLE FOR SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR DELAY.
The buyer’s remedies are exclusive, and shall be limited to those provided herein.
CDIMS neither assumes and does not authorize any person to assume any obligation or warranty
other than those stated herein.
Any suggestion to the contrary not withstanding, CDIMS shall not, in any event, have
any liability under this warranty unless and until it has been paid in full for the products.
The warranty period shall begin as described above, whether or not payment has been
made.
- 9 -

- 10 -
WARRANTY CLAIMS
Defective material may be repaired or replaced at our option. If replaced, full credit will
be issued in the amount of the original purchase price, plus freight, for the returned
material in the event the material is found to be not defective, or to be damaged or
abused, we reserve the right to return the material “as is” to the sender and at his freight
cost. If CDIMS agrees to keep such material, credit will be issued minus the cost of
repair and reconditioning, less freight for the return and less restocking charges.
REPLACEMENT PARTS
When writing or calling to CDIMS for service parts, provide the serial number of the unit
as stamped on the unit plate attached to the electrical door. For questions regarding
wiring diagrams, it will be necessary to provide the number on the specific diagram. If
replacement parts are required, include the date of installation, the date of failure, an
explanation of the malfunction, and a description or part number of the replacement
parts required.
