Ariens 986054 User manual

Ce générateur a été conçu et fabriqué conformément à nos
strictes normes de fiabilité, de simplicité d’emploi et de sécurité
d’utilisation. Correctement entretenu, il vous donnera des années
de fonctionnement robuste et sans problème.
AVERTISSEMENT : Pour réduire les risques de
blessures, l’utilisateur doit lire et veiller à bien comprendre
le manuel d’utilisation avant d’utiliser ce produit. Si tous
les avertissements et toutes les consignes de sécurités et
instructions du manuel d’utilisation ne sont pas bien compris,
ne pas utiliser ce produit.
Su generador ha sido diseñado y fabricado de conformidad con
estrictasnormasparabrindarfiabilidad,facilidaddeusoyseguridad
para el operador. Con el debido cuidado, le brindará muchos años
de sólido y eficiente funcionamiento
ADVERTENCIA: Para reducir el riesgo de lesiones,
el usuario debe leer y comprender el manual del operador
antes de usar este producto. Si no comprende los avisos de
advertencia y las instrucciones del manual del operador, no
utilice este producto.
CONSERVER CE MANUEL
POUR FUTURE RÉFÉRENCE GUARDE ESTE MANUAL
PARA FUTURAS CONSULTAS
SAVE THIS MANUAL FOR FUTURE REFERENCE
Your generator has been engineered and manufactured to our high standard for dependability, ease of operation, and operator
safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING: To reduce the risk of injury, the user must read and understand the operator’s manual before using this
product. If you do not understand the warnings and instructions in the operator’s manual, do not use this product.
OPERATOR’S MANUAL
MANUEL D’UTILISATION
MANUAL DEL OPERADOR
5000 WATT GENERATOR
GÉNÉRATEUR DE 5000 WATTS
GENERADOR 5000 WATTS
MODEL NO. 986054
NO. DE MODÈLE / NÚM. DE MODELO
ITEM NO. AR905011 Series/Série
ARTICLE NO. / ART. NÚM.
NEUTRAL BONDED TO FRAME
CONNECTEUR NEUTRE RELIÉ AU CADRE /
PUNTO NEUTRO CONECTADO AL MARCO
20000407
NOTICE AVIS AVISO
Do not use E15 or E85 fuel (or fuel
containinggreaterthan10%ethanol)
in this product. It is a violation of
federal law and will damage the unit and void your warranty.
Ne pas utiliser d’essence E15 ou E85 (ou un carburant
contenant plus de 10 % d’éthanol) dans ce produit. Une
telle utilisation représente une violation de la loi fédérale et
endommagera l’appareil et annulera la garantie.
No utilice combustibles E15 o E85 (ni combustibles que
contengan más de 10 % de etanol) con este producto. Esto
constituye una violación a la ley federal, dañará la unidad
y anulará la garantía.

ii
See this fold-out section for all of the figures
referenced in the operator’s manual.
Consulter l’encart à volets afin
d’examiner toutes les figures mentionnées
dans le manuel d’utilisation.
Consulte esta sección desplegable para ver todas
las figuras a las que se hace referencia en el
manual del operador.

iii

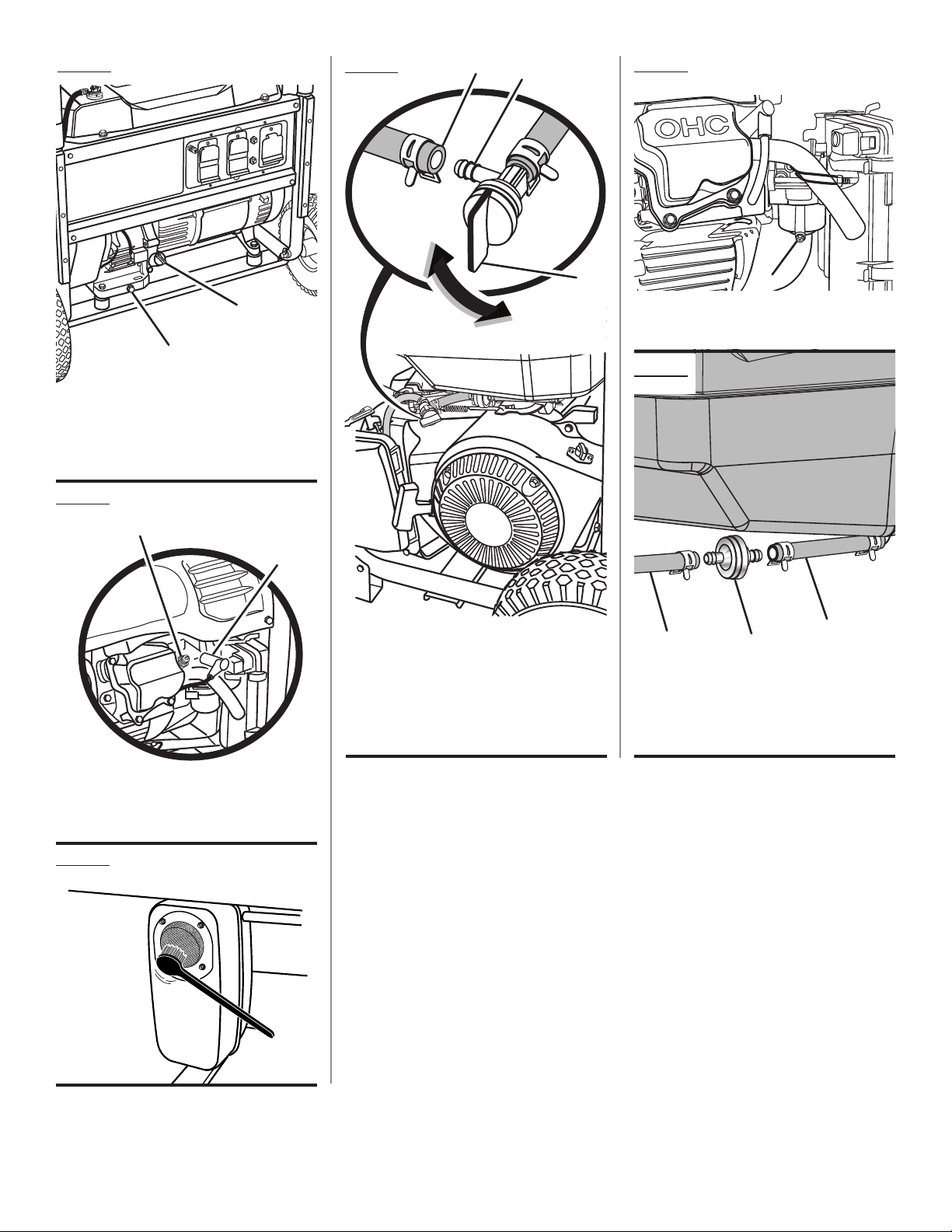

Fig. 1
P
F
CE
D
H
N
O
J
K
G
A - Carbon canister (boîte de carbone,
receptáculo de carbón)
B - Handle (poignée, mango)
C - Fuel cap (bouchon de carburant, tapa del
tanque)
D - Fuel tank vapor vent (évent de vapeur du
réservoir de carburant, respirador del vapor
del tanque de combustible)
E - 120 volt AC GFCI 20 amp receptacles
(prises de 120 V c.a., 20 A protégées par le
disjoncteur de fuite à la terre, 120 V de C.A.
GFCI 20 Areceptáculos)
F - Fuel tank (réservoir de carburant, tanque de
combustible)
G - AC circuit breaker (disjoncteur de C.A.,
disyuntor de circuito de CA)
B
H - 240 volt AC 20 amp receptacle (prise de 240
volt c.a. 20 A, 240 V de ca 20 Areceptáculo)
I - Ground terminal (borne de terre, terminal de
conexión a tierra)
J - Oil cap/dipstick (bouchon/jauge d’huile,
relleno de aceite/varilla medidora de aceite)
K - Oil drainage bolt (vis de vidange d’huile,
perno de drenaje de aceite)
L - Engine switch (commutateur du moteur,
interruptor del motor)
M- Muffler (silencieux, silenciador)
N - Recoil starter grip (poignée du démarreur à
rappel, mango del arrancador retráctil)
O - Air filter (filtre à air, filtro de aire)
P - Choke lever (levier d’étrangleur, palanca del
anegador)
I
A - Nut (écrou, tuerca)
B - Lock washer (rondelle frein, arandela de
seguridad)
C - Flat washer (rondelle plate, arandela plana)
D - Frame support with foot (support de cadre
avec pied, soporte del armazón con pie)
E - Bolt (boulon, perno)
F - Frame (cadre, armazón)
Fig. 5
L
Fig. 4
B
A - Torx screwdriver (tournevis à pointe à six
lobes, destornillador de torx)
B - Combination wrench (clé mixte, llave de
combinación)
A
M
A
E
DC
B
A
F
Fig. 2 Fig. 3
A - Axle (essieu, eje)
B - Wheel (roue, rueda)
C - Flat washer (rondelle plate, arandela plana)
D - Frame (cadre, armazón)
E - Hitch pin (goupille de sûreté, pasador del
enganche)
B
E
A
C
D
Fig. 6
A - Reset button (botón de reajuste)
B - Test button (botón de prueba)
AB
9
3
4
2
1
10
7
8
6
5

iv
OFF
OFF
Fig. 10
Fig. 11
Fig. 12
Fig. 13
A - Air filter cover (couvercle du filtre à air, tapa
del filtro de aire)
B - Air filter unit (unité de filtre à air, unidad del
filtro de aire)
C - Filter element (élément du filtre, elemento de
filtro)
D - Latches (loquets, pestillos)
B
C
A
B
A
AB
CB
A
D
Fig. 8
Fig. 9
A
(B)
OFF
(C)
ON
Fig. 7
A - Fuel cap (bouchon de carburant, tapa del
tanque de combustible)
B - Fuel tank (réservoir de carburant, tanque de
combustible)
A - Fuel valve (robinet de carburant, interruptor
del motor)
B - Engine switch (commutateur du moteur,
válvula de combustible)
C - Recoil starter grip (manchon en lanceur à
rappel, mango del arrancador retráctil)
A - Fuel valve (robinet de carburant, válvula de
combustible)
B - Off (arret, apagado)
C - On (marche, encendido)
A - Move choke lever left to run (pousser gauche
le levier d’étranglement pour la marche,
desplace izquierda la palanca del anegador
para poner en marcha)
B - Move choke lever right to start (tirer droite
le levier d’étranglement pour démarrer,
desplace derecha de la palanca del anegador
para arrancar)
OFF
A - Oil fill hole (orifice de remplissage d’huile,
agujero de llenado de aceite)
B - Oil cap/dipstick (bouchon du réservoir d’huile/
jauge d’huile, tapa de relleno de aceite/varilla
tapa de relleno de aceite/varilla medidora de
aceite)
A
B

v
OFF
OFF
BA
A
Fig. 14
Fig. 15
Fig. 16
Fig. 17 Fig. 18
Fig. 19
A
B
B
A
A
C
B
(E)
OFF
A
A - Oil drainage bolt (vis de vidange d’huile,
perno de drenaje de aceite)
B - Oil cap/dipstick (bouchon du réservoir d’huile/
jauge d’huile, tapa de relleno de aceite/varilla
medidora de aceite)
A - Spark plug (bougie, bujía)
B - Spark plug cap (capuchon de bougie, tapa de
la bujía)
A - Fuel line (conduites de carburant, conducto
de combustible)
B - Petcock (petit robinet, llave de purga)
C - Fuel valve (robinet de carburant, interruptor
del motor)
D - On (marche, encendido)
E - Off (arret, apagado)
A - Carburetor drain screw (vis de vidange
du carburateur, tornillo de drenaje del
carburador)
A - Fuel line (conduites de carburant, conducto
de combustible)
B - Fuel filter (filtre à carburant, filtro de
combustible)
(D)
ON

2 — English
 Introduction.................................................................................................................................................................... 2
 Important Safety Instructions .....................................................................................................................................3-4
 Specific Safety Rules..................................................................................................................................................... 4
 Symbols ......................................................................................................................................................................5-7
 Electrical .....................................................................................................................................................................7-9
 Features ...................................................................................................................................................................... 10
 Assembly ................................................................................................................................................................11-12
 Operation ................................................................................................................................................................12-14
 Maintenance ...........................................................................................................................................................14-16
 Troubleshooting ........................................................................................................................................................... 17
 Warranty..................................................................................................................................................................18-21
 Parts Ordering / Service..................................................................................................................................Back Page
This product has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability
have been given top priority in the design of this product, making it easy to maintain and operate.
DANGER:
GROUNDING THE GENERATOR
To reduce the risk of shock or electrocution, generator must be properly grounded.
The nut and ground terminal on the frame must always be used to connect the
generator to a suitable ground source. The ground path should be made with #8
size wire. Connect the terminal of the ground wire between the lock washer and
the nut, and tighten the nut fully. Connect the other end of the wire securely to a
suitable ground source.
The National Electric Code contains several practical ways in which to establish a good ground source. If a steel or iron
rod is used, it should be at least 5/8 in. diameter, and if a nonferrous rod is used, it should be at least 1/2 in. diameter
and be listed as material for grounding. Drive the rod or pipe to a depth of 8 ft. If a rock bottom is encountered less than
4 ft. down, bury the rod or pipe in a trench.
All electrical tools and appliances operated from this generator must be properly grounded by use of a third wire or
be “Double Insulated.”
It is recommended to:
1. Use electrical devices with 3-prong grounded plugs.
2. Use an extension cord with a 3-pole receptacle and a 3-prong plug at opposite ends to ensure continuity of the
ground protection from the generator to the appliance.
Check and adhere to all applicable federal, state, and local regulations relating to grounding specifications. Consult a
qualified electrician or service personnel if the grounding instructions are not completely understood or if in doubt as
to whether the generator is properly grounded.
TABLE OF CONTENTS
INTRODUCTION

3 — English
DANGER:
Carbon Monoxide. Using a generator indoors CAN KILL
YOU IN MINUTES.
Generator exhaust contains high levels of carbon
monoxide (CO), a poisonous gas you cannot see or smell.
If you can smell the generator exhaust, you are breathing
CO. But even if you cannot smell the exhaust, you could
be breathing CO.
 Never use a generator inside homes, garages,
crawlspaces, or other partly enclosed areas. Deadly
levels of carbon monoxide can build up in these
areas. Using a fan or opening windows and doors
does NOT supply enough fresh air.
 ONLY use a generator outdoors and far away from
open windows, doors, and vents. These openings
can pull in generator exhaust.
Even when you use a generator correctly, CO may
leak into the home. ALWAYS use a battery-powered or
battery-backup CO alarm in the home.
If you start to feel sick, dizzy, or weak after the generator
has been running, move to fresh air RIGHT AWAY. See
a doctor. You could have carbon monoxide poisoning.
WARNING:
Read and understand all instructions. Failure to follow
all instructions listed below could result in electrocution,
fire, and/or carbon monoxide poisoning, which can cause
death or serious injury.
DANGER:
National Electric Code requires generator to be grounded
to an approved earth ground. Before using the ground
terminal, consult a qualified electrician, electrical
inspector, or local agency having jurisdiction for local
codes or ordinances that apply to the intended use of
the generator.
SAVE THESE INSTRUCTIONS
This manual contains important instructions for this product
that should be followed during installation and maintenance
of the generator.
 Do not connect to a building’s electrical system unless
the generator and transfer switch have been properly
installed and the electrical output has been verified by
a qualified electrician. The connection must isolate the
generator power from utility power and must comply with
all applicable laws and electrical codes.
 Do not allow children or untrained individuals to use this
unit.
 Do not start or operate the engine in a confined space,
building,nearopenwindows, or inotherunventilatedspace
where dangerous carbon monoxide fumes can collect.
Carbon monoxide, a colorless, odorless, and extremely
dangerous gas, can cause unconsciousness or death.
 Keep all bystanders, children, and pets at least 10 feet
away.
 Wear sturdy and dry shoes or boots. Do not operate while
barefoot.
 Do not operate generator when you are tired or under the
influence of drugs, alcohol, or medication.
 Keep all parts of your body away from any moving parts
and all hot surfaces of the unit.
 Do not touch bare wire or receptacles.
 Do not use generator with electrical cords which are worn,
frayed, bare, or otherwise damaged.
 Before storing, allow the engine to cool and drain fuel
from the unit.
 Do not operate or store the generator in rain, snow, or
wet weather.
 Store the generator in a well-ventilated area with the fuel
tank empty. Fuel should not be stored near the generator.
 Empty fuel tank, close fuel valve, and restrain the unit
from moving before transporting in a vehicle.
 Allow engine to cool for five minutes before refueling.
 To reduce the risk of fire and burn injury, handle fuel with
care. It is highly flammable.
 Do not smoke while handling fuel.
 Store fuel in a container approved for gasoline.
 Position the unit on level ground, stop engine, and allow
to cool before refueling.
 Loosen fuel cap slowly to release pressure and to keep
fuel from escaping around the cap.
 Tighten the fuel cap securely after refueling.
 Wipe spilled fuel from the unit.
 Never attempt to burn off spilled fuel under any
circumstances.
 Generators vibrate in normal use. During and after the
use of the generator, inspect the generator as well as
extension cords and power supply cords connected to
it for damage resulting from vibration. Have damaged
items repaired or replaced as necessary. Do not use plugs
or cords that show signs of damage such as broken or
cracked insulation or damaged blades.
 For power outages, permanently installed stationary
generators are better suited for providing back-up power
tothehome. Evenaproperlyconnectedportablegenerator
can become overloaded. This may result in overheating
or stressing the generator components, possibly leading
to generator failure.
IMPORTANT SAFETY INSTRUCTIONS

4 — English
WARNING:
When this generator is used to supply a building
wiring system: generator must be installed by a quali-
fied electrician and connected to a transfer switch as
a separately derived system in accordance with NFPA
70, National Electrical Code. The generator shall be
connected through a transfer switch that switches all
conductors other than the equipment grounding con-
ductor. The frame of the generator shall be connected to
an approved grounding electrode. Failure to isolate the
generator from power utility can result in death or injury
to electric utility workers.
 Do not use this generator to provide power for emergency
medical equipment or life support devices.
 This generator has a neutral bonded condition. This
means the system ground is connected electrically to
the AC neutral wire.
 Exhaust contains poisonous carbon monoxide, a color-
less, odorless gas. Breathing exhaust can cause loss
of consciousness and can lead to death. If running in a
confined or partially-enclosed area, the air may contain
a dangerous amount of carbon monoxide. To keep ex-
haust fumes from building up, always provide adequate
ventilation.
 Always use a battery-powered carbon monoxide detec-
tor when running the generator. If you begin to feel sick,
dizzy, or weak while using the generator, shut it off and
get to fresh air immediately. See a doctor. You may have
carbon monoxide poisoning.
 Place the generator on a flat, stable surface with a slope
of no more than 4°.
 Operate in a well-ventilated, well-lit area isolated from
working areas to avoid noise interference.
 Operating the generator in wet conditions could result in
electrocution. Keep the unit dry.
 Keep the generator a minimum of 3 feet away from all
types of combustible material.
 Do not operate generator near hazardous material.
 Do not operate generator at a gas or natural gas filling
station.
 Do not touch the muffler or cylinder during or immediately
after use; they are HOT and will cause burn injury.
 Do not allow the generator’s gas tank to overflow when
filling. Fill to 1 in. below the top neck of the gasoline tank
to allow for fuel expansion. Do not cover the fuel tank cap
when the engine is running. Covering the fuel tank cap
during use may cause engine failure and/or damage to
the tool.
 Do not smoke when filling the generator with gasoline.
 Shut down the engine and allow to cool completely before
adding gasoline or lubricant to the generator.
 Do not remove the oil dipstick or the fuel tank cap when
the engine is running.
 Pay close attention to all safety labels located on the
generator.
 Keep children a minimum of 10 feet away from the gen-
erator at all times.
 The unit operates best in temperatures between 23°F and
104°F with a relative humidity of 90% or less.
 Operating voltage and frequency requirement of all
electronic equipment should be checked prior to plug-
ging them into this generator. Damage may result if the
equipment is not designed to operate within a +/- 10%
voltage variation, and +/- 3 hz frequency variation from
the generator name plate ratings. To avoid damage, al-
ways have an additional load plugged into the generator
if solid state equipment (such as a television set) is used.
A power line conditioner is recommended for some solid
state applications.
 Never operate the generator without a spark arrestor
screen.
 For outdoor use only.
 Save these instructions. Refer to them frequently and use
them to instruct others who may use this product. If you
loan someone this product, loan them these instructions
also.
 Use only authorized replacement parts and accessories
and follow instructions in the Maintenance section of this
manual. Use of unauthorized parts or failure to follow
maintenanceinstructionsmaycreateariskofshockorinjury.
 Maintain the unit per maintenance instructions in this
Operator’s Manual.
 Inspect the unit before each use for loose fasteners, fuel
leaks, etc. Replace damaged parts.
IMPORTANT SAFETY INSTRUCTIONS
SPECIFIC SAFETY RULES

5 — English
SYMBOLS
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper
interpretation of these symbols will allow you to operate the product better and safer.
SYMBOL NAME DESIGNATION/EXPLANATION
Safety Alert Indicates a potential personal injury hazard.
Read Operator’s Manual To reduce the risk of injury, user must read and understand
operator’s manual before using this product.
Wet Conditions Alert Do not expose to rain or use in damp locations.
Electric Shock Failure to use in dry conditions and to observe safe practices can
result in electric shock.
Toxic Fumes
Running generator gives off carbon monoxide, an odorless, color-
less, poison gas. Breathing carbon monoxide can cause nausea,
fainting, or death.
Fire/Explosion Fuel and its vapors are extremely flammable and explosive. Fire
or explosion can cause severe burns or death.
Hot Surface To reduce the risk of injury or damage, avoid contact with any hot
surface.
Lifting Hazard To reduce the risk of serious injury, avoid attempting to lift the
generator alone.
Ground Consult with local electrician to determine grounding requirements
before operation.
Electrocution Failure to properly ground generator can result in electrocution,
especially if the generator is equipped with a wheel kit.
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER: Indicates an imminently hazardous situation, which, if not avoided, will result
in death or serious injury.
WARNING: Indicates a potentially hazardous situation, which, if not avoided, could result
in death or serious injury.
CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may result in
minor or moderate injury.
NOTICE: (Without Safety Alert Symbol) Indicates important information not related to an
injury hazard, such as a situation that may result in property damage.

6 — English

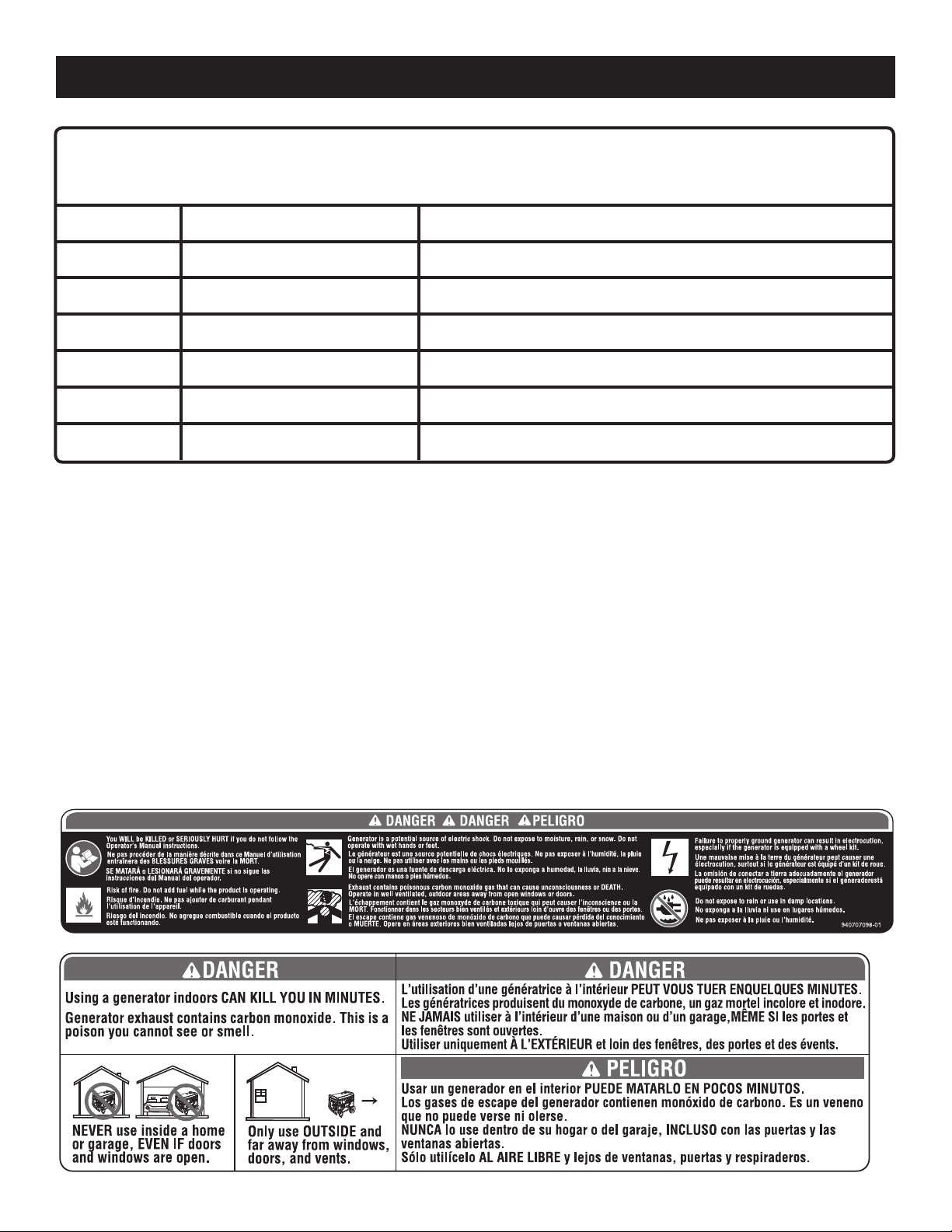

SAFETY LABELS
The information below can be found on the generator. For
your safety, please study and understand all of the labels
before starting the generator.
If any of the labels come off the unit or become hard to read,
contact an authorized service center for replacement.
 You WILL be KILLED or SERIOUSLY HURT if you do not
follow the Operator’s Manual instructions.
 Risk of Fire. Do not add fuel while the product is operat-
ing.
 Generator is a potential source of electric shock. Do not
expose to moisture, rain, or snow. Do not operate with
wet hands or feet.
 Exhaust contains poisonous carbon monoxide gas that
can cause unconsciousness or DEATH. Operate in well-
ventilated, outdoor areas away from open windows or
doors.
 Failure to properly ground generator can result in elec-
trocution, especially if the generator is equipped with a
wheel kit.
 Do not expose to rain or use in damp locations.
 Using a generator indoors CAN KILL YOU IN MINUTES.
Generator exhaust contains carbon monoxide. This is a
poison you cannot see or smell.
 NEVER use inside a home or garage, EVEN IF doors and
windows are open.
 Only use OUTSIDE and far away from windows, doors,
and vents.
SYMBOLS
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper
interpretation of these symbols will allow you to operate the product better and safer.
SYMBOL NAME DESIGNATION/EXPLANATION
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
hrs Hours Time
gal Gallon Volume
qt Quart Volume

7 — English
SYMBOLS
FUEL WARNING
No smoking when filling with gasoline. Do not overfill. Full
level is 1 in. below the top of the fuel neck. Stop the engine
for five minutes before refueling to avoid the heat from the
muffler igniting fuel vapors.
ENGINE LUBRICANT WARNING
You must add lubricant before first operating the generator.
Always check the lubricant level before each operation. The
lubricant level should always register between the hatched
areas on the dipstick.
GROUNDING WARNING
National Electric Code requires generator to be grounded to
an approved earth ground.
CLEARANCE WARNING
While operating and storing, keep at least 3 feet of clear-
ance on all sides of this product, including overhead. Al-
low a minimum of 30 minutes of “cool down” time before
storage. Heat created by muffler and exhaust gases could
be hot enough to cause serious burns and/or ignite com-
bustible objects.
SPARK ARRESTOR
Operation of this equipment may create sparks that can
start fires around dry vegetation. A spark arrestor may be
required. The operator should contact local fire agencies for
laws or regulations relating to fire prevention requirements.
HOT SURFACE WARNING
Do not touch the muffler or aluminum cylinder of the engine.
They are very HOT and will cause severe burns. Don’t put
any flammable or combustible materials in the direct path
of the exhaust.
ELECTRICAL
EXTENSION CORD CABLE SIZE
Refer to the table below to ensure the cable size of the extension cords you use are capable of carrying the required load.
Inadequate size cables can cause a voltage drop, which can burn out the appliance and overheat the cord.
Current in
Amperes
Load in Watts Maximum Allowable Cord Length
At 120V At 240V #8 Wire #10 Wire #12 Wire #14 Wire #16 Wire
2.5 300 600 1000 ft. 600 ft. 375 ft. 250 ft.
5600 1200 500 ft. 300 ft. 200 ft. 125 ft.
7.5 900 1800 350 ft. 200 ft. 125 ft. 100 ft.
10 1200 2400 250 ft. 150 ft. 100 ft. 50 ft.
15 1800 3600 150 ft. 100 ft. 65 ft.
20 2400 4800 175 ft. 125 ft. 75 ft.
25 3000 6000 150 ft. 100 ft.
30 3600 7200 125 ft. 65 ft.
40 4800 9600 90 ft.

8 — English
ELECTRICAL
ELECTRIC MOTOR LOADS
It is characteristic of common electric motors in normal operation to draw up to six times their running current while starting.
This table may be used to estimate the watts required to start electric motors; however, if an electric motor fails to start or
reach running speed, turn off the appliance or tool immediately to avoid equipment damage. Always check the requirements
of the tool or appliance being used compared to the rated output of the generator.
Motor Size (H.P.) Running Watts Watts Required to Start Motor
Universal Capacitor Split Phase
1/8 275 N/A 850 1200
1/6 275 600 850 2050
1/4 400 800 1050 2400
1/3 450 950 1350 2700
1/2 600 1000 1800 3600
3/4 850 1200 2600 —
1 1100 N/A 3300 —
NOTICE:
Operating voltage and frequency requirement of all electronic equipment should be checked prior to plugging them into
this generator. Damage may result if the equipment is not designed to operate within a +/- 10% voltage variation, and
+/- 3 hz frequency variation from the generator name plate ratings. To avoid damage, always have an additional load
plugged into the generator if solid state equipment (such as a television set) is used. A power line conditioner is recom-
mended for some solid state applications.
GROUND FAULT CIRCUIT INTERRUPTER
See Figure 2.
The20 amp, 120volt receptacleson thegeneratorareprotect-
ed by a Ground Fault Circuit Interrupter (GFCI), which guards
against the hazards of ground fault currents. An example of
ground fault current is the current that would flow through a
person who is using an appliance with faulty insulation and,
at the same time, is in contact with an electrical ground such
as a plumbing fixture, wet floor, or earth.
GFCI receptacles do not protect against short circuits, over-
loads, or shocks.
The GFCI receptacles can be tested with the TEST and
RESET buttons.
To test:
 Depress the TEST button. This should cause the Reset
button to pop out.
 To restore power, depress the RESET button.
Perform this test monthly to ensure proper operation of the
GFCI. If the generator is stored outdoors, unprotected from
the weather, test the GFCI receptacle before each use.
GENERATOR CAPACITY
Make sure the generator can supply enough continuous (run-
ning) and surge (starting) watts for the items you will power
at the same time. Follow these simple steps.
1. Selecttheitemsyouwillpoweratthesametime.
2. Totalthecontinuous(running)wattsoftheseitems.This
is the amount of power the generator must produce to
keep the items running. See the wattage reference chart
at right.
3. Estimatehowmanysurge(starting)wattsyouwillneed.
Surge wattage is the short burst of power needed to start
electric motor-driven tools or appliances such as a circular
saw or refrigerator. Because not all motors start at the
same time, total surge watts can be estimated by adding
only the item(s) with the highest additional surge watts to
the total rated watts from step 2.

9 — English
ELECTRICAL
4. Plug in and turn on the next load.
5. Again, permit the generator to stabilize.
6. Repeat steps 4 and 5 for each additional load.
Never add more loads than the generator capacity. Take
special care to consider surge loads in generator capacity
as previously described.
NOTICE:
Do not overload the generator’s capacity. Exceeding the
generator’s wattage/amperage capacity may damage the
generator and/or electrical devices connected to it.
Tool or Appliance
Estimated*
Running
Watts
Estimated*
Additional
Starting Watts
DIY/Job Site
Quartz Work Light (1000 Watt) 1000 0
Circular Saw (Heavy Duty, 7
1/4”)
1400 2300
Drill (1/2 inch, 5.4 amps) 600 900
Miter Saw (10”) 1800 1800
Battery Charger (15 amp) 380 0
Reciprocating Saw 960 960
Air Compressor (1 HP) 1600 4500
Demolition hammer 1260 1260
Airless Sprayer (1/3 hp) 600 1200
Radio 200 0
Fan (20” Box Fan) 60 200
*Wattages listed are approximate. Check tool or equipment for actual wattage.
Example:
Tool or Appliance Running
Watts*
Additional
Starting Watts*
Quartz Work Light
(1000 Watt) 1000 0
Drill (1/2 inch,
5.4 amps) 600 900
Airless Sprayer
(1/3 HP) 600 1200
Radio 200 0
Fan 60 200
2460 Total
Running Watts
1200 Highest
Starting Watts
Total Running Watts 2460
Highest Starting Watts + 1200
Total Starting Watts Needed 3660
POWER MANAGEMENT
To prolong the life of the generator and attached devices,
it is important to take care when adding electrical loads to
the generator. There should be nothing connected to the
generator outlets before starting its engine. The correct and
safe way to manage generator power is to sequentially add
loads as follows:
1. With nothing connected to the generator, start the engine
as described later in this manual.
2. Plug in and turn on the first load, preferably the largest
load you have.
3. Permit the generator output to stabilize (engine runs
smoothly and attached device operates properly).

10 — English
PRODUCT SPECIFICATIONS
ENGINE
Engine Type............................ 4 Stroke, OHC (Chain Drive)
Fuel Volume................................................................ 6 gal.
GENERATOR
Rated Voltage.....................................................120V/240V
Rated Amps..................................................... 41.6A/20.8A
Rated Running Watts* ............................................5,000 W
Rated Starting Watts ..............................................6,250 W
Rated Frequency........................................................60 Hz
DIMENSIONS
Length ..................................................................... 26.5 in.
Width .......................................................................... 20 in.
Height......................................................................... 23 in.
Weight .................................................................... 160 lbs.
KNOW YOUR GENERATOR
See Figure 1.
The safe use of this product requires an understanding of the
information on the product and in this operator’s manual as
well as a knowledge of the project you are attempting. Before
use of this product, familiarize yourself with all operating
features and safety rules.
AC CIRCUIT BREAKER
The circuit breaker is provided to protect the generator
against electrical overload. The circuit breaker may be reset
by lifting the circuit breaker reset lever.
AIR FILTER
The air filter helps to limit the amount of dirt and dust drawn
into the unit during operation.
CHOKE LEVER
The choke lever is used when starting the engine.
ENGINE SWITCH
The engine switch is used in combination with the recoil
starter grip to start the generator. It is also used to turn the
generator off.
FUEL TANK
The fuel tank has a capacity of 6 gallons.
FUEL VALVE
Fuel flow from the fuel tank to the engine is turned on and
off using the fuel valve.
GROUND TERMINAL
The ground terminal is used to assist in properly ground-
ing the generator to help protect against electrical shock.
Consult with a local electrician for grounding requirements
in your area.
OIL CAP/DIPSTICK
Remove the oil fill cap to check and add lubricant to the
generator when necessary.
OIL DRAIN PLUG
When changing the engine lubricant, the oil drain plug is
removed to allow old engine lubricant to be drained.
RECEPTACLES
Your generator has the following single phase, 60 Hz outlets:
four 120 Volt AC, 20 Amp GFCI receptacles, and one 240
Volt AC, 20 Amp receptacle. These can be used for operat-
ing appropriate appliances, electrical lighting, tools, and
motor loads.
RECOIL STARTER GRIP
The recoil starter grip is used (along with the engine switch)
to start the generator’s engine.
*Rated running watts determined by PGMA Standard G200
FEATURES

11 — English
UNPACKING
This product requires assembly.
Carefully cut the box down the sides then remove the
machine and any accessories from the box. Make sure
that all items listed in the loose parts list are included.
NOTE: This machine is heavy and requires a minimum of
two people to lift. To avoid back injury, lift with your legs
and not your back.
WARNING:
Do not use this product if any parts on the Loose Parts
List are already assembled to your product when you
unpack it. Parts on this list are not assembled to the
product by the manufacturer and require customer instal-
lation. Use of a product that may have been improperly
assembled could result in serious personal injury.
Inspect the unit carefully to make sure no damage oc-
curred during shipping.
Do not discard the packing material until you have
carefully inspected and satisfactorily operated the
product.
If any parts are damaged or missing, please call
1-920-756-4688 for assistance.
WARNING:
If any parts are damaged or missing do not operate
this product until the parts are replaced. Use of this
product with damaged or missing parts could result in
serious personal injury.
WARNING:
Do not attempt to modify this product or create acces-
sories not recommended for use with this product. Any
such alteration or modification is misuse and could result
in a hazardous condition leading to possible serious per-
sonal injury.
WARNING:
Do not attempt to operate the generator until assembly
is complete. Failure to comply could result in possible
serious personal injury.
LOOSE PARTS LIST
See Figure 3.
The following items are included with the generator:
Key
No. Description Qty.
1 Wheels.................................................................2
2 Washers...............................................................2
3 Hitch Pins ............................................................2
4 Support Feet........................................................2
5 Bolts (1/4-20 x 1-1/2 in.)......................................4
6 Flat Washers........................................................4
7 Lock Washers......................................................4
8 Nuts (1/4-20)........................................................4
9 Axles....................................................................2
10 Bottle of Engine Lubricant...................................1
Operator’s Manual (not shown) ...........................1
TOOLS NEEDED
See Figure 4.
The following tools (not included or drawn to scale) are
needed for assembly:
T-27 Torx screwdriver
7/16 in. combination wrench
NOTE: Do not put fuel or lubricant in the generator before
installing the feet, frame support, and wheels.
INSTALLING THE SUPPORT FEET
See Figure 5.
 Locate the following items:
2 support feet
4 nuts (1/4-20)
4 flat washers
4 lock washers
4 bolts (1/4-20 x 1-1/2 in.)
 Position the generator and the support foot so the holes
in the support foot align with the holes in the generator
frame.
 Insert bolt, flat washer, lock washer, and nut. Tighten nut
securely.
 Repeat with remaining support.
INSTALLING THE WHEELS
See Figure 6.
Wheels are provided to assist in moving the generator to
the desired location and should be installed on the side
opposite the handle.
ASSEMBLY

12 — English
 Locate the following items:
2 axles
2 hitch pins
2 washers
2 wheels
 Raise the end of the generator where the handle is located
highenough togain accessto theframe bottom;securely
position props underneath to support.
 Slide the axle through the hole in the center of the
wheel.
 Slide a washer onto the axle, then slide the axle into the
wheel mounting hole as shown.
 Insert hitch pin to secure.
NOTE: The hitch pin should be pushed into the axle until
the center of the pin rests on top of the axle.
 Repeat with the second wheel.
DANGER:
Carbon Monoxide. Using a generator indoors CAN KILL
YOU IN MINUTES.
Generator exhaust contains high levels of carbon
monoxide (CO), a poisonous gas you cannot see or smell.
If you can smell the generator exhaust, you are breathing
CO. But even if you cannot smell the exhaust, you could
be breathing CO.
 Never use a generator inside homes, garages,
crawlspaces, or other partly enclosed areas. Deadly
levels of carbon monoxide can build up in these areas.
Using a fan or opening windows and doors does NOT
supply enough fresh air.
 ONLY use a generator outdoors and far away from
open windows, doors, and vents. These openings
can pull in generator exhaust.
Even when you use a generator correctly, CO may
leak into the home. ALWAYS use a battery-powered or
battery-backup CO alarm in the home.
If you start to feel sick, dizzy, or weak after the generator
has been running, move to fresh air RIGHT AWAY. See
a doctor. You could have carbon monoxide poisoning.
DANGER:
Failure to properly ground generator can result in
electrocution, especially if the generator is equipped with
a wheel kit. National Electric Code requires generator to
be properly grounded to an approved earth ground. Call
an electrician for local grounding requirements.
SECURING THE HANDLE
See Figure 7.
Grasp the handle and lift up and back until it locks in place.
Make sure the handle is securely locked in place before at-
tempting to move the generator.
To collapse the handle for storage, pull and hold the release
pin while pushing the handle down.
WARNING:
Do not attempt to lift the unit by the handle assembly.
If it is necessary to lift the generator, always grasp by
the frame. Use proper lifting techniques to avoid back
injury.
WARNING:
Do not allow familiarity with this product to make you
careless. Remember that a careless fraction of a second
is sufficient to inflict serious injury.
WARNING:
Do not use any attachments or accessories not
recommended by the manufacturer of this product. The
use of attachments or accessories not recommended
can result in serious personal injury.
APPLICATIONS
This generator is designed to supply electrical power for
operating compatible electrical lighting, appliances, tools,
and motor loads.
BEFORE OPERATING THE UNIT
 Only use OUTSIDE and far away from windows, doors,
and vents.
 NEVER use inside a home or garage, EVEN IF doors and
windows are open.
 Always position the generator on a flat firm surface.
SPECIAL REQUIREMENTS
There may be General or State Occupational Safety and
Health Administration (OSHA) regulations, local codes or
ordinances that apply to the intended use of the generator.
Please consult a qualified electrician, electrical inspector, or
the local agency having jurisdiction:
 In some areas, generators are required to be registered
with local utility companies.
ASSEMBLY
OPERATION

13 — English
Ethanol. Gasoline containing up to 10% ethanol by volume
(commonly referred to as E10) is acceptable. E15 and E85
are not.
CHECKING/ADDING FUEL
See Figure 9.
WARNING:
Gasoline and its vapors are highly flammable and
explosive. To prevent serious personal injury and property
damage, handle gasoline with care. Keep away from
ignition sources, handle outdoors only, do not smoke
while adding fuel, and wipe up spills immediately.
When adding gas to the generator, make sure the unit is
sitting on a flat, level surface. If the engine is hot, let the
generator cool before adding gas. ALWAYS fill the fuel tank
outdoors with the machine turned off.
 Remove the fuel cap.
 Fill the fuel tank to 1 in. below the top of the fuel neck.
 Replace and secure the fuel cap.
NOTE: Always use unleaded gasoline with a pump octane
rating of 86 or higher. Never use old, stale, or contaminated
gasoline, and do not use an oil/gas mixture. Do not allow dirt
or water into the fuel tank. Do not use E85 fuel.
NOTICE:
On a level surface with the engine off, check the lubricant
level before each use of the generator.
STARTING THE ENGINE
See Figures 10 - 12.
NOTE: If location of generator is not level, the unit may not
start or may shut down during operation.
 Unplug all loads from the generator.
 Turn the fuel valve to the ON position.
 Move the choke lever right to the START position.
NOTE: If engine is warm or the temperature is above
50˚F,movethechokeleverlefttotheRUNposition.
 Put the engine switch in the ON (I) position.
 Pull the recoil starting grip until the engineruns (a maximum
of 6 times).
NOTE: Do not allow the grip to snap back after starting;
return it gently to its original place.
 Allow the engine to run for 15 - 30 seconds, then move
the choke lever left to the RUN position.
STOPPING THE ENGINE
See Figures 10 - 11.
To stop the engine under normal operating conditions:
 Remove any load from the generator.
 Turn the fuel valve to the OFF position.
 Put the engine switch in the OFF (O) position.
 If the generator is used at a construction site, there may
be additional regulations which must be observed.
NOTICE:
Attempting to start the engine before it has been properly
filled with lubricant will result in equipment failure.
CHECKING/ADDING LUBRICANT
See Figure 8.
Enginelubricant has amajorinfluence onengineperformance
and service life. For general, all-temperature use, SAE 10W-
30 is recommended. Always use a 4-stroke motor lubricant
that meets or exceeds the requirements for API service
classification SJ.
This engine comes with a feature that will shut off the engine
when a specific oil level is not maintained. The engine will
not restart until an appropriate oil level is reached.
NOTE: Non-detergent or 2-stroke engine lubricants will
damage the engine and should not be used.
 Unscrew the oil cap/dipstick and remove.
 Wipe dipstick clean and re-seat in hole; do not re-thread.
 Removedipstickagain andcheck lubricantlevel.Lubricant
levelshould fall betweenthe hatched areason thedipstick.
 If level is low, add engine lubricant until the fluid level rises
to the upper portion of the dipstick.
 Replace and secure the oil cap/dipstick.
USING FUEL STABILIZER
Fuel gets old, oxidizes, and breaks down over time. Adding
a fuel stabilizer (not included) extends the usable life of fuel
and helps prevent deposits from forming that can clog the
fuel system. Follow fuel stabilizer manufacturer’s directions
for correct ratio of stabilizer to fuel.
 Mix fuel stabilizer and gasoline prior to filling the tank
by using a gas can or other approved fuel container and
shaking gently to combine.
NOTE:To controlthe amountof fuel stabilizerbeing added
to the engine, always mix fuel stabilizer with gasoline
before fueling the tank rather than adding fuel stabilizer
directly into the generator’s fuel tank.
 Replace and secure the fuel tank cap.
 Start and run the engine for at least 5 minutes to allow
stabilizer to treat the entire fuel system.
OXYGENATED FUELS
NOTICE:
Do not use e15 or e85 fuel (or fuel containing greater than
10% ethanol) in this product. It is a violation of federal
law and will damage the unit and void your warranty.
Fuel system damage or performance problems resulting
from the use of an oxygenated fuel containing more than
the percentage of oxygenates stated below are not covered
under warranty.
OPERATION

14 — English
WARNING:
When servicing, use only identical replacement parts.
Use of any other parts can create a hazard or cause
product damage.
Only the parts shown on the parts list are intended to be
repaired or replaced by the customer. All other parts should
be replaced at an authorized service center.
GENERAL MAINTENANCE
Before each use, inspect the entire product for damaged,
missing, or loose parts such as screws, nuts, bolts, caps, etc.
Tighten securely all fasteners and caps and do not operate
this product until all missing or damaged parts are replaced.
Please contact an authorized service center for assistance.
Keep the generator in a clean and dry environment where it
is not exposed to dust, dirt, moisture, or corrosive vapors.
Do not allow the cooling air slots in the generator to become
clogged with foreign material such as leaves, etc.
Do not use a garden hose to clean the generator. Water en-
tering the fuel system or other internal parts of the unit can
cause problems that will decrease the life of the generator.
To clean the unit:
 Use a soft bristle brush and/or vacuum cleaner to loosen
and remove dirt and debris.
 Clean air vents with low pressure air that does not exceed
25 psi.
 Wipe the exterior surfaces of the generator with a damp
cloth.
CHECKING/CLEANING AIR FILTER
See Figure 13.
For proper performance and long life, keep air filter clean.
 Release latches on left side of air filter cover. Remove
cover and set aside.
 Remove the filter element.
 If the filter element is dirty, clean with warm, soapy water.
Rinse and let dry.
 Apply a light coat of engine lubricant to the element, then
squeeze it out.
 Replace the element in the air filter unit.
 Replace the air filter cover and latch to secure.
NOTE: Do not run the generator without the air filter. Rapid
engine wear will result.
CHANGING ENGINE LUBRICANT
See Figure 14.
 Remove the oil cap/dipstick.
 Place a container underneath the oil drain plug to collect
used lubricant as it drains.
 Unscrew the oil drain plug and remove.
 Allow lubricant to drain completely.
NOTE: Drain the lubricant while the engine is still warm
but not hot. Warm lubricant will drain quickly and more
completely.
WARNING:
When servicing, use only identical replacement parts.
Use of any other parts can create a hazard or cause
product damage.
 Reinstall the oil drain plug and tighten securely.
 Refill with lubricant following the instructions in the
Checking/Adding Lubricant section.
 Reinstall the oil cap/dipstick.
NOTE: Used lubricant should be disposed of at an ap-
proved disposal site. See your local oil retailer for more
information.
OPERATION
MAINTENANCE
To stop the engine in an emergency situation:
 Put the engine switch in the OFF (O) position.
WARNING:
While operating and storing, keep at least 3 feet of
clearance on all sides of this product, including overhead.
Allow a minimum of 30 minutes of “cool down” time
before storage. Heat created by muffler and exhaust
gases could be hot enough to cause serious burns and/
or ignite combustible objects.
HIGH ALTITUDE OPERATION
Specificmodifications areneeded forhigh-altitudeoperation.
Please contact your authorized service center for important
information regarding these modifications. Operating this
engine without the proper altitude modification may increase
the engine’s emissions and decrease fuel economy and
performance.

15 — English
SPARK PLUG MAINTENANCE
See Figure 15.
The spark plug must be properly gapped and free of deposits
in order to ensure proper engine operation. To check:
 Remove the spark plug cap.
 Clean any dirt from around base of spark plug.
 Remove spark plug using wrench (not included).
 Inspect spark plug for damage, and clean with a wire
brush before reinstalling. If insulator is cracked or
chipped, spark plug should be replaced. For replacement
spark plug, see Product Specifications earlier in this
manualor theaccompanyingengine manual,if applicable.
 Measurepluggap.Thecorrectgapis0.028−0.031in.
(0.7-0.8 mm). To widen gap, if necessary, carefully bend
the ground (top) electrode. To lessen gap, gently tap
ground electrode on a hard surface.
 Seat spark plug in position; thread in by hand to prevent
cross-threading.
 Tighten with wrench to compress washer. If spark plug
is new, use 1/2 turn to compress washer appropriate
amount. If reusing old spark plug, use 1/8 to 1/4 turn for
proper washer compression.
NOTE: An improperly tightened spark plug will become
very hot and could damage the engine.
CLEANING THE EXHAUST PORT AND
MUFFLER
Depending on the type of fuel used, the type and amount of
lubricantused, and/oryour operating conditions,the exhaust
port and muffler may become blocked with carbon deposits.
If you notice a power loss with your gas-powered products,
you may need to remove these deposits to restore perfor-
mance. We highly recommend that only qualified service
technicians perform this service.
SPARK ARRESTOR
See Figure 16.
 Inspect the spark arrestor for breaks or holes. Replace
if necessary. To purchase a replacement spark arrestor
contact Ariens customer service at 1-920-756-4688.
 Use a brush to remove carbon deposits from the spark
arrestor screen as needed.
DRAINING FUEL TANK/CARBURETOR
See Figures 17 - 18.
To help prevent gum deposits in the fuel system, drain the
fuel from the tank and carburetor before storing.
DRAINING THE FUEL TANK
 Turn the engine switch OFF (O).
 Turn the fuel valve to the OFF position.
 Remove the fuel line from the petcock by squeezing the
ends of the retaining clip and sliding the fuel line off.
 Install one end of a drain line over the petcock, and place
the other end in a fuel container large enough to catch
the fuel being drained from the tank.
 Turn the fuel valve to the ON position.
 When the fuel has drained from the tank, close the fuel
valve and reinstall fuel line securely on petcock.
DRAINING THE CARBURETOR
 Turn the engine switch OFF (O).
 Turn the fuel valve to the OFF position.
 Position a suitable container under the carburetor drain
screw to catch fuel; loosen the screw.
 Allow fuel to drain completely into container.
 Retighten drain screw.
NOTE: Consulthazardouswaste managementguidelines in
your area for the proper way to dispose of used fuel.
REPLACING FUEL FILTER
See Figure 19.
Occasionally the fuel filter may become clogged and need
replacing. To purchase a replacement fuel filter contact
Ariens customer service at 1-920-756-4688.
NOTE: Fuel tank must be empty before replacing fuel filter.
Run unit until tank is empty, if needed, or inspect filter prior
to fill-up.
To replace:
 Turn the fuel valve to the OFF position.
 Remove the fuel line from both sides of the filter by
squeezing the ends of the retaining clip with pliers.
 Slide the fuel line off.
 Replace with new fuel filter.
 Reinstall fuel lines to new fuel filter.
 Pull on lines to make sure they are secured.
 Turn the fuel valve to the ON position.
TRANSPORTING
 Turn engine switch OFF (O).
 Turn the fuel valve to the OFF position.
 Make sure engine and exhaust of unit is cool.
 Empty the fuel tank.
 Do not drop or strike unit or place under heavy objects.
MAINTENANCE

16 — English
STORAGE
When preparing the generator for storage, allow the unit to cool completely then follow the guidelines below.
STORAGE
TIME PRIOR TO STORING
Less than 2
months
 Drain gasoline from tank and dispose of in a suitable container according to state and local ordinances.
2 months to 1
year
 Drain fuel from carburetor.
 Drain gasoline from tank and dispose of in a suitable container according to state and local ordinances.
1 year or more  Drain fuel from the carburetor.
 Remove spark plug.
 Drain gasoline from tank and dispose of in a suitable container according to state and local ordinances.
 Put a tablespoon of engine oil into the spark plug cylinder. Turn the engine slowly with the pull rope to
distribute the oil.
 Reinstall spark plug.
 Change engine lubricant.
After removal from storage:
 Fill with fresh gasoline.
NOTE: If storing gasoline in suitable container for later use, make sure gasoline has been treated with fuel stabilizer according
to stabilizer manufacturer’s instructions.
MAINTENANCE
MAINTENANCE SCHEDULE
Before
each use
After 1st month
or 20 hours of
operation
Every 3 months
or 50 hours of
operation
Every 6 months
or 100 hours
of operation
Every year or
after 300 hours
of operation
Check Engine Lubricant 
Change Engine Lubricant2 
Check Air Filter 
Clean Air Filter 
Change Air Filter2
Check/Adjust Spark Plug 
Replace Spark Plug2
Check/Adjust Idle Speed 
Check/Adjust Valve
Clearance1,2 
Clean Fuel Tank and
Filter1,2 
Check Fuel Hose  
Fuel Filter INSPECT REPLACE
Check All Hose Connections  
Inspect Fuel Tank Vapor
Vent (If Equipped)  
Inspect Carbon Canister
(Carb Models Only)  
1. These items should only be carried out by an authorized service center.
2. See engine manual for maintenance schedule for this item.
NOTE: Maintenance should be performed more frequently when generator is used in dusty areas.
When generator has exceeded the maximum figures specified in the table, maintenance should still be cycled according
to the intervals of time or hours stated herein.
