Arjo NDA8200 User manual

INSTRUCTIONS FOR USE
Wall Mounted Battery charger
001-24257-EN rev.4 • 08/2019

2
Table of Contents
001-24257-EN rev. 4
General Information .................................................................................................................................3
Foreword ...........................................................................................................................................3
Service and Support .........................................................................................................................3
Manufacturer Information ..................................................................................................................3
Definitions Used in this Manual .........................................................................................................3
Intended Use .....................................................................................................................................3
Operational Life .................................................................................................................................3
Product Identification ........................................................................................................................3
Safety Instructions ...................................................................................................................................4
Battery and Battery Charger Safety Practices ..................................................................................4
Installation Instructions ...........................................................................................................................5
Preparation .......................................................................................................................................5
Installation ......................................................................................................................................... 5
How to Use the Charger ..........................................................................................................................5
Charging your Battery .......................................................................................................................5
Troubleshooting .......................................................................................................................................6
Technical Specifications .........................................................................................................................6
Technical Data ..................................................................................................................................6

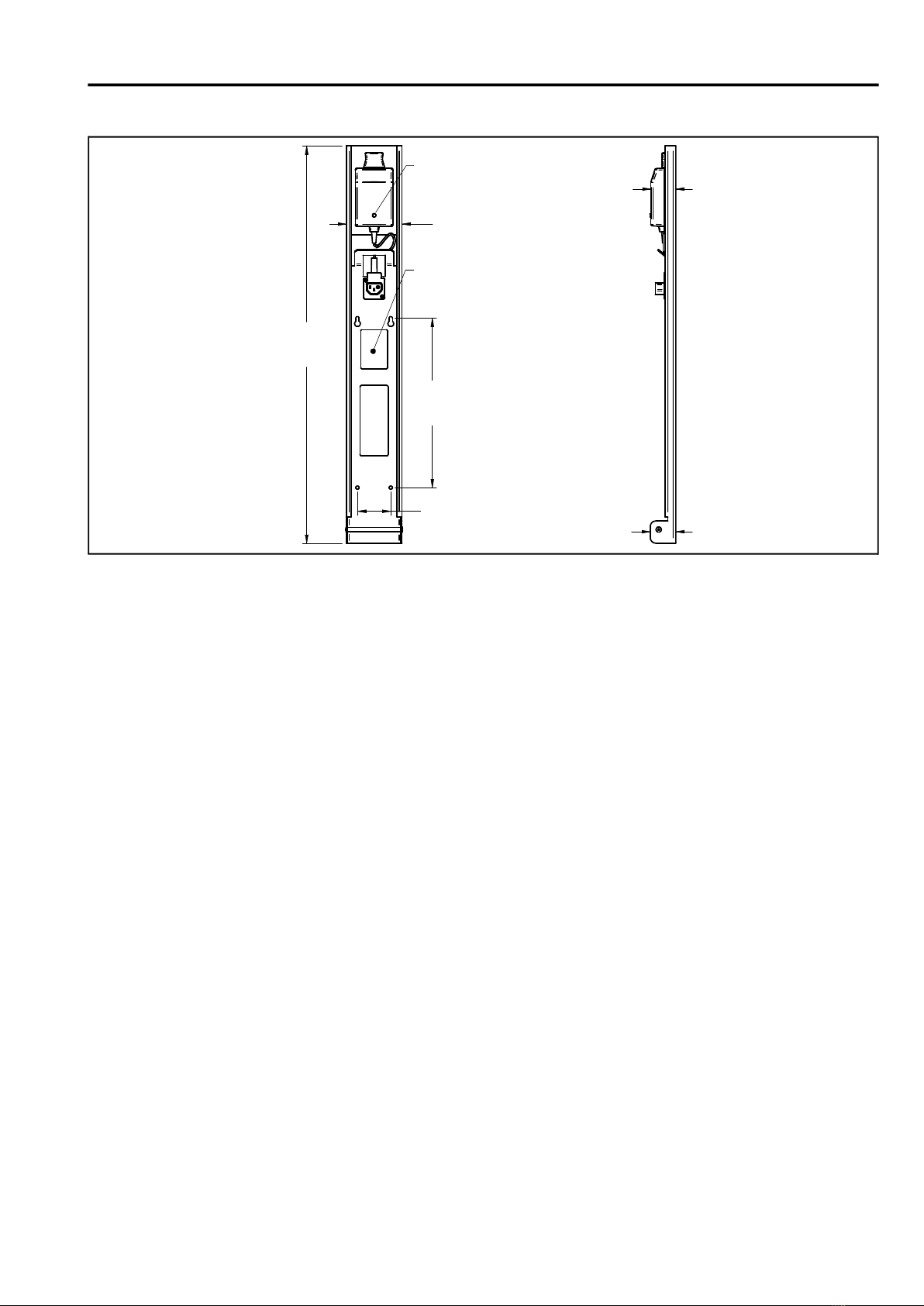

Dimensions ....................................................................................................................................6
Electromagnetic Compatibility.................................................................................................................8
Electromagnetic Compliance.............................................................................................................................8
Electromagnetic Immunity..................................................................................................................................9
Design Policy and Copyright
® and ™ are trademarks belonging to the Arjo group of companies.
© Arjo 2019.
As our policy is one of continuous improvement, we reserve the right to modify designs
without prior notice.
The content of this publication may not be copied either whole or in part without the
consent of Arjo.
Table of Contents

General Information
3
001-24257-EN rev. 4
Thank you for purchasing the Wall Mounted
Battery Charger.
Your charger is part of a series of quality
products made for hospitals, nursing homes
and other health care uses.
Our goal is to serve your needs and provide
you with the best products available. We also
offer trainings that will bring your staff
maximum benefit from every Arjo product.
Please contact us if you have any questions
about usage or maintenance of your Arjo
product.
Foreword
Please read this manual in its entirety before using
your charger. The information in this manual is
crucial for the proper usage and maintenance of
the charger. It will help to protect your product and
make sure it performs to your satisfaction. This
manual must be read and understood as it
contains safety related topics that may help you to
prevent injuries.
If a serious incident occurs in relation to this
medical device, affecting the user, or the patient
then the user or patient should report the serious
incident to the medical device manufacturer or the
distributor. In the European Union, the user should
also report the serious incident to the Competent
Authority in the member state where they are
located.
Modifications to any Arjo product may affect its
safety. Arjo will not be held responsible for any
incidents that occur as a result of any
unauthorized modification to its products.
Service and Support
For more information, contact your Arjo agent
which can offer support to maximize the long-term
reliability, safety and value of the product. Contact
your local agent for product replacement. This
product does not require maintenance, and have
no parts that can be replaced.
You can get additional copies of this manual from
your local agent. When ordering, include the
Instructions for Use product number (see front
page) and product part number.
Manufacturer Information
This product is manufactured by:
ArjoHuntleigh AB
Hans Michelsensgatan 10
211 20 Malmö,
SWEDEN
: [phone]
: [phone]
: www.arjo.com
Definitions Used in this Manual
Means: Failure to understand and follow these
instructions may result in injury to yourself and
others.
Means: Failure to follow these instructions may
cause damage to the product.
Means: This is important information regarding
the correct use of the equipment.
Intended Use
The charger is intended for charging Arjo
batteries according to instructions herein. All
other uses must be avoided.
The charger is for indoor use only, under normal
conditions (0 °C to 40 °C [32 °F to 104°F], 90 %
RH max).
Operational Life
The charger has been made and tested for a life
span of ten (10) years based on a usage rate of
two (2) complete recharge (8 hours) per day. The
life span corresponds to the safe operating time
period before the product replacement. Aging of
the unit and frequency of use are factors that have
an impact on the product’s life span.
Product Identification
The unit's identification number (specification,
model, serial number) appears on a silver label
attached to the charger (see Fig. 4).
WARNING: Use only this product with Arjo
designated parts to avoid any lack of
performance or injuries.
WARNING:
CAUTION:
NOTE:
General Information

Safety Instructions
4
001-24257-EN rev. 4
Safety Instructions
Battery and Battery Charger
Safety Practices
• The charger must be placed in a low traffic area
to prevent it from being hit.
• When plugging / unplugging the charger’s
power cord, grip the plug itself. Do not pull on the
cord.
• Attach any loose power cord to prevent cable
wear and to avoid strangulation.
• Install the charger away from heat sources or
direct sunlight.
• The charger has been made for dry
surroundings. It must not be installed in
bathrooms, or other humid areas.
• Only use the charger in well ventilated areas.
• The charger must not be covered or exposed to
dust or water. The metal contacts must be kept
clean.
• The charger is for use only with Arjo 24V lead-
acid battery type, as supplied with the lift.
• The battery pack may remain connected to the
charger unit when it is fully charged without
damage.
• Do not short-circuit the battery pack.
• Do not crush, puncture, open, dismantle or
otherwise mechanically interfere with the
batteries.
• The power socket must be easily accessible. If
a faulty condition occurs, switch off the power by
removing the plug from the wall socket.
• Do not store battery packs at a temperature
higher than 40 °C (104 °F). Should the battery
pack casing crack and cause contents to come
in contact with skin or clothing, rinse
immediately with water. If content comes in
contact with eyes, rinse immediately with plenty
of water and seek medical attention.
• The “Pb” symbol appears next to the recycling
and trash bin symbols on the battery pack label.
This means that the battery contains lead and
that it must not be disposed of, but recycled.
General Information

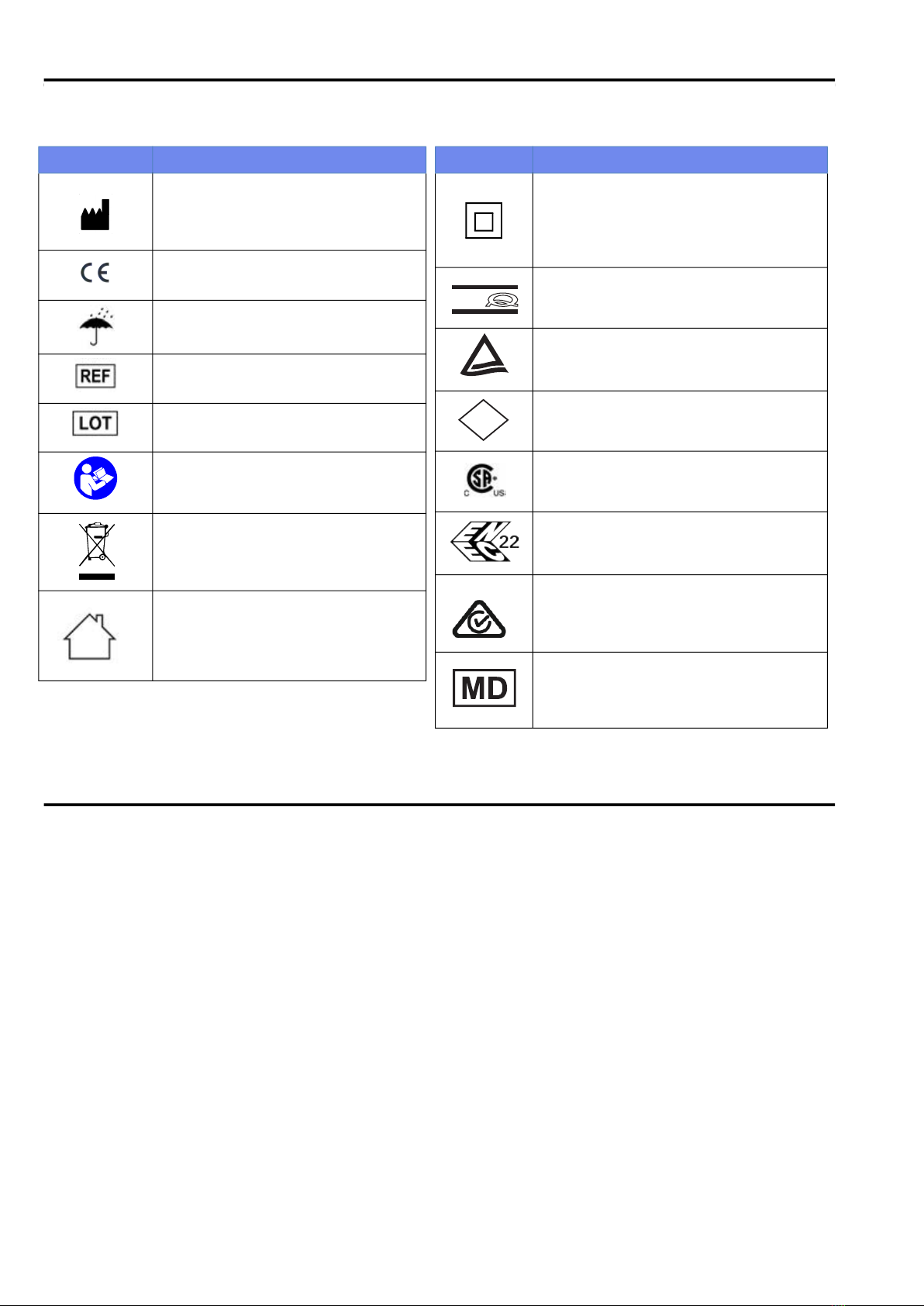

Symbols Used
Symbols Key to Symbols
This symbol points out the
manufacturer’s name and address.
May also point out manufacturing
date.
CE marking indicating conformity with
European Community harmonised
legislation.
This symbol means that the
product must be kept dry.
This symbol points out the
manufacturer’s catalogue number.
This symbol points out the
manufacturer’s lot number.
This symbol means that you must
refer to the Instructions for Use.
Waste Electrical and Electronic
Equipment (WEEE) - do not
dispose of this product in general
household or commercial waste.
The device is meant to be operated
indoors only.
Symbols Key to Symbols
Class II electrical equipment.
This term refers to electrical
equipment in which protection against
electric shock does not rely on basic
insulation only.
This symbol means the product is
certified by the Slovenian Institute of
Quality and Metrology.
This symbol means the product is
certified by TUV Rheinland.
This symbol means that product
complies with Product Safety
Appliance & Material Standards.
This symbol means that the product
has been approved by the Canadian
Standards Association.
This symbol means that the product
complies with European Norms
Electrical Certification.
RCM Australian Compliance symbol,
indicating compliance with applicable
electrical safety, EMC, EME and
telecommunications requirements.
Indicates the product is a Medical
Device according to EU Medical
Device Regulation 2017/745.
SI
E
P S

Installation Instructions
5
001-24257-EN rev. 4
Preparation
• Mount the charger on a suitable wall close to an
electrical outlet.
• Check if wall plugs or anchors are needed. No
hardware is supplied with the kit.
• Use anchors, plugs and screws (4) able to bear
the weight of the charger with a battery in it.
Each anchor point must resist to a pull force of
110 N (25 lb). Holes in mounting plate are 5 mm
(3/16 in) diameter.
Installation
1) Use the charger mounting plate, as a template,
to mark the four screw’s location on the wall.
Make sure the charger is held straight.
2) Drill holes (at markings) into the wall. Fit wall
plugs into the wall if needed.
3) Hold charger to wall, fit and
tighten screws, see Fig. 1.
4) Plug the charger using the
power cord supplied with the
kit.
5) Attach loose power cord.
WARNING: Precaution shall
be taken, especially in home
care environment, to prevent
strangulation risks by routing
cables properly avoiding
loops.
Fig. 1
How to Use the Charger
Battery Pack
Battery life is variable (2-3 years) and mainly
depends on proper charging practices.
Recharge the batteries on a regular basis to
prolong their life span. Avoid the batteries from
reaching a low charge state.
Remove the battery pack from the lift when it is not
used for a long period.
Charging your Battery
1) Insert the
battery pack
into the
charger unit
and push it in
firmly (see
Fig. 2).
2) Connect the charger into an AC outlet using the
proper power cord.
3) The charger’s LED turns amber during charging.
The battery pack is ready for use when the LED
turns green. A depleted battery pack can take up
to eight hours to reach full charge state.
4) When the batteries are fully charged,
remove the pack from the charger.
To do so, press the red button and
pull the battery pack towards you
(see Fig. 3). The LED remains green
to show that the charger is powered.
NOTE: Batteries must be charged for at least
8 hours prior to the initial use in order to
reach optimal life time.
WARNING : Hold the battery pack firmly to
ensure it does not drop. Dropping can cause
damages resulting in personal injuries.
Fig. 2
NOTE: It is recommended to unplug the
charger when it is not being used.
CAUTION: Refer to your local regulation for
recycling and disposal of battery packs.
Fig. 3
Installation Instructions

Troubleshooting
6
001-24257-EN rev. 4
Technical Specifications
Technical Data
PRODUCT INFORMATION Wall Mounted Battery Charger
Charger model NDA8200
Total weight of charger 2 kg
Compatible with battery type and part number Arjo 24V lead-acid batteries part numbers: NDA0100-03,
NDA0100-20 and NDA0200-20
Input voltage and frequency 100-240 VAC, 50-60 Hz
Power consumption 50 W (full load), ≤ 0.75 W (standby)
Output voltage and charger current 24-29 VDC, 1 A max., 24 VA
Degree of protection IP40
Insulation class Class II
Operating temperature / humidity range 0 °C to 40 °C (32 °F to 104 °F), 90 % RH max
Storage temperature / humidity range -40 °C to 70 °C (-40 °F to 158 °F), 10 % RH to 95 % RH
This Arjo product meets the requirements of the Low Voltage Directive 2014/35/EU, the regulations of the EMC
Directive 2014/30/EU, ECO Design Directive 2009/123/EC and ROHS Directive 2011/65/EU.
The Wall Mounted Battery Charger is compliant to IEC 60601-1 series including applicable collateral standards
and national deviations. The Wall Mounted Battery Charger is also compliant to EN 60335-1:2012+A11:2014 and
EN 55014-1:2006+A1:2009.
WARNING: Portable RF communications equipment (including peripherals such as antenna cables and
external antennas) should be used no closer than 30 cm to any part of the Wall Mounted Battery
Charger, including cables specified by the manufacturer. Otherwise, performance degradation of this
equipment could result. See "Electromagnetic Compatibility" section for more details.
WARNING: This equipment is not suitable for use in the presence of
flammable anesthetic mixture with air or oxygen, or with nitrous oxide.
Safe Disposal at End of Life
Package Cardboard, recyclable
Electrical and electronic componants
Charger systems having electrical and electronic
components or an electrical cord should be disassembled
and recycled per Waste of Electrical and Electronic
Equipment (WEEE) or in accordance with local or national
regulation.
Troubleshooting
The charger’s LED does not light up:
• Check if the power cord is plugged into the wall
outlet and into the charger.
• Check if there is power in the wall outlet.
If the LED still not lit, contact your Arjo agent to
replace the charger.

Technical Specifications
7
001-24257-EN rev. 4
Dimensions
Fig. 4
715mm
28 1/8"
100mm
3 15/16"
60mm
2 3/8"
305mm 12"
46mm
1 13/16"
45mm
1 3/4"
PRODUCT
IDENTIFICATION
LABEL
CHARGER STATUS
INDICATOR (LED)

8
Electromagnetic Compatibility
001-24257-EN rev. 4
Electromagnetic Compliance
The Wall Mounted Battery Charger has been tested for compliance with current regulatory
standards regarding its capacity to block EMI (electromagnetic interference) from external
sources.
Nonetheless, some procedures can help reduce electromagnetic interferences:
• Ensure that other devices in patient-monitoring and / or life-support areas comply to accepted emissions
standards.
• Maximize the distance between electro-medical devices. High-powered devices may produce EMI that
can affect the charger.
For more information on how to manage the unit’s RF electromagnetic environment, please
consult the AMI TIR 18-1997 - Guidance on Electromagnetic Compatibility of Medical Devices for
Clinical / Biomedical Engineers.
Electromagnetic Emissions
WARNING : Use of this equipment adjacent to or stacked with other equipment should be
avoided because it could result in improper operation. If such use is necessary, this equipment
and the other equipment should be observed to verify that they are operating normally.
WARNING : The equipment may cause radio interference or may disrupt the operation of nearby
equipment. It may be necessary to take action, such as reorienting, relocating the equipment or
shielding the location.
WARNING : Use of accessories, cables and spare parts other than those specified or provided by
Arjo could result in increased electromagnetic emissions or decreased electromagnetic
immunity of this equipment and result in improper operation.
Guidance and Manufacturer’s Declaration -
Electromagnetic Emissions - For all Equipment and Systems
The Wall Mounted Battery Charger is intended for use in the electromagnetic environment
indicated below. The customer or the user of the Wall Mounted Battery Charger should assure
that it is used in such an environment.
Emissions test Compliance Electromagnetic environment - guidance
RF emissions
CISPR 11 Group 1
The Wall Mounted Battery Charger uses RF energy only
for its internal function. Therefore, its RF emissions are
very low and are not likely to cause any interference in
nearby electronic equipment.
RF emissions
CISPR 11 Class B
The Wall Mounted Battery Charger is suitable for use in all
establishments, including domestic establishments and
those directly connected to the public low-voltage power
supply network that supplies buildings used for domestic
purposes.
Harmonic
emissions
IEC 61000-3-2
Class A
Voltage
fluctuations / flicker
emissions
IEC 61000-3-3
Complies

9
Electromagnetic Compatibility
001-24257-EN rev. 4
Electromagnetic Immunity
Guidance and Manufacturer’s Declaration -
Electromagnetic Immunity - For all Equipment and Systems
The Wall Mounted Battery Charger is intended for use in electromagnetic environment
specified below. The customer or the user of the Wall Mounted Battery Charger should assure
that it is used in such an environment.
Immunity test IEC 60601 test
level
Compliance
level
Electromagnetic environment -
guidance
Electrostatic
discharge
(ESD)
IEC 61000-4-2
±8 kV contact
±15 kV air
±8 kV contact
±15 kV air
Floors should be wood, concrete or
ceramic tile. If floors are covered with
synthetic material, the relative
humidity should be at least 30%.
Electrical fast
transient / burst
IEC 61000-4-4
±2 kV, AC Mains
100 kHz repetition
frequency
±2 kV, AC Mains
100 kHz
repetition
frequency
Mains power quality should be that of
a typical commercial or hospital
environment.
Surge
IEC 61000-4-5
±2 kV AC Mains,
Lines to Ground
±1 kV, AC Mains,
Line to Line
±2 kV AC Mains,
Lines to Ground
±1 kV, AC Mains,
Line to Line
Mains power quality should be that of
a typical commercial or hospital
environment.
Voltage dips,
short
interruptions
and voltage
variations on
power supply
input lines
IEC 61000-4-11
0% UT; 0,5 cycle
At 0°, 45°, 90°,
135°, 180°, 225°,
270° and 315°
0% UT; 1 cycle
and
70% UT; 25/30
cycles
Single phase: at 0°
0% UT; 250/300
cycle
0% UT; 0,5 cycle
At 0°, 45°, 90°,
135°, 180°, 225°,
270° and 315°
0% UT; 1 cycle
and
70% UT; 25/30
cycles
Single phase: at 0°
0% UT; 250/300
cycle
Mains power quality should be that of
a typical commercial or hospital
environment.
Power
frequency (50 /
60 Hz)
magnetic field
IEC 61000-4-8
30 A / m
50/60 Hz
30 A / m
50/60 Hz
Power frequency magnetic fields
should be at levels characteristic of a
typical location in a typical
commercials or hospital environment.
NOTE: UT is the AC mains voltage prior to application of the test level.

Electromagnetic Compatibility
10
001-24257-EN rev. 4
(continued)
Guidance and Manufacturer’s Declaration -
Electromagnetic Immunity - For all Equipment and Systems
Immunity test IEC 60601 test level Compliance level
Electromagnetic
environment -
guidance
Conducted RF
IEC 61000-4-6
3 V outside ISM bands
between 0.15-80 MHz
6 V inside ISM and
amateur radio bands
between 0.15-80 MHz
3 V outside ISM bands
between 0.15-80 MHz
6 V inside ISM and
amateur radio bands
between 0.15-80 MHz
N/A
Radiated RF
IEC 61000-4-3
10 V/m
80 MHz to 2.7 GHz
10 V/m
80 MHz to 2.7 GHz N/A
Proximity fields
from RF wireless
communications
equipment
IEC 61000-4-3
380 - 390 MHz
27 V/m; PM 50%; 18 Hz
430 - 470 MHz
28 V/m; (FM ±5 kHz,
1 kHz sine) PM; 18 Hz
800 - 960 MHz
28 V/m; PM 50%; 18 Hz
1700 - 1990 MHz
28 V/m; PM 50%; 217 Hz
2400 - 2570 MHz
28 V/m; PM 50%; 217 Hz
5100 - 5800 MHz
9 V/m; PM 50%; 217 Hz
704 - 787 MHz
9 V/m; PM 50%; 217 Hz
380 - 390 MHz
27 V/m; PM 50%; 18 Hz
430 - 470 MHz
28 V/m; (FM ±5 kHz,
1 kHz sine) PM; 18 Hz
800 - 960 MHz
28 V/m; PM 50%; 18 Hz
1700 - 1990 MHz
28 V/m; PM 50%; 217 Hz
2400 - 2570 MHz
28 V/m; PM 50%; 217 Hz
5100 - 5800 MHz
9 V/m; PM 50%; 217 Hz
704 - 787 MHz
9 V/m; PM 50%; 217 Hz
N/A

ZZZDUMRFRP
$8675$/,$
$UMR$XVWUDOLD3W\/WG
)RUV\WK6WUHHW
2¶&RQQRU
$8:HVWHUQ$XVWUDOLD
7HO
)UHH
)D[
%(/*,48(%(/*,É
$UMR196$
(YHQEURHNYHOG
%((53(0(5(
7pO7HO
)D[
(PDLOLQIREHOJLXP#DUMREH
%5$6,/
$UMR%UDVLO(TXLSDPHQWRV0pGLFRV/WGD
5XD0DULQD&LXIXOL=DQIHOLFH3%*DOSmR
/DSD
6mR3DXOR±63±%UDVLO
&(3
3KRQH
(PDLOYHQGDVODWDP#DUMRFRP
(PDLOVHUYLFLRVODWDP#DUMRFRP
&$1$'$
$UMR&DQDGD,QF
0DWKHVRQ%RXOHYDUG:HVW
6XLWH
&$0,66,66$8*$21/55
7HO7pO
)UHH,QVWLWXWLRQDO
)UHH+RPH&DUH
)D[
(PDLOLQIRFDQDGD#DUMRFRP
ý(6.È5(38%/,.$
$UMR&]HFK5HSXEOLFVUR
1D6WU]L
3UDKD
&]HFK5HSXEOLF
3KRQH1R
HPDLOLQIRF]#DUMRFRP
'$10$5.
$UMR$6
9DVVLQJHU¡GYHM
'./<1*(
7HO
)D[
(PDLO
GNBNXQGHVHUYLFH#DUMRFRP
'(876&+/$1'
$UMR*PE+
3HWHU6DQGHU6WUDVVH
'(0$,1=.$67(/
7HO
)D[
(PDLOLQIRGH#DUMRFRP
(63$f$
$UMR,EpULFD6/
3DUTXH(PSUHVDULDO5LYDV)XWXUD&0DULH
&XULH
(GLILFLR$OID3ODQWDRILFLQD
(65LYDV9DFLD0$'5,'
7HO
)D[
(PDLOLQIRHV#DUMRFRP
)5$1&(
$UMR6$6
$YHQXH$OFLGHGH*DVSHUL
&6
)5521&4&('(;
7pO
)D[
(PDLOLQIRIUDQFH#DUMRFRP
+21*.21*
$UMR+RQJ.RQJ/LPLWHG
5RRP)0DQKDWWDQ&HQWUH
.ZDL&KHRQJ5RDG.ZDL&KXQJ17
+21*.21*
7HO
)D[
,7$/,$
$UMR,WDOLD6S$
9LD*LDFRPR3HURQL
,7520$
7HO
)D[
(PDLO,WDO\SURPR#DUMRFRP
0,''/(($67
$UMR0LGGOH(DVW)=//&
2IILFHWK)ORRU
+4%XLOGLQJ1RUWK7RZHU
'XEDL6FLHQFH3DUN
$O%DUVKD6RXWK
32%R['XEDL
8QLWHG$UDE(PLUDWHV
'LUHFW
)D[
(PDLO,QIR0(#DUMRFRP
1('(5/$1'
$UMR%9
%LH]HQZHL
0%7,(/
3RVWEXV
+&7,(/
7HO
)D[
(PDLOLQIRQO#DUMRFRP
1(:=($/$1'
$UMR/WG
9HVWH\'ULYH
0RXQW:HOOLQJWRQ
1=$8&./$1'
7HO
)UHH&DOO
)D[
(PDLOQ]LQIR#$UMRFRP
125*(
$UMR1RUZD\$6
2ODI+HOVHWVYHL
126/2
7HO
)DNV
(PDLOQRNXQGHVHUYLFH#DUMRFRP
g67(55(,&+
$UMR*PE+
/HPE|FNJDVVH6WLHJH$2*
$:LHQ
7HO
)D[
32/6.$
$UMR3ROVND6S]RR
XO.V3LRWUD:DZU]\QLDND
3/.20251,.,3R]QDĔ
7HO
)D[
(PDLODUMR#DUMRFRP
32578*$/
$UMRHP3RUWXJDO
0$48(73RUWXJDO/GD
'LVWULEXGRU([FOXVLYR
5XD3RHWD%RFDJHQ*
37/LVERD
7HO
)D[
(PDLO3RUWXJDO#DUMRFRP
68,66(6&+:(,=
$UMR$*
)DEULNVWUDVVH
3RVWIDFK
&++b*(1'25)
7pO7HO
)D[
6820,
$UMR6FDQGLQDYLD$%
5LLKLWRQWXQWLH&
(VSRR
)LQODQG
3XK
(PDLO$VLDNDVSDOYHOXILQODQG#DUMRFRP
69(5,*(
$UMR,QWHUQDWLRQDO+4
+DQV0LFKHOVHQVJDWDQ
6(0$/0g
7HO
)D[
(PDLONXQGVHUYLFH#DUMRFRP
81,7('.,1*'20
$UMR8.DQG,UHODQG
+RXJKWRQ+DOO3DUN
+RXJKWRQ5HJLV
8.'8167$%/(/8;)
7HO
)D[
(PDLOVDOHVDGPLQ#DUMRFRP
86$
$UMR,QF
:/DNH6WUHHW6XLWH
86$GGLVRQ,/
7HO
)UHH,QVWLWXWLRQDO
)UHH+RPH&DUH
)D[
(PDLOXVLQIR#DUMRFRP
JAPAN
$UMR-DSDQ..
ᶡӜ䜭⑟㱾ɖ䮰йбⴞ⮚ǂɱɻɏȫɋ
ȷㅜ  㱾ɖ䮰ɛɳ  䲾
䴫䂡˖
$GGUHVVSDJH5(9

At Arjo, we are committed to improving the everyday lives of people affected by reduced mobility and age-related health challenges.
With products and solutions that ensure ergonomic patient handling, personal hygiene, disinfection, diagnostics, and the effective
prevention of pressure ulcers and venous thromboembolism, we help professionals across care environments to continually raise
WKHVWDQGDUGRIVDIHDQGGLJQL¿HGFDUH(YHU\WKLQJZHGRZHGRZLWKSHRSOHLQPLQG
ArjoHuntleigh AB
Hans Michelsensgatan 10
211 20 Malmö, Sweden
www.arjo.com
