Enelion Vertica User manual

Enelion
VERTICA
Manual for Enelion VERTICA Modules,
Enelion VERTICA Pole and
accessories.
Enelion sp. z o.o.
[email protected]

Copyright, Enelion sp. z o.o.
The manual may change as the product develops.
The information provided may not be correct.
All rights reserved.
Revision: V 6.1
Number of pages: 48
Released: 18.01.2024
Congratulations on the purchase of the Enelion charger and thank you for your trust.
Before the installation, make sure that the module packages contain all the elements. Current version of the
operation manual can be accessed at: https://enelion.com/en/support/
See the contents of the manual before initiating any activities related to the installation or the activation of the
charger.

01 - 2024
3
Vertica - assembly manual
Contents
1. Important information 5
1.1. General Provisions 5
1.2. Safety instructions 6
2. General information 7
2.1. Additional functions 7
2.2. Enelion VERTICA Pole 7
2.2.1. Opening and closing of the device 7
2.3. Enelion VERTICA Module 9
2.3.1. Enelion VERTICA Module with a socket 9
2.3.2. Enelion VERTICA module with a cable 9
2.3.3. Assembly and disassembly of Enelion VERTICA Modules 10
3. Design guidelines for installation 12
3.1. Power network systems for charging stations 12
3.2. Recommendation for electrical connection 13
3.3. Equipping with accessories and electrical connections. 13
3.4. Equipping with accessories and electrical connections 14
3.4.1. Connection type diagrams 15
3.4.2. Pictorial diagrams of Enelion VERTICA Modules 17
4. Foundation 19
4.1. Enelion prefabricated foundation 19
4.1.1. Construction of the foundation applying the Enelion prefabricated element 19
4.2. Appropriate existing foundation 20
4.2.1. Preparation of the existing foundation 20
4.3. Enelion foundation set 21
4.3.1. Construction of the foundation using the Enelion foundation set 21
5. Installation of Enelion VERTICA Pole 24
5.1. Preparation for installation 24
5.1.1. Standard connection 26
5.1.2. Enelion MID Add-on 26
5.1.3. Enelion Chain Add-on 29
5.2. Internet connection via Ethernet interface in the LAN 31
5.2.1. Add-on – Enelion VERTICA Splitter with an additional meter and residual current protection
31

01 - 2024
Vertica - assembly manual
4
5.3. Installation of Enelion VERTICA bottom maskingpanels 33
6. Installation of the Enelion VERTICA Module 34
6.1. Preparation for installation of the Enelion VERTICA Module with socket 34
6.2. Preparation for installation of the Enelion VERTICA Module with a cable 34
6.3. Installation of accessories 35
6.3.1. Enelion Bridge 35
6.3.2. Enelion RCMB 36
6.3.3.EnelionModułLTE 37
6.4. Activation and use 39
7. Maintenance 40
7.1. Cleaning 40
8. Technical data 41
8.1. Enelion VERTICA Pole 41
8.2. Enelion VERTICA Module with a socket 42
8.3. Enelion VERTICA Module with a cable 43
9. Technical description 44
9.1. Formwithboxestollin 44

01 - 2024
5
Vertica - assembly manual
1.Important information
1.1. General Provisions
The Enelion charger (here in after referred to as the
device, charger, or charging terminal) is a charging
station designed for electric vehicle charging within
the meaning of the ‘Act on Electromobility and Alter-
native Fuels’ dated January 11, 2018, in paragraphs 5,
12, 13, and 27 of Article 2 of the aforementioned act.
The installation and servicing of the device must be
carriedoutbyqualiedandauthorizedindividuals,
and repairs may only be performed by the manu-
facturerorentitiesauthorizedbythemanufacturer.
Duringthewarrant yperiod,onlyauthorizedservice
centers and the manufacturer are allowed to perform
warranty repairs.
Interference with mechanical, electrical, and elec-
tronic components, as well as the device’s software,
is strictly prohibited and may void the warranty.
Exceptions are actions described in the following
instruction manual or those agreed upon in writing
with the manufacturer.
The manufacturer is not responsible for property
damage resulting from prohibited interference with
the product.
The electrical installation to be used during device
operation must meet the conditions described in
the installation manual. The manufacturer is not
responsible for incorrect execution and/or protec-
tion of the electrical installation to which the device
is connected.
The manufacturer is not responsible for the improper
functioning of the electrical installation to which the
device is connected.
The electrical installation to be used during device
operation must comply with the legal standards
applicable at the installation and operation location
of the device.
The manufacturer is not responsible for damages
caused by an electrical installation that does not
comply with legal standards.
The device does not have a built-in power switch.
The device is activated when the power supply volt-
age is applied. Power disconnection must be ensured
by appropriate devices in the electrical installation
described in the installation manual. Except in emer-
gency situations, the device should not be switched
Important information
oduringthechargingprocess.
It is prohibited to power on the device when the
device housing is open.
It is prohibited to use a charger that is mechanically
damaged or indicates a critical error.
Objects not intended for this purpose must not be
placed in the charger socket. The only object intended
for insertion into the charger socket is a functional
power cable with the appropriate power and type
for the electric vehicle, terminated with a functional
type 2 plug according to EC 621962.
The use of extension cords, adapters, and charging
cable extensions is prohibited.
The manufacturer is not responsible for loss of health
or life resulting from non-compliance with the above
recommendations.
During the warranty period, the manufacturer allows
the purchase of support packages for the device
(extended warranty/service) subject to a qualifying
review before purchasing the package. Details can
be obtained from the Enelion sales department.
The charging station does not support ventilation
functions.
The nameplate present on the device is an integral
part of it and must not be removed or damaged,
as this may result in the loss of the manufacturer’s
warranty.
Fig. 1: Example of info plate
i INFO
Three self-adhesive labels with information
about the current value have been included
in the set. Please select the appropriate one
accordingtothespecicationsandaxitnext
to the nameplate.

01 - 2024
Vertica - assembly manual
6
1.2. Safety instructions
Do not carry out external installation during atmo-
spheric precipitation or strong winds if there is a risk
of water or contaminants entering the device.
All actions described in this manual should be per-
formed after ensuring that there is no voltage in the
power cable.
If any damage to components such as the socket,
chargingcable,plug,plugholder,oranyotherxed/
permanent component is observed, it should be
reported to the charging station operator.
Important information

01 - 2024
7
Vertica - assembly manual
2. General information
ENELIONVERTICAisamodularchargingstationfor
electriccars,whichconsistsofENELIONVERTICAPole
as a casing, Enelion VERTICA Modules involved in the
charging process and optional addons and accessories.
Themodulardesignfacilitatesaneasymodication
of the functions of the device by replacing or adding
charging modules and accessories to best suit cus-
tomers’ needs. Preparation for use depends on the
selected machine functions of the device.
2.2. Enelion VERTICA Pole
Enelion VERTICA Pole is a necessary part of the device.
Enelion VERTICA Modules are installed in it, which
are the executive part of the charging process. It is
available in 2 colors: silver and black.
i INFO
For more information, please refer to the User
Manual. It contains detailed information about
the functionality and use of the device.
2.1. Additional functions
All Enelion charging stations are compatible with the
original Enelion Chain communication protocol, which
enables operation in the local network of chargers. This
enablestheEnelionDLBfunctiontobeactivated
for dynamic load balancing, reducing the number
of devices that require an Internet connection and
optimizingtheuseofpowerinchargingvehicles.
AllEneliondevicescanalsobettedwiththeEnelion
Bridge (an add-on sold separately), which equips the
devices with smart functions and facilitates their
connection to a remote management system (OCPP
1.6 compliant) via the Internet.
Fig. 2: Enelion Enelion VERTICA charging station.
2.2.1. Opening and closing of the device
Enelion VERTICA Pole structure secures the access
to the interior of the device. Before performing any
operations on the device, open the Enelion VERTICA
Pole according to the instructions.
Fig. 3: Enelion VERTICA Pole without the charging
modules installed.

01 - 2024
Vertica - assembly manual
8
1. Using the Torx Security T25 bit provided, un-
screw the device cover bolts. They are located on
both sides of the device. Put the cover in a safe
place where it will not be exposed to damage.
Fig. 4: Removing the cover of the Enelion VERTICA
Pole.
Fig. 5: Unlocking the lock plate.
Fig. 6: Removing the lock plate.
i INFO
In order to close the Enelion VERTICA Pillar,
perform all steps in reverse order.
i INFO
Closing and opening of the Enelion VERTICA Pole
does not change depending on the presence of
Enelion VERTICA Modules in the device.
2. Unlock the lock plate with the key (if there is a
Yale lock). Next, using the 5 mm Allen key, un-
screw the M6 bolts and remove the lock plate.
3. Dismantle the lock plate by lifting it upwards.
General information

01 - 2024
9
Vertica - assembly manual
Fig. 8: Enelion Enelion VERTICA Module with a
cable.
2.3. Enelion VERTICA Module
2.3.1. Enelion VERTICA Module with a
socket
The Enelion VERTICA module with a socket is a func-
tional part of the charging station.
This module provides a Type 2 socket for charging
vehicles with up to 32A three phase and can be
mounted on either side of the Enelion VERTICA Pole.
ItisequippedwithanOLEDscreendisplayinginstruc-
tions and information about the charging in progress.
Fig. 7: Enelion Enelion VERTICA Module with a
socket.
2.3.2.Enelion VERTICA module with a ca-
ble
The Enelion VERTICA module with a cable is a func-
tional part of the charging station.
The Enelion VERTICA module with a cable is a functional
part of the charging station. This module provides a
charging cable for charging vehicles with up to 32A
three phase and can be mounted on either side of the
EnelionVERTICAPole.ItisequippedwithanOLED
screen displaying instructions and information about
the charging in progress.
General information

01 - 2024
Vertica - assembly manual
10 General information
2.3.3. Assembly and disassembly of Ene-
lion VERTICA Modules
i INFO
To shut down the device, perform all steps in
reverse order.
!WARRING
Enelion VERTICA modules equipped with Enelion
VERTICA link are only compatible with Enelion
VERTICA poles that are equipped with Enelion
VERTICA link modules!
Enelion VERTICA modules equipped with Enelion
VERTICAN are only compatible with Enelion
VERTICA poles that are equipped with Enelion
VERTICAN modules!
Fig. 9: Enelion VERTICA pole equipped with Enelion
VERTICA link module
Fig. 10: Enelion VERTICA pole equipped with
Enelion VERTICA link module

01 - 2024
11
Vertica - assembly manual
Fig. 11: Enelion VERTICA module compatible with a
pole equipped with a Enelion VERTICAN module
1. Open the Enelion VERTICA Pole according to the
instructions in section 2.2.1 Opening and closing
of the device.
2. LiftthemoduleabovetheEnelionVERTICAPole
and place the bottom edge in the guide slot.
Carefully insert the Enelion VERTICA Module into
thepowersocketuntilitstopedgeisushwith
the edge of the Enelion VERTICA Pole.
3. Close the Enelion VERTICA Pole in accordance
with the instruction 2.2.1 Opening and closing of
the device.
Fig. 12: Enelion VERTICA module compatible with a
pole equipped with a Enelion VERTICA link module
Fig. 13: Assembly of Enelion VERTICA Modules
General information

01 - 2024
Vertica - assembly manual
12
3. Design guidelines for installation
3.1. Power network systems for charging
stations
Enelionchargingstationsareadaptedforve-wire
power supply. In a TN-S 230/400V network, this is
the standard option.
It is possible to supply power to the stations from
other network systems described below:
In the TN-C system, you should separate the PEN con-
ductor into N and PE, as shown in the diagram below.
In the case of an IT network 120/230V, which is present
in Norway, the connection looks as follows. Please note
that one of the phases serves as the Neutral conduc-
tor; this is important during RCD installation. In such
a network, it is not possible to charge in 3 phases;
only some vehicles will be able to charge in 2 phases.
Design guidelines for installation
L1
L2
L3
N
PE
L1 L2 L3 N PE
EVSE
RCD
MCB
Generator or transformer
Grounding
TN-S 230/400 V
Phase-Phase
400 V
Phase-N
230 V
L1
L2
L3
N
L1 L2 L3 N PE
EVSE
RCD
MCB
Generator or transformer
Grounding Grounding
TT 230/400 V
Phase-Phase
400 V
Phase-N
230 V
Grounding
Phase-Phase
400 V
Phase-N
230 V
L1
L2
L3
PEN
Load
Generator or transformer
L1 L2 L3 N PEN
TN-C
L1
L2
L3
N
L1 L2 L3 N PE
EVSE
RCD
MCB
Generator or transformer
Grounding Grounding
PE
PEN
TN-C-S 230/400 V
Phase-Phase
400 V
Phase-N
230 V

01 - 2024
13
Vertica - assembly manual
Design guidelines for installation
i INFO
In the case of the Enelion Splitter block, the
standard cross-section of the Cu (copper) con-
ductor is 16 mm². Upon customer request, the
maximum cross-section of the Cu/Al (copper/
aluminum) conductor can be 50 mm²
3.2. Recommendation for electrical con-
nection
Enelion VERTICA Charging Stations are designed for
ave-wirepowersupplyinaTN-Snetwork.Inthe
standardinstallationconguration,eachEnelion
VERTICA Module should be powered by a separate
cable from the distribution board. The distribution
board should have the required protection in the form
of a circuit breaker with characteristics B or C and a
rated current of 32A or less, suitable for the device
conguration.TodeclarecompliancewiththePN-EN
IEC 61851-1:2019-10 standard, each charging point
must also be individually protected against both Type

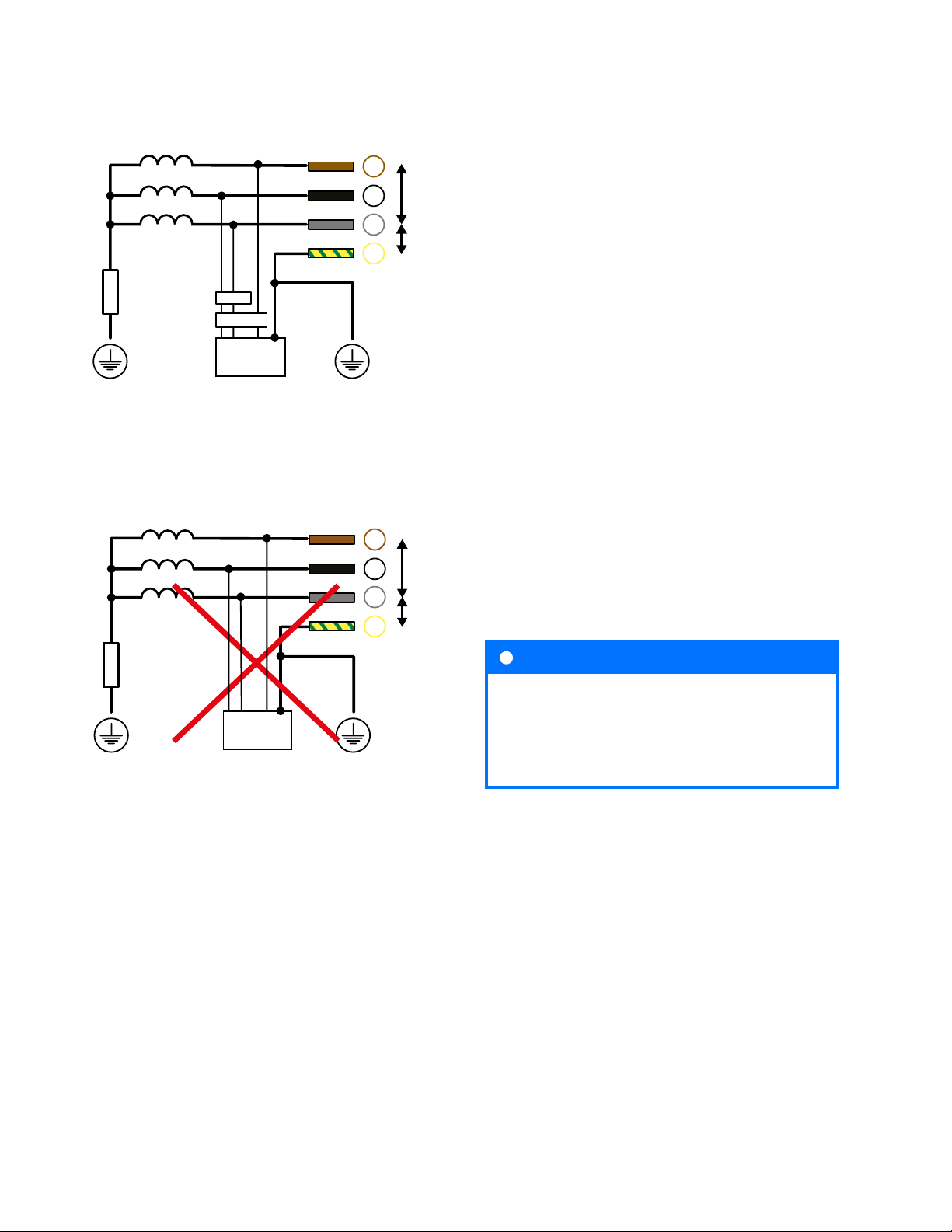

It is not possible to power the stations from an IT
network 230/400V.
Other, more complex power supply systems require
technical consultation before purchase.”
A and Type B residual currents. This requirement can
be met by installing a Type B residual current circuit
breaker (RCDB 30mA/40 A) or an RCD EV (30 mA/40A)
in the distribution board at your own discretion. The
nalselectionofprotectiveequipmentshouldbe
madebyaqualieddesignerorelectrician.
Another recommended and more economical solu -
tion is to install an RCDB circuit breaker purchased
togetherwiththeequipmentfromENELION.Thereis
alsoanoptiontousetheENELIONRCMBaccessory-
Residual Current Monitor Type B - see subsection 6.3.2
ENELIONRCMB.ENELIONRCMBprotectsthestation
and, when used with RCDA in the distribution board,
meets all safety requirements. In case it is necessary
to power a pillar with two charging modules using a
single cable, you should use the accessory - Enelion
VERTICA Splitter, described in Chapter 5 Installation of
Enelion VERTICA Pillar - allowing for a safe branching
of the power supply to two charging panels inside the
EnelionVERTICAPillar.TheENELIONSplitteracces-
sory includes a distribution strip, two B32 overload
protections, a set of cables, and mounting elements.
The entire assembly is mounted on the included TS35
rails at the bottom of the Enelion VERTICA Pillar. Please
remember to protect each Enelion VERTICA Module
with a residual current circuit breaker with character-
istics described above. The cross-section of the power
cables must be selected based on.
3.3. Equipping with accessories and elec -
trical connections.
Due to the modular construction of the Enelion VERTICA
Charging Station, the method of electrical connection
depends on the accessories used. Additionally, to
implement certain device functions, connection with
established phase rotation is required. The electrical
connection of the Enelion VERTICA Pillar is typically
made with two separate cables, each of 5 x 6 mm².
These cables are inserted into a four-pole terminal
block(L,L,L,N),andthegroundingcable(PE)isdirectly
attached with an insulated eyelet terminal (6 mm², M5
mounting) to the aluminum structure. The use of a
dedicated crimping tool for insulated connectors is
required. Cables of the cable type must be terminated
withanappropriate-sizedinsulatedferrule.
L1
L2
L3
L1 L2 L3 N PE
EVSE
RCD
MCB
Generator or transformer
Grounding Grounding
PE
High Z
IT 120/230V
Phase-Phase
230 V
Phase-PE
120 V
L1
L2
L3
Generator lub transformer
Grounding Grounding
PE
High Z
IT 230/400 V - NOT ALLOWED !!!
Phase-Phase
400 V
Phase-PE
230 V
L1 L2 L3 N PE
EVSE

01 - 2024
Vertica - assembly manual
14
attached with an insulated eyelet terminal (6 mm², M5
mounting) to the aluminum structure. The use of a
dedicated crimping tool for insulated connectors is
required. Cables of the cable type must be terminated
withanappropriate-sizedinsulatedferrule.///Location
selection criteria /// Enelion VERTICA can be installed
both externally and internally.
The device is designed for installation near parking
spaces for electric vehicles. When used in areas at
risk of collision with a vehicle, the structure should be
protected with suitable bumpers painted with yellow
and black stripes (warning of the width). It should
benotedthatnationalregulationsmaydenethe
installation space. The device should not be placed
in areas with intense sunlight that could cause over-
heating. Installation near heat sources or in small
enclosed spaces (e.g., boxes) is not recommended.
The installation of a power cable that does not comply
with the guidelines in section 3.1 “Recommendation
for electrical connection” is prohibited.
Theinstallationofthedeviceinexplosion-hazardous
zonesisprohibited.
Localregulationsregardingelectricalinstallations,
repreventionmeasures,accidentprevention,and
evacuation routes at the installation site must be
considered.
The installation of the device in locations exposed
to falling objects that could damage the charger is
prohibited.
Before installation, ensure that there is a minimum of
one meter of free space above the charger’s outline.
After installation, also ensure that no permanently
mounted objects (e.g., advertising boards, road signs,
etc.) appear in the space above the device’s outline. This
space is necessary for servicing the charging station.
!WARNING
The manufacturer is not responsible for dam-
age resulting from non-compliance with the
above-mentioned recommendations.
3.4. Equipping with accessories and elec -
trical connections
Due to the modular design of the Enelion VERTICA
Charging Station, the method of electrical connection
depends on the accessories used. Additionally, to
implement certain device functions, connection with
established phase rotation is required. The electrical
connection of the Enelion VERTICA Pillar is typically
made with two separate cables, each of 5 x 6 mm².
These cables are inserted into a four-pole terminal
block(L,L,L,N),andthegroundingcable(PE)isdirectly
i INFO
The Enelion VERTICA Pillar mounting system
allows it to be rotated in the vertical axis by
multiples of 90 degrees.
Design guidelines for installation

01 - 2024
15
Vertica - assembly manual
Design indications of the installation
3.4.1. Connection type diagrams
Fig. 14: Connection types part 1/2

01 - 2024
Vertica - assembly manual
16 Design indications of the installation
Fig. 15: Connection types part 2/2.

01 - 2024
17
Vertica - assembly manual
Design indications of the installation

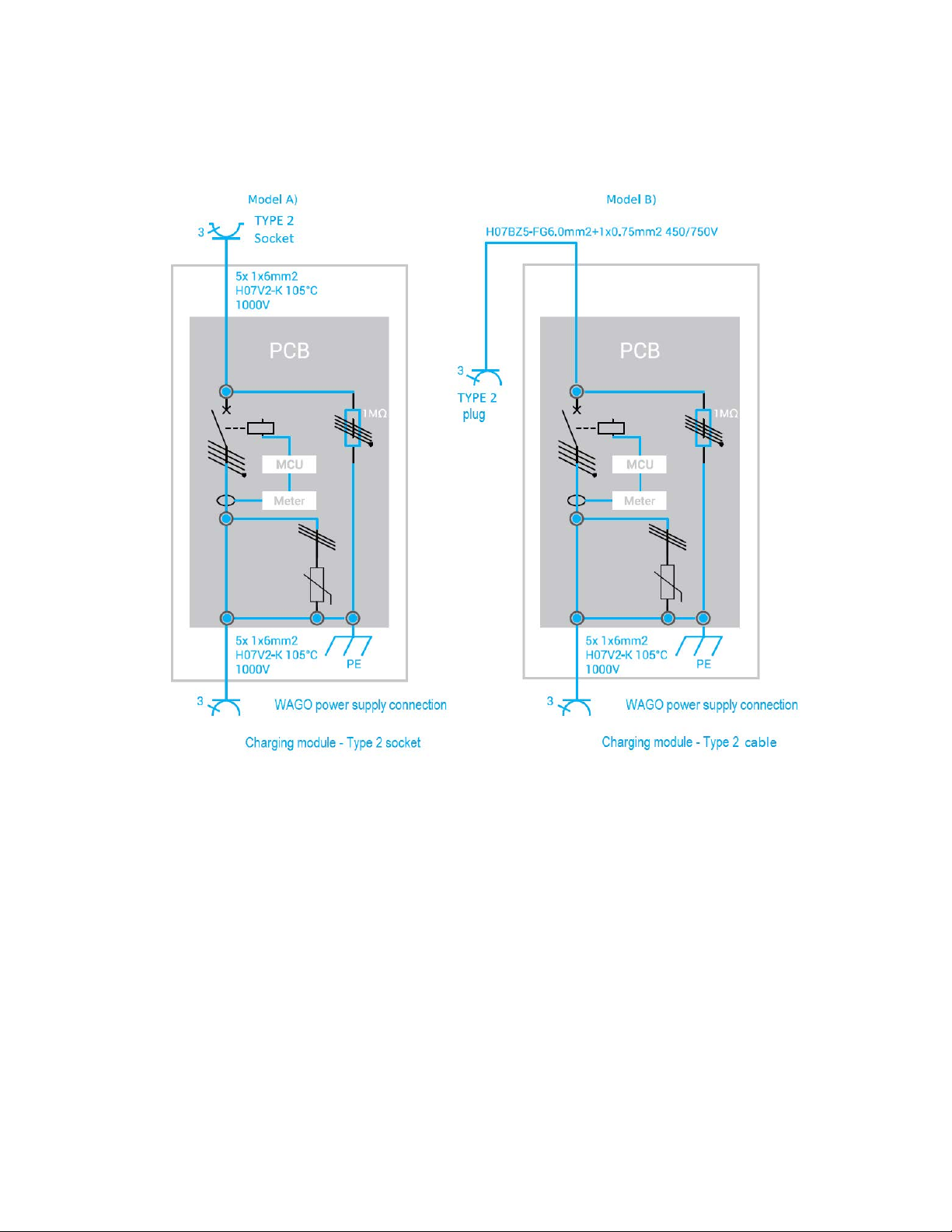

Fig. 16: Pictorial diagrams of Enelion VERTICA Modules part 1/2.
3.4.2. Pictorial diagrams of Enelion VERTICA Modules

01 - 2024
Vertica - assembly manual
18 Design indications of the installation
Fig. 17: Pictorial diagrams of Enelion VERTICA Modules part 2/2.

01 - 2024
19
Vertica - assembly manual
4. Foundation
Enelion VERTICA Pole can be installed in three ways:
• onacustomized Enelion prefabricated foun-
dation,
• on an appropriate existing foundation with
the use of additional mounting bolts,
• using the Enelion foundation set.
4.1. Enelion prefabricated foundation
ThecustomizedEnelionprefabricatedfoundation
enables shortening the assembly period by eliminating
the need to wait for the concrete to cure.
Fig. 19: Diagram of the foundation excavation.
Fig. 20: Placing the prefabricated element in the
excavation.
The foundation set consists of:
• 1 x prefabricated foundation,
• 8 x washers,
• 8 x M12 nuts.
4.1.1. Construction of the foundation ap-
plying the Enelion prefabricated el-
ement
Fig. 18: Enelion prefabricate foundation.
2. An excavation of over 400 mm x 600 mm (diam-
eter x depth) or 400 mm x 400 mm x 600 mm
(width x length x depth) should be made. Com-
pact the soil directly under the foundation to the
compaction index of at least 0.97.
3. Thread all the required cables through the cable
ducts of the prefabricated foundation. Place the
prefabricated element and plumb it in the trench
at a depth of 0,55 m below the ground level.
1. Remove the M12 nuts and washers from the pre-
fabricated foundation and secure them until Ene-
lion VERTICA Pole has been installed.
Foundation

01 - 2024
Vertica - assembly manual
20

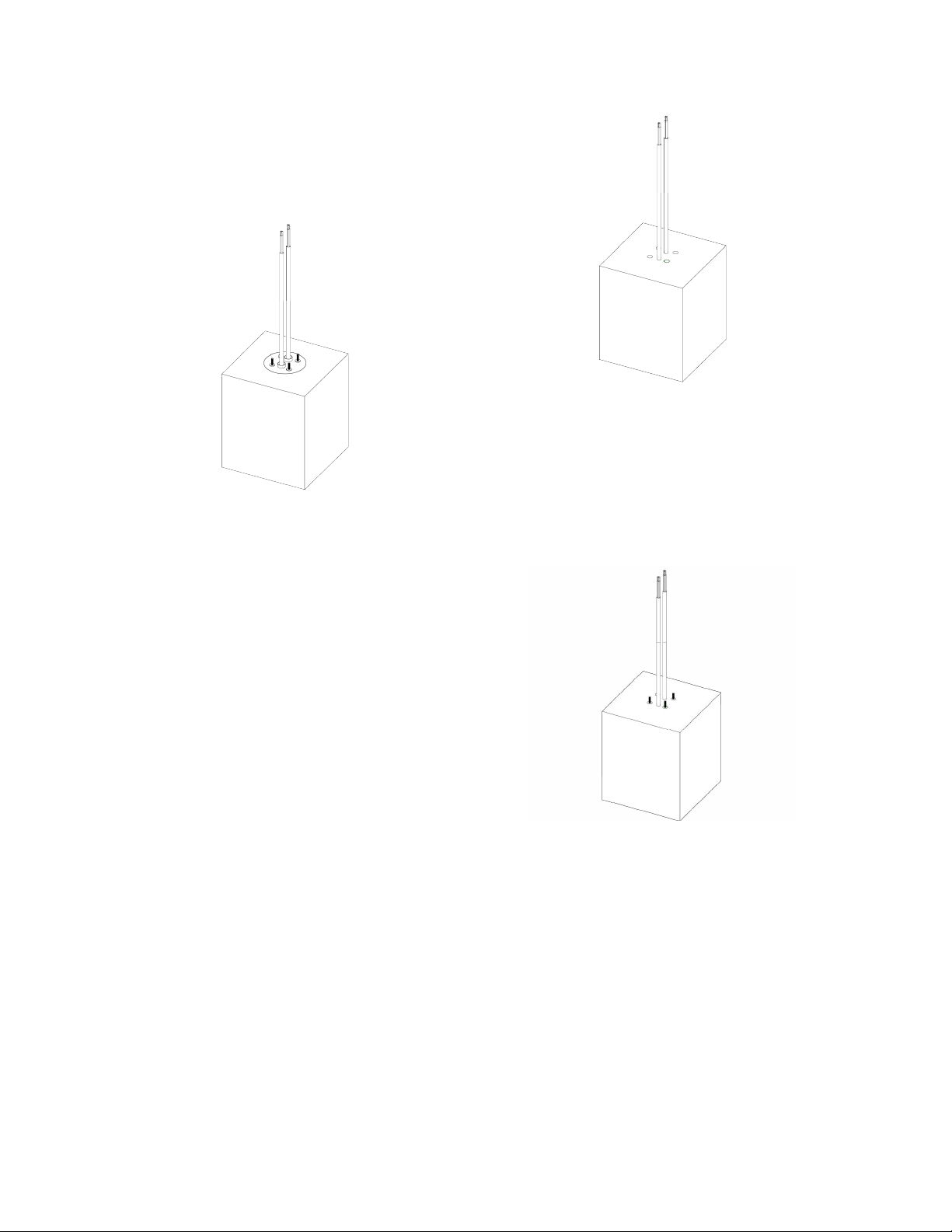

Fig. 21: Properly constructed foundation using the
prefabricated element.
Fig. 23: Properly constructed foundation with the
use of anchors.
The foundation prepared in this way enables the
installation of Enelion VERTICA Pole.
After preparing the anchors according to the instruc-
tions, the installation of Enelion VERTICA Pole may
proceed.
4.2. Appropriate existing foundation
In case there is an existing foundation suitable for
the purpose, equipped with an electrical connection,
meeting the legal and construction requirements, it is
possible to install Enelion VERTICA Pole after ensur-
ing that Enelion VERTICA Pole is properly attached
to the foundation. It is recommended to apply M12
threaded rods.
1. Drill holes for chemical anchor bolting in the
foundation in accordance with the instructions of
the manufacturer of the applied bolting. Install
the anchors in a square of 120 mm x 120 mm. The
cablesmusttintothecablegrommetsofEne-
lion VERTICA Pole.
4.2 .1. Preparation of the existing foundation
Fig. 22: Drilled holes for chemical anchor bolting.
2. Install chemical anchor bolting in accordance
with the instructions of the manufacturer. The
minimum anchorage depth is 110 mm. The in-
stallation should result in the ends of the thread-
ed rods protruding 40 mm to 60 mm above the
foundation surface.
4. Fix the prefabricated element by lling the re-
maining space in the excavation with soil and
compact it to the compaction index of at least
0.97.
Foundation
