ASSEMBLY ISTRUCTIONS SQUAT
RECIRCULATING
ATTENTION:
DO NOT USE FIVE SCREWS INSIDE OF THE KIT.
DO NOT MAKE ANY HOLES IN THE TANK.

ARMAL srI Unipersonale
Società soggetta a direzione e coordinamento di Porta Romana 1 s.r.l.
Via Fiorentina, 109 - 50052 Certaldo (FI)
C.F./P.Iva 03922500487 - Cap.Soc. Euro 10.400,00 i.v. - N° REA FI399675
Phone + 39 0571 665305 - Fax [phone]
[e-mail] - [email protected]mal.biz - www.armal.biz
Assembly Instructions
Squat Recirculating
Rev. 0 dd. 01-07-2013
Sistema Qualità Certificato
Nr. IT248874
ASSEMBLY ISTRUCTIONS SQUAT RECIRCULATING
Prepare the base of bathroom.
Drill the base into the marked zone (see
photo on the left)

ARMAL srI Unipersonale
Società soggetta a direzione e coordinamento di Porta Romana 1 s.r.l.
Via Fiorentina, 109 - 50052 Certaldo (FI)
C.F./P.Iva 03922500487 - Cap.Soc. Euro 10.400,00 i.v. - N° REA FI399675
Phone + 39 0571 665305 - Fax [phone]
[e-mail] - [email protected]mal.biz - www.armal.biz
Assembly Instructions
Squat Recirculating
Rev. 0 dd. 01-07-2013
Sistema Qualità Certificato
Nr. IT248874

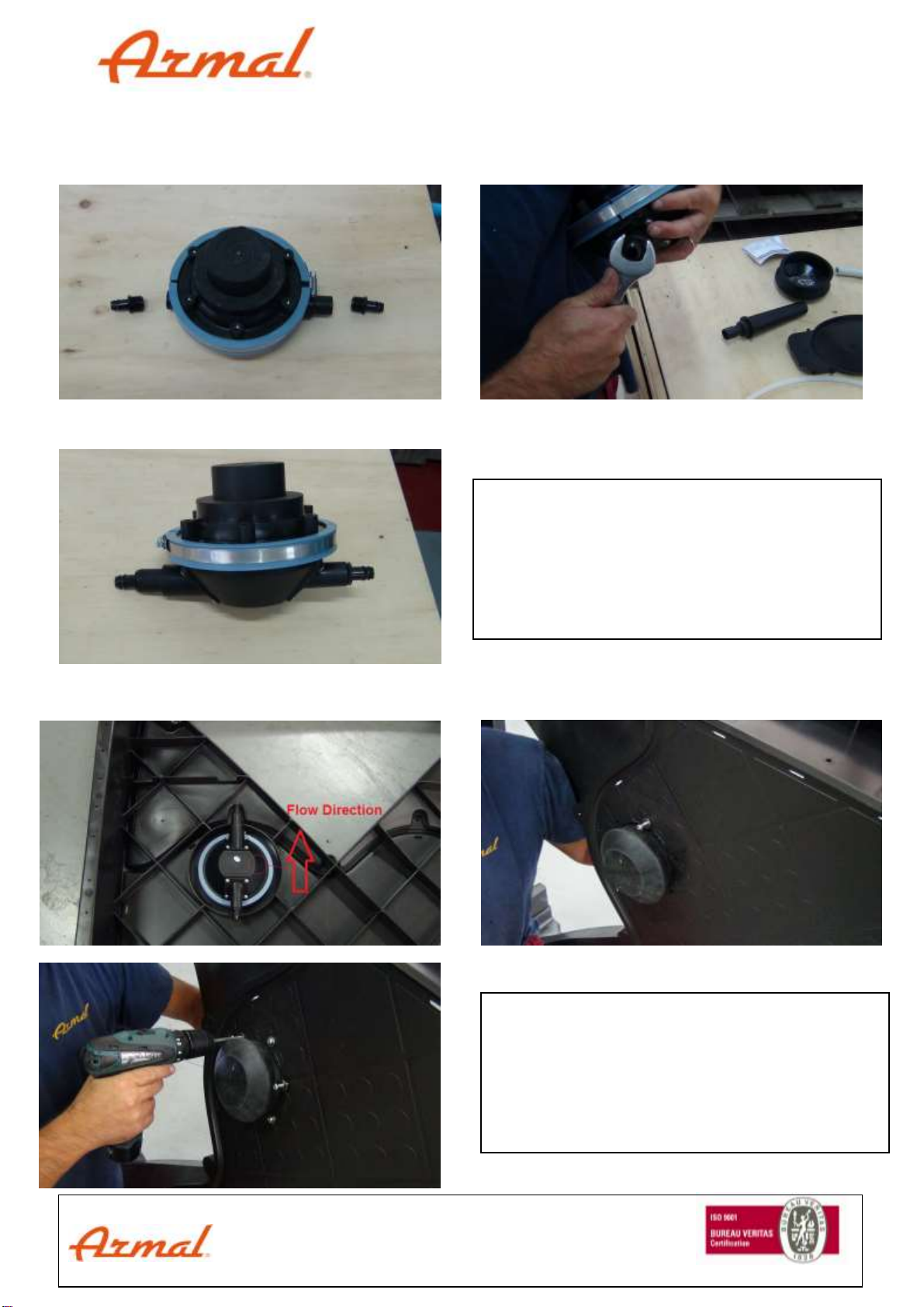

Prepare the foot pump.
Tighten junctions in the pump.
Insert pump in the base (attention of
flow direction)
Fix the pump with the screws.

ARMAL srI Unipersonale
Società soggetta a direzione e coordinamento di Porta Romana 1 s.r.l.
Via Fiorentina, 109 - 50052 Certaldo (FI)
C.F./P.Iva 03922500487 - Cap.Soc. Euro 10.400,00 i.v. - N° REA FI399675
Phone + 39 0571 665305 - Fax [phone]
[e-mail] - [email protected]mal.biz - www.armal.biz
Assembly Instructions
Squat Recirculating
Rev. 0 dd. 01-07-2013
Sistema Qualità Certificato
Nr. IT248874
Assemble the filter with junction and
counterweight.
Assemble one flex tube at filter.
Assemble the flex tube with filter in
aspiration of the pump.

ARMAL srI Unipersonale
Società soggetta a direzione e coordinamento di Porta Romana 1 s.r.l.
Via Fiorentina, 109 - 50052 Certaldo (FI)
C.F./P.Iva 03922500487 - Cap.Soc. Euro 10.400,00 i.v. - N° REA FI399675
Phone + 39 0571 665305 - Fax [phone]
[e-mail] - [email protected]mal.biz - www.armal.biz
Assembly Instructions
Squat Recirculating
Rev. 0 dd. 01-07-2013
Sistema Qualità Certificato
Nr. IT248874
Assemble the other flex tube in
expulsion of pump.
Place the two tube in the corner of
the base.
Drill the Squat in this position (hole
min. 60mm).
Insert the squat in the base of
bathroom.

ARMAL srI Unipersonale
Società soggetta a direzione e coordinamento di Porta Romana 1 s.r.l.
Via Fiorentina, 109 - 50052 Certaldo (FI)
C.F./P.Iva 03922500487 - Cap.Soc. Euro 10.400,00 i.v. - N° REA FI399675
Phone + 39 0571 665305 - Fax [phone]
[e-mail] - [email protected]mal.biz - www.armal.biz
Assembly Instructions
Squat Recirculating
Rev. 0 dd. 01-07-2013
Sistema Qualità Certificato
Nr. IT248874
Attention that the two flex tube are
not mashed.
Insert the two tube in the hole and
place the filter in squat bottom.
Prepare the squat cap.
Fix the right bracket with two rivet
(see the photo)

ARMAL srI Unipersonale
Società soggetta a direzione e coordinamento di Porta Romana 1 s.r.l.
Via Fiorentina, 109 - 50052 Certaldo (FI)
C.F./P.Iva 03922500487 - Cap.Soc. Euro 10.400,00 i.v. - N° REA FI399675
Phone + 39 0571 665305 - Fax [phone]
[e-mail] - [email protected]mal.biz - www.armal.biz
Assembly Instructions
Squat Recirculating
Rev. 0 dd. 01-07-2013
Sistema Qualità Certificato
Nr. IT248874
Fix the left bracket with two rivet (see
the photo)
Insert one nozzle into the
predisposed hole and fix with the
ring.
ATTENTION : insert the gasket
before fixing.

ARMAL srI Unipersonale
Società soggetta a direzione e coordinamento di Porta Romana 1 s.r.l.
Via Fiorentina, 109 - 50052 Certaldo (FI)
C.F./P.Iva 03922500487 - Cap.Soc. Euro 10.400,00 i.v. - N° REA FI399675
Phone + 39 0571 665305 - Fax [phone]
[e-mail] - [email protected]mal.biz - www.armal.biz
Assembly Instructions
Squat Recirculating
Rev. 0 dd. 01-07-2013
Sistema Qualità Certificato
Nr. IT248874

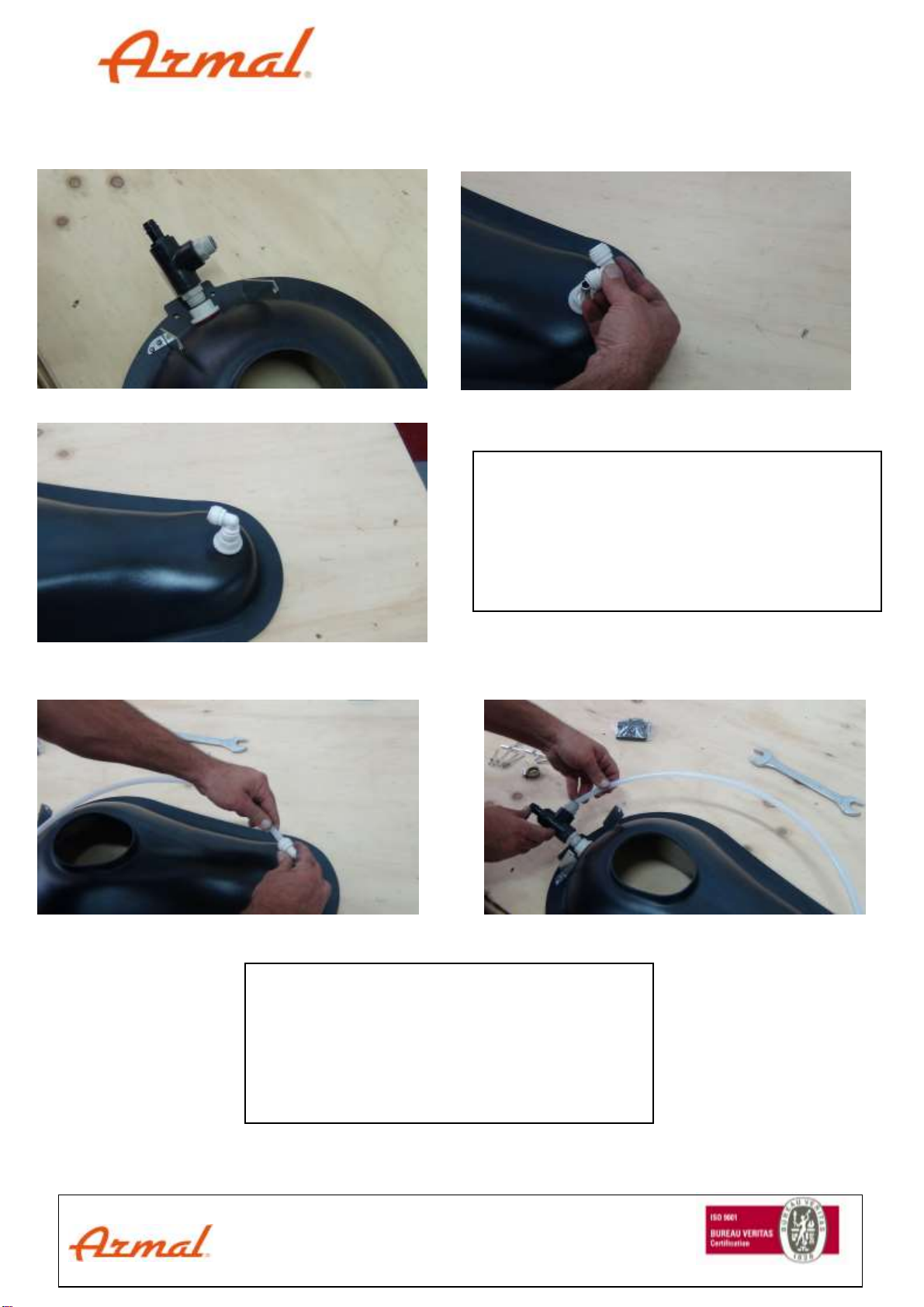

Insert other nozzle into the
predisposed hole and fix with the ring.
ATTENTION : insert the gasket before
fixing.
ATTENTION : check the flow direction
of nozzles (see photo)
Assemble this four components.

ARMAL srI Unipersonale
Società soggetta a direzione e coordinamento di Porta Romana 1 s.r.l.
Via Fiorentina, 109 - 50052 Certaldo (FI)
C.F./P.Iva 03922500487 - Cap.Soc. Euro 10.400,00 i.v. - N° REA FI399675
Phone + 39 0571 665305 - Fax [phone]
[e-mail] - [email protected]mal.biz - www.armal.biz
Assembly Instructions
Squat Recirculating
Rev. 0 dd. 01-07-2013
Sistema Qualità Certificato
Nr. IT248874
Insert this block in the nozzle
positioned in head of the cap.
Insert the curve connection in the
nozzle positioned in tail of the cap.
Connect this two junctions with the
flex tube.

ARMAL srI Unipersonale
Società soggetta a direzione e coordinamento di Porta Romana 1 s.r.l.
Via Fiorentina, 109 - 50052 Certaldo (FI)
C.F./P.Iva 03922500487 - Cap.Soc. Euro 10.400,00 i.v. - N° REA FI399675
Phone + 39 0571 665305 - Fax [phone]
[e-mail] - [email protected]mal.biz - www.armal.biz
Assembly Instructions
Squat Recirculating
Rev. 0 dd. 01-07-2013
Sistema Qualità Certificato
Nr. IT248874
Prepare the paddle
Assemble the paddle and
counterweight with screw.
Insert the paddle into the hole of the
brackets (insert at pression).

ARMAL srI Unipersonale
Società soggetta a direzione e coordinamento di Porta Romana 1 s.r.l.
Via Fiorentina, 109 - 50052 Certaldo (FI)
C.F./P.Iva 03922500487 - Cap.Soc. Euro 10.400,00 i.v. - N° REA FI399675
Phone + 39 0571 665305 - Fax [phone]
[e-mail] - [email protected]mal.biz - www.armal.biz
Assembly Instructions
Squat Recirculating
Rev. 0 dd. 01-07-2013
Sistema Qualità Certificato
Nr. IT248874
Assemble the hinge at the cap with
two rivets.
Fix the free tube at the connection of
the cap, and position the cap into the
squat.

ARMAL srI Unipersonale
Società soggetta a direzione e coordinamento di Porta Romana 1 s.r.l.
Via Fiorentina, 109 - 50052 Certaldo (FI)
C.F./P.Iva 03922500487 - Cap.Soc. Euro 10.400,00 i.v. - N° REA FI399675
Phone + 39 0571 665305 - Fax [phone]
[e-mail] - [email protected]mal.biz - www.armal.biz
Assembly Instructions
Squat Recirculating
Rev. 0 dd. 01-07-2013
Sistema Qualità Certificato
Nr. IT248874

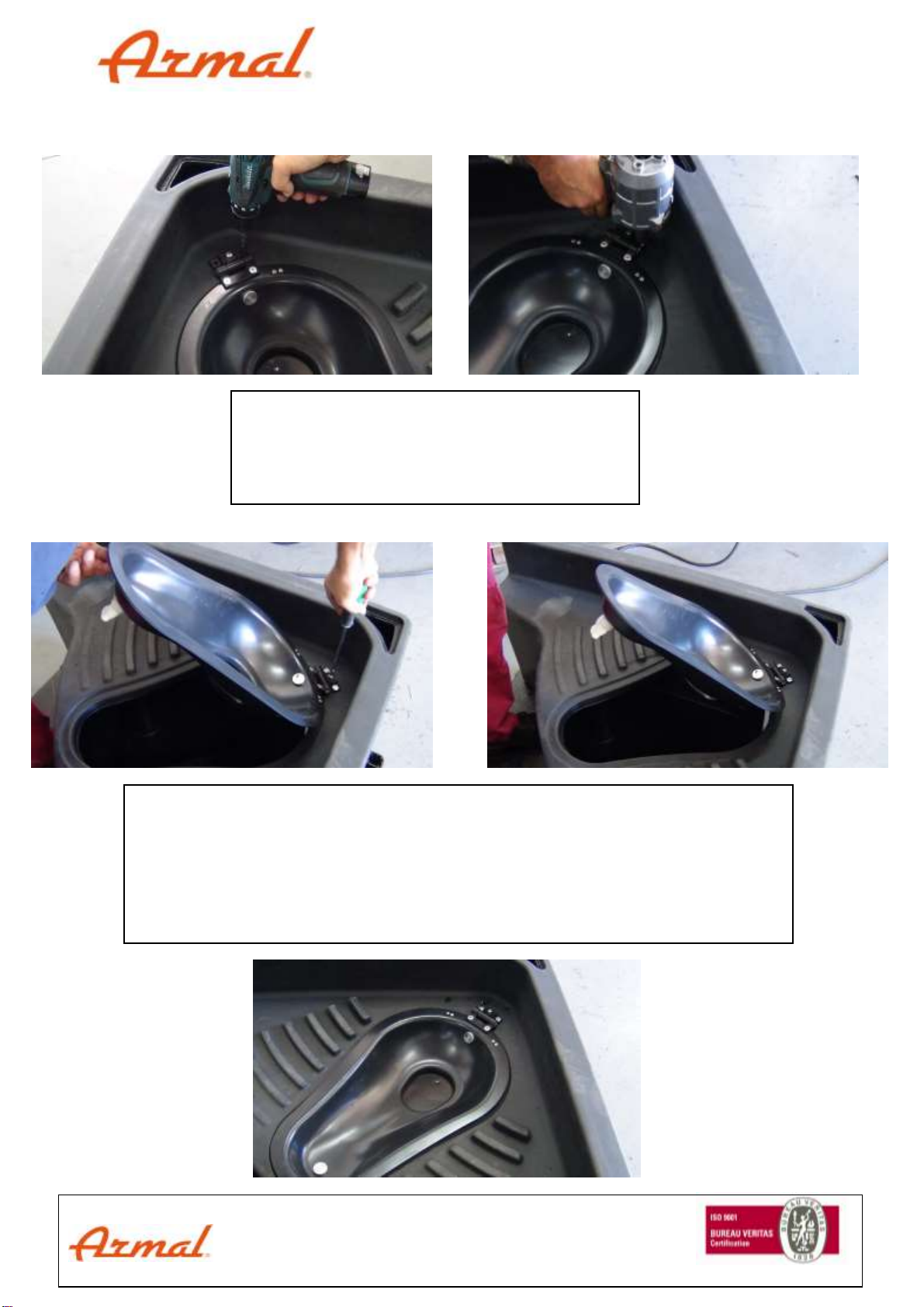

Drill the Squat and Fix the hinge with
two rivet.
Complete the assembly with calibration of the hinge.
Operate on the central screw of hinge is possible to regulate
the angle required to open the cap for clean the squat.
Close the cap and use.
