Armasight Prometheus User manual

USER MANUAL
ARMASIGHT by FLIRPROMETHEUS
®
Thermal Imaging Monocular
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

2
ARMASIGHT by FLIRPROMETHEUS USER MANUAL
© 2018 FLIR Systems, Inc. All rights reserved worldwide. No parts of this manual, in whole or in part,
may be copied, photocopied, translated, or transmitted by any electronic medium or in machine-readable
form without the prior written permission of FLIR Systems, Inc.
Names and marks appearing on the products herein are either registered trademarks or trademarks of
FLIR Outdoor & Tactical Systems and/or its subsidiaries. All other trademarks, trade names, or company
names referenced herein are used for identification only and are the property of their respective owners.
This product is protected by patents, design patents, patents pending, or design patents pending.
If you have questions that are not covered in this manual, or need service, contact FLIR OTS customer
support for additional information prior to returning a product.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

3
ARMASIGHT by FLIRPROMETHEUS USER MANUAL
PROPER DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT (EEE)
The European Union (EU) has enacted Waste Electrical and Electronic Equipment Directive 2002/96/EC
(WEEE), which aims to prevent EEE waste from arising; to encourage reuse, recycling, and recovery of
EEE waste; and to promote environmental responsibility.
In accordance with these regulations, all EEE products labeled with the “crossed out wheeled bin” either
on the product itself or in the product literature must not be disposed of in regular rubbish bins, mixed
with regular household or other commercial waste, or by other regular municipal waste collection means.
Instead, and in order to prevent possible harm to the environment or human health, all EEE products
(including any cables that came with the product) should be responsibly discarded or recycled.
To identify a responsible disposal method where you live, please contact your local waste collection
or recycling service, your original place of purchase or product supplier, or the responsible government
authority in your area.
Business users should contact their supplier or refer to their purchase contract.
IMPORTANT INSTRUCTIONS AND NOTICES TO THE USER:
Modification of this device without the express authorization of FLIR Commercial Systems, Inc. may void
the user’s authority under FCC rules to operate this device.
Note 1: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that the interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from
that of the receiver
• Consult the dealer or an experienced radio/television technician for help.
INDUSTRY CANADA NOTICE:
This Class B digital apparatus complies with Canadian ICES-003.
AVIS D’INDUSTRIE CANADA:
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

4
ARMASIGHT by FLIRPROMETHEUS USER MANUAL
LIST OF CONTENTS
TITLE PAGE
Safety Summary 5
SECTION 1. INTRODUCTION 6
1.1 Purpose of Equipment 6
1.2 Warranty Information and Registration 6
SECTION 2. DESCRIPTION AND DATA 8
2.1 System Description 8
2.2 Specifications 10
2.3 Standard Components 13

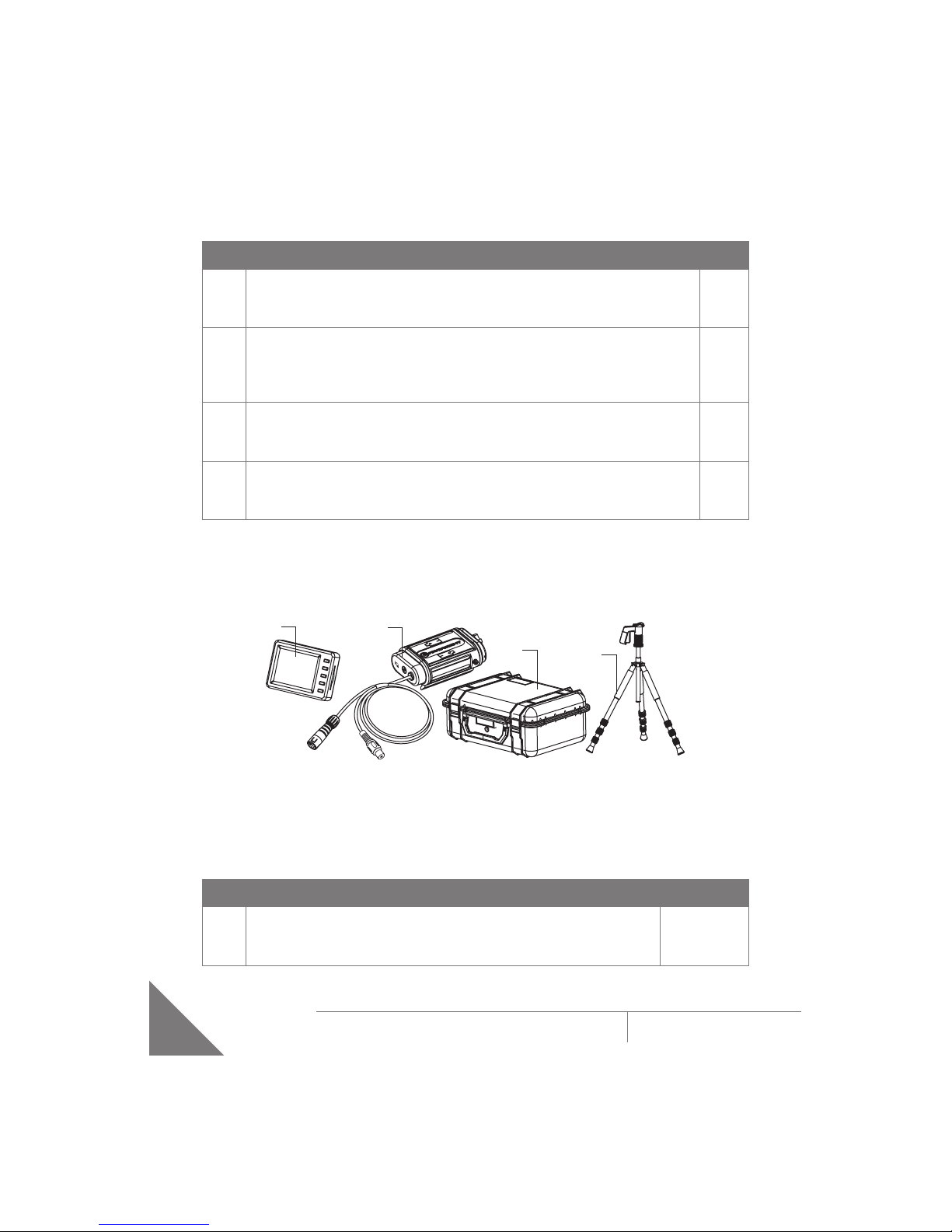

2.4 Optional Equipment 14
2.5 Key Features 15
SECTION 3. OPERATING INSTRUCTIONS 16

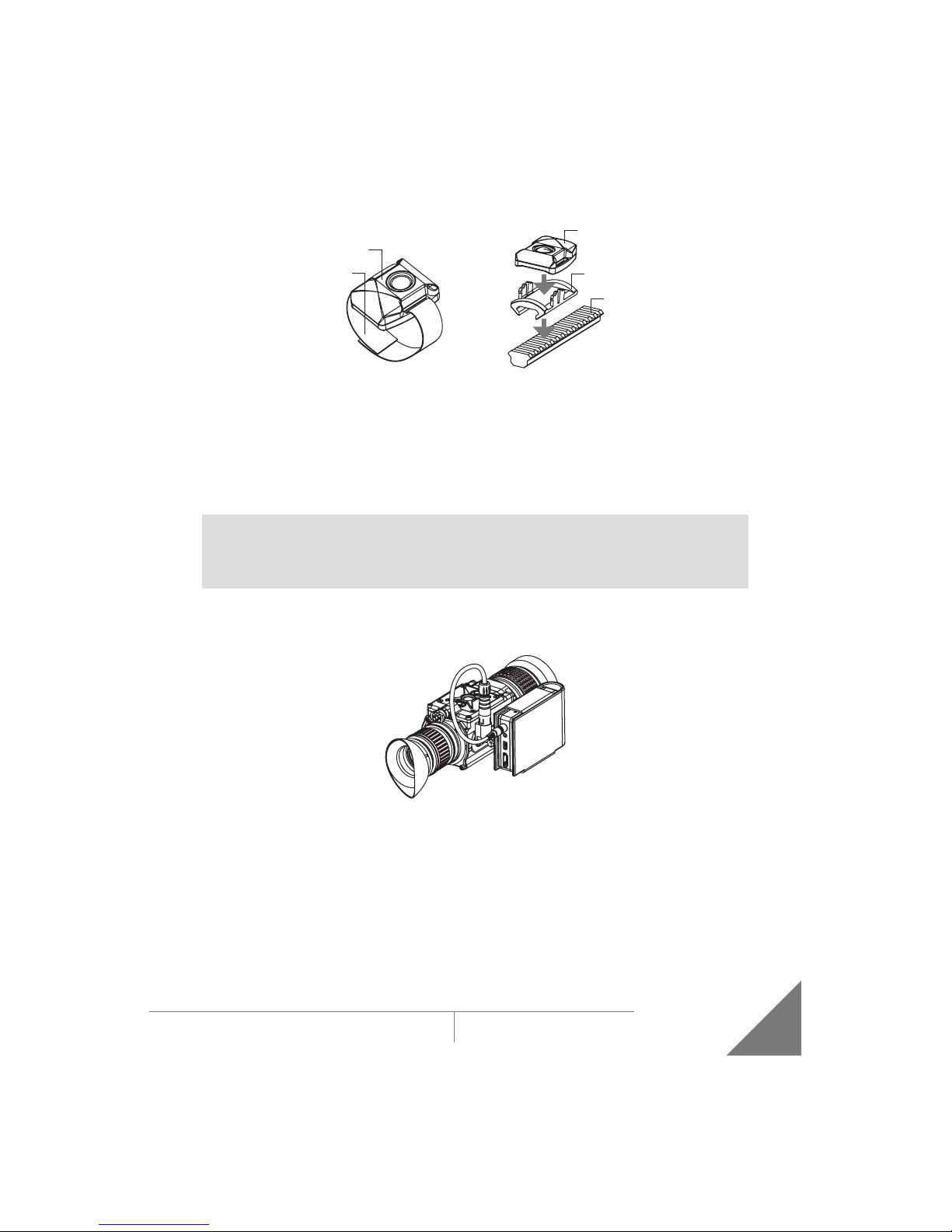

3.1 Installation and Connecting 16

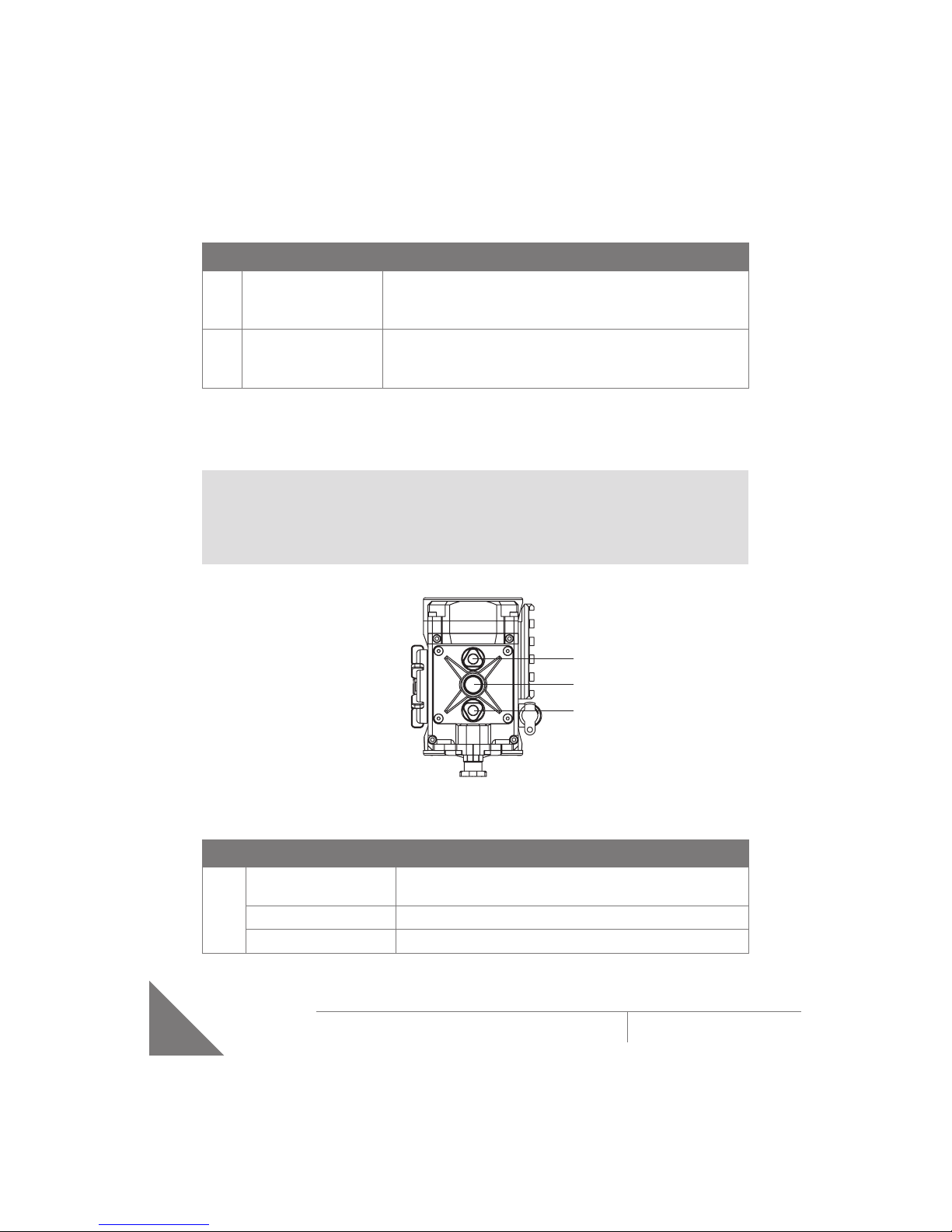

3.2 Controls and Display Indications 18
3.3 Operating Procedures 26
SECTION 4. MAINTENANCE AND TROUBLESHOOTING 29
4.1 Preventive Maintenance Checks and Services 29
4.2 Operator Troubleshooting 31
4.3 Maintenance 33
APPENDIX 35
List of Spare Parts 35
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

5
ARMASIGHT by FLIRPROMETHEUS USER MANUAL
SAFETY SUMMARY
• Read and follow all instructions
• Read all warnings
• Only use the attachments/accessories specified by the manufacturer
• All service must be provided by the manufacturer
WARNING:
DO NOT DISASSEMBLE THE DEVICE. Disassembly can cause permanent damage.
WARNING:
This product contains natural rubber latex which may cause allergic reactions! The FDA has
reported an increase in the number of deaths that are associated with an apparent sensitivity to natural
latex proteins. If you are allergic to latex, it is a good idea to learn which products contain it and strictly
avoid exposure to those products.
CAUTION:
Use of controls or adjustments or performance of procedures other than those specified herein may result
in hazardous radiation exposure.
CAUTION:
• Do not point the camera at high-intensity radiation sources such as the sun, lasers, or arc welders
• Do not leave fingerprints on the camera’s infrared optics. Clean only with low pressure fresh water
and a lens cloth
• Keep the equipment clean. Protect it from moisture, dramatic temperature drops, and electrical
shocks
• DO NOT force the equipment controls past their stopping points
• DO NOT leave the equipment activated during breaks in operation
• DO NOT store the equipment with the batteries installed
• Thoroughly clean and dry each item before placing them into the storage case
NOTES:
• To avoid losing unsaved data, DO NOT remove the batteries or disconnect the external power
source while the Prometheus is on
• Inadvertent sun damage is not considered a defect in material or workmanship, and is therefore not
covered in the product warranty
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

6
ARMASIGHT by FLIRPROMETHEUS USER MANUAL
SECTION 1
INTRODUCTION
1.1 PURPOSE OF EQUIPMENT
The Prometheus is a solid state, uncooled, long-wave infrared, magnified, dedicated handheld thermal imager
intended for day and night engagements.
The Prometheus is based on the FLIR Tau 2 VOx microbolometer core. The 24/7 mission capability is only one
of the strengths of Prometheus. The thermal imaging technology also allows you to detect targets by cutting
through snow, dust, smoke, fog, haze, and other atmospheric obscurants. Unlike the use of laser targeting or
near infrared illumination to augment Night Vision equipment, the Prometheus thermal imager is extremely
difficult to detect with other devices, as it emits no visible light or RF energy.
The Prometheus is available in different versions, with 2x or 3x optical magnification. Prometheus series also
provides up to 8x digital zoom for models based on 640x512 cores and up to 4x digital zoom for models based
on a 336x256 core.
The Prometheus is powered by two CR123A (2×3V) batteries. The Extended Battery Pack or 6VDC/ 600mA
power source can also be used to power the Prometheus.
The Prometheus can be controlled by a wireless remote control.
The Prometheus is equipped with a standard NTSC/PAL video input/output function that makes it possible to
connect to an external video display or monitor, or to record thermal images for field documentation or training
purposes. It also allows the transmission of data from one remote display to that of the Prometheus.
The Prometheus can be used in conjunction with other equipment such as the Digital Video Recorder or
Extended Battery Pack that can be mounted onto the Prometheus’ Picatinny/ Weaver rail.
Extremely reliable and versatile, the Prometheus is a highly useful thermal imaging system.
1.2 WARRANTY INFORMATION AND REGISTRATION
1.2.1 WARRANTY INFORMATION
1.2.2 PRODUCT REGISTRATION
In order to validate the warranty on your product, the Customer must complete and submit FLIR Outdoor
& Tactical Systems’ PRODUCT REGISTRATION FORM on our website (
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

8
ARMASIGHT by FLIRPROMETHEUS USER MANUAL
SECTION 2
DESCRIPTION AND DATA
2.1 SYSTEM DESCRIPTION
The Prometheus consists of next primary parts: a body, a lens assembly and an eyepiece assembly.
The Prometheus is a thermosensitive device. It senses the differences in heat emitted by objects in its
field of view, and converts the received temperature pattern into a viewable image that represents the
scene in contrasting black & white or color patterns, depending on the user’s selected image palette.
NOTE:
It is important that the Prometheus sensor receive sufficient thermal contrast between the target
and background area, or between the different parts of a target. For example, the vast temperature
contrast between the snow and any heat target (such as an animal) makes it very easy to distinguish
the target.
The main optical-electronic components of the Prometheus include: an objective Germanium thermal
lens, eyepiece, a thermal-imaging camera, a display, a control card, and a button control panel.
The Prometheus is equipped with manual eyepiece and objective lens focusing.
FIGURE 2-1. PROMETHEUS THERMAL IMAGING MONOCULAR
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

9
ARMASIGHT by FLIRPROMETHEUS USER MANUAL
To accommodate individual user needs, the Prometheus has a variety of digitally controlled options
such as:
• Display Brightness
• Digital Zoom
• Palette Color Selection
• User-Controlled Manual Non-Uniformity Correction/ Flat-Field Correction (UCMNUC/ FFC)
• Imaging Enhancements
• Custom Settings
All Prometheus devices are based on FLIR Tau 2.7.2 or later cameras that allow for improvements in
overall image quality in a wide range of dynamic thermal environments. The Prometheus has employed
special user-adjustable imaging tools that include:
•Active Contrast Enhancement (ACE) – a digital “Contrast” correction that allows for smart
scene optimization based on dynamic adjustments, where a variety of contrast levels occur
depending on relative scene temperature.
•Second Generation Digital Detail Enhancement (DDE) – a “Sharpness” correction that
digitally enhances the picture, significantly sharpens edges, and further reduces image noise.
•Smart Scene Optimization (SSO) – a fine-tuning computational correction that significantly
improves overall visual acuity for targets that have thermal signatures similar to the surrounding
background.
•Automatic Gain Control (AGC) – a “Gain” correction that used to automatically adjust the gain
to an appropriate range, the weaker the image signal, the stronger the gain.
•User-Controlled Manual Non-Uniformity Correction/ Flat-Field Correction (UCMNUC/
FFC). There is a mechanical shutter between the camera sensor and the lens. This shutter is used
to perform a non-uniformity correction (NUC), also known as flat-field correction (FFC). During FFC,
the shutter presents a uniform temperature source to each detector element in the array. While
imaging the flat-field source, the camera updates the offset correction coefficients, resulting
in a more uniform image after the process is complete. All Prometheus models allow for user to
manually trigger or interrupt scheduled UCMNUC/ FFC function.
•Silent Shutterless NUC™ (SSN) – In addition to User-Controlled Manual NUC/ FFC, all
Prometheus models employ a digital, supplemental, non-mechanical flat-field correction that
extends periods between mechanical shutter events and further reduces image noise. SSN is an
always ON enhancement.
Information on the current operating state (battery status, active function in the display etc.) is
continuously displayed, making field operation of the Prometheus simple and convenient.
Manufactured for exceptional durability, the Prometheus has a lightweight and robust aluminum body.
A side Picatinny/ Weaver rail allows for the installation of an optional Digital Video Recorder, extended
battery pack, or other equipment.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

10
ARMASIGHT by FLIRPROMETHEUS USER MANUAL
A standard NTSC/PAL video input/ output connector enables an external video display (monitor/ TV) or
video recorder to be connected to the Prometheus. An external 6VDC/600mA power source can also be
connected to the Prometheus.
The Prometheus is powered by two CR123A (2×3V) batteries.
Figure 2-2 shows the Prometheus. The ITEM NO. column of Table 2-1 indicates the number used to
identify items in Figure 2-2.
TABLE 2-1. SYSTEM DESCRIPTION
ITEM DESCRIPTION ITEM DESCRIPTION
1 Objective Lens Cap 8 Eyepiece
2Objective Lens 9 Battery Cap
3 Objective Focus Ring 10 Turn-Pull Switch
4Body 11 Connector Cap
5 Button Control Panel 12 Connector
6Eyepiece Focus Ring 13 Side Picatinny/ Weaver Rail
7Eyecup 14 Tripod Socket
2.2 SPECIFICATIONS
TABLE 2-2. SYSTEM DATA
ITEM PROMETHEUS 336 3-12×50 PROMETHEUS 640 2-16×50
Optical Magnification
(NTSC/ PAL) 2.8× / 3.4× 1.5× / 1.8×
Objective Lens Type Germanium
Focal Plane Array FLIR Tau 2
Frame Rate 9 Hz, or 30 Hz, or 60 Hz 30 Hz
1
2
3
5
4
67
8
9
11
10 12
13
14
FIGURE 2-2. PROMETHEUS THERMAL IMAGING MONOCULAR. SYSTEM DESCRIPTION
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

11
ARMASIGHT by FLIRPROMETHEUS USER MANUAL
ITEM PROMETHEUS 336 3-12×50 PROMETHEUS 640 2-16×50
Pixel Array Format 336×256 640×512
Pixel Size 17 µm
Display Type OLED SVGA
Pixel Display Format 800×600
Display Brightness Discretely Adjustable to 8 Levels
Turn-on Time, max 3 sec
Digital Zoom 2×, 4× 2×, 4×, 8×
Temperature Imaging Modes
(Image Palettes)
White Hot, Black Hot, Fusion, Rainbow, Globow, Ironbow1, Ironbow2,
Sepia, Color1, Color2, Ice-Fire, Rain, and OEM
User-adjustable
Image Enhancement
Tools
• Active Contrast Enhancement (ACE) - “CONTRAST”
• Second Generation Digital Detail Enhancement (DDE) –
“SHARPNESS”
• Smart Scene Optimization (SSO) – “SMART SCENE”
• Automatic Gain Control - “GAIN”
• User-Controlled Manual Non-Uniformity Correction/
Flat-Field Correction (UCMNUC/ FFC)
• Silent Shutterless NUC ™ (SSN)
Analog Video Input/ Output
Format (resolution)
PAL (768×574 pixels)* / NTSC (640×480 pixels)
*Default setting (may be altered at the customer’s request).
TABLE 2-3. OPTICAL DATA
ITEM PROMETHEUS 336 3-12×50 PROMETHEUS 640 2-16×50
Field of
View
- ang. X (degrees) 7.8 14.8
- ang. Y (degrees) 5.9 11.8
Objective Focal Length 50mm
Objective F-number 1:1
Exit Pupil Diameter 14 mm
Eye Relief 25 mm
Focus Method Manual
Focusing Range 5m to inf.
Diopter Adjustment Manual
Diopter Adjustment Range ±5 diopter
TABLE 2-2. CONTINUED
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

12
ARMASIGHT by FLIRPROMETHEUS USER MANUAL
TABLE 2-4. ELECTRICAL DATA
ITEM DATA
Battery Two CR123A 3V Lithium batteries or CR123 type rechargeable
batteries with voltage from 3.0V to 3.7V (2)
Current Consumption, maximum 320 mA
Battery Life at 20°C (68 °F) Up to 4 hrs (up to 12 hrs with optional extended battery pack)
Extended Battery Pack (optional) Two 18650 rechargeable batteries (3.7V), four CR123
rechargeable batteries with voltage 3.7V max, or four standard
CR123A 3V Lithium batteries (operational time up to 8 hr)
External Power Supply 6 VDC/ 600mA
TABLE 2-5. MECHANICAL DATA
ITEM DATA
Overall Dimensions 238 × 73 × 65 mm (9.3 × 2.8 × 2.5 in)
Weight (w/o Batteries) 0.55 kg (1.2 lbs)
TABLE 2-6. ENVIRONMENTAL DATA
ITEM DATA
Operating Temperature -40 to +50°C (-40 to +122°F)
Storage Temperature -50 to +70°C (-58 to +158°F)
Environmental Rating Water and Fog-Resistant
TABLE 2-7. ADVANCED WIRELESS REMOTE CONTROL (AWREC) DATA
ITEM DATA
Type Wireless Remote Control
Working Range Up to 0.5m
Battery Single CR2032 Lithium battery (3V)
Battery Life at 20 °C (68 °F) Approx. 10,000 clicks
Overall Dimensions 48 × 39 × 18 mm (1.9 × 1.5 × 0.7 in)
Weight (with Battery) 25 g (0.9 oz)
Operating Temperature -30 to +50°C (-22 to 122°F)
Storage Temperature -50 to +70°C (-58 to 158°F)
Environmental Rating Water and Fog-Resistant
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

13
ARMASIGHT by FLIRPROMETHEUS USER MANUAL
2.3 STANDARD COMPONENTS
The Prometheus standard components are shown in Figure 2-3 and listed in Table 2-8.
The ITEM NO. column indicates the number used to identify items in Figure 2-3.
TABLE 2-8. STANDARD COMPONENTS
ITEM
NO. DESCRIPTION QUAN- TITY
1Prometheus Thermal Imaging Monocular
A thermal imaging device.
1
2Objective Lens Cap
Securely protects the objective lens from dirt and mechanical damage and provides
thermal protection of the Prometheus. Comes attached to the objective lens.
1
3Eyecup
A specially designed latex eyecup that reduces the amount of light that escapes
from the eyepiece and prevents illumination of the user’s face, minimizing the risk of
detection. Prevents ambient light from entering the equipment. Allows for correct
and comfortable positioning. Comes attached to the eyepiece.
1
4Battery Cassette
Intended for the installation of two CR123 batteries in the battery compartment. The
Prometheus comes with two battery cassettes (includes one installed in the battery
compartment and one spare cassette).
2
5CR123A Lithium Battery
Two CR123A batteries are used to power the Prometheus.
2
6Advanced Wireless Remote Control (AWREC)
Allows the user to operate the Prometheus in short-time activation mode. Ensures
quick and silent activation/deactivation of the equipment. Comes with CR2032 (3V)
battery installed.
1
FIGURE 2-3. STANDARD COMPONENTS
10
9
1
2
346
57
8
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

14
ARMASIGHT by FLIRPROMETHEUS USER MANUAL
ITEM
NO. DESCRIPTION QUAN- TITY
7Picatinny Adapter for Advanced Wireless Remote Control
Allows the advanced wireless remote control to be installed on a Picatinny/Weaver
rail.
1
8Video Cable
A cable used to connect the analog video input/output of the Prometheus to external
display devices (monitor/ TV) or power sources. Supported input and output video
formats include PAL and NTSC.
1
9Operation and Maintenance Manual
Provides safety information, equipment description, mounting procedures, operating
instructions, and preventive maintenance checks and services.
1
10 Carrying Case
A textile bag used for the transportation and storage of the Prometheus and its
accessories.
1
2.4 OPTIONAL EQUIPMENT
Optional items are shown in Figure 2-4 and listed in Table 2-9.
The ITEM NO. column indicates the number used to identify items in Figure 2-4.
The PART NO. column indicates the primary number used by the manufacturer, to identify an item.
TABLE 2-9. OPTIONAL EQUIPMENT
ITEM
NO. DESCRIPTION PART NO.
1HD DVR Digital Video Recorder
High Definition Digital Recorder for all High Performance Digital and Thermal
Devices.
ATAM000005
FIGURE 2-4. OPTIONAL EQUIPMENT
1
34
2
TABLE 2-2. CONTINUED
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

15
ARMASIGHT by FLIRPROMETHEUS USER MANUAL
ITEM
NO. DESCRIPTION PART NO.
2Extended Battery Pack
The power source for extended operational time. Takes four CR123A Lithium
batteries (3V), CR123 rechargeable batteries (3.2V or 3.7V), or two 18650
rechargeable batteries (3.7V).
ATAM000008
3Hard Shipping/ Storage Case
A protective case used for the shipping/storage of the Prometheus and its
accessories.
ANHC000001
3Tripod with a Grip
Lightweight and compact tripod used to produce a stable image for long
range observation or photo shoot with long exposures.
ANAMTM0003
2.5 KEY FEATURES
• Multiple versions with 2x or 3x optical magnification
• High-performance thermal imaging camera
• Lightweight and robust design
• Easy to operate
• Manually adjustable eyepiece and objective lens
• Real-time display
• Digitally controlled features
• Current operational state information display (battery status, active profile, palette
setting)
• Wireless remote control
• Analog video input and output (NTSC/PAL)
• Powered by two standard CR123A batteries
• Power input capability
• Digital video recorder (optional)
• Serviceability under severe conditions
• Filled with dry nitrogen to prevent internal fogging
• Limited 3-year warranty
• 10-year warranty on FLIR detector
TABLE 2-2. CONTINUED
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

16
ARMASIGHT by FLIRPROMETHEUS USER MANUAL
SECTION 3
OPERATING INSTRUCTIONS
3.1 INSTALLATION AND CONNECTING
3.1.1 BATTERY INSTALLATION
CAUTION:
Verify that the equipment is OFF before installing the batteries.
To install two CR123A batteries (refer to Figure 3-1):
1. Unscrew the battery cap (A).
2. Remove the battery cassette (B).
3. Insert the batteries (C) into the cassette. Align the polarity symbols on the batteries with the
polarity symbols on the cassette.
4. Insert the cassette with installed batteries.
5. Replace the battery cap.
3.1.2 FASTENING AN ADVANCED WIRELESS REMOTE CONTROL
Using the supplied Velcro tape (A, Figure 3-2), fasten the remote control (B) to an easily accessible place.
You can use the Picatinny adapter for the Advanced Wireless Remote (C) for mounting the remote control
to Picatinny or Weaver rail. Install the adapter onto the rail (D). Insert the remote control into the adapter.

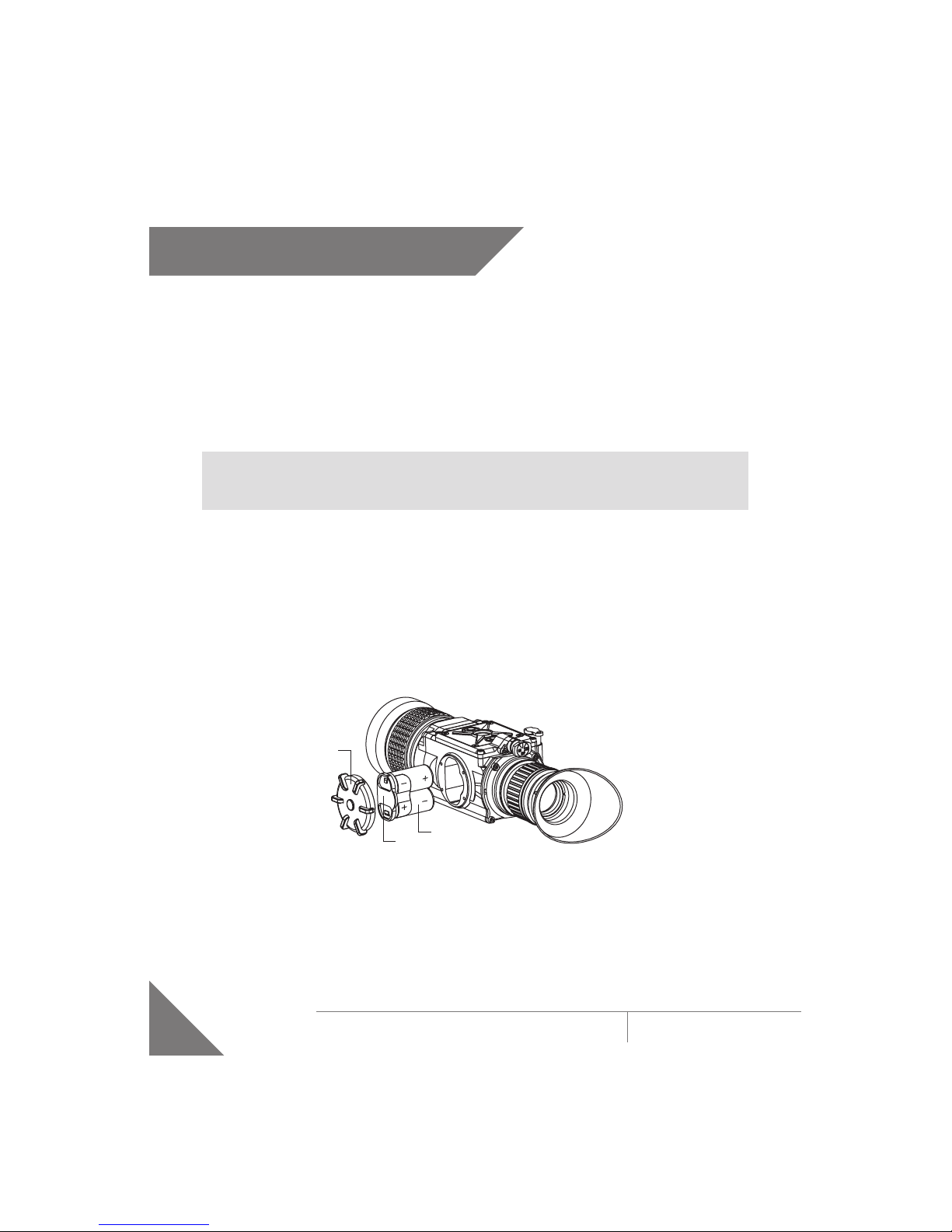

FIGURE 3-1. BATTERY INSTALLATION
A
BC
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

17
ARMASIGHT by FLIRPROMETHEUS USER MANUAL
FIGURE 3-2. ADVANCED WIRELESS REMOTE CONTROL
A
B
B
C
D
3.1.3 INSTALLING ADDITIONAL EQUIPMENT
Use the side Picatinny/ Weaver rail to install any additional equipment, such as the Digital Video
Recorder or the Extended Battery Pack.
3.1.4 CONNECTING AN ADDITIONAL EQUIPMENT
CAUTION:
Turn off the Prometheus before you begin connecting/ disconnecting any external equipment and
before removing the batteries.
Remove the connector’s protective cap.
Connect the cable of Digital Video Recorder or the Extended Battery Pack to the Prometheus connector.
FIGURE 3-3. DIGITAL RECORDER DT INSTALLATION
Use plug A (Figure 3-4) of the video cable to connect an external video recorder/ monitor/ TV to the
Prometheus. Connect plug C of the video cable to the Prometheus connector.
Use plug B of the video cable to connect an external power source (6VDC/ 600mA) to the Prometheus.
Connect plug C of the video cable to the Prometheus connector.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

18
ARMASIGHT by FLIRPROMETHEUS USER MANUAL

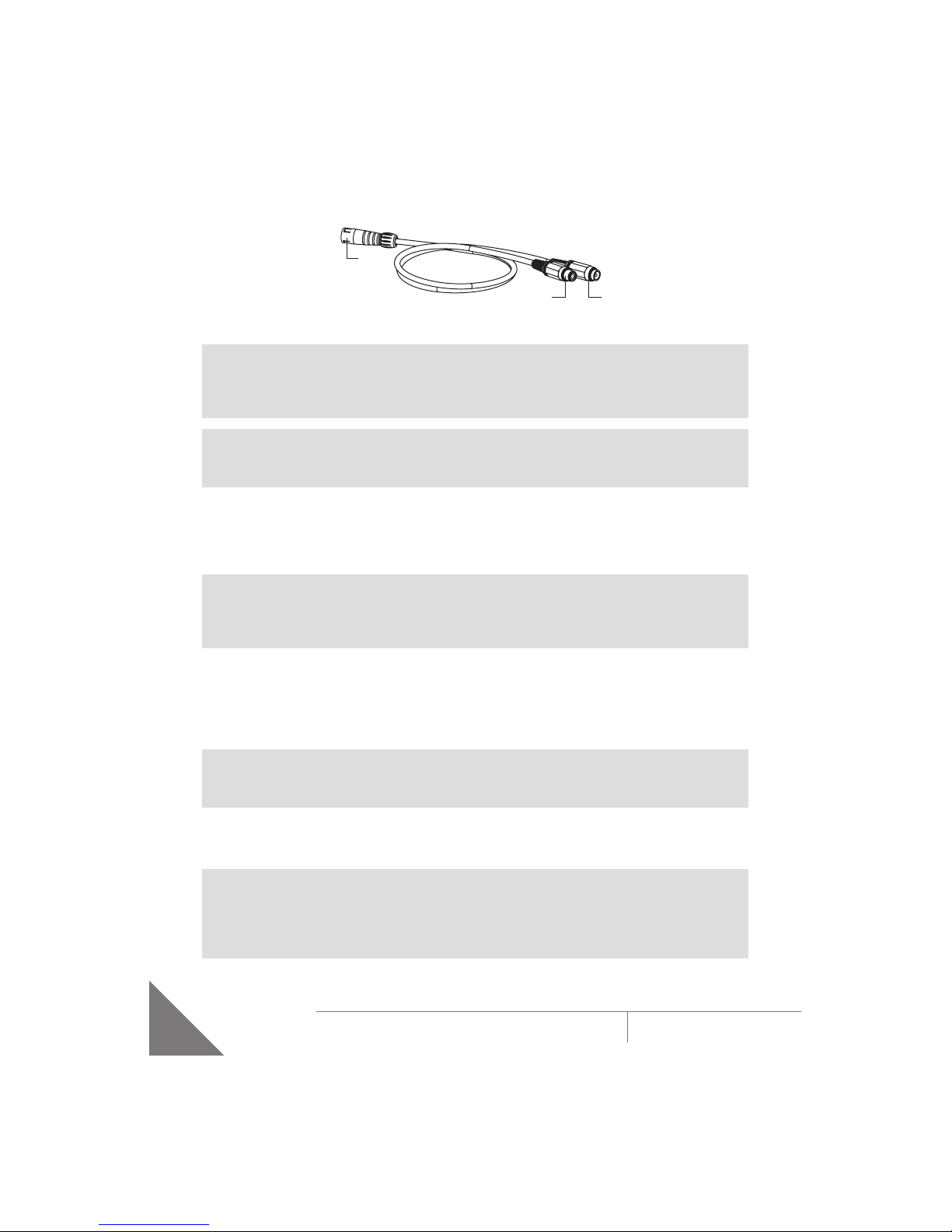

FIGURE 3-4. VIDEO CABLE
A B
C
NOTE:
The external power supply must have a standard OD double-pole socket with a positive center
contact.
CAUTION:
After removing the cable, replace the protective cap over the connector.
3.1.5 INSTALLING THE PROMETHEUS ON A TRIPOD
To mount the Prometheus to a tripod, screw the tripod into the 1/4’’ threaded socket located on the
bottom of the Prometheus.
CAUTION:
The unit may be badly damaged if the tripod collapses or falls over. Remove the unit from the tripod
if it is not within your reach.
3.2 CONTROLS AND DISPLAY INDICATIONS
3.2.1 CONTROLS
CAUTION:
DO NOT force the equipment controls past their stopping points.
The Prometheus controls are shown in Figures 3-5 and 3-6 and are defined in Tables 3-1 and 3-2. The
ITEM NO. columns indicate the numbers used to identify items in the figures.
NOTE:
Various display symbols indicating the current operating state of the Prometheus can be displayed
permanently, may appear momentarily, or can be set to appear only when a certain function is
activated.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

19
ARMASIGHT by FLIRPROMETHEUS USER MANUAL

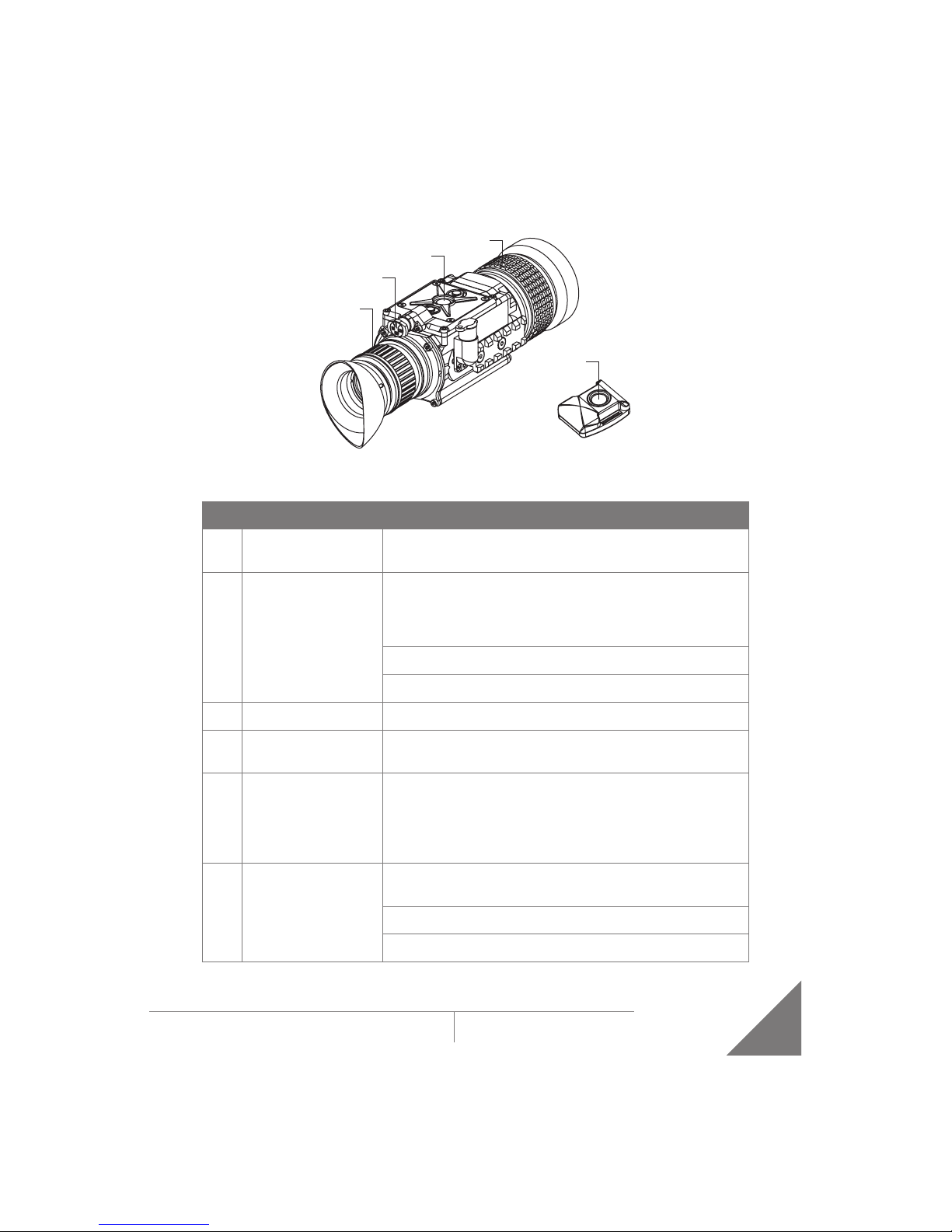

TABLE 3-1. CONTROLS AND INDICATORS
ITEM
NO. CONTROL / INDICATOR FUNCTION
1Eyepiece Focus Ring Adjusts the eyepiece diopter. The total diopter adjustment range is
covered with 2 turns of the ring.
2Turn-Pull Switch Activates the Prometheus when turned ON.
NOTE:
You must pull the knob before turning in order to use either ON or
STB.
Activates standby mode when turned to STB (see note above).
Deactivates the Prometheus when turned OFF.
3 Control Panel Buttons Configures operational settings. See Table 3-2 for button functions.
4 Objective Focus Ring Focuses the objective lens. Adjusts for sharpest view of the scene.
The total focus range is covered with three quarter turns of the lens.
5Remote Control
Button
Activates/ deactivates the Prometheus in standby mode. To turn the
unit on, press button once, to turn it off – press button again.
To operate the device in short-time activation mode, press and
hold the remote control button down for 1.5+ seconds. Release the
remote control button to deactivate the device.
— Battery Status Indicator
(battery icon in the top
right hand corner of the
display)
The color fill (green/ yellow/ red) bar in the battery icon indicates the
current power level of the internal battery, or remaining battery life.
The totally shaded battery icon indicates the fully charged battery.
The flashing transparent battery icon indicates a low battery.
FIGURE 3-5. CONTROLS
1
2
3
4
5
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

20
ARMASIGHT by FLIRPROMETHEUS USER MANUAL
ITEM
NO. CONTROL / INDICATOR FUNCTION
— Image Palette Indicator
(in the top left hand
corner of the display)
Indicates the selected image palette.
— Digital Zoom Indicator
(in the top center of the
display)
Indicates the current value of digital zoom when 2x or 4x zoom
activated.
The Prometheus button control panel is shown in Figure 3-6.
Table 3-2 contains the button functions and their brief descriptions. The ITEM NO. column of the table
indicates the number used to identify buttons in Figure 3-6.
NOTE:
Each button is responsible for some functions selected by briefly pushing or holding down the
button, or using the button in combination with a second one (as described in Table 3-2).
Pushing a button for 1.5+ second is considered “holding down.”
TABLE 3-2. BUTTON CONTROLS
ITEM
NO. FUNCTION DESCRIPTION
1
DISPLAY BRIGHTNESS
INCREASE
Push button (1) to increase the screen brightness.
DIGITAL ZOOM CONTROL To change the zoom gradually, push and hold button (1).
UP Use the UP (1) button to navigate through the items on the menu.
1
2
3
FIGURE 3-6. BUTTON CONTROL PANEL
TABLE 3-1. CONTINUED
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

21
ARMASIGHT by FLIRPROMETHEUS USER MANUAL
ITEM
NO. FUNCTION DESCRIPTION
2
DISPLAY BRIGHTNESS
DECREASE
Push button (2) to decrease the screen brightness.
IMAGE PALETTE
CONTROL
To scroll through the available palettes, hold down button (2).
There are 13 palettes available: White Hot, Black Hot, Fusion,
Rainbow, Globow, Ironbow1, Ironbow2, Sepia, Color1, Color2, Ice-
Fire, Rain, and OEM.
DOWN Use the DOWN (2) button to navigate through items on the menu.
1 + 2
USER-CONTROLLED
MANUAL NON-
UNIFORMITY
CORRECTION/ FLAT-FIELD
CORRECTION (UCMNUC/
FFC)
Simultaneously holding down buttons (1) and (2) induces
User-Controlled Manual Non-Uniformity Correction/ Flat-Field
Correction (UCMNUC/ FFC).
3
MENU
Holding down button (3) will bring up the Main Menu. The menu
includes the following functions: Palette, Enhancement, and
Settings.
SELECTION
Push the SELECTION button (3) to view the settings available for
the item selected.
To enable left and right navigation (< >) press button (3).
UCMNUC/ FFC PROCESS
INTERRUPTION
Pushing button (3) when the countdown is on the screen will
cancel the UCMNUC/ FFC , and the shutter will not interrupt
viewing.
3.2.2 MAIN MENU
Most setup options can be accessed from the MAIN MENU.
To display the MAIN MENU, hold down button (3) on the control panel (Figure 3-6).
Once the MAIN MENU is displayed (Figure 3-7), use buttons (1) and (2) to navigate through items on the
menu.
Push button (3) to view the settings available for the item selected.
MAIN MENU
> EXIT
PALE T TE
ENHANCEMENT
SETTINGS
FIGURE 3-7. MAIN MENU
TABLE 3-2. CONTINUED
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]
