Armitage Shanks A4125AA User manual

Important:
1. Electrical connection: mains electric powered version of this
product must be connected to a continuous permanent power supply.
2. Sensor protector: this black-out lens cover should only be removed from
the sensor after completing installation & at least 20 seconds after powering up.
See page 3 for more details.
INSTALLER: After installation please pass this instruction booklet to user
IMPORTANT
BEFORE CONNECTION, FLUSH WATER THROUGH PIPEWORK TO REMOVE
ALL DEBRIS ETC. WHICH COULD DAMAGE THE VALVE MECHANISM
750mm
max. 350
150
26,5
113
40
15°
Ø10
Ø15
Ø15
Ø15
Ø15 Ø15
Ø20
171
max.35
Ø35
67
40
61
103
86 116
Sensorow 21 panel mounted
spouts A4125AA, A4178AA & A4179AA
INSTALLATION
INSTRUCTIONS
www.divapor.com

2
TABLE OF CONTENT
1 IMPORTANT PRE-INSTALLATION NOTES ...................................... 3
2 PRODUCT BOX CONTENTS ........................................................... 4
3 SUPPLY CONDITIONS...................................................................... 5
4 WATER REGULATIONS .................................................................... 5
5 INSTALLATION GUIDE...................................................................... 6
5.1 MOUNTING ..........................................................................................................6
5.2 PLUMBING OVERVIEW.......................................................................................7
5.3 ELECTRICAL CONNECTION...............................................................................9
6 TAP OPERATION............................................................................. 14
7 SENSOR RANGING ........................................................................ 15
8 OUTLET OPTIONS.......................................................................... 16
9 MAINTENANCE ............................................................................... 16
9.1 SOLENOID VALVE .............................................................................................16
9.2 HYGIENE FLUSH (AUTOMATIC).......................................................................17

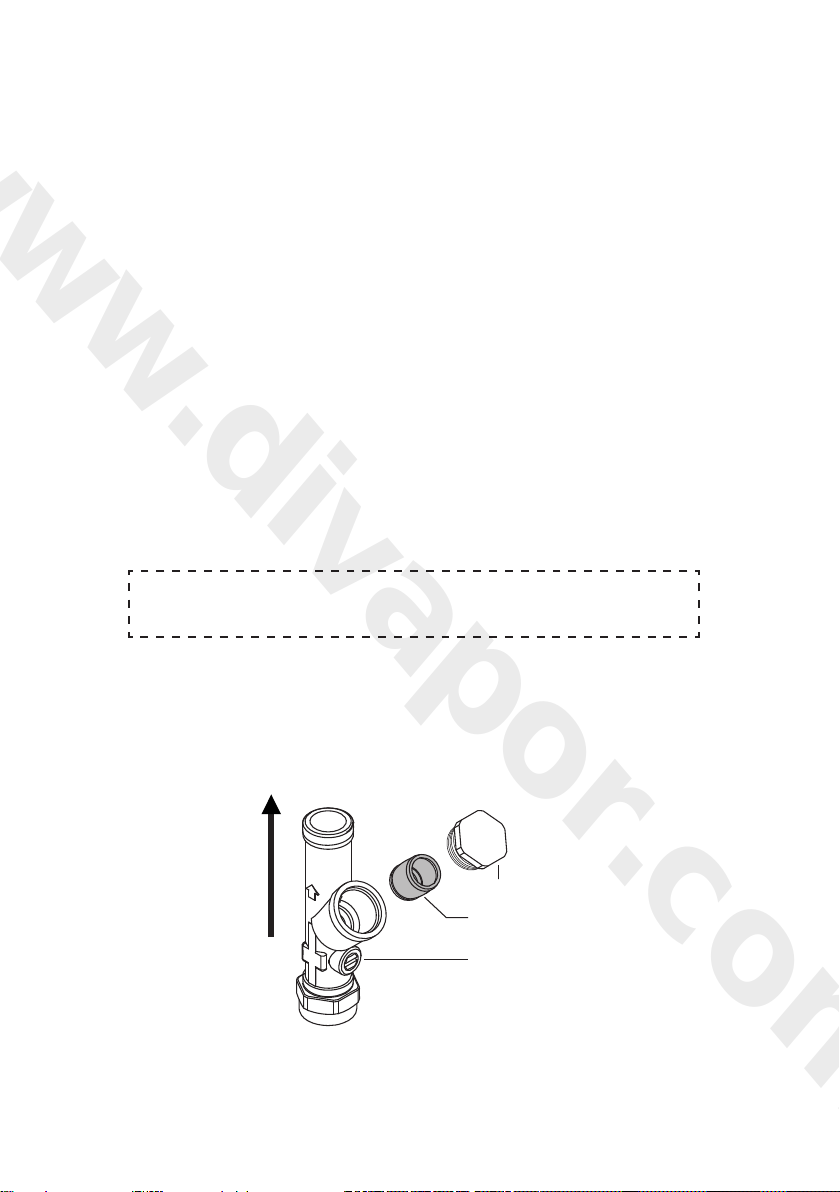

9.3 ISOLATING VALVE ............................................................................................. 18

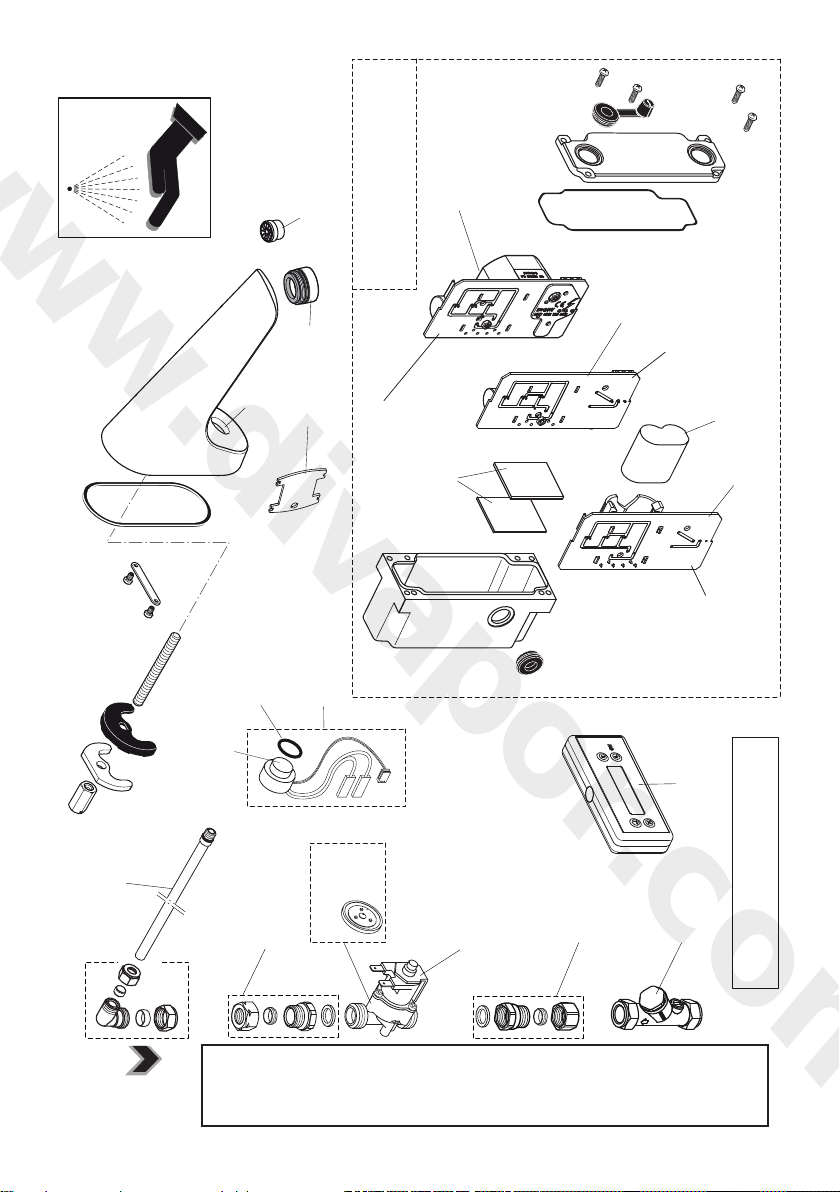

10 SPARE PARTS................................................................................. 19

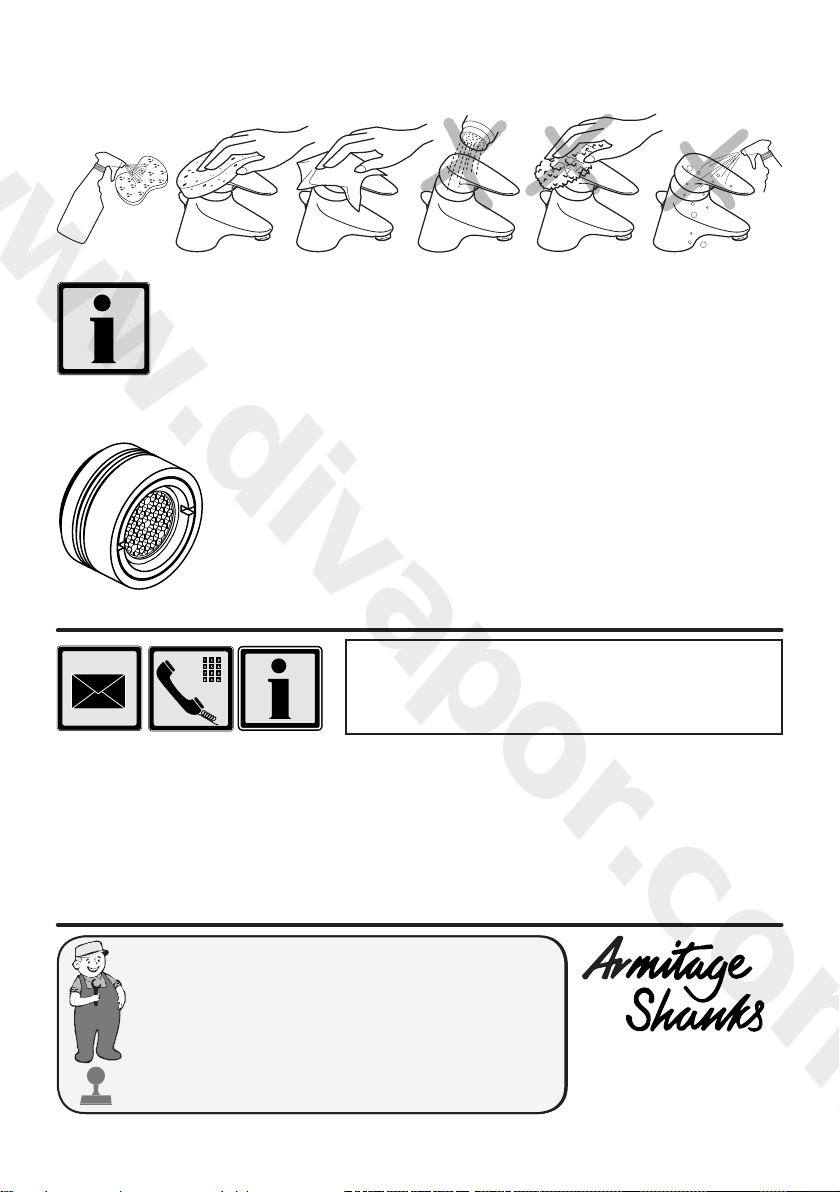

11 CLEANING CHROME SURFACES ................................................. 20

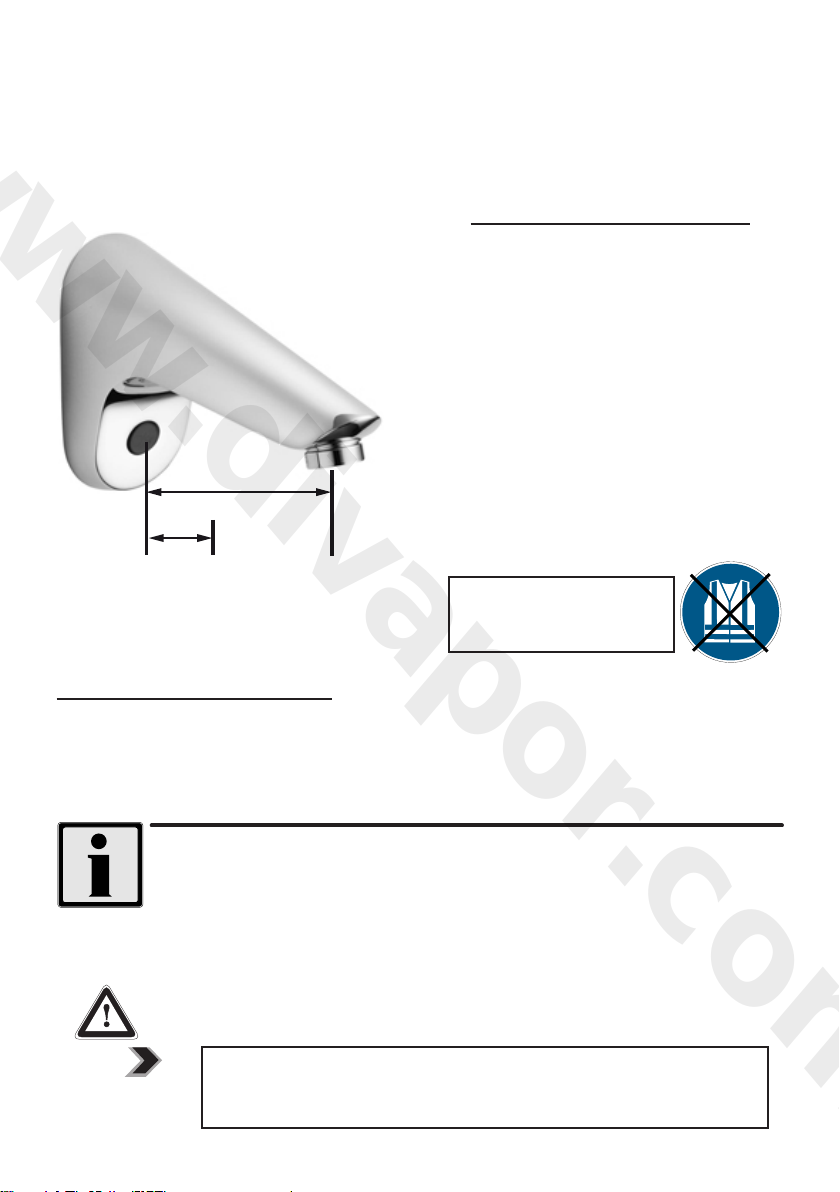

Sensorow 21 panel mount spout
with integral sensor
These panel mount Sensorow 21 electronic products are designed for water economy & hygienic “no-
touch” operation.
The spout is operated by the integral infrared sensor which is triggered by hand movement in the
sensing region. When the hands are moved away, the water will stop automatically within a couple of
seconds.
These products are designed to be supplied with pre-mixed or cold water.
The spout has a reach (from panel) of 150mm.
This product is available in 3 versions: Mains powered (transformed) with option to link up to 5 link units
& independent battery powered units:
A4125AA supplied with battery unit
A4178AA supplied with mains power unit
A4179AA supplied with link unit (up to 5 per A4178AA )
www.divapor.com

3
1 IMPORTANT PRE-INSTALLATION NOTES
Connection to an interrupted power supply intended to stop electrical consumption in an unused facil-
ity, may adversely affect this sensor product and is therefore not recommended.
Each time the power supply is reinstated the product briey enters reprogramming mode.
During reprogramming mode, any interaction (passive or active) with the product may alter the sensor
settings in respect to range and / or run duration.
No signicant savings will be achieved by connection to an interrupted supply. These products are in-
trinsically economical in terms of both water and electrical energy and will shut down in the event of a
sensor being obstructed.
SENSOR PROTECTIVE COVER
This product is supplied with the sensor lens covered over with a black-out material.
DO NOT REMOVE this lens cover until the product
installation has been completed & then wait for at least 20
seconds after powering-up.
The lens cover prevents the sensor from being unintentionally
reprogrammed during the powering up sequence.
MAINS ELECTRICAL POWER SUPPLY
Mains powered Sensor Operated Products must be connected to a (fused / switched)
continuous permanent power supply.
Don´t
remove, read
instruction 1st
DURING SETTING UP PROCEDURE
AVOID HIGH VISIBILITY CLOTHING
www.divapor.com

4
2 PRODUCT BOX CONTENTS
1x Spout mounting kit
1x Inline
service valve
with filter
1x Solenoid
valve
1x Power Supply Unit
1x Velcro
pad set
1x Outlet key
1x Flow
straightener
moulding
2x wall / panel
stickers
1x copper
inlet pipe
1x foam
gasket
2x Couplers
G 1/2“ female
thread to
15 mm
compression
1x Inlet elbow
15 to 10mm
compression
Each type of PSU is
identified by this
coloured dot system:
RED
DOT
BLUE
DOT
GREEN
DOT
MAINS
LINK
(Supplied with
link cable)
BATTERY
(Supplied with
battery)
1x Sensorflow 21
compact spout with
integral sensor
Regulated PCA
outlet pre-fitted.
See section 8
www.divapor.com

5

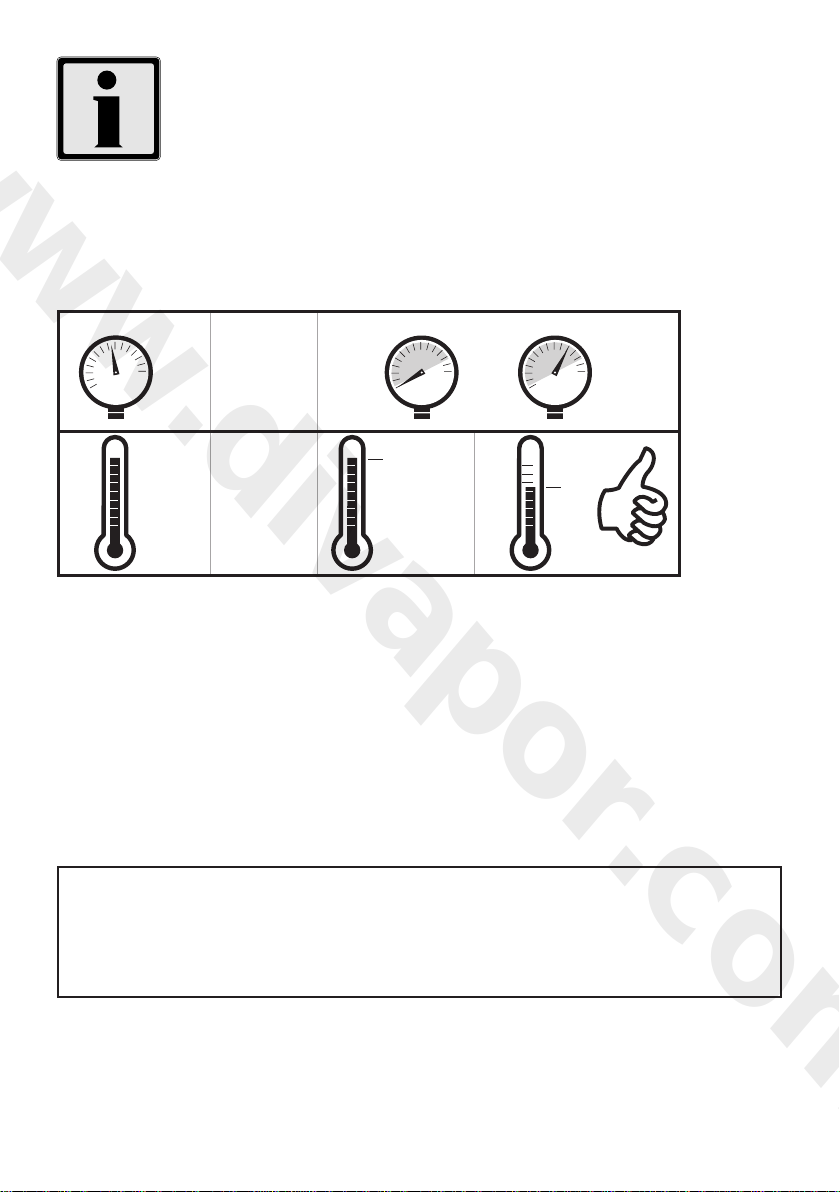

3 SUPPLY CONDITIONS
This product is designed to be supplied with water at a pre-mixed temperature or with cold water only.
In order to maintain water quality, the hot supply should be stored & distributed at a temperature greater
than 55°C.
Use of an appropriate temperature reduction device (e.g. tee pattern thermostat) is recommended to
ensure delivery of safe hot water temperatures from the spout.
Avoid supplying scalding water to the spout. Hot water temperature supply should be controlled to circa
40°C.
4 WATER REGULATIONS
The ttings covered by this installation and maintenance instruction should be installed in
accordance with the water regulations published in 1999*, therefore Armitage Shanks would
strongly recommend that these ttings are installed by a professional installer
*A guide to the Water Supply (Water Fittings) Regulations 1999 and the Water Byelaws 2000, Scotland is published by WRAS (Water
Regulations Advisory Scheme) Fern Close, Pen-y-Fan Industrial Estate, Oakdale, Newport, NP11 3EH.
ISBN 0-9539708-0-9
MAX.
5
P
T°C
bar
MAX. 80
MIN.
0,5
40
Recommended
Abbreviations & terminology used
PSU: Power Supply Unit, either mains, battery or link versions.

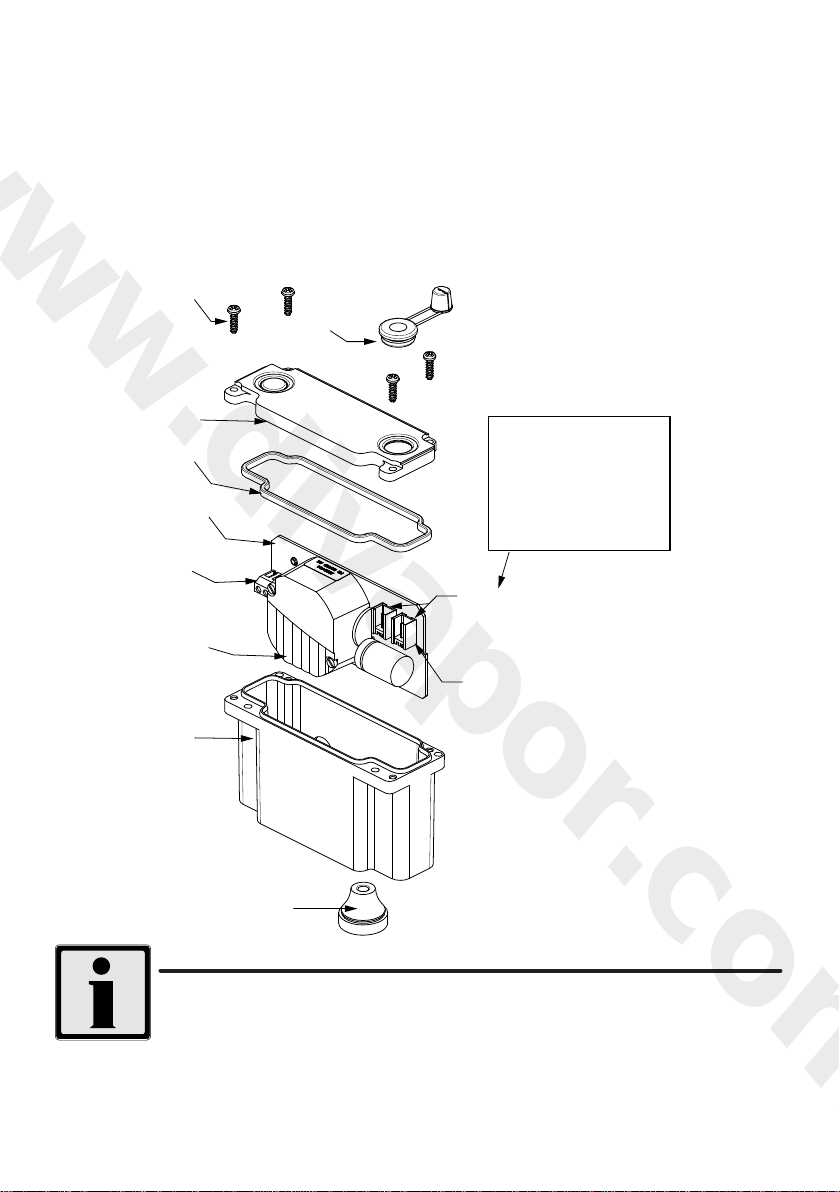

PCB: Printed Circuit Board inside the PSU.
RCD: Residual Current Device
SELV: Safety Extra Low Voltage
LINK PSUs: (up to 5 max) can be connected in series to a single mains PSU. Permit-
ting washroom with multiple products to be run from a single mains supply point.
www.divapor.com

1
2
3
53
22
70
Ø35
Ø20
114
6
5 INSTALLATION GUIDE
DO NOT apply heat near this product. Heat generated by soldering
could damage plastic parts and seals.

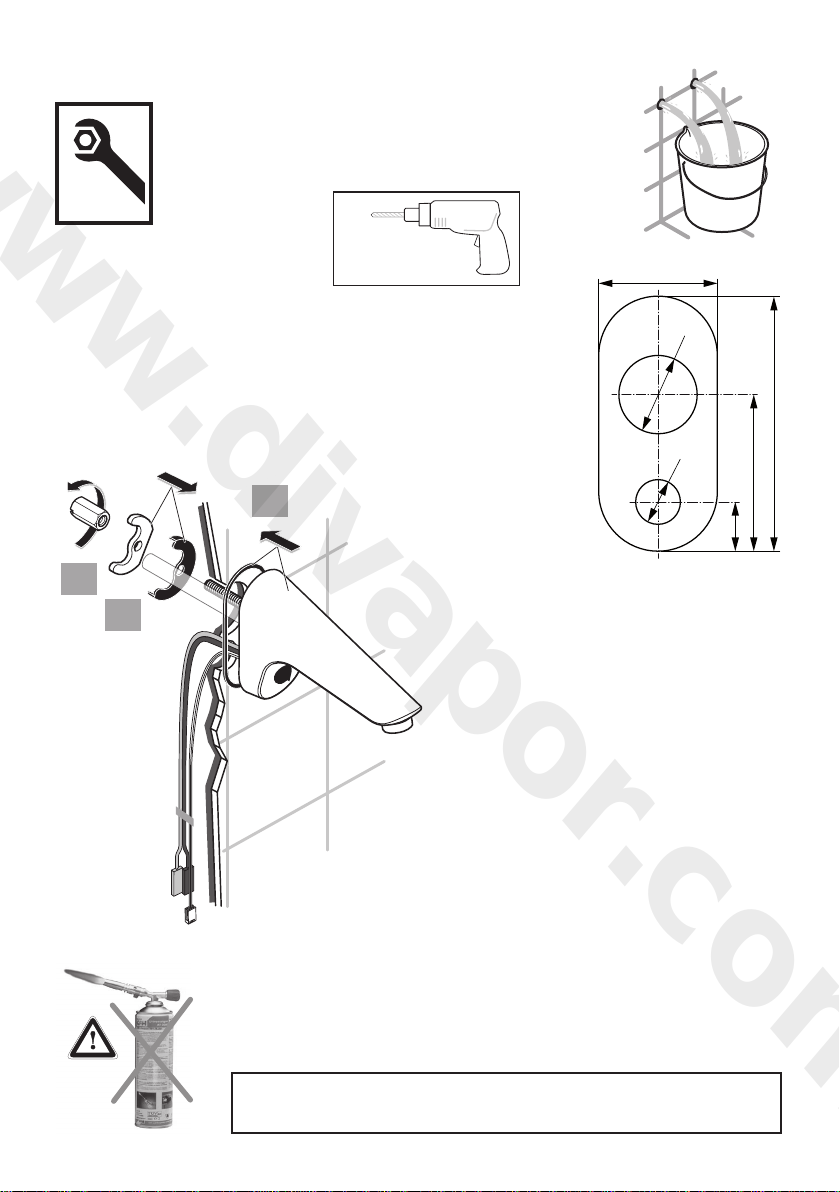

5.1 Mounting
Before connection, ush water through pipe-work to remove
all debris etc. to prevent damage to the valve mechanism.
THEN ENSURE WATER SUPPLIES HAVE BEEN ISOLATED.
Mark the prole of the spout onto the
panel at the preferred location & drill
two holes as shown. Upper hole is for
the xing stud & inlet pipe, lower hole
is for the cables.Ensure the
holes remain within the area
sealed by the foam gasket
(pre-tted to rear of spout).
2. Fit the rubber moulding to the metal xing plate.
Then from behind the panel slide the xing plate as-
sembly onto the xing stud as shown.
3. Hand tighten the nut against the xing plate until the
rubber moulding makes contact with the rear of the
panel. Ensure the spout is positioned correctly, & then
tighten the nut securely with a 13mm A/F spanner.
1. Screw the copper inlet pipe into the spout, trim to
length if necessary. Ensure the foam gasket is in place
as shown. This gasket should already be tted into the
recess at the rear of the spout (self adhesive).
The M8 xing stud should also be pre-tted.
Offer the spout towards the holes in the panel.
Feed the inlet pipe, xing stud & cables through
panel holes. Push the spout against the panel &
ensure the foam gasket makes contact
CABLE COLOURS:
The cables emerging from the spout are connected to the integral sensor.
BLACK & RED cables will connect to the solenoid valve.
GREY cable will connect onto the PCB inside the PSU
Do not cut these cables.
INSTALLATION HEIGHT: we recommend the spout outlet be positioned
approximately 150-200mm above the basin or worktop (which ever is
higher). Greater height may cause users to splash water outside the ba-
sin whereas lower height may affect activity space. Consideration should
also be give to the overall aesthetical appearance. Installations vary
signicantly, so use this dimension as a guideline only.
DRILL PANEL
HOLES Ø35 & Ø20
www.divapor.com

4
5
Copper supply
pipe Ø 15mm
Short copper
pipe Ø 15mm
Short copper
pipe Ø 15mm
Spout inlet
pipe Ø 10mm
Inlet elbow
15 to 10mm
compression
Inline service
valve with lter
Inline
solenoid
valve
Filter
cap
Isolation
screw
2x Couplers
G1/2” female
thread to
15mm
compression
FLOW
DIRN
FLOW
DIRN
19 & 24
7
5.2 Plumbing Overview
Once the spout has been secured to the panel,
consideration should be given to installing &
positioning of the inline valves.
A typical plumbing installation example is
shown here. The water is being supplied from
below, but can be from any direction.
Short lengths of Ø15mm copper pipe
(not supplied) have been used between the
components. Copper pipe lengths should be
cut to suit the installation.
Note the Ø10mm inlet pipe (tted to spout) can
be trimmed if necessary.
Observe arrow markings on the
valves as shown here. Ensure water
ows in the direction indicated.
4. To t inlet elbow: Slip the small compres-
sion nut & olive onto the Ø10mm inlet pipe.
Push the elbow onto the inlet pipe up to the
shoulder. Slide the olive up to the elbow &
tighten the compression nut (19mm A/F) with
a spanner. Hold the elbow steady with suit-
able grips.
ENSURE INLET PIPE REMAINS SECURE-
LY SCREWED INTO SPOUT.
INSTALLATION GUIDE continued…
www.divapor.com

INSTALLATION GUIDE continued…
Check that all joints are securely tightened, test for leaks.
11
10
6
7
8
9
24
24 & 25
5. To t inlet elbow cont: Slip the larger compression nut & olive onto a short length of Ø15mm supply
pipe. Push the supply pipe into the elbow up to the shoulder. Slide the olive up to the elbow & tighten the
compression nut with a 24mm A/F spanner. Hold the elbow steady with suitable grips.
6 & 8. To t solenoid valve:
The couplers can be screwed onto both sides
of the in-line solenoid valve. Ensure the seals
provided are tted as shown. Make good the
joints, taking care not to use excessive force.
Tighten with an adjustable spanner
(25mm A/F).
7 & 9. Slip the compression nuts & olives onto
the pipes. Fit the solenoid valve into the pipe-
work & make good the joints.
Observe ow direction.
Make sure the solenoid valve is orientated
such that the electrical connectors are easily
accessible.
10 & 11. To t service valve:
Slip the compression nuts & olives onto the pipes. Fit the service valve
into the pipe-work & make good the joints. Observe ow direction.
Make sure the service valve is orientated such that the lter cap &
isolating screw are easily accessible for future maintenance.
When the isolator screw slot is parallel to the
valve body, the valve is open & permits water to ow.
To close the valve, rotate the isolator screw 90°.
8
www.divapor.com

INSTALLATION GUIDE continued…
11
10
6
7
8
9
24
24 & 25

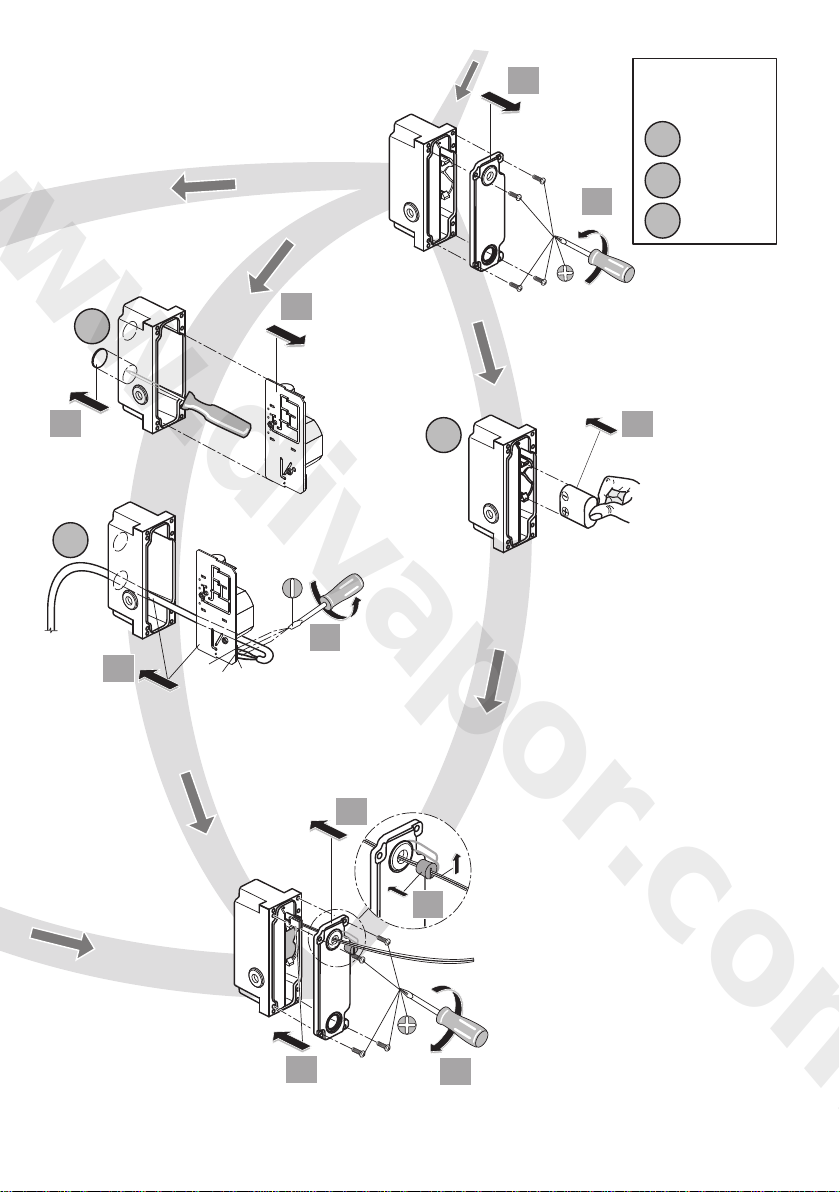

Connection of this product to mains
power supply should be undertaken by
a competent person and should conform to
IEE Wiring Regulations
Orientation & position of solenoids, and PSU
(Power Supply Unit) case can differ from installa-
tion to installation.
With the product securely mounted to the panel &
plumbed-in, electrical work can commence.
12. Locate the end of the red & black cable which
emerges from the spout (attached to the rear of
the sensor). This cable length is nominal 800mm.
Connect the cable to the solenoid valve terminals
as shown. Observe the + and – symbols marked
on the solenoid valves, connect the red cable to +
& black to -.
Refer to the diagram on the next page for PSU
connection options.
12
red
black
Power: 6W
Approval EU:
EN 60950, EN 60335
Approval UL: UL 1310
Input voltage:
100V - 240V~ 50 - 60Hz
Protection class: II
DIN EN 60730-1: Type 1
Each type of PSU is
identified by this
coloured dot system:
RED
DOT
BLUE
DOT
GREEN
DOT
MAINS
LINK
BATTERY
Electrical information
& approvals:
9
5.3 Electrical connection
www.divapor.com

10
INSTALLATION GUIDE continued…
Electrical connection continued…
ENSURE MAINS POWER SUPPLY IS SWITCHED OFF BEFORE COMMENCING
13. Open the PSU case by unscrewing 4x
posi-drive screws.
14. The lid & seal should separate from
the PSU case.
15. For battery version, orientate the
battery correctly & slide it into
the PSU as shown, until it clicks
into position
For mains version, slide out
Printed Circuit Board (PCB).
16. For mains version, press out the
“knock-out” at the base of the
PSU case for mains cable entry.
17. For link version, slice the
grommets tted in the side wall
of the PSUs to allow entry for
the link cable(s).
18. For mains version, t a grommet
into the hole in the base of the
PSU. Feed the power supply
exible cable through this grommet
& make connections to terminal
block on the PCB. Refer to 28.
19. For link version, feed the link cable
through the side wall grommet in
the PSU & plug it onto one of the
sockets on the PCB. Refer to 28.
ALTERNATIVELY, the link cable can
be routed through the PSU lid as shown
in 24, along with the sensor cable.
20. Slide the PCB back into the PSU
ensuring cables are not trapped.
21. For link version, plug the other end of the link cable
into the socket on the link PCB.
22. For link versions, plug additional link
cables into the sockets on the link
PCB.
23. Slide the link PCB back into the
PSU ensuring cables are not
trapped.
6V Lithium
CR-P2
15
13
14
15
16
N
PE
230 V
L1
18
20
N
PE
230 V
L1
18
19
20
AC Multiply
Mains
AC
21
22
23
AC Multiply(LINK)
(max. 5 x)
MAINS AC
PLUS LINK(S)
MAINS AC
PLUS LINK(S)
MAINS AC
-SOLO
BATTERY
-SOLO
MAINS
LINK(S)
Sensor
cable
Link
cable
230 V
AC
17
15
16
25
24
26 27
RED
DOT
RED
DOT
RED
DOT
RED
DOT
RED
DOT
RED
DOT
GREEN
DOT
BLUE
DOT
BLUE
DOT
BLUE
DOT
BLUE
DOT
BLUE
DOT
BLUE
DOT
Each type of PSU is
identified by this
coloured dot system:
RED
DOT
BLUE
DOT
GREEN
DOT
MAINS
LINK
BATTERY
www.divapor.com

11
6V Lithium
CR-P2
15
13
14
15
16
N
PE
230 V
L1
18
20
N
PE
230 V
L1
18
19
20
AC Multiply
Mains
AC
21
22
23
AC Multiply(LINK)
(max. 5 x)
MAINS AC
PLUS LINK(S)
MAINS AC
PLUS LINK(S)
MAINS AC
-SOLO
BATTERY
-SOLO
MAINS
LINK(S)
Sensor
cable
Link
cable
230 V
AC
17
15
16
25
24
26 27
RED
DOT
RED
DOT
RED
DOT
RED
DOT
RED
DOT
RED
DOT
GREEN
DOT
BLUE
DOT
BLUE
DOT
BLUE
DOT
BLUE
DOT
BLUE
DOT
BLUE
DOT
Each type of PSU is
identified by this
coloured dot system:
RED
DOT
BLUE
DOT
GREEN
DOT
MAINS
LINK
BATTERY
24. Remove the pre-split
grommet from the PSU lid.
Slide the grey sensor cable
into this grommet.
25. Slide the sensor cable
terminal through the PSU lid
& plug into one of the sockets
on the PCB. Press grommet
securely into the lid.
26. Mate the PSU lid to the
PSU case, ensuring seal is
in place. Avoid trapping any
cables.
27. Refit the 4 lid screws
securely.
www.divapor.com

12
INSTALLATION GUIDE continued…
Electrical connection continued…
28. Mains power cable (not supplied) should be exible 3A rated (multi-strand) 2 core cable. Prepare
the cable for connection into the PCB by carefully stripping back the outer sheath by about 100mm. Strip
the wire ends back by about 5mm.
PCB connection: the appropriate wires of the mains cable should connected to the appropriate termi-
nal on the block. The PCB is marked L1 for the live wire & N for the neutral wire. Earth connection is
not required.
IMPORTANT: Ensure terminal block screws are rmly tightened & clamp the wires securely.
Other cable information:
Two cables emerge from the spout these are connected to the
integral sensor. Both cables have nominal lengths of 800 mm.
BLACK & RED cable will plug onto the terminals on the solenoid valve.
GREY cable (with black line) will plug into one of the sockets on the PCB inside the PSU.
Link cable is also GREY (with black line), length is 1.5M (supplied with link product only)
SEE SECTION 7 FOR CABLE EXTENSION DETAILS & FURTHER CABLE NOTES
lid screw
grommet for
sensor cable
lid
PCB
terminal block
for mains
connection
transformers with
thermal fuse
complies with
EN60950
lid seal
PSU case
grommet for
power cable
(bottom entry)
output voltage 6V
-complies with
IEE wiring regulations
safety extra low voltage
(SELV)
Use either socket connector for
grey sensor cable or link cable
mains supply (210 - 250 volt)
should be via an RCD
(max trip 30 mA)
and fused spur
(fused at 3 amp)
power cable not supplied
Note: The 3 different PSUs
have different PCBs fitted. The
battery version has a single
socket connector. The mains
version shown here has a pair.
The link version has three.
(Some link PCBs have an extra Euro
connection – not used in the UK)
Shown above: Mains Power Supply Unit (PSU)
www.divapor.com

13
INSTALLATION GUIDE continued…
Electrical connection continued…
A pair of self-adhesive Velcro-type pads are provided. Attach
one to the side of the PSU case & the other to a suitable
location on the rear of the mounting panel.
Ensure the selected location does not stretch/stress the
cables. Consideration should also be given to keeping the
PSU case within easy reach/access for maintenance staff.
IMPORTANT:
Leave the sensor protective sticker in place for at least
20 seconds after powering-on the product. See section
7 regarding sensor ranging.
Example above of an installation where PSUs are all battery versions..
Example of an installation where 1st PSU is mains plus 2x link PSUs.
www.divapor.com

14
INSTALLATION GUIDE continued…
Electrical connection continued…
Sensor taps stickers: To complete the installation, 2 stickers are
provided which can be stuck onto a wall or panel in close proximity to
this product to advise the end user that this product sensor operated.
6 TAP OPERATION
Sensorow 21 products use an Infrared Sensor to activate the system.
The sensor is triggered by something reective (normally hand movement)
in the Sensing Region.
Move hands towards the spout:
Water will ow.
Move hands away from the spout:
Water will continue to ow for a
second or two, and then turn off.
Sensor is factory set to Proximity
Mode, & is designed to trigger the
water ow
only when a hand (or similar)
is in the Sensing Region – just
in front of the sensor / outlet.
For this range of products, the sensor
is located near the base of the spout
and faces forwards
Example above of an installation where PSUs are all mains versions.
145
www.divapor.com

15
If the Sensor detects a strong reection (or similar), the spout will turn on and off intermittently with no
one present (Pulsing On / Off). In the unlikely event that this does happen, the Sensing Range must
be reduced. This can be done using one of two ways: (A) manually or by (B) using a remote sensor
programming unit.
If the installer wishes to position the PSU in the ceiling area for example, then cable
extensions are available:
SENSOR & SOLENOID EXTENSION LEADS: A963703NU: (Pair, 2M long).
Containing grey power lead for sensor & black/red lead for solenoid.
LINK CABLES: A962281NU (1.5M), A962282NU (3M) & A960707NU (10M).
B. Remote sensor programming unit is a hand held unit which can be used to change sensor range &
other functions if required. Detailed instructions for using this unit are provided with the unit.
(This unit can be purchased separately. For spares code, see section 10)
See maintenance section for a quick overview of how to use this unit to evoke the optional hygiene ush
function.
7 SENSOR RANGING
For more information on spare parts why not visit our spare website:
www.fastpart-spares.co.uk. Or contact customer care
fast
trap
Extension cables
Default factory range setting is 145mm
DURING SETTING UP
PROCEDURE AVOID HIGH
VISIBILITY CLOTHING
CABLES SHOULD NOT BE CUT (OR SHORTENED), AS THIS WILL INVALIDATE WARRANTY.
Hand Position (B)
end of spout
Hand Position (A)
30 mm to 50 mm
from Sensor
A. Manually Changing Sensor Range
1. Turn Power to sensor OFF.
2. Wait 30 seconds, turn power ON . . .
3. IMMEDIATELY move hand very close to
sensor (A) (palm towards sensor)
4. Leave hand in place for 7 seconds.
5. Move hand to Position (B)
(This will set the Sensing Range)
6. Leave hand in place for 7 seconds
Move hand away from Sensor / Tap.
7. Wait 5 seconds for sensor to store data.
8. Sensor Range is now set.
9. Check tap works properly by bringing
hand towards tap.
(Total range is from 50mm to 250mm).
www.divapor.com

This product comes with two outlets one tted & the second supplied in a bag.
The product is factory tted with a laminar PCA regulated outlet which is secured
within an anti-vandal (AV) housing.
To replace/clean/service the outlet, use the outlet key supplied with the
product to unscrew the AV housing. Using the side of the key marked “jun-
ior” locate the key into the inner ring of the housing and unscrew. Change
the outlet & re-secure the housing with the key, ensuring the seal is in place.
Ensure the outlet housing is adequately tightened to prevent leaks & run back.
If water continues to ow when the tap should be off, and if the sensor is correctly ranged, then the
solenoid valve may have debris lodged in the diaphragm pilot hole or on the valve seat:
• Locate the solenoid valve.
• Isolate the water supplies.
• Disconnect the solenoid valve cables.
9.1 SOLENOID VALVE
16
8 OUTLET OPTIONS
9 MAINTENANCE
Q
4.7
P
l/min3.0 bar
Q
4.2
P
l/min0.5 bar
Unregulated
full-flow
flow straightener
(SUPPLIED LOOSE)
Regulated PCA
outlet (> 1.0 bar)
(FACTORY FITTED)
FLOW
DIRN
www.divapor.com

17
Maintenance continued…
• Remove the 3 screws holding the coil.
• Lift off the coil assembly.
• Locate the diaphragm
(inside the valve body).
• Clean out the pilot hole(s) – use a
thin gauge fuse wire (or similar).
• Ensure there is no debris on the diaphragm
or the valve seat (under diaphragm).
• Re-assemble solenoid valve.
• Reconnect water supply, check there are no leaks.
• Reconnect the solenoid valve cables.
• Test the solenoid valve & ensure it is working correctly.
If diaphragm is damaged it should be replaced.
If the solenoid plunger
becomes dislodged from its
bore, ensure it is retted
correctly. The end with the
small black insert should
face towards the diaphragm.
Incorrect assembly will cause continual running.
Diaphragm
pilot hole(s)
9.2 Hygiene ush (Automatic)
The programming unit should be held pointing towards the sen-
sor at distance of approx. 100mm.
Once enabled, this function will automatically turn the water on
for a duration of 1 to 240 seconds if the product has not been
used for a period of 6, 12, 24, 48, or 72 hours.
This hygiene ush is an important optional function of these products which can be enabled by the in-
staller or maintenance staff using the optional remote programming unit (for part number see sect.10).
The hygiene ush is used to combat periods of stagnation due to low usage of the product. The func-
tion activates the spout automatically if it hasn’t been used for a set time period. This function ensures
regular movement of water combating bio lm growth and bacteria colonisation.
For full details on how to enable this function, refer to the
programming instructions supplied with programming unit.
Keep hand unit away from the water ow, avoid getting it wet.
www.divapor.com

18
Maintenance continued…
Note: Older handset units will display (c) SENSOR 2008 (or 2003) by default.
Failed program output message will be (i) ERROR COMMUNICATION 3.
Latest handset can program all previous sensor versions 2013, 2008 & 2003.
a) Hand unit ON
b) Navigate to Menu 4 PARAMETER
c) SENSOR 2013 (Enter)
d) MENU 4.1 HAND-WASH (Enter)
e) AUTO-RINSE FREQUENCY: OFF
ARROW UP (To required Delay time) (Enter). Recommended: 6 or 12 hours.
f) AUTO-RINSE DURATION: (15 sec default)
ARROW UP or DOWN (To required Run Time). Recommended: 60sec (max).
g) Point towards Sensor (approximate distance 100mm)
h) Press ENTER
i) TRANSMISSION OK - if successfully programmed;
ERROR COMMUNICATION 2– if programming failed
j) Press ESCAPE (X) to get BACKUP FUNCTION
k) With BACKUP FUNCTION, previous settings are ‘Remembered’
- just point at next Tap / Sensor and press ENTER to repeat.
l) Hand unit turns itself off after 2 minutes of non-use.
A brief summary of how to navigate the programming unit is as follows:
9.3 Isolating valve
strainer cap
strainer screen
isolating valve
direction
of flow
Isolation valve (supplied with this product) MUST be tted to permit future maintenance of the product.
A strainer (lter) is built into this valve.
Isolation valve should be installed in an easily accessible location.
When the isolator screw slot is parallel to the valve body, the valve is open & permits water to ow. To
close the valve, rotate the isolator screw 90°.
The lter can be checked & cleaned by unscrewing the cap using a 22mm A/F spanner. Expect some
water to escape. The isolating valve can be closed to permit servicing of the solenoid valve, or to remove
the product completely.
www.divapor.com

19
10 SPARE PARTS
A4125AA
A4178AA
A4179AA
A960 224NU Diaphragm (10 pk)
A 962 478 NU
Solenoid complete
A 960 402 NU Legend plates
A 960 158 NU PCB Battery
A 960 161 NU Battery
A 960 160 NU PCB Link
A 960 159 NU PCB AC
A 960 704 NU Velcro pads
A 962 499 NU
A 962 499 NU
A 962 881 NU PSU AC complete A 960 531 NU PSU Link complete A 960 551 NU PSU Battery complete
E 960 086 NU
FOR LONGER CABLE OPTIONS, REFER TO SECTION .7
B 960 459 NU
F 960 970 NU
B 960 860 NU Flow straightener insert
A 960 219 NU Sensor complete
A 961 182 NU O-ring only (x2)
X
X
B 960 859 AA Areator complete with AV key
For more information on spare parts why not visit our spare website:
www.fastpart-spares.co.uk. Or contact customer care
fast
trap
www.divapor.com

11 CLEANING CHROME SURFACES
When cleaning chromed products use only a mild detergent, rinse & wipe dry with
a soft cloth. Ideally clean after each use to maintain appearance.
Never use abrasive, scouring powders or scrapers. Never use cleaning agents
containing alcohol, ammonia, hydrochloric acid, sulphuric acid, nitric acid,
phosphoric acid or organic solvents. Use of incorrect cleaning products / methods may result in chrome
damage which is not covered by the manufacturer’s guarantee.
20
0116 / A 866 851
Made in Germany
AFTER SALES NON RESIDENTIAL HELPLINE
0870 122 8822
AFTER SALES NON RESIDENTIAL FAX
0870 122 8282
E-MAIL
[email protected]
Armitage Shanks pursues a policy of continuing im-
provement in design and performance of its products.
This right is therefore reserved to vary specification
without notice.
Armitage Shanks is a division of Ideal Standard (UK) Ltd
Armitage Shanks
The Bathroom Works, National Avenue
Kingston-upon-Hull, HU5 4HS England
For more information about our products visit our websites:
www.armitage-shanks.co.uk
www.idealspec.co.uk
www.fastpart-spares.co.uk
Outlet cleaning. On a regular basis the outlet should be inspected & cleaned.
To unscrew and remove the outlet, see section 8.
In areas where lime scale build-up is prevalent this should be avoided by regular
cleaning. If it should build up, it will have to be removed. An inhibited proprietary
scale solvent can be used such as a kettle de-scaling solvent but it is important
to follow the manufacturer’s guidelines. After de-scaling it is important to rinse
the parts thoroughly in clean water.
Clean carefully and do not use abrasive materials or scrapers.
Ideal Standard International NV
Corporate Village - Gent Building
Da Vincilaan 2
1935 Zaventem
Belgium
www.divapor.com
