Armitage Shanks Sensorflow 21 A4168AA User manual

Important:
1. Electrical connection: mains electric powered versions of these
products must be connected to a continuous permanent power supply.
2. Sensor protector: this black-out lens cover should only be removed
from the sensor after completing installation & at least 20 seconds
after powering up.
See page 3 for more details.
Sensorow 21 shower – panel mount
A4168AA, A4185AA & A4186AA
INSTALLER: After installation please pass this instruction booklet to user
IMPORTANT
BEFORE CONNECTION, FLUSH WATER THROUGH PIPEWORK TO REMOVE
ALL DEBRIS ETC. WHICH COULD DAMAGE THE VALVE MECHANISM
INSTALLATION
INSTRUCTIONS
Ø15
Ø15
Ø15
Ø15
67
40
61
103
86 116
max.30
3
Ø48
750
M33 x 1.5

2
TABLE OF CONTENT
1 IMPORTANT PRE-INSTALLATION NOTES ...................................... 3
2 PRODUCT BOX CONTENTS ........................................................... 4
3 SUPPLY CONDITIONS...................................................................... 5
4 WATER REGULATIONS .................................................................... 5
5 INSTALLATION GUIDE...................................................................... 6
5.1 MOUNTING THE SENSORS................................................................................7
5.2 PLUMBING OVERVIEW.......................................................................................8
5.3 ELECTRICAL CONNECTION.............................................................................10
6 SHOWER OPERATION ................................................................... 16
7 SENSOR RANGING & RUN TIME ADJUSTMENT ......................... 17
8 EXTENSION CABLES ..................................................................... 18
9 MAINTENANCE ............................................................................... 19
9.1 SOLENOID VALVE .............................................................................................19
9.2 HYGIENE FLUSH (AUTOMATIC)....................................................................... 20
9.3 ISOLATING VALVE .............................................................................................21
10 CLEANING CHROME SURFACES ................................................. 21
11 SPARE PARTS................................................................................. 22
12 SELECTION OF OUR FIXED SHOWER HEADS............................ 23
Sensorow 21 panel mount showering products
  ThesepanelmountSensorow21electronicshoweringproductsaredesignedfor
water economy & hygienic “no-touch” operation.
The shower is operated by the infrared sensor which detects the presence of the users hand in the sens-
ingregion.Whenactivated,waterwillowfromtheshowerheadforthepresetrun-time.
These products are intended to be supplied with premixed or cold water.
These products are available in 3 versions: Mains powered (transformed) with option to link up to 5 link
units & independent battery powered units:
A4168AA are supplied with battery unit
A4185AA are supplied with mains power unit
A4186AA are supplied with link unit (Link up to 5 per A4185AA)
NOTE: A suitable shower head (or shower kit) should be purchased
separately (a shower head is not included with this product).
Seesection12foraselectionofourxedshowerheads.
!

3
1 IMPORTANT PRE-INSTALLATION NOTES
Connection to an interrupted power supply intended to stop electrical consumption in an unused facil-
ity, may adversely affect this sensor product and is therefore not recommended.
Each time the power supply is reinstated the product briey enters reprogramming mode.
During reprogramming mode, any interaction (passive or active) with the product may alter the sensor
settings in respect to range and / or run duration.
Nosignicantsavingswillbeachievedbyconnectiontoaninterruptedsupply.Theseproductsarein-
trinsically economical in terms of both water and electrical energy and will shut down in the event of a
sensor being obstructed.

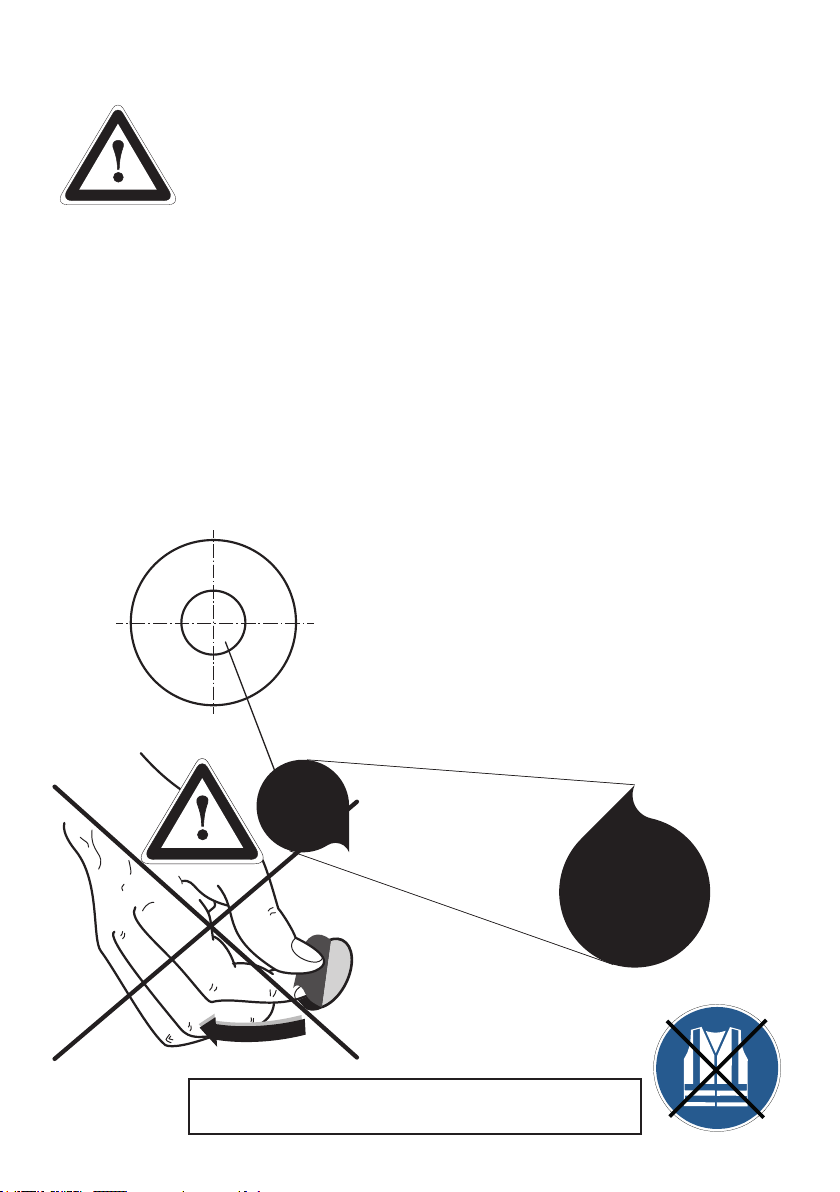

SENSOR PROTECTIVE COVER
This product is supplied with the sensor lens covered over with a black-out material.
DO NOT REMOVE this lens cover until the product
installation has been completed & then wait for at least 20
seconds after powering-up.
The lens cover prevents the sensor from being unintentionally
reprogrammed during the powering up sequence.
MAINS ELECTRICAL POWER SUPPLY
Mains powered Sensor Operated Products must be connected to a (fused / switched)
continuous permanent power supply.
Don´t
remove, read
instruction 1st
DURING SETTING UP PROCEDURE AVOID WEARING
HIGH VISIBILITY CLOTHING IN FRONT OF THE SENSOR

4
2 PRODUCT BOX CONTENTS
1x Solenoid
valve
1x Extension
lead 2M. For
solenoid valve
1x Panel mount sensor
1x Power Supply Unit
1x Velcro
pad set
Each type of PSU is
identified by this
coloured dot system:
RED
DOT
BLUE
DOT
GREEN
DOT
MAINS
LINK
(Supplied with
link cable)
BATTERY
(Supplied with
battery)
2x wall / panel
stickers
1x Inline
service valve
with filter
2x Couplers
G 1/2“ female
thread to
15 mm
compression

5
3 SUPPLY CONDITIONS
Abbreviations & terminology used
PSU: Power Supply Unit, either mains, battery or link versions.
PCB: Printed Circuit Board inside the PSU.
RCD: Residual Current Device
SELV: Safety Extra Low Voltage

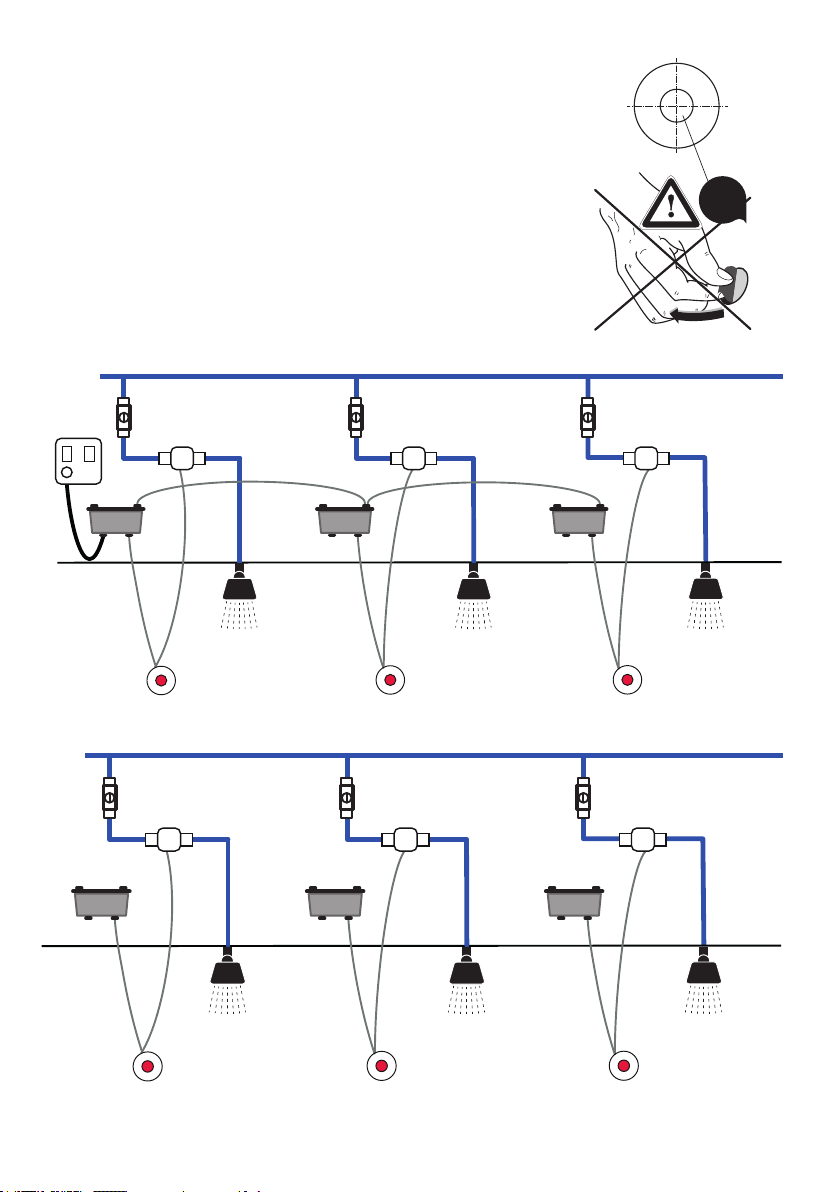

LINK PSUs: (up to 5 max) can be connected in series to a single mains PSU. Permit-
ting washroom with multiple products to be run from a single mains supply point.
4 WATER REGULATIONS
The ttings covered by this installation and maintenance instruction should be installed in
accordance with the water regulations published in 1999*, therefore Armitage Shanks would
strongly recommend that these ttings are installed by a professional installer
*A guide to the Water Supply (Water Fittings) Regulations 1999 and the Water Byelaws 2000, Scotland is published by WRAS (Water
Regulations Advisory Scheme) Fern Close, Pen-y-Fan Industrial Estate, Oakdale, Newport, NP11 3EH.
ISBN 0-9539708-0-9

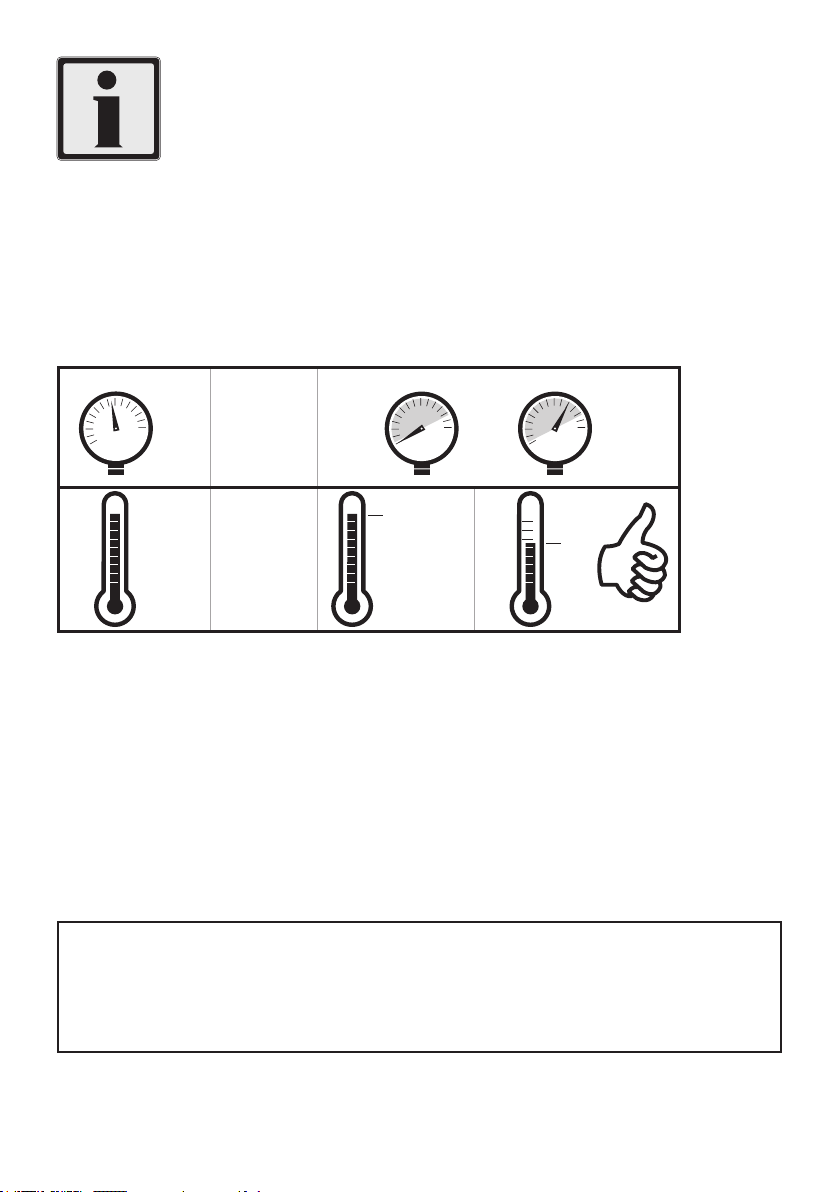

This product is designed to be supplied with water at a pre-mixed temperature or with cold water only.
In order to maintain water quality, the hot supply should be stored & distributed at a temperature greater
than 55°C.
Use of an appropriate temperature reduction device (e.g. tee pattern thermostat) is recommended to
ensure delivery of safe hot water temperatures from the shower head.
Avoid supplying scalding water to the shower head. Hot water temperature supply should be controlled
to circa 40°C.
MAX.
5
P
T°C
bar
MAX. 80
MIN.
0,5
40
Recommended

6
5 INSTALLATION GUIDE

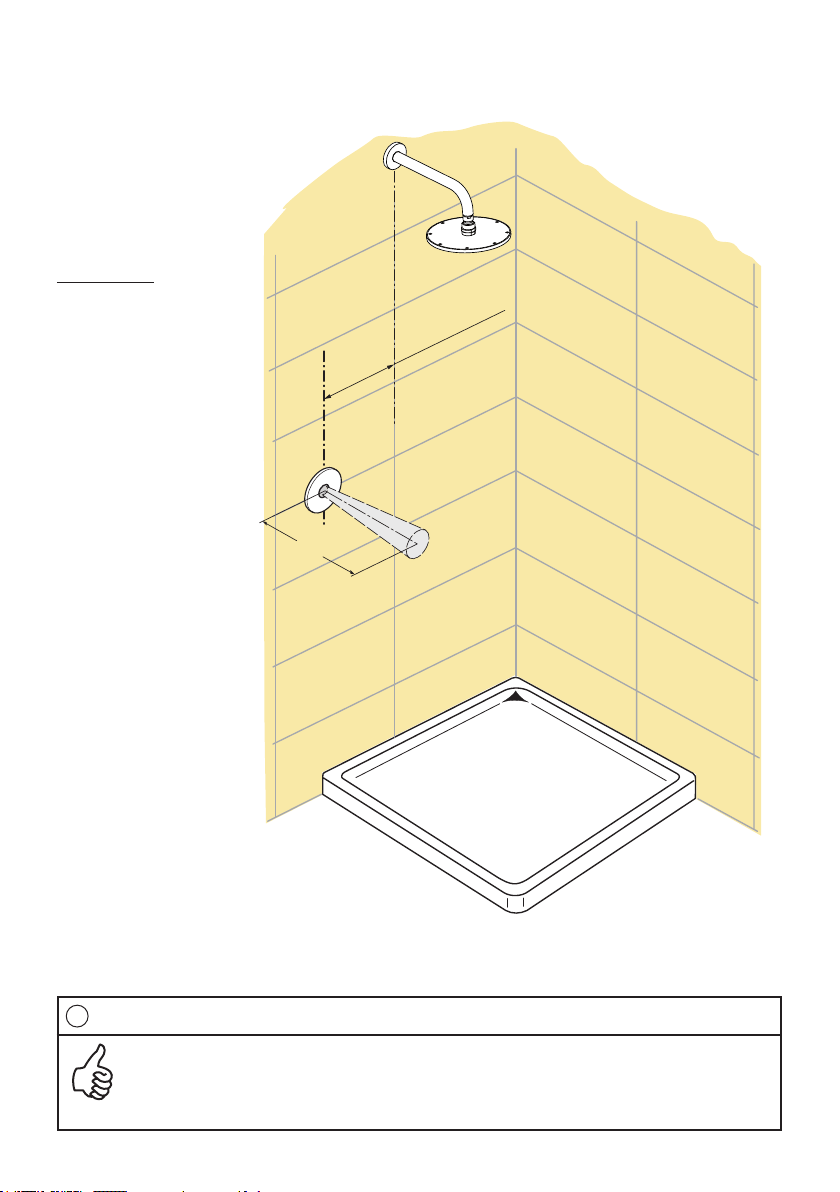

SENSOR POSITIONING:
An example of a typical
sensor operated shower
installation is shown here.
IMPORTANT:
We recommend the sen-
sor be positioned to one
side of the shower outlet
& within easy reach of
the user.
AVOID positioning the
sensor directly beneath
the shower outlet.
Sensor range is factory
set to approximately
100mm
Sensor height:
The height of the sensor
fromtheoorcanbewaist
height approximately 1M.
Sensor offset:
The sensor centre line
should be offset by at
least 250mm to either side
of the shower outlet
centre line as shown.
Otherwise the sensor will
be triggered repeatedly
by the user during show-
ering.
100
Greater than 250
SENSOR SHOULD NOT BE LOCATED DIRECTLY OPPOSITE A WALL MIRROR.
Ideally pipe-work, cables & electrical parts should be located behind a panel
away from the shower water.
ALTERNATIVELY, extension leads are supplied which permit the PSU & solenoid valve to
bettedintheceiling–upto2Mfromthesensorlocation.
!
Figure 5a

DRILL PANEL
HOLE Ø35 MIN,
Ø40 MAX
7
INSTALLATION GUIDE continued…

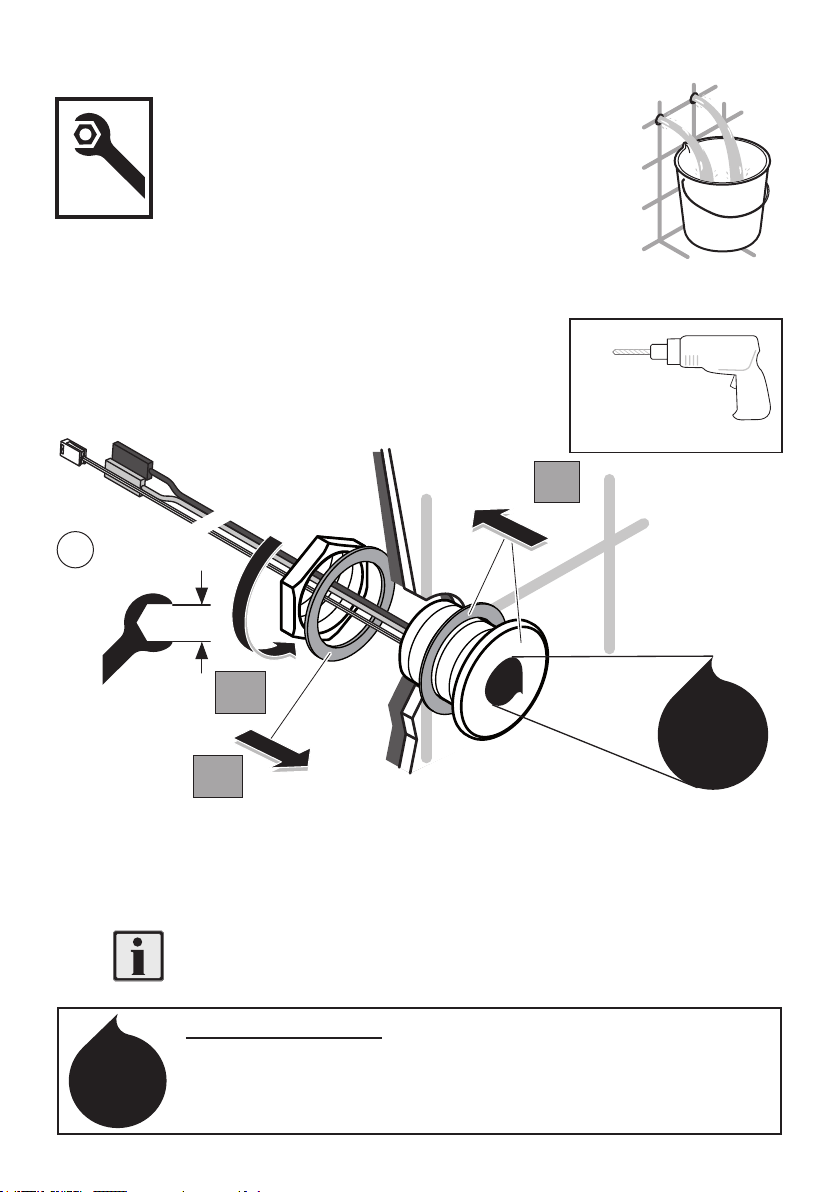

5.1 Mounting the sensors
Before connection, ush water through pipe-work to remove
all debris etc. to prevent damage to the valve mechanism.
THEN ENSURE WATER SUPPLIES HAVE BEEN ISOLATED.
2. Fit the brass washer & back-nut onto the sensor housing tail as shown from behind the panel.
3. Hand tighten the nut against the brass washer until it makes contact with the rear of the panel. En-
sure the sensor housing is positioned correctly, & then tighten the back-nut securely with an adjustable
spanner - 38mm A/F
1
3
2
38
Don´t
remove, read
instruction 1st
1. Remove the sensor mounting kit if already assembled to the
sensor housing tail. Ensure the rubber washer is in place behind the
ange.Offerthesensorhousingtowardsthepanelhole.
Feed the cables & tail through panel hole. Push the sensor housing
against the panel & ensure the rubber washer makes contact.
SENSOR POSITIONING: we recommend the sensor be mounted approximately
asillustratedingure5a.
Sensor protective sticker:
RE-AFFIX this sticker IF it has been removed from the sensor housing during
xation.
ONLY remove sticker after installation has been completed & then wait at
least 20 seconds after powering up.
CABLE COLOURS: The cables emerging from the rear of the sensor are as
follows: BLACK & RED cables will connect to the solenoid valve. GREY cable
will connect onto the PCB inside the PSU.
Don´t
remove, read
instruction 1st
!Do not cut
these cables.

4
5
Water supply
pipe from ceiling
(Ø15mm copper)
Short copper
pipe Ø 15mm
Short copper
pipe Ø 15mm
Outlet pipe to
shower head
Elbow to outlet
(not supplied)
Inline service
valve with lter
Inline
solenoid
valve
Filter
cap
Isolation
screw
2x Couplers
G1/2” female
thread to
15mm
compression
FLOW
DIRN
FLOW
DIRN
19 & 24
8
5.2 Plumbing Overview
Once the sensor has been secured to the
panel, consideration should be given to in-
stalling & positioning of the inline valve.
In the plumbing installation water is being
supplied from above (ceiling), but can be from
any direction.
Observe arrow marking on the solenoid valve
as shown here. Ensure water flows in the
direction indicated.
Short lengths of Ø15mm copper pipe (not
supplied) have been used between the com-
ponents. Copper pipe lengths should be cut
to suit the installation.
INSTALLATION GUIDE continued…
DO NOT apply heat near this product.
Heat generated by soldering could
damage plastic parts and seals.
4 & 5. Fit an elbow onto
shower outlet pipe (or tail).
Pipe-work diagram is
shown upside down

INSTALLATION GUIDE continued…
Check that all joints are securely tightened, test for leaks.
11
10
6
7
8
9
24
24 & 25
Outlet pipe to
shower head
Water supply
pipe from
ceiling
9

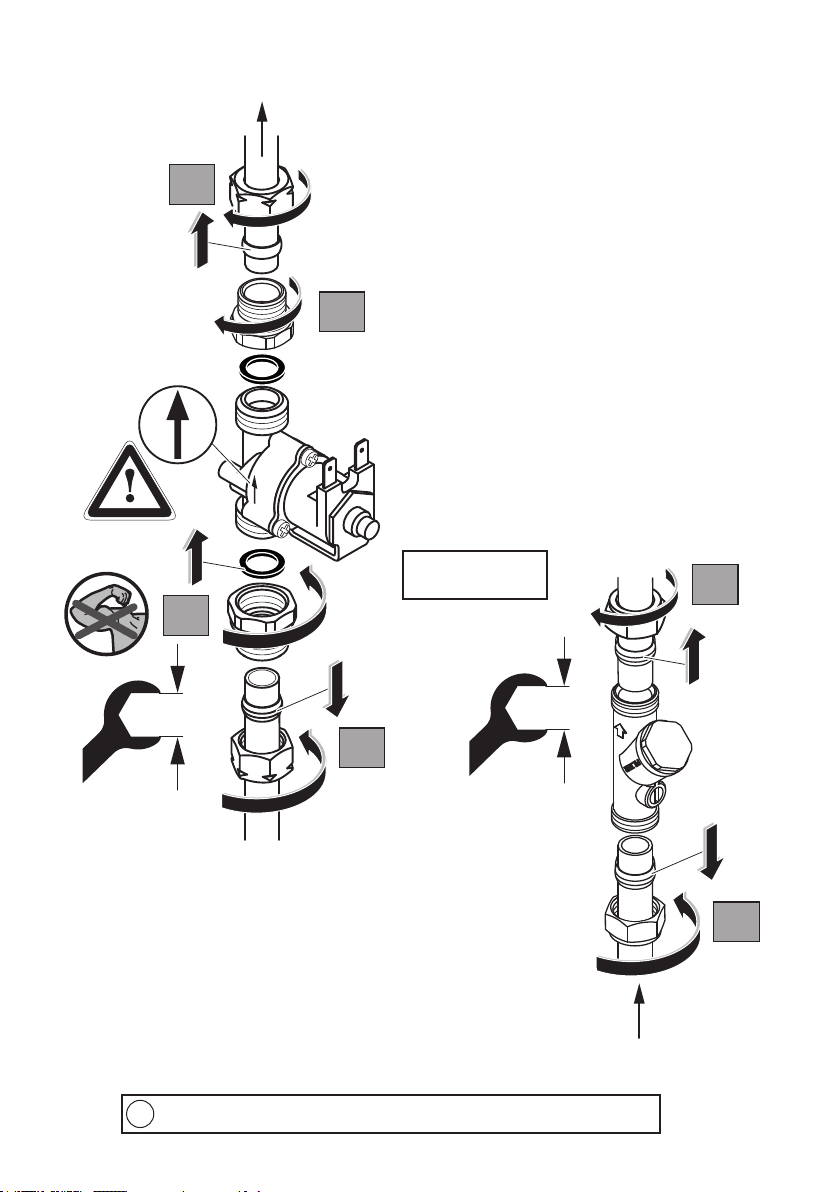

6 & 8. To t solenoid valve:
The couplers can be screwed onto both sides
of the in-line solenoid valve. Ensure the seals
providedarettedasshown.Makegoodthe
joints, taking care not to use excessive force.
Tighten with an adjustable spanner
(25mm A/F).
7 & 9. Slip the compression nuts & olives onto
the pipes. Fit the solenoid valve into the pipe-
work & make good the joints.
Observeowdirection.
Make sure the solenoid valve is orientated
such that the electrical connectors are easily
accessible.
10 & 11. To t service valve:
Slip the compression nuts & olives onto the pipes. Fit the service valve into
thepipe-work&makegoodthejoints.Observeowdirection.
Makesuretheservicevalveisorientatedsuchthattheltercap&isolating
screw are easily accessible for future maintenance.
Integral isolating/service valve
When the isolator screw slot is parallel to the
valvebody,thevalveisopen&permitswatertoow.
To close the valve, rotate the isolator screw 90°.
!
Pipe-work diagram is
shown upside down

INSTALLATION GUIDE continued…
Connection of this product to mains
power supply should be undertaken by
a competent person and should
conform to IEE Wiring Regulations
Orientation & position of solenoids, and PSU
(Power Supply Unit) case can differ from installa-
tion to installation.
With the product securely mounted to the panel &
plumbed-in, electrical work can commence.
12. Locate the end of the red & black cable
which emerges from the rear of the sensor.
This cable length is approx 750mm.
Connect the cable to the solenoid valve terminals
asshown.Observethe+and–symbolsmarked
on the solenoid valves, connect the red cable to +
& black to -.
Refertothediagramingure5bforPSU
connection options.
Each type of PSU is
identified by this
coloured dot system:
RED
DOT
BLUE
DOT
GREEN
DOT
MAINS
LINK
BATTERY
red
black
12
10
5.3 Electrical connection
Sensor cables should not be cut or shortened.
Remember pipe-work, cables & electrical parts should be located
behindapanelorttedintheceilingawayfromtheshowerwater.
!

Power: 6W
Approval EU:
EN 60950, EN 60335
Approval UL: UL 1310
Input voltage:
100V - 240V~ 50 - 60Hz
Protection class: II
DIN EN 60730-1: Type 1
Electrical information
& approvals:
11
Remember, connection of this product to mains power supply should be undertaken
by a competent person and should conform to IEE Wiring Regulations.
Additional cable information:
The two cables that emerge from the rear of the sensor both have nominal lengths of
750mm. A separate 2M sensor extension cable is supplied & can be used if necessary.
BLACK & RED cable will plug onto the terminals on the solenoid valve.
GREY cable (with black line) will plug into one of the sockets on the PCB inside the PSU.
Link cable is also GREY (with black line), length is 1.5M (supplied with link product only)
SEE SECTION 8 FOR CABLE EXTENSION DETAILS & FURTHER CABLE NOTES

12
INSTALLATION GUIDE continued…
Electrical connection continued…
ENSURE MAINS POWER SUPPLY IS SWITCHED OFF BEFORE COMMENCING
13. Open the PSU case by unscrewing 4x
posi-drive screws.
14. The lid & seal should separate from
the PSU case.
15. For battery version, orientate the
battery correctly & slide it into
the PSU as shown, until it clicks
into position
For mains version, slide out
Printed Circuit Board (PCB).
16. For mains version, press out the
“knock-out” at the base of the
PSU case for mains cable entry.
17. For link version, slice the
grommetsttedinthesidewall
of the PSUs to allow entry for
the link cable(s).
18.Formainsversion,tagrommet
into the hole in the base of the
PSU. Feed the power supply
exiblecablethroughthisgrommet
& make connections to terminal
block on the PCB. Refer to 28.
19. For link version, feed the link cable
through the side wall grommet in
the PSU & plug it onto one of the
sockets on the PCB. Refer to 28.
ALTERNATIVELY, the link cable can
be routed through the PSU lid as shown
in 24, along with the sensor cable.
20. Slide the PCB back into the PSU
ensuring cables are not trapped.
21. For link version, plug the other end of the link cable
into the socket on the link PCB.
22. For link versions, plug additional link
cables into the sockets on the link
PCB.
23. Slide the link PCB back into the
PSU ensuring cables are not trapped.
6V Lithium
CR-P2
15
13
14
15
16
N
230 V
L1
18
20
N
230 V
L1
18
19
20
AC Multiply
Mains
AC
21
22
23
AC Multiply(LINK)
(max. 5 x)
MAINS AC
PLUS LINK(S)
MAINS AC
PLUS LINK(S)
MAINS AC
-SOLO
BATTERY
-SOLO
MAINS
LINK(S)
Sensor
cable
Link
cable
230 V
AC
17
15
16
25
24
26 27
RED
DOT
RED
DOT
RED
DOT
RED
DOT
RED
DOT
RED
DOT
GREEN
DOT
BLUE
DOT
BLUE
DOT
BLUE
DOT
BLUE
DOT
BLUE
DOT
BLUE
DOT
Each type of PSU is
identified by this
coloured dot system:
RED
DOT
BLUE
DOT
GREEN
DOT
MAINS
LINK
BATTERY

13
6V Lithium
CR-P2
15
13
14
15
16
N
230 V
L1
18
20
N
230 V
L1
18
19
20
AC Multiply
Mains
AC
21
22
23
AC Multiply(LINK)
(max. 5 x)
MAINS AC
PLUS LINK(S)
MAINS AC
PLUS LINK(S)
MAINS AC
-SOLO
BATTERY
-SOLO
MAINS
LINK(S)
Sensor
cable
Link
cable
230 V
AC
17
15
16
25
24
26 27
RED
DOT
RED
DOT
RED
DOT
RED
DOT
RED
DOT
RED
DOT
GREEN
DOT
BLUE
DOT
BLUE
DOT
BLUE
DOT
BLUE
DOT
BLUE
DOT
BLUE
DOT
Each type of PSU is
identified by this
coloured dot system:
RED
DOT
BLUE
DOT
GREEN
DOT
MAINS
LINK
BATTERY
24. Remove the pre-split
grommet from the PSU lid.
Slide the grey sensor cable
into this grommet.
25. Slide the sensor cable
terminal through the PSU lid
& plug into one of the sockets
on the PCB. Press grommet
securely into the lid.
26. Mate the PSU lid to the
PSU case, ensuring seal is
in place. Avoid trapping any
cables.
27. Refit the 4 lid screws
securely.
Figure 5b

14
INSTALLATION GUIDE continued…
Electrical connection continued…
28. Mains power cable(notsupplied)shouldbeexible3Arated(multi-strand)2corecable.Prepare
the cable for connection into the PCB by carefully stripping back the outer sheath by about 100mm. Strip
the wire ends back by about 5mm.
PCB connection: the appropriate wires of the mains cable should connected to the appropriate termi-
nal on the block. The PCB is marked L1 for the live wire & N for the neutral wire. Earth connection is
not required.
IMPORTANT:Ensureterminalblockscrewsarermlytightened&clampthewiressecurely.
lid screw
grommet for
sensor cable
lid
PCB
terminal block
for mains
connection
transformers with
thermal fuse
complies with
EN60950
lid seal
PSU case
grommet for
power cable
(bottom entry)
output voltage 6V
-complies with
IEE wiring regulations
safety extra low voltage
(SELV)
Use either socket connector for
grey sensor cable or link cable
mains supply (210 - 250 volt)
should be via an RCD
(max trip 30 mA)
and fused spur
(fused at 3 amp)
power cable not supplied
Note: The 3 different PSUs
have different PCBs fitted. The
battery version has a single
socket connector. The mains
version shown here has a pair.
The link version has three.
(Some link PCBs have an extra Euro
connection – not used in the UK)
Shown above: Mains Power Supply Unit (PSU)

Sensor
Mains
PSU
240V
Link cable 1.5M
Link
PSU
6
V
Link
PSU
6
V
Link cable 1.5M
Mains water supply
Ceiling
Service
valve
Solenoid
valve
50Hz
240V
Shower
outle
t
Extension
leads used
15
INSTALLATION GUIDE continued…
Electrical connection continued…
A pair of self-adhesive Velcro-type pads are provided. Attach one to the
side of the PSU case & the other to a suitable location on the rear of the
mounting panel.
Ensure the selected location does not stretch/stress the cables. Consid-
eration should also be given to keeping the PSU case within easy reach/
access for maintenance staff.
IMPORTANT:
Leave the sensor protective sticker in place for at least 20 seconds af-
ter powering-on the product. See section 7 regarding sensor ranging.
Then sticker can be peeled off.
Example above of a shower installation where PSUs are all battery versions.
Example above of a shower installation where 1st PSU is mains plus 2x link PSUs
Sensor
Batterie PSU 6V Batterie PSU 6V Batterie PSU 6V
Mains water supply
Ceiling
Service
valve
Solenoid
valve
Shower
outle
t
Extension
leads used

16
INSTALLATION GUIDE continued…
Electrical connection continued…
6 SHOWER OPERATION
Sensorow21productsuseanInfraredSensortoactivatethesystem.Thesen-
soristriggeredbysomethingreective(normallytheuser’shandmovement)
in the Sensing Region.
User should stand under shower outlet
& move a hand aross the sensor within a
100mm or so. The shower will turn on &
run for a default run-time of 30 seconds
… then turn off.
If user moves hand across the sensor
whilst water is running, the shower will turn
off (toggle On-Off).
The default run time & sensor range can
be adjusted, see section 7.
The sensor is factory set to timed flow
mode.
Example above of a shower installation where PSUs are all mains versions.
Sensor
Mains
PSU
240V
Mains
PSU
240V
Mains
PSU
240V
Mains water supply
Ceiling
Service
valve
Solenoid
valve
50Hz
240V
Shower
outlet
Extension
leads used
Sensor taps stickers: To complete the installation, 2 stickers are
provided which can be stuck onto a wall or panel in close proximity to
this product to advise the end user that this product sensor operated.
100

A. Manually Changing Sensor Range
1. Turn power to sensor OFF. Wait 60 secs, turn power back ON.
2.Redlightinthesensorashesquicklyfor5secs(approx2ashespersec).
3.Whilethelightisashing,moveahandclosetosensor(30to50mm).
4.Whenthelightstopsashing,itgoestosolidred(staysON).
5. Move hand to approximately 100mm (to set the sensing range between 50 to 250mm)
6.Wait5secondsuntilsensorlightstartstoashagain.(Rangeisnowset).
Manually changing run time (with run times restricted)
If required to change run time, carry out steps 1 to 6, then
7. IMMEDIATELY move hand very close to the sensor.
8.After5secs.,thefastashingredlightinthesensorwillashslowly(1ashevery2secs.).
9.Countslowashes;takehandawayfromsensingregionafterrequirednumberofashes:
i.e.: Bytakinghandawayafter7slowashes,theruntimewillhavebeensetto240seconds
17
(SENSOR SHOULD NOT BE LOCATED DIRECTLY OPPOSITE A WALL MIRROR.)
The sensing range & run time can both be adjusted.
Default factory settings are 100mm range & 30 seconds run time.
Run time of 30 is considered satisfactory for most applications. Too short a run time
 willincreasethefrequencyoftheuser’sinteractionswithsensor.
A long run time can increase water consumption.
This can be done in one of two ways: (A) manually or by (B) using a remote sensor programming unit
with some manual actions.
7 SENSOR RANGING & RUN TIME ADJUSTMENT
DURING SETTING UP PROCEDURE AVOID WEARING HIGH
VISIBILITY CLOTHING IN FRONT OF THE SENSOR
No of LED Flashes 12345678
Run Time (seconds) 3,25 7,5 15 30 60 120 240 0
Hand Position (B)
Approx 100mm
from Sensor
Ensure sticker
over sensor face is
removed before
programming
Hand Position (A)
30 mm to 50 mm
from Sensor

See section 9.2 for a quick overview of how to use this programming unit to adjust the hy-
gieneushsettings.
18
SENSOR RANGING & RUN TIME ADJUSTMENT continued…
8 EXTENSION CABLES
To permit the installer to position the PSU in the ceiling area for
example, a pair of cable extensions are supplied.
For reference, the spares codes are as follows:
SENSOR & SOLENOID EXTENSION LEADS: A963703NU: (Pair, 2M long).
Containing grey power lead for sensor & black/red lead for solenoid.
(Note: This extension cable is supplied with these products).
LINK CABLES:
A962281NU (1.5M),
A962282NU (3M) &
A960707NU (10M).
(For connecting link a PSU to the mains PSU or another link PSU).
B. Remote sensor programming unit is a hand held unit which can be used to change sensor range &
other functions if required. Detailed instructions for using this unit are provided with the unit.
(This unit can be purchased separately, for spares code see section 11).
For more information on spare parts why not visit our spare website:
www.fastpart-spares.co.uk. Or contact customer care
fast
trap
CABLES SHOULD NOT BE CUT (OR SHORTENED), AS THIS
WILL INVALIDATE WARRANTY.

If water continues to ow when the valve should be off, and if the sensor is correctly ranged, then the
solenoid valve may have debris lodged in the diaphragm pilot hole or on the valve seat:
• Locate the solenoid valve.
• Isolate the water supplies.
• Disconnect the solenoid valve cables.
9.1 SOLENOID VALVE
FLOW
DIRN
9 MAINTENANCE
19

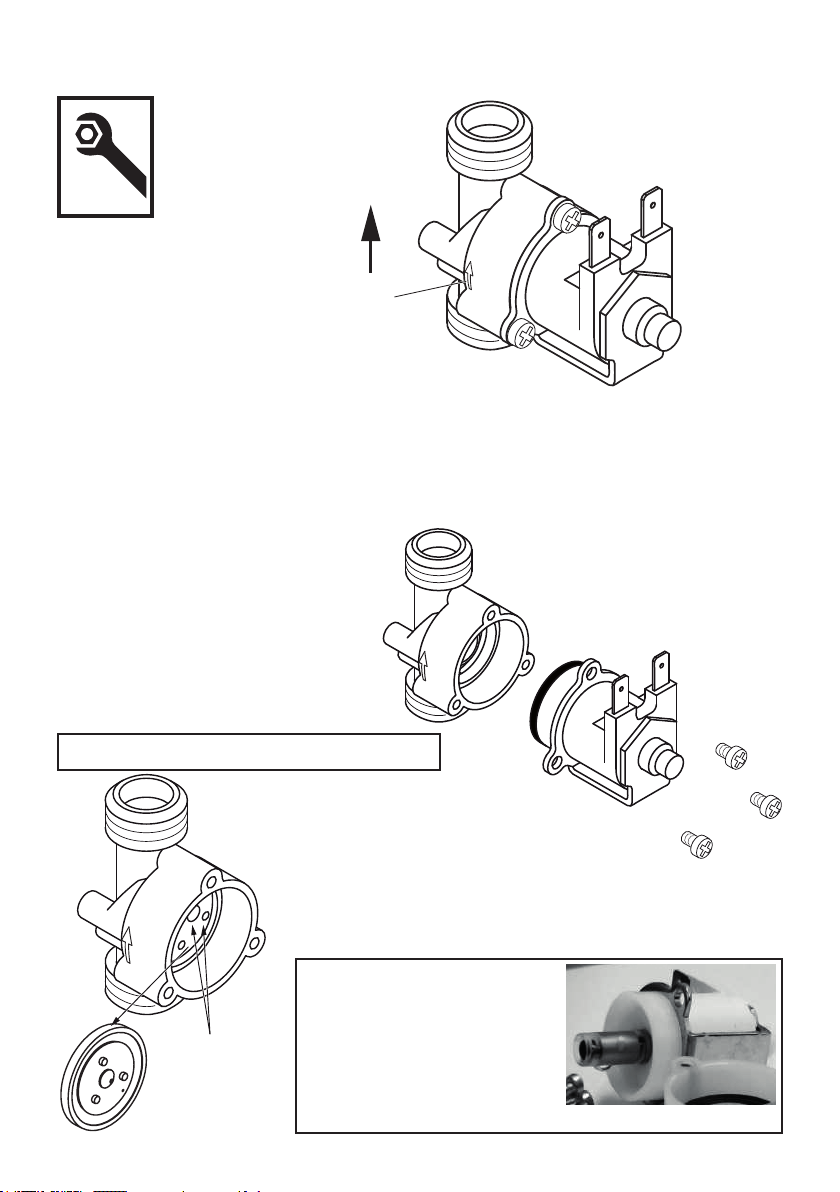

• Remove the 3 screws holding the coil.
• Lift off the coil assembly.
• Locate the diaphragm
(inside the valve body).
•Cleanoutthepilothole(s)–usea
thin gauge fuse wire (or similar).
• Ensure there is no debris on the diaphragm
or the valve seat (under diaphragm).
• Re-assemble solenoid valve.
• Reconnect water supply, check there are no leaks.
• Reconnect the solenoid valve cables.
• Test the solenoid valve & ensure it is working correctly.
If diaphragm is damaged it should be replaced.
If the solenoid plunger
becomes dislodged from its
bore, ensure it is retted
correctly. The end with the
small black insert should
face towards the diaphragm.
Incorrect assembly will cause continual running.
Diaphragm
pilot hole(s)

20
Note: Older handset units will display (c) SENSOR 2008 (or 2003) by default.
Failed program output message will be (i) ERROR COMMUNICATION 3.
Latest handset can program all previous sensor versions 2013, 2008 & 2003.
a) Hand unit ON
b) Navigate to Menu 4 PARAMETER
c) SENSOR 2013 (Enter)
d) MENU 4.3 ON / OFF (Enter)
e) AUTO-RINSE FREQUENCY: OFF
ARROW UP (To required Delay time) (Enter). Recommended: 6 or 12 hours.
f) AUTO-RINSE DURATION: (15 sec default)
ARROW UP or DOWN (To required Run Time). Recommended: 60sec (max).
g) Point towards Sensor (approximate distance 100mm)
h) Press ENTER
i) TRANSMISSION OK-ifsuccessfullyprogrammed;
ERROR COMMUNICATION 2–ifprogrammingfailed
j) Press ESCAPE (X) to get BACKUP FUNCTION
k) WithBACKUPFUNCTION,previoussettingsare‘Remembered’
- just point at next Tap / Sensor and press ENTER to repeat.
l) Hand unit turns itself off after 2 minutes of non-use.
A brief summary of how to navigate the programming unit is as follows:
Maintenance continued…
9.2 Hygiene ush (Automatic)
The programming unit should be held pointing towards the sen-
sor at distance of approx. 100mm.
Once enabled, this function will automatically turn the water on
for a duration of 1 to 240 seconds if the product has not been
used for a period of 6, 12, 24, 48, or 72 hours.
Thishygieneushisenabledontheurinalproductsandcanbeadjustedbytheinstallerormaintenance
staff using the optional remote programming unit (for part number see sect.11).
Thehygieneushisusedtocombatperiodsofstagnationduetolowusageoftheproduct.Thefunction
activatestheush(ordischargetoautocistern)automaticallyifithasn’tbeenusedforasettimeperiod.
Thisfunctionensuresregularmovementofwatercombatingbiolmgrowthandbacteriacolonisation.
For full details on how to enable this function, refer to the
programming instructions supplied with programming unit.
Keep hand unit away from the water ow, avoid getting it wet.
!
