ARRI BALLASTS User manual

BALLASTS

EB 200/575/1200W
Location
Multifunction System
EB 2.5/4kW
Location
Multifunction System
A R R I B A L L A S T S
Part no.: L2.76777.0
Tec nical Data:
Size (mm):
560L x 19"W x 4U H
Weight (kg): 22
Accessories:
6-channel Location Splitbox
L2.76779.B
20m Multicore Cable
L2.76781.C
30m Multicore Cable
L2.76781.D
50m Multicore Cable
L2.76781.E
Part no.: L2.76791.0
Tec nical Data:
Size (mm):
560L x 19"W x 4U H
Weight (kg): 24
Accessories:
3-channel Location Splitbox
L2.76793.B
20m Multicore Cable
L2.76796.C
30m Multicore Cable
L2.76796.D
50m Multicore Cable
L2.76796.E
Part no.: L2.76778.0
F ight Case for 3 x 19" EB Modu es.
Picture shows 3 Ba ast Packs in F ight
Case with Mu ticore Cab e and Sp itbox.
Tec nical Data:
Size (mm):
560L x 19"W x 4U H
Weight (kg): 22
Accessories:
6-channel Location Splitbox
L2.76779.B
20m Multicore Cable
L2.76781.C
30m Multicore Cable
L2.76781.D
50m Multicore Cable
L2.76781.E
Part no.: L2.76792.0
F ight Case for 3 x 19" EB Modu es.
Picture shows 3 Ba ast Packs in F ight
Case with Mu ticore Cab e and Sp itbox.
Tec nical Data:
Size (mm):
560L x 19"W x 4U H
Weight (kg): 24
Accessories:
3-channel Location Splitbox
L2.76793.B
20m Multicore Cable
L2.76796.C
30m Multicore Cable
L2.76796.D
50m Multicore Cable
L2.76796.E
EB 200/575/1200W
Location
Multifunction
EB 2.5/4kW
Location
Multifunction
In order to maintain the highest standards, ARRI reserves the right to a ter specifications without notice.
© ARRI (GB) Ltd
BALLASTS
For over 25 years, discharge lighting ballasts have been an integral part
of the ARRI Lighting family. Since then, the range has developed into the
reliable, robust and efficient components recognised world-wide as the
industry standard for film, theatre and events.
ARRI offers a comprehensive range of conventional choke and electronic
ballasts for mains and battery operation, including 19" multi-function
electronic ballasts - plug in technology, with automatic lamp recognition,
for the universal connection of different power lampheads.
Today, ARRI Ballasts feature state of the art electronics and offer easy
maintenance, automatic fault detection and extensive status indicators
along with impeccable reliability and safety. A wide range of cables
and accessories completes the ARRI range.
Location Multi-function Ballasts save space on set and make plugging
up discharge heads almost as easy as tungsten. A rolling rack can power up
to 18 lampheads via multi-core cables. Standard ARRI heads from 200W to
4kW can be used.
Intelligent splitter boxes are available in two types: the 2/6/12 can supply
6 x 200 or 575W heads or up to 3 x 1.2kW heads driven by pairs of
channels while the 2.5/4 splitter operates up to three 2.5 or 4kW heads.
The boxes identify the combination connected so the appropriate power is
supplied without risk.
ARRI Event Systems have set the standard for exhibitions, car shows and
other events where daylight sources are required. The Event System saves
set-up time and costs with improved cable management. Special Event
Arrisun and ARRI X heads are supplied by a 19" 4U pack via a single
multicore cable. For more details please refer to the Event Brochure.
Boost Ballasts give the highest possible light output for high-speed
photography. 4kW lamps are driven with 8kW power for up to 15-20
seconds giving high illumination with much less heat than tungsten
lighting. Rack-mounted or stand-alone options are available.
• Conventional choke ballasts with 575W to 12000W capacity
• Electronic ballasts from 125W to 18000W capacity
• Electronic battery ballasts to 1200W
• 19" rack mount electronic ballasts -
plug-in technology for 200W to 4000W
• Rolling racks with integrated power distribution for 19" electronic ballasts
• Multicore cables and intelligent splitter boxes for
Location and Event Systems
• Options for International Veam or Schaltbau connectors
• Optional DMX remote control on many models
• Rack-mounted or stand alone Boost Ballasts
• ALF (Active Line Filter) for Electronic Ballasts
For further information: www.arri.com

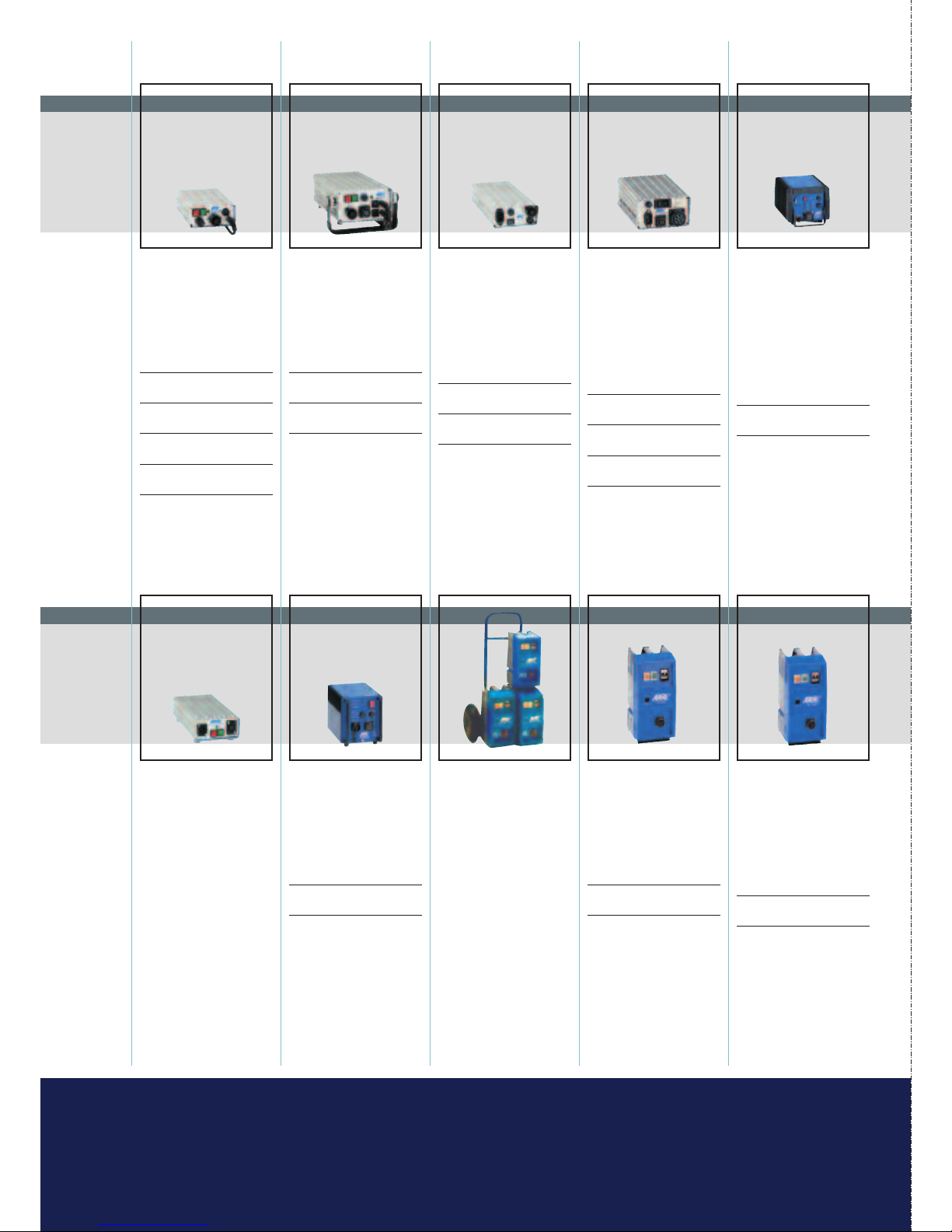

EBB: L2.76040.B
Tec nical Data:
Size (mm):
67H x 130W x 158L
Weight (kg): 1.2
Accessories:
7m 125W Head to Ballast
Cable L2.73383.0
7m 200W Head to Ballast
Cable L2.73372.0
12-30V DC-DC Converter
L2.76090.0
Mounting Plate with
Superclamp L2.76100.0
Mounting Plate with Velcro
Strap L2.76095.0
EBB: L2.76270.B
Tec nical Data:
Size (mm):
91H x 155W x 265L
Weight (kg): 2.6
Accessories:
7m 200W Head to Ballast
Cable L2.73372.0
7m 400W Head to Ballast
Cable L2.79857.0
Mounting Plate with
Superclamp L2.76100.0
EB: L2.76013.B
115/230V
Tec nical Data:
Size (mm):
70H x 180W x 240L
Weight (kg): 2.3
Accessories:
7m 125W Head to Ballast
Cable L2.73382.0
7m 200W Head to Ballast
Cable L2.73372.0
Mounting Plate with
Superclamp L2.76100.0
EB: L2.76260.0
EB DMX: L2.76261.0
115/230V
Tec nical Data:
Size (mm):
91H x 155W x 270L
Weight (kg): 3
Accessories:
7m 575W Head to Ballast
Cable L2.75600.0L
15m 575W Head to Ballast
Cable L2.75600.CL
7m 400W Head to Ballast
Cable L2.70857.0
Mounting Plate with
Superclamp L2.76100.0
Standard DMX
EB: L2.76125.0 L2.76126.0
EB ALF: L2.76425.0 L2.76426.0
115/230V
Tec nical Data:
Size (mm):
150H x 200W x 300L
Weight (kg): 7.5
Accessories:
7m 575/1200W Head to
Ballast Cable L2.75600.0L
15m 575/1200W Head to
Ballast Cable L2.75600.CL
125/200W
Electronic Battery
Ballast
200/400W
Electronic Battery
Ballast
125/200W
Electronic Ballast 400/575W Electronic Ballast 575/1.2kW Electronic Ballast
Part no.: L2.76090.0
250W Converter comp ete with battery
cab e. Use with the 125/200W DC ba ast
to power a 125 or 200W amphead from
a car battery.
Tec nical Data:
Size (mm):
224L x 120W x 55H
Weight (kg): 1.4
EBB: L2.76230.0
Tec nical Data:
Size (mm):
200H x 230W x 358L
Weight (kg): 11
Accessories:
7m Head to Ballast Cable
L2.75600.0L
15m Head to Ballast Cable
L2.75600.CL
For Two Ballasts: L2.75015.0
For Four Ballasts: L2.75016.0 CB: L2.75010.E
Tec nical Data:
Size (mm):
398H x 175W x 235L
Weight (kg): 14.5
Accessories:
7m 575W Head to Ballast
Cable L2.75600.0L
15m 575W Head to Ballast
Cable L2.75600.CL
CB: L2.75012.0
CB DMX: L2.75022.E
Tec nical Data:
Size (mm):
398H x 175W x 254L
Weight (kg): 20
Accessories:
7m 1.2kW Head to Ballast
Cable L2.75600.0L
15m 1.2kW Head to Ballast
Cable L2.75600.CL
DC/DC
Converter 575/1.2kW AC/DC Electronic Ballast Ballast Trolley 575W C oke Ballast 1.2kW C oke Ballast

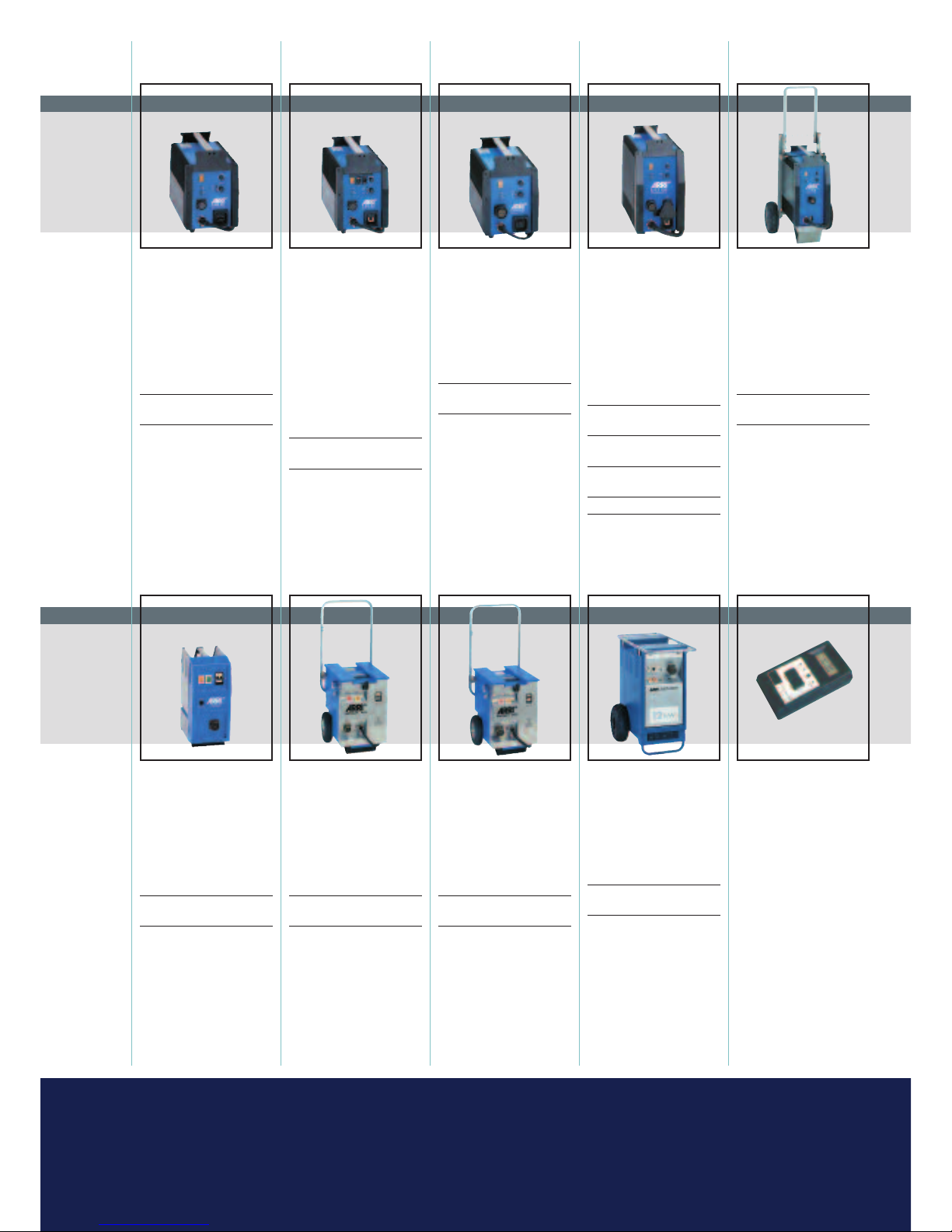

2.5kW
Electronic Ballast 2.5/4 & 575-4kW Electronic Ballast 6kW Electronic Ballast 6/12kW Electronic Ballast 12/18kW Electronic Ballast
EB: L2.76635.0
EB DMX: L2.76636.0
115/230V
Tec nical Data:
Size (mm):
358H x 243W x 450L
Weight (kg): 21
Accessories:
7m 2.5kW Head to Ballast
Cable L2.75620.0L
15m 2.5kW Head to Ballast
Cable L2.75620.CL
Standard DMX
EB 2.5/4kW
230V: L2.76440.0 L2.77641.0
EB 2.5/4kW
115/230V: L2.76675.0 L2.76676.0
EB 575-4kW
230V: L2.76671.0
Tec nical Data:
Size (mm):
358H x 243W x 450L
Weight (kg): 20
Accessories:
7m 2.5/4kW Head to Ballast
Cable L2.75620.0L
15m 2.5/4kW Head to
Ballast Cable L2.75620.AL
EB: L2.76193.0
230V
Tec nical Data:
Size (mm):
358H x 243W x 450L
Weight (kg): 25
Accessories:
7m 6kW Head to Ballast
Cable L2.77940.0L
15m 6kW Head to Ballast
Cable L2.77940.AL
EB: L2.76172.0
EB DMX: L2.76182.0
6kW 115/230V
12kW 230V
Tec nical Data:
Size (mm):
498H x 263W x 506L
Weight (kg): 40
Accessories:
7m 6kW Head to Ballast
Cable L2.77940.0L
15m 6kW Head to Ballast
Cable L2.77940.AL
15m 12/18kW Head to
Ballast Cable L2.82294.0L
20m 12/18kW Head to
Ballast Cable L2.82294.AL
Trolley for Ballast L9.61100.0
EB: L2.76290.0
EB DMX: L2.76291.0
230V
Tec nical Data:
Size (mm):
584H x 283W x 560L
Weight (kg): 49
Accessories:
15m 12/18kW Head to
Ballast Cable L2.82294.0L
20m 12/18kW Head to
Ballast Cable L2.82294.AL
CB: L2.75014.E
CB DMX: L2.75024.E
Tec nical Data:
Size (mm):
398H x 175W x 293L
Weight (kg): 28.5
Accessories:
7m 2.5kW Head to Ballast
Cable L2.75620.0L
15m 2.5kW Head to Ballast
Cable L2.75620.CL
CB: L2.75839.0
CB DMX: L2.75870.E
Tec nical Data:
Size (mm):
480H x 365W x 630L
Weight (kg): 61
Accessories:
7m 4kW Head to Ballast
Cable L2.75620.0L
15m 4kW Head to Ballast
Cable L2.75620.CL
CB: L2.75841.0
CB DMX: L2.75880.E
Tec nical Data:
Size (mm):
480H x 365W x 630L
Weight (kg): 60
Accessories:
7m 6kW Head to Ballast
Cable L2.77940.0L
15m 6kW Head to Ballast
Cable L2.77940.AL
CB: L2.70675.0
Tec nical Data:
Size (mm):
695H x 345W x 560L
Weight (kg): 116
Accessories:
15m 12/18kW Head to
Ballast Cable L2.82294.0L
20m 12/18kW Head to
Ballast Cable L2.82294.AL
Part no.: L9.0210
Easy, accurate measurement of ight f icker,
ight frequency and supp y frequency for
most ight sources and monitors.
Tec nical Data:
Size (mm):
145W x 80H x 40D
Weight (kg): 0.3
Display: 4 Digit LCD
Supply: 9V Battery
2.5kW
C oke Ballast 4kW C oke Ballast 6kW C oke Ballast 12kW C oke Ballast Flicker and Frequency Meter

Specifications
Ballast Type
ID Number
Input voltage
Input current (A) nominal
Input Power apparent (VA)
Power factor (cos Ø)
Efficiency %
Max. Ambient Temp. C
Indicators:
On/off Earth
Lamp lit
Over temperature
Features:
Automatic lamp recognition
Active Line Filter
Output Type:
Flicker Free 50Hz Crystal Low Noise
60Hz Crystal Low Noise
Options: DMX Remote Control
Schaltbau Output
300Hz Output
C oke Ballast
575W L2.75010.E 220-240VAC 50/60Hz 3 770 0.95 90 40 •• •
1.2kW L2.75012.E 220-240VAC 50/60Hz 6 1373 0.95 89 40 •• ••
2.5kW L2.75014.E 220-240VAC 50/60Hz 13 2956 0.9 94 40 •• ••
4kW L2.75839.0 220-240VAC 50/60Hz 21 4779 0.9 93 40 •• ••
6kW L2.75841.0 208-240VAC 50/60Hz 30 6865 0.92 95 40 •• •
12kW L2.70675.0 208-240VAC 50/60Hz 69 15790 0.8 95 40 ••
Electronic Battery Ballast
125/200W DC L2.76040.B 20-34VDC 5.8/9.3A @ 24V 225 - 88 45 ••
200/400W DC L2.76270.B 20-36VDC 10/20A @ 24V 490 - 82 50 ••
575/1200W AC/DC L2.76230.0 90-250VDC 3.2/6.6A @ 230V 1530 0.98 80 50 •• • • ••• •
24-60VDC (575W) 15A @ 48V 720 -
48-60VDC (1200W) 31A @ 48V 1500 -
Electronic Mains Ballast
125/200W L2.76013.B 90-130 / 180-250VAC 0.7/1.1A @ 230V 240 0.98 88 50 •••• • •
400/575W L2.76260.0 90-130 / 180-250VAC 2.0/2.9A @ 230V 667 0.98 85 50 •••• • • •
575/1200W L2.76125.0 90-125 / 180-250VAC 4.8/9.9A @ 230V 2290 0.6 91 50 •••• ••• •••
575/1200W with ALF L2.76425.0 90-125 / 180-250VAC 3/6A @ 230V 1390 0.98 88 50 •••• • ••• ••
2.5kW L2.76635.0 90-125 / 180-250VAC 12.6A @ 230V 2900 0.98 88 50 •••• • ••• ••
2.5/4kW L2.76640.0 190-250VAC 12.6/20A @ 230V 4650 0.98 88 50 •••• •• ••• ••
2.5/4kW Dual Voltage L2.76675.0 90-125 / 180-250VAC 12.6/20A @ 230V 4650 0.98 88 50 •••• •• ••• ••
575-4kW L2.76671.0 190-250VAC 3-20A @ 230V 4650 0.98 88 50 •••• •• ••• •
4-8kW Boost L2.76641.B 190-250VAC 12.6/20A @ 230V 4650/9300 0.98 88 50 •••• • ••• •••
6kW L2.76193.0 180-250VAC 29.5A @ 230V 6800 0.98 90 50 •••• • •••
6/12kW L2.76172.0 90-125VAC (6kW) 60A @ 115V 6900 0.98 89 50 •••• • ••• • •
180-250VAC (6/12kW) 29/57A @ 230V 13200 0.98 91
12/18kW L2.76290.0 190-250VAC 56/84A @ 230V 19400 0.98 95 50 •••• •• ••• • •
19" Location Electronic Ballast
200/575/1200W Multifunction L2.76777.0 90-130 / 180-250VAC 3x 6.0A @ 230V 4200 0.98 88 60 •••• • • Std
2500/4000W Multifunction L2.76791.0 190-250VAC 20A @ 230V 4650 0.98 88 60 •••• • • Std
Accessories
Trolley for Electronic Ballast 6/12kW L2.76178.0
Trolley for 2xChoke Ballasts 575/1200/2500 L2.57015.0
Trolley for 2xChoke Ballasts 575/1200/2500 L2.57016.0
Flicker Meter L9.0210

ARRI (GB) Limited
2 Highbridge, Oxford Road, Uxbridge, Middlesex UB8 1LX
Tel: [phone] Fax: [phone]
Email: [email protected] Web: www.arri.com
ARNOLD & RICHTER CINE TECHNIK
Lichttechnik, Pulvermühle,
83071 Stephanskirchen
Tel [phone]
Fax [phone]
ARRI LIGHTING SOLUTIONS GMBH
AGASTR. 24
D-12489 BERLIN
Tel [phone]
Fax [phone]
ARRI ITALIA S.r.l.
Viale Edison 318,
20099 Sesto S. Giovanni, Milano
Tel [phone]
Fax [phone]
ARRI INC. NEW YORK OFFICE
617 Route 303
Blauvelt, NY 10913-1109
Tel [phone]
Fax [phone]
ARRI CANADA Ltd.
415 Horner Avenue, Unit 11,
Etobicoke, Ontario, M8W 4W3,
Tel [phone]
Fax [phone]
08/2005
09.3008.3
