Arris VIP2262 User manual

VIP2262
IPTV Set-top Box
Installation Guide
593630-001-c
03/2014

ii VIP2262 Installation Guide
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO REDUCE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTSINSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO REDUCE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTSINSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
Graphical symbols and supplemental warning markings are located on the back and bottom
of the terminal.
WARNING
TO REDUCE THE RISK OF FIRE OR SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE.
The lightning flash with arrowhead symbol within an equilateral triangle
is intended to alert the user to the presence of uninsulated dangerous
voltage within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
Product identification and supply rating are provided on the label found
on the bottom of the unit.
IMPORTANT SAFETY INSTRUCTIONS
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install according to the manufacturer’s
instructions.
• Do not install near any heat sources, such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
• Protect the power cord from being walked on or pinched, particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long periods of
time.
• Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as the power supply cord or plug
is damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.

VIP2262 Installation Guide iii
Follow these important safety guidelines when positioning and connecting your IPTV
Receiver:
• Do not block the slots and openings.
• Do not place anything on top of the IPTV Receiver.
• Do not position the IPTV Receiver in a confined space, such as an enclosed cabinet,
that does not provide adequate ventilation.
• Do not position the IPTV Receiver near any external heat source that could raise
the temperature around the unit. Do not place the terminal on top of another heat
producing electronic device.
• Allow for adequate ventilation around the IPTV Receiver to maintain normal operating
temperature. Do not place it in a sealed enclosure without providing for adequate
airflow.
• Do not plug the AC power adapter into a switched power outlet.
• A coaxial cable screen shield needs to be connected to the earth at the building
entrance per ANSI/NFPA 70, the National Electrical Code (NEC), in particular Section
820.93, Grounding of Outer Conductive Shield of a Coaxial Cable.
This manual includes the manufacturer’s recommended safeguards and all the information
needed to connect your IPTV receiver to both your in-home IP network and your
entertainment system. The safety and installation information was developed and provided
primarily by the receiver manufacturer, ARRIS Enterprises, Inc.

iv VIP2262 Installation Guide
Contents
Introduction ............................................................1
Overview ..............................................................2
Front Panel ............................................................. 2
Rear Panel..............................................................3
Connecting Your IPTV Receiver..............................................4
Connection Options ......................................................4
HD Cabling Examples.....................................................4
Connecting to an HDTV – Video Only.........................................5
Connecting to an HDTV – Audio Only.........................................6
Connecting to a Standard-Definition Stereo TV .................................7
Troubleshooting .........................................................8

VIP2262 Installation Guide 1
Introduction
Congratulations on choosing the ARRIS VIP2262 IP TV Receiver. ARRIS IPTV Set-top Boxes
represent the latest in home entertainment. It starts with your VIP2262 IP Set-top TV Box.
ARRIS IPTV enables you to enjoy television like never before.
After installation, you can simply sit back and enjoy the service. If you decide in the future
to add other devices to your current configuration, such as a home theater receiver,
HDTV, or a stereoTV, you can refer to this manual for instructions on how to make the
connections.
Your ARRIS VIP2262 IP Set-top Box has outputs that enable connection to many types
of audio and video devices.Your service provider will determine the optimal connection
to your television at initial installation of your service, or you can make them yourself by
following the simple diagrams provided in this guide.
Your ARRIS VIP2262 IP TV Receiver
Every VIP2262 IP Set-top Box features high-definition TV (HDTV), which provides up
to twice the color resolution and up to six times the sharpness of standard TV when
connected to an HD-capable TV.
The VIP2262 IP Set-top Box contains a digital video recorder (DVR). The DVR can record
standard-definition and high-definition programs on its built-in 500 GByte hard drive. It also
enables you to pause and rewind live programming. DVR functionality may be limited on
some channels.
Included in the carton:
• VIP2262 High-Definition (HD) and Standard-Definition (SD) receiver
• Power adapter
For more information about your IPTV service, refer to the other documentation from your
service provider.

2 VIP2262 Installation Guide
Overview
Front Panel
The illustration below and the table following it describe the front-panel features of the
VIP2262.
Key Item Function
1 POWER Press to turn the VIP2262 on or off.
The LED (just to the left of the POWER key) lights green to
indicate the unit is powered on and active. When active, LED
flashes each time you press a key on the remote control.
The LED lights orange when the unit is in Standby mode.
2 USB Universal Serial Bus (USB 2.0) connector.
3 LINK LED lights green when receiving a video stream.
4 HD LED lights blue when receiving a High-Definition program.
5 RECORD LED lights red when a recording is in progress.
6 MENU Press to display the menu.
7 Up/Down
arrow keys
Left/Right
arrow keys
OK
center key
Press to change the channel (channel up/channel down) and
to navigate through on-screen program guide and menu
Press to navigate through on-screen program guide and
menu
Press to select programs or menu options

VIP2262 Installation Guide 3
Rear Panel
The rear-panel components of the VIP2262 are shown in the following illustration and
described in the table below.
Key Item Function
1 HPNA Coaxial input for digital signal from your service provider
2 OPTICAL Toslink (S/PDIF) digital audio output to a compatible TV or
home theater receiver
3 NETWORK Ethernet 10/100Base-T RJ-45 port for IP video input
4 Y, Pb, Pr Analog HD component video outputs to an HDTV
5 VIDEO OUT Baseband (Standard Definition) video output for connection
to a TV, VCR, or other device
6 AUDIO OUT
R and L
Left and right stereo audio outputs
7 HDMI™ Connects to a High Definition TV or home theater receiver
with an HDMI input (for a DVI input, use an HDMI-to-DVI
adapter)
8 POWER
+12 VDC
Connector for the DC power adapter
Overview

4 VIP2262 Installation Guide
Connecting Your IPTV Receiver
This section describes connecting the IPTV set-top to your home entertainment system.
Instructions and diagrams are included for connections to:
• High-Definition TV (HDTV)
• Home Theater Receiver–Audio
Connection Options
The VIP2262 offers the following video outputs:
HDTV HDMI or Component video
Standard Composite video
To determine the available inputs on your TV, check the manual supplied with the TV or
on the TV itself. Use the following guidelines to determine the best connections for your
system. Use one of the following.
Connector Description
High-Definition
HDMI
HDMI
HDMI offers higher video quality than component video. If your
HDTV has an HDMI input, use the HDMI connector.
HDMI provides both digital video and digital audio. No other
connections are necessary.
Component
Video
TheY Pb Pr connectors provide component video, the most
widely supported HDTV connection.
Component video provides a High-Definition analog video signal.
If your equipment supports an optical S/PDIF audio connection,
use the OPTICAL connection. Otherwise, use the baseband
AUDIO L and R connections.
Standard-Definition
Composite
Video
For your standard-definition TV, use the composite VIDEO OUT
connector.
Composite video provides a Standard-Definition analog video
signal. If your equipment supports an optical S/PDIF audio
connection, use the OPTICAL connection. Otherwise, use the
baseband AUDIO L and R connections.
HD Cabling Examples
The following cabling diagrams illustrate the simplest, most direct connections for HDTV
reception using HDMI, and representative audio/video (A/V) connections. When connecting
other components to your IPTV Receiver, refer to the other component installation manuals
for additional connection information.
YPb Pr

VIP2262 Installation Guide 5

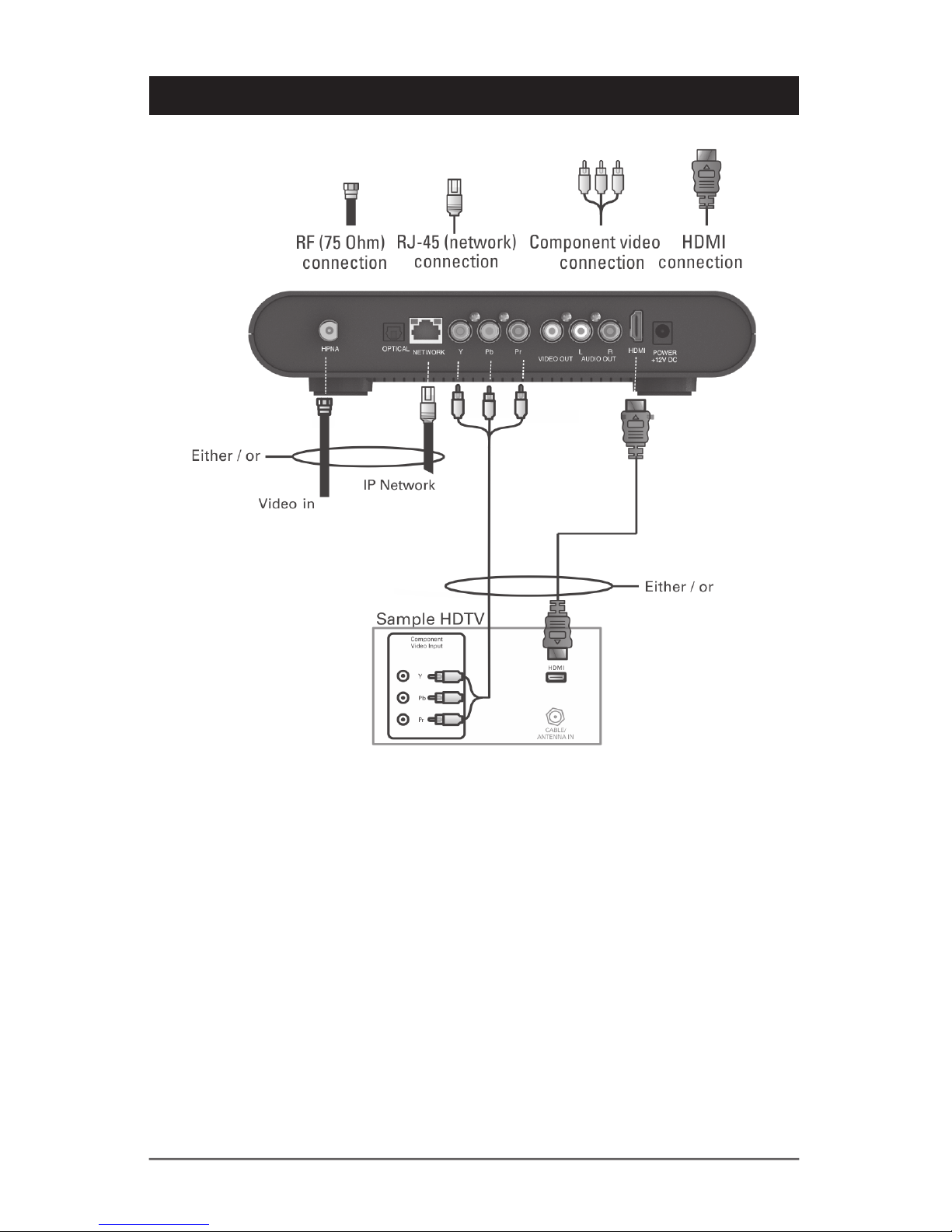

Connecting to an HDTV – Video Only
• Connect an RF coaxial cable between the HPNA wall outlet and the HPNA connector
on the IPTV Receiver, OR connect a CAT5 Ethernet cable between the network wall
outlet and the NETWORK connector on the IPTV Receiver.
• If your HDTV has an HDMI input, connect an HDMI cable to the HDMI connector.
HDMI connection carries both video and audio signals.
• If your HDTV has component video, connect component video cables to theY, Pb, and
Pr connectors.
Component video carries video signals only. To connect the audio, refer to the following
page.

6 VIP2262 Installation Guide
Connecting to an HDTV – Audio Only
If your equipment supports it, use the OPTICAL S/PDIF output. Otherwise, use the AUDIO
OUT L and R connectors. In most cases, S/PDIF offers better audio quality, including
support for Dolby Digital 5.1 Surround Sound.
HDMI carries video and audio. If you connect your HDTV using HDMI, no additional audio
connections to the TV are necessary.

VIP2262 Installation Guide 7
Connecting to a Standard-Definition StereoTV
This diagram depicts a method for connecting composite video and two-channel audio to a
standard-definition TV. Note that this video connection method does not support HD video.
If your equipment supports it, use the OPTICAL S/PDIF output instead of the AUDIO OUT
L and R connectors. In most cases, S/PDIF offers better audio quality, including support for
Dolby Digital 5.1 Surround Sound.
For more information, see Connection Options on page 4.

8 VIP2262 Installation Guide
Troubleshooting
Before calling your service provider, review this troubleshooting guide. If the suggestions
do not help you quickly solve a problem, contact your service provider.
Problem Possible Solution
The IPTV Receiver
will not power on.
Verify that the power adapter is connected to the IPTV
Receiver and an AC outlet. Unplug the IPTV Receiver from the
outlet, plug it back in, and press the POWER button.
If the IPTV Receiver is connected to a switched outlet on a wall
or another unit, verify that the switch or unit is powered on.
Unplug the IPTV Receiver from the AC outlet, plug it back in,
and press the POWER button.
Press the POWER button on the IPTV Receiver front panel
instead of the remote control. The batteries in the remote
control may be depleted.
The remote control
does not work.
Verify that the TV is on.
Verify that the remote control is set to IPTV Receiver (Set-top
Box) mode.
Verify that there are no obstructions between the remote
control and the IPTV Receiver. Aim the remote control directly
at the IPTV Receiver front panel, not the TV or VCR.
The angle between the remote control and the IPTV Receiver
may be too large. Stand in front of the IPTV Receiver and not
too far to either side.
Press and release operation keys one at a time, firmly and
deliberately.
Try changing channels using the buttons on the IPTV Receiver
front panel.
Check the batteries in the remote control. Install new batteries
if needed.
There is no audio
when viewing TV
channels.
Verify that the Mute button on the remote control has not been
pressed. Press Mute on the remote control to restore sound.
If the IPTV Receiver audio output is connected to the TV, verify
that the Mute button on the TV has not been pressed.
If the IPTV Receiver audio output is connected to a home
theater receiver, verify that the home theater receiver is set to
the appropriate input source and its Mute button has not been
pressed.
Verify that you have the correct cables for the audio ports.
Verify that the audio cables are firmly connected between the
IPTV Receiver and the audio playback device (TV, home theater
receiver, etc.).

VIP2262 Installation Guide 9
Regulatory Information
Federal Communications Commission Radio and Television Interface Statement for a Class ‘B’ Device
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in the residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation.
If the equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the device and/or the antenna receiving the interference.
• Increase the separation between the equipment and the affected receiver
• Connect the equipment on a circuit different from the one the receiver is on
• Contact your service provider for help.
Changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
Declaration of Conformity
According to 47 CFR, Parts 2 and 15 for Class B Personal Computers and Peripherals; and/or CPU Boards and Power Supplies
used with Class B Personal Computers, ARRIS Enterprises, Inc., 6450 Sequence Drive, San Diego, CA 92121, 1 800 225 9446,
declares under sole responsibility that the product identifies with 47 CFR Part 2 and 15 of the FCC Rules as a Class B digital
device. Each product marketed is identical to the representative unit tested and found to be compliant with the standards.
Records maintained continue to reflect the equipment being produced can be expected to be within the variation accepted,
due to quantity production and testing on a statistical basis as required by 47 CFR 2.909. Operation is subject to the following
condition: This device must accept any interference received, including interference that may cause undesired operation. The
above named party is responsible for ensuring that the equipment complies with the standards of 47 CFR, Paragraphs 15.101 to
15.109. The Class B digital apparatus meets all requirements of the Canadian Interface Causing Equipment Regulations.
Canadian Compliance
This Class B digital device complies with Canadian ICES 003. Cet appareil numérique de la classe B est conforme à la norme
NMB 003 du Canada.
Software License
IMPORTANT: PLEASE READ THIS SOFTWARE LICENSE (“LICENSE”) CAREFULLY BEFORE YOU USE ANY SOFTWARE,
FIRMWARE, AND RELATED DOCUMENTATION (“SOFTWARE”) PROVIDED WITH ARRIS’ IP VIDEO RECEIVER OR HOME THEATER
SYSTEM (EACH SHALL BE REFERRED TO IN THIS LICENSE AS A “RECEIVER”). BY USING THE RECEIVER AND/OR USING ANY
OF THE SOFTWARE, YOU INDICATE YOUR ACCEPTANCE OF EACH OF THE TERMS OF THIS LICENSE. UPON ACCEPTANCE, THIS
LICENSE WILL BE A LEGALLY BINDING AGREEMENT BETWEEN YOU AND ARRIS. THE TERMS OF THIS LICENSE APPLY TO YOU
AND TO ANY SUBSEQUENT USER OF THIS SOFTWARE.
IF YOU DO NOT AGREE TO ALL OF THE TERMS OF THIS LICENSE (I) DO NOT USE THE SOFTWARE AND (II) RETURN THE
RECEIVER AND THE SOFTWARE (COLLECTIVELY, “PRODUCT”), INCLUDING ALL COMPONENTS, DOCUMENTATION, AND ANY
OTHER MATERIALS PROVIDED WITH THE PRODUCT, TO YOUR POINT OF PURCHASE OR SERVICE PROVIDER, AS THE CASE
MAY BE, FOR A FULL REFUND.
The Software includes associated media, any printed materials, and any “on line” or electronic documentation. Software
provided by third parties may be subject to separate end user license agreements from the manufacturers of such Software. The
Software is never sold. ARRIS licenses the Software to the original customer and to any subsequent licensee for personal use
only on the terms of this License. ARRIS and its third party licensors retain the ownership of the Software.
You may:
USE the Software only in connection with the operation of the Product.
TRANSFER the Software (including all component parts and printed materials) permanently to another person, but only if the
person agrees to accept all of the terms of this License. If you transfer the Software, you must at the same time transfer the
Product and all copies of the Software (if applicable) to the same person or destroy any copies not transferred.
TERMINATE this License by destroying the original and all copies of the Software (if applicable) in whatever form.

10 VIP2262 Installation Guide
You may not:
(1) Loan, distribute, rent, lease, give, sublicense, or otherwise transfer the Software, in whole or in part, to any other person,
except as permitted under the TRANSFER paragraph above. (2) Copy or translate the User Guide included with the Software,
other than for personal use. (3) Copy, alter, translate, decompile, disassemble, or reverse engineer the Software, including
but not limited to modifying the Software to make it operate on non compatible hardware. (4) Remove, alter, or cause not to
be displayed any copyright notices or startup message contained in the Software programs or documentation. (5) Export the
Software or the Product components in violation of any United States export laws.
The Product is not designed or intended for use in on line control of aircraft, air traffic, aircraft navigation, or aircraft
communications; or in design, construction, operation, or maintenance of any nuclear facility. ARRIS AND ITS THIRD PARTY
LICENSORS DISCLAIM ANY EXPRESS OR IMPLIED WARRANTY OF FITNESS FOR SUCH USES. YOU REPRESENT AND WARRANT
THAT YOU SHALL NOT USE THE PRODUCT FOR SUCH PURPOSES.
Title to this Software, including the ownership of all copyrights, mask work rights, patents, trademarks, and all other intellectual
property rights subsisting in the foregoing, and all adaptations to and modifications of the foregoing, shall at all times remain
with ARRIS and its third party licensors. ARRIS retains all rights not expressly licensed under this License. The Software,
including any images, graphics, photographs, animation, video, audio, music, and text incorporated therein is owned by ARRIS
or its third party licensors and is protected by United States copyright laws and international treaty provisions. Except as
otherwise expressly provided in this License, the copying, reproduction, distribution, or preparation of derivative works of the
Software, any portion of the Product, or the documentation is strictly prohibited by such laws and treaty provisions. Nothing in
this License constitutes a waiver of ARRIS’ rights under United States copyright law.
This License and your rights regarding any matter it addresses are governed by the laws of the State of Georgia, without
reference to conflict of laws principles. THIS LICENSE SHALL TERMINATE AUTOMATICALLY if you fail to comply with the terms
of this License.
ARRIS is not responsible for any third party software that is provided as a bundled application, or otherwise, with the Software
or that is downloaded to, or otherwise installed on, the Product.
U.S. GOVERNMENT RESTRICTED RIGHTS
The Product and documentation is provided with RESTRICTED RIGHTS. The use, duplication or disclosure by the Government
is subject to restrictions as set forth in subdivision (c)(1)(ii) of The Rights in Technical Data and Computer Software clause at
52.227 7013. The contractor/manufacturer is ARRIS Enterprises, Inc., 3871 Lakefield Drive, Suwanee, GA 30024 USA.
* * *
This product is protected by certain intellectual property rights of Ericsson Corporation. Use or distribution of such technology
outside of this product is prohibited without a license from Ericsson Corporation or an authorized Ericsson Corporation
subsidiary.
Copyright © 2014 ARRIS Enterprises, Inc. All rights reserved.
No part of this publication may be reproduced in any form or by any means or used to make any
derivative work (such as translation, transformation, or adaptation) without written permission from
ARRIS Enterprises, Inc. (“ARRIS”). ARRIS reserves the right to revise this publication and to make
changes in content from time to time without obligation on the part of ARRIS to provide notification of
such revision or change.
ARRIS and the ARRIS logo are trademarks of ARRIS Enterprises, Inc. Dolby Digital manufactured under
license from Dolby Laboratories Licensing Corporation. Dolby, ProLogic, and the double D symbol are
registered trademarks of Dolby Laboratories.This product incorporates copyright protection technology
that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection
technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing
uses only unless otherwise authorized by Rovi Corporation. Reverse engineering or disassembly is
prohibited. Rovi is a protected trademark of Rovi Corporation. HDMI, the HDMI logo and High Definition
Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. All other product
or service names are the property of their respective owners. Other trademarks and trade names
may be used in this document to refer to either the entities claiming the marks and the names of their
products. ARRIS disclaims proprietary interest in the marks and names of others.
ARRIS provides this guide without warranty of any kind, implied or expressed, including, but not limited
to, the implied warranties of merchantability and fitness for a particular purpose. ARRIS may make
improvements or changes in the product(s) described in this manual at any time.
The capabilities, system requirements and/or compatibility with third-party products described herein
are subject to change without notice.

VIP2262 Installation Guide 11
Open Source Attributions
ARRIS IPTV Set-top Model VIP2262
For instructions on how to obtain a copy of any source code being made publicly available by ARRIS related to
software used in this ARRIS product you may send your request in writing to:
ARRIS Enterprises, Inc.
Software Pedigree Operations
2450 Walsh Avenue, Santa Clara, CA 95051, USA
The ARRIS website http://opensource.arrisi.com also contains information regarding ARRIS’ use of open source.
ARRIS has created this website to serve as a portal for interaction with the software community at large.
This document contains additional information regarding licenses, acknowledgments and required copyright
notices for open source packages used in this ARRIS product.
Broadcom CFE
Copyright © 2000, 2001 Broadcom Corporation. All rights reserved.
License Text:
This software is furnished under license and may be used and copied only in accordance with the following terms
and conditions. Subject to these conditions, you may download, copy, install, use, modify and distribute modified or
unmodified copies of this software in source and/or binary form. No title or ownership is transferred hereby.
1) Any source code used, modified or distributed must reproduce and retain this copyright notice and list of
conditions as they appear in the source file.
2) No right is granted to use any trade name, trademark, or logo of Broadcom Corporation. Neither the “Broadcom
Corporation” name nor any trademark or logo of Broadcom Corporation may be used to endorse or promote
products derived from this software without the prior written permission of Broadcom Corporation.
3) THIS SOFTWARE IS PROVIDED “AS-IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING BUT
NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE,
OR NON-INFRINGEMENT ARE DISCLAIMED. IN NO EVENT SHALL BROADCOM BE LIABLE FOR ANY DAMAGES
WHATSOEVER, AND IN PARTICULAR, BROADCOM SHALL NOT BE LIABLE FOR DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE), EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
IETF - Sha1
License Text:
Copyright © The Internet Society (2003). All Rights Reserved.
This document and translations of it may be copied and furnished to others, and derivative works that comment on
or otherwise explain it or assist in its implementation may be prepared, copied, published and distributed, in whole
or in part, without restriction of any kind, provided that the above copyright notice and this paragraph are included
on all such copies and derivative works. However, this document itself may not be modified in any way, such as
by removing the copyright notice or references to the Internet Society or other Internet organizations, except as
needed for the purpose of developing Internet standards in which case the procedures for copyrights defined in the
Internet Standards process must be followed, or as required to translate it into languages other than English.
The limited permissions granted above are perpetual and will not be revoked by the Internet Society or its
successors or assigns. This document and the information contained herein is provided on an “AS IS” basis and
THE INTERNET SOCIETY AND THE INTERNET ENGINEERING TASK FORCE DISCLAIMS ALL WARRANTIES, EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY WARRANTY THAT THE USE OF THE INFORMATION HEREIN
WILL NOT INFRINGE ANY RIGHTS OR ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE.
MEMTEST
Description: General-purpose memory testing functions.
Notes: Some of the constants in this file are specific to Arcom’s Target188EB hardware. This software can be easily
ported to systems with different data bus widths by redefining ‘;datum’;.
Copyright © 1998 by Michael Barr. This software is placed into the public domain and may be used for any purpose.
However, this notice must not be changed or removed and no warranty is either expressed or implied by its
publication or distribution.

593630-001-c
03/2014
Visit our website at:
www.arrisi.com

593630-001-c
03/14
Visite nuestro sitio en:
www.arrisi.com

Guía de instalación de VIP2262 11
Atribuciones de código abierto
Sistema IPTV ARRIS modelo VIP2262
Para obtener instrucciones acerca de cómo conseguir una copia de cualquier código fuente que ARRIS haya
dejado disponible al público y que se relacione con el software utilizado en este producto ARRIS, puedes enviar tu
solicitud a:
ARRIS Enterprises, Inc.
Operaciones de pedigrí del software
2450 Walsh Avenue, Santa Clara, CA 95051, EE. UU.
El sitio web de ARRIS http://opensource.arrisi.com también contiene información acerca del uso de código abierto
por parte de ARRIS. ARRIS creó este sitio web como un portal para la interacción con la comunidad de software
engeneral.
Este documento contiene información adicional acerca de licencias, reconocimientos y avisos de derechos de
autor necesarios para paquetes de código abierto usados en este producto ARRIS.
Broadcom CFE
Copyright © 2000, 2001 Broadcom Corporation. Todos los derechos reservados.
Texto de la licencia:
Este software se suministra mediante una licencia y solo se puede usar y copiar de acuerdo con los siguientes
términos y condiciones. Sujeto a estas condiciones, puedes descargar, copiar, instalar, usar, modificar y distribuir
copias modificadas o no modificadas de este software en la forma de código fuente o binaria. Por el presente, nose
transfiere la propiedad o derechos de propiedad.
1) Cualquier código fuente usado, modificado o distribuido debe reproducir y retener este aviso de derechos de
autor y la lista de condiciones, tal como aparecen en el archivo original.
2) No se entrega ningún derecho para usar cualquier nombre comercial, marca registrada o logotipo de Broadcom
Corporation. No se puede utilizar el nombre “Broadcom Corporation” ni ninguna marca comercial o logotipo de
Broadcom Corporation para avalar o promover productos derivados de este software sin el permiso previo por
escrito de Broadcom Corporation.
3) ESTE SOFTWARE ES PROPORCIONADO “TAL COMO ESTÁ” Y SE EXCLUYE CUALQUIER GARANTÍA EXPRESA
O IMPLÍCITA, LO QUE INCLUYE, PERO NO SE LIMITA A LAS GARANTÍAS IMPLÍCITAS DE COMERCIALIZACIÓN Y
ADECUACIÓN PARA UN PROPÓSITO ESPECÍFICO O NO CONTRAVENCIÓN. EN NINGÚN CASO BROADCOM TENDRÁ
RESPONSABILIDAD POR NINGÚN TIPO DE DAÑOS Y EN ESPECIAL BROADCOM NO SERÁ RESPONSABLE DE
CUALQUIER DAÑO DIRECTO, INDIRECTO, IMPREVISTO, ESPECIAL, EJEMPLAR O RESULTANTE (LO QUE INCLUYE
PERO NO SE LIMITA A LA PROCURACIÓN DE BIENES SUSTITUTOS O SERVICIOS; PÉRDIDA DE USO, DATOS O
GANANCIAS; O INTERRUPCIÓN COMERCIAL) AUNQUE FUEREN CAUSADOS NI BAJO CUALQUIER TEORÍA DE
RESPONSABILIDAD CONTRACTUAL, ESTRICTA O EXTRACONTRACTUAL (INCLUIDA NEGLIGENCIA OELCASO
CONTRARIO), AUN CUANDO FUERE ADVERTIDA LA POSIBILIDAD DE TAL DAÑO.
IETF - Sha1
Texto de la licencia:
Copyright © The Internet Society (2003). Todos los derechos reservados.
Este documento y sus traducciones se pueden copiar y proporcionar a otros y se pueden preparar, copiar y
distribuir trabajos derivados que lo comenten o expliquen o que asistan en su implementación, de forma parcial
o total, sin ningún tipo de restricción, siempre y cuando se incluyan el aviso de derechos de autor y este párrafo
en tales copias y trabajos derivados. Sin embargo, este documento en sí no se puede modificar de ninguna
forma, como eliminar el aviso de derechos de autor o referencias a Internet Society u otras organizaciones de
Internet, excepto cuando sea necesario para desarrollar estándares de Internet, en cuyo caso se deben seguir los
procedimientos para derechos de autor definidos en el proceso de los estándares de Internet, o si es necesario
para traducirlo a idiomas distintos del inglés.
Los permisos limitados otorgados anteriormente son perpetuos e Internet Society o sus sucesores o delegados no
los podrán revocar. Este documento y la información contenida en él se proporcionan “COMO ESTÁN” e INTERNET
SOCIETY Y LA FUERZA DE TRABAJO DE INGENIERÍA PARA INTERNET, NO SON RESPONSABLES DE NINGUNA
GARANTÍA, EXPRESA O IMPLÍCITA, INCLUIDAS, ENTRE OTRAS, CUALQUIER GARANTÍA QUE EL USO DE LA
INFORMACIÓN AQUÍ CONTENIDA NO INFRINGIRÁ NINGÚN DERECHO O CUALQUIER GARANTÍA IMPLÍCITA DE
COMERCIALIZACIÓN O IDONEIDAD PARA UN PROPÓSITO ESPECÍFICO.
MEMTEST
Descripción: Funciones de pruebas de memoria para propósitos generales.
Notas: Algunas de las constantes en este archivo son específicas del hardware Target188EB de Arcom. Este
software se puede portar fácilmente a sistemas con anchos de bus de datos diferentes al redefinir ‘;datum’;.
Copyright © 1998 by Michael Barr. Este software se proporciona al dominio público y se puede usar para cualquier
propósito. Sin embargo, este aviso no se debe cambiar o eliminar y no existen garantías expresas o implícitas para
su publicación o distribución.

10 Guía de instalación de VIP2262
Usted no puede:
(1) Prestar, distribuir, alquilar, entregar, otorgar en sublicencia, o bien transferir el Software, en su totalidad o en parte, a
cualquier otra persona, excepto según los permitido en el párrafo de TRANSFERENCIA anterior. (2) Copiar o traducir la Guía del
usuario incluida con el Software, a menos que sea para uso personal. (3) Copiar, alterar, traducir, descompilar, desarmar o hacer
ingeniería inversa en el Software, lo que incluye, pero no se limita a la modificación del Software para utilizarlo en hardware
no compatible. (4) Eliminar, alterar o provocar que no se muestren avisos de copyright o mensajes de inicio contenidos en los
programas o documentación del Software. (5) Exportar el Software o los componentes del Producto en oposición a las leyes de
exportación de Estados Unidos.
El Producto no está diseñado para usarse en control en línea de aeronaves, tráfico aéreo, navegación aérea o comunicaciones
aéreas, o en el diseño, la construcción, el funcionamiento o el mantenimiento de cualquier instalación nuclear. ARRIS Y LOS
TERCEROS CEDENTES NO SE RESPONSABILIZAN POR NINGUNA GARANTÍA DE IDONEIDAD EXPRESA O IMPLÍCITA DE DICHOS
USOS. REPRESENTAS Y GARANTIZAS QUE NO USARÁS EL PRODUCTO PARA TALES PROPÓSITOS.
El título de este Software, incluidos la propiedad de todos los derechos de copyright, derechos de trabajo confidencial,
patentes, marcas comerciales y todos los derechos de propiedad intelectual presentes en lo anteriormente expuesto,
y todas las adaptaciones y modificaciones que se mencionaron, deberán siempre permanecer con ARRIS y los terceros
cedentes. ARRIS mantiene todos los derechos que no están expresamente cedidos en esta Licencia. El Software, incluida
la totalidad de imágenes, gráficos, fotografías, animaciones, video, audio, música y texto ahí incorporados, es propiedad de
ARRIS o los terceros cedentes, y está protegido por las leyes de copyright de Estados Unidos y las disposiciones de tratados
internacionales. Excepto si se ha expresado lo contrario en esta Licencia, la copia, reproducción, distribución o preparación de
trabajos derivados del Software, de cualquier parte del Producto o la documentación están estrictamente prohibidas por dichas
leyes y disposiciones de tratado. Ninguna parte de esta Licencia constituye una renuncia de los derechos de ARRIS de acuerdo
con las leyes de copyright de Estados Unidos.
Esta Licencia y sus derechos con respecto a cualquier aspecto que aborde están regulados por las leyes del Estado de Georgia,
sin referirse al conflicto de los principios de leyes. ESTA LICENCIA TERMINARÁ AUTOMÁTICAMENTE si no cumple con los
términos de esta Licencia.
ARRIS no es responsable de ningún software de terceros proporcionado como una aplicación conjunta, o de otro tipo, con el
Software o que se descargue o, de lo contrario, se instale en el producto.
DERECHOS RESTRINGIDOS DEL GOBIERNO DE ESTADOS UNIDOS
El Producto y la documentación se proporcionan con DERECHOS RESTRINGIDOS. El uso, la duplicación o la divulgación por
parte del Gobierno está sujeta a restricciones como se estableció en la subdivisión (c)(1)(ii) de la cláusula Derechos en software
de computación y datos técnicos en 52.227 7013. El contratista/fabricante es ARRIS Enterprises, Inc., 3871 Lakefield Drrive,
Suwanee, GA 30024 EE. UU.
* * *
Este producto está protegido por ciertos derechos de propiedad intelectual de Ericsson Corporation. El uso o distribución de
dicha tecnología fuera de este producto está prohibida sin una licencia de Ericsson Corporation o un subsidiario autorizado por
Ericsson Corporation.
Copyright © 2014 ARRIS Enterprises, Inc. Todos los derechos reservados.
Ninguna parte de esta publicación deberá reproducirse de manera alguna ni por ningún medio, ni deberá
utilizarse para elaborar ningún trabajo derivado (como traducción, transformación o adaptación) sin el
correspondiente permiso escrito por ARRIS Enterprises, Inc. ("ARRIS"). ARRIS se reserva el derecho de
revisar esta publicación y de realizar ocasionalmente cambios de contenido sin la obligación de notificar
dicha revisión o cambio.
ARRIS y el logotipo de ARRIS son marcas comerciales de ARRIS Enterprises, Inc. Dolby Digital
se fabrica bajo licencia de Dolby Laboratories Licensing Corporation. Dolby, ProLogic y el símbolo
de la doble D son marcas comerciales registradas de Dolby Laboratories. Este producto incorpora
tecnología de protección de derechos de autor que está protegida por patentes de EE.UU. y otros
derechos de propiedad intelectual. El uso de esta tecnología de protección de derechos de autor debe
ser autorizado por Rovi Corporation y está destinado sólo al uso de visualización doméstica y otras
visualizaciones limitadas, salvo que Rovi Corporation autorice otra cosa. Se prohíbe la ingeniería inversa
o el desmontaje. Rovi es una marca comercial protegida de Rovi Corporation. HDMI, el logotipo de
HDMI y High-Definition Multimedia Interface son marcas comerciales o marcas comerciales registradas
de HDMI Licensing LLC. Todos los demás nombres de productos o de servicios pertenecen a sus
respectivos dueños. En este documentos se pueden usar otras marcas comerciales y nombres
de marcas para referirse a las entidades que hacen referencia a las marcas y a los nombres de sus
productos. ARRIS niega su interés de propiedad en las marcas y nombres de terceros.
ARRIS entrega esta guía sin garantía de ningún tipo, ya sea implícita o expresa, lo que incluye, pero no
se limita a las garantías implícitas de comercialización y adecuación para un propósito específico. ARRIS
puede realizar mejoras o cambios en los productos descritos en este manual en cualquier momento.
Las capacidades, requisitos del sistema o compatibilidad con productos de terceros descritos en este
documento están sujetos a cambio sin previo aviso.

Guía de instalación de VIP2262 9
Información reglamentaria
Declaración de interfaz de radio y television de la Comisión Federal de Comunicaciones para un dispositivo clase ‘B’
Este equipo ha sido probado y se comprobó que cumple con los límites para un dispositivo digital Clase B, en aplicación de lo
dispuesto en la parte 15 de las Normas de la FCC. Estos límites están diseñados para proporcionar protección razonable contra
interferencia dañina en la instalación residencial. Este equipo genera, usa y puede irradiar energía de radiofrecuencia y, si no se
instala y usa de acuerdo con las instrucciones, puede causar interferencia dañina a las comunicaciones por radio. Sin embargo,
no se garantiza que no ocurra interferencia en una instalación en particular.
Si el equipo causa interferencia dañina en la recepción de radio o televisión, lo que se puede descubrir encendiendo y
apagando el equipo, se aconseja al usuario que intente corregir la interferencia siguiendo uno de los procedimientos indicados
a continuación:
• Reorienta o reubica el dispositivo o la antena que recibe la interferencia.
• Aumenta la separación entre el equipo y el receptor afectado.
• Conecta el equipo a un circuito distinto al cual está conectado el receptor.
• Comuníquese con el proveedor de servicios para obtener ayuda.
Las alteraciones o modificaciones no aprobadas expresamente por la parte responsable por el cumplimiento podrían anular la
autoridad del usuario para operar el equipo.
Declaración de conformidad
De acuerdo con 47 CFR, Partes 2 y 15 para computadores personales y dispositivos periféricos Clase B; y/o placas de CPU y
fuentes de alimentación usadas con computadoras personales Clase B, ARRIS Enterprises, Inc., 6450 Sequence Drive, San
Diego, CA 92121, 1 800 225 9446, declara bajo su exclusive responsabilidad que el producto se identifica con 47 CFR Parte
2 y 15 de las Normas de la FCC como un dispositivo digital Clase B. Cada producto comercializado es idéntico a la unidad
representativa probada y en cumplimiento con las normas. Los registros mantenidos continúan reflejando que se puede esperar
variaciones aceptadas en el equipo, debido a la producción de cantidad y las pruebas en una base estadística según lo requiere
47 CFR 2.909. SU FUNCIONAMIENTO ESTÁ SUJETO A LA SIGUIENTE CONDICIÓN: Este dispositivo debe aceptar cualquier
interferencia que reciba, incluso la interferencia que pueda provocar un funcionamiento no deseado. La parte nombrada
anteriormente es responsable de garantizar que el equipo cumple las normas de 47 CFR, Párrafos 15.101 a 15.109.
El aparato digital Clase B cumple todos los requisitos de los reglamentos de equipos que causan interfaz de Canadá.
Cumplimiento con normas canadienses
Este dispositivo digital Clase B cumple con ICES-003 canadiense. Cet appareil numérique de la classe B est conforme à la
norme NMB 003 du Canada.
Licencia de software
IMPORTANTE: LEE ATENTAMENTE ESTA LICENCIA DE SOFTWARE ("LICENCIA") ANTES DE USAR CUALQUIER SOFTWARE,
FIRMWARE Y DOCUMENTACIÓN RELACIONADA (“SOFTWARE”) QUE SE INCLUYE CON EL RECEPTOR DE VIDEO IP O SISTEMA
HOME THEATER DE ARRIS (A AMBOS SE LES HARÁ REFERENCIA EN ESTA LICENCIA COMO “RECEPTOR”). AL USAR EL
RECEPTOR Y/O USAR ALGUNO DE ESTOS SOFTWARE, INDICA SU CONFORMIDAD CON CADA UNO DE LOS TÉRMINOS DE
ESTA LICENCIA. LUEGO DE LA ACEPTACIÓN, ESTA LICENCIA SERÁ UN ACUERDO CON EFECTOS LEGALES ENTRE TÚ Y ARRIS.
LOS TÉRMINOS DE ESTA LICENCIA SE APLICAN A TI Y A CUALQUIER USUARIO POSTERIOR DE ESTE SOFTWARE.
SI NO ACEPTAS TODOS LOS TÉRMINOS DE ESTA LICENCIA (I) NO UTILICES ESTE SOFTWARE Y (II) DEVUELVE EL RECEPTOR
Y EL SOFTWARE (COLECTIVAMENTE, “PRODUCTO”), INCLUIDOS TODOS LOS COMPONENTES, LA DOCUMENTACIÓN Y
CUALQUIER OTRO MATERIAL PROPORCIONADO CON EL PRODUCTO, AL PUNTO DE COMPRA O PROVEEDOR DE SERVICIOS,
SEGÚN SEA EL CASO, PARA UN REEMBOLSO COMPLETO.
El software incluye medios asociados, todos los materiales impresos y toda la documentación “en línea” o electrónica. El
software proporcionado por terceros puede estar sujeto a acuerdos de licencia de usuario final adicionales de los fabricantes de
dicho Software. Este Software nunca se vende. ARRIS entrega licencias de Software al cliente original y a cualquier titular de
licencia posterior para uso personal solo de acuerdo con los términos de esta Licencia. ARRIS y los terceros cedentes retienen
la propiedad del Software.
Usted puede:
USAR el Software sólo para el funcionamiento del Producto.
TRANSFERIR el Software (incluidos todos los componentes y materiales impresos) permanentemente a otra persona, pero sólo
si la persona acepta todos los términos de esta Licencia. Si transfiere el Software, debe a la vez transferir el Producto y todas
las copias del Software (si corresponde) a la misma persona o destruir las copias no transferidas.
TERMINAR esta Licencia destruyendo el Software original y todas las copias correspondientes (si corresponde) de cualquier
manera.
