Arrow Storage Products EPA64 Instructions for use

www.arrowsheds.com
Customer Service:
1-800-851-1085 or
[email protected]
BUILDING DIMENSIONS
6’ x 4’
Nominal Size
Gloves must be worn
at all times to reduce
risk of injury!
Size rounded off to the nearest foot
* See Inside for Detailed Safety Information.
Owner’s Manual
& Assembly Guide
01BL
716400816
†
Base
Size
74” x 45 1/4”
188,0 cm x 114,9 cm
For proper base construction see page 12
Exterior Dimensions
(Roof Edge to Roof Edge)
Width Depth Height
Interior Dimensions
(Wall to Wall)
Width Depth Height
Door
Opening
Width Height
Approx.
Size
Storage
Area
6’ x 4’ 21 Sq. Ft. 113 Cu. Ft. 76 1/2” 47” 67 3/4” 71 1/4” 42 1/2” 66 9/16” 32” 60”
1,8 m x 1,1 m 2,0 m23,2 m3194,3 cm 119,4 cm 172,1 cm 181,0 cm 108,0 cm 169,1 cm 81,3 cm 152,4 cm
†
Model No. EPA64

2
SAFETY PRECAUTIONS...
Safety precautions MUST be followed at all times throughout the construction of your building!
Care must be taken when handling various pieces
of your building since many contain sharp edges.
Please wear work gloves, eye protection and
long sleeves when assembling or performing any
maintenance on your building.
Practice caution with the tools being used in the
assembly of this building. Be especially familiar with
the operation of all power tools.
Keep children and pets away from the worksite
during construction and until the building is
completely assembled. This will help avoid
distractions and any accidents which may occur.
NEVER concentrate your weight on the roof of the
building. When using a step ladder make sure that
it is fully open and on even ground before climbing
on it.
Do NOT attempt to assemble your building on a
windy day. The large panels can catch the wind like
a “sail”, causing them to be whipped around making
construction diffi cult and unsafe.
Do NOT attempt to assemble your building before
double checking that you have all the parts indicated
in the parts lists (page 8) as well as all hardware
(page 7). Any building left partially assembled may
be seriously damaged by even light winds.
IMPORTANT NOTE ON ANCHORING
• Your building MUST be anchored to prevent wind
damage. An anchoring kit is not supplied with your
building and you have many options when it comes to
anchoring. See anchoring page for more info.
• You must also have a temporary anchoring system in
place in case you need to take a break from assembly.
See page 4 for more info.
02H

3
ASSEMBLY TIPS &TOOLS
How to Select and Prepare Your Building Site: Before you start to assemble your
building, you will want to decide on a good location. The best location is a level area with good drainage.
• Allow enough working space so it is not diffi cult to move parts into position for assembly. Be sure there will be enough
space at the entrance for the doors to completely open. Also, there needs to be enough space outside the building to be
able to fasten the panel screws from the outside.
• Before assembling any parts, your base should be constructed and an anchoring system should be ready to use.
Watch the Weather Closely: Be sure the day you choose to install your building is dry and calm.
Do NOT attempt to assemble your building on a windy day. Be careful on wet or muddy ground.
Use Teamwork: Two or more people are required to assemble your building. One person can hold
the parts or panels in place while the other person fastens them together and handles the tools. This
makes the process of assembling your building faster and safer.
Tools and Materials: Here is a list of some basic tools and materials you will need to assemble
your building. Decide which method of anchoring and the type of base you will use to make a complete
list of the materials you will need.
• Work Gloves
• Safety Glasses
• Step Ladder
• No. 2 Phillips Screwdriver (Magnetic Tip Preferred)
• Utility Knife or Scissors
• Pliers
• Carpenter’s Level
• Tape Measure
• Power Drill (Cordless, Variable Speed)
• Nut Driver or Wrench
• Square
• String (for squaring the frame)
• Awl (to align holes)
• Lumber and/or Concrete
• Hammer and Nails
• Spade or Shovel
• Hand Saw or Power Saw
WHAT YOU NEED
RECOMMENDED TIME SAVERS
BASE PREPARATION TOOLS
03A

4
FREQUENTLY ASKED QUESTIONS
Q. How long will it take to assemble the building?
A. Assembly time depends on a variety of factors, including roof design, tools available, DIY skill and the pace
at which you work. Guidelines for each shed assembly are approximate AFTER completion of the base, and
assume two or more people working on the assembly. Generally, you should plan on at least one day working with
someone who can assist you; again, after constructing the base. Refer to the clock icons on each product page
on the website for specifi c time estimates.
Q. How do I decide where to put my shed?
A. The key to a successful assembly is to make sure the shed will be square and level when built. The shed can
be assembled directly onto level ground (grass or dirt). If you have location options, choose one that is already
fl at, with good drainage to control moisture. If you don’t have a fl at, well-drained area, you need to prepare the
space. Level the area using cinder blocks, concrete, crushed gravel or other sturdy materials. Once level with good
drainage, construct your base. Using a carpenter’s level, make sure your base is level and free of bumps or ridges
to provide good support for your building.
Q. What if I can’t fi nish my building in one session?
A. If weather conditions change so that it becomes windy or rainy, it is recommended that you stop assembly
until conditions improve. This is for your safety and for protection of the shed panels. However, do not leave
your unfi nished construction without fi rst temporarily anchoring the corners of the shed to your base and placing
weights, such as patio blocks or sandbags, on the fl oor frame. Failure to anchor the building if you leave it while
partially assembled could result in irreparable damage or personal injury if the building collapses.
Note: Most instruction manuals provide a warning note at the beginning of the installation step for corner panels,
stating that the remainder of the building assembly requires multiple hours and more than one person. Do not
continue beyond this point if you do not have enough time or help to complete the assembly that day. A partially
assembled building can be severely damaged by even light winds.
Q. Do I need to anchor my building?
A. Yes! Fully assembled buildings should be anchored using a permanent anchoring system. If you need to leave
your building before it is completely assembled, you will need to temporarily anchor the corners of the shed to your
base, and place weights, such as patio blocks or sandbags, on top of the fl oor frame.
Q. How do I temporarily anchor my building before it’s fully assembled?
A. An incomplete building must be anchored before breaking for any period of time to prevent possible damage.
•If the building is on a wood base, secure the frame with wood screws in the corners
•If the building is on a concrete base, temporarily anchor the frame in the corners
•Use patio blocks or sandbags on top of the fl oor frame as weights
•Secure the fl oor frame to the ground with ground augers or rope the frame in the corners to the ground
Q. How do I control condensation and prevent water from leaking in?
A. To minimize condensation, install a continuous, unbroken plastic vapor barrier with a thickness of 6 mil.
between exposed ground surface and the building’s base. Make sure that all weather stripping and washers are
used throughout the assembly process. Make sure that the weather-stripping tape adheres to the panels when
installing it along the main ridge beam. Do not stretch it. Apply it directly off the roll onto clean panels. Ensure
that all washers are fl ush with the panels and do not over-tighten screws, as this can crack the washers. Silicone
caulking may be used to create watertight seals at the washers and throughout the building.
04A

5
Q. What kind of base do I use?
A. You can:
•Use an Arrow Base Kit
•Pour a concrete slab
•Build a wood deck/fl oor (use exterior-grade plywood)
•Use patio blocks
•Build on crushed gravel, dirt or grass
Arrow provides a base kit accessory that is an option for most building sizes. If you are building a wood deck/fl oor,
an Arrow fl oor frame kit on top of your deck/fl oor assembles in minutes and provides a fl oor frame suitable for a
5/8” exterior-grade plywood fl oor (not included). A continuous unbroken plastic vapor barrier with a thickness of 6
mil. between the ground and the building’s base is also recommended.
Q. How should I measure for my base?
A. Shed dimensions are provided in “nominal” size. Nominal sizes are roof-edge measurements rounded to the
nearest foot and are not the measurements to use for constructing the shed base. So, carefully check the exact,
recommended base size in the specifi cations for your shed model.
Q. How do I align the holes in the wall panels with the holes in the fl oor frame?
A. Make sure that the shed is level and square, with the correct fl oor frame size, and that the corner panels are
installed correctly. Line up the large hole in the panel with the small holes in the fl oor frame. An awl can be used to
help align the holes.
Q. How do I align the holes in the roof panels with the holes in the roof beam and side wall angles?
A. Your building must be level and square in order for the holes to align. It must be square at both the top and
bottom. Check that the building is square by measuring diagonally. The two diagonal measurements will be equal.
If your building is out of square, carefully rock and push the shed until it is square. Also, try loosening the roof
beams to give more play and fl exibility. Non-alignment can also occur if your building is not level. You can raise
corners and shim under them to make it level. Check that the panels are installed in the proper location. The
building should not be permanently anchored until the complete unit is assembled; otherwise, you will not be able
to make adjustments for squareness during assembly. Do not attach the bottom of the roof panels to the side wall
angles until all the roof panels are up.
Note: If you have to stop assembly for any reason before it is complete, do not leave your unfi nished construction
without fi rst temporarily anchoring the corners of the shed to your base and placing weights, such as patio blocks
or sandbags, on the fl oor frame.
Q. How do I ensure that the sliding doors on the building will hang level?
A. Make sure that the door track has been correctly installed, with the long leg on top and the short leg on the
bottom. Check that the door slides are straddling the upper and lower legs of the door track assembly, putting the
door slide only halfway in the track. Also, the rounded end of the door slide should be at the bottom and the square
end at the top.
Q. What kind of customer support is available?
A. Our instruction manuals contain step-by-step assembly illustrations and guide you from preparation through
assembly to care and maintenance of your fi nished building. Each part is marked with a factory number for easy
identifi cation. In addition, our assembly animation (located under the Customer Support menu on the website)
provides helpful tips. But if you need to reach someone at Arrow, you can contact Arrow Customer Service, toll free,
at 1-800-851-1085 (press 1) or via e-mail at [email protected]. Have your model number and instruction
manual with you when you call.
05A

6
Q. What if the rear wall angle and channels are too large to fi t inside of the rear wall panels?
A. Check the dimensions of wall assemblies. They should be slightly smaller than the fl oor frames. Lay the
assemblies on top of the rear fl oor frame and pull them up to the top of the wall panels causing the corner panels
to stand erect and not lean inward. Caution: Be careful to not scratch the panels on the way up.
Q. The wide rib always overlaps the crimped rib. Is there ever an exception?
A. This sequence is to be followed through the assembly process. However, this will typically happen once on the
rear and once on each side wall (vertical wall units only) where there will be either two crimped ribs overlapping or
two wide ribs overlapping. This may give it a tighter fi t, but it will work.
Q. Can the building be painted?
A. The buildings can be painted with an exterior-grade paint designed for use on steel. Contact your local paint
supplier for recommendations.
Q. I heard that rust might be an issue with steel; is it?
A. While steel can rust, with proper care this should not be an issue. For a long-lasting fi nish, periodically clean
the exterior surface and apply spray-on car wax. Touch up scratches as soon as you notice them by immediately
cleaning the area with a wire brush or emery paper, washing it and applying touch-up paint. This will minimize rust
and maintain your shed’s attractive appearance for years.
Q. How do I take care of dents in my shed?
A. Proper selection of shed size, including a suffi cient door-opening width, and proper placement of your shed
should minimize the possibility of damage. If a dent does occur, carefully push the dent out from the opposite side.
If the paint has been scratched or removed, touch up the area as soon as you notice it. Immediately clean the area
with a wire brush or emery paper, wash it and apply touch-up paint. This will minimize rust and maintain your shed’s
attractive appearance for years.
Still have questions? Visit us online at www.arrowsheds.com to view lots of helpful tips and information
regarding all of our available products. You can also contact our Customer Service team at 1-800-851-1085
(press 1), or via e-mail at [email protected].
06A

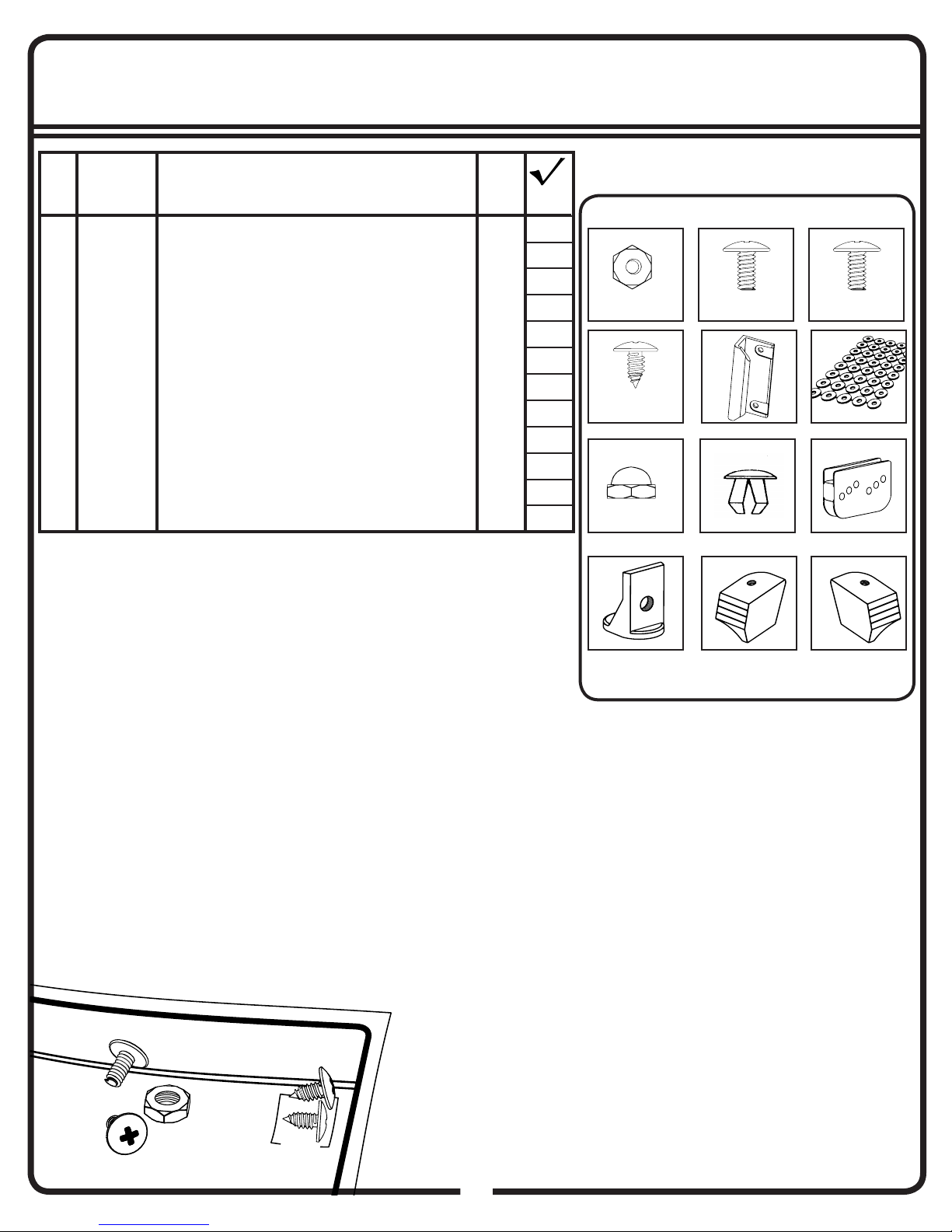

At the top of each page you will see one or more Part
Cues like the one to the left. These Part Cues are
designed to help you quickly identify the parts needed
for each step.
##### 5
Part No. Quantity Needed
End View
Part Name Part Name
Confi rm that all hardware and parts are
present before attempting to assemble
your building.
Customer Service:
1-800-851-1085 or
[email protected]
For missing or damaged parts contact
Customer Service. Do not return to store.
Part Numbers
Part Number
1. Each part has an identifying part number on it.
2. Part Numbers are referenced in each step.
3. Unpainted parts have a stamped in number and painted
parts have a number that is inked on.
Remove inked on numbers with soap and water after assembly.

7
HARDWARE LIST... 07BL
1
11/32 Hex.
Hardware Views by Key No.
2
#2 Phillips
4
#2 Phillips
6
1 65103 Hex Nut (#8-32) 37
2 6900A Black Screw (#10B x 1/2) (13 mm) 8
3 65923 Small Bolt (#8-32 x 3/8) (10 mm) 37
4 65004 Small Screw (#8AB x 5/16) (8 mm) 168
5 66045 Door Handle 2
6 66646 Washer Sheet 5
7 65109 Acorn Nut (#8-32) 6
8 66775 Plug 2
9 66769 Door Slide 4
10 66382 Lower Door Guide 4
11 66183L Left Roof Trim Cap 2
12 66183R Right Roof Trim Cap 2
Key
No.
Part
No.
Part
Description Qty. List
3
#2 Phillips
The fasteners used in each
step are shown actual size at
the top of each page. If you
are unsure which fastener to
use, hold it up to the picture
and use the one that matches.
QTY 18
Various fasteners are used
throughout the construction of
your storage unit. In each step
you will see the abbreviations
listed below used in the
illustrations to help you identify
which fastener to use.
12
11
5
7 8 9
10

Key
No.
Part
No.
Part
Description
Qty.
List
1 10569 Roof Beam 1
2 10564 Side Wall Angle 2
3 10562 Right Gable 1
4 80015 Left Gable 1
5 80002 Roof Trim 2
6 10558 Right Roof Panel 1
7 80011 Left Roof Panel 1
8 10499 Horizontal Door Brace 4
9 6657 Door Handle Brace 2
10 6515 Wall Panel (Rear) 2
11 10476 Right and Left Doors 2
12 10563 Wall Panel (Side) 2
13 9369 Door Jamb 2
14 9389 Front Corner Panel 2
15 10561 Rear Corner Panel 2
16 9396 Door Track 1
17 10565 Rear Wall Angle 1
18 9925 Rear Wall Channel 1
19 9399 Rear Floor Frame 1
20 10545 Side Wall Channel 2
21 10544 Side Floor Frame 2
22 9403 Front Floor Frame 1
23 10557 Roof Panel 1
24 10572 Front Header 1
9
18
13
2
19
2422
8
1
20
17
16
21
PARTS LIST...
8
08BL
Selected End Views by Key No.
5
Gables, Roof Panels, Wall
Panels, and Doors not
shown.

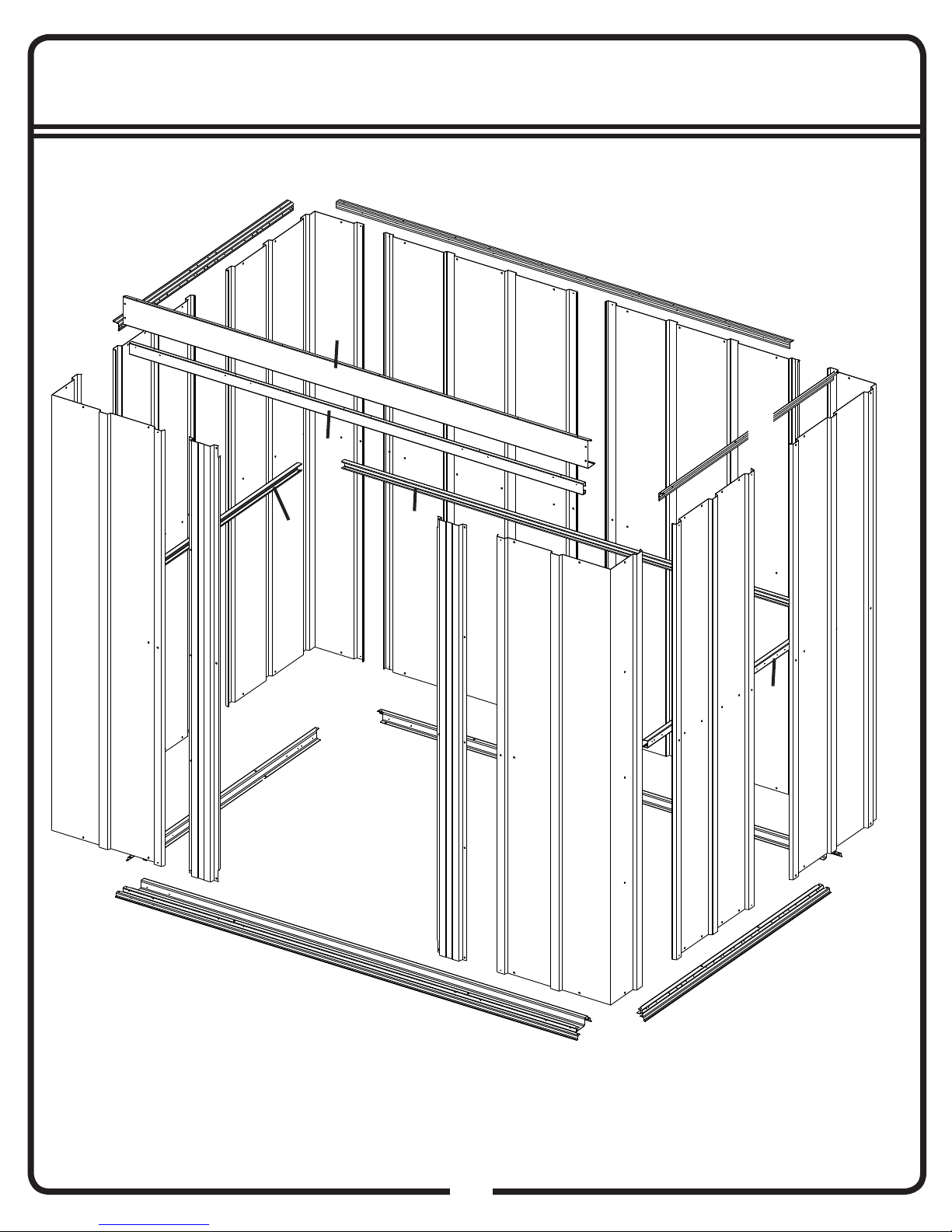

ASSEMBLY BY KEY NO.
9
09BL
15
15
10
10
12
12
14
14
22 21
21
20
13
13
18
16
19
20
24
17
2
2

ASSEMBLY BY KEY NO.
10
10BL
7
6
23
17
3
4
5
1
11
11
9
9
8
8
8
8
Doors
Roof

11
ASSEMBLY OVERVIEW
Build the Floor Frame
Attach Header, Gables, and Roof Beam
Install Roof Panel, Roof Trim, and
Corner Cap
Install Doors
11BL
Shed is now complete.
Install Corner Panels, Side Angles,
and Rear Angles
Install Wall Panels, Wall Channels, and
Door Jambs

12
CONSTRUCTING A BASE...
FRONT
(DOOR)
FRONT
(DOOR)
Note: Finished Slab dimensions, with lumber removed.
No matter which of the options below you choose for a base, an ARROW ANCHORING KIT is
recommended as an effective method of properly securing your building after assembly is complete.
OPTION 1: Directly on ground (earth)
Assemble your building directly on level ground (grass, dirt, rock, sand, etc.).
Allow 1 - 2 hours for construction.
OPTION 2: Wood Platform
If you decide to build your own base, be sure to select the appropriate materials.
These are the recommended materials for your base:
• 2 x 4's (38 mm x 89 mm) Pressure Treated Lumber • 5/8" (15,5 mm) 4 x 8 (1220 mm x 2440 mm) Plywood-exterior grade
• 10 & 4 penny Galvanized Nails • Concrete Blocks (optional)
NOTE: Pressure Treated Lumber must not be used where it will make contact with your storage building. The properties of
Pressure Treated Lumber will cause accelerated corrosion. If Pressure Treated Lumber comes in contact with your storage
building your warranty will be voided.
The platform should be level and fl at (free of bumps, ridges etc.)
to provide good support for the building. The necessary materials
may be obtained from your local lumber yard.
To construct the base follow instructions and diagram.
Construct frame (using 10 penny galvanized nails)
Measure 16"/24" (40,6 cm/61,0 cm) sections to construct
inside frame (see diagram)
Secure plywood to frame (using 4 penny galvanized nails)
Allow 6 - 7 hours for construction.
OPTION 3: Concrete Slab
The slab should be at least 4" (10,2 cm) thick. It must be level
and fl at to provide good support for the frame.
The following are the recommended materials for your base.
• 1 x 4's (19 mm x 89 mm) (will be removed once the concrete cures)
• Concrete • Sheet of 6 mil plastic
• We recommend for a proper strength concrete to use a mix of:
1 part cement • 3 parts pea sized gravel • 2 1/2 parts clean sand
Prepare the Site/Construct a Base
1. Dig a square, 6" (15,2 cm) deep into the ground (remove grass).
2. Fill up to 4" (10,2 cm) in the square with gravel and tamp fi rm.
3. Cover gravel with a sheet of 6 mil plastic.
4. Construct a wood frame using four planks of 1x4 (19 mm x 89 mm)
lumber.
5. Pour in concrete to fi ll in the hole and the frame giving a
total of 4" (10,2 cm) thick concrete. Be sure surface is level.
Allow 3 - 5 hours for construction and a week for concrete curing time.
Note: Platform/Slab will extend 9/16" (1,4 cm) beyond
fl oor frame on all four sides. Seal this 9/16" (1,4 cm)
of wood with a roofi ng cement (not included), or bevel
this 9/16" (1,4 cm) of concrete when pouring, for good
water drainage.
74"
188,0 cm
16"/24"
40,6 cm/61,0 cm
45 14"
114,9 cm
12AH
97 1/2"
247,7 cm
49 1/2"
125,7 cm

13
CORRECT INCORRECT
Long Leg
on top.
Door Slide
END VIEW
9396
Door Track
1
You will need for this page:
Step 1: Door Track/Header Assembly
Using the door track, with small holes on top,
join the header, short legs on top, as shown
using screws.
1
2
Position door slides onto the legs, from the
end of door track, as shown. Set this piece
aside for use in Step 4.
13BL
10572
Front Header
1
(QTY:8)
SS
66769
66769
The door track/header assembly supports
the sliding doors and reinforces the front
wall. It is made up of 2 pieces.
Door Slide
4
To remove or install Door Slides:
• Remove Doors from Slides and set aside.
• Using pliers, bend down a corner of the Door Track.
• Remove or install Door Slides.
• Carefully bend the corner back into position.
Slides should be installed in Door Track prior to installation. However, if this step is overlooked
or if the Slides need to be removed for maintenance, the following procedure may be used.
Slide all four (4) Door Slides into Track
9396
10572

14
9399
Rear Floor
Frame
1
You will need for this page:

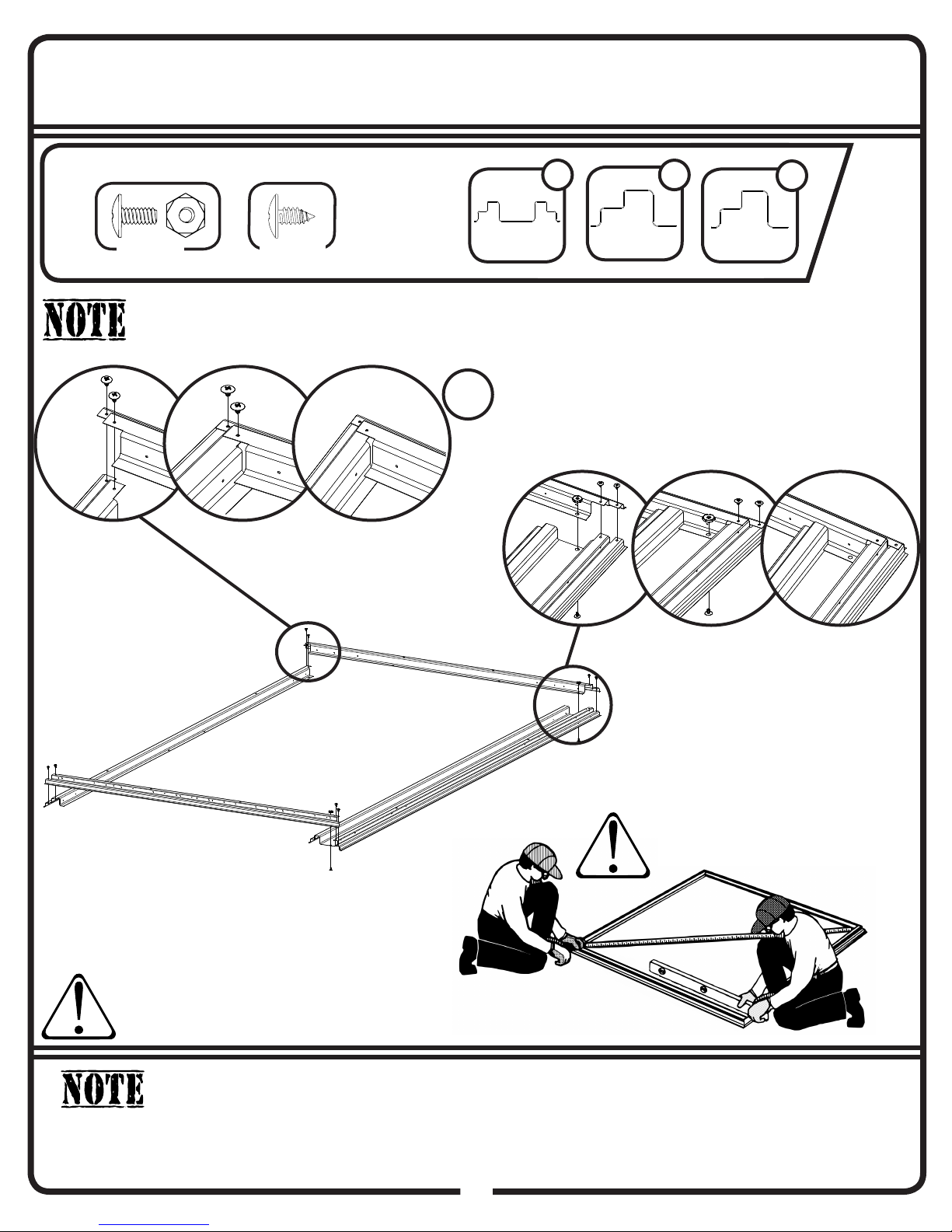

Step 2: Floor Assembly
14BL
(QTY: 2)
SB 9403
Front Floor
Frame
1
1
Assemble the four corner of the fl oor frame using
two at each corner as shown. At the front corners
fasten bolts through the bottom with nuts on top.
10544
9399
9403
10544
The Floor Frame must be BOTH square AND
level or the holes will not line up properly.
The remainder of the building assembly requires many hours and more than
one person. Do not continue beyond this point if you do not have enough
time to complete the assembly today. A partially assembled building can be severely
damaged by light winds.
When diagonal measurements
are equal, the Frame is square.
Level
If using a wood platform or concrete slab do NOT fasten your Floor Frames
to your Base at this time. You will anchor your building after it is erected.
(QTY:8)
SS
10544
Side Floor
Frame
2
Right Front Floor
Frame Assembly
Right Rear Floor
Frame Assembly

6
15
15BL
You will need for this page:
9389
Front Corner
Panel
210561
Rear Corner
Panel
2
9389
10563
Position rear corner panels at the rear
corners as shown. The widest part of
each corner panel must be placed along
the side of the building. Fasten corner
panels to the fl oor frame using four
screws.
Position front corner panels at the
corners of the fl oor frame as shown.
The widest part of each corner panel
must be placed along the front of the
building. Fasten the corner panels to
the fl oor frame.
2
10561
9389
10561
10563
Step 3: Corners/Wall Panels
10563
Wall Panel
2
Attach wall panels to the sides as shown.
3
The wall panels come in two widths. Each
panel has a crimped rib on one side. The
rib should go under the rib of the panel
that follows it.
Be careful to install the correct panel in each
position as shown.
Rear Wall Panel
Assembly
Front Wall Panel
Assembly
1
2
3
Be cautious when maneuvering and placing Panels.
Once Panels begin to go up it is important to be able
to fi nish in a timely manner to reduce the possibility
of wind damage to your building.
Use one person to support the Corner while
another secures the Panels. Do not leave the
Corner unsupported until it is secure.
1
(QTY: 28) (QTY: 4)

16
Gap 13/16” (2,1 cm)
Rear Wall Angle Must
Face Inside Building
Side Wall Angles Must
Face Outside Building
Rear Wall
Angle
1
10565
You will need for this page:
Step 4: Frames
Fasten the rear wall angle across the inside top of the rear wall using screws.
1
2
Fasten the rear wall channel across the
middle of the rear wall using screws.
16BL
Rear Wall
Channel
1
9925
Side Wall
Channel
2
10545
Side Wall
Angle
2
10564
(QTY: 2)
SS
(QTY: 38)
SS
The upper leg of the side wall angles
must face the outside of the building.
Door Track
1
10545
10564
Door Track/Header Assembly
10565
9925
10545
10564
3
Fasten the side wall angles
across the inside top of the
side panels using screws.
4
Fasten the side wall
channels across the
middle of the side panels
using screws. Fasten
overlaps in rear corners
with screws.
5
Fasten the door track/
header assembly (from
step 2) across the top
of the front wall panels
using screws. See the
fi gure.
5
1
2
3
4
Front

17
Step 5: Wall Panels
17BL
Wall Panel
2
6515
You will need for this page:
Fasten the wall panels at the top and
bottom with screws.
1
2
Fasten the center of each panel to the wall
channel with screws. Fasten overlapping
ribs as before.
Rear
Front
(QTY: 30)
SS
(QTY: 3)
Door Track/Header Assembly (Ref)
6515

18

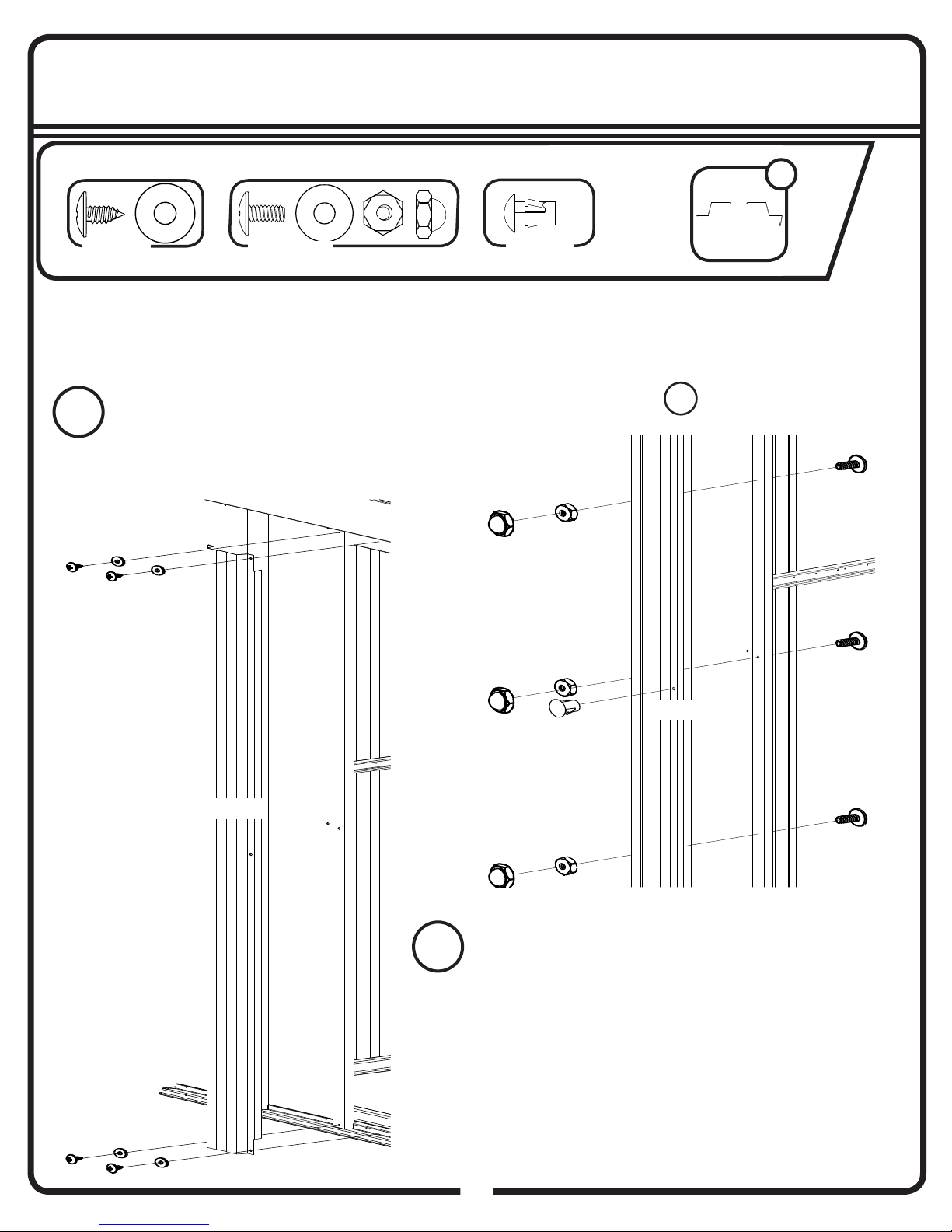

Step 6: Door Jamb
18BL
You will need for this page:
9369
Door Jamb
2
Plug
Acorn Nut
9369
Fasten a door jamb to the front panel
with three bolts, nuts and acorn nuts as
shown. Push a plug into hole at center
of jamb closest to door opening.
1
Fasten the top of the door jamb to the door
track with two screws. Do the same for the
bottom into frame.
2
Hex Nut
(QTY: 8)
SS
(QTY: 6) (QTY: 2)
Plug
The door jambs reinforce the door opening and provide an attractive trim. Follow these
steps for both door jambs.
1
9369

6
Step 7: Left Door Assembly
19
19BL
You will need for this page:
10569
Roof Beam
1
10569
The dimension stated below measures from the end
of the angle towards the front of the building. Fasten
the roof beam, small holes on top, to the side wall
angle with screws.
1
(QTY:2)
SS
Step 7: Roof Beam
23 1/2”
(59,7 cm)

20
Roof Install Prep Page
20BL
Measure the building diagonally again to make
sure the building is square. The building should
be square at the base and at the top. This will
make roof panels fi t better and holes will better
align.
Whenever a crimped rib and an uncrimped rib meet,
place the crimped rib UNDER the uncrimped rib.
Crimped Rib
Uncrimped Rib
Be sure to carefully follow the Roof Panel
Placement Order Diagram on this page.
If Roof Beam holes do not line up with Roof
Panel holes, shift the building from left to right. If
this does not help, your building may not be level.
Shim the corners until holes line up.
Use the information on this page to complete steps 8 and 9.
The building is square when diagonal measurements are equal.
Roof Panel Placement Order
2
3
1
10558 10557 80011
FRONT
