Arrow OLIVIA 1004 User manual

OLIVIA
SEWING CABINET
OWNER’S MANUAL
Where Creativity Meets Color!
Assembly Instructions
IMPORTANT: Please read these instructions before assembling!
Model Numbers:
1001 White
1004 Pistachio Green
1009 Blue

Thank you for your purchase of an Arrow Sewing Cabinet!
Thank you for your purchase! Our products have a three-year warranty from the
date of shipment from our facility that covers manufacturer defects plus a 15 day
warranty for any shipping damages.
Register online at www.arrowcabinets.com/warranty
--get a bonus 1 year of warranty!
The warranty covers parts and freight for the rst year and parts only for any claims
after the rst year. Freight after the rst year of ownership will be the responsibility of
the customer.
The warranty covers all manufacturer defects but does not cover damage caused by
abuse, mis-use, alteration, poor assembly, accident or neglect of the product. The
warranty does not cover damage as a result of moving the cabinet fully loaded or
damage caused by moving the cabinet with locked casters.
Under the terms of this warranty the repair and replacement of any parts shall be at
the discretion of the company or their designated representatives.
Replacement Part Shipping Policy:
All replacement parts shipping prepaid freight must ship out at the same time.
Please help us in this endeavor by reviewing ALL parts in ALL boxes for damage
before calling or e-mailing us to report damage. Warranty covers shipping cost of
replacement parts 1 time only within the rst year of ownership. Additional warranty
parts requests will be shipped at the customer’s expense.
Register online at www.arrowcabinets.com/warranty
VISIT WWW.ARROWCABINETS.COM FOR ASSEMBLY VIDEOS, PICTURES AND
FREQUENTLY ASKED QUESTIONS.
FOLLOW US ON FACEBOOK AND CHECK OUT OUR COOL CONTESTS!
If you have any questions, please call or email us at:
1-800-533-7347
[e-mail]
Check out our website for pictures and frequently asked questions at:
www.arrowcabinets.com
READ THIS PAGE FIRST
ARROW WARRANTY

Assembly InstructionsOLIVIA Sewing Cabinet Page 1
Cabinet Connector Panel Straight Gingerbread
Piece x2
Cabinet Right Inside
Panel
Cabinet Right Outside
Panel
Drawer Back x2
Drawer Side Left x2
Drawer Side Right x2
Cabinet Side Connector x2
Cabinet Left Outide Panel
Cabinet Left Inside Panel
Gingerbread Piece
(right and left version)
Cabinet Bottom Panel x2
Cabinet Back Panel x2
Drawer Front x2
Drawer Bottom x2
If any of these parts arrived damaged, please call us at
1-800-533-7347 and we will send a replacement part out.
For additional strength dab wood glue on tip of screws
before attaching.
Table Top with Sewing
Machine Brace Assembly
NOTE: To assure proper handling of replacement parts
please include the following information:
• Model Number of Unit - 1001 (Crisp White)
1004 (Pistachio)
1009 (Blue)
• Production ID Number
• Number of Part Required
• Your Name, Address, and Phone Number
Notice to Customer:
Before beginning assembly, remove all parts from
the carton. Please review the illustrations below to
determine that all parts are Included.
For assembly or operating assistance, or to report any
missing or damaged parts, you may call or write to:
[e-mail]
1-800-533-7347
Arrow Cabinets
P.O. Box 307, Delavan, WI 53115
TO ORDER REPLACEMENT PARTS CALL
1-800-533-7347
Parts are labeled with capital letters. To reference letters,
turn to the Wood Parts List in the back of your manual.
Wooden Materials
A
G
B
H
C
E
I
D
J
L
F
B
H
N
C
I
I
D
O
K
K
L
J
J
A
P
M
E
E
F
F
G
M
N
O
P
K

Assembly InstructionsOLIVIA Sewing Cabinet Page 2

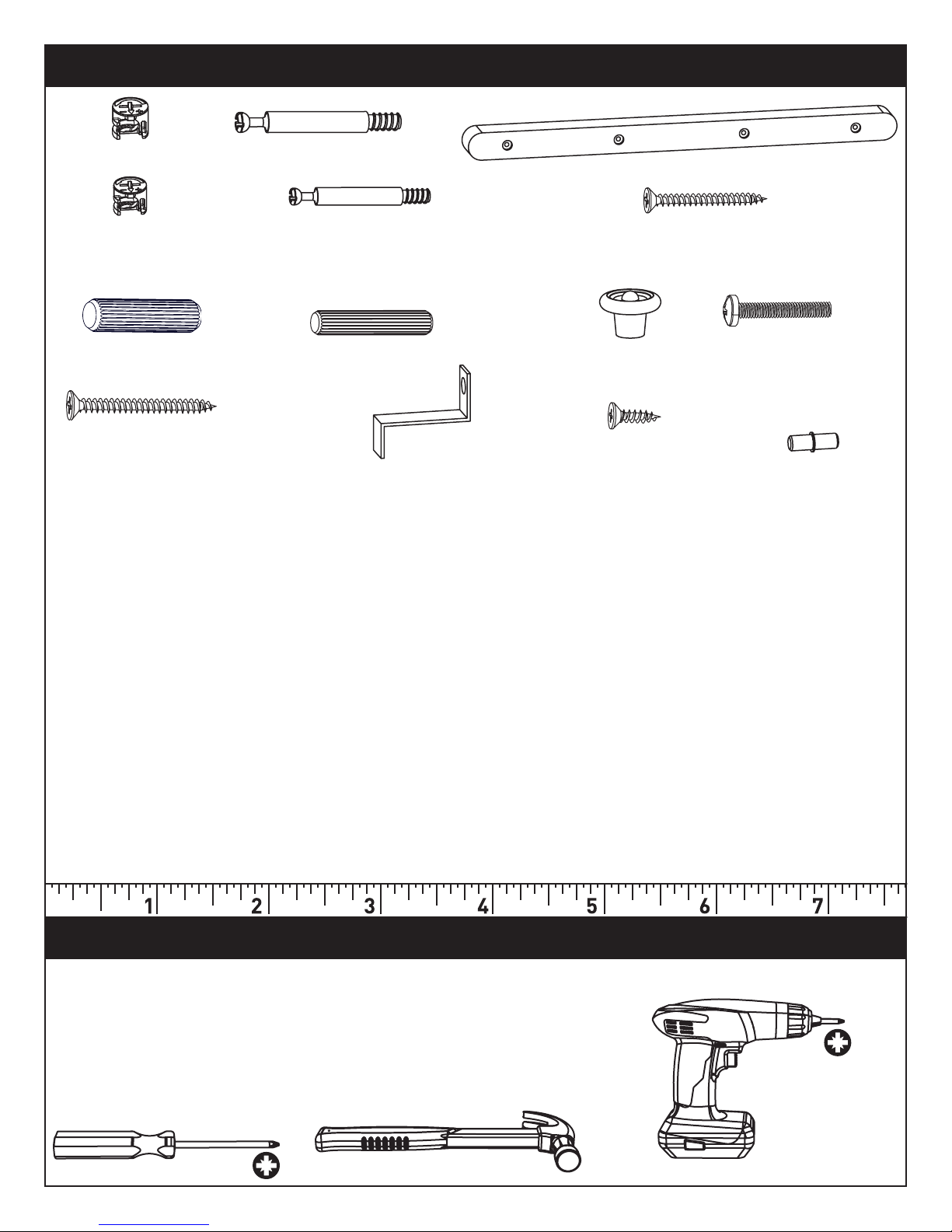

Hardware Included
Tools required
Drawer Stoppers x2
Door Knob x2
Metal Dowels x2
#7x5/8”
Flathead Screws x2
#10x1-3/8”
Door Knob Bolt x2
Connecting Bolts x32
Cams x32 Drawer Runners x4
#6x1”
Flathead Screw x16
#10x1-1/4”
Flathead Screw x8
Wood dowel 8x30mm x16 Wood dowel 6x30mm x16
Note: Screws are included in the bag of parts they
will be used with.
*Items not drawn to scale.
Phillips Screwdriver Hammer Electric screwdriver
Drawer Cams x4 Drawer Connecting Bolts x4

180°
Assembly InstructionsOLIVIA Sewing Cabinet Page 3

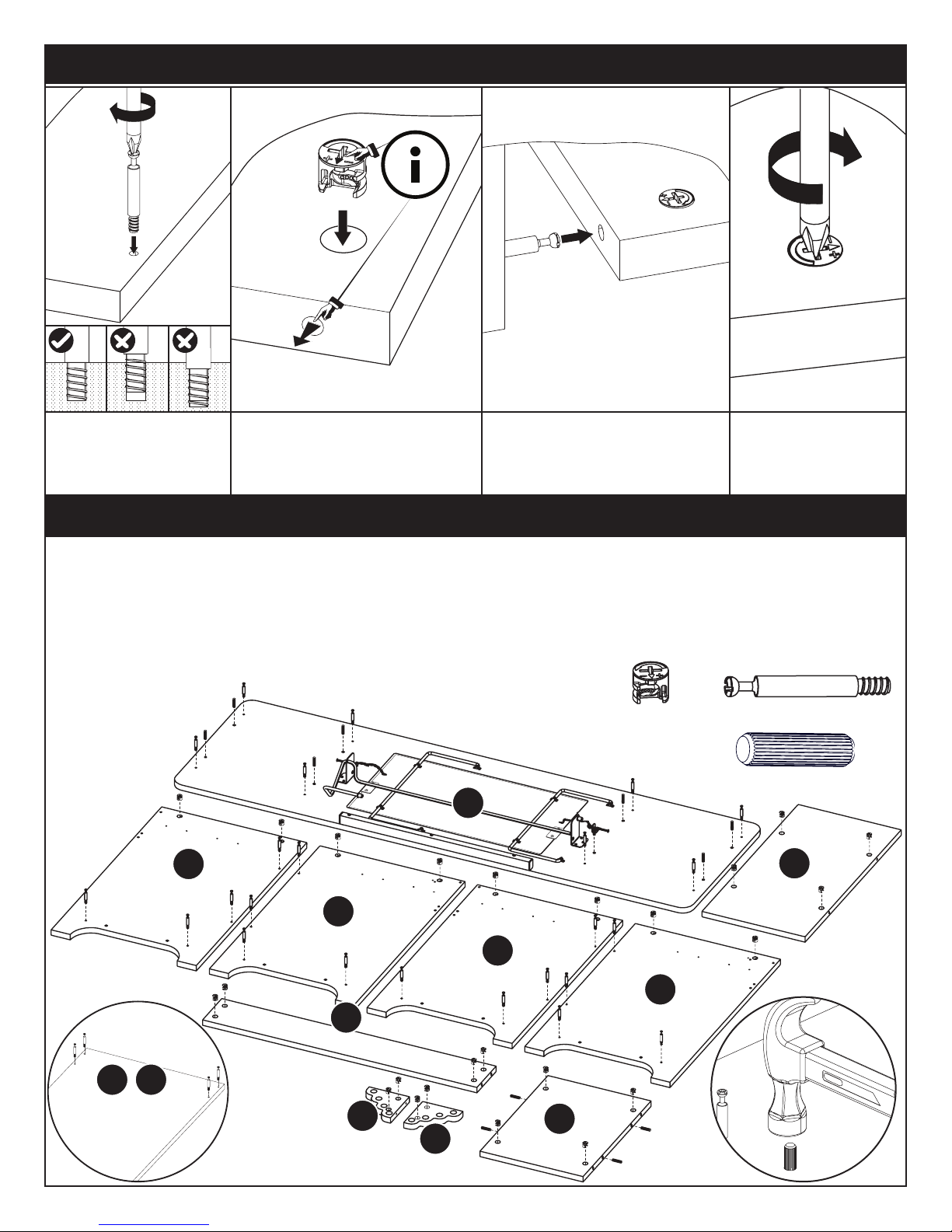

Understanding How the “ARROW-LOC” Cam Fastener Works
Cabinet Assembly
Position bolt in
pre-drilled hole and
turn until tight.
Press cam Into pre-drilled
hole until flush with surface.
Insert bolt through pre-drilled
hole in edge of panel.
To lock, rotate cam
until tight, using a
screwdriver.
ARROW TOWARDS
HOLE IN EDGE!
FIG. 1.
x2
x2
Step 1. Place all wood panels and pieces on a flat
working area. Insert Cams (x32) and Connecting
Bolts (x32) into the wood panels* (As shown in FIG.
1). Insert 8x30mm Wood Dowels (x16) into Dowel
holes on Panel (A) and on side edges of panels (E).
*4 Connecting bolts on back of Left Inside Panel (D)
and Right Inside Panel (L) (As shown in FIG. 1A).
Note: For added support, drop 2 to 3 drop of wood
glue in each dowel hole before inserting wood dowels.
Allow several minutes to dry.
Connecting Bolts x32
Cams x32
Wood dowel 8x30mm x16
Back side
FIG. 1A.
C
D
D
A
F
L
M
L
B
E
I
I

Metal Dowels x2
180°
Assembly InstructionsOLIVIA Sewing Cabinet Page 4
*DO NOT OVERTIGHTEN #6x1”
Flathead Screws. Make sure
the screw heads are flush with
plastic.
#6x1”
Flathead Screw x16
FIG. 2.
FIG. 2B.
FIG. 3.
#7x5/8”
Flathead Screws x2
Step 3. Lay Outside Side Panels (C, M) on a flat
surface with Cams facing up. Attach Back Panel
(F) to Panels (C, M) with Cams facing toward the
edge of (C, M), guide the Connecting Bolts into
holes on side edge of Panel (F) (As shown in FIG.
3). Tighten Cams (x4).
Note: Panels (C, M) has no Connecting Bolts on
the reverse side.

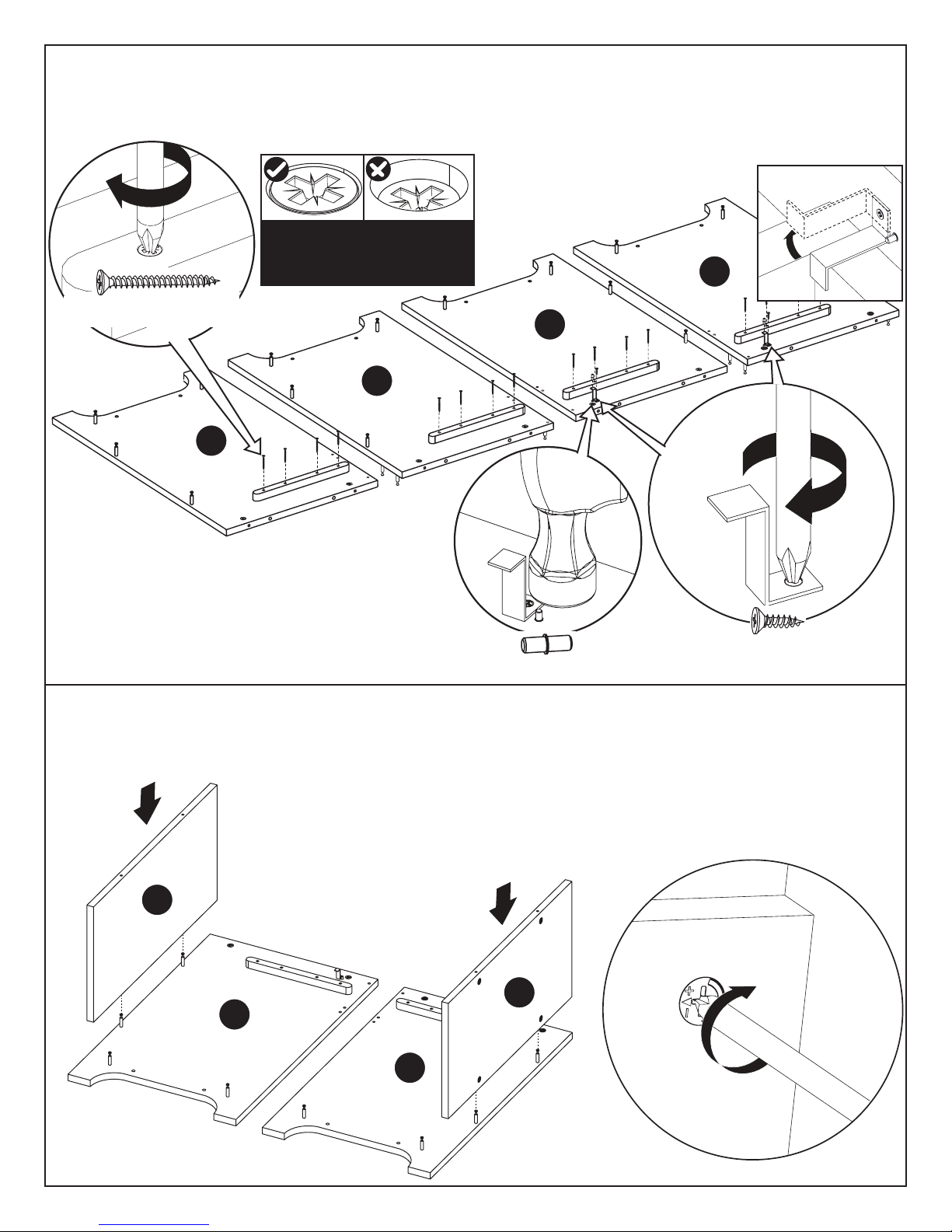

Step 2. Attach drawer runner (x1) each to Cabinet
Side Panels (C), (D), (L) and (M) using #6x1”
Flathead Screws* (x16) (See FIG 2). Screw Drawer
Stops (x2) into Right Side Panels (D) and (M) above
drawer runner using #7x5/8” Flathead screws
(x2). DO NOT tighten the screws completely, leave
1/4” for up and down swivel of the drawer runner
(See FIG. 2B). Insert Metal Dowels (x2) into pre-
drilled hole next to drawer stop.
M
F
F
C
D
M
L
C

180°
Assembly InstructionsOLIVIA Sewing Cabinet Page 5

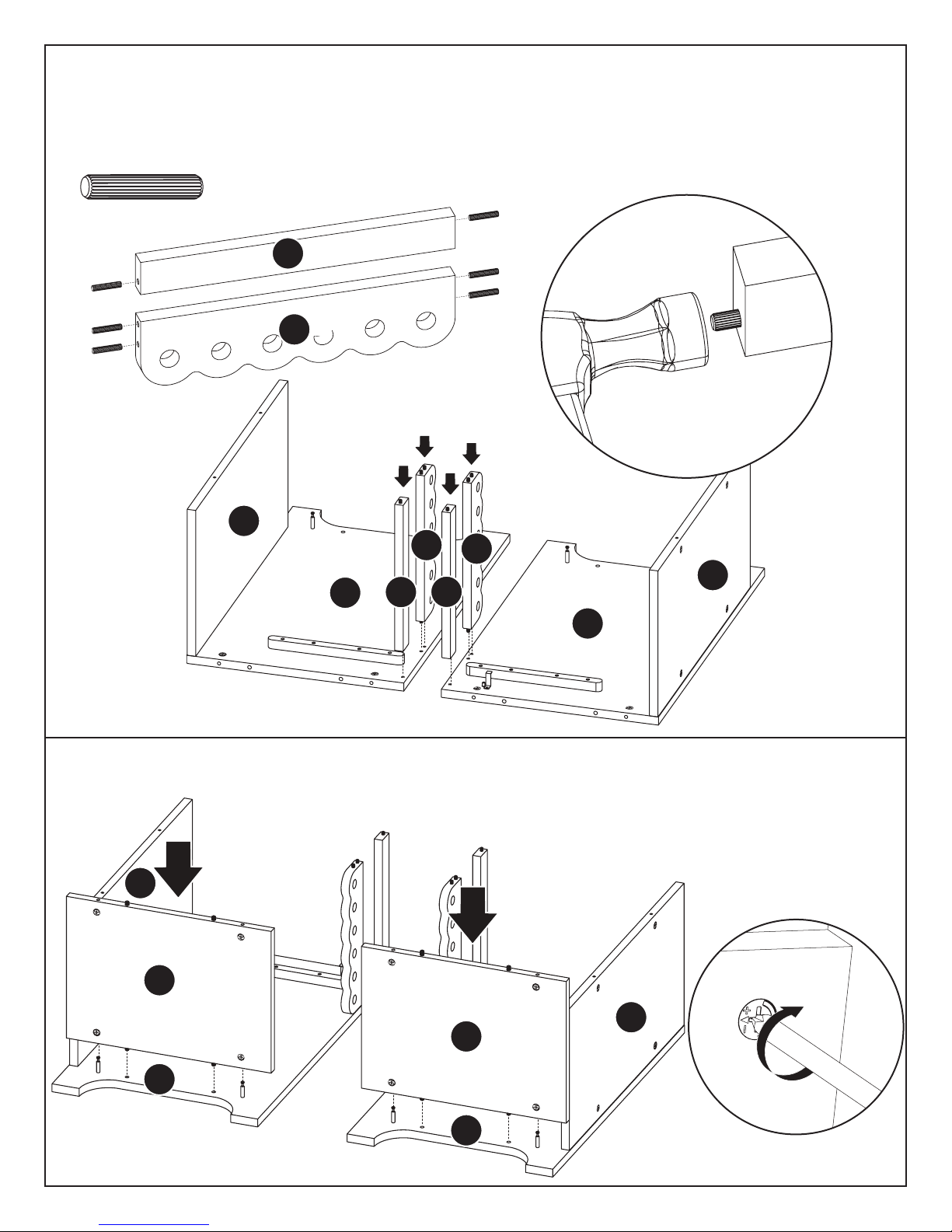

Step 4. Insert 6x30mm Wood Dowels (x8) into each
Straight Gingerbread Piece (J) and 6x30mm Wood
Dowels (x4) into each Cabinet Side Connector (K)
(See FIG 4A). With the smooth edge facing the legs
on Panels (C, M), guide Connector Piece (K) into
Step 5. With Cams facing the legs of Panels (C,
M), attach Bottom Panel (E) to Panels (C, M), guide
FIG. 4A.
FIG. 4.
the Connecting Bolts Into the holes on the edge of
Panel (E) (As shown in FIG. 5). Tighten Cams (x4).
FIG. 5.
Panels (C, M). With the curved edge facing the legs on
Panels (C, M), guide Straight Gingerbread Piece (J) into
Panels (C, M) (As shown in FIG. 4).
Note: For added support, drop 2 to 3 drop of wood
glue in each dowel hole before inserting wood dowels.
Allow several minutes to dry.
Wood dowel 6x30mm x12
x2
x2
C
F
F
F
F
M
E
M
E
C
J
J
J
K
K
K

180°
Assembly InstructionsOLIVIA Sewing Cabinet Page 6
Step 6. Using two people attach Inside Side
Panels (D, L), with Cams facing down, guiding the
connecting bolts into the holes on the edges of
Step 7. Attach Gingerbread piece (right and left
version) (I) to Left and Right Inside Panels (D, L) with
FIG. 6.
FIG. 7.
Cams facing backward and rounded edges facing
down (As shown in FIG. 7). Tighten the Cams (x4).
Panel (E) and (F). Also guide the dowels of (K) and
(J) into the dowel holes on Panels (D, L) (As shown
in FIG. 6). Tighten the Cams (x8).
180°
K
J
E
E
C
F
M
F
J
K
D
L
I
I

Assembly InstructionsOLIVIA Sewing Cabinet Page 7

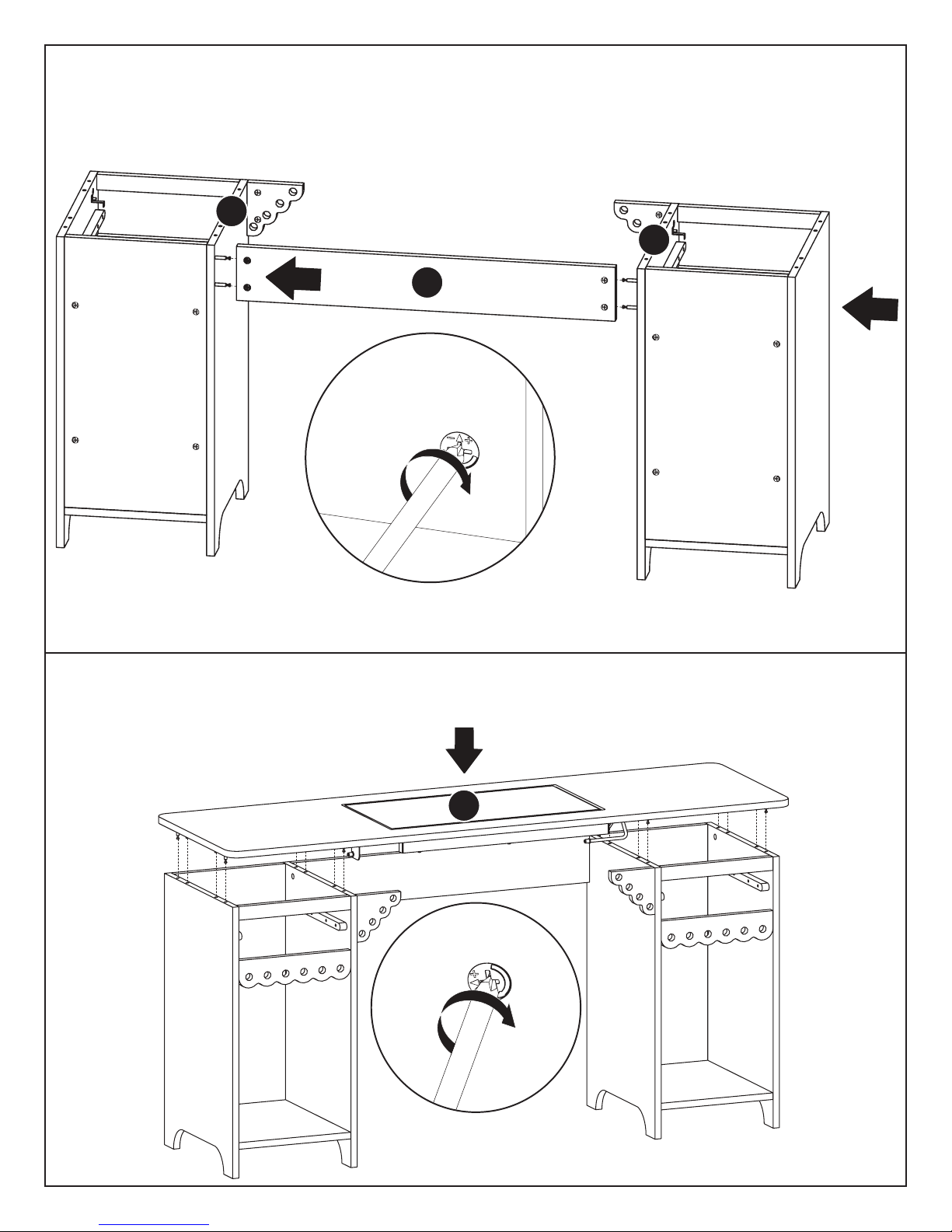

Step 8. With the Cams facing back attach Cabinet
Connector Panel (B) to Side Panels (D) and (L),
guiding the connecting bolts Into the holes on the
Step 9. With two people attach Table Top (A) to the
top of the Cabinets. The handle lever should be on
the right side and facing down when attaching.
FIG. 8.
FIG. 9.
edge of (B) (As shown in FIG. 8) and tightening the
Cams (x4).
180°
Guide Connecting bolts and Wood Dowels into
holes on top edge of cabinets (As shown in FIG. 9).
Tighten all 8 Cams.
180°
B
L
D
A

Assembly InstructionsOLIVIA Sewing Cabinet Page 8
Step 10. Thread Drawer Connecting Bolts (4 total)
into pre-drilled holes and in Drawer Front (G).
Insert 6x30mm Wood Dowels (x4) into each Drawer
Front (G). Install Drawer Cams (4 total) in Drawer
side (Ox1, Px1) by pushing a Cam into each hole
flush with surface (as shown in FIG. 10).
Step 12. Attach the Knob to the Drawer Front (Gx2)
using 8/32x1” Bolt (x2) for Knob (as shown in FIG. 12).
Step 11. Attach Drawer Sides (O,Px2) to Drawer
Front (Gx2), guide Connecting Bolts into holes in
Drawer Sides (O, P), turn Cams to locked position.
Align Drawer Bottom (Hx2) grooves in Sides with
Drawer Bottom groove In Drawer Front (as shown in
FIG. 11).
Slide Drawer Bottom (Hx2) along grooves on the
Sides Into the Groove In Drawer Front (Gx2).
Attach Drawer Back (Nx2) to Drawer Sides (O,Px2)
with the #10x1-1/2” Flathead Screw (x8) (as shown
in FIG. 11A).
FIG. 10.
The Drawers may now be insatalled into your cabinet.
Drawer Connecting Bolts x4
Drawer Cams x4
#10x1-3/8”
Door Knob Bolt x2
FIG. 12.
Door Knob x2
x2
x2
FIG. 11A.
FIG. 11.
#10x1-1/4”
Flathead Screw x8
Wood dowel
6x30mm x4
H
G
O
P
N
N
180°
G
P
O

I
Assembly InstructionsOLIVIA Sewing Cabinet Page 9

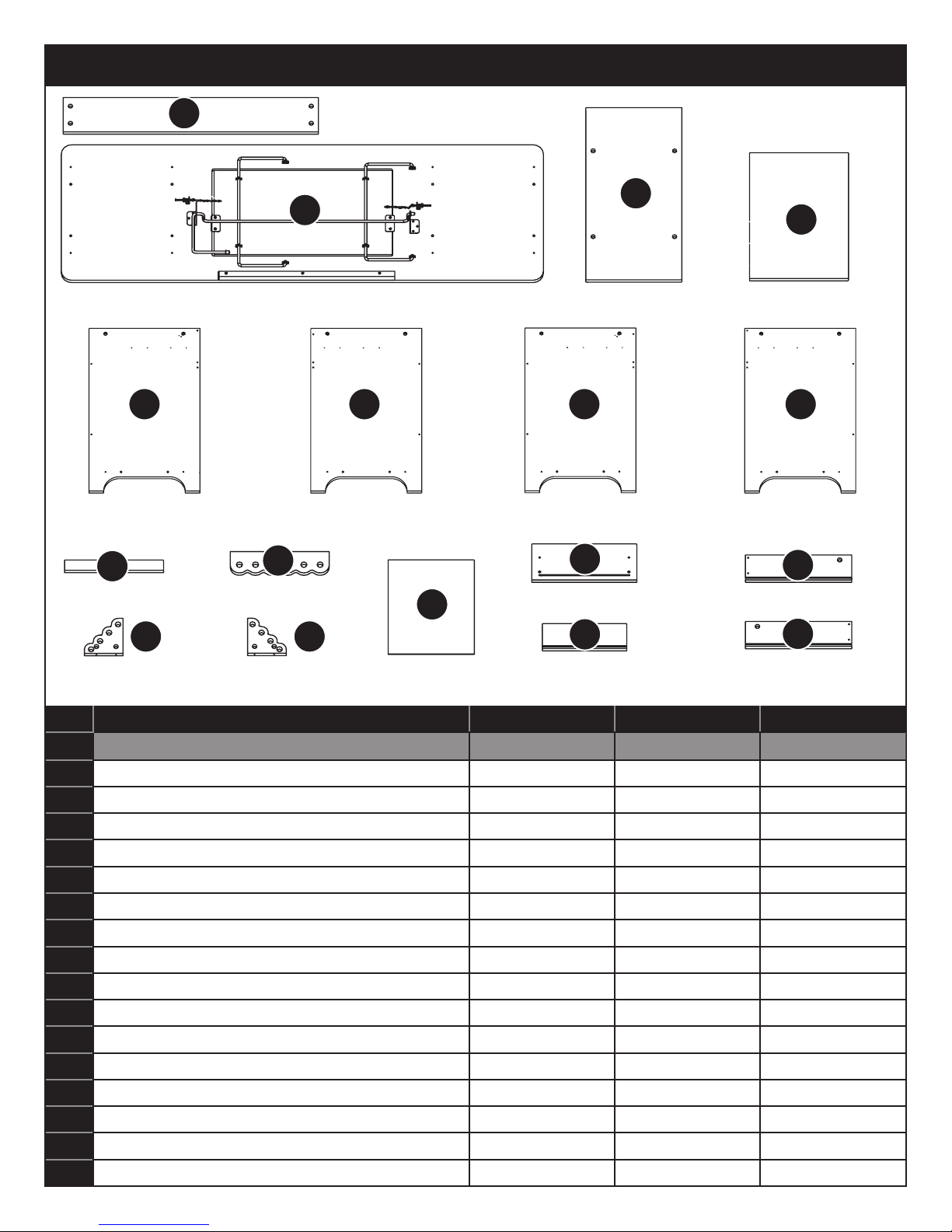

Wood Parts and Part Numbers
Ref. Description Part# Part# Part#
Cabinet Model# 1001 (Crisp White) 1004 (Pistachio) 1009(Blue)
ATable Top w/ Assembly 002003W 002003P 002003TB
BCabinet Connector Panel 002003P 002004P 002004TB
CCabinet Left Inside Panel 002005W 002005P 002005TB
DCabinet Left Outside Panel 002006W 002006P 002006TB
ECabinet Bottom Panel 002007W 002007P 002007TB
FCabinet Back Panel 002008W 002008P 002008TB
IGingerbread Piece (right and left version) 002009W 002009P 002009TB
JStraight Gingerbread Piece 002010W 002010P 002010TB
KCabinet Side Connector 002011W 002011P 002011TB
LCabinet Right Inside Panel 002012W 002012P 002012TB
MCabinet Right Outside Panel 002013W 002013P 002013TB
GDrawer Front 003320W 003320P 003320TB
HDrawer Bottom 003162 003162 003162
NDrawer Back 003163 003163 003163
ODrawer Side Left 003164 003164 003164
PDrawer Side Right 003166 003166 003166
Cabinet Connector Panel
Straight Gingerbread
Piece
Drawer Back Drawer Side Left
Drawer Side Right
Side Connector
Cabinet Left Outside Panel Cabinet Right Inside PanelCabinet Left Inside Panel Cabinet Right Outside Panel
Gingerbread Piece
Left
Cabinet Bottom PanelCabinet Back Panel
Drawer Front
Drawer Bottom
Table Top with Sewing
Machine Lift Assembly
Gingerbread Piece
Right
B
N
L
M
A
G
H
C
I
D
J
E
F
O
P
K

#10x1-1/4”
Flathead Screw
Z
E
F
Assembly InstructionsOLIVIA Sewing Cabinet Page 10
Hardware Included with Part Numbers
Door Knob
Metal Dowels
#7x5/8” Flathead Screws
#10x1-3/8” Door Knob Bolt
Connecting Bolts
Cams Drawer Runners
#6x1” Flathead Screw
Item Description Part No.
ACams 000709
BConnecting Bolts 000709
CDrawer Cams 000709
DDrawer Connecting Bolts 000709
E8x30mm Wood Dowels 002649
F6x30 mm Wood Dowels 002012
GDrawer Runner 002397
H#10x1 3/8" Door Knob Bolt 003192
IWood Door Knob 003180W
J#6x1” Flathead Screw 001325
K#7x5/8” Flathead Screw 002000
LDrawer Stops 002001
MMetal Dowels 002002
Z#10x1-1/2” Flathead Screw 800Z
Wood dowel 8x30mm
Drawer Stoppers
L
Wood dowel 6x30mm
Drawer Cams
A
K
J
B
M
G
H
I
C
Drawer Connecting Bolts
D

Freearm/Up Flatbed/Down
Assembly InstructionsOLIVIA Sewing Cabinet Page 11

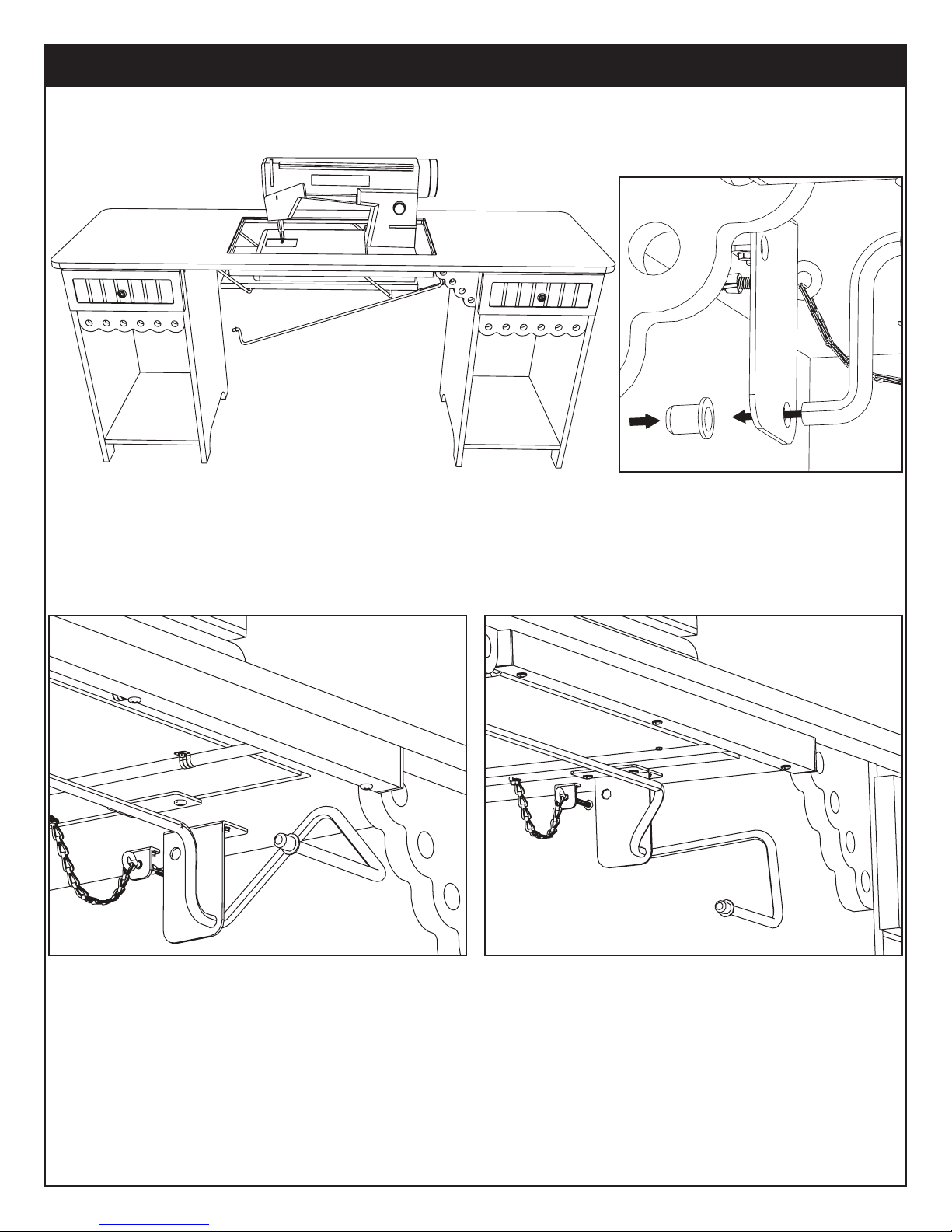

Olivia offers two positions on her sewing surface, the freearm or up position and the flatbed or down
position.
How to Use the Mechanism in your new Olivia Sewing Cabinet
1. To lower the platform down into the sewing well, press firmly down on the handle release and all the
way back. Press gently down on the wood platform as it sinks into place.
2. To raise the platform up to the freearm position pull the handle all the way forward then up, listening
for the handle to hit the wood top surface.

Assembly InstructionsOLIVIA Sewing Cabinet Page 12
3. Never move the platform with your sewing machine on the platform. Always remove the machine as
you move the platform up or down.
To adjust the height of the platform in the second position creating a flush surface:
1. Move the platform down into the sewing well as demonstrated in step 1 above.
2. Place your machine in the well. If your machine’s sewing surface (the area on your machine where
your machine’s footrests) is sitting below the edge of the table you will need to raise the platform. If
your sewing surface is sitting above the edge of the table you will need to lower the platform.
Raise Platform
Below Table Edge Above Table Edge
Lower Platform

Assembly InstructionsOLIVIA Sewing Cabinet Page 13

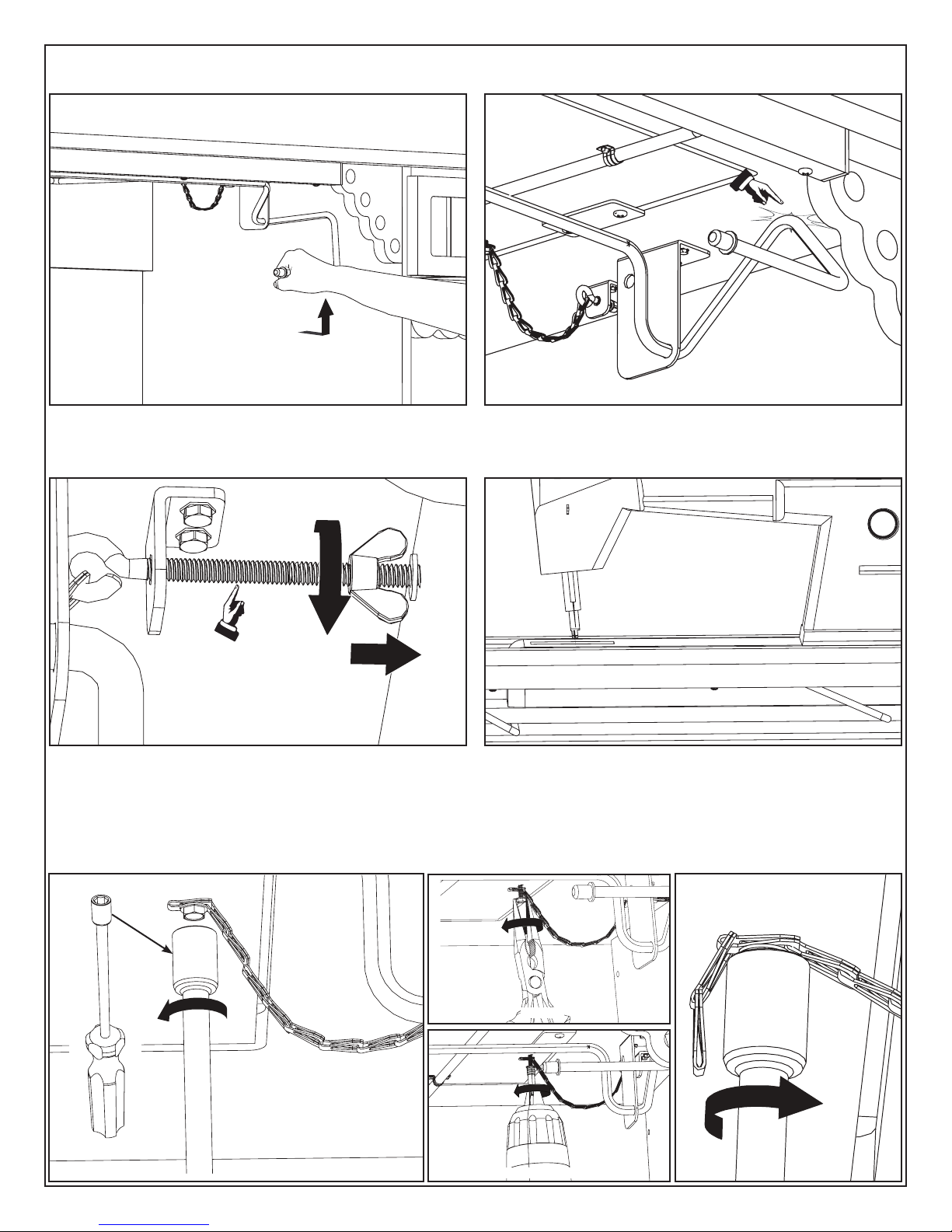

A. TO LOWER PLATFORM: Remove your machine from the platform and pull the handle forward to lock
the platform in the up position.
B. Begin to loosen the bolt on the Eye-Hook located at the end of the chain under the top surface, until
you achieve the proper height for your sewing machine. You may need to adjust this position several
times before finding the correct position for your bolt.
C. TO RAISE PLATFORM: Perform the same steps as above in A and B, but instead of loosening the bolt
tighten the bolt.
If after completing the above steps your sewing machine’s sewing surface is still not flush you may need
to shorten the chain by moving the screw or call us for additional length of chain for taller machines.
Eye-Hook
1/4” Hex Socket
Electric Screwdriver
Pliers
2 Links = 1”

Assembly InstructionsOLIVIA Sewing Cabinet Page 14
TROUBLESHOOTING
1. What should I do if my handle release falls off?
If your handle release comes loose, reattach it by clipping it back into place.
2. Why does my sewing machine slam into the down position whenever I place it on the wood
platform?
The handle release was not locked into position when it was moved from the down to up position. The
handle must hit the wood when adjusting.
3. How come my drawers are so hard to slide open and shut?
The screws holding the drawer runners in place are screwed in too tight. Loosen the screws so the
heads of the screws are flush with the runners.
4. My release handle is on the left side and hard to reach, why?
The table top section was assembled the wrong direction. Loosen the (8) Cams and remove the top and
adjust it to the right side.
Locked in Place Not Locked in Place

P.O. Box 307 Delavan, WI 53115
1-800-533-7347
[e-mail]
www.arrowcabinets.com 05-18
Enhance your sewing experience with a custom-made
insert for your Arrow or Kangaroo cabinet. Inserts are
designed to reduce the gap between the machine
and cabinet opening. This provides an ergonomic
work surface for the free arm of the sewing machine,
allowing for straighter stitches, less fatigue and an
overall better experience using your machine and
cabinet.
Hydraulic Sewing Chair
Insert
Our sewing chairs are designed to provide comfort,
support, and the fashionable look you want for your
space. Our chairs are the perfect accessory for any
craft and sewing room and are oered in several fabric
and color options. ‘’They provide necessary lumbar
support and comfort for long term sewing. Arrow
chairs also have a hidden storage compartment under
the seat, perfect or hiding small notions, patterns, and
anything else you need.
Visit your local Arrow dealer or arrowcabinets.com for
ordering information.
Accessories to Complete Your Sewing Experience
Custom Insert Arrow Sewing Chairs
