Art's Way LS900R Setup guide

592010
08/20
LS900R, LS1200R, LS1400R,
and LS1600R Rear Steer
Grader
Illustrated Parts List
Set Up and Operating
Instructions
Art's-Way Manufacturing Co., Inc.

ii

iii
TO THE OWNER
Congratulations on the purchase of your new Art's-Way Grader. You have selected a top quality
machine that is designed and built with pride to ensure that you have many years of efficient, reliable
service.
Even if you are an experienced operator of this or similar equipment, we ask that you read the
Operating Instructions before using this grader. The way you operate, adjust and maintain this unit
will have much to do with its successful performance. Any further questions you may have about this
piece of Art's-Way equipment should be directed to your local Art's-Way dealer or to Art's-Way
Manufacturing Co., Inc., Armstrong, Iowa 50514, [phone].
Specifications And Design Are Subject To Change Without Notice
Art's-Way Manufacturing Co., Inc. is continually making product improvements. In doing so, we
reserve the right to make changes or add improvements to our products without obligation for the
equipment previously sold.
Because modifications to this grader may affect the performance, function and safety of its operation, no
modifications are to be made without the written permission of Art's-Way Manufacturing Co., Inc. Any
modifications made without the written permission of Art's-Way Manufacturing Co., Inc. shall void the
warranty of this product.
In the interest of continued safe operation of this grader, pay particular attention to the safety alert
symbol throughout this manual.
Art's-Way Manufacturing Co., Inc. Statement of Liability
Art's-Way Manufacturing Co., Inc. recognizes its responsibility to provide its customers with a safe and
efficient product. Art's-Way attempts to design and manufacture its product in accordance with
accepted engineering practices in effect at the date of design. This statement should not be interpreted to
mean that our products will protect against the user’s own carelessness or failure to follow common
safety practices as set forth in this manual, nor will Art's-Way be liable for any such act. In addition,
Art's-Way assumes no liability for product altered or modified in any way by users or anyone other than
an authorized dealer.

iv
PARTS AND SERVICE
As the new purchaser of your Grader, it is very important to consider the following factors:
A. Original Quality
B. Availability of Service Parts
C. Availability of adequate Service Facilities
Art's-Way Manufacturing Co., Inc. has an excellent dealership network ready to answer any questions
you may have about your grader. Parts for your machine may be ordered through our dealers. When
placing a parts order, please have the model and serial number ready. This will allow the dealer to fill
your order as quickly as possible.
For your convenience, we have provided this space for you to record your model number, serial number
and the date of purchase, as well as your dealer’s name and address.
Owner’s Name: ______________________________________________
Owner’s Address: ___________________________________________
Purchase Date: _____________________________________________
Dealership Name: ___________________________________________
Dealership Address: _________________________________________
Dealership Phone No.: _______________________________________

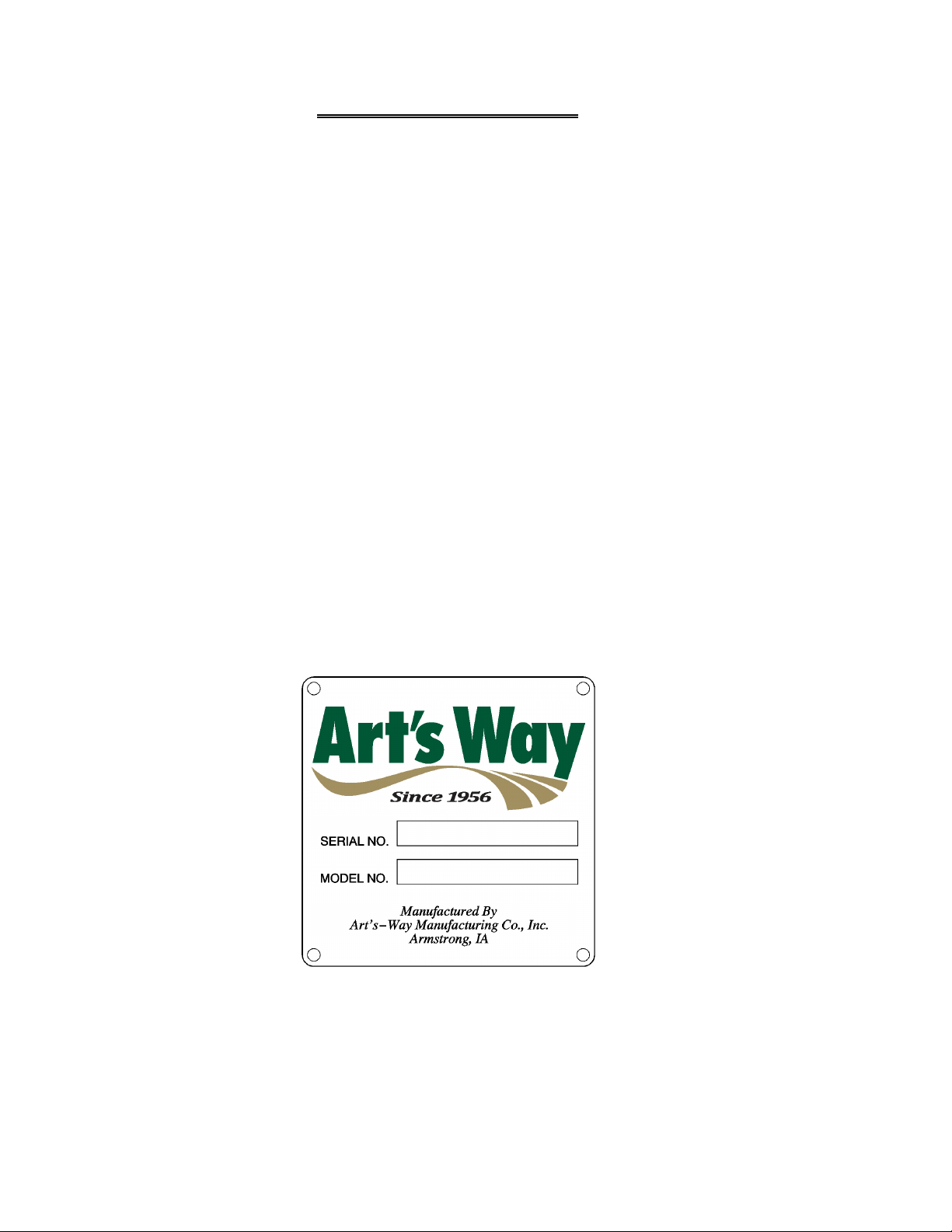

Machine Serial Number Location
(Located on the rear of the moldboard on the right-hand side)
Enter the serial number and model
number of your grader in the
spaces provided above.

v
TABLE OF CONTENTS
To The Owner ........................................................................................................................................iii
Parts and Service.................................................................................................................................. iv
Table of Contents................................................................................................................................... v
Safety First............................................................................................................................................vii
BEFORE OPERATION ............................................................................................................................................................. VIII
DURING OPERATION............................................................................................................................................................. VIII
MAINTENANCE SAFETY........................................................................................................................................................ VIII
HYDRAULIC SAFETY............................................................................................................................................................. VIII
TRANSPORTATION SAFETY......................................................................................................................................................IX
STORAGE SAFETY....................................................................................................................................................................IX
TIRE SAFETY ...........................................................................................................................................................................IX
ASSEMBLY SAFETY .................................................................................................................................................................IX
Illustrated Parts List ...............................................................................................................................2
ALPHANUMERIC INDEX ............................................................................................................................................................3
GRADER HARDWARE ASSEMBLY ............................................................................................................................................. 4
GRADER HARDWARE ASSEMBLY CONTINUED ..........................................................................................................................5
GRADER FRAME ASSEMBLY .....................................................................................................................................................6
GRADER FRAME ASSEMBLY CONTINUED..................................................................................................................................7
REAR FRAME ASSEMBLY..........................................................................................................................................................8
MOLDBOARD ASSEMBLY..........................................................................................................................................................9
BOX END SET ASSEMBLY....................................................................................................................................................... 10
WHEEL &AXLE ASSEMBLY ................................................................................................................................................... 11
WHEEL ASSEMBLIES ..............................................................................................................................................................12
BLANK PAGE ..........................................................................................................................................................................13
HYDRAULIC ASSEMBLY .........................................................................................................................................................14
HYDRAULIC ASSEMBLY CONTINUED ......................................................................................................................................15
BLADE GAUGE WHEEL ASSEMBLIES ......................................................................................................................................16
DECAL LOCATIONS................................................................................................................................................................. 17
Set Up Instructions...............................................................................................................................18
RECEIPT INSPECTION FOR COMPLETE UNIT ............................................................................................................................ 18
RECEIPT INSPECTION FOR KIT ................................................................................................................................................19
GRADER REAR STEER KIT ASSEMBLY ILLUSTRATION............................................................................................................ 20
GRADER REAR STEER KIT ASSEMBLY ILLUSTRATION CONTINUED ........................................................................................ 21
SETUP AND ASSEMBLY OF REAR STEER GRADER INSTRUCTIONS ...........................................................................................22
STE UP AND ASSEMBLY OF REAR STEER GRADER KIT INSTRUCTIONS ................................................................................... 22
PREPARATION FOR OPERATION .............................................................................................................................................. 23
Operating Instructions ..........................................................................................................................24
REAR STEER GRADER............................................................................................................................................................. 24
OPERATION SAFETY ...............................................................................................................................................................26
Maintenance ........................................................................................................................................27
MAINTENANCE &REPAIR.......................................................................................................................................................27
Hydraulics .........................................................................................................................................................................27
Lubrication ........................................................................................................................................................................27
Wheel Bearings.................................................................................................................................................................. 28
Service at End of Season....................................................................................................................................................28
Specifications.......................................................................................................................................29

vi

vii
SAFETY FIRST
Accidents can be prevented if the operator:
• Fully understands how the machine functions
• Knows the precautions and observes them
• Is careful to consider the safe action at all times.
Take note! This Safety Alert Symbol found throughout this manual is used to call your attention
to instructions involving your personal safety and the safety of others. Failure to follow these
instructions can result in injury or death.
THIS SYMBOL MEANS
ATTENTION !
BECOME ALERT !
YOUR SAFETY IS INVOLVED !
Signal Words: Note the use of the signal words DANGER, WARNING, and CAUTION on the Grader
and in this manual. The appropriate signal word for each has been selected using the following
guidelines:
DANGER: Indicates an imminently hazardous situation that, if not avoided, will result
in death or serious injury. This signal word is limited to the most extreme situations for
machine components which for functional purposes cannot be guarded.
WARNING: Indicates a potentially hazardous situation that, if not avoided, could result
in death or serious injury, and includes hazards that are exposed when guards are
removed. It may also be used to alert against unsafe practices.
CAUTION: Indicates a potentially hazardous situation that, if not avoided, may result in
minor or moderate injury. It may also be used to alert against unsafe practices.
Art's-Way Manufacturing Co., Inc. strives to make our equipment as safe as it can possibly be. The
Grader conforms to applicable safety standards at the time of manufacturing. A safety conscious
equipment operator makes an effective accident-prevention program complete.
Safety features and instructions for the Grader are detailed elsewhere in the Operating Instructions
section of the manual. It is the responsibility of the Grader owner to ensure that all operators read and
understand the Manual before they are allowed to operate the grader.

viii
CAUTION: Remember, a careful
operator is the best insurance against
an accident.
CAUTION: Read and Understand the
Operating Instructions and all the
safety decals before operating the
grader. Review all safety instructions with all
operators annually.
Before Operating
• Do not wear loose fitting clothing as it may
catch in moving parts
• Make sure to install and/or secure all guards
and shields before starting the tractor or
operating the grader.
• Check to be sure all hydraulic lines and
fittings are secure and that no lines are
crimped or worn. Tighten, adjust, and replace
as necessary. Do not attempt to make
temporary repairs to hydraulic lines.
• Install the safety chains when attaching the
grader to the tractor.
• Clear the area of bystanders, especially
children, when making adjustments, repairs,
or performing maintenance on the grader.
• Do not allow riders while transporting.
• Put all tractor and machine controls in neutral
before starting. Follow the starting
instructions according to your tractor Manual.
• Operate the grader only while seated on the
tractor seat.
• Make sure the unit is adequately supported
with safety blocks or stands when changing
tires or working on it.
During Operation
• Keep hands, feet, hair and clothing away from
moving parts.
• Keep all shields and guards in place and in
good repair.
• Keep all children and bystanders away from
the Grader when in operation.
• Do not allow riders while the grader is in
operation.
• Do not attempt to lubricate, repair or adjust
the grader while the tractor is running.
• Before servicing, adjusting, repairing or
unplugging the grader, stop the tractor engine,
place all controls in neutral, set the parking
brake, remove the ignition key, and wait for
all moving parts to stop.
• Keep all hydraulic lines, fittings, and couplers
tight and free of leaks. (See the Hydraulic
Safety section below.)
Maintenance Safety
• Follow all operating, maintenance and safety
instructions found in the Manual.
• Before servicing, adjusting, repairing or
lubricating the grader, stop the tractor engine,
place all controls in neutral, set the parking
brake, and remove the ignition key.
• Use only the tools, jacks and hoists that are of
sufficient capacity for the job.
• Use support blocks or safety stands when
changing tires or working under the machine.
• Follow the good shop practices of keeping the
service area clean and dry and use adequate
light for the job at hand.
Hydraulic Safety
• Before applying pressure from the hydraulic
system, make sure all lines, fittings, and
couplers are tight and in good condition.
• Relieve pressure from the hydraulic circuit
before servicing or disconnecting from the
tractor.
• Make sure all shields/guards are in place and
properly secured when maintenance work is
complete.
• Replace any worn, cut, abraded, flattened or
crimped hoses.
• Do not make any temporary repairs to the
hydraulic lines, fittings or hoses by using
tape, clamps, or cement. The hydraulic

ix
system operates under extremely high
pressure and temporary repairs may fail
suddenly and create a hazardous situation.
• Wear proper hand and eye protection when
searching for a high-pressure hydraulic leak.
Use a piece of wood or cardboard as a
backstop instead of hands to identify and
isolate a leak. If injured by a concentrated
high-pressure stream of hydraulic fluid, seek
medical attention immediately. Serious
infection or toxic reaction can develop if
hydraulic fluid penetrates the surface of the
skin.
Transportation Safety
• Be sure to comply with all local regulations
regarding transporting equipment on public
roads and highways.
• Make sure the Slow Moving Vehicle (SMV)
emblem and all reflectors required by local
highway and transportation authorities are in
place, clean and clearly visible to all
oncoming or following traffic.
• Do not allow riders while transporting.
• Make sure the Grader is securely attached to
the tractor and install a safety chain to the
grader. Install a retainer through the drawbar
pin and attach the safety clip. Install cylinder
lock assembly to raise/lower hydraulic
cylinder and secure with clip.
• Do not fail to latch the tractor brake pedals
together.
• Do not exceed 20 MPH (32 km/h) when
transporting the grader. Always reduce speed
on rough roads and surfaces or when going
down inclines.
• Drive slowly when turning and always use
turn signals on the tractor to indicate your
turning intentions to other traffic.
• The weight of the trailed grader should
NEVER exceed the capacity of the towing
vehicle.
• Check clearances carefully whenever the
grader is towed.
Storage Safety
• Store the grader in an area away from human
activity.
• Do not permit children to play on or around
the stored machine.
• Park the Grader on firm level ground and
block the tires. Support the grader with the
jack provided and wooden blocks as needed.
Tire Safety
• Have a qualified tire dealer or repair service
perform tire repairs.
• Do not attempt to mount a tire unless you
have the proper equipment and experience to
do the job.
• Follow proper procedures when mounting a
tire on a rim to prevent an explosion which
could result in serious injury.
• Do not substitute tires of lesser road rating
and capacity for the original equipment tires.
CAUTION: Failure to follow proper
procedures when mounting a tire on a
wheel or rim can produce an
explosion, which may result in serious
injury or death. Do not attempt to mount a
tire unless you have the proper equipment and
experience to perform the job. Have it done
by your dealer or qualified tire repair service.
Assembly Safety
• Use adequate manpower to perform assembly
procedures safely.
• Assemble the grader in an area with sufficient
space to maneuver the largest components
and allow easy access to all sides of the
machine.
• Use only forklifts, lift cranes, jacks and tools
with sufficient capacity for the loads.
• Do Not allow spectators in the working area.
Remember:
The Best Operator is a Safe Operator

2
Illustrated Parts List
•The ITEM figure corresponds to the number shown in the illustration.
•Numbers listed in the PART NO. column are the numbers under which the parts are manufactured and by
which the parts are identified by the manufacturer.
•Requirement shown in the QTY column is per Grader or assembly. Items that have no specified quantity are
designated by the letters “AR” (as required). “RF” listed in the Units Per Assy column indicates that the item is
listed as a reference and the requirement is listed in another figure of the IPC.
•The DESCRIPTION column is the nomenclature of the part as identified by the manufacturer.

3
Alphanumeric Index
003350 .................................. 12, 23
003950 ........................................ 14
005200 ........................................ 17
005360 ........................................ 17
005370 ........................................ 17
006690 ............................ 12, 26, 27
014770 ........................................ 17
020440 ............................ 15, 16, 23
021190 ............................ 12, 26, 27
023620 ........................................ 14
023630 ........................................ 14
035210 ........................................ 23
036800 ........................................ 15
037540 ................ 14, 15, 23, 26, 27
037790 ............................ 12, 26, 27
042440 ........................................ 18
056720 ........................................ 23
073630 ............................ 12, 26, 27
127890 .................................. 14, 22
129790 ........................................ 18
129800 ........................................ 18
129810 ........................................ 18
129830 ........................................ 18
143710 ........................................ 17
149670 ............................ 22, 26, 27
160230 ........................................ 14
163350 ........................................ 24
164420 ........................................ 19
1765302 ...................................... 12
1770608 ...................................... 23
204510 ........................................ 24
345690 ........................................ 25
346310 ........................................ 24
355350P................................ 14, 22
355500 ........................................ 24
384840 .................................. 14, 22
396120 ........................................ 12
431260 ........................................ 24
438880 ........................................ 15
449190 ........................................ 14
455160 ........................................ 14
476450 ........................................ 24
476460 ........................................ 24
493470 ........................................ 24
493480 ........................................ 24
500550 ........................................ 16
500670................................. 16, 25
500730 ........................................ 17
500740 ........................................ 17
500770 ............................ 18, 19, 23
500780 ........................................ 24
500790 ........................................ 24
500850................................. 16, 25
502550 ........................................ 23
510100.........................................14
511000 .................................16, 25
511010.........................................16
511020.........................................16
511030.........................................24
581370...................................14, 22
582470.........................................24
583360.........................................16
583370.........................................16
583780 .................................16, 25
583790.........................................24
592000.........................................26
592010.........................................26
592020.........................................26
592130.............................14, 26, 27
592140.........................................12
592150.............................15, 26, 27
592160...................................14, 22
592200.........................................15
592240.......................12, 25, 26, 27
592330.......................12, 25, 26, 27
592350.......................12, 25, 26, 27
592400.......................12, 13, 14, 25
592410.............................12, 15, 25
592450...................................11, 12
592460...........12, 18, 19, 25, 26, 27
592470.........................................19
990620.........................................23
990720...................................12, 14
990840.......................14, 15, 26, 27
E126201 ......................................12
E224133 ................................12, 25
E224138 ......................................24
G146711......................................15
G200147......................................18
G201309......................................24
G202850......................................24
I124589 .................................16, 23
I1272770C2.................................22
I131018 .......................................18
I19508R1...............................12, 14
I19724R1.....................................15
I1980927C1.................................19
J08H4722 ....................................12
J14H805 ................................12, 17
J19H2969 ....................................12
J19H3170 ..............................12, 14
J34H334 ................................12, 14
JJD7798...........................14, 15, 16
JN135098 ....................................15
LS2000017 ................................23
LS2000018 ................................23
LS2000019 ..........................17, 25
LS2000029..................................25
LS4000001............................ 12, 25
LS4000027............................ 14, 22
LS4000028............................ 14, 22
LS4000089..................................23
LS4000097............................ 14, 22
LS4000125..................................16
LS4000126..................................16
LS4000228............................ 14, 22
LS5000027..................................22
LS5000033..................................22
LS5000063..................................22
LS5000220..................................22
LS5000221..................................22
LS5000459..................................22
LS5000460..................................22
LS5000461..................................22
LS5000462..................................22
LS9300057..................................12
LS9400003............................ 12, 25
LSGRA1445 ...............................18
LSGRA1593 ...............................23
LSGRA1594 ...............................23
LSGRA1595 ...............................18
LSGRA1600 ......................... 12, 14
LSGRA1784 ...............................17
LSGRA1813 ......................... 14, 22
LSGRA1885 ...............................15
LSGRA1941 ...............................17
LSGRA1970 ...............................15
LSGRA2053 ......................... 12, 25
LSGRA2054 ...............................14
LSGRA2055 ...............................15
LSGRA2056 ...............................14
LSGRA2057 ...............................14
LSGRA2058 ...............................16
LSGRA2060 ...............................14
LSGRA2061 ............. 14, 15, 26, 27
LSGRA2063 ...............................16
MP17.00564 ................... 22, 26, 27
MP17.00565 ................... 22, 26, 27
MP17.00566 ................... 22, 26, 27
MP17.00567 ...............................22
R18660........................................12
R66338........................................23
U50300372 .................................22
U51100008 .................................18
U51200006 .................................18
U51200010 .................................18
U51900004 .................................19
V063761 .....................................18
V180220 ......................... 14, 15, 16

4

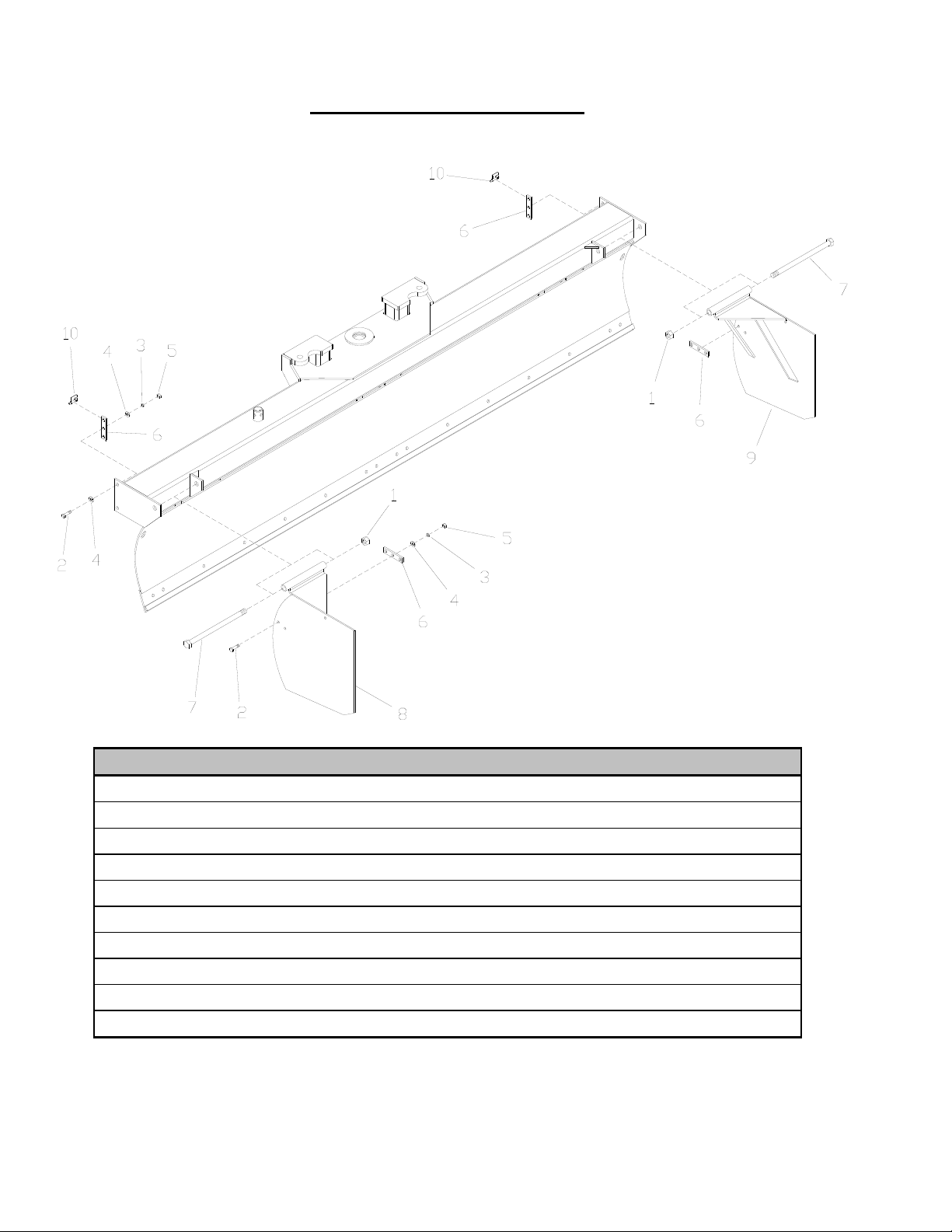

GRADER HARDWARE ASSEMBLY
Hardware Kit 592450

5
GRADER HARDWARE ASSEMBLY
Hardware Kit 592450
ITEM
PART NO.
QTY.
DESCRIPTION
1
J19H2969
1
Bolt, HHCS 5/8-11 x 3-1/2 Gr5 Zn
2
J19H3170
1
Bolt, HHCS 5/8-11 x 4-1/2 Gr5 Zn
3
I19508R1
2
Nut, Lock 5/8-11 Gr5 Zn
4
R18660
1
Pin, Snapper 5/16 x 2-3/4
5
J34H334
3
Pin, Roll 5/16 x 2
6
990720
3
Washer, Flat 1.0 Std
7
LSGRA1600
2
Pin Wldt, Cylinder
8
J08H4722
2
Bolt, HHCS 1-8 x 6-1/2 Gr8
9
J14H805
2
Nut, Hex 1-8
10
003350
2
Washer, Lock 1.0
11
396120
2
Washer, Machine 2-1/32 x 3 x .135
12
E126201
2
Bushing, Mach. 2-1/2 x 3-7/8
13
592140
1
Shaft, 2-1/2 x 10-3/4
14
1765302
1
Chain, Safety 5/16 x 5’
15
006690
4
Bolt, HHCS 3/8-16 x 1-1/4 Gr5 Zn
16
037790
4
Bolt, HHCS 3/8-16 x 2 Gr5 Zn
17
073630
8
Nut, Lock 3/8-16 Nylon Hex
18
021190
16
Washer, Flat 3/8 Std
19
LSGRA2053
1
Tongue Wldt, Bolt-On
20
LS4000001
1
Jack, 5000 lb
21
LS9400003
1
Pin, Pivot Main, 2 x 36
22
LS9300057
1
Stop, Cylinder 12” Transport
23
592240
2
Indicator Wldt, Steering
24
592330
1
Plate, Level Reference
25
592350
1
Plate, Level Indicator
26
592400
1
Basic Unit, LS Rear
27
592410
1
Frame Assy, Rear Grader Rear Steer
28
592460
2
Wheel & Tire Assy, 11L-15 3-Rib Bias Steer
29
E224133
1
Decal Assy, SMV

6

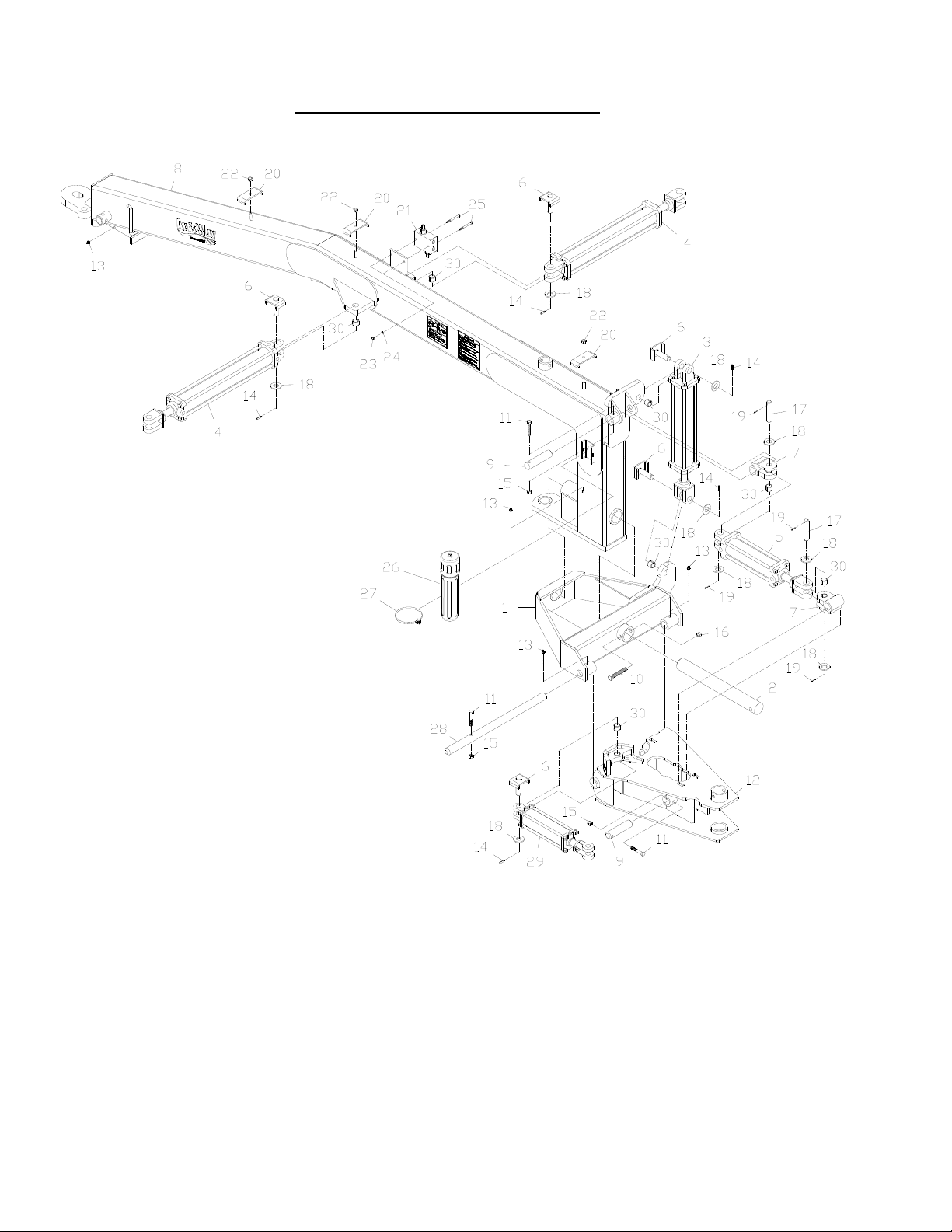

GRADER FRAME ASSEMBLY
Basic Unit 592400

7
GRADER FRAME ASSEMBLY
Basic Unit 592400
ITEM
PART NO.
QTY.
DESCRIPTION
1
LSGRA2056
1
Frame Wldt, Center Pivot
2
LSGRA2057
1
Shaft, 2-1/2 x 21-3/4
3
LS4000028
1
Cylinder, Hydraulic Tilt, 4 x 8
581370
-
Seal Kit, 4” Cylinder (4C4507)
4
LS4000228
2
Cylinder, Hydraulic Pivot, 4 x 24
581370
-
Seal Kit, 4” Cylinder (4C4507)
5
LS4000027
1
Cylinder, Hydraulic Lift, 3 x 12
384840
-
Seal Kit, 3” Cylinder (1C4630)
6
LSGRA1600
4
Pin Wldt, Cylinder
7
LSGRA2060
2
Pivot Wldt, Cylinder
8
LSGRA2054
1
Frame Wldt, Tongue
9
LSGRA2061
1
Shaft, 1-1/2 x 6-1/4
10
J19H3170
1
Bolt, HHCS 5/8-11 x 4-1/2 Gr.5
11
990840
1
Bolt, HHCS 1/2-13 x 3 Gr.5
12
V180220
4
Bushing, Tension
13
JJD7798
3
Fitting, Zerk 1/8-27 Taper
14
J34H334
5
Pin, Roll 5/16 x 2
15
037540
1
Nut, Lock 1/2-13 Nylon
16
I19508R1
1
Nut, Lock 5/8-11 Nylon
17
510100
2
Pin, 1.0 x 4-1/4
18
990720
8
Washer, Flat 1.0
19
003950
2
Pin, Cotter 3/16 x 2
20
LSGRA1813
3
Clamp, Hydraulic line
21
LS4000097
1
Valve, Hydraulic Cushion
22
127890
3
Nut, Lock ½-13 Top
23
023630
2
Nut, Hex 5/16-18
24
023620
2
Washer, Lock 5/16
25
160230
2
Bolt, HHCS 5/16-18 x 3
26 449190 1 Tube, Manual Holder
27
455160
1
Clamp, Hose 3-3/4
28
592130
1
Pin, Pivot Rear
29
592160
1
Cylinder, Hydraulic Steer 3 x 8
355350P
-
Seal Kit, 3” Cylinder (1C4629)
30
V180220
7
Bushing, Steel 1 x 1-1/4 x 1

8

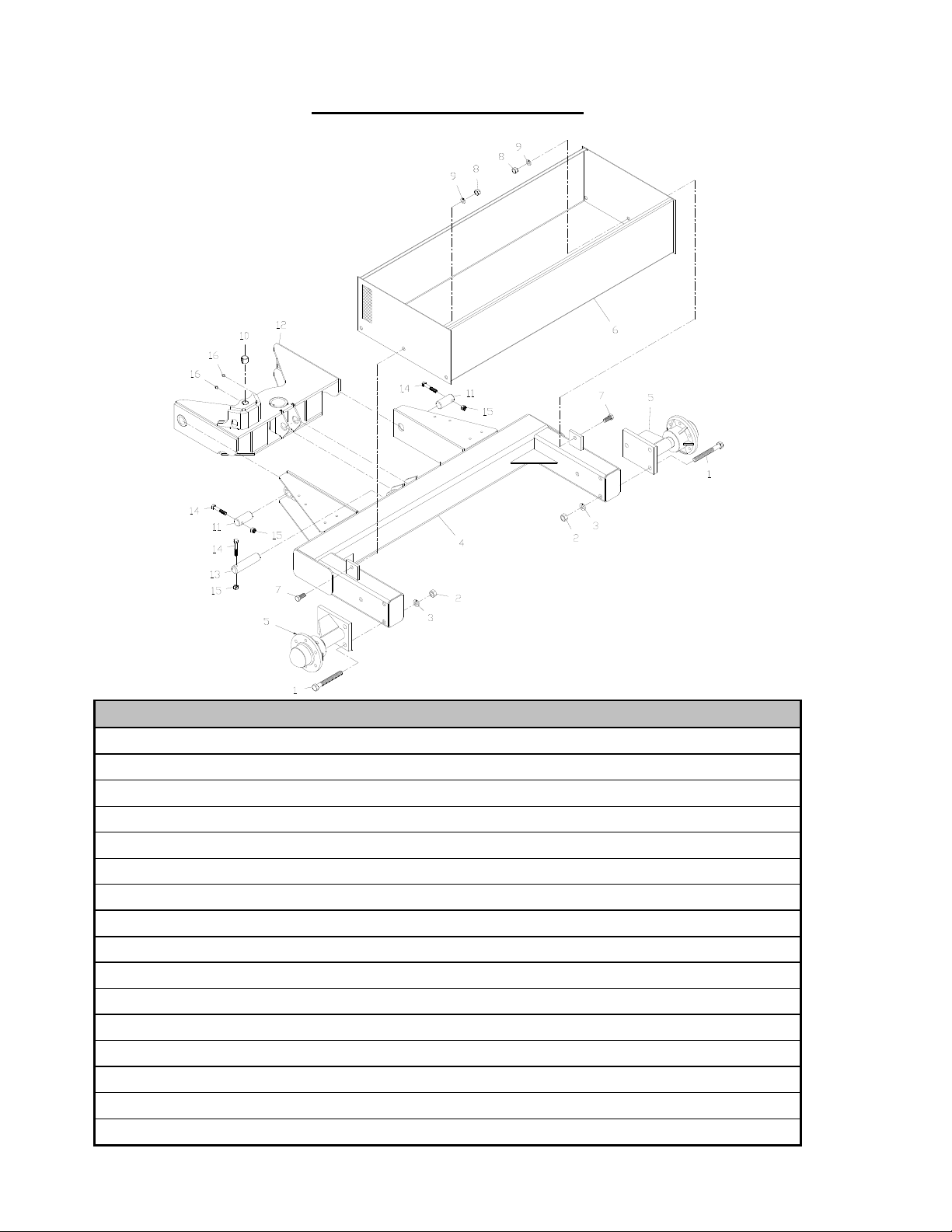

REAR FRAME ASSEMBLY
Sandbox and Running Gear 592410
ITEM
PART NO.
QTY.
DESCRIPTION
1
G146711
6
Bolt, HHCS 3/4-10 x 6 Gr8
2
JN135098
6
Nut, Hex 3/4-10 Gr8
3
036800
6
Washer, Lock 3/4
4
LSGRA2055
1
Frame Wldt, Rear Grader
5
LSGRA1970
2
Hub & Axle Assembly, 6-Bolt
6
LSGRA1885
1
Box Weldment, Sand
7
438880
2
Bolt, HHCS 5/8-11 x 1-1/2 Gr.8
8
I19724R1
2
Nut, Hex 5/8-11 Gr.8
9
020440
2
Washer, Lock 5/8
10
V180220
1
Bushing, Steel 1 x 1-1/4 x 1
11
592150
2
Pin, Rear 1-1/2 Dia x 3-1/2
12
592200
1
Rear Wldt, Grader Rear Steer
13
LSGRA2061
1
Shaft, 1-1/2 Dia 6-1/4
14
990840
3
Bolt, HHCS 1/2-13 x 3
15
037540
3
Nut, Lock 1/2-13 Hex Nylock
16
JJD7798
2
Fitting, Lubrication 1/8-27 NPT

9
MOLDBOARD ASSEMBLY
9’ - 511000, 12’ - 500670, 14’ – 500850, 16’ - 583780
ITEM
PART NO.
LS900
LS1200
LS1400
LS1600
DESCRIPTION
1
LS4000125
-
2
-
-
Edge, Cutting 6’
LS4000126
-
-
2
-
Edge, Cutting 7’ (shown)
583360
-
-
-
2
Edge, Cutting 8’
511020
1
-
-
-
Edge, Cutting 9’
2
500550
11
16
18
20
Bolt, Plow 5/8-11 x 2 Gr.8
3
020440
11
16
18
20
Washer, Lock 5/8
4
I124589
11
16
18
20
Nut, Hex 5/8-11
5
511010
1
-
-
-
Moldboard Weldment, 9’
LSGRA2063
-
1
-
-
Moldboard Weldment, 12’
LSGRA2058
-
-
1
-
Moldboard Weldment, 14’ (shown)
583370
-
-
-
1
Moldboard Weldment, 16’
6
JJD7798
2
2
2
Fitting, Zerk 1/8-27 Taper
7
V180220
2
2
2
Bushing, Tension

10
BOX END SET ASSEMBLY
Right and Left Sides LS2000019
ITEM
PART NO.
QTY
DESCRIPTION
1
J14H805
2
Nut, Hex 1-8 Gr5
2
014770
6
Bolt, HHCS ½-13 x 1-½ Gr5
3
005370
6
Washer, Lock ½
4
005200
8
Washer, Flat ½
5
005360
6
Nut, Hex ½-13 Gr5
6
LSGRA1941
4
Bracket, Box End
7
LSGRA1784
2
Pin Wldt, Box End
8
500730
1
Plate Wldt, RH Box End
9
500740
1
Plate Wldt, LH Box End
10
143710
2
Pin, Snapper 3/8 x 2-1/2

11
WHEEL & AXLE ASSEMBLY
ITEM PART NO. Grader Rear
Steer QTY
Gage Wheel
QTY
DESCRIPTION
1
LSGRA1445
1
-
Axle Weldment, Grader
2
129810
1
1
Seal, 2.00 x 3.62 x .250
3
U51100008
1
1
Hub, w/ Cups 6 Bolt 10 Ton
4
129800
1
1
Cone, Bearing 1.38 ID
5
129790
1
1
Cone, Bearing 1.80 ID
6
I131018
1
1
Washer, Flat 15/16 x 1-¾ x 7/64
7
129830
1
1
Nut, Slotted 7/8-14 Gr5 ZN Hex
8
V063761
1
1
Pin, Cotter ¼ x 1-1/2 ZN
9
G200147
1
1
Cap, Hub
10
042440
6
6
Bolt, Wheel 9/16-18 x 1-1/8
11
U51200010
1
1
Cup, Bearing Inner
12
U51200006
1
1
Cup, Bearing Outer
13
592460
1
-
Wheel & Tire Assembly Bias Steer
14
500770
-
1
Wheel & Tire Assembly Implement
15
LSGRA1595
-
1
Spindle, Gage Wheel

12
WHEEL ASSEMBLIES
Wheel & Tire Assembly 11L-15 3-Rib Bias Steer-592460
ITEM
PART NO.
QTY.
DESCRIPTION
1
592470
1
Tire, 11L-15 8-Ply 3-Rib Bias Steer
2
U51900004
1
Rim, 10 x 15 6 Bolt
3
164420
1
Stem, Valve Core & Cap
Wheel & Tire Assembly 11L-15 Implement-500770
ITEM
PART NO.
QTY.
DESCRIPTION
1
I1980927C1
1
Tire, 11L-15 8-Ply Implement
2
U51900004
1
Rim, 10 x 15 6 Bolt
3
164420
1
Stem, Valve Core & Cap
