Art-Tech P-51D Gunfighter User manual

Instruction manual
www.art-tech.com

Menu
Statement: Specifications may change without notice, please refer to the real one for configuration. 2010.11
声明：产品以实物为准，若有更改，恕不另行通知. 2010.11
★中文部分
★Product introduction
★Main specification
★Safety precautions!
★Charge Mode and Warning
★Safety Instruction of Li-Po Battery
★Assembling steps for P-51D
★Transmitter Features
★Binding process for DSSS 2.4 GHZ R/C system
★
★
★Trouble shooting
★Spare parts list
Operating Manual for the radio control system
Center of Gravity Check
03
04
03
05
06
12
07
13
14
15
15
16
17
www.motionrc.com

3
Product introduction
Wingspan: 965mm (38 inch)
Length: 790mm (31 inch)
Flying Weight: 700g (24.7 oz)
Motor: Brushless Outrunner C4038-15
Speed Controller: 20A Brushless ESC
Servo: 4X 9g high speed micro servos
Battery: 11.1V 1300mah Li-Polymer
Control system: 4 CH EFLY-4BII 2.4GHz
Radio Control Range: 400m
Thank you for purchasing “P-51D Gunfighter” Radio Controlled Model Airplane. This
model uses EPO style foam, which makes the model incredibly strong and durable even in a
crash. It is easy to control, with excellent flight performance in high-speed, superior flight
stability. This model adopts 3 channel control mode, with simple structure, easy ,
with high scale, vivid appearance, and luxuriant paintings. This is the best model for
beginner, intermediate and experienced hobby enthusiast. We hope it will bring you more
fun while flying.
maintainance
1. This model is not a toy , and it is for intermediate and experienced hobby
enthusiast.
2. Please pay much attention to the warning information in this manual.
3. It is highly recommended to fly this model under guidance from an experienced model
pilot if you are a novice/beginner.
4.A crash can happen if the model is not flown according to these instructions and if the
pilot is not experienced enough.
5.To gain the most from this model you need to improve step by step from basic training
up to perfect flight before moving onto aerobatics.
beginner,
Main specification
Safety warning
www.motionrc.com

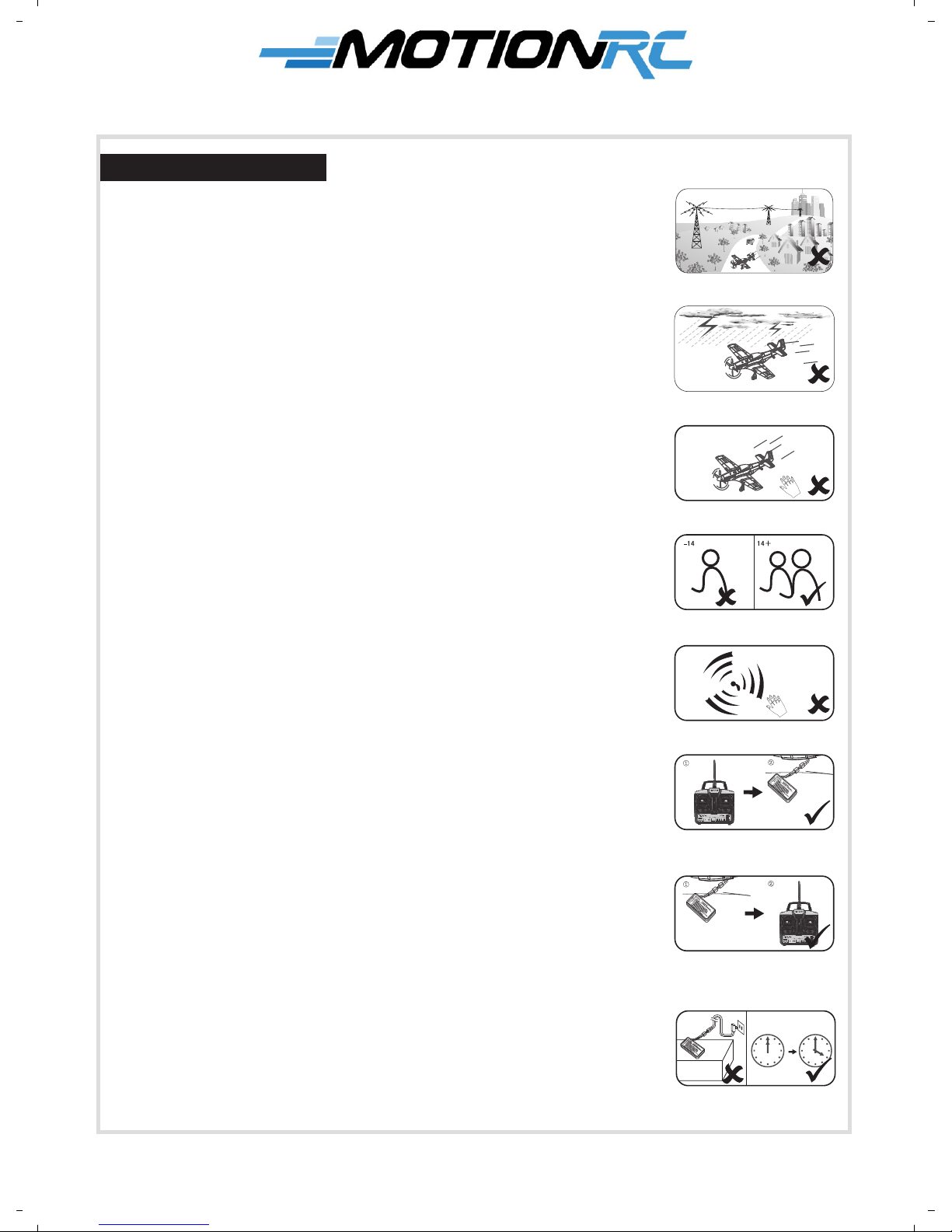

Safety precautions!
4
6
7
8
Flammables
9
4\5
3
1
2
1) The model is not suitable to fly in the places listed below, in a crowd of
people, around telegraph or electrical poles, around cars, near to traffic
or next to a full size air field/airport.
2) Do not fly in bad weather or in high winds, the lower the wind the better
the model will fly.
3) Never attempt to catch the aircraft in your hands as this could lead to
serious injury.
4) This model is recommended for people over the age of 12 and with
experience, if under this age or a novice then we recommend you get
tuition from an experienced model pilot.
5) Always unplug the flight battery when you finish flying the aircraft.
6) Please always keep clear of the propeller when you connect the flight
battery, the transmitter must be switch on all the time the flight battery is
connected.
7) Please remember to turn on the transmitter first before flying and keep
away from the propeller when the flight battery is connected.
8) Please disconnect the flight battery before switching of the transmitter
when you have finished your flight. Not following this strict procedure can
result in an out of controlled model.
9) Do not charge in or on a wet surface. Please pay attention to the
charger while on charge, the maximum time that the battery should be left
on charge is four hours. It is normal for the battery to get warm during use
but not HOT.
10) Never charge on a flammable base such as carpet etc, we recommend
that you charge on a concrete floor or a metal tea tray. When charged
disconnect the battery from the charger and the charger from the wall
socket. Always supervise the battery when charging, do not leave it on its
own to charge just in case of a problem.
www.motionrc.com

5

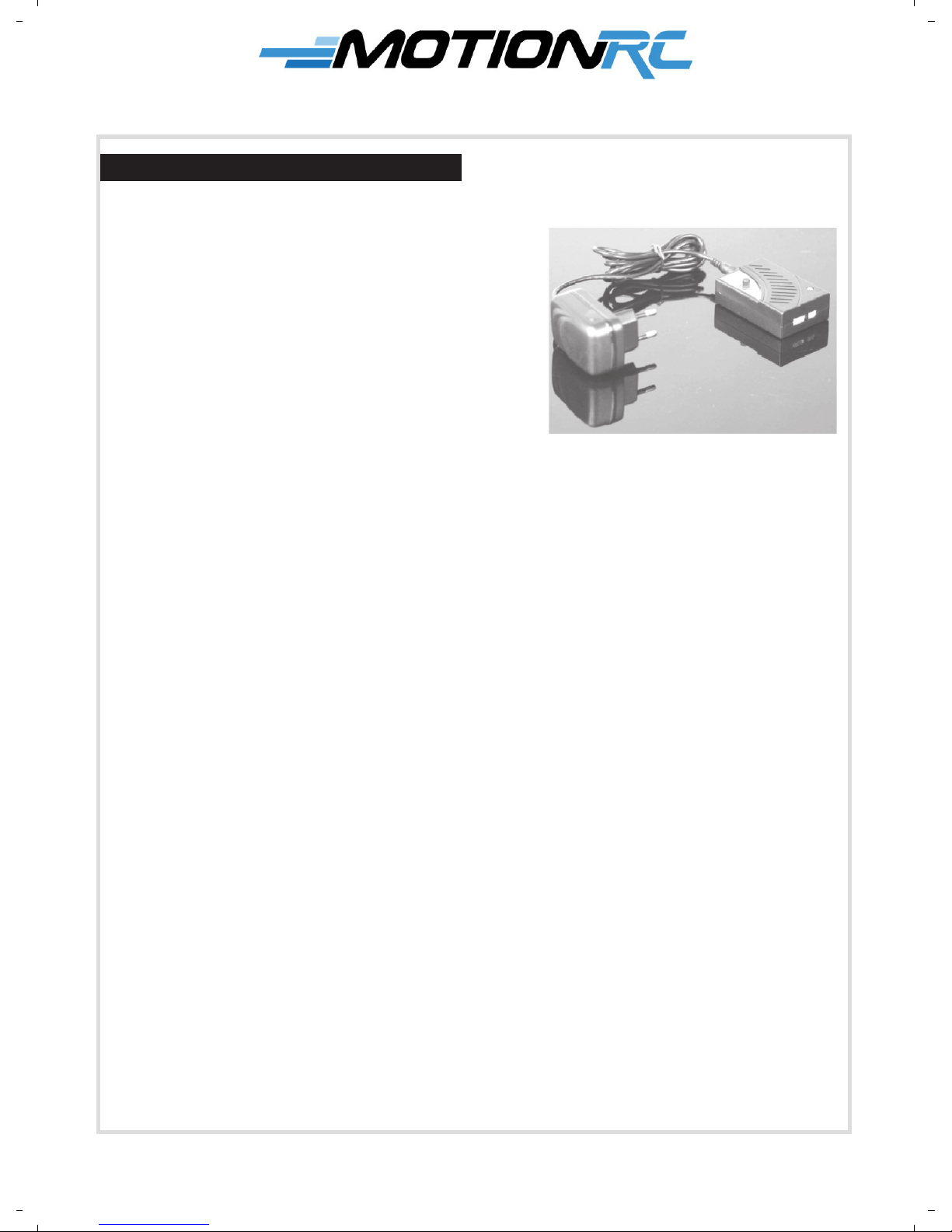

Charge Mode and Warning
Li-Po battery(balance changer)
ATI-0910 Li-poly battery balance charger using instruction
Specifications:
Input voltage: DC 10V~15V
Output voltage: DC 7.4V&11.1V
Charge current: 0.3A~1.2A
Indicator state:
LED light near to the battery plug turns red:
the charger have connected the power supply.
LED light near to the DC port turns red: under charging
LED light near to the DC port turns green: full charged
LED light near to the DC port extinuishs: no charging
Separated battery detection: The voltage of any battery reaches
4.2V, the charge of it will cease automatically.
Using method:
1. Connect the mans adaptor to the charger as per the above image.
2. Connect the adaptor to the 240v supply, the LED should turn red indicating that it is ready to
charge.
3. Connect the battery to the charger per its interface mark. The LED becomes red, which means
the battery is on the way.
4. The LED turns green when fully charged ( if the light is not green after four hours remove from
charge and use any way ) and then the battery is ready to be used.
Notice
1. Do not insert any conductive into the cooling hole when power is on, or damage will be caused
to the charger.
2. While charging is in process, please do not place it near flammable materials.
3. Expect Li poly battery, this charger is not allowed for other kinds of battery.
4. While charging, please keep it out of the reach of Children.
5. When this charger is in use, please do not go away and leave it unwatched, if any abnormality
occurs (such as the power indicator is off, the temperature of the battery rise rapidly, etc.) stop
charging immediately.
6. Please do not use power with output voltage higher than 18V.
7. Please do not disassemble the charger or its accessories.
8. When the battery is not cool down, please do not urge to charge it.
www.motionrc.com

Safety Instruction of Li-Po Battery
6
01.Do not disassemble or reconstruct the battery.
02.Do not short-circuit the battery.
03.Do not use or leave the battery nearby the fire, stove or heated place.
04.Do not immerse the battery in water or sea water, do not get it wet.
05.Do not charge the battery nearby the fire or under the blazing sunlight.
06.Do not drive a nail into the battery, strike it by hammer or tread on it.
07.Do not impact or throw the battery.
08.Do not use the battery with conspicuous damage or deformation.
09.Do not make the direct soldering on the battery.
10.Do not reverse charge or over discharge the battery.
11.Do not reverse charge or reverse connect.
12.Do not connect the battery to the ordinary charger socket or car cigarette jack.
13.Do not use the battery for unspecified equipment.
15.Do not mix the Li-Poly battery with other un-chargeable battery .
16.Do not continue charging the battery over the prescribed time.
17.Do not put the battery into the microwave oven or high-pressure container.
18.Do not use the abnormal battery.
19.Do not use or keep the battery under the sunlight.
20.Do not use the battery nearby the place where generates static electricity (over 64V).
21.Do not charge the battery when the environmental temperature is under 0℃ or over 45℃.
22.If you find the battery leaking, smelling or abnormal, stop using it .
23.Keep the battery away from the children.
24.Use the specified charger and observe charging requirement (under 1.5A).
25.When using by minors, parents should show them the correct way to charge.
14.Do not touch the leaking battery directly, please wash your skin or clothes with water
if they are bedewed by liquid leaking from the battery.
1. Use the original charger. Never charge the battery at more than 1.5 A.
2. Never discharge the battery at more than 5C. Do not discharge too long as this will
damage the battery.
3. For full flight time to be achieved please cycle the cells through three flights.
4. Never charge the battery on a carpet floor, this can cause a fire!
5. In order to maintain the voltage and ensure the life time of the battery, please
recharge it if it has not been used for more than three months.
Caution
www.motionrc.com

1、Install the landing gear to the main wing's groove in right direction.
2、Connect the servo wire from main wing to the first channel of receiver.
3、Fix the main wing set to the fuselage properly.
Assembling steps for P-51
7
www.motionrc.com

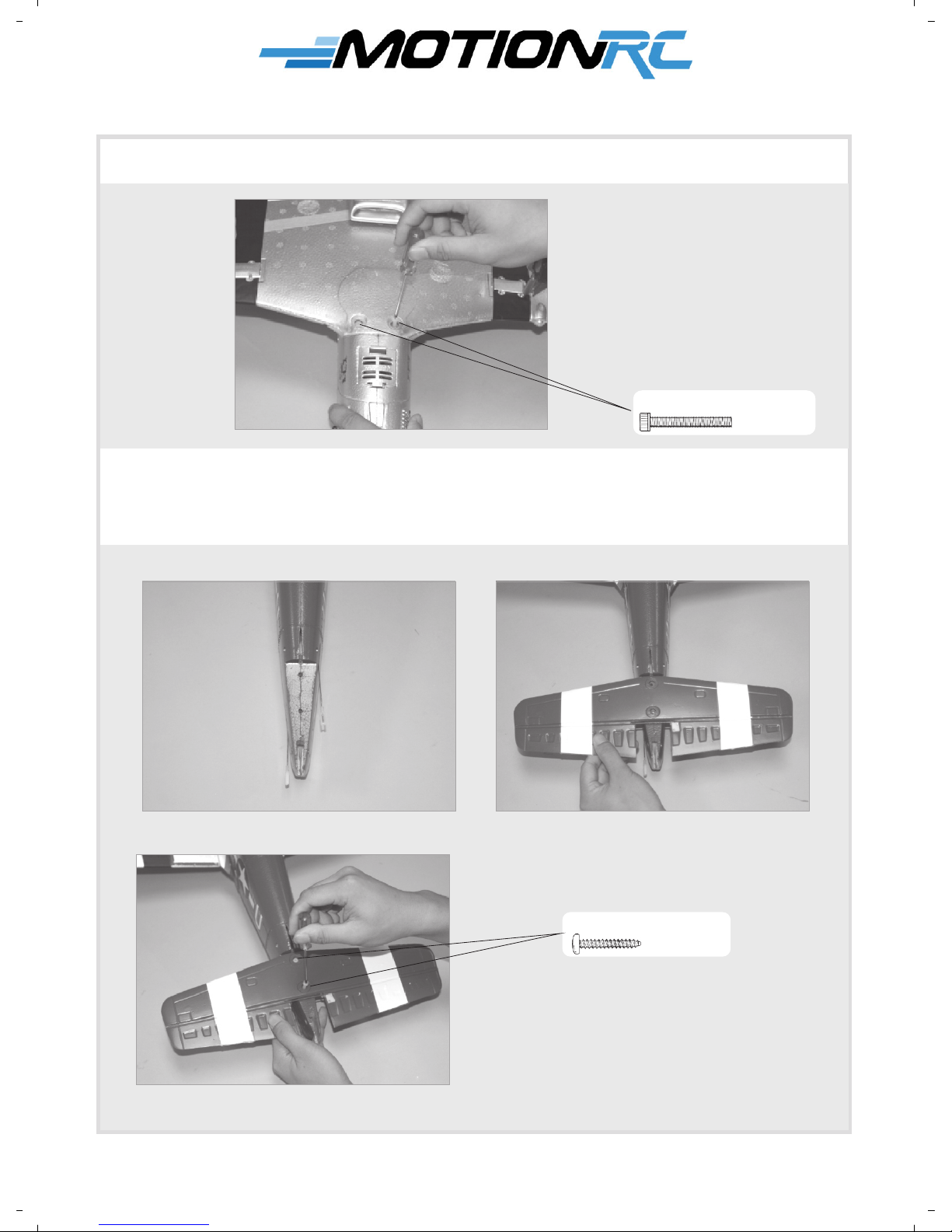

4、Penetrate the screw from main wing into fuselage and fix it.
5、Place the horizontal into place and attach with screws.stabil i zer
￠4X30MM
………… 2
￠2X12MM
………… 2
8
www.motionrc.com

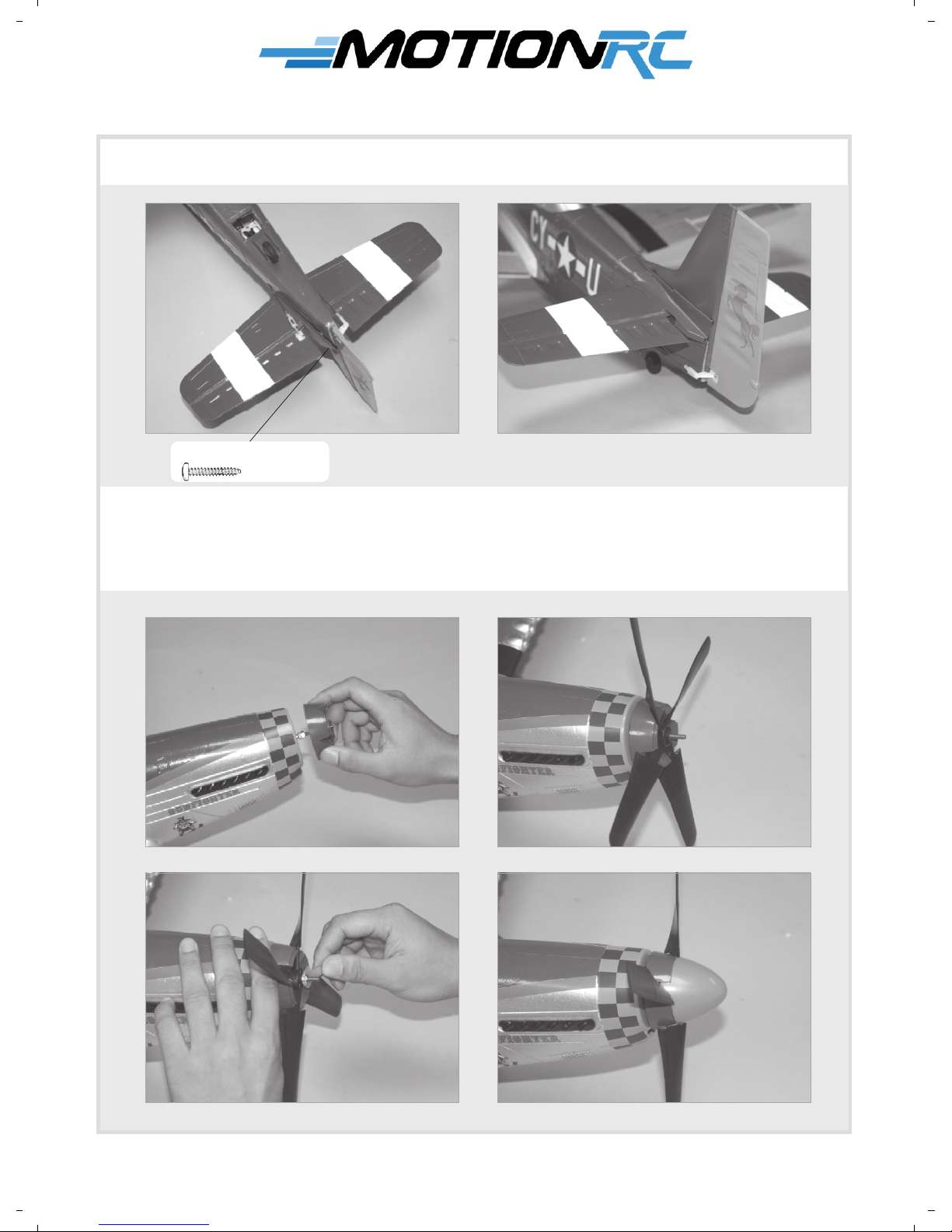

6、Install the vertical stab in place.
7、Install and attach the tail fairings with screws.
￠1.7X6MM ￠1.7X33MM
………… 2 ………… 1
9
www.motionrc.com

8、connect the clevis to the rudder and elevator.
9、Place spinner hub on shaft then the propeller and then the nut. Then snap spinner in
place. Make sure the transmitter batteries are charged, the transmitter is off and the
throttle is at idle. Now turn on transmitter.
￠1.7X16MM
………… 1
10
www.motionrc.com

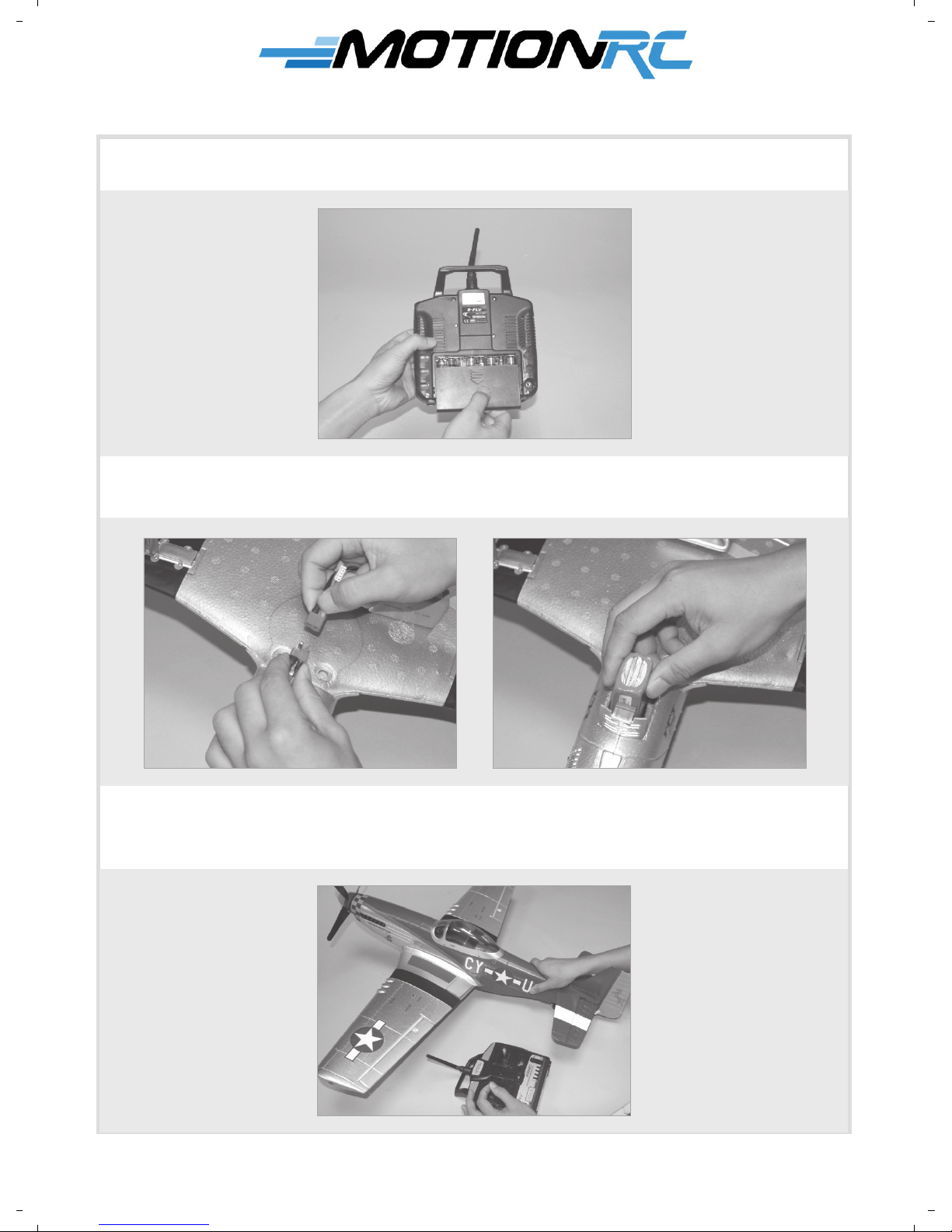

10、Plug well charged battery to the transmitter and close the battery bay.
11、Please put the socket into the fuselage body,then cover the battery.
12、Before using, please test function of all joysticks. While testing motor, make sure the
propeller is out of reach of any person or item and then fix the plane.
11
www.motionrc.com

4 channel full-scale 2.4GHZ RC device. It adopts the technology of direct sequence spread
spectrum (DSSS) t o have good anti-interference, stability and reliability.
It can be used for all ordinary aeroplanes, gliders models, and so on.
It has simulator signal interface. low voltage alarm.
Transmitter particular introduce
Configured with 2.4G radio control system with a ground distance
of 200meters and Air distance of 400 meters.
(Mode 2)
Trim
Hook
Charger port
Servo reverse
Elevator down
Rudder
left
Rudder
right
Elevator up
Power switch
Power indicator
Throttle Max
Aileron
left
Aileron
right
Throttle Min
Antenna
Carrying bar
Frequency Switch
12
Features remote control device transmitter
www.motionrc.com

The process of frequency bind for DSSS series 2.4GHz R/C system
1. plug the short- circuit plug into the Receiver
in the position of BATT. Connect the ESC to
receiver for electricity supply, which results to
the indicator light glitters.
2. Press the frequency bind button, then
turn on the transmitter' s power.
6. The indicator light turns bright again,
which means that the radio system can
work normally now.
3. the indicator light of the receiver will light,
which indicates that the frequency bind is
successful.
4. Unplug the short-circuit, the indicator
light glitters.
5. Press frequency bind button again to get it
rebound. After the indicator light flashes for a
few seconds, it turns green, the transmitter
get into working mode.
Place the transmitter and the receiver close to each other within one (1) meter.
Please do not press the frequency bind switch when the Transmitter at work mode, or else your device will not work!
13
www.motionrc.com

Valuable experience
1. If you have a simulator we recommend that you practice with it before you fly your J-3. This will be very
helpful for your first flight.
2. Check and make sure all the control surfaces work normally and move towards the right direction before
flying.
3. We recommend that you take the model up to a height of around 100m and then cruise at around 1/3
power. This will be helpful for ou to get familiar with the performance.
4. Users should control the airplane gently to reduce the risk of crash, and to prolong the working time of
the airplane.
5. The turning radius should not be too tight or the aircraft could become out of control very quickly which
could result in an incident that you did not intend.
6. Please make sure to take off into the wind. The beginners had better fly in breeze and up wing area.

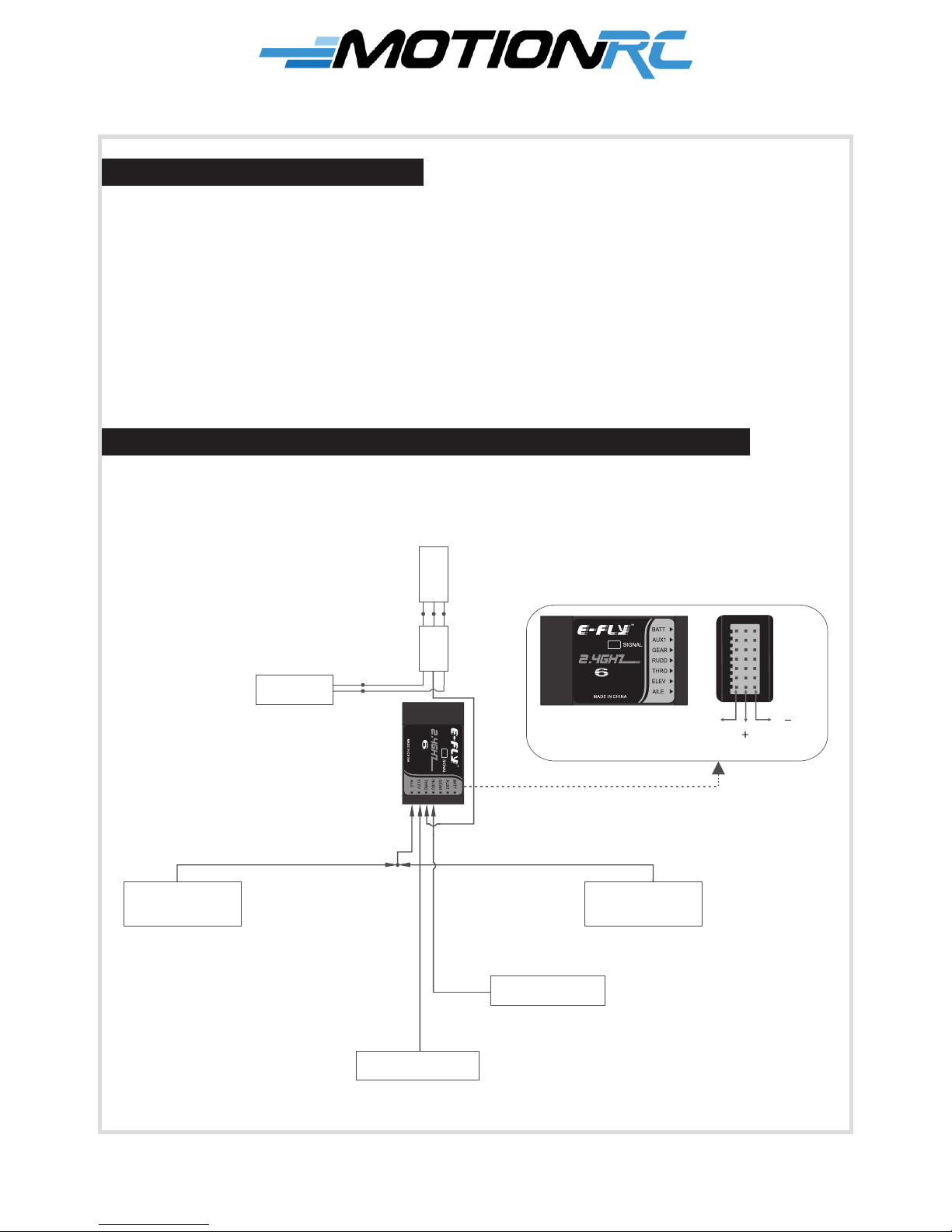

Operating Manual for the radio control system
Components to the R/C system
a transmitter, a receiver, a servo, a speed controller
The sketch map for connecting the receiver:
RECEIVER
ER61-2.4GHz
CH
RECEIVER
ER61-2.4GHz
CH
Signal
(White line)
(Red line)
(Black line)
Left aileron
servo
Right aileron
servo
Motor
Battery
ESC
Elevator servo
Rudder servo
14
www.motionrc.com

Problem Cause Solution
Motor does not run
1. Battery is not fully charged.
2. The battery of transmitter is
not sufficient
3. Check the wire connection
inside the model
4. The motor do not work due to
impact or damage.
5. The frequency binding of the
radio system fails
1. Charge the batteries.
2. Install a full charged battery
3. If any problem, please contact
your dealer
4. Change a new motor
5. Please do the frequency
binding again according to the
page 13.
No reaction of the
control surface
1.
properly or inverted plug.
2.The servo is damaged
The servo cable didn’t plug 1. Check the connection of
the servo cable
2.Change another servo.
Can not fly straight
1.The rudder is not in the center
position of the airframe
2.The main wing is not fixed in
the center position of the airframe.
1. Adjust the trim switch on
the transmitter
2.Re-assembly the main wing
Can not climb 1. The battery is not fully charged.
2. Two aileron are biased downward
1. Charger the battery
2. Adjust the inching switch on
the Transmitter.
Limited control range The batteries are almost flat Install new batteries
Trouble shooting
1 1
10 / inch~11 / inch
2 2
Please check the CG before heading to
the flying fileld.The center of gravity for your
P-51D should fall within the range
as indicated by the arrows.For your initial
flights,we suggest that you balance the
model toward the front fo the wing.After you
become more familiar with the airplane,you
can move the CG more aft.However,under
no circumstances should the CG fall
behind(toward the rudder) the rear mark.If
necessary, adjust the CG by moving your
receiver or adding weight to the nose or tail
Gunfighter
of the airplane.
Center of Gravity Check
15
www.motionrc.com

Spare parts list
No:5B201
Main wing set
No:5B141
Propeller
No:5B221
Small plastic set
No:5B211
Tail wing set
No:5B191
Fuselage
No:5B051
Main landing gear set
No:41411
Li-poly battery
(11.1V-1300mAh)
No:33012
Brushless ESC(20A)
No:3A01C
Brushless motor
(C4038-15)
16
www.motionrc.com

www.motionrc.com

深圳市艾特航模股份有限公司
