Artesian Spas Grand Bahama User manual

WWW.ARTESIANSPAS.COM

This manual covers the following spas
Grand Bahama
Grand Cayman
Antigua
Captiva
Saba
Bimini
Santa Cruz
Copyright 2007 May Mfg. LLC - All rights Reserved. This document may not be copied,
photocopied, reproduced, translated or transmitted in any form or for any purposes
without the express written consent of the Artesian Spas.

TABLE OF CONTENTS
Congratulations........................................................
Safety Warnings........................................................
Line Drawing Key.....................................................
Spa Conguration and Specs...............
Pump Congurations...............................................
Electrical Requirements and Installation...............
Electrical Wiring...............................................
Procedure for 120V Wiring...............................
Spa Start Up..............................................................
Selecting a Location........................................
Inspection........................................................
Filling the Spa with Water................................
Turning the Power On.....................................
Verifying Water Circulation..............................
Testing the GFCI Breaker................................
Priming the Pump............................................
Water Preparation...........................................
Topside Controller Instructions..............................
Initial Start up..................................................
Setting the Time of Day...................................
Light................................................................
Setting Up Different Modes.............................
Jets.................................................................
Preset Filter Cycles.........................................
Optional Filter Cycles.......................................
Temperatute Set.............................................
Freeze Protection.............................................
Diagnostic Messages...............................................
Maintaining Your Spa...............................................
Draining Your Spa............................................
Pillow Care......................................................
Jet Care...........................................................
Removing, Installing, and Cleaning Filters......
Winterizing Your Spa.......................................
Replacing the Light Bulb.................................
Spa Cabinet Care............................................
1
3
6
7
40
42
44
46
48
48
49
49
50
50
51
52
52
54
54
54
55
55
55
56
56
57
57
58
60
60
60
61
62
63
63
64

TABLE OF CONTENTS cont...
.
Cleaning Your Spa Interior...............................
Cover Care......................................................
Chemical Treatment of Water..........................
Water Chemistry..............................................................
Water Treatment Glossary......................................
Spa Chemicals Glossary........................................
Maintaining the Proper pH.....................................
Warranty Information.....................................................
Interior Spa Diagram.......................................................
64
65
67
68
68
73
75
76
82

1
Make sure you
visit our website at www.artesianspas.com
and register your new Artesian spa.
Congratulations...
Congratulations on the purchase of your new Island spa by
Artesian. We know you will enjoy your spa. Although spas are
relaxing and fun, we believe they can be an indispensable part
of a healthy lifestyle. The spa lifestyle is one that encourages
health and well-being.
Owning a spa brings some responsibility. With proper care,
your spa will provide years of enjoyment and therapy for your
family and friends. Please take time to read and understand
all of the instructions provided before you install your Artesian
spa. This owner’s manual is meant to be a supplement to the
training you should receive from your dealer when you pur-
chase and start up your spa for the rst time.
Please remember your spa is a powerful piece of electrical
equipment. It is extremely important that you have it properly
installed to ensure safe use. This manual explains safety pre-
cautions, installation instructions, and operating and mainte-
nance procedures. If you have any questions regarding this
manual, please call your competent Artesian spa dealer, who
will be happy to further assist you.

For your future reference and convenience, please record the Se-
rial and Model number along with the installation date in the spaces
provided below. STORE THIS MANUAL WHERE YOU CAN EAS-
ILY FIND IT WHEN NEEDED. The serial and model numbers are
mounted on the base of the equipment enclosure area, as shown
below.
Spa Serial Number_____________________________________
Spa Model Number_____________________________________
Spa Installation Date____________________________________
Dealer Name, Address, and Telephone Number
____________________________________________________
____________________________________________________
____________________________________________________
Diagram of Where to Find Serial Number
Serial Number Information
2

SAFETY WARNINGS
PLEASE TAKE THE TIME TO READ ALL OF THESE WARNINGS AND
CAUTIONS PRIOR TO USING YOUR SPA.
PLEASE, be a responsible spa owner. When installing and using this
spa, always adhere to basic safety precautions. Be sure to list emergency
telephone numbers at the telephone nearest the spa, including physician,
hospital, ambulance, police, and the re department. Be certain to explain
safety precautions to all new or occasional users of your spa. Remember,
they may not be aware of the possible risks associated with the spa water
temperature.
Have at least one family member learn CPR (cardiopulmonary resuscita-
tion). IT COULD SAVE A LIFE!
1. READ AND FOLLOW ALL INSTRUCTIONS!
2. WARNING - To reduce the risk of injury, do not permit children to use
this product unless they are closely supervised at all times.
3. A wire connector is provided on this unit to connect a minimum 8 AWG
(8.4 mm ) solid copper conductor between this unit and any metal equip-
ment, metal enclosures of electrical equipment, metal water pipe, or con-
duit within 5 feet (1.5 m) of the unit.
4. DANGER - Risk of Accidental Drowning - Extreme caution must be
exercised to prevent unauthorized access by children. To avoid accidents,
ensure that children cannot use this spa unless they are supervised at all
times.
5. DANGER - Risk of Injury - The suction ttings in this area are sized
to match the specic water ow created by the pump. Should the need
arise to replace the suction ttings or the pump, be sure the ow rates are
compatible.
Never operate spa if the suction ttings are broken or missing. Never
replace a suction tting with one rated less than the ow rate marked on
the original suction tting.
6. DANGER - Risk of Electrical Shock - Install at least 5 feet (1.5 m)
from all metal surfaces. As an alternative, a spa may be within 5 feet of
metal surfaces if each metal surface is permanently connected by a mini-
mum 8 AWG (8.4 mm ) solid copper conductor to the wire connector on
the terminal box that is provided for this purpose.
7. DANGER - Risk of Electric Shock - Do not permit any electrical ap-
pliance such as a light, telephone, radio, or television, within 5 feet (1.5
m) of a spa.
3

SAFETY WARNINGS cont...
8. WARNING - To reduce the risk of injury:
a) The water in a spa should never exceed 40 C (104 F). Water tempera-
tures between 38 C (100 F) and 40 C are considered safe for a healthy
adult. Lower water temperatures are recommended for young children
and when spa use exceeds 10 minutes.
b) Since excessive water temperatures have a high potential for causing
fetal damage during the early months of pregnancy, pregnant or possibly
pregnant women should limit spa water temperatures to 38 C (100 F).
c) Before entering a spa, the user should measure the water temperature
with an accurate thermometer since the tolerance of water temperature
regulating devices varies.
d) The use of alcohol, drugs, or medication before or during spa use may
lead to unconsciousness with the possibility of drowning.
e) Obese persons and persons with a history of heart disease, low or high
blood pressure, circulatory system problems, or diabetes should consult a
physician before using a spa.
f) Persons using medication should consult a physician before using a
spa since some medication may induce drowsiness while other medica-
tion may affect heart rate, blood pressure, and circulation.
AUDIO COMPONENT WARNINGS
Spas equipped with the Audio system should follow these guide-
lines for safety:
1. CAUTION - Risk of Electrical Shock - Do not leave compartment door
open.
2. CAUTION - Risk of Electrical Shock - Replace components only with
identical components.
3. Do not operate the audio controls while inside the spa.
4. WARNING - Prevent Electrocution - Do not connect any auxillary
components (for example cable, additional speakers, headphones, ad-
ditional audio/video components, etc.) to the system.
5. These units are not provided with an outdoor antenna; when provided,
it should be installed in accordance with Article 810 of the National Electri-
cal Code, ANSI/NFPA 70.
4

6. Do not service this product yourself as opening or removing covers may
expose you to dangerous voltage or other risk of injury. Refer all servicing
to qualied service personnal.
KEEP THESE SAFETY INSTRUCTIONS IN A CONVENIENT AND READ-
ILY ACCESSIBLE LOCATION!!
5

60Hz 50Hz

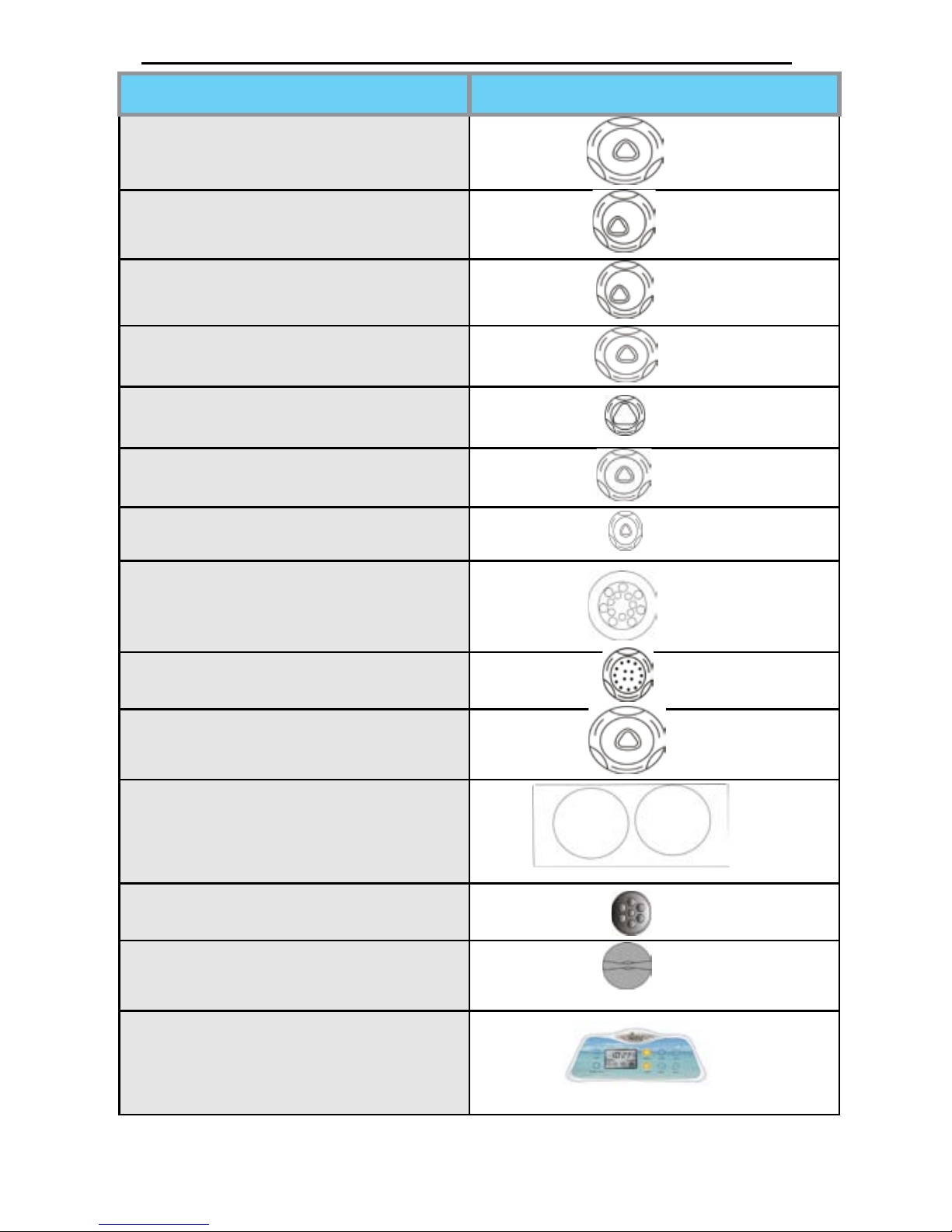

LINE DRAWING KEY
Line Drawings may not be exact models of your particular spa.Certain options may
be shown that are not included on your spa.
Name of Component Symbol for Component
Whirlpool 5in
Helix Roto 4.5”
Helix Roto 4”
Helix Direct 4”
Helix Jet 2.75in
Helix Direct 3”
Helix Direct 2”
Jumbo Storm Massage
Helix Massage 3”
Helix Direct 5”
Filter
Speaker
Diverter Control
Topside Control
6

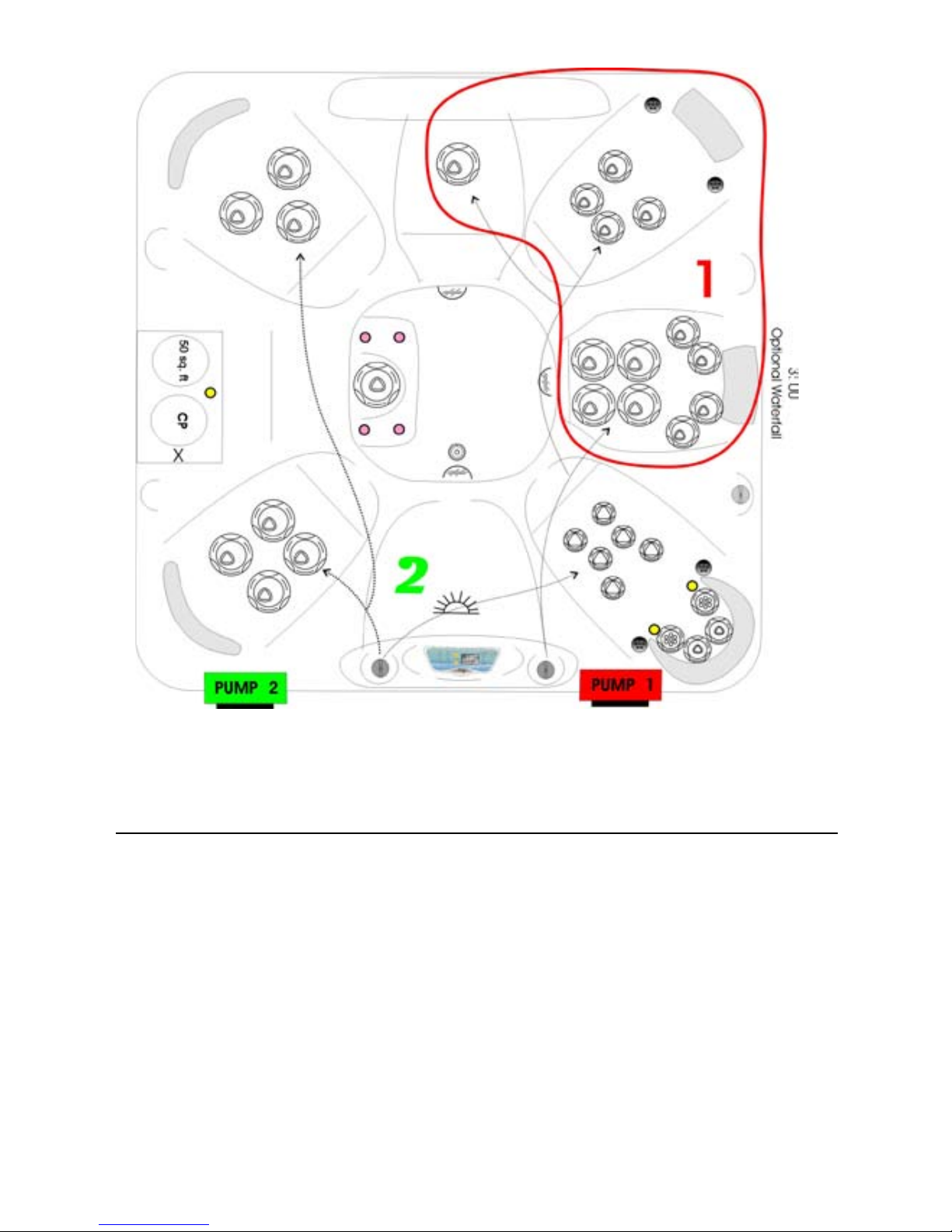

Grand Bahama 62-3P
Volume 450 gal 1703 l
Weight (dry/lled) 783/4531 lbs 360/2084 kg
Dimensions 91x91x36in 2.31x2.31x0.91 m
Control MVS504DZ MGS504SZ
Heater 5.5kW Flo-Thru 2.0kW Flo-Thru
Circulation System optional optional
Ozone optional optional
Cartridge Filter 2 2
60Hz 50Hz
7

Grand Bahama 52-3P
Volume 450 gal 1703 l
Weight (dry/lled) 783/4531 lbs 360/2084 kg
Dimensions 91x91x36in 2.31x2.31x0.91 m
Control MVS504DZ MGS504SZ
Heater 5.5kW Flo-Thru 2.0kW Flo-Thru
Circulation System optional optional
Ozone optional optional
Cartridge Filter 2 2
60Hz 50Hz
8

Grand Bahama 52
Volume 450 gal 1703 l
Weight (dry/lled) 783/4531 lbs 360/2084 kg
Dimensions 91x91x36in 2.31x2.31x0.91 m
Control MVS504DZ MGS504SZ
Heater 5.5kW Flo-Thru 2.0kW Flo-Thru
Circulation System optional optional
Ozone optional optional
Cartridge Filter 2 2
60Hz 50Hz
9

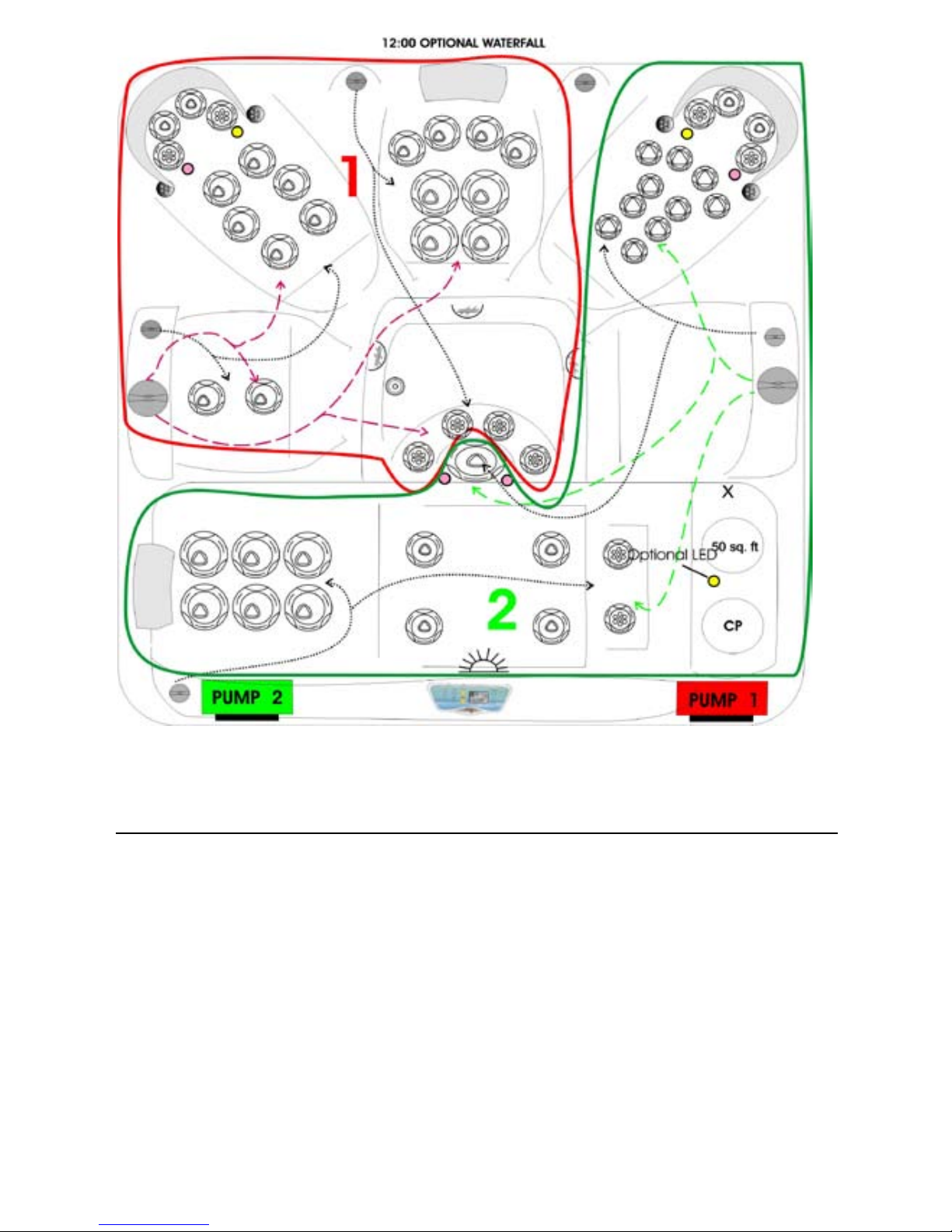

Grand Bahama 44
Volume 450 gal 1703 l
Weight (dry/lled) 783/4531 lbs 360/2084 kg
Dimensions 91x91x36in 2.31x2.31x0.91 m
Control MVS504DZ MGS504SZ
Heater 5.5kW Flo-Thru 2.0kW Flo-Thru
Circulation System optional optional
Ozone optional optional
Cartridge Filter 2 2
60Hz 50Hz
10

Grand Bahama 32-
Volume 450 gal 1703 l
Weight (dry/lled) 783/4531 lbs 360/2084 kg
Dimensions 91x91x36in 2.31x2.31x0.91 m
Control MVS504DZ MGS504SZ
Heater 5.5kW Flo-Thru 2.0kW Flo-Thru
Circulation System optional optional
Ozone optional optional
Cartridge Filter 2 2
60Hz 50Hz
11

Grand Bahama 32
Volume 450 gal 1703 l
Weight (dry/lled) 783/4531 lbs 360/2084 kg
Dimensions 91x91x36in 2.31x2.31x0.91 m
Control MVS504DZ MGS504SZ
Heater 5.5kW Flo-Thru 2.0kW Flo-Thru
Circulation System optional optional
Ozone optional optional
Cartridge Filter 2 2
60Hz 50Hz
12

Grand Cayman 62-3P
Volume 475 gal 1797 l
Weight (dry/lled) 782/4738 lbs 359.7/2179 kg
Dimensions 91x91x36in 2.31x2.31x0.91 m
Control MVS504DZ MGS504SZ
Heater 5.5kW Flo-Thru 2.0kW Flo-Thru
Circulation System optional optional
Ozone optional optional
Cartridge Filter 2 2
60Hz 50Hz
13

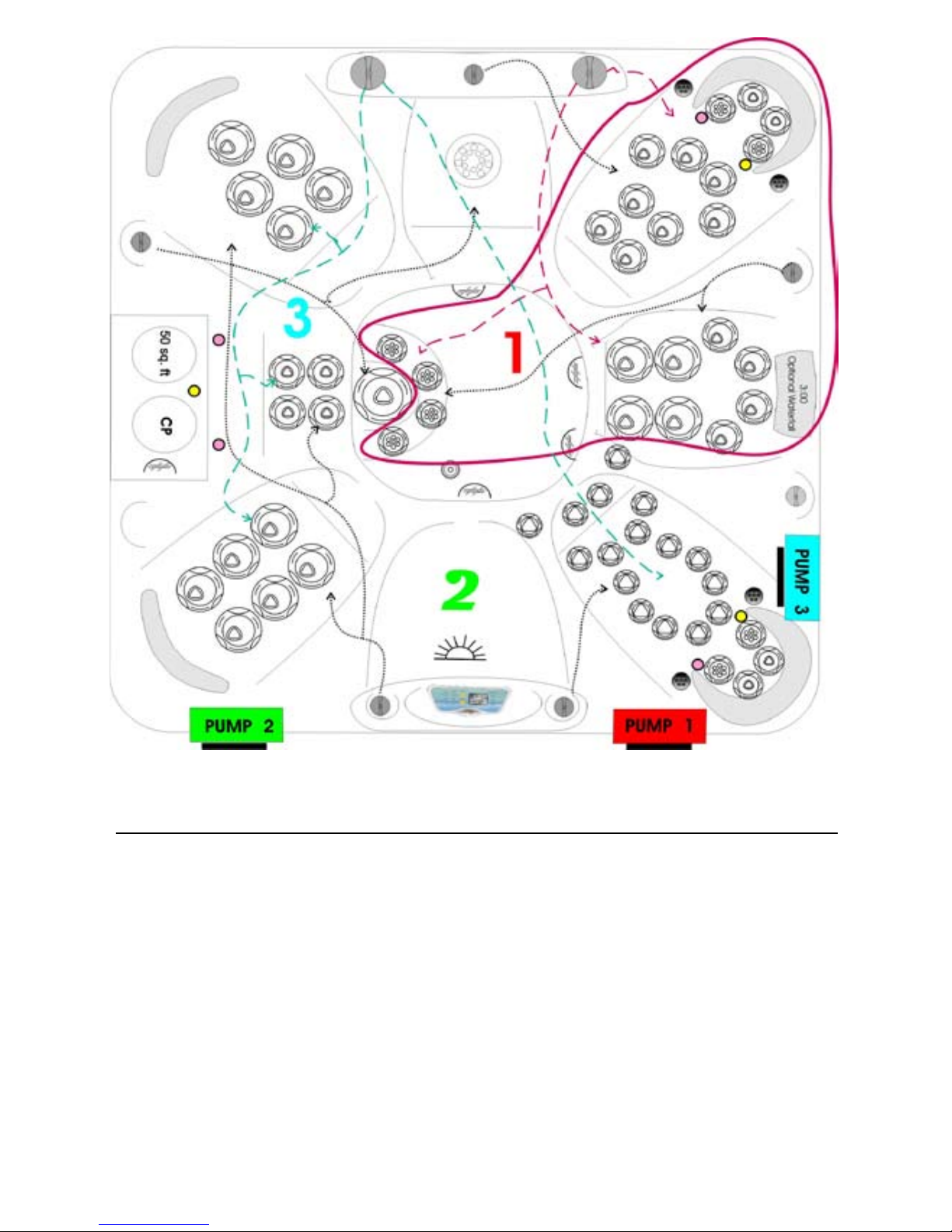

Grand Cayman 52-3P
Volume 475 gal 1797 l
Weight (dry/lled) 782/4738 lbs 359.7/2179 kg
Dimensions 91x91x36in 2.31x2.31x0.91 m
Control MVS504DZ MGS504SZ
Heater 5.5kW Flo-Thru 2.0kW Flo-Thru
Circulation System optional optional
Ozone optional optional
Cartridge Filter 2 2
60Hz 50Hz
14

Grand Cayman 52
Volume 475 gal 1797 l
Weight (dry/lled) 782/4738 lbs 359.7/2179 kg
Dimensions 91x91x36in 2.31x2.31x0.91 m
Control MVS504DZ MGS504SZ
Heater 5.5kW Flo-Thru 2.0kW Flo-Thru
Circulation System optional optional
Ozone optional optional
Cartridge Filter 2 2
60Hz 50Hz
15

Grand Cayman 44
Volume 475 gal 1797 l
Weight (dry/lled) 782/4738 lbs 359.7/2179 kg
Dimensions 91x91x36in 2.31x2.31x0.91 m
Control MVS504DZ MGS504SZ
Heater 5.5kW Flo-Thru 2.0kW Flo-Thru
Circulation System optional optional
Ozone optional optional
Cartridge Filter 2 2
60Hz 50Hz
16
