ERT 30 / ERT 60
IP to RS422 interface control

TABLE OF CONTENTS
EC REGULATIONS AND SECURITY 6
SAFETY INSTRUCTIONS 6
SYSTEM DESCRIPTION 9
CONTROLS AND CONNECTORS 10
SYSTEM CONFIGURATION 13
AHLINK 14
AHNET ADDRESS CONFIGURATION 18
AHNET PROTOCOL 20
INFORMATION ON DISPOSAL 23
WARRANTY TERMS AND CONDITIONS 24

WELCOME
Thank you for purchasing an ARTHUR HOLM product.
Our product range has been designed for a seamless integration and for
a maximum reliability.
Please, read this installation and operating instructions carefully and keep
them in a safe place for future reference.
We remain at your entire disposal if you have any suggestions that would
help us improve our products.
Henrik Holm
General Manager
[email protected]

ABOUT US
The Company
Arthur Holm has its origins in the Danish furniture designer Jorgen Alex
Jensen, who was active during the sixties and the seventies. His design
inspiration and his concept of ergonomics have been continued by his
family, who is the design force behind Arthur Holm product range. The
result of combining Scandinavian design tradition with Mediterranean
creativity, exibility and emotion is a wide product range built on more
than 25 years of craftsmanship.
Arthur Holm offers a professional product range where tomorrow’s
technology is shaped into valued materials with design exibility and
customisation, specially created to enhance communication in reception,
collaboration, conference and meeting areas.
The art of customisation
Arthur Holm offers a range of ingenious products whose designs are based
on quality materials and the latest technology. Products which endow
meeting and conference rooms with silent, ergonomic, innovative and
aesthetic solutions that integrate into the furniture, hang from the walls as
works of art or are used as interactive points of information.
The world of Arthur Holm
Arthur Holm offers a selection of unique, elegant, versatile, exible and
ergonomic products that are being used in meeting and conference
rooms, reception areas, huddle rooms, control rooms, auditoriums and
public zones of leading companies throughout the world.
The numbers speak for themselves! We currently own 33 product patents,
have presence in over 45 countries with products and solutions inmore
than 25,000 installations.
It will be our pleasure to work with you, designing your unique and
personalised environment. Our broadcast electronic engineers will
provide the latest technology while our design team will offer you the most
exclusive appearance.
Our team puts its heart, passion and pride in all our designs.

6
SAFETY INSTRUCTIONS
Plugs
• Do not dismantle any part of the power connector.
• Disconnect the power plug from the AC outlet when the unit is not
going to be used for an indenite period of time.
Power and extensions cords
• Use the appropriate power cord with the correct plug type.
• Do not overload wall outlets or power cords.
• Make sure the total ampere passed through a extension cord does not
exceed the maximum allowed by the cable used.
• Do not place anything on the power cord.
• Do not locate this product where a person may walk or trip over the
cord.
EC REGULATIONS AND SECURITY
ATTENTION: Do not disassemble or modify the device in any way.
This symbol warns of the presence of dangerous un-insulated
voltages inside some of the components, of sufcient magnitude
to expose people to risk of electronic shock.
This symbol draws attention to important use and maintenance
instructions in the guide that accompanies the unit.
This symbol indicates that the equipment conforms to the norms
established by the European Community.

7
Wiring connected to hazardous voltage requires installation by
qualied personnel or the use of ready-made exible cables.
For your security, your equipment must be connected to an
electrical outlet with grounding connection protection.
Since the plug is used to disconnect the device, the operating
electrical outlet must be in an easily accessible place.
Environment
• Install the equipment on an elevated, at surface.
• Install the equipment in a ventilated area.
• Avoid exposing the equipment to:
∙Rain or water
∙Excessive heat, cold or humidity
∙Area exposed to direct sunlight
∙Dirty areas
∙Equipment generating strong magnetic elds
• Avoid placing open containers of liquid, near the equipment.
• Keep a minimum distance of 30 mm in order to have good ventilation.
• Never place above the device any sources of ames such as lighted
candles, etc.
• If you are using the device in extreme weather conditions and/or
tropical climates, the equipment should be installed in a room which
ensures a reasonable level of temperature and humidity.
This equipment has been tested and complies with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate
radio frequency energy, and if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference
SAFETY INSTRUCTIONS

8
to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
∙Reorient or relocate the receiving antenna.
∙Increase the separation between the equipment and the receiver.
∙Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
∙Consult the dealer or an experienced radio/TV technician for help.
SAFETY INSTRUCTIONS

9
SYSTEM DESCRIPTION
Applications
All the Arthur Holm and Albiral motorised devices provide an open
source AHnet protocol to externally control them by using a RJ45 RS422
bus.
The ERT is an Ethernet IP to RS422 interface, that allows the user to use
the local network to send AHnet commands to the Arthur Holm or Albiral
motorised devices. By opening an IP ERT port, the system can send
the AHnet commands using a local network and the ERT will send the
commands to both RS422 RJ45 buses. Up to 60 units can be conneted
in one ERT (ERT-60) by using the two RS422 ports (30 units on each RS422
port).
Note: ERT-30 model has only one AHNet RS422 port. The user can control
up to 30 units.
The ERT interface Unit and the AHnet Communication Protocol have
been developed to control, congure and diagnose Arthur Holm
devices such as motorised monitors, motorised microphone solutions,
motorised cable systems and motorised cable cubby solutions.
Box Contents
Before the installation of your ERT unit, please check the contents of the
shipping box, it must contain the following items:
• ERT unit.
• Power cord.
• Power supply 100-240Vac, 50-60Hz. Output 12V.
• User guide.
Important note: This device can only work with the power supply
included in the shipping box. This power supply can not be replaced by
any other rather than the original one.

10
CONTROLS AND CONNECTORS

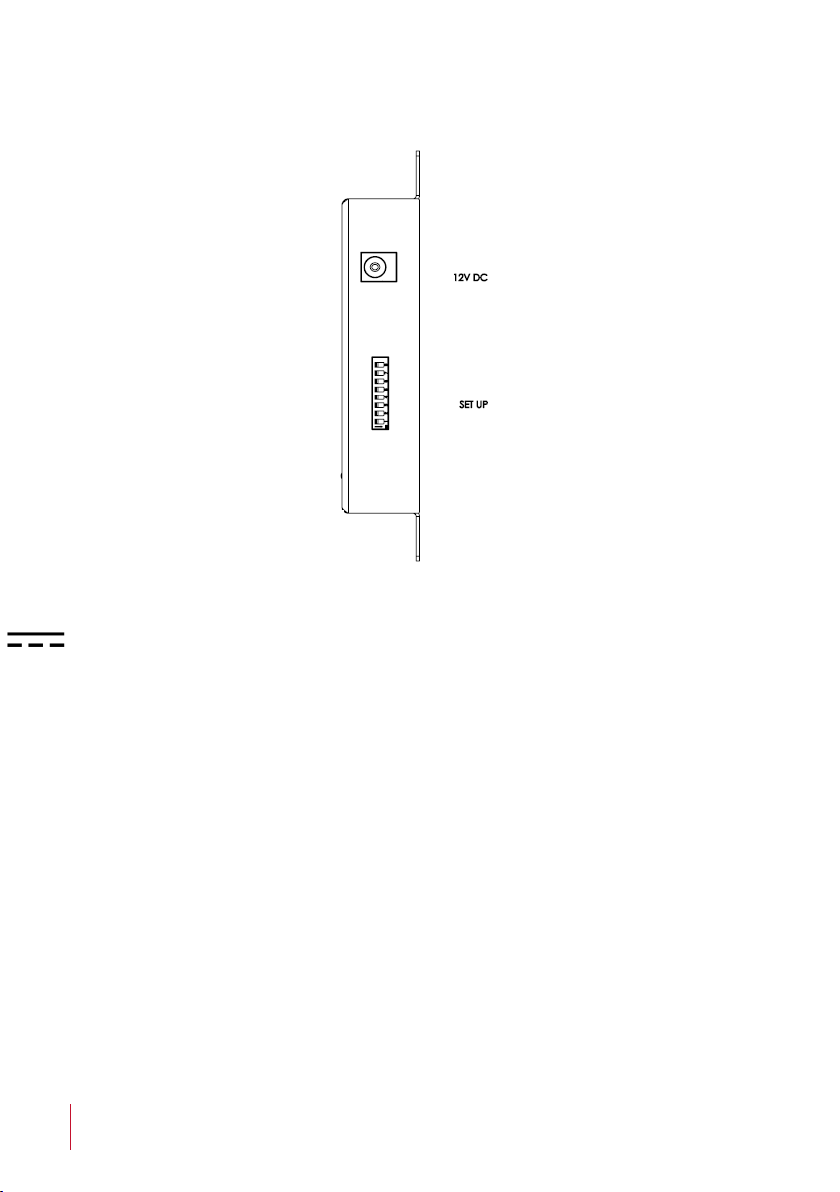

12V.D.C.: Power input connector. Plug the power supply supplied with
the unit.
Set-up: Eight deep switches to control and setup the unit:
- DIP1: Activates the radio signal to control the unit using AHlink app.
- DIP2: Activates the automatic AHnet ID conguration on the RS422
bus.
- DIP3: Not used.
- DIP4: Activates rmware upgrades.
- DIP5: Not used.
- DIP6: Congures the factory IP address.
IP: 192.168.0.128
MASK: 255.255.255.0
GATEWAY: 192.168.0.3
MAC: 70:B3:D5:49:70:00
- DIP7: Not used.
- DIP8: Not used.

11
CONTROLS AND CONNECTORS
Ethernet: RJ45 network connector. Connect the ERT to the local
network to open the 2002 port and send AHnet commands to the units
connected to the RS422 ports (AHnet1 and AHnet2).
Service: USB connector used only for rmware upgrades.
AHnet1: RJ45 RS422 port. To control the units using AHnet commands,
connect the Arthur Holm or the Albiral units on this connector.
AHnet2: RJ45 RS422 port. To control the units using AHnet commands,
connect the Arthur Holm or the Albiral units on this connector.
Note: The ERT-30 has one AHnet RS422 port connector, only. With one
ERT-30, the user is able to control up to 30 devices, and with one ERT-60,
the user is able control up to 60 devices by using the two AHnet port
connectors (30 devices connected on each port).

12
CONTROLS AND CONNECTORS
LEDs system indicators
LED1: Change the state when a AHnet command is received from the
two RS422 ports (AHnet1 or AHnet2).
LED2: Change the state when the unit receives data from the local
network port (ETHERNET).
LED3: Not used.
LED4: Change the state when the unit sends a AHnet command when
the automatic AHnet ID conguration is activated (DIP2). The ERT
interface sends commands to the units connected on AHnet1 and
AHnet2 to automatically set-up the AHnet ID on each unit.
RF: Lights up when a mobile or tablet is connected to the unit to control
and set-up the ERT by using the AHlink app.

13
SYSTEM CONFIGURATION
Use the ETHERNET unit port to connect the ERT to your local network area.
This port opens the 2002 ERT IP port and sends the AHnet commands
to control the devices connected to the RS422 ERT ports (AHnet1 and
AHnet2). The Arthur Holm or the Albiral devices have a AHnet IN and a

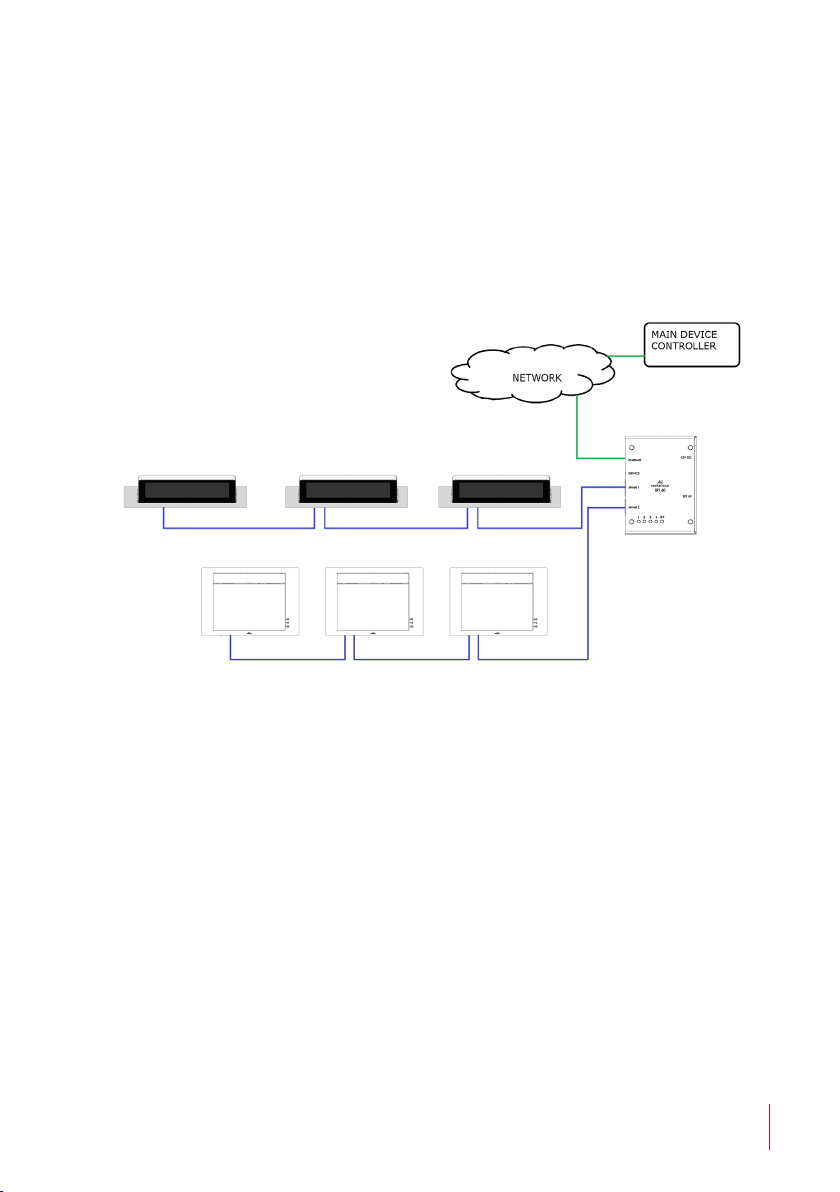

AHnet OUT port to easily install a RS422 BUS. The next picture shows a
schematic connection diagram:
The main device controller connects to the ERT interface by using a local
network. When opening the 2002 ERT port, the main device controller is
able to send AHnet commands to the ERT interface, and the ERT sends
AHnet commands to the units using the RS422 ports.
The user is able to connect up to 60 units to the ERT using the two RS422
RJ45 buses (30 units on each bus). Please, follow this user guide to set-up
the AHnet address on each unit and to connect the unit to the RS422
bus.
To set-up the ERT IP address, it is necessary to download the AHlink
app. First, you need to activate the radio signal. Activate DIP1 on the
SETTINGS device and turn the ERT unit on.

14
AHLINK
To control and set-up the unit
using the AHlink app, download
the AHlink from the App Store
(IOS system) or from Google
Play (Android system). The app is
free. Execute the AHlink on your
mobile phone.
On the AHlink app options, it
is recommended to not select
Auto Connect and select Portrait
on Orientation. To connect to
the device, select Scan for local
devices.
The AHlink name always begins
with ERT characters and the fourth
last MAC radio address. Select
the device to control and set-up
the unit.

15
AHLINK

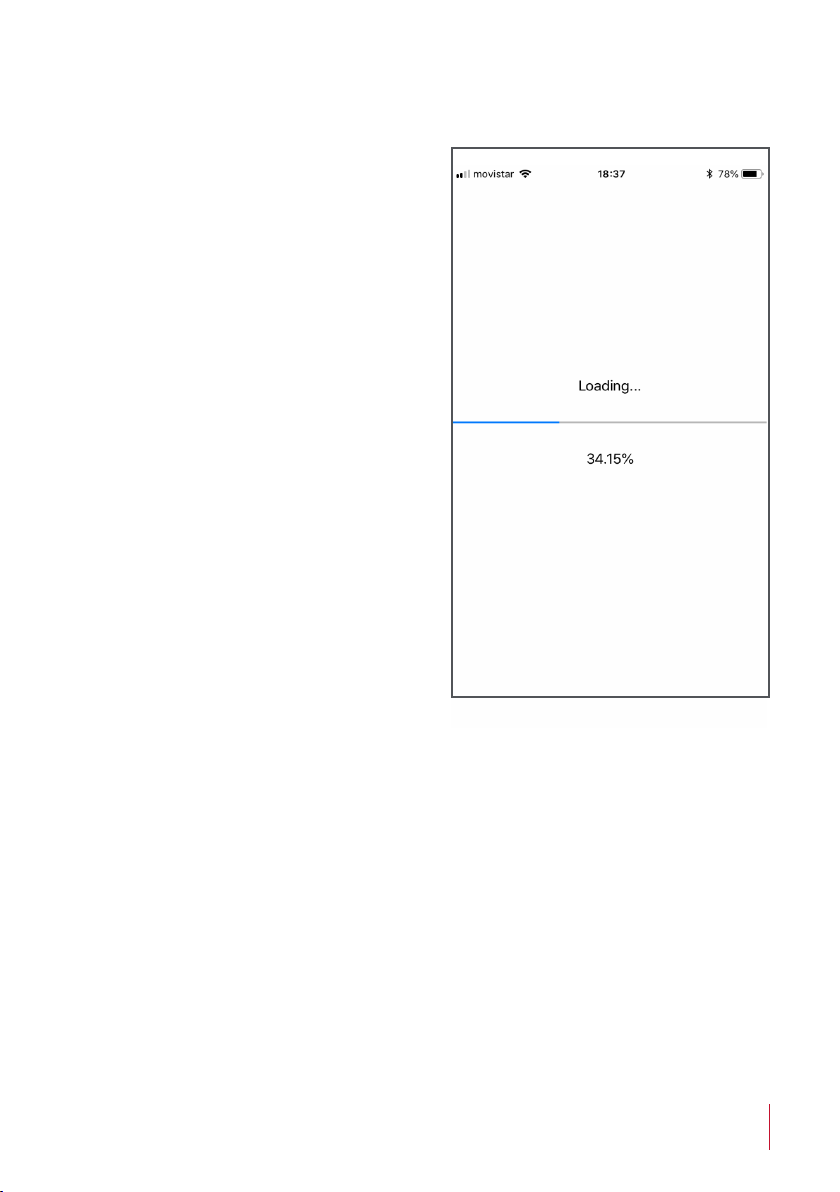

When selecting the device,
the rst page will upload on
the mobile phone. When the
mobile app is connected to the
unit, the RF LED lights up.

16

AHLINK
The rst line shows the model name of the device.
SERIAL
Serial number of the unit.
VER
Firmware version.
ADDRESS
Set-up the AHnet address to send a command. Use
address 0 to broadcast the command instruction.
DYNAMIC2 CONTROL
Sends basic commands to Dynamic2 monitors
family. Select the AHnet address to send the
command, and press the function to send to AHnet
RS422 BUS.
DYNAMIC3 CONTROL
Sends basic commands to Dynamic3 monitors
family. Select the AHnet address to send the
command, and press the function to send to AHnet
RS422 BUS.
DYNAMICTALK CONTROL
Sends basic commands to DynamicTalk
microphones family. Select the AHnet address to
send the command, and press the function to send
to AHnet RS422 BUS.
IP ADDRESS
Shows the actual ERT IP address. Note that if the
DIP6 is active, the unit is congured with the factory
IP and this IP information should be different.
MASK
Shows the actual ERT MAK
address.
Conguration PSW
Enter the password 4006 to set-up the ERT IP
address. The next page shows the ERT network
conguration.
GATEWAY
Shows the actual ERT
gateway address.

17

AHLINK
NETWORK CONFIGURATION
Change the network conguration and press
the “NETWORK INI” button to update the new
network settings.
GATEWAY
Shows the actual ERT
gateway address.

18
AHNET ADDRESS CONFIGURATION
There is an ERT functionality that helps users set-up the AHnet address.
To send AHnet commands to a unit, the user needs to set-up the
AHnet address to individually send the commands. When installing the
unit (monitor, microphone or other device) the user should set-up a
different AHnet address on each unit. The ERT has a utility that helps the
assignation of the AHnet address task.
Please note that this utility it is only available on the devices that have
the LCD screen conguration (ISD). The devices that have AHnet
address rotary switches don’t provide this functionality.

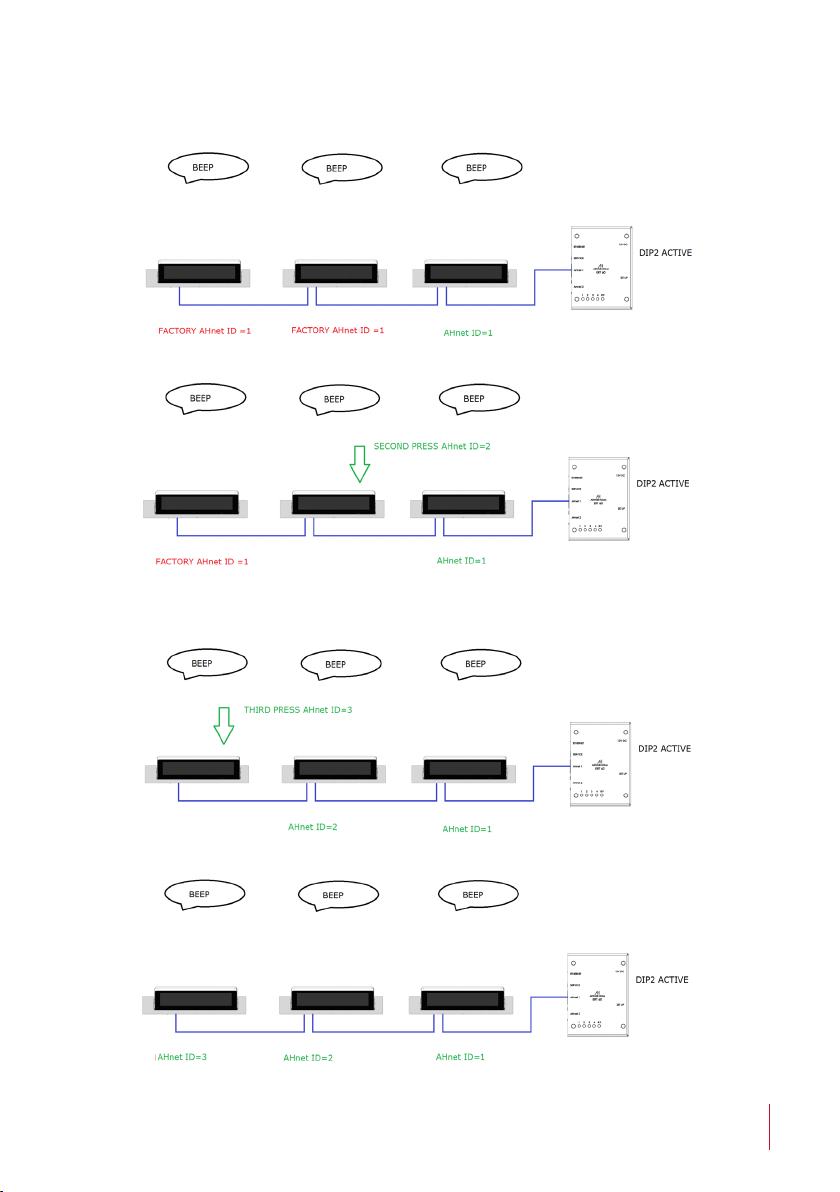

To activate this function, activate DIP2 on SETTINGS ERT switches and
turn the unit on. The ERT will periodically send a special AHnet command
to set-up the AHnet address on each unit. When the units receive the
special AHnet address conguration command, the user will hear the
sound of a beep. By pressing the UP button on the device’s cover plate,
the unit set-ups a new AHnet address. The conguration is incremental.
The rst unit, in which the up button has been pressed, gets the AHnet
address number 1, the second one will get the AHnet address 2, and
so on.

19
AHNET ADDRESS CONFIGURATION

20
AHNET PROTOCOL
AHnet protocol
Using 5 bytes communication:
BYTE 0 START BYTE
BYTE 1 ADDRESS BYTE
BYTE 2 COMMAND BYTE
BYTE 3 VALUE 1
BYTE 4 VALUE 2
BYTE 0 is the header and should always FA in HEX mode.
BYTE 1 is the AHnet address unit to send the command. To send the
command to all the devices, there is a special AHnet address used as
broadcast. Please, refer to the user guide of the device, as there are
different family broadcast addresses.
BYTE 2 is the function to execute on the unit.
BYTE 3 is the rst value of the function.
BYTE 4 is the second value of the function. In some functions, this value
is not used and should be “00”.
Below, there are some AHnet commands used to control the different
families of devices. You will nd more AHnet commands on each
particular user guide.
