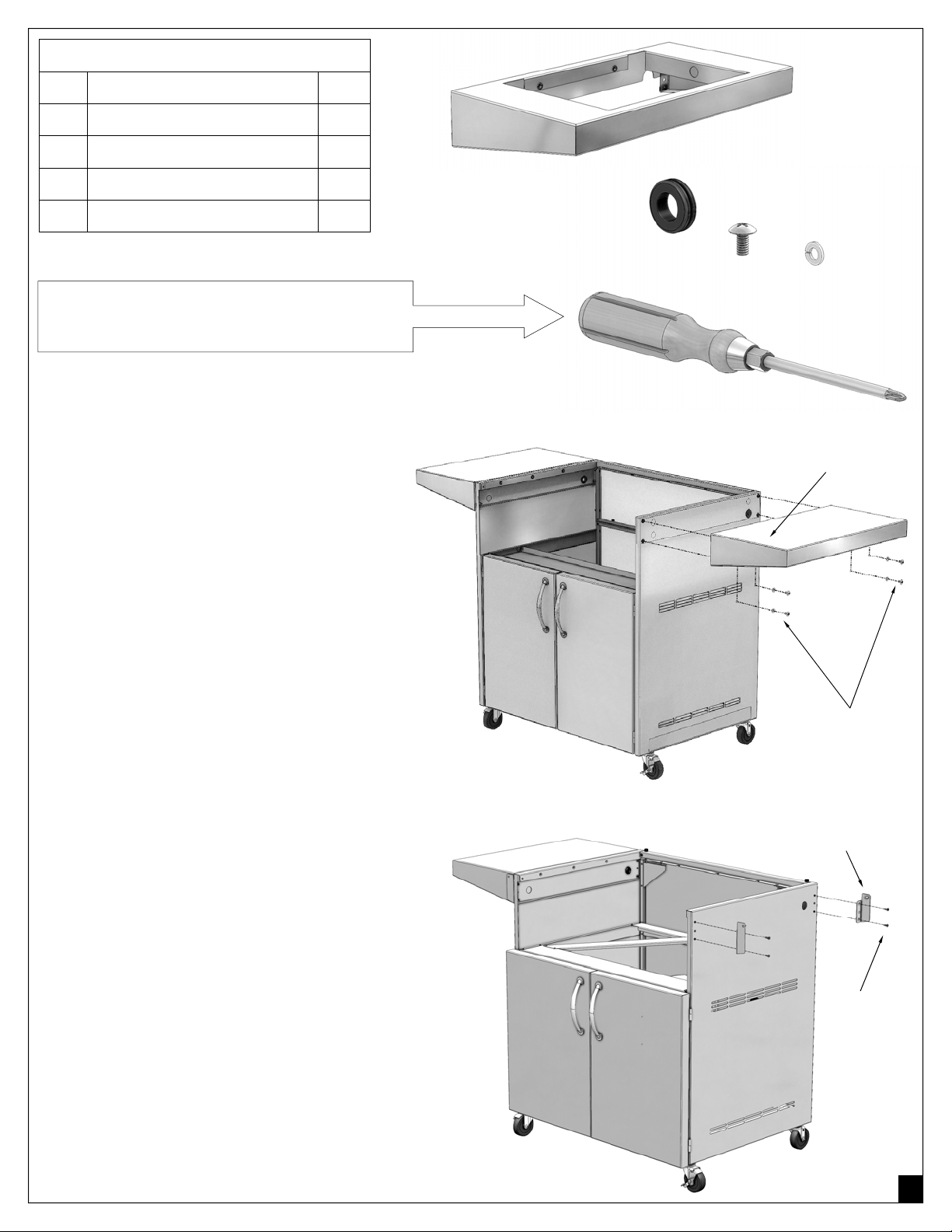

ASSEMBLY PROCEDURE:
STEP 1:
To begin installing the Side Burner Mount-
ing Shelf in your Artisan cart, you must
first remove the appropriate existing shelf
unit out of it.
On older model carts (2019 and older), this
is accomplished by removing the 4 screws
and lock washers located on the under the
shelf and on the sides.
Save these screws and washers for later
use. (See Figure # 1a)
Note: The ARTC-32 shown in this drawing
is for illustrative purposes only. These same
instructions apply to all Artisan cart mod-
els.
On newer model carts (2020 and after),
with folding side shelves, you will need to
lift and remove the existing shelf and also
remove the shelf brackets.
The shelf brackets are detached from the
cart body by removing two screws on each
bracket.
Save these screws and washers for later
use.(See Figure # 1b)
COMPONENTS INCLUDED IN THIS KIT:
ITEM DESCRIPTION: QTY:
A GROMMET 1
B 1/4” LOCK WASHER 5
C 1/4-20 x 1/2” SCREW 5
D SHELF (AS SHOWN BELOW) 1
D
B
A
C
ITEM NOT INCLUDED AND REQUIRED
FOR ASSEMBLY OF THIS UNIT:
STANDARD #2 PHILIPS SCREWDRIVER
Figure # 1a
EXISTING
SHELF
SCREWS
AND
WASHERS
SCREWS
SHELF
BRACKET
Figure # 1b
