Artiste E3 User manual

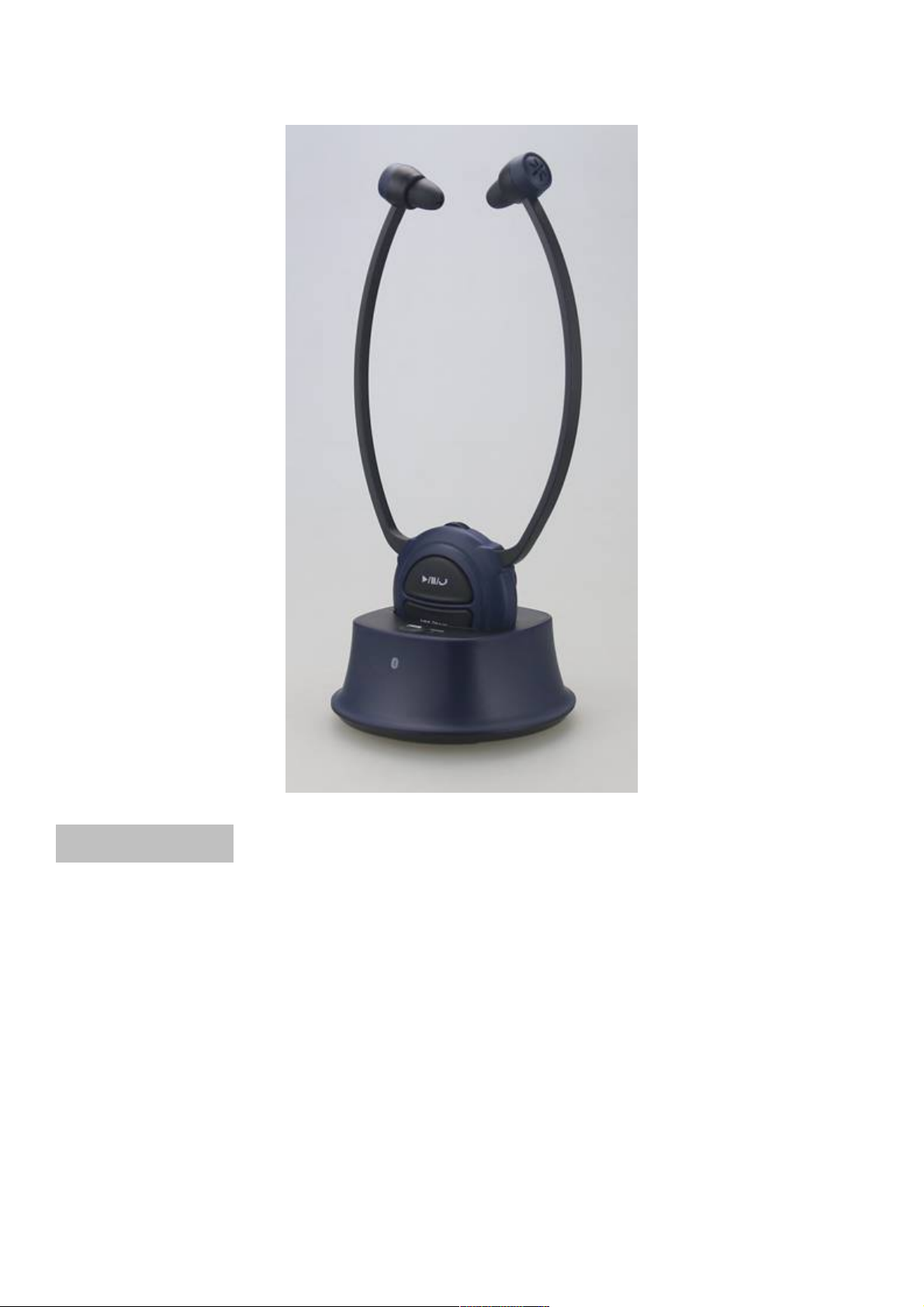

ARTISTE Bluetooth Senior Headphone E3
INTRODUCTION
Dear Customer,
ARTISTE Bluetooth Senior Headphone E3 uses Bluetooth V4.0 ireless technology, enables
to improve the hearing aid capability that may require by the elderly people to enjoy
crystal sound stereo music and TV sound inside your home. Press phone button can
answer or end a call when connected to smart phone. Transmitter with optical connection
is compatible with smart TV. Simply connect to a desired audio source: TV set,
Smartphone, PC, DVD player, Hi-Fi system, Radio or MP3. ithout complicated wiring and
installation, the Headphone enables you to enjoy thrilling, lifelike sound for hours.
Features:
Optical Audio In for smart TV
NFC Ease Pairing
Adjustment of Tone Clarity, Selection of Treble Enhancement
Sound Balance Control (Left/Middle/Right)
Music Muting for Verbal Communications
Microphone Button for Sound Amplification
Direct Line-In
Pa kage Contents
1. Bluetooth Headphone
2. Transmitter
3. AC/DC adapter (for transmitter or for charging the receiver)
4. Additional pair of rubber ear buds
5. Analogue Audio cable (both ends with 3.5 mm stereo plug)
6. Adapter cable (RCA) for analogue audio cable
7. Optical TOSLINK digital audio cable
8. User Manual
FUNCTION IDENTIFICATION

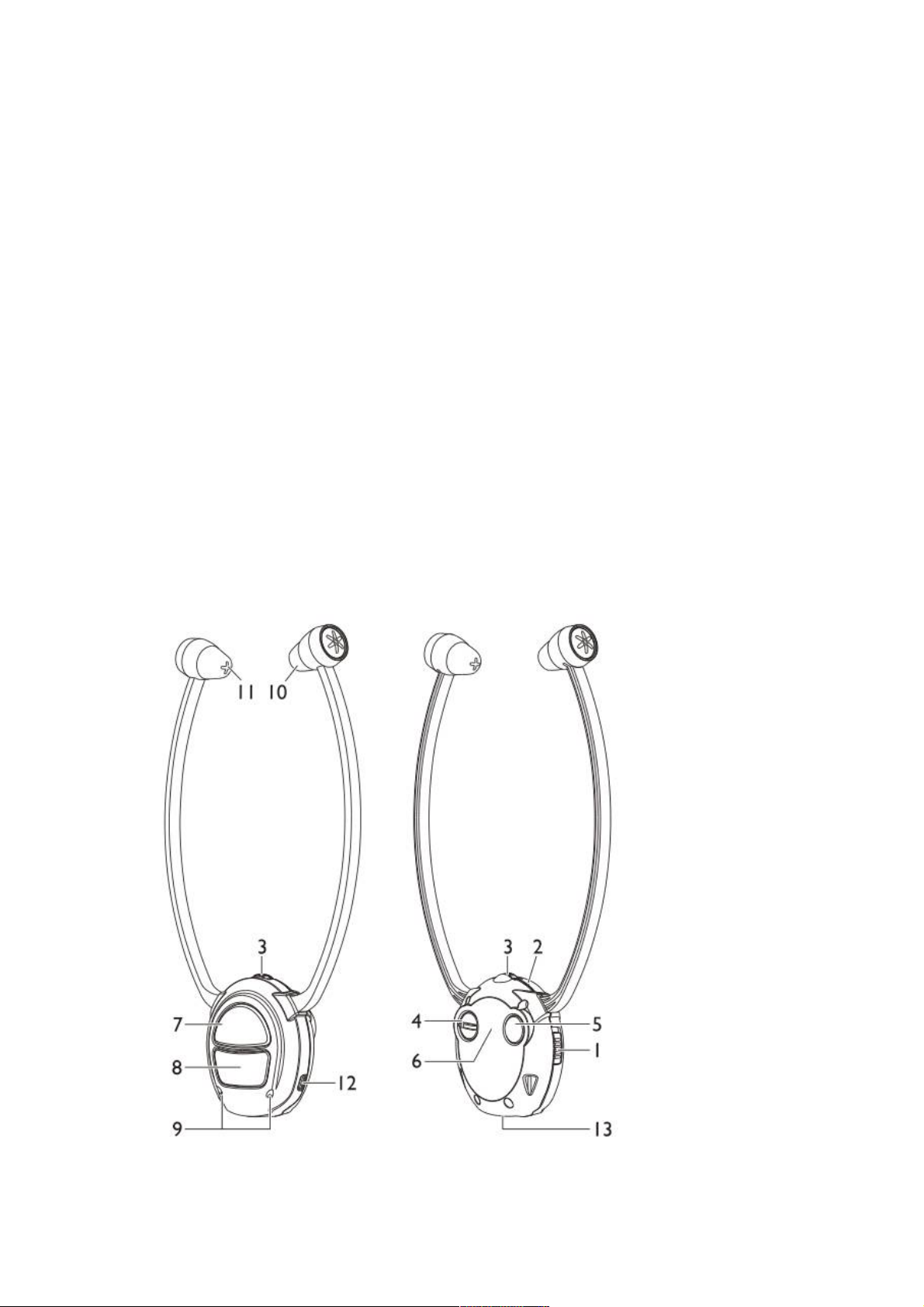

Re eiver Headphone
1. Power ON/OFF
2. Signal LED Indicator
3. Volume Control
4. Balance Control
5. Sound Enhancement Button
6. NFC
7. Play/Pause/Call Pickup/End Call Button
8. Mic/Pair Button
9. Microphone
10. Right Adjustable Earbud
11. Left Adjustable Earbud
12. Micro USB Port (For Direct Charging the Headphone)
13. Charging Contact (For Charging the Headphone on the Transmitter)

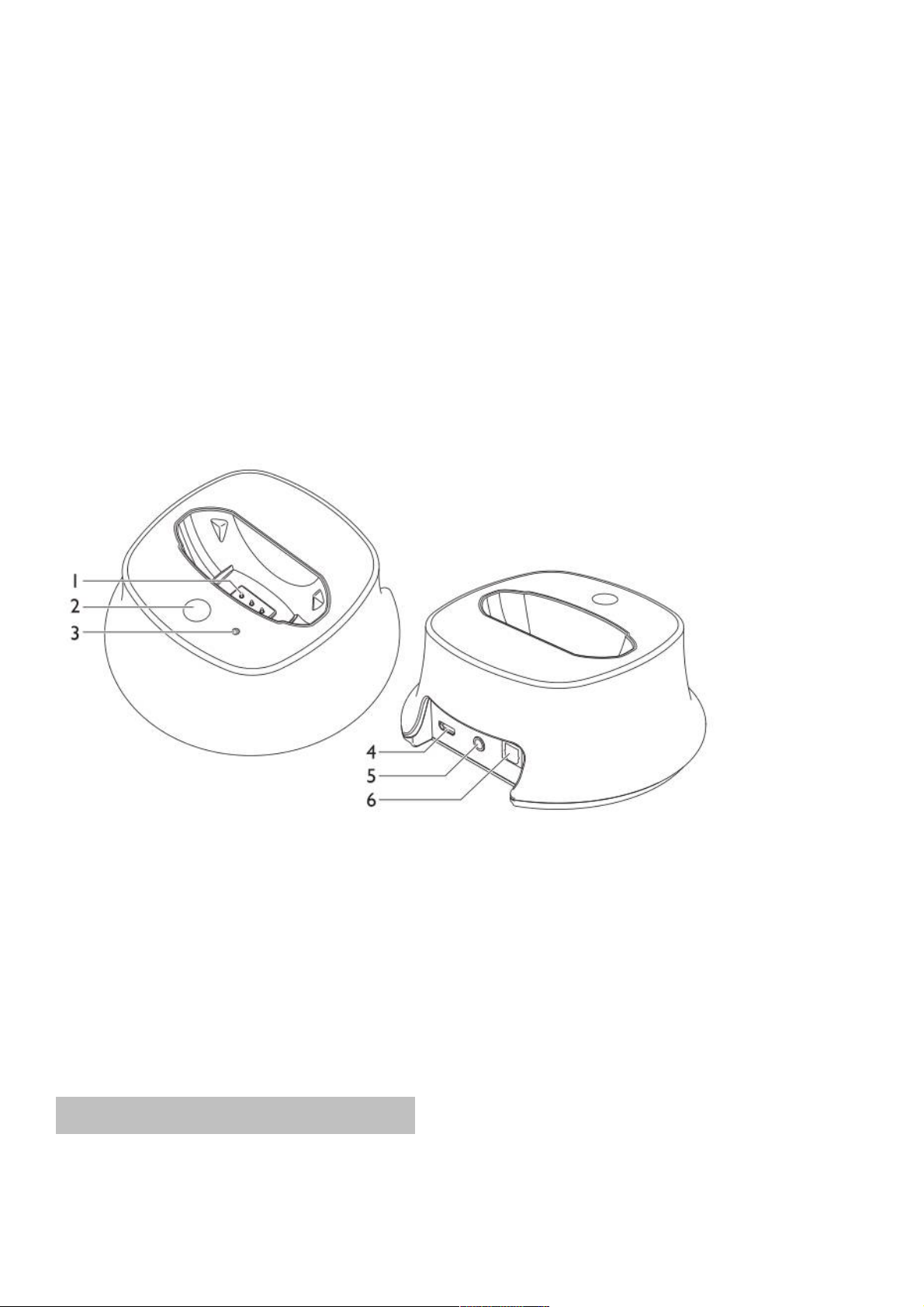

Transmitter
1. Charging Pins
2. Pair Button
3. Signal LED Indicator (For Power/Pair)
4. Micro USB Socket (for Power Adaptor Only)
5. 3.5 mm Audio Socket (Audio Line In)
6. Optical Audio-in Socket TOSLINK
INSTALLATION AND OPERATION

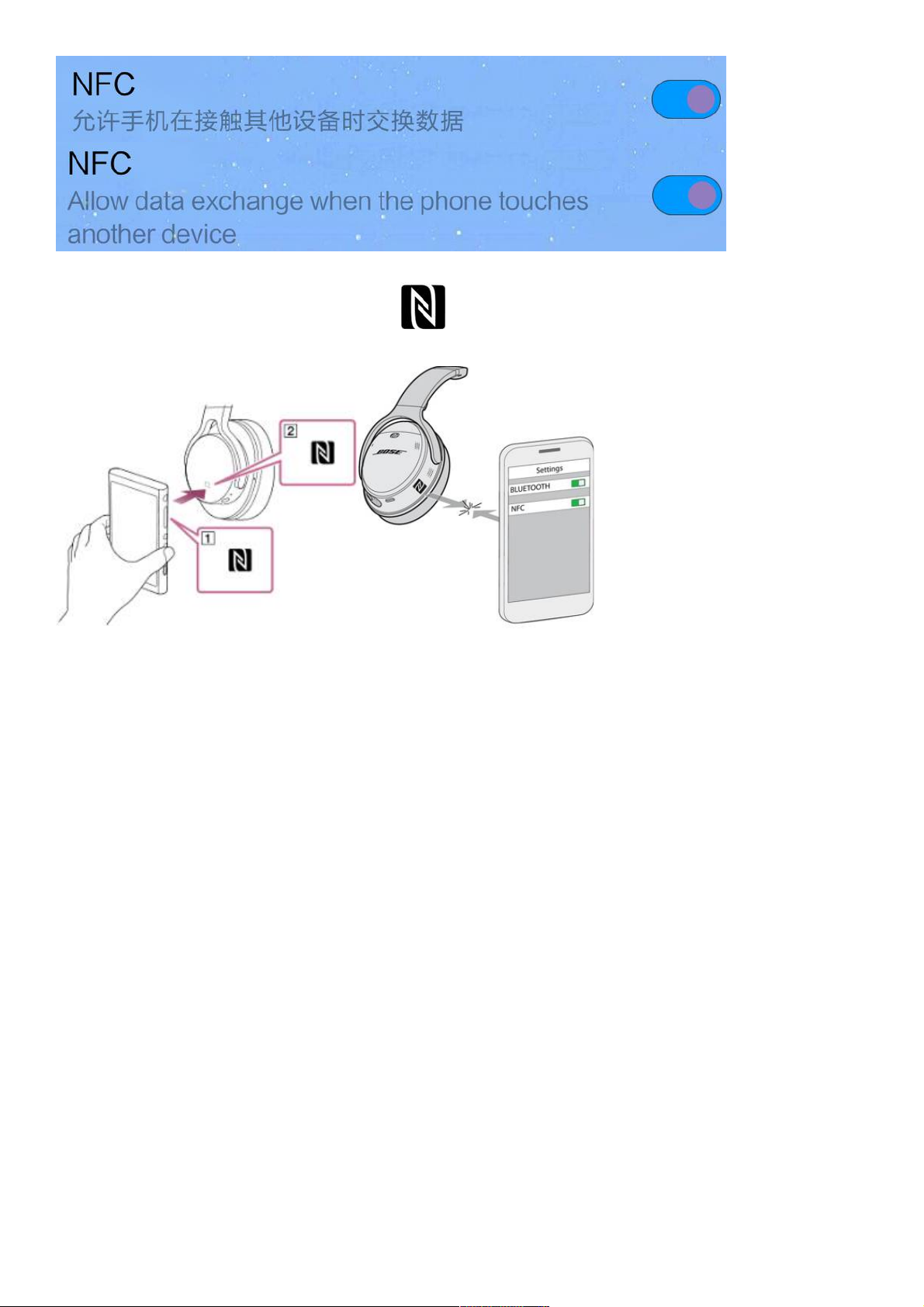

NFC pairing
1. Turn on the NFC function of smartphone.
2. Turn on the Bluetooth headphone.
3. Attach the headphone’s NFC area ( ) to the smartphone.
参考图如下：
Opti al input (re ommended)
光纤线连接线图
Analogue audio input
3.5 音频线连接线图+RCA 音频线连接线图（参考 ADH300）
NOTE:
Please note that only one input (either analogue audio input or opti al
input/TOSLINK) must be onne ted. If both the analogue audio input and the opti al
input/TOSLINK are onne ted, the priority use is analogue input.
CHARGING THE BATTERY
Charge the battery for about 3 hours before first use.
A fully charged battery provides up to 6~8 hours of listening enjoyment.
1. Switch OFF the headphone.

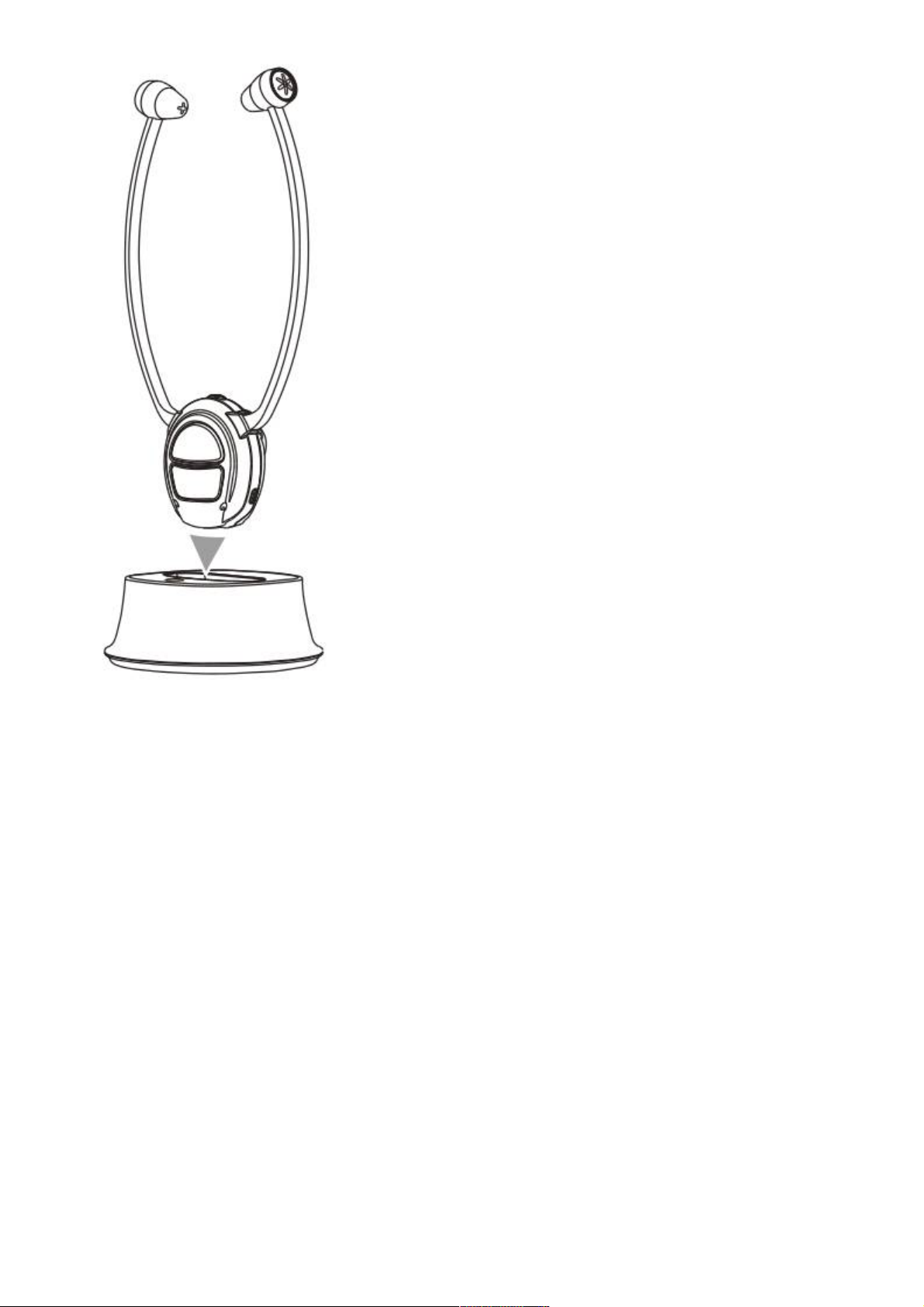

2. Place the headphone on the transmitter.
3. The green LED indicator on the headphone will flash slowly when charging. It will glow
in green steadily in about 3 hours after the battery is fully charged.
4. If the headphone power is at ON position during charging, after charging, slide the
switch to OFF and ON again for connection to use with transmitter.

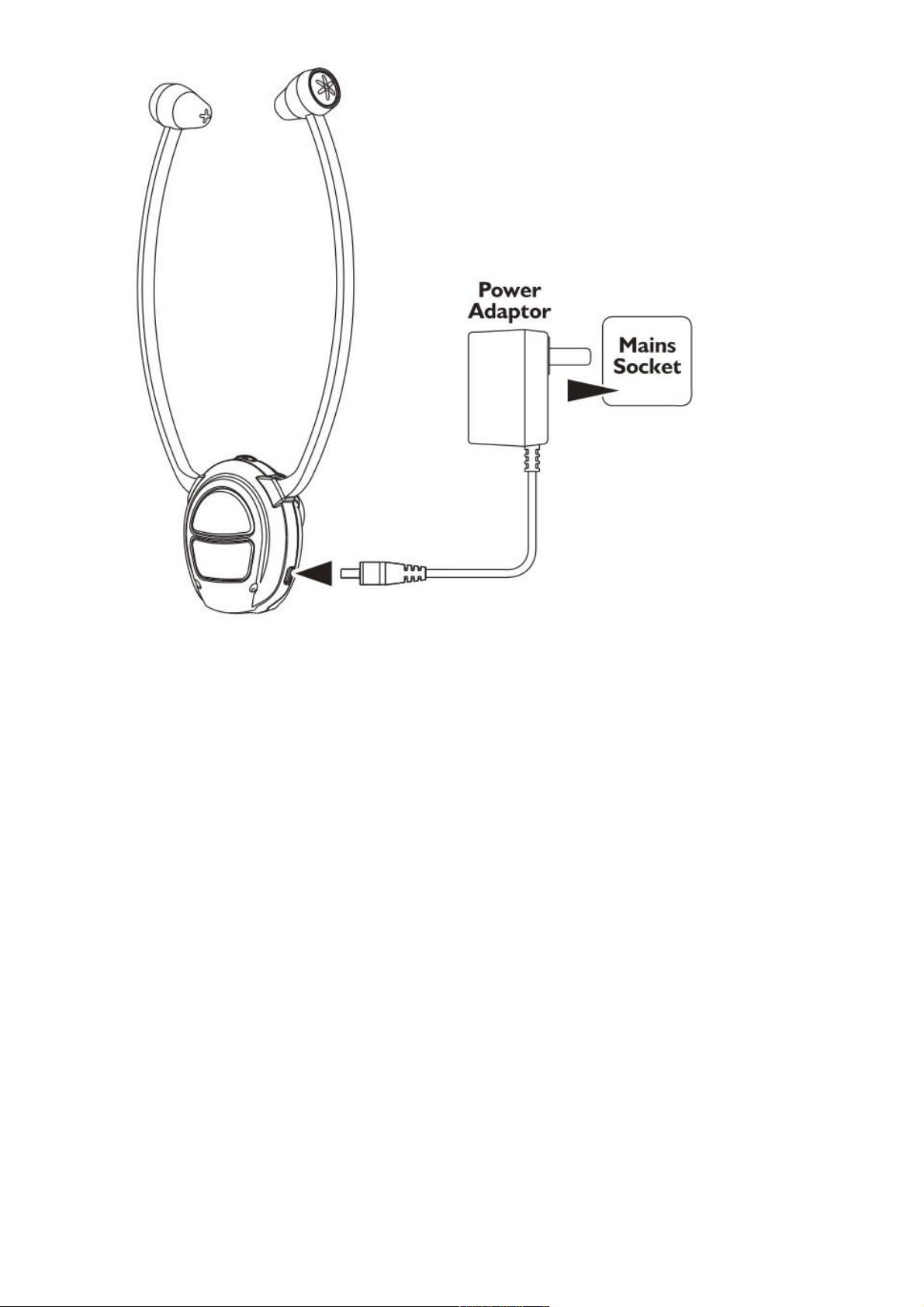

5. The headphone can also be charged with the supplied Power Adaptor through the Micro
USB port on the headphone.
Note: hen the battery level is low, the indicator LED sparkles in blue (Bluetooth mode) or
in green (MIC mode). You will hear 3 beeps every minute and 1 double-beep in the fourth
minute. The headphone will switch off automatically in the fifth minute.
AUTO OFF
hen the headphone is turned on without any connection to Bluetooth devices, it will be
turned off after 5 minutes. To turn on the headphone again, you should first slide the
power button to the OFF position. Then slide it back to ON again.
USE THE HEADPHONE
1. Connect the power of the transmitter. Switch on the audio source. The blue indicator
LED on the transmitter will flash.
2. Switch the On/Off switch on the headphone to ON position, then the blue LED indicator
will flash. The transmitter and the headphone will then be connected automatically. If
transmitter and headphone are not connected with each other, press and hold the PAIR
button on the headphone for about 5 seconds, the blue LED flashes quickly and the units
will be connected.
3. Before putting the headphone on, set the volume on the headphone to a low level, then
adjust the desired volume.
4. Adjust the tone clarity setting if necessary. To set the tone clarity briefly press the TONE
button repeatedly.
线图
-1 short beep: Treble boost
-2 short beeps: Bass boost and treble boos
-3 short beeps: Bass boost
-1 long beep: Flat
5. Adjust the balance of sound (left/middle/right) if necessary.
线图
The PHONE Button ( onne t to smartphone)
线图
Press once: Play/ Pause/ Answer Call/ Hang up
Press and Hold: Reject the call
The MIC Button
Press the Mic Button for sound amplification, the audio signal will be paused and the blue
LED indicator on headphone will turn into green. Press the Mic Button again will stop the
sound amplification function, the green LED indicator on headphone will turn into blue.
The music/sound from audio device will be resumed.
CAUTION!!!
When swit hing between the mi rophone and musi sour e please be aware that the
volume level an hange substantially dependent upon signal input levels. As a
pre aution the volume level should be lowered prior to swit hing between the
mi rophone and musi .
LED INDICATOR
TRANSMITTER LED INDICATOR STATUS
Slow Blinking Blue Stand-by
Fast Blinking Blue (Press PAIR button once) Pairing
Solid Blue Paired
BLUETOOTH HEADPHONE INDICATOR STATUS
Slow Blinking Blue Stand-by
Fast Blinking Blue (Press and Hold PAIR
button for 5 sec)
Pairing
Solid Blue Paired
Fast Blinking Blue Low Battery Status in Bluetooth Mode
Slow Blinking Green Charging the Battery
Solid Green Battery fully charged
Solid Green (Press MIC button once) MIC ON
Solid Blue + Green Incoming Call
Fast Blinking Green Low Battery Status in MIC On Mode
TROUBLESHOOTING
■No sound
-Ensure that the headphone power ON/OFF switch is switched to ON.
-The charge level of the battery inside headphone may be too low. Recharge the battery
for approx. 3 hours.
-Ensure that the Bluetooth connection is established.
-The headphone output level is set too low. Adjust the volume to a suitable level.
■Distortion
-The charge level of the battery inside the headphone may be too low. Recharge the
battery for approx. 3 hours.
-The headphone may be too far away from the Bluetooth transmitter (e.g. smartphone
etc.). Move closer to it.
CAUTION
To protect your hearing, please do not use the headphones at high volume for a long time.
ireless transmission will produce electromagnetic signal which may interfere the heart
pacemaker or other medical instruments properly function. Please follow your doctor’s
instruction.
TECHNICAL SPECIFICATIONS
Bluetooth: V4.0
Frequency Range: 20Hz~20KHz
Distortion: 1%
S/N Ratio: 70dB
Impedance: 16Ω
Built-In Li-Polymer Rechargeable Battery
Standby: 200 hours
Operation Time: 6~8 hours
Charge Time: 3 hours
Operating Distance: 10m
eight: 60g (wireless headphone)
ABOUT ARTISTE
ARTISTE TECHNOLOGY LTD.
The 6th Building, No. 173, Dunhe Road,
Haizhu District, Guangzhou, Guangdong, China
www.artiste-audio.com
Tel: 86-20-66319168
Made In China
