INSTALLATION GUIDE
F904A-8TK
3/4” thermostatic valve trim
kit only squ
BRUSHED NICKEL(BN)
CHROME(CH)

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2016 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
OPERATING SPECIFICATIONS
MIXED WATER TEMPERATURE
Maximum: 120°F
HOT WATER SUPPLY TEMPERATURE
Maximum: 185°F
Minimum: 50°F
Advisable: 150°F- 160°F
Minimum difference between hot mixed temperature 50°F
OPERATING PRESSURE
Maximum: 125psi
Minimum: 20psi
Recommended: 30psi- 95psi
Operating pressures(on hot and cold lines) should be kept
as balanced as possible, in order to assure the maximum
efficiency.
F904A-8TK
3/4” thermostatic valve trim
kit only squ

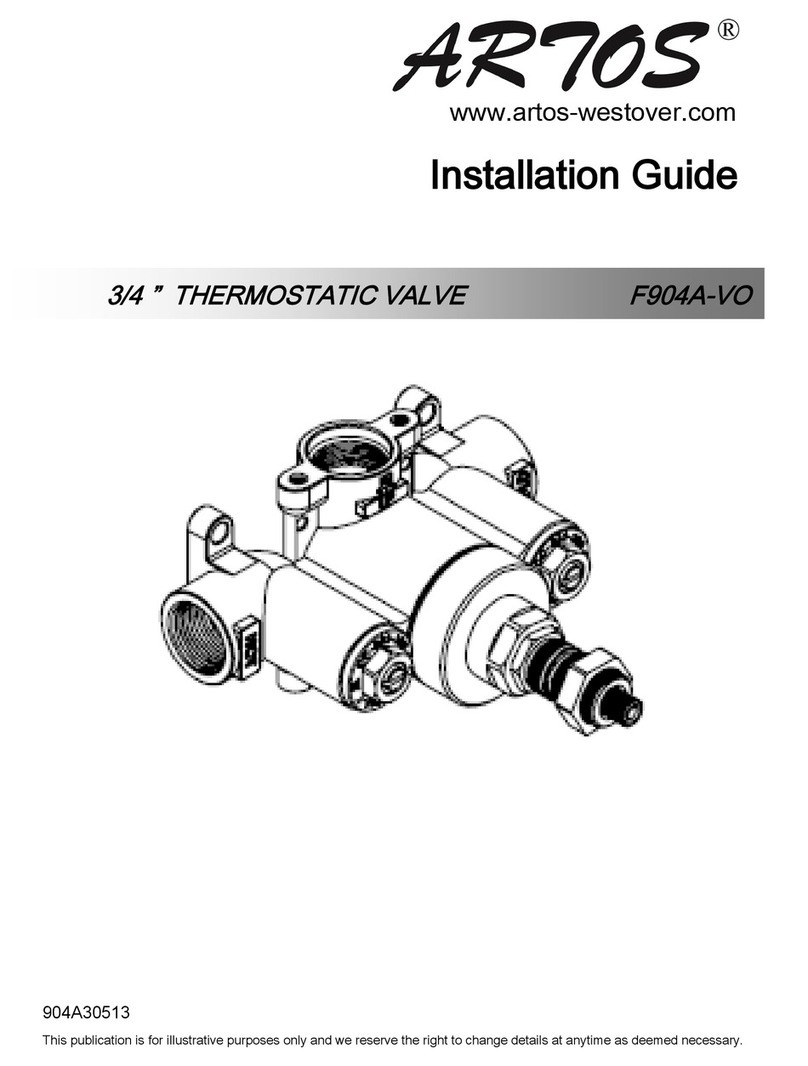

for associated valve | F904A-VO

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2016 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
PRODUCT DIMENSIONS
2-1/8”
6-1/2”
3/16”
1-1/2”
2-1/8”
6-1/2”
2-1/8”
6-1/2”
3/16”
1-1/2”
2-1/8”
6-1/2”
F904A-8TK
3/4” thermostatic valve trim
kit only squ

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2016 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
STEP 1
STEP 2
F904A-8TK
3/4” thermostatic valve trim
kit only squ
REFIT OUTER
SPINDLE ONLY

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2016 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
STEP 3
STEP 4
INSTALLATION STEPS
PLEASE NOTE THE INNER SPINDLE
MUST NOT PROTRUDE PAST THE
FRONT FACE OF THE LOCKING NUT

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2016 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
STEP 5
STEP 6
1/2”
F904A-8TK
3/4” thermostatic valve trim
kit only squ

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2016 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
STEP 7
INSTALLATION STEPS

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2016 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
PARTS BREAKDOWN
1
2
3
4
5
7
2
6
1
2
3
4
5
6
7
ESCUTCHEON F904A-8TK XP1
ALLEN WRENCH F904A-8TK XP2
LOCKING NUT SET SCREW F904A-8TK XP3
LOCKING NUT F904A-8TK XP4
ANTI SCOLD RING F904A-8TK XP5
HANDLE F904A-8TK XP6
HANDLE SET SCREW F904A-8TK XP7
F904A-8TK
3/4” thermostatic valve trim
kit only squ

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2016 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
ESCUTCHEON F904A-8TK XP1
ALLEN WRENCH F904A-8TK XP2
LOCKING NUT SET SCREW F904A-8TK XP3
LOCKING NUT F904A-8TK XP4
ANTI SCOLD RING F904A-8TK XP5
HANDLE F904A-8TK XP6
HANDLE SET SCREW F904A-8TK XP7
CARE & MAINTENANCE
faucets are guaranteed for life against leaks and finishing defects
for as long as the original purchaser owns it.
Damage caused by accident, misuse, abuse, improper installation, improper cleaning
or alteration will void the warranty. This warranty does not cover replacement parts
where damage is caused by normal wear and tear. Westover, Inc is not responsible
for labor charges, installation or other incidental or consequential costs. Proof of
purchase must be provided with all claims.
For best results, keep the following in mind to retain the high quality finish of your
faucets:
Use a soft, dampened sponge or cloth. On no account should you use an abrasive
material such as a brush, scouring pad or steel wool to clean surfaces.
Test your cleaning agent solution on an inconspicuous area before applying to the
entire faucet.
Wipe surfaces clean and rinse completely with water immediately after applying
cleaning agent.
An ideal cleaning technique is to rinse faucet thoroughly and blot dry any water
from the surface after each use.
LIMITED LIFETIME WARRANTY
Please register this product online at WWW.ARTOS.US.COM
ITEM NO. F904A-8TK
SERIAL NO.
®
®
