Artos CR.11 User manual

1

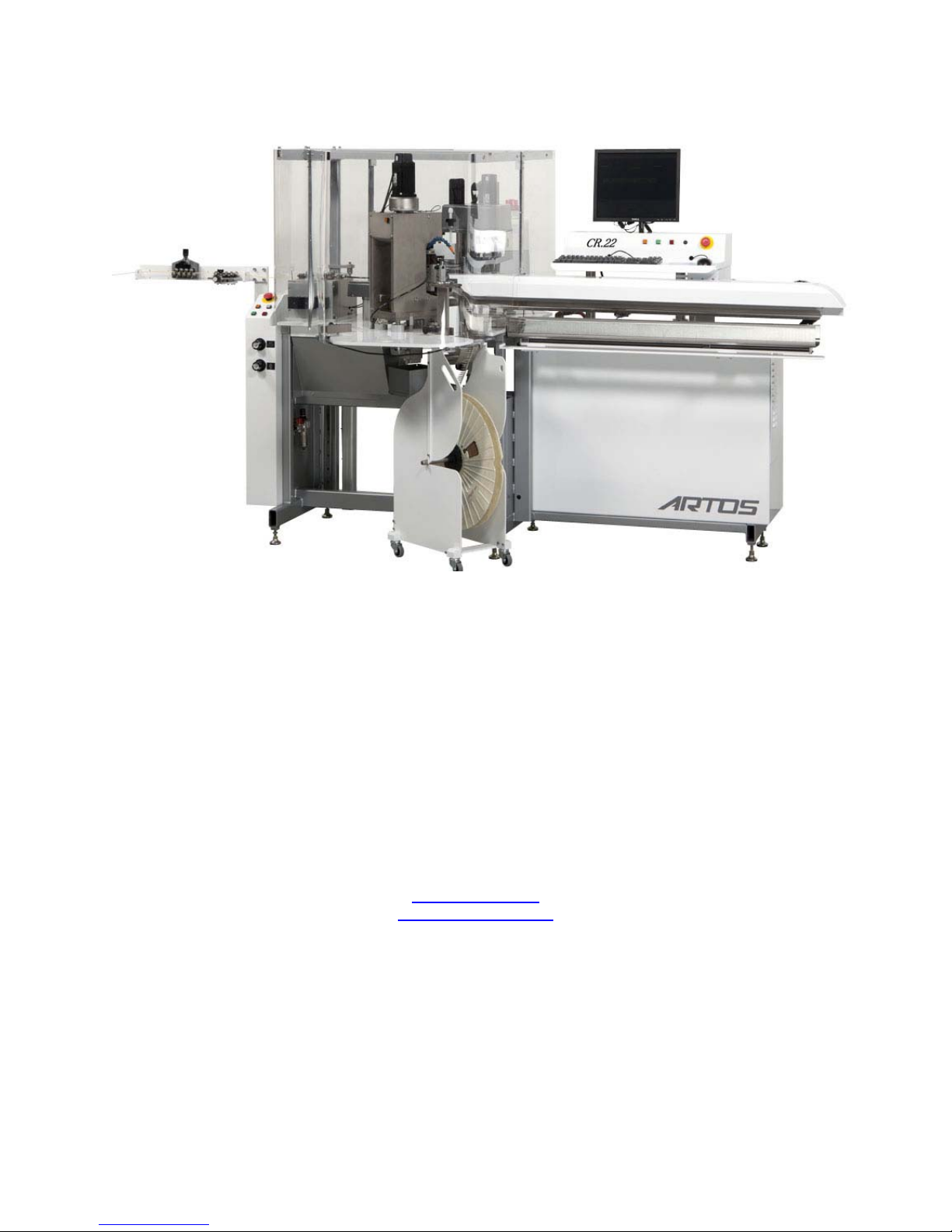

Machine Model CR.11/22 Dual End Processor Owner’s Manual
P/N 6-119916 Rev. 7.07 Date 03 Apr 2017
For Artos Unity Version 7.00 and higher

2
Artos Engineering Company
21605 Gateway Court
Brookfield, WI 53045
Phone [phone] Fax [phone]
www.artosnet.com
[email protected]

3
CUSTOMER SAFETY NOTICE ....................................................................................................... 7
DANGER AREAS OF THE MACHINE .................................................................................................... 7
SAFETY INTERLOCKS ......................................................................................................................... 10
DAILY SAFETY CHECK ........................................................................................................................ 11
SAFETY WARNINGS!! .................................................................................................................. 13
CR SPECIFICATIONS ................................................................................................................... 14
GENERAL DESCRIPTION ........................................................................................................... 18
LIMITS OF USE ............................................................................................................................. 18
MACHINE PART IDENTIFICATION .............................................................................................. 19
Controls .......................................................................................................................................... 19
Control button function ................................................................................................................... 20
Wire Guides ................................................................................................................................... 21
Main Guard .................................................................................................................................... 23
Terminal Reel Carts ....................................................................................................................... 23
TERMINATING UNIT MECHANICAL FEATURES ....................................................................... 24
Air Feed Applicators ........................................................................................................................... 25
Press Jog ............................................................................................................................................ 25
Press Height ....................................................................................................................................... 25
UNITY SOFTWARE OVERVIEW .................................................................................................. 26
Main menu bar .................................................................................................................................... 26
Icon ribbon .......................................................................................................................................... 28
Part program ....................................................................................................................................... 29
Job program ....................................................................................................................................... 30
Group program ................................................................................................................................... 30
Machine control .................................................................................................................................. 30
Qualification ........................................................................................................................................ 31
Crimp Force Monitoring ...................................................................................................................... 31
General software features .................................................................................................................. 31
SETUP MODE FUNCTIONALITY ................................................................................................. 32
RUNNING A PART ........................................................................................................................ 33
Load the part program .................................................................................................................... 33
Change the wire guides ................................................................................................................. 33
Install the applicators ..................................................................................................................... 33
Load the wire .................................................................................................................................. 33
Checking the cut and strip ............................................................................................................. 34
Set gripper and wire feed pressure ................................................................................................ 34
Checking the processes ................................................................................................................. 34
Starting Production ......................................................................................................................... 36
CREATING OR EDITING A PART PROGRAM ............................................................................ 37
Creating a new part program .............................................................................................................. 37
Editing part program properties .......................................................................................................... 38
Selecting the wire ............................................................................................................................... 40
Selecting lead and tail processes ....................................................................................................... 40
Programming lengths ......................................................................................................................... 40
Creating a Doubler Program .............................................................................................................. 41
Configuration for a horizontal double or vertical double ................................................................ 42
Double Termination ........................................................................................................................ 45

4
CREATING OR EDITING A WIRE ................................................................................................ 45
Wire feed tab .................................................................................................................................. 46
Cut/Strip tab ................................................................................................................................... 47
Information tab ............................................................................................................................... 49
Using the Sencor ............................................................................................................................ 50
CREATING OR EDITING A LEAD / TAIL PROCESS .................................................................. 52
Creating a new process ................................................................................................................. 52
Overhang and stripping adjustments ............................................................................................. 52
Steps and Properties ...................................................................................................................... 53
Process position settings ............................................................................................................... 54
Process control settings ................................................................................................................. 55
Selecting an applicator ................................................................................................................... 56
Selecting a terminal ........................................................................................................................ 57
Selecting a Seal ............................................................................................................................. 59
TU-11/12/15 PROGRAMMING (CRIMPING SETTING WINDOW) ............................................... 61
Crimping setting window .................................................................................................................... 61
Crimper Tab ........................................................................................................................................ 62
Information Tab .................................................................................................................................. 62
Cross Section Tabs ............................................................................................................................ 63
Using micrometer to set crimp height ............................................................................................ 65
CREATING OR EDITING A PRE-PROCESS ............................................................................... 66
WIRE MARKING ................................................................................................................................ 66
Marker Physical Setup ................................................................................................................... 67
HOT STAMP MARKING ..................................................................................................................... 67
WM6 ............................................................................................................................................... 67
Continuous Stamp (Even Step) ..................................................................................................... 68
2-End Stamp .................................................................................................................................. 68
Table Stamping (Individual) ........................................................................................................... 69
INK JET PRINTING ............................................................................................................................ 69
UV CURING LIGHT OR SPARK TESTER (STEADY-ON/OTHER) .................................................. 73
BRADY WIRE WRAPTOR LABELER (WRAPTOR) .......................................................................... 73
LABEL PRINTING OPTION .......................................................................................................... 74
CONFIGURING THE COMPUTER .................................................................................................... 74
CONFURING THE LINK TO THE NICELABEL SOFTWARE ............................................................ 75
SELECTING THE PRINTER .............................................................................................................. 76
CREATING A LABEL ......................................................................................................................... 77
PRINT TIMING ................................................................................................................................... 83
Variable List ................................................................................................................................... 83
CRIMP FORCE MONITOR OPERATION CFM2100..................................................................... 84
CREATING AND EDITING JOB PROGRAMS ............................................................................. 85
Creating a New Job Program ......................................................................................................... 86
Programming for Batch Mode ........................................................................................................ 86
Programming for Harness Mode .................................................................................................... 87
CREATING AND RUNNING GROUPS OF PARTS OR JOBS .................................................... 87
General Description ............................................................................................................................ 87
Wire, Terminal and Seal names used for grouping. ........................................................................... 88
Programming ...................................................................................................................................... 89
FILE MANAGEMENT .................................................................................................................... 91

5
DATA ORGANIZER ....................................................................................................................... 92
Selecting items. .............................................................................................................................. 92
Copying or moving items................................................................................................................ 92
Deleting items ................................................................................................................................ 93
Using the Library for wires, instead of the current folder. .............................................................. 93
DATA STORAGE .......................................................................................................................... 94
Data Backup ................................................................................................................................... 94
Data Restore .................................................................................................................................. 96
Data Export .................................................................................................................................... 96
Data Import .................................................................................................................................... 98
PART QUALIFICATION ................................................................................................................ 99
Setting what parameters to qualify ................................................................................................. 99
Setting test values for integrated pull tester and micrometer ....................................................... 101
Using Qualification Process ......................................................................................................... 103
BAR CODE SCANNING .............................................................................................................. 105
Part Selection ...................................................................................................................................... 105
Material Validation .............................................................................................................................. 105
Configuring the machine for material validation. .......................................................................... 106
Entering bar code data for the Wire ............................................................................................. 107
Entering bar code data for the Terminal ...................................................................................... 107
Entering bar code data for the Terminal Applicator ..................................................................... 109
Entering bar code data for the Seal/Boot ..................................................................................... 110
Operation of material validation ................................................................................................... 112
ADDING TERMINAL ICONS ....................................................................................................... 113
CONFIGURING SPECIAL PROCESSES ................................................................................... 113
Closed Barrel termination ................................................................................................................. 113
Using Process Funnels for Closed Barrel ........................................................................................ 115
BD-4 Wire burning device ................................................................................................................ 117
LANGUAGE CONFIGURATION AND TRANSLATION ............................................................. 117
Configuring the machine for a language .......................................................................................... 117
Translated text files .......................................................................................................................... 119
Changing the translation for a text string in the software ................................................................. 119
TEXT FONT SELECTION / SIZE ................................................................................................ 121
SYSTEM LOGIN / PASSWORD .................................................................................................. 122
Configuring the software to require a log in ..................................................................................... 123
adding users and passwords ............................................................................................................ 125
Setting password access levels ....................................................................................................... 126
MAINTENANCE SOFTWARE ..................................................................................................... 127
DEVICE CONFIGURATION ................................................................................................................. 127
CR MACHINE CONFIGURATION ....................................................................................................... 128
MACHINE SETTINGS .......................................................................................................................... 136
MAINTENANCE DATA ........................................................................................................................ 140
TU CONFIGURATION .......................................................................................................................... 142
System .............................................................................................................................................. 143
Terminating Unit Tab -1 or -2 ........................................................................................................... 143
TU MAINTENANCE DATA .................................................................................................................. 144

6
CR11/22 PREVENTIVE MAINTENANCE ................................................................................... 146
Daily .................................................................................................................................................. 146
Monthly ............................................................................................................................................. 147
Quarterly ........................................................................................................................................... 149
Annually ............................................................................................................................................ 151
CHECKING THE CR CALIBRATION .......................................................................................... 156
STRIP BLADE CALIBRATION ................................................................................................... 159
REFERENCE POSITIONS .......................................................................................................... 159
MOTOR AND BELT REPLACEMENT ................................................................................................. 159
Drive Belt Replacement ............................................................................................................... 159
Machine Reference Process ........................................................................................................ 160
Overview ...................................................................................................................................... 160
Master Reference (CR) ................................................................................................................ 160
Machine Reference ...................................................................................................................... 160
Master Reference Procedure. .......................................................................................................... 160
Setting Mechanical Index Position ............................................................................................... 160
SETTING THE “SERVO REFERENCE” ...................................................................................... 161
TU-11/12/15 Servo Reference procedure. ......................................................................................... 164
Shut HEIGHT adjustment ................................................................................................................. 167
Shut Height Setting. ..................................................................................................................... 167
Setting Shut Height ...................................................................................................................... 167
MACHINE INSTALLATION ......................................................................................................... 168
Setting the machine in position ........................................................................................................ 168
Installing the straightener bar. .......................................................................................................... 170
Checking the 1.5M or 2M collector. .................................................................................................. 171
Installing the 4M collector. ................................................................................................................ 172
Installing the computer. .................................................................................................................... 177
Installing the monitor. ....................................................................................................................... 178
Connecting the air. ........................................................................................................................... 179
Installing the power 208-230 VAC .................................................................................................... 179
Installing the power 200-480 VAC .................................................................................................... 181
Covering unused table options ......................................................................................................... 183
Machine power up. ........................................................................................................................... 185

7
CUSTOMER SAFETY NOTICE
The CR 11/22 as supplied to you must only be used with all the guards and safety devices in place
and secure to meet the intended requirements. The safety interlocks must not be tampered with or
overridden in any way. Should any guards, interlock, or other safety device be found to be damaged
or non-operative the machine cannot be used until appropriate repairs have been effected.
DANGER AREAS OF THE MACHINE
When the main guard is open and the machine is in setup mode the power and air are live on the
machine. When the machine is in this state always leave your hands on the two handed controls.
If other personnel are in the area they should never lean over or reach into the machine.
Feed drive – Never place fingers in between the wire feed wheels or belts.
Cutter head - Never place fingers between the blades. The blades are sharp. When changing blades take
care not to touch the sharpened edges.
Pivoting Arms – The arms pivot to and from the cutter head. Keep hands and fingers away from this
motion to avoid collision.
Tail pivot arm
Lead pivot arm
Cutter head

8
Crimping Unit – Never place your fingers in the terminal
applicator. If it is necessary to remove debris use a screwdriver or
similar tool.
Wire pick and place device – Never place your fingers in the
gripper.
Seal Applicator – Never place fingers inside the frame of the seal
applicator.

9
Solder pot – Never touch the solder pot, severe
burns will result. Always wear eye / face protection
and high temperature gloves when servicing the
solder pot.
Wire twister. – Never touch the rotating head of
the twister.
BD-4 burning device – Never the touch the
heated blades, severe burns will result

10
Laser stripper – Never run the laser stripper without the
main guard in position. If the unit is being serviced and
test are being run, always wear Laser safety glasses.
SAFETY INTERLOCKS
All safety guards and interlocks should be tested daily or at the beginning of each shift change. It is
recommended that these checks be documented.
GUARD: Opening the guard will stop the machine and display the warning “Guard Open”. The same
message will appear if the Master Start is pressed with the guard open.
There are two operating switches located around the machine. One is on the side of the infeed station
and one is on the side of the operator station.
Momentarily press the top of the rocker switch to open and again on the bottom to close.
Do not hold the down switch on. The safety re-open feature will not function.
CR11 closed guard CR open guard Guard switch

11
EMERGENCY STOP BUTTONS:
E-Stop Emergency Stop buttons are located at both of the operation stations. When
depressed the machine will not run. Pressing the Master Start will cause a message
to be displayed indicating which button is depressed. To release the Emergency Stop,
rotate the button clockwise slightly. It will pop up.
All electrical enclosures must be kept closed and secured. Only authorized persons with appropriate training
should access these enclosures. In the event that it is required to access electrical enclosures with main
power on, only persons properly trained and familiar with acceptable Safety Regulations may do so.
When performing routine maintenance, adjusting, or cleaning, the machine must be electrically isolated
from the power supply.
Above all else “Think Safety” and insure that the machine is in fact safe.
DAILY SAFETY CHECK
Have the machine loaded with wire so that it will be able to do a wire feed in one of the steps below.
If any item in this list does not perform as stated the machine should be locked out and the appropriate
maintenance personnel notified.
Safety circuit check
1. Turn the setup key to run mode.
2. Close the machine guard.
3. Master start the machine. Press the E-stop button by the wire infeed.
a. The message “Infeed-station E-Stop” will appear on the screen
b. The orange master start lights turn off on machine operator stations and on the back of
each crimping unit.
c. The air pressure gauges on the front of the machine go to 0
d. The motors de-energize.
4. Master start the machine. Press the E-stop button by the wire outfeed.
a. The message “Outfeed-station E-Stop” will appear on the screen
b. The orange master start lights turn off on machine operator stations and on the back of
each crimping unit.
c. The air pressure gauges on the front of the machine go to 0
d. The motors de-energize.
RUN SETUP

12
5. Master start the machine. Open the guard.
a. The message “Hood-guard is open” will appear on the screen
b. The orange master start lights turn off on machine operator stations and on the back of
each crimping unit.
c. The air pressure gauges on the front of the machine go to 0
d. The motors de-energize.
6. Turn the setup key to Setup.
7. Press the master start button. You should see a message “Setup SW Violation” and the machine
will not master start.
8. On the screen select step x step mode. Hold down the setup button and press master start. The
machine should energize.
9. Hold down the setup button and press cycle start. The machine should very slowly feed a length
of wire and then stop.
10. Turn the setup key to Run.
a. The message “Hood-guard is open” will appear on the screen
b. The orange master start lights turn off on machine operator stations and on the back of
each crimping unit.
c. The air pressure gauges on the front of the machine go to 0
d. The motors de-energize.
Mechanical checks.
1. Look for any damage to the plastic guard.
2. Make sure all metal guarding is in position and secure. This includes belt covers and chopper
covers.
3. Master start the machine and listen for air leaks.
4. Look for any loose or broken parts
5. Check the main guard obstruction detection.
a. Start lowering the guard.
b. Push up on the guard edge when it is about half way down.
c. The guard should reverse direction and go back up. The amount of force required to
reverse direction should not exceed 25lbs (111N).

13
SAFETY WARNINGS!!
The following explicit directions apply in this manual. Do not disregard these directions.
WARNING: personal injury may occur-Do not disregard.
CAUTION: Equipment damage may occur.
NOTE: Inconvenience only if disregarded. No immediate danger, damage or personal injury.
WARNING!! The CR 11/22 Uses sharp cutting tools to perform its function. Great care must be taken to
protect the operator and others from harm.
WARNING!!
 Never attempt in any way to operate this machine with the guards removed.
 Never attempt in any way to operate this machine with the guards open.
 Never attempt in any way to disable the safety guard switches.


14
CR Specifications
CR11 Machine Dimensions mm Inches
Length with straightener bar 2670 105
Width with carts 1370 54
Height (Guard down) 1664 66.5
Height (Guard Up) 2235 88
Machine Weight 737 Kg 1625 lbs
CR22 Machine Dimensions
Length with straightener bar 3679 145
Width with carts 1346 53
Height (Guard down) 1664 65.5
Height (Guard Up) 2557 100.7
Machine Weight 960 Kg 1900 lbs
Cart Weight 32 Kg 70 lbs
Machine drawings See drawings manual for list of main
assembly numbers
CR11 Power Supply (standard transformer) 230VAC ±10% 1 Phase 50/60 Hz
16Amps
CR11 Power Supply (universal transformer) 200 / 208 / 230VAC ±10% 1 Phase
50/60 Hz 16Amps
CR22 Power Supply (standard transformer) 230VAC ±10% 1 Phase 50/60 Hz
16 Amps standard
25 Amps if soldering or seal applicators
CR22 Power Supply (universal transformer)
200 / 208 / 230VAC ±10% 1 Phase
50/60 Hz
16 Amps standard
25 Amps if soldering or seal applicators
CR22 with special high voltage option
380 / 415 / 440 / 480 VAC ±10%
1 Phase 50/60 Hz
8 Amps standard
12 Amps if soldering or seal applicators
CR11 Maximum motor size 1.34hp 1000 Watts
CR22 Maximum motor size 1.9hp 1440 Watts
Schematic diagram 7-144743
Air Supply 6 Bar (80PSI)
Air Consumption 140 L/M 5 CFM

15
Noise Level
CR01, Full speed operation in open room
Level of noise emission in conformance with ISO 4871
Sound pressure level LpA (reference 20 μPa) measured at the operator’s station (dB)
69.83
Uncertainty KpA (dB)
1.5
Levels measured with reference to standards ISO 11201: 1995, ISO 3744:1994
Note: The sum of a level measured with the associated uncertainty is the upper limit of the range
in which the level measured may be located.
Wire Range
Min 0.05mm2 30 AWG
Max 4.0mm2 12 AWG
OD 5mm 0.210 In.
Note:
Additional sizes may be possible, see Artos for Details
Wire Length
Min 25 mm (1 inch) depending on strip length
Max 100m 3938 inches
Stripping Lengths
Min. 0.1mm 0.004 in
Max 32mm 1.26 in
Wire overhang for lead and tail
10mm (0.4 in) +strip length + CFM
chop length
Press Stroke, for 40mm version
Min 1mm 0.040 inches
Max 40mm 1.60 inches
Press Stroke, for 30mm version
Min 1mm 0.040 inches
Max 30mm 1.18 inches

16
Typical Nameplate
21605 Gateway Ct.
Brookfield, WI 53045 USA
Model: Cr.22c 2015
Serial #: Cr.22c-00001-001-Q
Electrical Diagram: 7-144743
Assembly Diagram: 4-147221
Voltage: 230V, 1Ph, 50/60 CY
Full Load Current: 16 Amps SCCR 10-kA
Compressed Air: 5 cfm, 80psi
www.artosengineering.com

17
ECDECLARATIONOFCONFORMITY

ArtosEngineeringCompany
21605GatewayCourt
BrookfieldWI53045USA

Authorizedcompanyfortechnicalfile




Artos Engineering declares under our sole responsibility that the product
describedas:

Equipmentname:Wireprocessingmachine
GenericEquipmentdescription:Singleendwireterminationunit
Mode/Type:CR.11orCR.22
Serialnumber(s):CR.21:CR.01‐00001‐001‐QthoughCR.22‐99999‐999‐Q

ComplieswiththerequirementsofthefollowingEuropeanDirectives:

MachineryDirective2006/42/EC;
ElectromagneticCompatibilityDirective2004/108/EC.

Mainstandardsconsidered

ENISO12100:2010
EN60204‐1:2006+A1:2009,ENISO13849‐1:2008
EN61000‐6‐2:2005,EN61000‐6‐4:2007

Date:February6,2015  At:ArtosEngineering
21605GatewayCourt
BrookfieldWI53045USA

Authorizedcompanyrepresentative:JohnOlsen,President

Signature:

18
General Description
The CR machine is designed for the purpose of cutting electrical wire, stripping the insulation from the
tips of the wire and processing the tips of the wire. This processing can include one or more of the
following items. Crimping a terminal, installing a weather tight rubber seal, twisting the wire strands,
fluxing, or soldering.
After the wire is processed it is accumulated in a collection tray in batches for easy removal by the
operator of the machine.
Limits of Use
The CR machine is intended for use in a dry indoor working environment. The machine cannot be
exposed to liquid spray or mist, damage will result. Safety guarding and circuits should never be
removed or tampered with or injury may result. The electrical cabinets should only be opened by trained
and authorized personnel. Use of this machine for purposes other than those stated in the general
description may result in damage to the machine or personal injury.

19
Machine part identification
Controls
The Cr11/22 has two conveniently placed operating stations. One is located at the infeed end of the
machine to facilitate loading and set up. The second is at the outfeed Operator Station to use in
conjunction with the Unity operating system as well as the wire collection tray.
INFEED STATION
CR11 CR22C
Jaw clamp and feed roller pressure valves
OUTFEED STATION
JAW
PRESSURE
FEED
ROLLERS
PRESSURE
JAW
PRESSURE
FEED BELT
PRESSURE

20
Control button function
Master Start will apply power to all motors and air supply. If the Master Start button is lit (on)
you can hold it down actuate the batch tray.
Jog RAM located on the back of the press. Slowly moves the press RAM.
Cycle Start will start any cycling motion based on the mode selected, Auto, Single, or step.
Cycle stop/Master Stop will stop the cycle at the end of the current part running. Holding the
button down for 3 seconds will cause an orderly cycle stop and turn off the Master Start
Feed Jog will feed wire through the feed system to the cutting area.
CutThiswillpivottheendofthewiretothecutbladesandcutthewire.
Open / Close feed rollers (for CR22C machine)
Setup mode key switch Setup 2nd hand button, to activate step x step
Guard rocker switch. Push up to raise the guard, down to lower the guard.
RUN SETUP
