ARTRAY ARTCAM-407UV-WOM Series User manual

- 1 -
Apr 25, 2022
Ver1.02
USB2.0 Ultraviolet CCD CAMERA
ARTCAM-407UV-WOM Series
INSTRUCTION BOOKLET
1.5 M pixels ARTCAM-407UV-WOM Series
ARTRAY CO., LTD.

- 2 -
Contents
1. Attention ...................................................................................................................................................- 3 -
2. Introduction..............................................................................................................................................- 6 -
3. Features....................................................................................................................................................- 6 -
4. The Product..............................................................................................................................................- 7 -
5. Connections..............................................................................................................................................- 7 -
5.1. How to connect a camera...............................................................................................................- 7 -
5.2. Shutter Speed...................................................................................................................................- 7 -
6. Specification.............................................................................................................................................- 8 -
6.1. Specifications...................................................................................................................................- 8 -
7. External Dimensions ...............................................................................................................................- 9 -
7.1. C-MOUNT, CASED, USB CABLE TYPE ........................................................................................- 9 -
7.2. BOARD LENS, BOARD TYPE........................................................................................................- 10 -
7.3. C-MOUNT, BOARD TYPE.............................................................................................................- 11 -
8. Spectral Sensitivity Characteristics ....................................................................................................- 12 -
8.1. ARTCAM-407UV-WOM series .....................................................................................................- 12 -
9. Ultraviolet (UV) Transmitting, Visible Absorbing Filter Characteristics ........................................- 12 -
10. AD Conversion (ARTCAM-WOM series).........................................................................................- 13 -
10.1. Standard functions (configurable in standard viewer/SDK)....................................................- 13 -
10.2. Optional functions (please contact us for further details.)......................................................- 13 -
11. Optional Functions ............................................................................................................................- 14 -
11.1. Trigger Input...................................................................................................................................- 14 -
11.2. GPIO.................................................................................................................................................- 14 -
11.3. Trigger Timing Chart......................................................................................................................- 16 -
12. System Requirements.......................................................................................................................- 17 -
12.1. Recommended System Requirements........................................................................................- 17 -

- 3 -
1. Attention
■About this manual
1. Before using the camera, please read this manual thoroughly.
2. Please keep this manual reachable and always refer to the contents when needed.
3. Please contact us if the manual is lost or damaged. We will provide a replacement.
4. We cannot guarantee the safety of improper uses of the camera.
5. For your safety, please follow the directions of this manual.
6. All contents are subject to change.
7. Images in this manual may have been simplified to be easier comprehended.
8. Please contact us if you find any unclear points or mistakes in this manual.
9. Quoting, copying or altering some or all parts of the manual without our permission is prohibited.
10. We are not responsible for any lost or damages on your profits due to the use of our products.
11. Please understand that our oversea branches do not provide maintenance or repair services.
■About the Icons
To keep the safety of the user, other people and their properties, please pay attention to the following
icons.
W Warning
If the user fails to follow the instruction, serious injury or death may occur.
Caution
If the user fails to follow the instruction, physical injury on human or damages on hardware may occur.

- 4 -
■For Safe Use
Warning
●In following circumstances, please stop using the product and turn off the power immediately to
prevent the risks of fires and electric shocks. If the product is defective, please contact us for repair or
exchange. For your safety, please do not disassemble, modify or repair the camera on your own.
Please stop using the product and turn off the power immediately when:
・The product becomes smoky or gets extremely hot on the surface, or makes unusual smells or sounds.
・Foreign material or water gets into the product.
・The product falls and becomes damaged.
●Do not place the product on unstable surfaces. The product may be fallen and people may get hurt.
Caution
●Do not expose the product to steam or fumes to avoid electric shocks and fires.
●Do not leave the product in high temperature places such as inside of vehicles or under direct
sunlight. High temperature may cause damages to the camera, or even cause fires.
●Do not cover the product with cloth or other materials. The product may get extremely hot and the
heat may cause deformations on the parts or even cause fires.
●Please avoid dropping or shocking the product as the product may be damaged.
●Do not touch the cable with a wet hand. Such action may cause electric shocks.
●Please avoid continuously contacting the surface of the camera to your skin when the camera is
being used. The surface temperature of the camera may cause burns.
■Other Notices
●Please do not use the camera under strong lights such as sun light for a long period. Also please do
not expose the camera under strong lights even when the product is not being used because the sensor
might be damaged.
Maintenance
●Wipe the dirt on surface with soft cloth or tissue paper. Do not use alcohol, thinner or benzene to
avoid damaging the surface paints.

- 5 -
Electro Magnetic Interference
●The camera may interference with electronic devices such as TV and radio. Please do not place the
camera next to such equipment.
■Export Control
This product is a Catch-all Control item subject to the Foreign Exchange and Foreign Trade Act and its
relevant legislations. Except for exporting to the 26 white countries designated in the Cabinet Order,
export licenses are required if the products are going to be used for military use or if the end user of the
product is related to all kinds of military activities. If your circumstances cause the need to apply export
licenses, please notify us before you place orders. Also, please notify us in advance if the end users or
purposes of use change after the purchase and thus cause the need to apply export licenses.
About the Japanese Security Export Controls, please refer to the webpage for Security Export Control
Policy, the Ministry of Economy, Trade and Industry:
www.meti.go.jp/policy/anpo/englishpage.html
The above is based on the enforcement laws and regulations at the time of issuance of this document.
Please be sure to check the latest laws and regulations before actually exporting this product.
■Guarantee
To save the environment, we do not issue warranty in printed format. Instead, all records of the
warranty periods, delivery dates and the customer information are well kept in our system.
For more details, please refer to the following link:
Hardware Warranty: http://www.artray.us/download/artray_warranty.pdf
●We do not guarantee the functions of this product or the descriptions on this manual to be
completely adapted to the users’end applications or marketing purposes. We are also not held
responsibility for any direct or indirect damages caused by our products under any circumstances.
●Please do not use this product for a task that require high reliability. This product is not
manufactured to be used as medical, nuclear, aerospace, transportation equipment or equipment or
that is highly related to human safety. We are not held responsibility for any damages on the users’
property, equipment or personal safety caused by this product.
■Disposal
●To dispose this product, please return the camera to us. If you decide to dispose the camera without
returning it to us, please follow related regulations and have the camera disposed as an industrial
waste. Please always keep track of the disposal, and make sure the disposed camera cannot be
accessed or used by any third party.

- 6 -
2. Introduction
The ARTCAM-407UV-WOM is camera adopting a CCD sensor equipped sensitivity of ultraviolet.
The area of visible light is hardly recognized based on its combination with UV lighting equipment and it
easily reflects blur, stain and scratch on the surface of objects.
This series adopt USB2.0 interface, so the data can be delivered to PC directly without a capture board.
Cameras are equipped with on board memory which avoid data missing during transfer.
We provide a variety including cased cameras, board cameras which can be easily incorporated to other
equipment, and so on.
3. Features
⚫High Resolution, High Frame Rate
With high resolution of 1360(H) x 1024(V) pixels, the frame rate can reach 12fps.
⚫USB2.0 Interface
Our cameras adopt USB2.0 interface, so the data can be delivered to PC directly and no capture board
is needed.
⚫Small and Light
Our cameras are small and light, thus can be easily installed according to your desires.
Also, the board type camera with small type board lens is easy to be incorporated with other machines.
⚫Varieties to Your Needs
We provide a variety including cased cameras, board type cameras, C-Mount board type cameras.
Also, we provide color and monochrome models to meet customers’needs.
⚫Included Viewer Software
ART-Viewer (Windows 7/8/10).
Users can easily preview, save images and change camera settings by ART-Viewer.
⚫Included Software Development Kit
When developing image processing software, a software development kit that enables you to acquire
Camera image acquisition and camera control are possible with other applications is included as
standard.
You can also download it from the website below.
http://www.artray.us/download_sdk.html
⚫2D Measurement & Filing Software(Optional)
Useful 2D measuring functions are available with the optional 2D Measuring & Filing Software -
ART-MEASURE.

- 7 -
4. The Product
1) Camera
2) USB2.0 Cable (Type A-B connector cable, 3m approx.)
*A type-A connector (3m) is attached for an open frame model without USB connector.
3) Viewer software and Device driver CD
<Option>
1) C Mount Lens
2) 2D Measurement & Filling Software <ART-MEASURE>
3) LabView DLL
4) USB extension cable with repeater function (5.0m)
5. Connections
5.1. How to connect a camera
5.2. Shutter Speed
Shutter speed can be changed on the standard viewer software ART-Viewer.
The shutter speed is set directly on the sensor register, so please refer to the following formulas for the
real exposure time.
Model
Method
407UV-WOM Series
Range : 7~1074(Exposure Time : 1/58824~1/12.5 sec)
Exposure Time= ((1074 –Shutter Value)×1790+424)×0.042 [μsec]
*at 24MHz

- 8 -
6. Specification
6.1. Specifications
ARTCAM-407UV-WOM
407UV-WOM-OP
407UV-WOM-OP-CM
Sensor Type
CCD Monochrome Image Sensor
Total Number Of Pixels
1434(H)×1050(V)
Number Of Effective Pixels
1392(H)×1040(V)
Resolution
1360(H)×1024(V)
Active Imager
Size
6.47(H)×4.83(V)mm
1/2”
Scan Mode
Progressive Scan
Pixel Size
4.65(H)×4.65(V)μm
Shutter Type
Global Shutter
Frame Rate
12fps
Shutter Speed
1/58824~1/12.5s
Interface
USB2.0 Bulk Transfer
Synchronization System
Internal Synchronization
Lens Mount
C Mount(407UV-WOM、407UV-WOM-OP-CM)
Board lens Mount M12 P0.5(407UV-WOM-OP)
Power
DC5V(Supplied by USB port)
Power Consumption
Under Approx.2W
Ambient Conditions
Operating Temperature/Humidity：0~35°C/10~80%(Non condensing)
External Dimensions
50(W)×47(H)×49.7(D)mm(407UV-WOM)
43.5(W)×43.5(H)×33.3(D)mm(407UV-WOM-OP)
50(W)×47(H)×36.7(D)mm(407UV-WOM-OP-CM)
*Lens and tripod mount not included
Weight
Approx.120g(407UV-WOM)
Approx.50g(407UV-WOM-OP)
Approx.80g(407UV-WOM-OP-CM)
*Lens, tripod mount and cable not included
.

- 9 -
7. External Dimensions

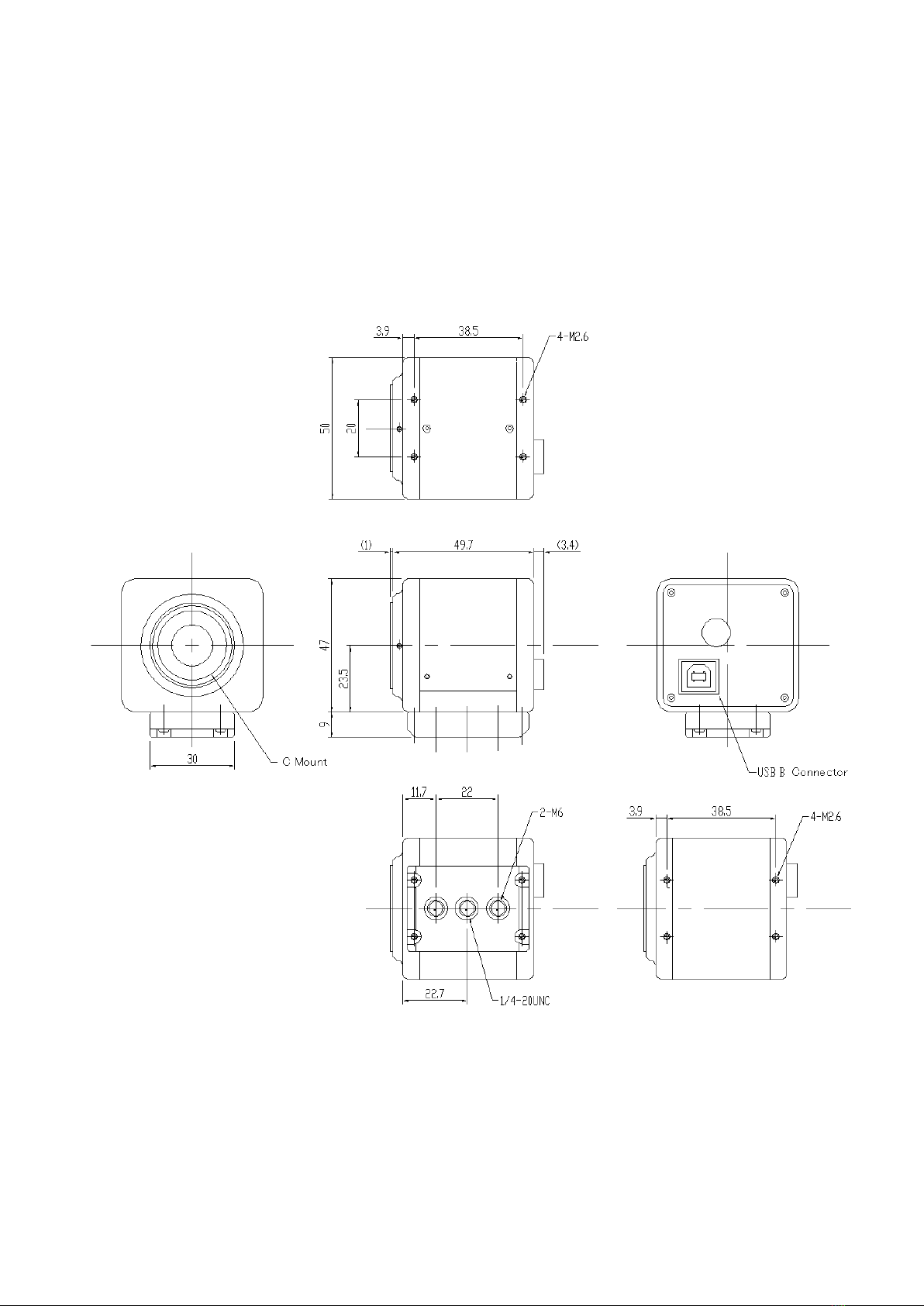

7.1. C-MOUNT, CASED, USB CABLE TYPE
ARTCAM-407UV-WOM
Drawing of the base without a tripod mount

- 10 -
7.2. BOARD LENS, BOARD TYPE
ARTCAM-407UV-WOM-OP

- 11 -
7.3. C-MOUNT, BOARD TYPE
ARTCAM-407UV-WOM-OP-CM

- 12 -

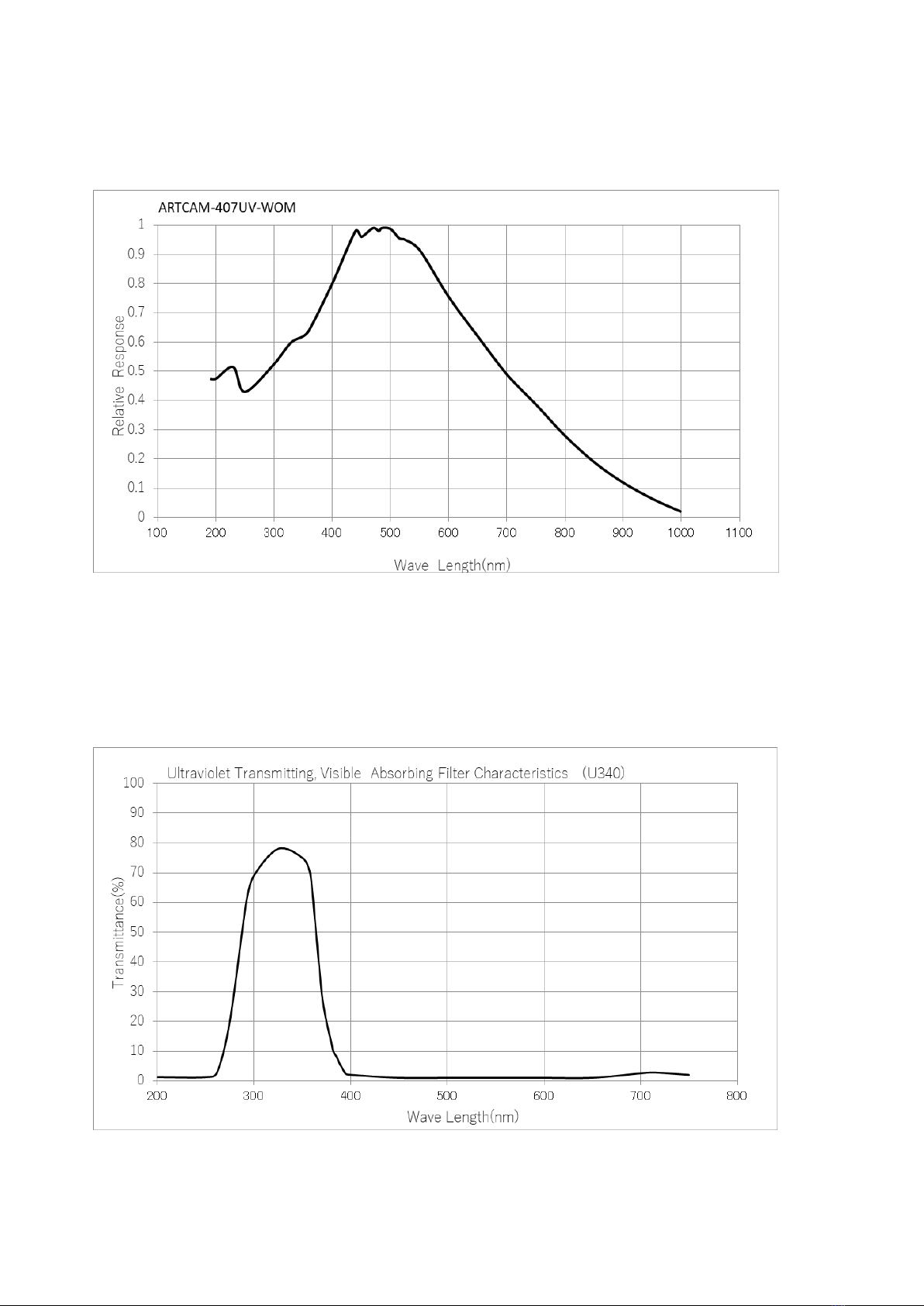

8. Spectral Sensitivity Characteristics
8.1. ARTCAM-407UV-WOM series
9. Ultraviolet (UV) Transmitting, Visible Absorbing Filter Characteristics
ARTCAM-407UV-WOM is adopting UV transmitting, visible absorbing filter U340.
Please review the image sensor graph of wave length characteristic together for detailed information.
*A model without filter is available.

- 13 -
10. AD Conversion (ARTCAM-WOM series)
*AD conversion to 16 bit and then
output the upper 10 bit to digital gain
10.1. Standard functions (configurable in standard viewer/SDK)
・Digital gain
Global gain (digital gain) can be configured with the standard viewer software or SDK.
Setting range on standard viewer software: 0 –1023
Default value on standard viewer software: 512
Digital gain = gain value x 0.03125 –6.0 (dB)
Example 1: When default value is 512,
Analog gain = 512 x 0.03125 –6.0 ＝10(dB)
10.2. Optional functions (please contact us for further details.)
・Analog gain:
Can be set to 3dB, 0dB, 6dB, 12dB or 18dB
・Black level correction
By default, black level correction is set automatically, and the Pedestal level is set to 32 at 10bit.
(When output is at 8bit, the Pedestal level is approximately 32 / 4 = 8.)
The target value of Pedestal level (32) can also be modified.

- 14 -
11. Optional Functions
11.1. Trigger Input
ARTCAM-WOM series are designed with external trigger.
Trigger Input Circuit
R2
TRIG
3.3V
FPGA
Camera
R1
BNC
PC814
R1 = 2.4kΩ
R2 = 10kΩ
11.2. GPIO
GPIO option is available upon request before the delivery of the ARTCAM-WOM series.
Pin assign
No.
Function
1
GPIO_0
2
GPIO_1
3
GPIO_2
4
VCC(3.3V) Maximum output 50mA
5
GPIO_3
6
GPIO_4
7
GPIO_5
8
Gnd

- 15 -
・Each of the six GPIO pins is pulled up to 3.3V with 1kΩon the circuit board and is connected to the IO
pins on FPGA.
・When GPIO pins are used as output pins, the FPGA output is driven at high impedance and Low level.
(At the time of power-up: high impedance)
To control GPIO, please use the ArtCam_SetIOPort / GetIOPort functions in SDK.
To control GPIO output, please specify the corresponding OR calculated values of each bit as per the
table below to the second argument of the SetIOPort function.
IO pin
Bit
GPIO_0
0x01
GPIO_1
0x02
GPIO_2
0x04
GPIO_3
0x08
GPIO_4
0x10
GPIO_5
0x20
For example, to have GPIO_0, GPIO_1, GPIO_4 output High(Z) and GPIO_2, GPIO_3, GPIO_5 output
Low, please call this as follows:
ArtCam_SetIOPort(hACam, (0x01 | 0x02 | 0x10), 0, 0);
To read the GPIO pins, BYTE-type values can be gotten with the GetIOPort function.
For example, to get the status on GPIO_4 pin, please call the followings:
BYTE data = 0x00;
ArtCam_GetIOPort(hACam, &data, 0, 0);
BOOL gpio4 = (data & 0x10) ? TRUE : FALSE;
And the BOOL-type variable gpio4 of GPIO_4 pin is gotten
・Extensions
Monitoring the vertical synchronization signals, horizontal synchronization signals, strobe signals,
and trigger signals on the sensor are possible as extensions of the GPIO option. (Optional)

- 16 -
11.3. Trigger Timing Chart
t1
Trigger input pulse width
10 μs or more
t2
From the start of the trigger
Internal trigger signal rise
About 2 μs or less
t3
Internal trigger signal pulse width
About 10 μs (fixed value)
t4
Sensor pixel reset period
Shutter setting value * 1 line time
(1 line time = 1790 * 1/24 [μsec])
t5
Sensor exposure period
(1074 - Shutter setting value) * 1 line time
t6
From exposure completion to data
transfer
About 8 line hours
t7
Data transfer (sensor-FPGA)
1024 line time ≒76 ms
t8
Data transfer (FPGA-USB →PC)
It depends on the USB transfer speed.
(Approximately 40 msec at standard speed)
t9
Software processing time
About 2 msec
(depending on CPU speed and processing content)
t10
Valid trigger acceptance interval
About 160 msec

- 17 -
12. System Requirements
12.1.Recommended System Requirements
●Host Controller
This camera is applicable to USB 2.0.
●CPU
The driver of this camera is applicable to computer architecture “x86”or “amd64”.
The specification of CPU effects directly the imaging process speed, therefore it is highly
recommended to utilize a high-end CPU if possible.
●Memory
In the viewer software, there is a data buffer which can store 4 to 8 frames.
Therefore, it is necessary to keep spare space at least for 8 frames in the memory.
(For example, when using 1.3MP color camera, 1280 x 1024 x 3 x 8 [byte] = 30[MB] is
necessary.)
It is highly recommended to keep enough memory space especially when using high resolution
camera.
●OS
This camera is applicable only to the architecture of Windows NT (32bit/64bit).
Standard functions are confirmed with OS after Windows 7.
In addition, it is recommended to use Windows 10.
Caution
■Please refer the restrictions below when you use ARTCAM series.
(1) Recommended System Requirements
If the system specifications do not meet the requirements recommended above, it may be difficult to
run at the maximum frame rate.
(2) Connection of Multiple USB Devices
When connecting multiple USB devices to one USB host controller, some USB device may fail to
function stably depending on the specifications of the host controller.
(Problem of power supply, data transfer bandwidth, etc.)
To avoid power supply problem, it is recommended to use powered USB hub.
(3) USB2.0 Cable Extension
We cannot guarantee the functionality of the USB2.0 camera if the user adopts USB2.0 extension
cables or repeaters which are not confirmed by us. With the extension cables or repeaters, the
bandwidth of transfer may differ, and thus caused malfunctions such as a low frame rate or recognition
failure on the camera.
What may cause the problem is that the regulation of the power lines becomes not enough, and so
causes impudence mismatch on data signals.
*For the recommended extension cable, please contact our sales department.
(TEL: [phone])

- 18 -
ARTRAY CO., LTD. Obtained ISO 9001: 2015 2018/9/17
1-17-5 Kouenjikita, Suginami-ku, Tokyo 166-0002 Japan
Tel: [phone] Fax: [phone]
Email: [e-mail] URL: www.artray. us
